Comprehensive Product Summary – Neousys Nuvo‑1005S‑520M Fanless Embedded Controller
### 1. Product Overview
Product Name: Nuvo‑1005S‑520M
Series: Nuvo‑1000 Series – Intel® Core™ i7/i5 Fanless Embedded Controller
Article Number: Nuvo‑1005S‑520M
Manufacturer: Neousys Technology Inc.
Model Type: Fanless industrial embedded controller with Intel® Core™ i5‑520M processor
Product Category: Ruggedized fanless embedded computing platform for industrial and automation applications
The Nuvo‑1005S‑520M belongs to Neousys’ Nuvo‑1000 family of fanless embedded controllers designed for high‑reliability industrial computing. It integrates Intel® Core™ i5‑520M dual‑core processor, Intel® HM55 chipset, and a comprehensive set of I/O interfaces in a compact, thermally efficient aluminum chassis. The system is engineered for continuous operation in harsh environments, supporting extended temperature ranges and vibration/shock resistance suitable for factory automation, machine vision, transportation, and surveillance systems.
### 2. Key Features
- Intel® Core™ i5‑520M Processor (2.4 GHz, 3 MB Cache): Dual‑core CPU with integrated Intel® HD Graphics for high‑performance embedded computing.
- Fanless Thermal Design: Passive cooling architecture ensures silent operation and long‑term reliability in dusty or vibration‑prone environments.
- Five Independent Gigabit Ethernet Ports: Implemented via Intel® 82574L controllers, each with dedicated PCIe lanes for maximum throughput—ideal for multi‑camera or network‑intensive applications.
- Dual Independent Display Outputs: VGA (DB‑15) supporting up to 2560 × 1600 px and DVI‑D/HDMI supporting up to 1920 × 1080 px (HDMI) or 1600 × 1200 px (DVI).
- Rich I/O Connectivity: 6 × USB 2.0, 4 × COM ports (1 × RS‑232/422/485 software‑selectable + 3 × RS‑232), PS/2 keyboard/mouse, audio I/O, and CompactFlash slot.
- Storage Flexibility: Internal SATA port for 2.5″ HDD/SSD, dual eSATA ports for external storage, and front‑accessible CF Type I slot.
- Expansion Capability: One internal Mini‑PCIe slot with SIM socket for wireless modules; optional PCI‑104 expansion and isolated digital I/O (8 DI + 8 DO, 2500 Vrms isolation).
- Wide‑Range DC Power Input: 8 – 26 V DC input via terminal block or DC jack, supporting AT/ATX power modes and remote on/off control.
- Rugged Environmental Tolerance: Operating temperature –25 °C to +70 °C (with airflow), vibration 5 Grms, shock 50 Grms, humidity 10–90 % non‑condensing.
- Compact and Durable Construction: Aluminum chassis (240 × 195 × 78 mm) with wall‑mount brackets; total weight ≈ 2.7 kg.
- Industrial Reliability: Hardware watchdog timer, BIOS‑level WDT for boot protection, and optional isolated DIO for automation control.
- Operating System Support: Windows XP/7 (32/64‑bit) and Ubuntu Linux 10.x verified.
### 3. Technical Specifications
Processor: Intel® Core™ i5‑520M (2.4 GHz, 3 MB L3 cache, dual‑core, 4 threads)
Chipset: Intel® HM55 Platform Controller Hub
Graphics: Integrated Intel® HD Graphics Controller
Memory: 1 × 204‑pin SO‑DIMM socket, DDR3 1066 MHz SDRAM, up to 4 GB (max tested 2 GB installed)
Ethernet: 5 × Intel® 82574L Gigabit Ethernet ports (RJ‑45, each with dedicated PCIe link)
Serial Ports: 1 × RS‑232/422/485 software‑selectable (COM1), 3 × RS‑232 (COM2–COM4)
USB: 6 × USB 2.0 ports (EHCI mode, backward compatible with USB 1.1/1.0)
Video Outputs:
- VGA (DB‑15) – up to 2560 × 1600 resolution
- DVI‑D / HDMI – up to 1920 × 1080 (HDMI) or 1600 × 1200 (DVI)
Audio: 1 × Mic‑in (pink), 1 × Speaker‑out (green), Realtek ALC262 codec with Intel® HD Audio
PS/2: 1 × Keyboard + 1 × Mouse (6‑pin Mini‑DIN)
Storage Interfaces:
- 1 × Internal SATA port for 2.5″ HDD/SSD
- 2 × eSATA ports for external storage expansion
- 1 × CompactFlash Type I socket (front accessible)
Expansion:
- 1 × Mini‑PCI Express slot with SIM card socket (for 3G/4G modules)
- 1 × Optional PCI‑104 expansion slot
- Optional Isolated DIO module (8 DI + 8 DO, 2500 Vrms isolation)
Power Supply:
- Input Voltage: 8 – 26 V DC (built‑in converter)
- Connectors: 4‑pin pluggable terminal block (V+, V–, Ctrl+, Ctrl–) and DC jack (Ø 2.5 mm)
- Power Consumption: Max 2.8 A @ 19 V (≈ 53.2 W) under full CPU + graphics + LAN load
Mechanical:
- Dimensions: 240 (W) × 195 (D) × 78 (H) mm (9.4″ × 7.7″ × 3.1″)
- Weight: 2.7 kg (including HDD and RAM)
- Mounting: Wall‑mount brackets included
Environmental:
- Operating Temperature: –25 °C to +70 °C (with 0.5 m/s airflow); –25 °C to +60 °C (no airflow)
- Storage Temperature: –40 °C to +85 °C
- Humidity: 10 – 90 % non‑condensing
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD installed)
- Shock: 50 Grms (half‑sine 11 ms, SSD installed)
- EMC: CE/FCC Class A (EN 61000‑6‑3 & EN 61000‑6‑1)
### 4. Functionality and Applications
The Nuvo‑1005S‑520M operates as a compact, high‑performance embedded controller for industrial automation, machine vision, intelligent transportation, and surveillance systems. Its fanless design and wide‑temperature tolerance enable deployment in environments where dust, vibration, or temperature extremes preclude conventional PCs.
Operation Principle:
The system integrates CPU, chipset, memory, and I/O within a sealed aluminum chassis. Heat is dissipated through conduction via the enclosure. The embedded Intel® HD Graphics engine supports dual independent displays for visualization or control interfaces. The five GbE ports allow simultaneous camera or sensor connections, while the Mini‑PCIe slot supports wireless or expansion modules.
Typical Use Cases:
- Multi‑camera machine vision inspection systems
- Industrial automation controllers with digital I/O integration
- Network video recording or IP surveillance servers
- Transportation data acquisition and control nodes
- Edge computing gateways for IoT and SCADA applications
Compatibility:
Supports Windows XP/7 (32/64‑bit) and Ubuntu Linux 10.x distributions. BIOS configurable for IDE or AHCI SATA modes, RS‑232/422/485 serial modes, and AT/ATX power behavior.
### 5. Components & Accessories
Standard Package Contents:
1. Nuvo‑1005S fanless controller (with pre‑installed HDD and RAM as ordered)
2. Accessory box containing:
• Neousys Drivers & Utilities DVD
• Wall‑mount brackets (2 pcs)
• M4 mounting screws (4 pcs)
• Foot pads (4 pcs)
• 4‑pin pluggable terminal block for DC input
• HDD thermal pad (if HDD not pre‑installed)
3. Quick Installation Guide
Optional Accessories:
- AC/DC adapter (12 V output)
- PCI‑104 expansion module
- Isolated DIO module (8 DI + 8 DO, 2500 Vrms isolation)
- Mini‑PCIe wireless communication cards (3G/4G with SIM support)
Connectors Summary:

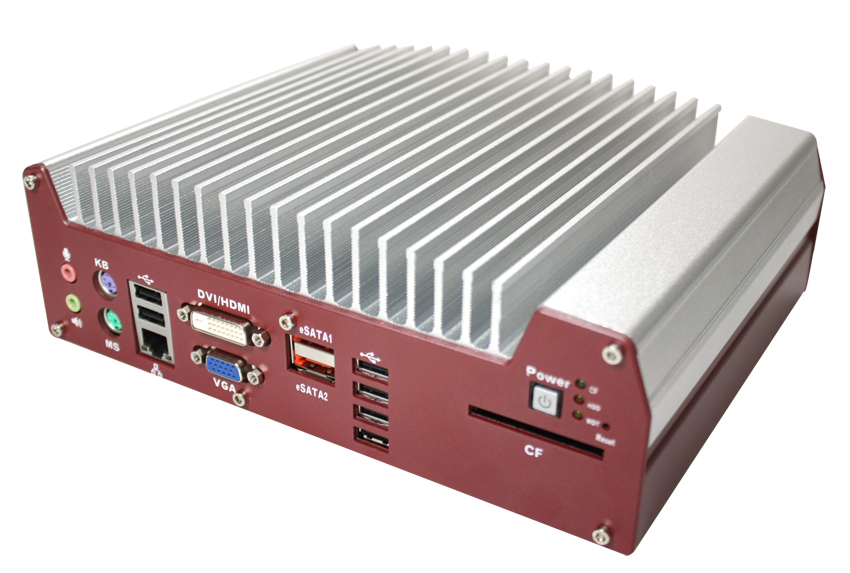

Front panel – Audio I/O, PS/2, 6 × USB, 1 × GbE, VGA, DVI/HDMI, 2 × eSATA, CF slot, Power button, LED indicators.

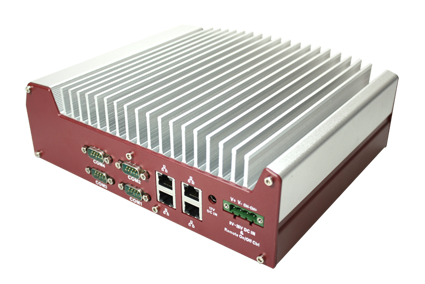

Rear panel – 4 × GbE, 4 × COM, DC input terminal block and jack, optional DIO port.
### 6. Installation & Setup
Mounting:
Supplied wall‑mount brackets attach via four M4 screws on the chassis base. For optimal heat dissipation, mount vertically or with unobstructed airflow around the fins.
Memory & Storage Installation:

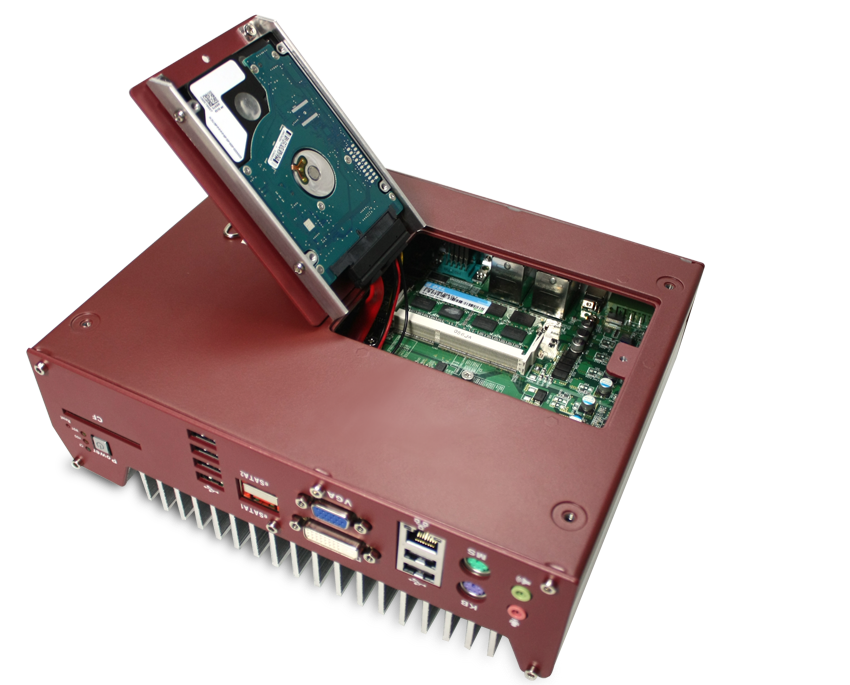

The “Pet‑Door” bottom access panel allows quick installation of DDR3 SO‑DIMM and 2.5″ HDD/SSD. A thermal pad ensures heat transfer from the drive to the chassis.
Power Connection:
- Terminal Block: Connect 8–26 V DC to V+ and V–; Ctrl+ and Ctrl– pins support remote on/off switches (latched for AT mode or momentary for ATX mode).
- DC Jack: Accepts 12 V adapter (Ø 2.5 mm plug). Do not use both inputs simultaneously.
Power Modes:
- AT Mode: System powers on automatically when DC is applied.
- ATX Mode: Controlled via front panel button or external momentary switch.
- Wake‑on‑LAN: Supported on front GbE port for remote startup.
BIOS Configuration:
Accessible via F2 during boot. Key settings include COM1 mode selection, SATA mode (IDE/AHCI), thermal throttling thresholds, power‑on behavior, and WDT for boot protection.
Driver Installation:
Neousys provides a “Drivers & Utilities DVD” with automatic one‑click installation for Windows OS. Manual installation paths are documented for XP and Windows 7 (32/64‑bit).
### 7. Performance & Capabilities
Processing Performance:
The Intel® Core™ i5‑520M (Arrandale) dual‑core CPU delivers 2.4 GHz base frequency with Turbo Boost up to 2.93 GHz, supporting Intel® Hyper‑Threading and VT‑x virtualization. This enables real‑time control and multi‑threaded data processing for industrial tasks.
Graphics:
Integrated Intel® HD Graphics supports DirectX 10 and OpenGL 2.1, suitable for dual display HMI or video output applications.
Network Throughput:
Five independent Intel® 82574L controllers provide deterministic Gigabit Ethernet performance with low latency and support for Wake‑on‑LAN (front port only). Ideal for multi‑camera machine vision or redundant network topologies.
Storage Performance:
SATA II (3 Gb/s) interface for internal HDD/SSD and dual eSATA ports for external drives enable high‑speed data logging and backup. CF slot supports Type I cards for embedded OS deployment.
Power Efficiency:
Typical consumption ≈ 53 W under full load; fanless design reduces mechanical failure points and maintenance costs.
Reliability Features:
- Hardware Watchdog Timer (WDT) implemented via ITE8783 Super I/O chip for system recovery.
- BIOS‑level WDT for boot sequence protection.
- Optional isolated DIO (8 DI + 8 DO) with 2500 Vrms isolation for safe industrial signal interfacing.
Limitations:
- Single SO‑DIMM slot limits RAM to 4 GB maximum.
- USB 2.0 only (no USB 3.0).
- No native DisplayPort or PCIe x16 graphics expansion.
### 8. Standards & Compliance
- EMC Compliance: CE and FCC Class A certified (EN 61000‑6‑3 & EN 61000‑6‑1).
- Safety and Reliability: Designed for industrial operation with IEC 60068‑2‑64 vibration and shock testing.
- Environmental Compliance: RoHS compliant materials and lead‑free manufacturing.
- Operating Temperature Validation: Tested under Intel® Thermal Analysis Tool for full CPU load at specified temperature ranges.
- Quality Assurance: Manufactured under Neousys Technology’s ISO 9001 quality management system.
### 9. Additional Information
Warranty:
Standard Neousys limited warranty (typically 2 years from shipment) covering manufacturing defects and hardware failures under normal operation.
Technical Support:
Comprehensive support via Neousys Technology website and authorized distributors. Includes driver updates, BIOS revisions, and application notes.
Maintenance:
Fanless design eliminates filter or fan replacement. Periodic inspection of thermal interfaces and dust accumulation recommended for long‑term operation.
Software Utilities:
- “Drivers & Utilities DVD” with automatic driver installer.
- WDT & DIO library (WDT_DIO_Setup.exe) for programming watchdog and digital I/O functions under Windows.
- Sample code and API documentation included for custom application development.
Firmware and BIOS Updates:
Field‑upgradable BIOS with support for WDT boot protection and enhanced thermal management parameters.
Service Life and Longevity:
Compatible processors (i5‑520M, i7‑620M, Celeron P4500) are listed in Intel’s Embedded Roadmap with 7‑year lifecycle support (2010–2016), ensuring long‑term availability for industrial projects.
### Summary
The Neousys Nuvo‑1005S‑520M is a robust, fanless embedded controller engineered for industrial and mission‑critical applications requiring high reliability, multiple network interfaces, and extended environmental endurance. Combining Intel® Core™ i5 processing power with a comprehensive I/O suite, it supports dual displays, multiple GbE ports, and flexible expansion options. Its rugged aluminum chassis, wide‑range DC input, and –25 °C to +70 °C operating capability make it suitable for factory automation, machine vision, and transportation control systems.
With CE/FCC Class A certification, hardware watchdog protection, and long‑term component availability, the Nuvo‑1005S‑520M delivers a stable platform for industrial computing deployments where uptime and durability are paramount.
### 1. Product Overview
Product Name: Nuvo‑1005S‑520M
Series: Nuvo‑1000 Series – Intel® Core™ i7/i5 Fanless Embedded Controller
Article Number: Nuvo‑1005S‑520M
Manufacturer: Neousys Technology Inc.
Model Type: Fanless industrial embedded controller with Intel® Core™ i5‑520M processor
Product Category: Ruggedized fanless embedded computing platform for industrial and automation applications
The Nuvo‑1005S‑520M belongs to Neousys’ Nuvo‑1000 family of fanless embedded controllers designed for high‑reliability industrial computing. It integrates Intel® Core™ i5‑520M dual‑core processor, Intel® HM55 chipset, and a comprehensive set of I/O interfaces in a compact, thermally efficient aluminum chassis. The system is engineered for continuous operation in harsh environments, supporting extended temperature ranges and vibration/shock resistance suitable for factory automation, machine vision, transportation, and surveillance systems.
### 2. Key Features
- Intel® Core™ i5‑520M Processor (2.4 GHz, 3 MB Cache): Dual‑core CPU with integrated Intel® HD Graphics for high‑performance embedded computing.
- Fanless Thermal Design: Passive cooling architecture ensures silent operation and long‑term reliability in dusty or vibration‑prone environments.
- Five Independent Gigabit Ethernet Ports: Implemented via Intel® 82574L controllers, each with dedicated PCIe lanes for maximum throughput—ideal for multi‑camera or network‑intensive applications.
- Dual Independent Display Outputs: VGA (DB‑15) supporting up to 2560 × 1600 px and DVI‑D/HDMI supporting up to 1920 × 1080 px (HDMI) or 1600 × 1200 px (DVI).
- Rich I/O Connectivity: 6 × USB 2.0, 4 × COM ports (1 × RS‑232/422/485 software‑selectable + 3 × RS‑232), PS/2 keyboard/mouse, audio I/O, and CompactFlash slot.
- Storage Flexibility: Internal SATA port for 2.5″ HDD/SSD, dual eSATA ports for external storage, and front‑accessible CF Type I slot.
- Expansion Capability: One internal Mini‑PCIe slot with SIM socket for wireless modules; optional PCI‑104 expansion and isolated digital I/O (8 DI + 8 DO, 2500 Vrms isolation).
- Wide‑Range DC Power Input: 8 – 26 V DC input via terminal block or DC jack, supporting AT/ATX power modes and remote on/off control.
- Rugged Environmental Tolerance: Operating temperature –25 °C to +70 °C (with airflow), vibration 5 Grms, shock 50 Grms, humidity 10–90 % non‑condensing.
- Compact and Durable Construction: Aluminum chassis (240 × 195 × 78 mm) with wall‑mount brackets; total weight ≈ 2.7 kg.
- Industrial Reliability: Hardware watchdog timer, BIOS‑level WDT for boot protection, and optional isolated DIO for automation control.
- Operating System Support: Windows XP/7 (32/64‑bit) and Ubuntu Linux 10.x verified.
### 3. Technical Specifications
Processor: Intel® Core™ i5‑520M (2.4 GHz, 3 MB L3 cache, dual‑core, 4 threads)
Chipset: Intel® HM55 Platform Controller Hub
Graphics: Integrated Intel® HD Graphics Controller
Memory: 1 × 204‑pin SO‑DIMM socket, DDR3 1066 MHz SDRAM, up to 4 GB (max tested 2 GB installed)
Ethernet: 5 × Intel® 82574L Gigabit Ethernet ports (RJ‑45, each with dedicated PCIe link)
Serial Ports: 1 × RS‑232/422/485 software‑selectable (COM1), 3 × RS‑232 (COM2–COM4)
USB: 6 × USB 2.0 ports (EHCI mode, backward compatible with USB 1.1/1.0)
Video Outputs:
- VGA (DB‑15) – up to 2560 × 1600 resolution
- DVI‑D / HDMI – up to 1920 × 1080 (HDMI) or 1600 × 1200 (DVI)
Audio: 1 × Mic‑in (pink), 1 × Speaker‑out (green), Realtek ALC262 codec with Intel® HD Audio
PS/2: 1 × Keyboard + 1 × Mouse (6‑pin Mini‑DIN)
Storage Interfaces:
- 1 × Internal SATA port for 2.5″ HDD/SSD
- 2 × eSATA ports for external storage expansion
- 1 × CompactFlash Type I socket (front accessible)
Expansion:
- 1 × Mini‑PCI Express slot with SIM card socket (for 3G/4G modules)
- 1 × Optional PCI‑104 expansion slot
- Optional Isolated DIO module (8 DI + 8 DO, 2500 Vrms isolation)
Power Supply:
- Input Voltage: 8 – 26 V DC (built‑in converter)
- Connectors: 4‑pin pluggable terminal block (V+, V–, Ctrl+, Ctrl–) and DC jack (Ø 2.5 mm)
- Power Consumption: Max 2.8 A @ 19 V (≈ 53.2 W) under full CPU + graphics + LAN load
Mechanical:
- Dimensions: 240 (W) × 195 (D) × 78 (H) mm (9.4″ × 7.7″ × 3.1″)
- Weight: 2.7 kg (including HDD and RAM)
- Mounting: Wall‑mount brackets included
Environmental:
- Operating Temperature: –25 °C to +70 °C (with 0.5 m/s airflow); –25 °C to +60 °C (no airflow)
- Storage Temperature: –40 °C to +85 °C
- Humidity: 10 – 90 % non‑condensing
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD installed)
- Shock: 50 Grms (half‑sine 11 ms, SSD installed)
- EMC: CE/FCC Class A (EN 61000‑6‑3 & EN 61000‑6‑1)
### 4. Functionality and Applications
The Nuvo‑1005S‑520M operates as a compact, high‑performance embedded controller for industrial automation, machine vision, intelligent transportation, and surveillance systems. Its fanless design and wide‑temperature tolerance enable deployment in environments where dust, vibration, or temperature extremes preclude conventional PCs.
Operation Principle:
The system integrates CPU, chipset, memory, and I/O within a sealed aluminum chassis. Heat is dissipated through conduction via the enclosure. The embedded Intel® HD Graphics engine supports dual independent displays for visualization or control interfaces. The five GbE ports allow simultaneous camera or sensor connections, while the Mini‑PCIe slot supports wireless or expansion modules.
Typical Use Cases:
- Multi‑camera machine vision inspection systems
- Industrial automation controllers with digital I/O integration
- Network video recording or IP surveillance servers
- Transportation data acquisition and control nodes
- Edge computing gateways for IoT and SCADA applications
Compatibility:
Supports Windows XP/7 (32/64‑bit) and Ubuntu Linux 10.x distributions. BIOS configurable for IDE or AHCI SATA modes, RS‑232/422/485 serial modes, and AT/ATX power behavior.
### 5. Components & Accessories
Standard Package Contents:
1. Nuvo‑1005S fanless controller (with pre‑installed HDD and RAM as ordered)
2. Accessory box containing:
• Neousys Drivers & Utilities DVD
• Wall‑mount brackets (2 pcs)
• M4 mounting screws (4 pcs)
• Foot pads (4 pcs)
• 4‑pin pluggable terminal block for DC input
• HDD thermal pad (if HDD not pre‑installed)
3. Quick Installation Guide
Optional Accessories:
- AC/DC adapter (12 V output)
- PCI‑104 expansion module
- Isolated DIO module (8 DI + 8 DO, 2500 Vrms isolation)
- Mini‑PCIe wireless communication cards (3G/4G with SIM support)
Connectors Summary:
Front panel – Audio I/O, PS/2, 6 × USB, 1 × GbE, VGA, DVI/HDMI, 2 × eSATA, CF slot, Power button, LED indicators.
Rear panel – 4 × GbE, 4 × COM, DC input terminal block and jack, optional DIO port.
### 6. Installation & Setup
Mounting:
Supplied wall‑mount brackets attach via four M4 screws on the chassis base. For optimal heat dissipation, mount vertically or with unobstructed airflow around the fins.
Memory & Storage Installation:
The “Pet‑Door” bottom access panel allows quick installation of DDR3 SO‑DIMM and 2.5″ HDD/SSD. A thermal pad ensures heat transfer from the drive to the chassis.
Power Connection:
- Terminal Block: Connect 8–26 V DC to V+ and V–; Ctrl+ and Ctrl– pins support remote on/off switches (latched for AT mode or momentary for ATX mode).
- DC Jack: Accepts 12 V adapter (Ø 2.5 mm plug). Do not use both inputs simultaneously.
Power Modes:
- AT Mode: System powers on automatically when DC is applied.
- ATX Mode: Controlled via front panel button or external momentary switch.
- Wake‑on‑LAN: Supported on front GbE port for remote startup.
BIOS Configuration:
Accessible via F2 during boot. Key settings include COM1 mode selection, SATA mode (IDE/AHCI), thermal throttling thresholds, power‑on behavior, and WDT for boot protection.
Driver Installation:
Neousys provides a “Drivers & Utilities DVD” with automatic one‑click installation for Windows OS. Manual installation paths are documented for XP and Windows 7 (32/64‑bit).
### 7. Performance & Capabilities
Processing Performance:
The Intel® Core™ i5‑520M (Arrandale) dual‑core CPU delivers 2.4 GHz base frequency with Turbo Boost up to 2.93 GHz, supporting Intel® Hyper‑Threading and VT‑x virtualization. This enables real‑time control and multi‑threaded data processing for industrial tasks.
Graphics:
Integrated Intel® HD Graphics supports DirectX 10 and OpenGL 2.1, suitable for dual display HMI or video output applications.
Network Throughput:
Five independent Intel® 82574L controllers provide deterministic Gigabit Ethernet performance with low latency and support for Wake‑on‑LAN (front port only). Ideal for multi‑camera machine vision or redundant network topologies.
Storage Performance:
SATA II (3 Gb/s) interface for internal HDD/SSD and dual eSATA ports for external drives enable high‑speed data logging and backup. CF slot supports Type I cards for embedded OS deployment.
Power Efficiency:
Typical consumption ≈ 53 W under full load; fanless design reduces mechanical failure points and maintenance costs.
Reliability Features:
- Hardware Watchdog Timer (WDT) implemented via ITE8783 Super I/O chip for system recovery.
- BIOS‑level WDT for boot sequence protection.
- Optional isolated DIO (8 DI + 8 DO) with 2500 Vrms isolation for safe industrial signal interfacing.
Limitations:
- Single SO‑DIMM slot limits RAM to 4 GB maximum.
- USB 2.0 only (no USB 3.0).
- No native DisplayPort or PCIe x16 graphics expansion.
### 8. Standards & Compliance
- EMC Compliance: CE and FCC Class A certified (EN 61000‑6‑3 & EN 61000‑6‑1).
- Safety and Reliability: Designed for industrial operation with IEC 60068‑2‑64 vibration and shock testing.
- Environmental Compliance: RoHS compliant materials and lead‑free manufacturing.
- Operating Temperature Validation: Tested under Intel® Thermal Analysis Tool for full CPU load at specified temperature ranges.
- Quality Assurance: Manufactured under Neousys Technology’s ISO 9001 quality management system.
### 9. Additional Information
Warranty:
Standard Neousys limited warranty (typically 2 years from shipment) covering manufacturing defects and hardware failures under normal operation.
Technical Support:
Comprehensive support via Neousys Technology website and authorized distributors. Includes driver updates, BIOS revisions, and application notes.
Maintenance:
Fanless design eliminates filter or fan replacement. Periodic inspection of thermal interfaces and dust accumulation recommended for long‑term operation.
Software Utilities:
- “Drivers & Utilities DVD” with automatic driver installer.
- WDT & DIO library (WDT_DIO_Setup.exe) for programming watchdog and digital I/O functions under Windows.
- Sample code and API documentation included for custom application development.
Firmware and BIOS Updates:
Field‑upgradable BIOS with support for WDT boot protection and enhanced thermal management parameters.
Service Life and Longevity:
Compatible processors (i5‑520M, i7‑620M, Celeron P4500) are listed in Intel’s Embedded Roadmap with 7‑year lifecycle support (2010–2016), ensuring long‑term availability for industrial projects.
### Summary
The Neousys Nuvo‑1005S‑520M is a robust, fanless embedded controller engineered for industrial and mission‑critical applications requiring high reliability, multiple network interfaces, and extended environmental endurance. Combining Intel® Core™ i5 processing power with a comprehensive I/O suite, it supports dual displays, multiple GbE ports, and flexible expansion options. Its rugged aluminum chassis, wide‑range DC input, and –25 °C to +70 °C operating capability make it suitable for factory automation, machine vision, and transportation control systems.
With CE/FCC Class A certification, hardware watchdog protection, and long‑term component availability, the Nuvo‑1005S‑520M delivers a stable platform for industrial computing deployments where uptime and durability are paramount.
-
Nuvo-1000_Series.pdf
PDF Catalog
- Nuvo-PA-60W - 60W AC/DC Power Adapter for Nuvo-100x/20xx and POC series
