Name: Rugged 150W GPU edge AI computer with PoE+ support on four 2.5GbE ports.
Brand: Neousys Technology
SKU: Nuvo-11160GC-PoE

INDUSTRIAL SOLUTION?

Discover embedded, communication and automation solutions tailored to your application.

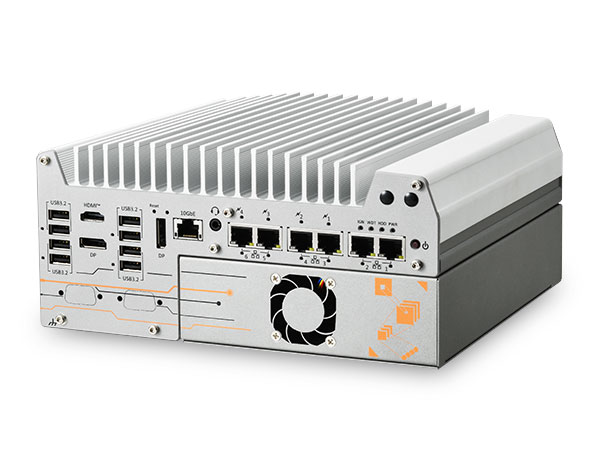

Rugged 150W GPU edge AI computer with PoE+ support on four 2.5GbE ports.

Nuvo-11160GC-PoE

Rugged 150W GPU edge AI computer with PoE+ support on four 2.5GbE ports.

Request a quote

Manufacturer Neousys Technology
Category: Industrial Computer
The Nuvo-11160GC-PoE combines rugged edge AI computing with simplified power delivery for GigE cameras. The platform supports 35W or 65W Intel Core Ultra 200S processors and NVIDIA RTX graphics cards up to 150W. IEEE 802.3at PoE+ is available on 2.5GbE ports 3 through 6 with a total power budget of 100W. Additional connectivity includes one GbE port, eight USB 3.2 Gen2 ports, four isolated digital inputs and outputs each, and four serial interfaces. Up to 128 GB DDR5, NVMe, two SATA ports with RAID 0/1 and MezIO expansion support flexible industrial and mobile AI applications from -25 to 60°C.

PoE-capable rugged edge AI platform supporting Intel Core Ultra 200S LGA1851 processors and NVIDIA RTX GPU cards up to 150W. It offers optional IEEE 802.3at PoE+ PSE on 2.5GbE ports 3 through 6 with a 100W total budget, five 2.5GbE and one GbE port, eight USB 3.2 Gen2 ports, 4-channel isolated DI and DO, up to 128 GB DDR5-6400, PCIe Gen5 x4 NVMe, dual SATA with RAID 0/1 and MezIO expansion.

Supported Processor Family Intel Core Ultra 200 series, LGA1851, 35W and 65W TDP
Maximum Memory 128 GB
AI Engine Integrated Neural Processing Unit
Maximum GPU Power 150 W
Supported PoE MezIO Module MezIO-G4P
Ethernet Ports 5x 2.5GbE and 1x GbE
PoE Standard IEEE 802.3at PoE+ PSE
PoE Enabled Ports 2.5GbE ports 3 through 6
Total PoE Power Budget 100 W
USB 3.2 Gen2 Ports 8 ports
Isolated Digital I/O Channels 4 DI and 4 DO channels
Digital I/O 4-channel isolated DI; 4-channel isolated DO
Storage Interfaces 2x internal SATA with RAID 0/1; 1x M.2 2280 NVMe PCIe Gen5 x4
DC Input Voltage 8 to 48 V DC
Dimensions 240 x 225 x 111 mm
Weight 3.89 kg
Form Factor Compact rugged embedded computer, wall-mountable

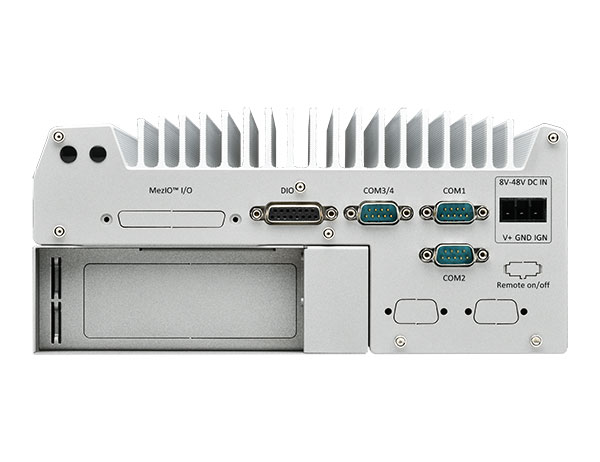

Connector 5x 2.5GbE with PoE+ option on ports 3-6; 1x GbE; 8x USB 3.2 Gen2 Type-A; HDMI; 2x DisplayPort; 4x COM; 3.5 mm audio; 3-pin DC terminal block
Dimensions 240 x 225 x 111 mm (W x D x H)
Operating Temperature -25 to 60 with 35W CPU and 150W GPU; -25 to 50 with 65W CPU and 150W GPU °C
Operating Temperature -25°C to 60°C with 35W CPU and 150W GPU; -25°C to 50°C with 65W CPU and 150W GPU
Bus Interface PCIe x16 Gen4 (16 lanes); 2x full-size mini PCIe; MezIO expansion; M.2 PCIe Gen5 x4
Resolution HDMI: up to 3840 x 2160; 2x DisplayPort: up to 4096 x 2304
Key Features Intel Core Ultra 200S support; NVIDIA RTX GPU support up to 150W; IEEE 802.3at PoE+ on ports 3-6; 100W PoE budget; up to 128 GB DDR5-6400; 8x USB 3.2 Gen2; isolated DIO; MezIO expansion; rugged wide-temperature design
Accessories Dmpbr-Nuvo9160, AccsyBx-Cardholder-9160GC-xx, Cbl-W212F-W210F-23CM, PA-600W-ENC, MezIO-C180, MezIO-C181, MezIO-D220, MezIO-D230, MezIO-D330, MezIO-V20-EP, MezIO-U4, MezIO-G4, MezIO-G4P
