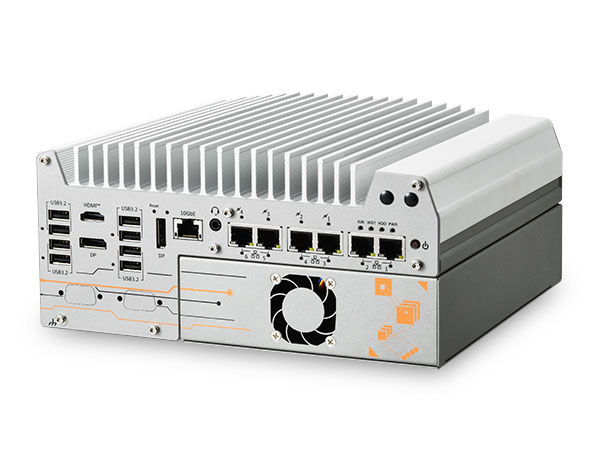

Name: Rugged 150W GPU edge AI computer with PoE+ support on four 2.5GbE ports.
Brand: Neousys Technology
SKU: Nuvo-11160GC-PoE

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

Rugged 150W GPU edge AI computer with PoE+ support on four 2.5GbE ports.

Nuvo-11160GC-PoE

Rugged 150W GPU edge AI computer with PoE+ support on four 2.5GbE ports.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer
Der Nuvo-11160GC-PoE verbindet robuste Edge-AI-Rechenleistung mit einer vereinfachten Versorgung von GigE-Kameras. Die Plattform unterstützt Intel Core Ultra 200S Prozessoren mit 35 oder 65 W und NVIDIA RTX Grafikkarten bis 150 W. Für die 2,5-GbE-Ports 3 bis 6 ist IEEE-802.3at-PoE+ mit insgesamt 100 W Leistungsbudget vorgesehen. Hinzu kommen ein GbE-Port, acht USB-3.2-Gen2-Anschlüsse, je vier isolierte DI und DO sowie vier serielle Schnittstellen. Bis zu 128 GB DDR5, NVMe, zwei SATA-Ports mit RAID 0/1 und MezIO-Erweiterungen unterstützen flexible industrielle und mobile AI-Anwendungen bei -25 bis 60 °C.

PoE-capable rugged edge AI platform supporting Intel Core Ultra 200S LGA1851 processors and NVIDIA RTX GPU cards up to 150W. It offers optional IEEE 802.3at PoE+ PSE on 2.5GbE ports 3 through 6 with a 100W total budget, five 2.5GbE and one GbE port, eight USB 3.2 Gen2 ports, 4-channel isolated DI and DO, up to 128 GB DDR5-6400, PCIe Gen5 x4 NVMe, dual SATA with RAID 0/1 and MezIO expansion.

Supported Processor Family Intel Core Ultra 200 series, LGA1851, 35W and 65W TDP
Maximum Memory 128 GB
AI Engine Integrated Neural Processing Unit
Maximum GPU Power 150 W
Supported PoE MezIO Module MezIO-G4P
Ethernet Ports 5x 2.5GbE and 1x GbE
PoE Standard IEEE 802.3at PoE+ PSE
PoE Enabled Ports 2.5GbE ports 3 through 6
Total PoE Power Budget 100 W
USB 3.2 Gen2 Ports 8 ports
Isolated Digital I/O Channels 4 DI and 4 DO channels
Digital I/O 4-channel isolated DI; 4-channel isolated DO
Storage Interfaces 2x internal SATA with RAID 0/1; 1x M.2 2280 NVMe PCIe Gen5 x4
DC Input Voltage 8 to 48 V DC
Dimensions 240 x 225 x 111 mm
Weight 3.89 kg
Form Factor Compact rugged embedded computer, wall-mountable

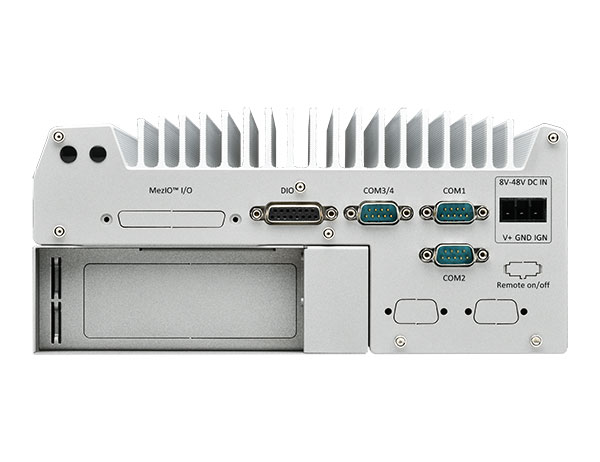

Connector 5x 2.5GbE with PoE+ option on ports 3-6; 1x GbE; 8x USB 3.2 Gen2 Type-A; HDMI; 2x DisplayPort; 4x COM; 3.5 mm audio; 3-pin DC terminal block
Dimensions 240 x 225 x 111 mm (W x D x H)
Operating Temperature -25 to 60 with 35W CPU and 150W GPU; -25 to 50 with 65W CPU and 150W GPU °C
Operating Temperature -25°C to 60°C with 35W CPU and 150W GPU; -25°C to 50°C with 65W CPU and 150W GPU
Bus Interface PCIe x16 Gen4 (16 lanes); 2x full-size mini PCIe; MezIO expansion; M.2 PCIe Gen5 x4
Resolution HDMI: up to 3840 x 2160; 2x DisplayPort: up to 4096 x 2304
Key Features Intel Core Ultra 200S support; NVIDIA RTX GPU support up to 150W; IEEE 802.3at PoE+ on ports 3-6; 100W PoE budget; up to 128 GB DDR5-6400; 8x USB 3.2 Gen2; isolated DIO; MezIO expansion; rugged wide-temperature design
Accessories Dmpbr-Nuvo9160, AccsyBx-Cardholder-9160GC-xx, Cbl-W212F-W210F-23CM, PA-600W-ENC, MezIO-C180, MezIO-C181, MezIO-D220, MezIO-D230, MezIO-D330, MezIO-V20-EP, MezIO-U4, MezIO-G4, MezIO-G4P
