Comprehensive Product Summary – Nuvo-7006DE

---

### 1. Product Overview

Product Name: Nuvo-7006DE
Model: Nuvo-7006DE
Series: Nuvo-7000 Series (Rugged Embedded Fanless Controllers)
Article Number: Nuvo-7006DE
Manufacturer: Neousys Technology Inc.
Product Type: Rugged fanless embedded controller with dual PCIe expansion slots and six Gigabit Ethernet ports

The Nuvo-7006DE is part of Neousys Technology’s flagship Nuvo-7000 series, a family of ruggedized, fanless embedded controllers designed for industrial automation, machine vision, transportation, and edge computing applications. It integrates Intel® 8th-Generation Coffee Lake Core™ i processors and the Intel® Q370 chipset, offering high performance, wide operating temperature tolerance, and extensive I/O connectivity in a compact, maintenance-free chassis.

---

### 2. Key Features

- Intel® 8th-Gen Coffee Lake CPU Support:
Supports LGA1151-socket processors up to 6 cores/12 threads, including Intel® Core™ i7-8700/8700T, i5-8500/8500T, i3-8100/8100T, Pentium® G5400/G5400T, and Celeron® G4900/G4900T.
Configurable for 35W or 65W TDP operation.

- Fanless Rugged Design:
Completely fanless aluminum chassis with efficient passive heat dissipation, ensuring silent operation and long-term reliability in harsh environments.

- Dual PCIe Expansion (Patented Cassette Module):
Two PCIe x8 slots (Gen3, 4-lane each) housed in a patented expansion Cassette for thermal isolation and simplified installation of add-on cards.

- Six Gigabit Ethernet Ports:
1x Intel® I219-LM and 5x Intel® I210-IT controllers, with optional IEEE 802.3at PoE+ (Ports 3–6, 100W total budget).

- High-Speed USB Connectivity:
4x USB 3.1 Gen2 (10Gbps) and 4x USB 3.1 Gen1 (5Gbps) ports via Intel® native xHCI controller.

- Triple Independent Display Outputs:
Integrated Intel® UHD Graphics 630 supports simultaneous output via VGA (1920×1200), DVI-D (1920×1200), and DisplayPort (4096×2304).

- Wide Operating Temperature Range:
-25°C to +70°C (with 35W CPU) or up to +50°C (with 65W CPU at full load).

- Rugged Environmental Compliance:
MIL-STD-810G vibration and shock resistance, CE/FCC Class A EMC compliance.

- Flexible Storage Options:
Dual 2.5" SATA III bays (RAID 0/1), one M.2 2280 (NVMe/Optane™), and one full-size mSATA (mux with mini-PCIe).

- Advanced Manageability:
Intel® AMT 12.0 and TPM 2.0 support for remote management and hardware-level security.

- Wide Range DC Power Input:
8–35 VDC input via 3-pin terminal block; optional 160W AC/DC adapter (PA-160W-OW).

- Expandable I/O via MezIO™ Interface:
Proprietary high-speed connector for Neousys MezIO™ modules (additional DIO, COM, USB, ignition control, etc.).

---

### 3. Technical Specifications

Processor Support:
Intel® 8th-Gen Coffee Lake CPUs (LGA1151, 35W/65W TDP)
- Core™ i7-8700 / i7-8700T
- Core™ i5-8500 / i5-8500T
- Core™ i3-8100 / i3-8100T
- Pentium® G5400 / G5400T
- Celeron® G4900 / G4900T

Chipset: Intel® Q370 Platform Controller Hub
Graphics: Intel® UHD Graphics 630
Memory: Up to 64GB DDR4 2666/2400 SDRAM (2× SODIMM slots)
AMT: Intel® Active Management Technology 12.0
TPM: Trusted Platform Module 2.0

Ethernet:
- 6× Gigabit Ethernet (1× I219-LM + 5× I210-IT)
- Optional PoE+ (IEEE 802.3at, Ports 3–6, 100W total)

USB:
- 4× USB 3.1 Gen2 (10Gbps)
- 4× USB 3.1 Gen1 (5Gbps)

Serial Ports:
- 2× RS-232/422/485 (software-programmable)
- 2× RS-232

Audio: 1× 3.5mm jack (mic-in/speaker-out, Realtek ALC262 codec)

Video Outputs:
- 1× VGA (1920×1200)
- 1× DVI-D (1920×1200)
- 1× DisplayPort (4096×2304)

Storage Interfaces:
- 2× SATA III (2.5" HDD/SSD, up to 15mm, RAID 0/1)
- 1× M.2 2280 (M key, PCIe Gen3 x4 NVMe/Optane™)
- 1× Full-size mSATA (mux with mini-PCIe)

Expansion:
- 2× PCIe x8 (Gen3, 4-lane each, in Cassette)
- 1× Mini PCIe (mux with mSATA, internal SIM socket)
- 1× M.2 2242 (B key, dual SIM support)
- 1× MezIO™ expansion port

Power Supply:
- Input: 8–35 VDC via 3-pin terminal block
- Optional: 160W AC/DC adapter (PA-160W-OW)
- Remote control and PWR LED output via 3-pin terminal

Mechanical:
- Dimensions: 240 mm (W) × 225 mm (D) × 110.5 mm (H)
- Weight: 3.7–4.4 kg (depending on configuration)
- Mounting: Wall-mount (standard) or DIN-rail (optional)

Environmental:
- Operating Temperature:
-25°C to +70°C (35W CPU)
-25°C to +50°C (65W CPU full load)
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90%, non-condensing
- Vibration: MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I
- EMC: CE/FCC Class A (EN 55032, EN 55024)

---

### 4. Functionality

The Nuvo-7006DE operates as a high-performance embedded controller for industrial and edge computing environments. It is designed for continuous operation in harsh conditions, leveraging a fanless thermal design and wide temperature tolerance.

Use Cases & Applications:
- Machine vision and industrial automation
- Intelligent transportation systems (ITS)
- Surveillance and security systems
- Edge AI computing and data acquisition
- Robotics and motion control
- In-vehicle computing (with ignition control module)

Compatibility:
- Operating Systems: Windows 10 (x64), Ubuntu 16.04/18.04 LTS, Fedora 29, and other Linux distributions (kernel ≥4.15.18).
- Supports Intel® Optane™ memory acceleration and RAID 0/1 configurations.
- Compatible with Neousys MezIO™ modules and PB-2500J supercapacitor power backup.

---

### 5. Components & Accessories

Included Items:
- Nuvo-7006DE system unit
- CPU bracket
- Wall-mount brackets (2 pcs)
- Foot pads (4 pcs)
- 3-pin power terminal block
- HDD thermal pad (for 2.5" drive)
- Screw pack and rubber spacers
- Neousys Drivers & Utilities DVD
- 40×40×10 mm fan for Cassette module

Optional Accessories:
- PA-160W-OW: 160W AC/DC power adapter (20V/8A, -30°C to +70°C)
- DINRAIL-O: DIN-rail mounting kit
- Fan-25: 25×25×10 mm fan assembly for 1-slot Cassette
- PB-2500J: Supercapacitor-based power backup module (optional)

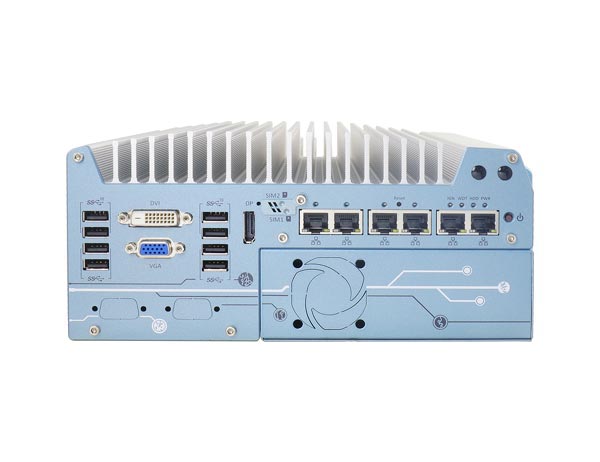

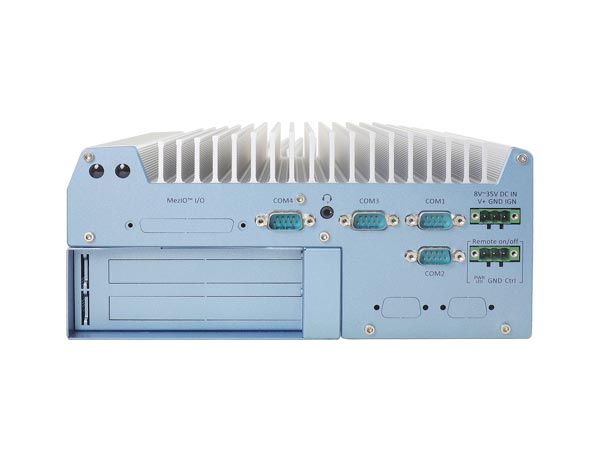

Connectors:
- 3-pin DC input terminal block
- 3-pin remote on/off terminal
- 4-pole 3.5mm audio jack
- RJ45 Ethernet ports with screw-lock support
- VGA, DVI-D, and DisplayPort video connectors
- USB Type-A ports (front panel)

---

### 6. Installation & Setup

Requirements:
- DC power source (8–35VDC) or optional AC/DC adapter
- Compatible CPU, DDR4 SODIMM memory, and storage devices

Mounting Options:
- Standard wall-mount brackets (included)
- Optional DIN-rail kit for cabinet installation
- Recommended orientation: heatsink fins vertical for optimal cooling

Configuration Steps:
1. Install CPU, memory, and storage following ESD precautions.
2. Connect DC power via terminal block.
3. Attach peripherals (Ethernet, USB, display, COM).
4. Configure BIOS settings for SATA, RAID, TPM, and power management.
5. Install OS and drivers from the provided DVD or Neousys website.

Power-On Methods:
- Front panel power button
- External non-latched switch (via remote on/off terminal)
- Wake-on-LAN (WOL) via Intel® I219-LM port

---

### 7. Performance & Capabilities

Processing Power:
Up to 6-core/12-thread Intel® Core™ i7 CPU with configurable TDP for performance or thermal optimization.

Memory Bandwidth:
Dual-channel DDR4-2666 up to 64GB ensures high data throughput for compute-intensive tasks.

Storage Performance:
- NVMe M.2 (PCIe Gen3 x4) delivers ultra-fast read/write speeds.
- RAID 0/1 support enhances performance or redundancy.
- Intel® Optane™ memory acceleration supported.

Networking:
Six independent Gigabit Ethernet ports with optional PoE+ provide high-bandwidth connectivity for cameras, sensors, and networked devices.

Graphics:
Integrated Intel® UHD Graphics 630 supports triple independent displays, ideal for visualization and control interfaces.

Reliability:
Fanless design eliminates moving parts, reducing maintenance.
MIL-STD-810G compliance ensures resilience to vibration and shock.

Limitations:
- 65W CPUs limited to +50°C ambient operation under full load.
- Requires wide-temperature SSDs for sub-zero environments.

---

### 8. Standards & Compliance

Environmental & Safety:
- MIL-STD-810G (vibration/shock)
- IEC60068-2-64 (vibration)
- IEC60068-2-27 (shock)

Electromagnetic Compatibility:
- CE/FCC Class A
- EN 55032 (EMI)
- EN 55024 (EMS)

Power & PoE Standards:
- IEEE 802.3at PoE+ (optional, 25W per port, 100W total)

Security & Management:
- TPM 2.0 hardware security module
- Intel® AMT 12.0 for remote management

Quality & Manufacturing:
- Designed and manufactured by Neousys Technology Inc., ISO-certified facilities in Taiwan.

---

### 9. Additional Information

Warranty:
Standard manufacturer warranty per Neousys Technology policy (typically 2–3 years).

Support & Maintenance:
- Technical support via Neousys regional offices (Taiwan, USA, China).
- Firmware, BIOS, and driver updates available on Neousys website.
- Only qualified personnel should perform servicing or component replacement.

Maintenance Recommendations:
- Ensure proper ventilation and mounting orientation.
- Use wide-temperature-rated SSDs for extreme environments.
- Regularly check cable connections and power supply integrity.

Software & Driver Updates:
- Drivers & Utilities DVD included.
- Automatic or manual installation supported.
- Compatible with Windows 10 x64 and major Linux distributions.

Contact Information:
Neousys Technology Inc.
15F, No.868-3, Zhongzheng Rd., Zhonghe Dist., New Taipei City 23586, Taiwan
Tel: +886-2-2223-6182 | Email: sales@neousys-tech.com | www.neousys-tech.com

Neousys Technology America Inc.
3384 Commercial Avenue, Northbrook, IL 60062, USA
Tel: +1-847-656-3298

Neousys Technology (China) Ltd.
Room 612, Building 32, Guiping Road 680, Shanghai
Tel: +86-21-61155366

---

### Summary

The Nuvo-7006DE is a high-performance, rugged, fanless embedded controller engineered for industrial and edge computing applications requiring reliability, expandability, and environmental resilience. With dual PCIe expansion slots, six Gigabit Ethernet ports (optional PoE+), and support for Intel® 8th-Gen CPUs, it delivers exceptional computational and I/O performance in a compact, maintenance-free chassis. Its wide temperature range, MIL-STD-810G compliance, and flexible power input make it ideal for mission-critical deployments in automation, transportation, and vision-based systems.

The system’s modular design, including the patented Cassette and MezIO™ interfaces, ensures scalability and customization for diverse industrial needs, while Intel® AMT and TPM 2.0 provide advanced manageability and security. Combined with Neousys’ proven rugged engineering, the Nuvo-7006DE stands as a robust, future-ready platform for demanding embedded applications.
