Comprehensive Product Summary: Nuvo-7100VTC In-Vehicle Controller

---

### 1. Product Overview

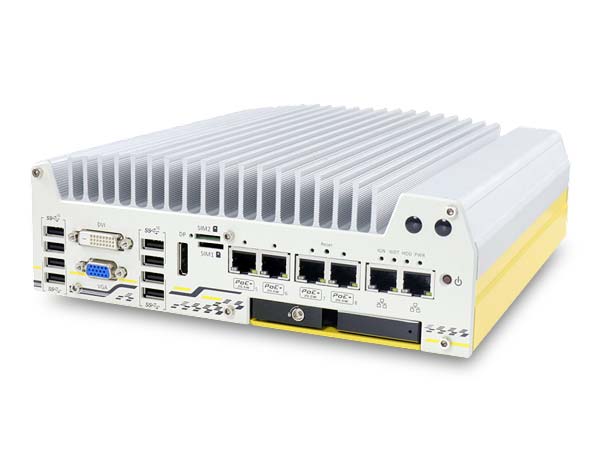

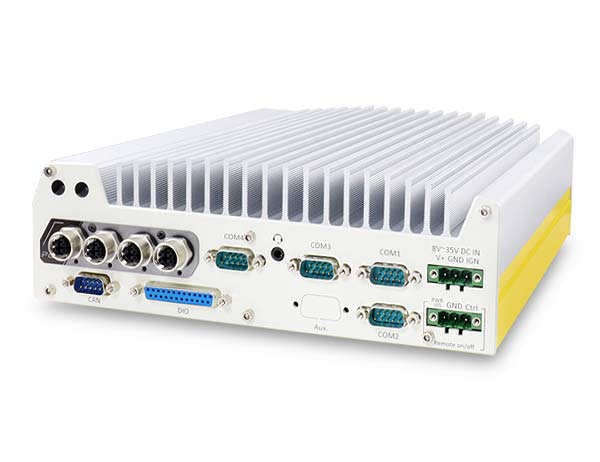

Product Name: Nuvo-7100VTC
Model/Series: Nuvo-7100VTC Series (includes Nuvo-7100VTC, Nuvo-7104VTC, Nuvo-7108VTC variants)
Article Number: Nuvo-7100VTC
Manufacturer: Neousys Technology Inc.
Product Type: Rugged in-vehicle embedded controller
Category: In-vehicle computing platform

The Nuvo-7100VTC is a high-performance, ruggedized in-vehicle controller designed for demanding automotive, transportation, and mobile computing applications. Built on the Intel® Q370 chipset, it supports 8th and 9th Generation Intel® Core™ i7/i5/i3 processors (LGA1151 socket, up to 65W TDP configurable to 35W), offering a balance of computational power, connectivity, and durability. The system integrates Power over Ethernet Plus (PoE+), isolated CAN bus, digital I/O, RAID storage, and wide-range DC power input with ignition control, making it ideal for fleet management, surveillance, and intelligent transportation systems.

---

### 2. Key Features

- Intel® 8th/9th-Gen Core™ CPU Support:
Compatible with Intel® Core™ i7-8700T/9700TE, i5-8500T/9500TE, and i3-8100T/9100TE processors, providing up to 8 cores and significant performance gains over previous generations.

- Flexible PoE+ Connectivity:
Available in configurations with 4 or 8 IEEE 802.3at Gigabit PoE+ ports, each delivering up to 25.5W per port.
- Nuvo-7100VTC: 4x M12 X-coded PoE+ ports
- Nuvo-7104VTC: 4x RJ45 PoE+ ports
- Nuvo-7108VTC: 8x RJ45 PoE+ ports

- Ruggedized Design for Vehicle Environments:
Built to withstand vibration and shock per MIL-STD-810G standards, with screw-lock connectors for GbE and USB ports ensuring secure connections in mobile environments.

- Comprehensive I/O and Expansion:
Includes multiple USB 3.1 Gen1/Gen2 ports, serial ports, isolated digital I/O, CAN bus, and video outputs (VGA, DVI-D, DisplayPort). Expansion options include M.2, mSATA, and mini-PCIe sockets for wireless and storage modules.

- Wide-Range Power Input with Ignition Control:
Accepts 8–35V DC input via a 3-pin terminal block, supporting vehicle ignition power control for safe startup/shutdown sequences.

- Storage Flexibility with RAID Support:
Dual SATA interfaces with one hot-swappable 2.5” HDD/SSD tray and one internal SATA port, supporting RAID 0/1 for redundancy or performance.

- Wireless and Cellular Connectivity:
Supports multiple wireless modules (3G/4G, Wi-Fi, GPS) via two M.2 B-key and three full-size mini-PCIe sockets, each with internal SIM sockets. Optional NSIO-LTE-7455 Cat.6 LTE module available.

- Environmental and Regulatory Compliance:
Certified for E-Mark and EN 50155, ensuring suitability for in-vehicle and railway applications. Also compliant with CE/FCC Class A EMC standards.

---

### 3. Technical Specifications

Processor Support:
- Intel® 8th/9th-Gen Core™ i7/i5/i3 (LGA1151 socket, 35W TDP)
- Supported CPUs: i7-8700T/9700TE, i5-8500T/9500TE, i3-8100T/9100TE

Chipset: Intel® Q370 Platform Controller Hub
Graphics: Integrated Intel® HD Graphics 630
Memory: Up to 64 GB DDR4 2666/2400 SDRAM (2x SODIMM slots)
AMT Support: Intel® Active Management Technology 12.0
TPM: Trusted Platform Module 2.0

Ethernet:
- 2x Gigabit Ethernet (Intel® I219 + I210)
- PoE+ ports (IEEE 802.3at, 25.5W each):
- 4x M12 X-coded (Nuvo-7100VTC)
- 4x RJ45 (Nuvo-7104VTC)
- 8x RJ45 (Nuvo-7108VTC)

CAN Bus: 1x isolated CAN 2.0 port
Digital I/O: 4x isolated Digital Inputs, 4x isolated Digital Outputs

USB Ports:
- 4x USB 3.1 Gen2 (10 Gbps)
- 4x USB 3.1 Gen1 (5 Gbps)

Video Outputs:
- 1x VGA (1920×1200)
- 1x DVI-D (1920×1200)
- 1x DisplayPort (4096×2304)

Serial Ports:
- 2x software-programmable RS-232/422/485 (COM1/COM2)
- 2x RS-232 (COM3/COM4)

Audio: 1x Mic-in, 1x Speaker-out

Storage Interfaces:
- 1x Hot-swappable 2.5” SATA HDD/SSD tray
- 1x Internal 2.5” SATA port (RAID 0/1 support)
- 1x Full-size mSATA (mux with mini-PCIe)
- 1x M.2 2280 M-key (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™
- 2x M.2 2242 B-key (one with dual front-accessible SIM sockets)

Expansion Slots:
- 1x Full-size mini-PCIe (mux with mSATA)
- 2x Full-size mini-PCIe (USB signals only, with internal SIM sockets)

Power Input:
- 3-pin pluggable terminal block (IGN/GND/V+)
- Input voltage: 8–35V DC
- Built-in ignition power control

Remote Control & Status Output:
- 3-pin terminal block for remote control and power LED output

Mechanical:
- Dimensions: 240 mm (W) × 225 mm (D) × 84 mm (H)
- Weight: 3.5 kg
- Mounting: Neousys patented damping bracket (standard) or optional DIN-rail mount

Environmental:
- Operating Temperature: -40°C to +70°C
- For 65W CPUs (i7-8700, i7-9700E): max 50°C under full load
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90%, non-condensing
- Vibration: MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I

EMC & Safety Compliance:
- EN 50155 (railway standard)
- E-Mark (automotive compliance)
- CE/FCC Class A (EN 55022 & EN 55024)

---

### 4. Functionality

The Nuvo-7100VTC functions as a high-reliability embedded computing platform for in-vehicle and mobile applications. It integrates advanced processing, communication, and control capabilities into a compact, fanless chassis.

Operation:
The system boots from onboard storage or external drives and interfaces with vehicle systems via CAN bus and digital I/O. PoE+ ports power and connect IP cameras or sensors directly, simplifying cabling. The wide-range DC input and ignition control ensure safe power sequencing aligned with vehicle operation.

Use Cases:
- Fleet management and telematics
- Mobile video surveillance (PoE cameras)
- Public transportation control systems
- Railway and rolling stock computing
- Autonomous vehicle data logging
- Industrial mobile gateways

Compatibility:
Supports Windows and Linux operating systems, Intel® AMT for remote management, and TPM 2.0 for secure boot and encryption. Compatible with standard M.2 and mini-PCIe wireless modules for LTE, Wi-Fi, and GPS.

---

### 5. Components & Accessories

Included Components:
- Nuvo-7100VTC main unit
- Standard damping bracket for vibration isolation
- Terminal blocks for DC input and remote control connections
- User documentation and quick installation guide

Optional Accessories:
- Cbl-M12X8M-RJ45-500CM: M12 (8-pole X-coded) to RJ45 CAT6 cable, 5 m length
- Cbl-M12X8M-RJ45-1000CM: M12 (8-pole X-coded) to RJ45 CAT6 cable, 10 m length
- PA-120W-OW: 120W AC/DC power adapter (20V/6A, 18AWG, 120 cm cable, -30°C to +70°C operating range)
- NSIO-LTE-7455: Cat.6 LTE embedded socket modem for cellular connectivity

Optional Mounting:
- DIN-rail mounting kit (for industrial or cabinet installations)

---

### 6. Installation & Setup

Power Requirements:
- Input voltage: 8–35V DC
- Connect via 3-pin terminal block (IGN, GND, V+)
- Supports ignition control for delayed startup/shutdown

Mounting Options:
- Standard: Neousys patented damping bracket for vibration absorption
- Optional: DIN-rail mounting for fixed installations

Configuration Steps:
1. Install CPU, memory, and storage modules as required.
2. Connect DC power and ignition control lines.
3. Attach PoE devices (IP cameras, sensors) via M12 or RJ45 connectors.
4. Configure BIOS for CPU power mode and RAID settings.
5. Install operating system and drivers.
6. Configure network, CAN bus, and DIO interfaces as per application.

Environmental Considerations:
For sub-zero operation, use wide-temperature HDD or SSD. Ensure adequate airflow around the chassis for passive heat dissipation.

---

### 7. Performance & Capabilities

Processing Performance:
- Up to 8-core Intel® Core™ CPUs deliver high computational throughput for real-time analytics, AI inference, and video processing.
- Integrated Intel® HD Graphics 630 supports multi-display output and hardware-accelerated video decoding.

Networking & Power Delivery:
- Up to 8x PoE+ ports provide 25.5W each, sufficient for powering IP cameras, sensors, or wireless access points.
- Dual Gigabit Ethernet ports enable redundant or segmented networking.

Storage & Data Handling:
- RAID 0/1 support enhances data reliability or throughput.
- NVMe SSD via M.2 2280 M-key slot offers high-speed storage performance.

Wireless & Expansion:
- Multiple M.2 and mini-PCIe slots allow simultaneous use of LTE, Wi-Fi, and GPS modules.
- Dual SIM support enables network redundancy for cellular communication.

Environmental Robustness:
- Operates from -40°C to +70°C, with MIL-STD-810G vibration/shock compliance.
- Fanless design ensures silent operation and reduced maintenance.

Limitations:
- For 65W CPUs, thermal throttling may occur above 50°C under sustained full load.
- Requires wide-temperature storage devices for sub-zero environments.

---

### 8. Standards & Compliance

Automotive & Railway Certifications:
- E-Mark: Certified for automotive in-vehicle use, ensuring compliance with electromagnetic and safety standards.
- EN 50155: Railway standard compliance for electronic equipment used on rolling stock.

Environmental & Mechanical Standards:
- MIL-STD-810G: Verified for vibration (Method 514.6, Category 4) and shock (Method 516.6, Procedure I).

EMC Compliance:
- CE/FCC Class A: Conforms to EN 55022 and EN 55024 for electromagnetic compatibility.

Security & Management:
- TPM 2.0: Hardware-based security for encryption and secure boot.
- Intel® AMT 12.0: Enables remote management and diagnostics.

---

### 9. Additional Information

Warranty:
Standard manufacturer warranty (typically 2–3 years, depending on region and configuration). Extended warranty options may be available through Neousys distributors.

Support & Maintenance:
- Firmware and BIOS updates available via Neousys support portal.
- Technical documentation, drivers, and software utilities provided online.
- Global technical support network for integration and troubleshooting.

Maintenance Recommendations:
- Periodically inspect connectors and terminal blocks for secure attachment.
- Keep ventilation surfaces clear for optimal passive cooling.
- Update firmware and drivers to maintain system stability and security.

Product Lifecycle & Updates:
The Nuvo-7100VTC series is part of Neousys’ long-term support roadmap, ensuring component availability and firmware updates for extended deployment cycles in industrial and transportation sectors.

---

### Summary

The Neousys Nuvo-7100VTC Series represents a robust, high-performance in-vehicle computing platform engineered for reliability, connectivity, and environmental endurance. With Intel® 8th/9th-Gen Core™ processors, extensive PoE+ networking, isolated CAN and DIO interfaces, and wide-range DC power input, it is optimized for mission-critical mobile applications such as fleet management, surveillance, and intelligent transportation systems. Its compliance with E-Mark, EN 50155, and MIL-STD-810G standards ensures dependable operation in harsh vehicular environments. Expandable, secure, and versatile, the Nuvo-7100VTC delivers the performance and durability required for next-generation in-vehicle computing.
