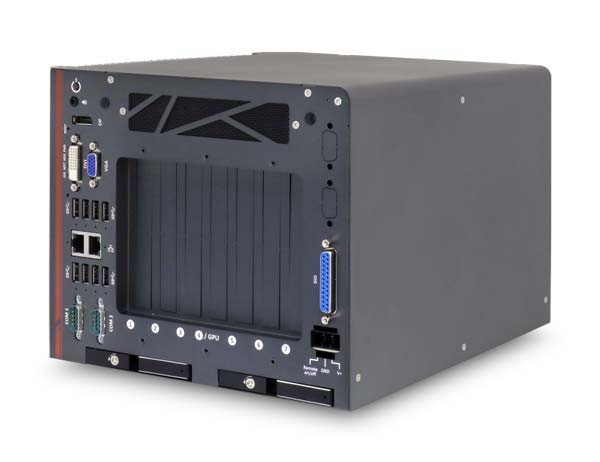

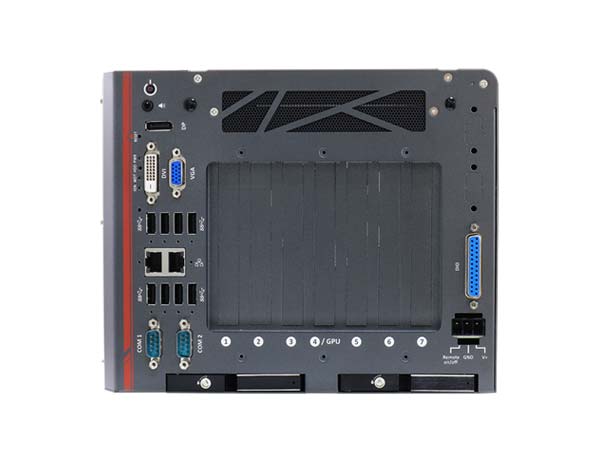

Rugged 9th/8th Gen Intel Core box PC with seven PCIe/PCI expansion slots.
Rugged 9th/8th Gen Intel Core box PC with seven PCIe/PCI expansion slots. Rugged 9th/8th Gen Intel Core box PC with seven PCIe/PCI expansion slots. Rugged 9th/8th Gen Intel Core box PC with seven PCIe/PCI expansion slots.

Nuvo-8034

Rugged 9th/8th Gen Intel Core box PC with seven PCIe/PCI expansion slots.
Request a quote
  • Manufacturer Neousys Technology
  • Category: Industrial Computer
  • The Nuvo-8034 is a rugged embedded computer combining seven expansion slots in a compact, wall-mountable enclosure for industrial applications. It supports Intel Xeon E and 9th/8th Gen Core i7, i5 and i3 processors with up to 128 GB of ECC or non-ECC DDR4 memory. Two PCIe x16, two PCIe x8 and three PCI slots accommodate both modern and legacy expansion cards, including one NVIDIA GPU with up to 180 W TDP. Additional capabilities include isolated digital inputs and outputs, dual GbE, eight USB 3.1 ports, NVMe storage and two front-accessible, hot-swappable SATA drive trays with RAID 0/1 support.
Rugged wall-mount box PC supporting Intel Xeon E and 9th/8th Gen Core processors, Intel C246 chipset, up to 128 GB ECC/non-ECC DDR4 memory, two PCIe x16, two PCIe x8 and three PCI slots. Features support for one NVIDIA GPU up to 180 W, 8 isolated DI and 8 isolated DO, dual GbE, eight USB 3.1 ports, two hot-swappable 2.5-inch SATA bays with RAID 0/1, M.2 NVMe storage and 8–35 VDC input.
  • Supported Processor Families Intel Xeon E; 9th/8th Gen Intel Core i7/i5/i3
  • Processor Socket LGA1151
  • Chipset Intel C246 platform controller hub
  • Maximum Memory Capacity 128 GB
  • Memory Type ECC/non-ECC DDR4-2133 SDRAM
  • Memory Slots 4 SODIMM slots
  • PCIe x16 Slots 2x Gen3, 8 lanes per slot
  • PCIe x8 Slots 2x Gen3, 4 lanes per slot
  • PCI Slots 3x 33 MHz, 32-bit, 5 V
  • Bus Interface 2x PCIe x16 Gen3 (x8 signals); 2x PCIe x8 Gen3 (x4 signals); 3x 32-bit PCI
  • Maximum GPU TDP 180 W
  • Integrated Graphics Intel UHD Graphics 630
  • VGA Output 1x, up to 1920 x 1200 pixels
  • DVI-D Output 1x, up to 1920 x 1200 pixels
  • DisplayPort Output 1x, up to 4096 x 2304 pixels
  • Isolated Digital Input Channels 8 channels
  • Isolated Digital Output Channels 8 channels
  • Digital I/O 8 isolated digital inputs; 8 isolated digital outputs
  • Gigabit Ethernet Ports 2 ports
  • Ethernet Connector Retention Screw-lock
  • USB 3.1 Gen2 Ports 4x 10 Gbps with screw-lock
  • USB 3.1 Gen1 Ports 4x 5 Gbps with screw-lock
  • Internal USB 2.0 Ports 1 port
  • Configurable Serial Ports 2x RS-232/422/485 ports
  • Optional RS-232 Ports 2x RS-232 ports
  • Hot-Swappable Drive Bays 2x front-accessible 2.5-inch SATA HDD/SSD trays
  • SATA RAID Support RAID 0/1
  • NVMe Socket 1x M.2 2280 M key, PCIe Gen3 x4
  • mSATA Ports 2x full-size, multiplexed with mini-PCIe
  • Mini PCIe Sockets 2x full-size with internal SIM socket
  • LTE Expansion Socket M.2 2242 B key with dual SIM support for selected modules
  • DC Input Range 8–35 VDC
  • DC Input Connector 3-pin pluggable terminal block
  • Remote Control Connector 3-pin pluggable terminal block
  • Intel AMT Version 12.0
  • Key Features Seven PCIe/PCI expansion slots; Intel Xeon E and 9th/8th Gen Core support; Intel C246 chipset; up to 128 GB ECC/non-ECC DDR4; single NVIDIA GPU up to 180 W; 8 isolated DI and 8 isolated DO; dual screw-lock GbE; eight screw-lock USB 3.1 ports; dual hot-swappable SATA bays with RAID 0/1; M.2 NVMe Gen3 x4; 8–35 VDC input
  • Dimensions 259 x 280 x 198 mm
  • Weight 7 kg
  • Mounting Method Wall-mount
  • Form Factor Rugged wall-mount box PC
  • Connector 3-pin terminal block for 8–35 VDC; 2x screw-lock GbE; 8x screw-lock USB 3.1; VGA; DVI-D; DisplayPort; serial ports; isolated DIO
  • Dimensions 259 x 280 x 198 mm (W x D x H)
  • Operating Temperature -25 to 60 °C
  • Storage Temperature -40 to 85 °C
  • Operating Humidity 10–90, non-condensing % RH
  • Vibration Compliance MIL-STD-810G Method 514.6, Category 4
  • Shock Compliance MIL-STD-810G Method 516.6, Procedure I
  • Operating Temperature -25°C to 60°C with 100% CPU/GPU loading; restrictions apply to selected 65 W CPUs
  • EMC Compliance CE/FCC Class A; EN 55032; EN 55024
  • TPM Version 2.0
  • Audio Connector 1x 3.5 mm mic-in and speaker-out jack
  • Optional Power Adapters PA-160W-OW; PA-280W-ET2; PA-480W-DIN
  • Optional Serial Cable Cbl-IDC210F-DB9M-20CM
  • Resolution VGA/DVI-D up to 1920 x 1200; DisplayPort up to 4096 x 2304
  • Accessories PA-160W-OW, PA-280W-ET2, PA-480W-DIN, Cbl-IDC210F-DB9M-20CM

Accessories

Related Products

2U fanless GPU computer with NVIDIA RTX 2000 ADA and Intel 12th–14th Gen Core
GT-92GC
2U fanless GPU computer with NVIDIA RTX 2000 ADA and Intel 12th–14th Gen Core

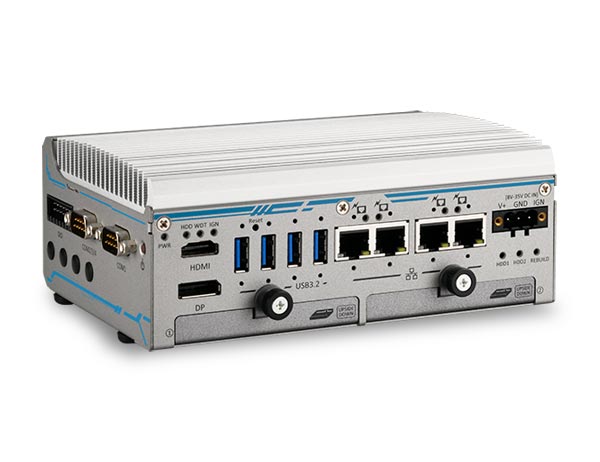

Compact Core i3 surveillance system with four PoE+ ports and dual-drive hardware RAID.
