Intel 14/13/12G rugged PC 2x2.5GbE,USB-C,d-slot PCIe,MezIO

Nuvo-9002DE

Intel 14/13/12G rugged PC 2x2.5GbE,USB-C,d-slot PCIe,MezIO
Request a quote
  • Manufacturer Neousys Technology
  • Category: Nuvo-9000-Series

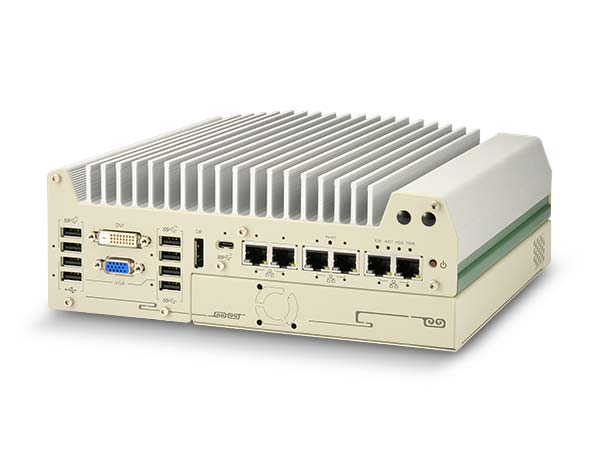

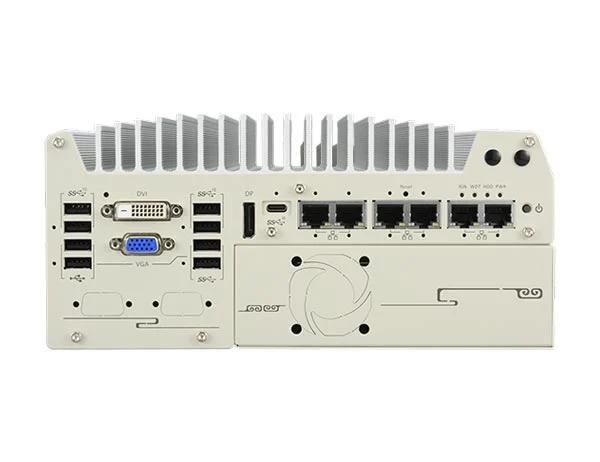

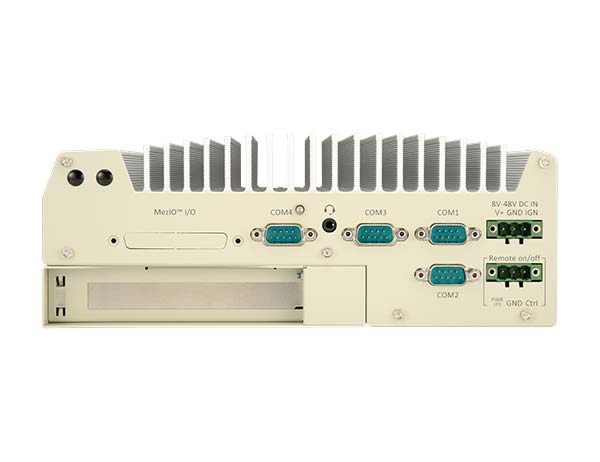

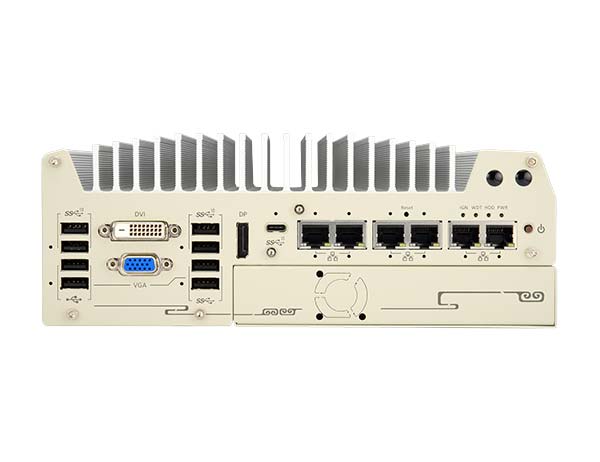

  • The Nuvo-9002DE is a rugged fanless embedded computer for industrial applications requiring enhanced PCIe expansion flexibility. It supports Intel BTL-S and 14th/13th/12th-Gen Core processors, up to 128 GB of DDR5 memory, and M.2 Gen4x4 NVMe storage. Compared with the simpler E models, the DE version offers two PCIe x16 slots in the Cassette design. It also includes 2x Ethernet, USB 3.2 Type-C at 20 Gbps, multiple USB-A ports, VGA, DVI-D, DisplayPort, four serial ports, MezIO expansion, and a wide 8 to 48 VDC input range in a fanless chassis.
Intel® 14th/13th/12th Gen Core™ i9/i7/i5/i3 rugged embedded computer with LGA1700 socket (65 W/35 W TDP) and Intel® Q670E chipset. Supports up to 64 GB DDR5-4800 via 2× DIMM slots. Integrated Intel® UHD Graphics 770/730, dual PCIe x16 (8-lane) slots in Dual Cassette, 1× 2.5GbE (Intel I226/I225) + 1× GbE (Intel I219-LM) LAN ports, 1× USB 3.2 Gen2x2 Type-C, 4× USB 3.2 Gen2, 2× USB 3.2 Gen1, 2× USB 2.0, VGA, DisplayPort, 2× RS-232/422/485, 2× RS-232, audio I/O, 2× 2.5" SATA HDD/SSD bays with RAID 0/1, 1× M.2 2280 Gen4 NVMe slot, 1× mini-PCIe, 1× M.2 B-Key with SIM, MezIO® expansion, remote power control, rugged -25 °C…+70 °C fanless operation, 8–48 V DC input, wall-mount chassis 240×225×110.5 mm, 3.89 kg, Neousys

Country of origin: Taiwan R.O.C.

Customs tariff number: 8471 5000 000

No product data available.
