Intel 14/13/12G rugged PC 6x2.5GbE,USB-C,d-slot PCIe,MezIO

Nuvo-9006DE

Intel 14/13/12G rugged PC 6x2.5GbE,USB-C,d-slot PCIe,MezIO
Request a quote
  • Manufacturer Neousys Technology
  • Category: Nuvo-9000-Series

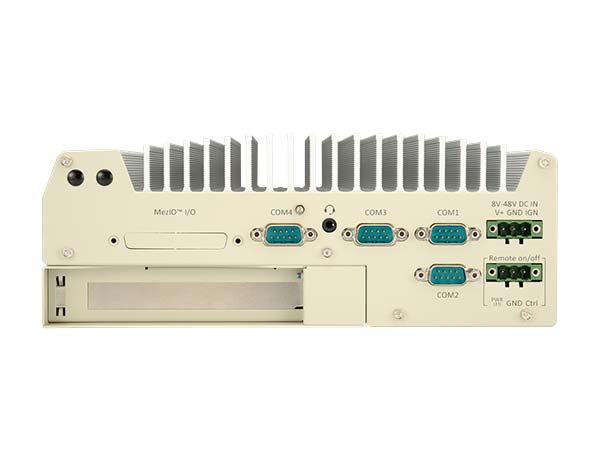

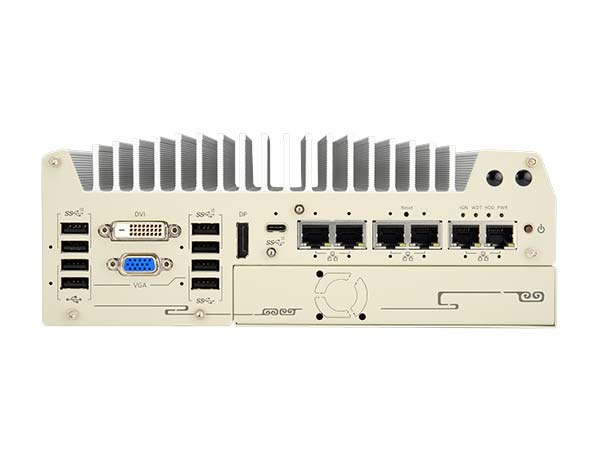

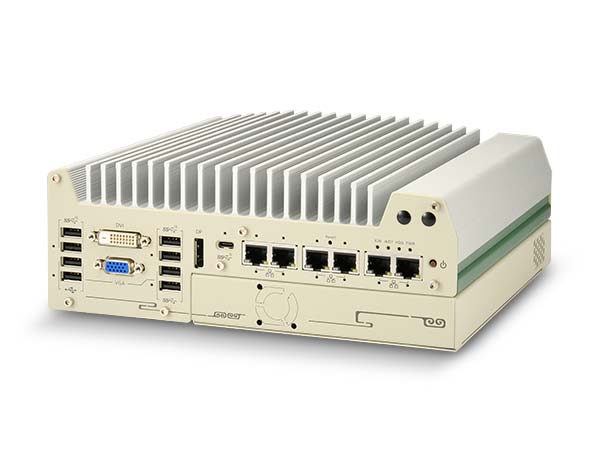

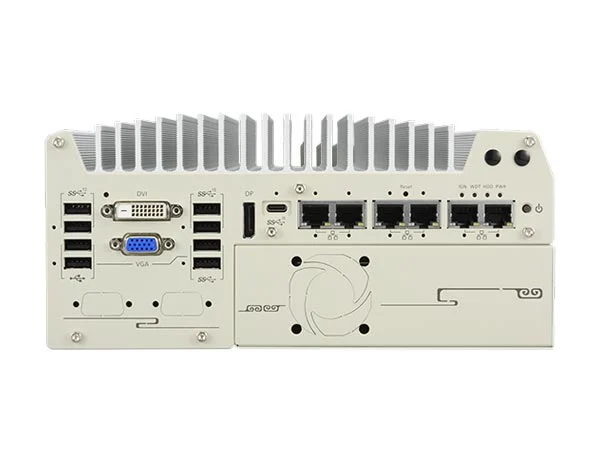

  • The Nuvo-9006DE is a rugged fanless embedded computer for high-performance industrial and edge systems. It combines support for Intel BTL-S and 14th/13th/12th-Gen Core processors with up to 128 GB of DDR5 memory, M.2 Gen4x4 NVMe storage, and two PCIe x16 slots in the Cassette design. With 5x 2.5GbE plus 1x Gigabit Ethernet and optional PoE+ on ports 3 through 6, it is aimed at data- and network-intensive applications. Additional features include MezIO expansion, USB 3.2 Type-C at 20 Gbps, multiple USB-A ports, triple display outputs, serial ports, and 8 to 48 VDC input.
Intel® 14th/13th/12th Gen Core™ i9/i7/i5/i3 rugged embedded computer with LGA1700 socket (65 W/35 W TDP) and Intel® Q670E chipset. Supports up to 64 GB DDR5-4800 via 2× DIMM slots. Integrated Intel® UHD Graphics 770/730, dual PCIe x16 (8-lane) slots in Dual Cassette, 5× 2.5GbE (Intel I226/I225) + 1× GbE (Intel I219-LM) LAN ports (PoE+ optional), 1× USB 3.2 Gen2x2 Type-C, 4× USB 3.2 Gen2, 2× USB 3.2 Gen1, 2× USB 2.0, VGA, DisplayPort, 2× RS-232/422/485, 2× RS-232, audio I/O, 2× 2.5" SATA HDD/SSD bays with RAID 0/1, 1× M.2 2280 Gen4 NVMe slot, 1× mini-PCIe, 1× M.2 B-Key with SIM, MezIO® expansion, remote power control, rugged -25 °C…+70 °C fanless operation, 8–48 V DC input, wall-mount chassis 240×225×110.5 mm, 3.89 kg, Neousys.

Country of origin: Taiwan R.O.C.

Customs tariff number: 8471 5000 000
