Intel 14/13/12G rugged PC 6x2.5GbE,USB-C,s-slot PCI,MezIO

Nuvo-9006P

Intel 14/13/12G rugged PC 6x2.5GbE,USB-C,s-slot PCI,MezIO
Request a quote
  • Manufacturer Neousys Technology
  • Category: Nuvo-9000-Series

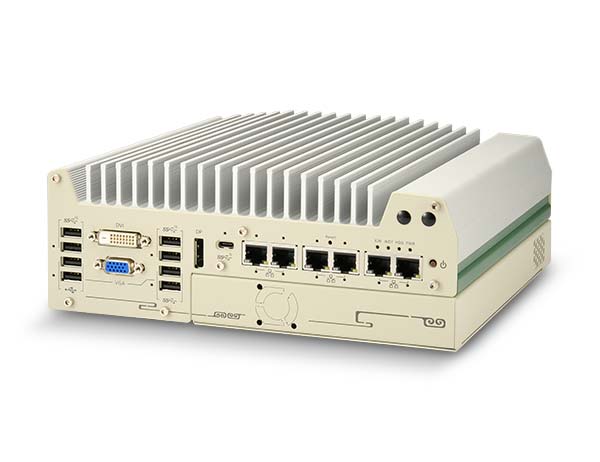

  • The Nuvo-9006P is a rugged fanless embedded computer with a strong focus on connectivity and legacy expansion. It supports Intel BTL-S and 14th/13th/12th-Gen Core processors, up to 128 GB of DDR5 memory, and M.2 Gen4x4 NVMe storage. With 5x 2.5GbE and 1x Gigabit Ethernet plus optional PoE+ on ports 3 through 6, it suits networked industrial and edge applications. The single PCI Cassette allows the use of classic expansion cards. It also includes MezIO, USB 3.2 Type-C, multiple USB-A ports, triple display outputs, serial connectivity, and an 8 to 48 VDC power input.

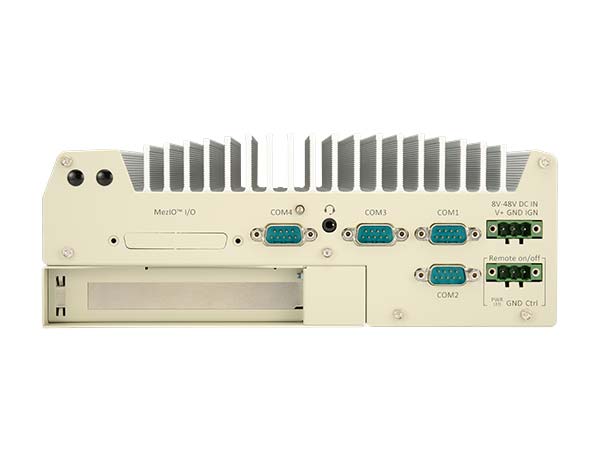

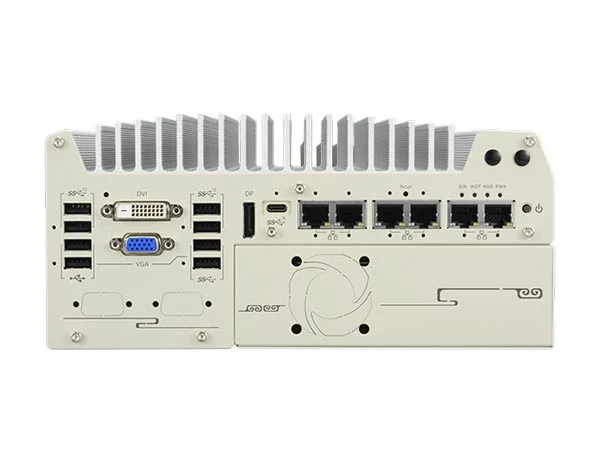

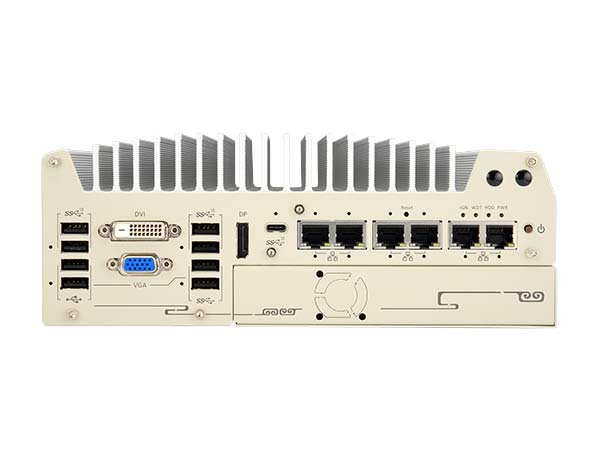

Intel 14th/13th/12th Gen Core i9/i7/i5/i3 rugged embedded computer with LGA1700 socket (65W/35W TDP) and Intel Q670E chipset. Supports up to 64 GB DDR5-4800 via 2× SODIMM slots. Features integrated Intel UHD Graphics 770/730, 1× PCI Slo, 5× 2.5GbE + 1× GbE LAN ports (PoE+ optional), 1× USB 3.2 Gen2x2 Type-C, 4× USB 3.2 Gen2, 2× USB 3.2 Gen1, 2× USB 2.0, VGA, DVI-D, DisplayPort, 2× RS-232/422/485, 2× RS-232, audio I/O, 2× 2.5" SATA HDD/SSD bays with RAID 0/1, 1× M.2 2280 Gen4 NVMe slot, 1× mini-PCIe, 1× M.2 B-Key with SIM, MezIO expansion port, remote power control, rugged -25?°C…+70?°C fanless operation, 8–48?V DC input, wall-mount chassis 240×225×90?mm, 3.58?kg, Neousys.

Country of origin: Taiwan R.O.C.

Customs tariff number: 8471 5000 000
