Comprehensive Product Summary: ADLINK PCI-7260

---

### 1. Product Overview

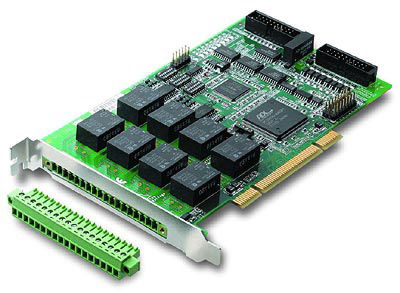

Product Name: PCI-7260
Model Number: PCI-7260
Series: PCI Digital I/O (DIO) Cards
Article Number: PCI-7260
Manufacturer: ADLINK Technology Inc.
Product Type: PCI-Bus High-Power Relay Output and Isolated Digital Input Card
Form Factor: 32-bit 3.3V/5V PCI Bus, Standard Half-Size PCI Card
Dimensions: 175 mm (L) × 107 mm (H)
Manufacturer Website: [www.adlinktech.com](http://www.adlinktech.com)

The ADLINK PCI-7260 is a high-performance industrial I/O interface card designed for automation, machine control, and laboratory applications. It integrates eight high-power non-latching relay outputs and eight optically isolated digital inputs, providing robust switching and monitoring capabilities for high-current loads and noisy industrial environments. The card conforms to EN61010-1 safety standards and is CE/FCC Class A certified.

---

### 2. Key Features

- Universal PCI Compatibility: Supports both 3.3V and 5V 32-bit PCI bus interfaces.
- High-Power Relay Outputs: Eight non-latching SPST-NO + SPST-NC relays rated at 5A @ 250VAC or 5A @ 30VDC.
- Isolated Digital Inputs: Eight opto-isolated channels with jumper-selectable AC-filtered or non-filtered modes.
- Relay Status Outputs: Eight channels for external LED indication of relay states.
- Emergency Shutdown Input: One channel for immediate system-safe state activation via DIP switch configuration.
- Initial State Configuration: DIP switch allows defining relay output states at power-on.
- Built-in Watchdog Timer: Ensures relays revert to a safe state if the host system halts or crashes.
- Change-of-State (COS) Detection: Interrupt generation on input state transitions or rising edges on DI CH0/CH1.
- LED Indicators: On-board LEDs display relay activation status.
- Pluggable Terminal Block: 18-pin high-current connector for easy wiring and maintenance.
- Software Support: Compatible with ADLINK PCIS-DASK driver library and DAQ-LVIEW PnP for LabVIEW integration.
- Safety & Compliance: Meets EN61010-1 safety standards; CE and FCC Class A certified.

---

### 3. Technical Specifications

Electrical Characteristics

| Parameter | Specification |
|------------|---------------|
| Bus Interface | 32-bit PCI, 3.3V/5V signaling |
| Power Supply | +5V @ 510 mA typical, 990 mA max (all relays active) |
| Isolation Voltage | 2,500 Vrms (channel-to-system) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 35%–85% RH, non-condensing |
| Dimensions | 175 mm × 107 mm (PCB only) |
| Weight | Approx. 200 g (typical) |

Relay Output Specifications

- Channels: 8
- Relay Type: Non-latching SPST-NO + SPST-NC (1 Form A, 1 Form B)
- Contact Rating:
- 250 VAC @ 5A (resistive load)
- 30 VDC @ 5A (resistive load)
- Operate Time: ≤10 ms
- Release Time: ≤10 ms
- Contact Resistance: ≤30 mΩ
- Insulation Resistance: ≥1000 MΩ @ 500VDC
- Breakdown Voltage:
- 1000 Vrms (open contacts, 1 min)
- 2000 Vrms (contacts to coil, 1 min)
- Expected Life:
- Mechanical: 5 × 10⁷ operations
- Electrical: 1 × 10⁵ operations @ rated load
- Vibration Resistance: 176.4 m/s² (18G), 10–55 Hz, 3 mm double amplitude
- Indicators: On-board LEDs and external LED connectors (JP3)
- Relay Status Output Drive: 15 mA per channel

Isolated Digital Input Specifications

- Channels: 8 opto-isolated inputs
- Input Type: Photo-coupler (PC-3H4)
- Input Voltage Range: 0–24 VDC
- Logic Levels:
- Logic Low: 0–2V
- Logic High: 10–24V
- Input Current: 10 mA rated, 50 mA max
- Input Resistance: 4.7 kΩ @ 0.5W
- Isolation: 2,500 Vrms channel-to-system
- Input Mode: AC-filtered or non-filtered (jumper selectable)
- Interrupt Sources: COS (Change-of-State), CH0/CH1 rising edge

Isolated +5V Power Supply

- Output Voltage: +5V
- Output Current: 170 mA max @ 40°C

---

### 4. Functionality

The PCI-7260 operates as a high-current digital I/O interface for industrial control systems. It provides eight relay outputs for switching high-voltage or high-current loads and eight optically isolated inputs for monitoring external signals.

Operation Principles:

- Relay Control: Each relay is controlled via software or hardware registers. A logic “0” energizes the relay (SET), while “1” de-energizes it (RESET).
- Emergency Shutdown: A dedicated input triggers a predefined safe relay pattern, independent of the host system.
- Watchdog Timer: Monitors system activity; if the host fails to reset the timer, relays revert to a safe state.
- Change-of-State Interrupts: Detects transitions on input channels and generates interrupts for event-driven control.
- Initial State Configuration: DIP switches define relay states upon power-up.
- External LED Outputs: Provide visual relay status outside the chassis.

Typical Applications:

- Industrial ON/OFF control
- Machine and process automation
- Laboratory instrumentation
- External relay driving and signal switching
- Limit switch and contact monitoring
- Integration with A/D and D/A cards for complete data acquisition systems

Compatibility:

- Compatible with Windows 98/NT/2000/XP via PCIS-DASK driver
- Supports LabVIEW through DAQ-LVIEW PnP VIs
- Programmable via C/C++ libraries for DOS and Windows environments

---

### 5. Components & Accessories

Included Components:

- PCI-7260 card
- ADLINK All-in-One Software CD
- User’s Manual

Connectors:

- CN1: 18-pin pluggable terminal block for relay outputs and emergency shutdown input
- JP2: 20-pin ribbon connector for isolated digital inputs
- JP3: 20-pin ribbon connector for external LED relay status outputs

Optional Accessories:

- ACL-10337: Two 20-pin header to 37-pin D-Sub back panel cable for JP2/JP3 connections

Pin Assignments (CN1):

| Pin | Signal | Description |
|------|---------|-------------|
| 1–16 | NOx/COMx | Relay contacts (x = 0–7) |
| 17–18 | ESDN_SHDN+/– | Emergency shutdown input |

---

### 6. Installation & Setup

System Requirements:

- Available 32-bit PCI slot (3.3V or 5V signaling)
- Operating system supporting ADLINK PCIS-DASK drivers

Installation Steps:

1. Power off the host system and discharge static electricity.
2. Insert the PCI-7260 into an available PCI slot.
3. Secure the card and connect external wiring via CN1 terminal block.
4. Configure jumpers and DIP switches as required:
- JP1: AC-filter or non-filter mode for digital inputs
- S1: Board ID (for multiple card installations)
- S2: Initial relay state at power-on
- S3: Emergency shutdown relay state
5. Install ADLINK drivers and software from the All-in-One CD.
6. Verify installation using diagnostic utilities or sample programs.

Mounting Options:

- Standard PCI slot mounting
- Front-panel pluggable terminal block for high-current wiring

Configuration:

- Board ID (S1): 5-bit DIP switch allows up to 32 unique IDs
- Initial State (S2): Defines relay states at power-on
- Emergency Shutdown (S3): Defines relay states during emergency

---

### 7. Performance & Capabilities

Relay Performance:

- Fast switching: 10 ms operate/release time
- High current handling: 5A per channel
- Long mechanical life: 50 million operations
- Electrical endurance: 100,000 cycles at rated load

Digital Input Performance:

- High noise immunity via optical isolation
- AC-filter option for noisy environments
- COS detection for real-time event monitoring

Efficiency & Reliability:

- Watchdog timer ensures fail-safe operation
- Emergency shutdown independent of host CPU
- LED indicators for immediate visual feedback
- Low power consumption relative to output capacity

Limitations:

- Relays are non-latching; require continuous coil energization
- Maximum switching voltage limited to 250VAC or 30VDC
- Inductive loads require external contact protection circuits (RC, diode, or varistor)

---

### 8. Standards & Compliance

Safety and Regulatory:

- Safety Standard: EN61010-1:2001
- EMC/EMI Compliance: CE, FCC Class A
- Isolation: 2,500 Vrms channel-to-system
- Environmental: RoHS compliant (where applicable)

Industry Standards:

- PCI Local Bus Specification 2.2 compliant
- Designed for industrial automation and control systems

---

### 9. Additional Information

Software Support:

- PCIS-DASK: Windows driver and library package supporting VB, VC++, Delphi, and BC5
- DAQ-LVIEW PnP: LabVIEW VI set for seamless integration
- DOS Library: Turbo C-based function library for legacy systems
- Programming Functions: Include initialization, digital I/O control, COS setup, interrupt handling, watchdog configuration, and emergency shutdown management

Maintenance & Service:

- Regular inspection of terminal connections recommended
- Use proper contact protection circuits for inductive loads
- Avoid exceeding rated current and voltage limits

Warranty:

- Duration: 2 years from factory shipment date
- Coverage: Manufacturing defects and hardware failures under normal use
- Exclusions: Damage from misuse, improper installation, environmental factors, or unauthorized repair
- Support Contact:
- Email: service@adlinktech.com
- Phone: +886-2-82265877
- Fax: +886-2-82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan

RMA Procedure:

- Obtain RMA form from [http://rma.adlinktech.com/policy](http://rma.adlinktech.com/policy)
- Include completed form with returned product
- Customer responsible for shipping to ADLINK service center

Maintenance Recommendations:

- Operate within specified temperature and humidity ranges
- Use anti-static precautions during handling
- Periodically test relay operation and input response
- Replace relays after rated life cycles for critical applications

Software Updates:

- Latest drivers and manuals available on ADLINK’s website
- Backward compatibility maintained across Windows OS versions

---

### Summary

The ADLINK PCI-7260 is a robust, high-power digital I/O card engineered for industrial automation, offering eight 5A relay outputs and eight optically isolated inputs. It combines hardware reliability with advanced safety features such as emergency shutdown, watchdog timer, and configurable startup states. With comprehensive software support and compliance with international safety standards, the PCI-7260 is ideal for applications requiring reliable control and monitoring of high-current devices in demanding environments.
