- **PCI Express Bus Compliance:** Fully compliant with PCI Express Base Specification Rev. 1.0a (x1 lane). Compatible with standard and low-profile PCIe slots. - **High-Speed TTL-Level I/O:** Provides 16 unisolated TTL-level inputs and 16 open-collector TTL-level outputs. Input response time: within 200 nanoseconds. Output response time: within 200 nanoseconds (variable with pull-up resistance). - **Interrupt Functionality:** All 16 input channels can be configured as interrupt inputs. Supports rising-edge or falling-edge interrupt triggering. Interrupts can be enabled or disabled per bit. - **Digital Filtering:** Built-in digital filter prevents false triggering due to noise or contact chattering. Filter time adjustable from 0 to 131.072 milliseconds (21-step range). - **Compact Low-Profile Design:** Dimensions: 121.69 mm (L) × 67.90 mm (H). Supplied with both low-profile and standard PCI brackets for flexible installation. - **Software Compatibility:** Bundled with CONTEC’s API-PAC(W32) driver library for Windows and API-DIO(LNX) for Linux. Supports LabVIEW via VI-DAQ library. Includes diagnostic and sample programs for rapid development. - **Electrical Performance:** Output rating: 30 VDC, 40 mA per channel (open collector). Input resistance: 10 kΩ (1 TTL load). Power consumption: 3.3 VDC, 300 mA (max). - **Connector Interface:** 50-pin Mini-Ribbon connector (3M 10250-52A2JL or equivalent). Compatible with CONTEC’s optional cables and terminal blocks. - **Compatibility:** Functionally equivalent to CONTEC’s PIO-16/16T(LPCI)H PCI board. Connector pin assignments are identical, ensuring easy migration.

Manufacturer: Contec

Category: DIO Non-Isolated PCIe

- **PCI Express Bus Compliance:** Fully compliant with PCI Express Base Specification Rev. 1.0a (x1 lane). Compatible with standard PCIe slots in industrial and commercial PCs. - **16 Input / 16 Output Channels:** Provides 16 TTL-level digital input channels and 16 open-collector digital output channels, all operating under negative logic. - **High-Speed Response:** Input and output response time of **200 nanoseconds (max)** ensures rapid signal processing suitable for high-speed control and monitoring applications. - **Interrupt Functionality:** All 16 input channels can be configured as interrupt inputs. The board supports edge-triggered interrupts (rising or falling edge selectable). Four event signals can be combined into one interrupt request (IntA). - **Digital Filtering:** Built-in digital filter function prevents false triggering due to noise or contact chattering. Filter time is programmable from 0 to 131.072 ms. - **Compact PCIe Form Factor:** Board dimensions of **121.69 mm (L) × 67.90 mm (H)** allow installation in compact or low-profile systems. - **Connector Interface:** Equipped with a **37-pin D-type female connector** for external I/O connection. - **Robust Electrical Design:** Input resistance of 10 kΩ ensures stable signal detection. Output channels support up to **30 VDC / 40 mA** per channel. - **Software Support:** Includes CONTEC’s **API-PAC(W32)** driver library for Windows and **API-DIO(LNX)** for Linux. Compatible with **LabVIEW VI-DAQ** for graphical programming environments. - **Industrial Reliability:** Designed for continuous operation in industrial environments (0–50°C, 10–90% RH, non-condensing).

Manufacturer: Contec

Category: DIO Non-Isolated PCIe

- **High-Speed Opto-Isolated TTL I/O:** Provides 16 opto-isolated TTL-level inputs and 16 opto-isolated TTL-level outputs, ensuring electrical isolation between the PC and external devices to prevent noise interference and ground loops. - **On-Board Power Supply:** Integrated 5VDC (600mA) power source for driving input circuit photocouplers, eliminating the need for external power supplies. - **Fast Response Time:** High-speed opto-couplers enable a maximum response time of 1 microsecond, suitable for time-critical control and monitoring applications. - **Interrupt Functionality:** All 16 input channels can be configured as interrupt sources. Interrupt signals are combined into a single interrupt request (INTA) line, triggered on rising or falling edges. - **Digital Filtering:** Built-in digital filter function prevents false triggering due to noise or signal chattering, improving reliability in electrically noisy environments. - **Surge and Overcurrent Protection:** Output transistors include built-in protection circuits (Zener diode and polyswitch) to guard against voltage surges and overcurrent conditions. - **Negative Logic Operation:** Both input and output circuits operate on negative logic, compatible with standard TTL-level control systems. - **Compact PCI Express Form Factor:** Short-length PCIe card (121.69 × 110.18 mm) suitable for installation in compact industrial PCs and embedded systems. - **Software Support:** Includes license-free Windows and Linux drivers (API-TOOL), and LabVIEW VI-DAQ library for seamless integration with data acquisition and control software. - **Compatibility:** Connector pin assignments and functional compatibility with the PCI-compliant board PIO-16/16TB(PCI)H, ensuring easy migration from legacy PCI systems.

Manufacturer: Contec

Category: DIO Non-Isolated PCIe

- **PCI Express Bus Interface:** Compliant with PCI Express Base Specification Rev. 1.0a, x1 lane configuration, ensuring high-speed data transfer and compatibility with modern PC architectures. - **64 Total I/O Channels:** Provides 32 digital input and 32 digital output channels, all operating at TTL logic levels. - **Negative Logic Operation:** Inputs and outputs are configured for negative logic, simplifying integration with standard TTL devices. - **High-Speed Response:** Input and output response times are within 200 nanoseconds, enabling precise timing control in automation and measurement systems. - **Interrupt Functionality:** Supports up to four event triggers combined into one interrupt request (IntA) on rising or falling edge transitions, allowing efficient event-driven control. - **Compact Design:** Board dimensions of 122 × 107 × 19 mm allow installation in standard PCIe slots without occupying excessive space. - **Standard Connector Interface:** Equipped with a 37-pin D-sub female connector for easy connection to external devices and terminal blocks. - **Robust Electrical Characteristics:** Input resistance of 10 kΩ, output capability up to 30 VDC and 40 mA per channel. - **Cross-Platform Software Support:** Includes free Windows and Linux drivers, as well as LabVIEW VI-DAQ library for seamless integration with National Instruments environments. - **Industrial Reliability:** Designed for continuous operation in industrial environments, with stable performance and long-term support from CONTEC.

Manufacturer: Contec

Category: DIO Non-Isolated PCIe

- **32 LVTTL I/O Channels:** Provides 32 unisolated LVTTL‑level channels (3.3 V DC, positive logic) configurable via software as 32 inputs, 32 outputs, or 16 inputs + 16 outputs. Response time: 20 ns. - **High‑Speed Sampling and Generation (50 MHz max):** Independent bus‑mastering DMA channels for input and output allow simultaneous sampling and generation at up to 50 MHz. Each direction has a dedicated 4 K‑sample FIFO buffer and supports scatter/gather DMA up to 2 GB per channel. - **Synchronization of Multiple Boards:** A synchronization control (SC) connector enables synchronized operation of up to 16 boards, allowing multi‑channel expansion and coordinated timing with other CONTEC boards. - **Interrupt Functionality:** Up to 4 input lines can be configured as interrupt request sources (rising‑edge triggered). Interrupts can be enabled or disabled per bit. - **Flexible Pull‑Up Voltage Selection:** Input and control signal pull‑ups can be configured for None, 3.3 V, or 5 V, facilitating connection to both LVTTL and 5 V TTL logic devices. - **Bus Master Transfer:** Supports 64/32‑bit DMA bus mastering with a maximum transfer rate of 360 MB/s, enabling efficient high‑volume data movement without CPU overhead. - **Software Support:** Includes Windows driver library **API‑PAC(W32)** with **API‑DIO(WDM)** driver, sample programs (Visual Basic, C++), and diagnostic utilities. Supports **LabVIEW** through downloadable **DAQfast** and **VI‑DAQ** libraries for seamless integration. - **Compatibility:** Connector pinout and functions are compatible with CONTEC’s PCI PIO‑32DM(PCI), DIO‑32DM‑PE, and DIO‑32DM2‑PE boards, simplifying system upgrades. - **External Control and Handshake Signals:** Dedicated external clock, start, stop, REQ, and ACK signals for both input and output channels allow precise synchronization with external devices. - **Compact PCI Express Form Factor:** Compliant with PCI Express Base Specification Rev. 2.0 ×1; compact board size 169.33 × 110.18 mm, weight 150 g.

Manufacturer: Contec

Category: DIO Non-Isolated PCIe

- **48‑Channel Bi‑Directional Digital I/O:** Provides 48 LVTTL‑level I/O channels, configurable in 8‑bit units for input or output. Each channel can be individually controlled by software. - **High‑Speed Response:** Non‑isolated LVTTL (positive logic) I/O with a maximum response time of **200 ns**, suitable for high‑frequency digital control and monitoring. - **Interrupt Capability:** All 48 input signals can be used as interrupt sources. Interrupts can be enabled/disabled per bit, and the trigger edge (rising/falling) is software‑selectable. - **Digital Filtering:** Built‑in programmable digital filter suppresses noise and contact chattering. Filter time selectable from **0.25 µs to 131 ms** in 21 steps. - **i8255 Mode 0 Compatibility:** Emulates the Intel 8255 PPI Mode 0 interface, ensuring compatibility with legacy digital I/O systems and software. - **Low‑Profile PCIe Form Factor:** Compliant with PCI Express Low Profile mechanical specification. Includes both low‑profile and standard brackets for flexible installation. - **Software‑Configurable I/O Direction:** Each 8‑bit port can be dynamically configured for input or output via software control words. - **Comprehensive Software Support:** Bundled with CONTEC’s **API‑PAC(W32)** driver library for Windows and **API‑DIO(LNX)** for Linux. Includes sample programs, diagnostics, and LabVIEW VI‑DAQ support. - **Full Interrupt and Filter Control via API:** Interrupt masks, edge selection, and filter parameters are programmable through the driver API. - **Compact and Lightweight:** Board dimensions **121.69 mm (L) × 67.90 mm (H)**; weight approximately **60 g**. - **Compatible with Existing CONTEC Boards:** Functionally equivalent to PCI and CardBus models **PIO‑48D(PCI)**, **PIO‑48D(LPCI)H**, and **PIO‑48D(CB)H**, ensuring easy migration to PCI Express systems.

Manufacturer: Contec

Category: DIO Non-Isolated PCIe

- **High-Density I/O:** Provides 64 digital input and 64 digital output channels on a single PCIe card, enabling large-scale digital control and monitoring within compact systems. - **TTL-Level Interface:** Operates at standard 5V TTL logic levels (negative logic), suitable for direct connection to logic circuits, sensors, and actuators. - **High-Speed Response:** Input response time of approximately 200 nanoseconds and output switching within 1 microsecond, supporting high-frequency digital operations. - **Interrupt Functionality:** Supports up to four event inputs combined into one interrupt request (INTA#). Interrupts can be triggered on rising or falling edges, allowing event-driven control. - **Flexible Signal Handling:** Each input channel has a 10 kΩ pull-up resistor; outputs are open-collector type capable of sinking up to 40 mA at 30 VDC maximum. - **Compact PCIe Form Factor:** Short-size PCI Express x1 board (121.69 × 107 × 19 mm) compatible with standard and low-profile PCIe slots. - **Standard Connector Interface:** Equipped with a 37-pin D-sub female connector for external wiring. - **Software Support:** Fully supported by CONTEC’s API-TOOL driver suite for Windows and Linux, and compatible with LabVIEW via VI-DAQ library. - **Industrial Reliability:** Designed for continuous operation in industrial environments with robust electrical characteristics and stable performance.

Manufacturer: Contec

Category: DIO Non-Isolated PCIe

- **High-Speed Digital I/O:** 32 digital input and 32 digital output channels, all TTL-compatible, optimized for high-speed data acquisition and pattern generation. - **PCI Express® Interface:** Utilizes a single-lane (x1) PCI Express interface for high bandwidth and low latency communication with host systems. - **High Data Throughput:** Achieves up to 12 MB/s transfer rate using external 3 MHz clock or handshaking mode; 8 MB/s with internal 2 MHz timer pacer. - **Bus-Mastering DMA:** Supports direct memory access for both input and output operations, minimizing CPU load and maximizing throughput. - **Multiple Transfer Modes:** - Programmed I/O - Timer pacer mode (internal clock) - External clock mode - Handshaking mode (REQ/ACK signals) - **Programmable Timer/Counter:** Integrated 82C54-10 programmable counter with 4 MHz base clock for precise timing control of digital I/O operations. - **Interrupt Support:** Multiple programmable interrupt sources including EO_ACK, EI_REQ, and timers 0–2. - **Plug and Play Configuration:** Fully compliant with PCI Express Plug and Play standards; no jumper or DIP switch settings required. - **Software Support:** Compatible with Windows (XP, 2000, 2003, Vista, 7) and Linux. Supported by ADLINK’s DAQPilot, DAQBench, and legacy PCIS-DASK drivers. Integration available for LabVIEW™, MATLAB®, and .NET environments. - **Compact Design:** Half-size PCB (148 mm x 102 mm) suitable for space-constrained systems.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCIe

**Digital I/O Capabilities** - 48-channel TTL/DTL-compatible digital I/O lines. - Emulates two industry-standard Intel 8255 Programmable Peripheral Interface (PPI) chips operating in Mode 0. - Buffered circuits for enhanced driving capability and signal integrity. - Direct interface with OPTO-22-compatible I/O modules for industrial-grade isolation and signal conditioning. - Output status read-back capability for verification and monitoring. **Timer/Counter and Interrupt System** - Integrated 8254 programmable timer/counter chip with three 16-bit counters. - 32-bit cascaded timer for watchdog or periodic interrupt generation. - 16-bit event counter for external event counting or frequency measurement. - Programmable interrupt source selection with dual interrupt architecture (INT1 and INT2). - Supports event-triggered and timer-triggered interrupts. **Power and Protection** - Provides +12V and +5V auxiliary power outputs on OPTO-22 connectors. - Resettable fuses protect external devices from overcurrent or short-circuit conditions. - Onboard watchdog timer and event counter for system reliability. **Software and Driver Support** - Comprehensive driver support for Windows and Linux platforms. - Compatible with ADLINK’s PCIS-DASK, PCIS-DASK/X, and PCIS-LVIEW software libraries. - Supports programming in C/C++, Visual Basic, Delphi, and LabVIEW environments. - Includes ActiveX and OPC server support for SCADA and HMI integration. **Plug-and-Play Configuration** - Fully compliant with PCI Express Plug-and-Play specifications. - Automatic resource allocation for I/O addresses and interrupts by system BIOS. - No manual jumper or DIP switch configuration required.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCIe

- **High-Density Digital I/O:** 96-channel TTL/DTL-compatible digital input/output lines, organized as four 24-bit ports (A, B, C per connector). - **8255 PPI Emulation:** Emulates four industry-standard Intel 8255 Programmable Peripheral Interface chips operating in Mode 0 configuration. - **Opto-22 Compatibility:** Direct interface with OPTO-22-compatible I/O modules for industrial control and signal isolation. - **Buffered I/O Circuits:** Buffered input/output circuitry ensures higher drive capability and signal integrity. - **Dual Interrupt System:** Supports two simultaneous interrupt sources (INT1 and INT2) with programmable trigger conditions and multiplexed interrupt control. - **Integrated Timer/Counter:** Includes one 8254 programmable timer/counter chip providing: - 32-bit cascaded timer for watchdog or periodic interrupts - 16-bit event counter for external event counting - Programmable interrupt generation - **Power Distribution:** Provides +5V and +12V power outputs on OPTO-22 connectors with resettable fuses for external device protection. - **Plug-and-Play PCI Express Interface:** Fully compliant with PCI Express x1 bus standard; automatic resource allocation (I/O address and IRQ) via BIOS. - **Software Support:** Comprehensive driver and library support for Windows and Linux, including PCIS-DASK, LabVIEW™, MATLAB®, and ActiveX/DAQBench™. - **Industrial-Grade Design:** Operating temperature range 0°C to 60°C, humidity 5–95% non-condensing, suitable for industrial automation environments.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCIe

- **High-Speed PCI Express Interface:** PCIe x1 lane interface providing up to 80 MB/s sustained data transfer rate via bus mastering DMA. - **Flexible Channel Configuration:** 32 channels of 5 V TTL-compatible digital I/O, configurable as 16 inputs and 16 outputs, or as 32 inputs or 32 outputs. - **High Throughput:** - Up to 80 MB/s sustained transfer rate (32-bit @ 20 MHz). - Up to 160 MB/s burst rate for digital input using external 40 MHz clock. - **Large Onboard FIFO Buffers:** 64 KB total FIFO memory (32 KB for input, 32 KB for output) for high-speed buffered data transfer. - **Advanced DMA Support:** Bus mastering DMA with scatter-gather capability for efficient, non-contiguous memory transfers and ring-buffer operation. - **Programmable Timing and Triggering:** - Onboard 8254 programmable timer/counter with 10 MHz base clock. - Independent DI_TRG and DO_TRG trigger signals for acquisition and pattern generation. - Internal or external clocking up to 40 MHz. - **Auxiliary I/O:** 4 auxiliary digital inputs and 4 auxiliary digital outputs for control or status signaling. - **Active Termination:** Software-selectable active terminators for reliable high-speed and long-distance data transmission. - **Software and OS Support:** - Windows 7/Vista/XP/2000/2003 Server - Linux (PCIS-DASK/X) - Supported APIs: DAQPilot for LabVIEW™, PCIS-DASK, DAQBench, and AD-Logger. - Programming languages: VB.NET, VC.NET, C/C++, Delphi, Borland C++ Builder. - **Plug and Play Configuration:** Fully compliant with PCI Plug and Play standards; no jumpers or DIP switches required.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCIe

- **High‑Speed PCI Express® Interface:** - x1 lane PCI Express® interface delivering up to **200 MB/s** maximum throughput. - Bus‑mastering DMA with scatter‑gather support for efficient, CPU‑independent data transfer. - **Flexible Clocking Architecture:** - Internal clock up to **50 MHz** (programmable divider 100 MHz/N, 2 ≤ N ≤ 65,535). - External clock up to **100 MHz** (supports 8/16‑bit data width). - **16‑step phase shift** (22.5° increments) for precise timing alignment. - **Programmable Logic Levels:** - Software‑selectable logic levels: **1.8 V**, **2.5 V**, or **3.3 V** (5 V compatible). - Uniform logic level applied across all I/O groups. - **Configurable I/O Direction:** - 32 bi‑directional channels divided into four 8‑bit groups (A–D). - Each group independently configurable as input or output. - **Advanced Triggering and Handshaking:** - Supports **software**, **external digital**, **pattern match**, **post/re‑trigger**, and **gated** trigger modes. - Flexible handshaking (DI‑REQ/DI‑ACK, DO‑REQ/DO‑ACK) and burst handshaking for reliable data exchange. - **Auxiliary Function I/O (AFI):** - 8 programmable AFI channels configurable for I²C, SPI, trigger, event, or clock I/O. - I²C master (up to 244 kHz) and SPI master (up to 62.5 MHz) support. - **High‑Speed Data Integrity:** - 8 K‑sample FIFO buffers for both input and output. - Scatter‑gather DMA ensures continuous, loss‑free data streaming. - **Software and OS Support:** - Compatible with Windows 2000/XP/Vista/2003. - Supported programming environments: VB.NET, VC.NET, Delphi, BCB, DAQBench. - Driver package: **PCIS‑DASK** for Windows.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCIe

- **High-Speed PCI Express Interface:** Utilizes a PCI Express x4 lane interface providing up to 400 MB/s throughput. - **Flexible Channel Configuration:** 32 bi-directional digital I/O channels divided into four 8-bit groups, each configurable as input or output. - **Selectable Logic Levels:** Software-selectable voltage levels of 1.8 V, 2.5 V, or 3.3 V (5 V compatible) for all I/O lines. - **High Clock Rates:** - Internal clock up to 100 MHz - External clock up to 200 MHz (DI mode, 8/16-bit width) - **Phase Shift Control:** 80-step phase shifting (4.5° per step) for precise timing alignment in external clock mode. - **Integrated Serial Interfaces:** Built-in I²C and SPI master interfaces for direct communication with peripheral devices. - **DMA and FIFO Architecture:** Scatter-gather bus-mastering DMA with 8K-sample DI FIFO and 20K-sample DO FIFO ensures continuous high-speed data transfer without CPU overhead. - **Trigger and Handshake Support:** Multiple trigger modes (post, gated, re-trigger) and handshake protocols for synchronized data exchange. - **Auxiliary Function I/O (AFI):** Eight programmable AFI lines supporting static I/O, triggers, handshake, and clock I/O. - **Software Compatibility:** Supports Windows XP/7/8 (x86/x64) and Linux; compatible with LabVIEW®, MATLAB®, and Visual Studio .NET.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCIe

- **48 Digital I/O Channels:** Provides a total of 48 programmable digital input/output lines for versatile signal interfacing. - **8255 Mode 0 Compatibility:** Fully compatible with the Intel 8255 Programmable Peripheral Interface (PPI) in Mode 0 operation, ensuring seamless integration with existing software and hardware architectures. - **PCI Bus Interface:** Designed for standard PCI bus systems, supporting automatic resource allocation through Plug and Play functionality. - **Plug and Play Configuration:** No manual jumper or DIP switch settings required; the system automatically assigns I/O addresses and IRQs. - **Dual 50-pin Flat Cable Connectors:** Equipped with two 50-pin headers for easy connection to external devices, terminal boards, or signal conditioning modules. - **Compact PCB Design:** Dimensions of 174 mm (L) × 106 mm (H) allow installation in standard PCI slots without interference. - **Industrial-Grade Reliability:** Built with high-quality components for stable operation in industrial environments. - **Flexible I/O Direction Control:** Each 24-bit port group can be configured independently as input or output. - **Software Compatibility:** Supports a wide range of operating systems and development environments through standard driver interfaces. - **Ideal for Automation and Control:** Suitable for digital signal monitoring, machine control, process automation, and laboratory instrumentation.

Manufacturer: Axiom

Category: DIO Non-Isolated PCI

- **Expansion for AX5234P:** The AX5234A serves as an extension module that doubles the available I/O channels of the AX5234P board, increasing the total number of digital I/O lines from 96 to 192 bits. - **High-Density Digital I/O:** Provides multiple 8-bit ports (Ports A, B, and C) grouped into sets, allowing flexible configuration for input or output operations. - **TTL/DTL Compatibility:** Fully compatible with TTL (Transistor-Transistor Logic) and DTL (Diode-Transistor Logic) signal levels, ensuring broad interoperability with industrial sensors, actuators, and control systems. - **Improved Noise Immunity:** Incorporates hysteresis with a typical threshold difference (VT+ - VT−) of 0.4V, enhancing noise margin and signal stability in electrically noisy environments. - **Plug-and-Play PCI Interface:** Works seamlessly with the AX5234P’s PCI bus interface, supporting automatic address and interrupt configuration. - **Flexible Connectivity:** Equipped with multiple 50-pin headers for easy connection to external devices via ribbon or twisted-pair cables. - **Software Support:** Compatible with multiple programming environments including Microsoft C, QuickBasic, Turbo C, and Turbo Pascal, with sample code and drivers provided. - **Industrial Reliability:** Designed for continuous operation in industrial environments with wide temperature and humidity tolerance.

Manufacturer: Axiom

Category: DIO Non-Isolated PCI

- **96 Digital I/O Lines:** Provides 96 TTL-compatible digital input/output channels organized into 12 ports (A, B, C per group). - **8255 Mode 0 Compatibility:** Fully compatible with the Intel 8255 programmable peripheral interface standard, ensuring broad software and hardware compatibility. - **Plug and Play PCI Interface:** Automatically configured by the system BIOS without manual jumper or DIP switch settings. - **High Noise Immunity:** Improved noise margins with hysteresis (VT+ - VT− = 0.4V typical) for stable signal detection in industrial environments. - **Flexible I/O Configuration:** Each port can be independently programmed as input or output. - **Multiple Connectors:** Equipped with three 50-pin flat cable connectors for external signal interfacing. - **Compact Form Factor:** Board dimensions of 175 mm × 106 mm allow installation in standard PCI slots. - **Wide Operating Range:** Designed for 0°C to 60°C operation and up to 90% non-condensing relative humidity. - **Software Support:** Includes device drivers and example programs for Turbo C, Turbo Pascal, and Microsoft QuickBasic 4.5. - **Expansion Capability:** Compatible with AX5234A extension board for up to 192-bit I/O expansion.

Manufacturer: Axiom

Category: DIO Non-Isolated PCI

- **High‑Speed Digital I/O:** 32 TTL‑compatible digital inputs and 32 TTL‑compatible digital outputs. Maximum transfer rate up to **12 MB/s** using bus‑mastering DMA. - **Universal PCI Compatibility:** Supports both **3.3 V and 5 V PCI signaling**, ensuring broad system compatibility. - **Low‑Profile Design:** Compact MD1 form factor (168 mm × 64 mm) ideal for small chassis and embedded PCs. - **Multiple Data Transfer Modes:** - Direct programmed I/O control - Internal timer pacer control - External clock mode - Handshaking mode (REQ/ACK) - **Bus‑Mastering DMA:** Enables high‑throughput, low‑latency data transfer without CPU overhead. - **Programmable Counter/Timer:** Integrated 82C54‑10 programmable interval timer with 4 MHz base clock for pacer generation and timing control. - **FIFO Buffers:** 32‑word (DWord) FIFO for both input and output channels to ensure smooth high‑speed data streaming. - **Isolation and Protection:** 16/16 isolated channels with 2.5 kV isolation protection (for specific configurations). - **Interrupt Support:** Multiple interrupt sources selectable by software (EO_ACK, EI_REQ, Timer 0/1/2). - **Software Support:** Comprehensive driver and library support for Windows and Linux, including PCIS‑DASK, LabVIEW®, HP‑VEE™, DASYLab™, InTouch™, ISaGRAF™, and OPC Server integration. - **Certifications:** CE and FCC Class A compliant for EMC/EMI performance.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

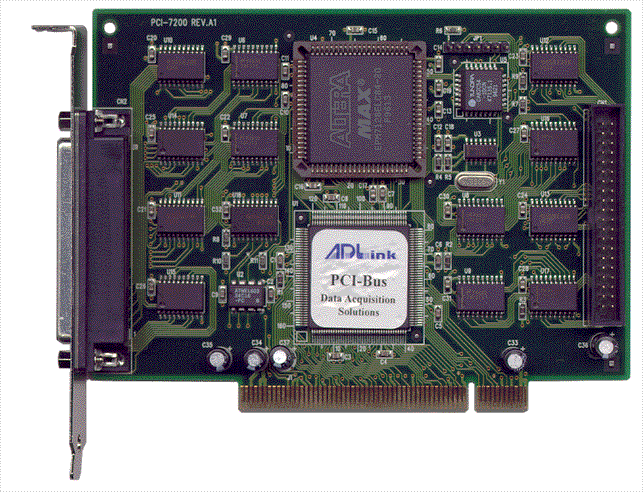

- **High-Speed Digital I/O:** 32 digital input and 32 digital output channels, TTL-compatible, optimized for high-speed data transfer and pattern generation. - **High Data Throughput:** Up to **12 MB/s** transfer rate using bus-mastering DMA via 32-bit PCI bus architecture. - **Multiple Transfer Modes:** Supports **programmed I/O**, **interrupt-driven I/O**, **bus-mastering DMA**, **timer pacer control**, **external clock mode**, and **handshaking mode**. - **Programmable Timer/Counter:** Integrated **82C54-10 programmable counter** with a 4 MHz base clock for generating pacer signals and timing control. - **Flexible Triggering and Handshaking:** Supports **I_REQ/I_ACK** and **O_REQ/O_ACK** signals for synchronized data transfer with external devices. - **FIFO Buffers:** Onboard **32-word FIFO** for both input and output (PCI-7200/LPCI-7200S) and **2K + 8-word FIFO** for cPCI-7200 input channels. - **Bus-Mastering DMA:** Enables direct memory access for high-speed, low-latency data transfer without CPU intervention. - **Software-Selectable Interrupt Sources:** Multiple interrupt sources including EO_ACK, EI_REQ, Timer 0, Timer 1, and Timer 2. - **Cross-Platform Software Support:** Compatible with **Windows 7/Vista/XP/2000/2003** and **Linux**. Supported by **DAQPilot**, **DAQBench**, **LabVIEW™**, **MATLAB®**, and **PCIS-DASK** drivers. - **Compact Design:** Half-size PCI card (148 mm x 102 mm) suitable for space-constrained systems. - **Plug and Play Configuration:** Fully compliant with PCI Plug and Play standards; no jumper or DIP switch configuration required.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **24-Channel Digital I/O:** Provides 24 TTL/DTL-compatible digital input/output lines organized as three 8-bit ports (Port A, Port B, Port C). - **Opto-22 Compatibility:** Fully compatible with industry-standard Opto-22 I/O modules and termination boards, allowing direct connection to external relay, input, and output modules. - **8255 PPI Emulation:** Emulates Mode 0 of the Intel 8255 PPI, enabling flexible configuration of ports as input or output. - **Programmable Interrupt System:** Supports multiple interrupt sources, including digital input lines and timer outputs, with dual interrupt capability. - **Integrated Timer/Counter:** Includes one 16-bit event counter and one 32-bit cascaded timer for event counting and timed interrupt generation. - **Buffered I/O Circuits:** Provides high drive capability and signal buffering for reliable operation in industrial environments. - **Power Output Protection:** Onboard resettable fuses protect the +5V and +12V power outputs available on the Opto-22 connector. - **Software Compatibility:** Supported by ADLINK’s PCIS-DASK driver library for Windows and Linux, as well as LabVIEW™, MATLAB®, and HP VEE™ integration. - **Plug and Play PCI Interface:** Fully compliant with PCI 2.1 specifications, supporting automatic resource allocation (I/O address and IRQ).

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

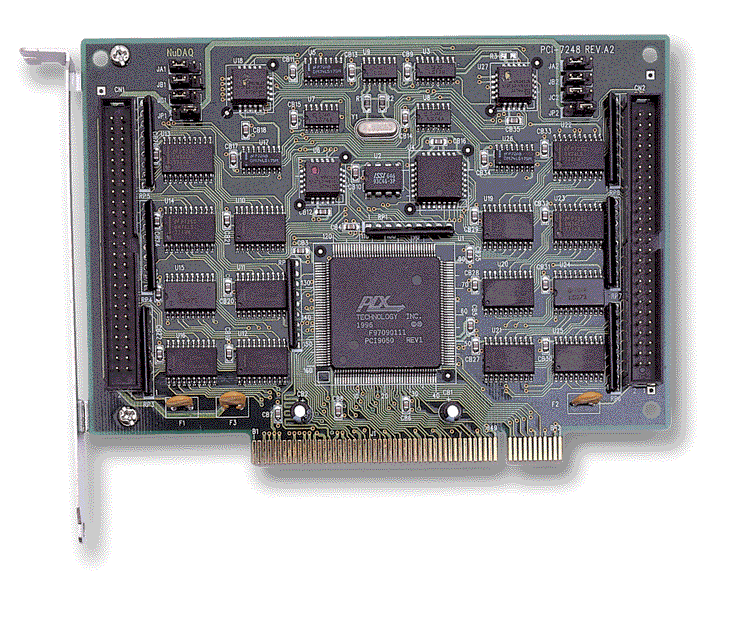

- **48-Channel Digital I/O:** Provides 48 TTL/DTL-compatible digital input/output lines organized into two 24-bit groups. - **Opto-22 Compatibility:** Fully compatible with Opto-22 standard external I/O modules and termination boards. - **8255 PPI Emulation:** Emulates two Intel 8255 Programmable Peripheral Interface chips operating in Mode 0 configuration. - **Buffered I/O Circuits:** Ensures higher driving capability and signal integrity for industrial environments. - **Programmable Timer/Counter:** Includes one 16-bit event counter and one 32-bit cascaded timer for interrupt generation and event counting. - **Dual Interrupt System:** Supports two independent interrupt sources (INT1 and INT2) selectable from digital inputs or timer outputs. - **Plug and Play PCI Interface:** Automatic resource allocation for IRQ and I/O addresses via PCI BIOS; no manual jumper configuration required. - **Power Output Protection:** Provides +5V and +12V outputs on the Opto-22 connectors with resettable fuses for external device protection. - **Software Support:** Includes C/C++ libraries, Windows DLLs, and drivers for multiple operating systems (DOS, Windows 95/98/NT/2000, Linux). - **High Data Transfer Rate:** Supports up to 500 Kbytes/s typical transfer rate. - **Industrial Reliability:** Designed for 0°C to 60°C operation and 5–95% non-condensing humidity environments.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

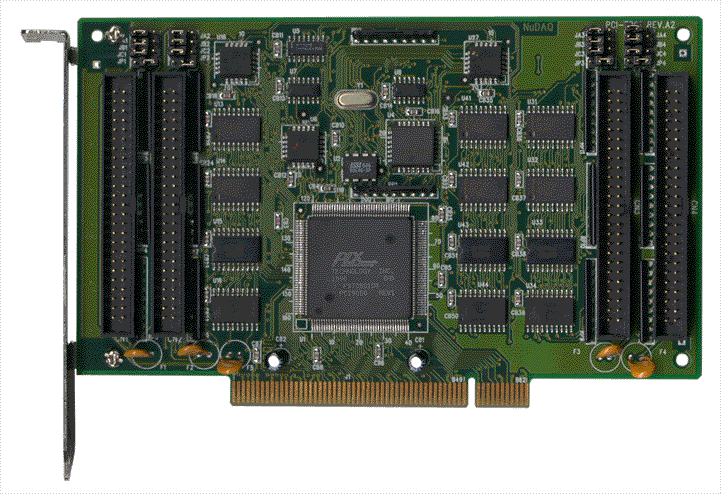

- **High-Density Digital I/O:** 96 TTL/DTL-compatible digital I/O channels organized as four 24-bit ports (Port A, B, C per PPI). - **Opto-22 Compatibility:** Fully compatible with Opto-22 standard 50-pin connectors, allowing direct connection to Opto-22 I/O modules and termination boards. - **8255 PPI Emulation:** Emulates four industry-standard 8255 PPI chips in Mode 0 configuration, providing 24 I/O lines per chip. - **Buffered I/O Circuits:** Buffered input/output circuitry ensures higher driving capability and signal integrity. - **Programmable Timer/Counter:** Includes one 16-bit event counter and a cascaded 32-bit timer for interrupt generation and event counting. - **Dual Interrupt System:** Supports two independent interrupt sources (INT1 and INT2) selectable from DIO channels or timer outputs. - **Power Output Protection:** Provides +5V and +12V outputs on Opto-22 connectors with resettable fuses for external device protection. - **Plug and Play PCI Interface:** Fully compliant with PCI Plug and Play specifications; no manual configuration of IRQ or I/O address required. - **Software Support:** Comprehensive driver and library support for DOS, Windows 95/98/NT/2000, and Linux (via PCIS-DASK/X). Compatible with LabVIEW®, HP VEE™, DASYLab™, InTouch™, ISaGRAF™, and OPC systems. - **Output Status Readback:** Allows software to verify output states for reliable control feedback.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

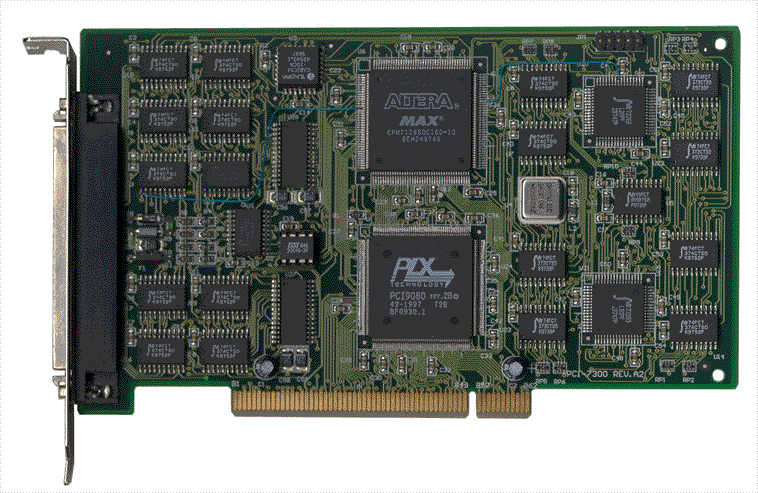

- **High-Speed Data Transfer:** - Sustained data throughput up to **80 MB/s** via 32-bit PCI bus mastering DMA. - Maximum internal transfer rate of **160 MB/s** for digital input using external 40 MHz clock. - **Flexible I/O Configuration:** - **32 software-configurable channels** supporting 16 DI/16 DO, 32 DI, or 32 DO modes. - Two 16-bit ports (PORTA and PORTB) configurable independently as input or output. - **Advanced DMA Architecture:** - **Bus-mastering DMA** for processor-free data transfer. - **Scatter/Gather DMA** for non-contiguous memory access and large data streaming. - Supports **chaining mode** for continuous or circular buffer operation. - **FIFO Buffering:** - Dual **16K-word FIFOs** (input and output) for high-speed buffering. - Programmable almost-empty/full thresholds. - **Clocking and Triggering:** - Internal clock sources: 20 MHz, 10 MHz, or programmable timer (82C54). - External clock input up to 40 MHz. - Independent **trigger inputs (DI_TRG, DO_TRG)** for acquisition and pattern generation. - Supports **handshaking** and **burst handshaking** modes for reliable data exchange. - **Programmable Counter/Timer:** - Onboard **Intel 8254-compatible 3-channel timer** with 10 MHz base clock. - Timer #0 for DI pacing, Timer #1 for DO pacing, Timer #2 for interrupt generation. - **Auxiliary I/O:** - 4 auxiliary digital inputs and 4 auxiliary digital outputs (TTL-compatible). - Useful for control, status, or synchronization signals. - **Active Termination:** - Software-selectable **active terminators** (111 Ω, 2.9 V) for long-distance, high-speed signal integrity. - **Software & OS Support:** - Drivers for **Windows 7/Vista/XP/2000/2003 Server** and **Linux**. - Compatible with **LabVIEW™, DAQBench™, VB.NET, VC++, Delphi, and BCB**. - ADLINK **PCIS-DASK** and **DAQPilot** driver libraries included. - **Plug & Play PCI Configuration:** - Fully compliant with PCI Plug-and-Play resource allocation. - No jumpers or DIP switches required.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **48 TTL-Compatible Digital I/O Channels:** Provides 48 bidirectional digital lines configurable as input or output in 8-bit port groups. - **High Current Drive Capability:** Each output channel can source up to 15 mA and sink up to 48 mA, suitable for driving LEDs, relays, and other TTL/CMOS devices. - **Change-of-State (COS) Interrupt:** Generates an interrupt when any input bit changes state, enabling event-driven digital monitoring. - **Dual Interrupt System:** Two independent interrupt sources (INT1 and INT2) allow simultaneous handling of multiple event types such as COS, timer, or counter events. - **Output Status Readback:** Supports readback of output states for verification and closed-loop control. - **External Trigger Input:** Accepts an external trigger signal (EXTTRG, pin 99) to latch input data synchronously with external events. - **Programmable Timer/Counter:** Includes one 8254 programmable timer/counter chip providing a 32-bit timer and a 16-bit event counter for timing and counting applications. - **User-Configurable Power-On State:** Each port can be configured via jumpers to power up in a pulled-high, pulled-low, or floating state. - **Onboard Power Outputs:** Provides +5 V and +12 V outputs on the SCSI connector (protected by resettable fuses) for powering external circuits. - **Watchdog Timer:** 32-bit watchdog timer ensures system reliability and can reset outputs or trigger interrupts on timeout. - **Compact PCI Form Factor:** Half-size PCI card (158 mm × 107 mm) compliant with PCI Bus Rev. 2.1.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **High Channel Density:** 96 TTL-compatible digital I/O channels (12 ports of 8 bits each). - **High Current Drive Capability:** Each output channel can source up to 15 mA and sink up to 48 mA, suitable for driving LEDs, relays, and other loads. - **Output Readback:** Supports real-time output status readback for verification and monitoring. - **Change-of-State (COS) Interrupt:** Generates interrupts when any input bit changes state, enabling event-driven control. - **Dual Interrupt System:** Two independent interrupt sources (INT1 and INT2) for flexible event handling. - **Programmable Timer/Counter:** Includes one 8254 programmable timer/counter chip providing a 32-bit cascaded timer and a 16-bit event counter. - **External Trigger Input:** Allows external signals to latch input data or trigger events. - **User-Configurable Power-On State:** Each port can be configured via jumpers to power up in pull-high, pull-low, or floating state. - **Watchdog Timer:** 32-bit programmable timer for system monitoring and fail-safe operation. - **High-Speed Data Transfer:** Supports up to 1 MB/s typical transfer rate via programmed I/O. - **Comprehensive Software Support:** Compatible with ADLINK’s PCIS-DASK driver library, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC Server. - **Compact Form Factor:** Half-size PCI card (158 mm × 107 mm). - **Industrial Reliability:** Operating temperature range of 0°C to 60°C and humidity tolerance up to 95% non-condensing.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **Dual‑format PCI support:** Compatible with both Low Profile PCI and standard PCI slots using the supplied interchangeable bracket. - **32‑bit, 33 MHz PCI bus interface:** Universal key shape supports both 3.3 V and 5 V signaling environments. - **16 digital input channels:** TTL‑level, negative logic inputs with 10 kΩ pull‑up resistance. - **16 digital output channels:** Open‑collector outputs (negative logic) rated at 30 V DC, 40 mA per channel maximum. - **Interrupt capability:** All 16 input channels can be configured as interrupt sources; selectable rising or falling edge trigger. - **Digital noise filter:** Programmable digital filter prevents false triggering due to noise or contact bounce. - **Fast response:** Typical response time within 200 ns (variable with pull‑up resistance). - **Software support:** - **Windows:** API‑PAC(W32) driver library (Win32 API‑based DLLs). - **Linux:** API‑DIO(LNX) driver package. - **LabVIEW:** VI‑DAQ library for National Instruments LabVIEW. - **Diagnostic and sample tools:** Includes API‑TOOL configuration utility and diagnostic program for hardware verification. - **Compact design:** 121.69 mm (L) × 63.41 mm (H), weight 60 g. - **RoHS, CE, and VCCI compliant.**

Manufacturer: Contec

Category: DIO Non-Isolated PCI
