Comprehensive Product Summary – ADLINK PCI‑9222 Multi‑Function Data Acquisition Card
### 1. Product Overview

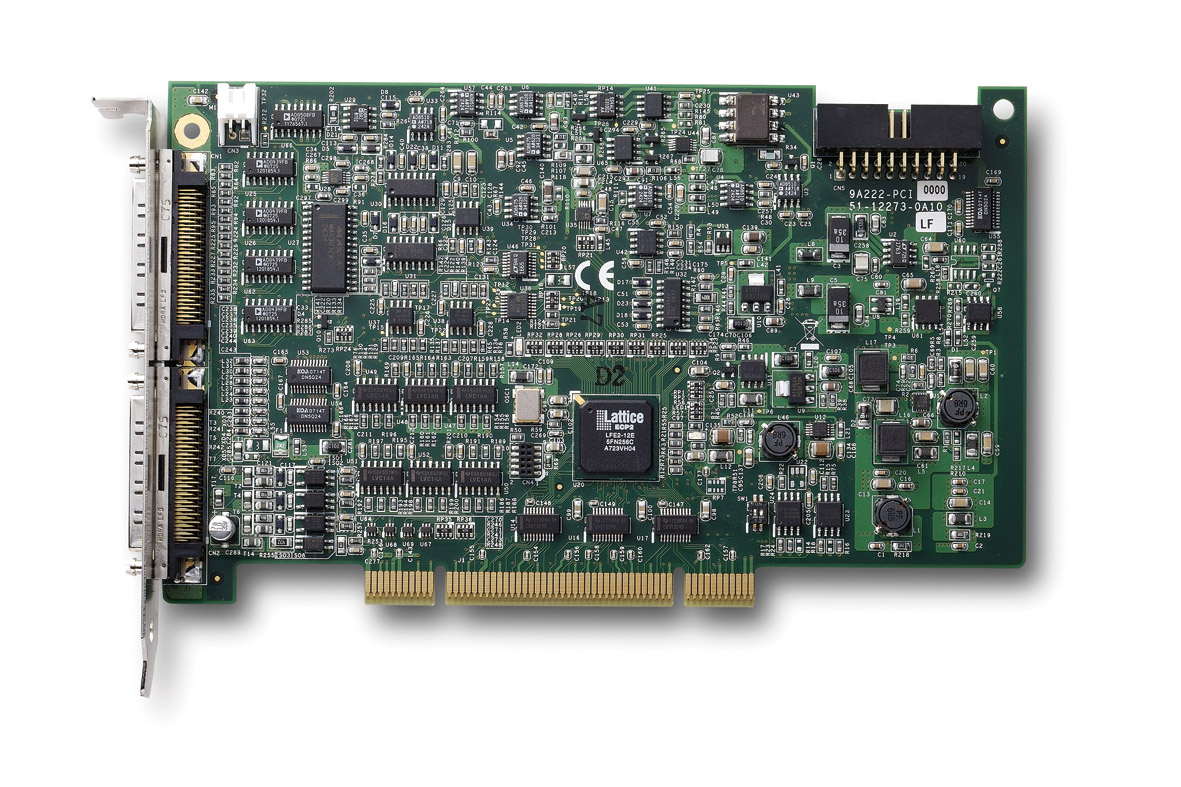

Product Name: NuDAQ® PCI‑9222
Model: PCI‑9222
Series: PCI‑9221/9222/9223 Multi‑Function DAQ Series
Article Number: PCI‑9222
Manufacturer: ADLINK Technology Inc.
Product Type: 16‑Channel, 16‑Bit, 250 kS/s Multi‑Function Data Acquisition (DAQ) Card with Encoder Input
Compliance: PCI 2.3‑compliant, 32‑bit 3.3 V/5 V universal PCI bus
The ADLINK PCI‑9222 is a high‑performance, 16‑bit, 16‑channel multifunction data acquisition card designed for precision analog and digital measurement, control, and signal generation. It integrates analog input (AI), analog output (AO), digital I/O, PWM, timer/counter, and encoder input functions on a single PCI card, providing a compact and cost‑effective solution for laboratory automation, industrial testing, and mixed‑signal applications.
### 2. Key Features
- High‑Resolution Analog Input:
16 single‑ended or 8 differential channels, 16‑bit resolution, up to 250 kS/s sampling rate per channel.
Programmable input ranges: ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±500 mV, ±250 mV.
Programmable gains: 1, 2, 4, 5, 8, 10, 20, 40.
- Simultaneous Analog Output:
Two 16‑bit analog output channels, up to 1 MS/s simultaneous update rate, ±10 V output range, 20 V/µs slew rate.
- Programmable Function I/O:
16 DI and 16 DO TTL channels (3.3 V/5 V compatible).
Supports high‑speed DIO up to 2 MHz, 4 × 32‑bit general‑purpose timer/counters (80 MHz base clock), 4 PWM outputs, and 2 encoder inputs.
- Encoder Inputs:
Two isolated 4 MHz encoder channels supporting CW/CCW and AB‑phase (×1, ×2, ×4) modes with 2500 Vrms isolation.
- Advanced Triggering and Synchronization:
Software and external digital triggers for AI, AO, and DIO.
Supports post‑trigger, retrigger, and gated trigger modes.
Multi‑card synchronization via SSI (System Synchronization Interface) bus.
- Auto‑Calibration:
Onboard reference and EEPROM‑stored calibration constants ensure long‑term accuracy and temperature stability.
- Software and OS Support:
Drivers for Windows 7/8 x86/x64 and Linux.
SDKs for LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET.
Utilities: AD‑Logger, DAQPilot, DAQMaster.
- Mechanical and Electrical:
Two 68‑pin VHDCI connectors, compact 120 × 87 mm PCB, universal PCI interface, and robust industrial design.
### 3. Technical Specifications
Analog Input (AI):
- Channels: 16 SE / 8 DIFF
- Resolution: 16 bits
- Sampling Rate: 250 kS/s (single channel)
- Input Range: ±10 V to ±250 mV (8 ranges)
- Input Coupling: DC
- Input Impedance: > 1 GΩ
- Overvoltage Protection: ±30 V continuous
- Offset Error: ±0.7 mV typical (after calibration)
- Gain Error: ±0.015 % FSR (after calibration)
- FIFO Buffer: 1 k samples
- Trigger Sources: Software, external digital, SSI
- Trigger Modes: Post, retrigger, gated
- Data Transfer: Polling, scatter‑gather DMA
- Common‑mode Range: ±8 V
- Bandwidth (–3 dB): 1.5 MHz typical
- SFDR: 95 dB; SNR: 87 dB; THD: –94 dB; ENOB: 13.9 bits
Analog Output (AO):
- Channels: 2 voltage outputs
- Resolution: 16 bits
- Update Rate: 1 MS/s (simultaneous)
- Output Range: ±10 V
- Output Drive: ±5 mA max
- Slew Rate: 20 V/µs
- Settling Time: 2.6 µs (0.1 % FS)
- Offset Error: ±1 mV (after calibration)
- Gain Error: ±0.01 % FSR
- FIFO: 512 samples (shared)
- Output Impedance: 0.01 Ω max
Digital I/O:
- 16 DI / 16 DO TTL (3.3 V or 5 V logic)
- Logic Low: ≤ 0.8 V; Logic High: ≥ 2.0 V
- Output Low: ≤ 0.5 V @ 10 mA; Output High: ≥ 2.6 V @ 10 mA
- High‑Speed DIO: 2 MHz max
- FIFO: 512 samples (DI and DO)
Timer/Counter:
- 4 × 32‑bit GPTC, 80 MHz internal clock / 10 MHz external
- Modes: Event counting, period measurement, pulse generation, PWM, edge separation
- PWM Frequency: 0.005 Hz – 20 MHz; Duty Cycle: 1 – 99 %
Encoder Input:
- Channels: 2 isolated inputs
- Max Frequency: 4 MHz
- Modes: CW/CCW, ×1, ×2, ×4 AB‑phase
- Isolation: 2500 Vrms (photo‑isolated)
- Input Voltage: +24 V nominal (encoder supply)
Physical & Environmental:
- Dimensions: 120 mm × 87 mm (4.68 × 3.39 in)
- Connectors: 2 × 68‑pin VHDCI female
- Operating Temp: 0 – 55 °C (32 – 131 °F)
- Storage Temp: –20 – 70 °C (–4 – 158 °F)
- Humidity: 5 – 95 % non‑condensing
- Power Requirements: +5 V @ 1.2 A, +12 V @ 760 mA, –12 V @ 50 mA
### 4. Functionality
The PCI‑9222 integrates multiple data acquisition and control functions on a single PCI card:
- Analog Input (AI):
Converts analog signals to 16‑bit digital data using an AD7685 ADC. Supports single‑ended or differential configurations with programmable gain and range. Data acquisition can be triggered by software or external signals and transferred via DMA for high‑speed continuous sampling.
- Analog Output (AO):
Generates precise analog voltages using a DAC8812 DAC. Supports waveform generation, static output, and hardware‑timed updates. Ideal for signal simulation, control loops, and test stimulus generation.
- Digital I/O:
Provides 16 inputs and 16 outputs for TTL‑level control and monitoring. Supports static I/O, high‑speed waveform generation/acquisition, and synchronization with analog operations.
- Timer/Counter & PWM:
Four 32‑bit timers/counters support event counting, frequency measurement, pulse generation, and PWM output. PWM channels can generate modulation frequencies from 0.005 Hz to 20 MHz with 1–99 % duty cycle.
- Encoder Inputs:
Two isolated encoder channels support CW/CCW and AB‑phase modes for position feedback in motion control applications.
- Triggering & Synchronization:
Supports software and external digital triggers for AI, AO, and DIO. Multiple cards can be synchronized via the SSI bus for multi‑channel systems.
Typical Applications:
- Automotive and aerospace testing
- Transient signal measurement
- Automated test equipment (ATE)
- Laboratory and biotech instrumentation
- Motor control and feedback systems
- Mixed‑signal data acquisition and waveform generation
Compatibility:
- PCI 2.3 bus (32‑bit, 3.3 V/5 V)
- Supported OS: Windows 7/8 x86/x64, Linux
- Software APIs: LabVIEW®, MATLAB®, C/C++, VB, Visual Studio .NET
### 5. Components & Accessories
Included Items:
- PCI‑9222 DAQ card
- ADLINK All‑in‑One CD (Drivers, SDKs, Utilities)
- User Manual
Optional Terminal Boards & Cables:
- DIN‑68S‑01 (for PCI‑9222/9223)
- ACL‑10568‑1 (68‑pin VHDCI cable)
- ACL‑SSI‑2/3/4 (for multi‑card synchronization)
Connectors:
- CN1 (VHDCI 68‑pin): Analog I/O signals
- CN2 (VHDCI 68‑pin): Digital I/O and Encoder signals
- SSI (20‑pin ribbon): Synchronization interface
### 6. Installation & Setup
Requirements:
- Available 32‑bit PCI slot (3.3 V or 5 V)
- Compatible PC running Windows or Linux
- Administrative privileges for driver installation
Installation Steps:
1. Install ADLINK DAQPilot or DAQMaster drivers before hardware installation.
2. Power off the system and remove the chassis cover.
3. Insert the PCI‑9222 into an available PCI slot and secure it with a screw.
4. Replace the cover and power on the system.
5. The system BIOS automatically assigns resources (IRQ, DMA).
6. Configure the card using DAQMaster or software API.
Mounting Options:
Standard PCI slot mounting with rear bracket. Use anti‑static precautions during installation.
Configuration:
Plug‑and‑play PCI configuration; no jumpers required. All settings are software‑controlled.
### 7. Performance & Capabilities
- Analog Input: 250 kS/s max (single channel), 16‑bit resolution, 1.5 MHz bandwidth.
- Analog Output: 1 MS/s update rate, 20 V/µs slew rate, ±10 V range.
- Digital I/O: 2 MHz max transfer rate.
- Timer/Counter: 80 MHz internal clock, 32‑bit resolution.
- PWM: 0.005 Hz – 20 MHz frequency range.
- Encoder: 4 MHz max input frequency.
- DMA Transfer: Scatter‑gather DMA for continuous high‑speed data streaming.
- Auto‑Calibration: Ensures ±0.015 % FSR gain accuracy and ±0.7 mV offset error.
Limitations:
- Single A/D converter shared across channels (limits aggregate sampling rate).
- No built‑in isolation for analog channels (external isolation recommended for high‑voltage sources).
- Encoder inputs require external +24 V supply.
### 8. Standards & Compliance
- Bus Interface: PCI 2.3 compliant, 32‑bit 3.3 V/5 V universal slot.
- Electrical Safety: Meets industrial EMC and safety requirements.
- Isolation: Encoder inputs 2500 Vrms photo‑isolation.
- Environmental: Operating 0–55 °C, storage –20–70 °C, 5–95 % RH non‑condensing.
- Software Compliance: Supports LabVIEW®, MATLAB®, and industry‑standard APIs.
- RoHS and CE: Compliant with ADLINK manufacturing standards.
### 9. Additional Information
Calibration:
Factory‑calibrated with stored constants in EEPROM. Auto‑calibration routine compensates for temperature and time drift without external equipment. User can store up to three sets of calibration constants.
Maintenance:
Periodic auto‑calibration recommended every 6–12 months. Avoid exposure to static discharge and high humidity.
Warranty:
Two‑year limited warranty (one year in China). Covers manufacturing defects only. Excludes damage from misuse, improper installation, or unauthorized repair. RMA process available via [http://rma.adlinktech.com/policy](http://rma.adlinktech.com/policy).
Technical Support:
- Global Website: [www.adlinktech.com](http://www.adlinktech.com)
- Email: service@adlinktech.com
- Regional Offices: Taiwan, USA, Europe, Singapore, India, Korea, China (Beijing, Shanghai, Shenzhen)
Software Updates:
Drivers and SDK updates available through ADLINK DAQPilot and DAQMaster utilities. Legacy support via PCIS‑DASK drivers for older Windows versions.
Safety Notes:
Handle the card using anti‑static precautions. Do not apply power if the card is damaged. Allow 15 minutes warm‑up before calibration.
### Summary
The ADLINK PCI‑9222 is a robust, high‑precision, multifunction PCI data acquisition card that combines 16‑bit analog input and output, digital I/O, PWM, timer/counter, and encoder capabilities in a single compact board. With its 250 kS/s sampling rate, 1 MS/s analog output, 4 MHz encoder inputs, and 80 MHz timing engine, it delivers laboratory‑grade performance for industrial and scientific applications. Its auto‑calibration, DMA data transfer, and multi‑card synchronization features make it ideal for high‑speed, high‑accuracy measurement and control systems. Supported by comprehensive software tools and drivers, the PCI‑9222 offers a complete solution for engineers and researchers requiring flexible, reliable, and precise data acquisition on the PCI platform.
### 1. Product Overview
Product Name: NuDAQ® PCI‑9222
Model: PCI‑9222
Series: PCI‑9221/9222/9223 Multi‑Function DAQ Series
Article Number: PCI‑9222
Manufacturer: ADLINK Technology Inc.
Product Type: 16‑Channel, 16‑Bit, 250 kS/s Multi‑Function Data Acquisition (DAQ) Card with Encoder Input
Compliance: PCI 2.3‑compliant, 32‑bit 3.3 V/5 V universal PCI bus
The ADLINK PCI‑9222 is a high‑performance, 16‑bit, 16‑channel multifunction data acquisition card designed for precision analog and digital measurement, control, and signal generation. It integrates analog input (AI), analog output (AO), digital I/O, PWM, timer/counter, and encoder input functions on a single PCI card, providing a compact and cost‑effective solution for laboratory automation, industrial testing, and mixed‑signal applications.
### 2. Key Features
- High‑Resolution Analog Input:
16 single‑ended or 8 differential channels, 16‑bit resolution, up to 250 kS/s sampling rate per channel.
Programmable input ranges: ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±500 mV, ±250 mV.
Programmable gains: 1, 2, 4, 5, 8, 10, 20, 40.
- Simultaneous Analog Output:
Two 16‑bit analog output channels, up to 1 MS/s simultaneous update rate, ±10 V output range, 20 V/µs slew rate.
- Programmable Function I/O:
16 DI and 16 DO TTL channels (3.3 V/5 V compatible).
Supports high‑speed DIO up to 2 MHz, 4 × 32‑bit general‑purpose timer/counters (80 MHz base clock), 4 PWM outputs, and 2 encoder inputs.
- Encoder Inputs:
Two isolated 4 MHz encoder channels supporting CW/CCW and AB‑phase (×1, ×2, ×4) modes with 2500 Vrms isolation.
- Advanced Triggering and Synchronization:
Software and external digital triggers for AI, AO, and DIO.
Supports post‑trigger, retrigger, and gated trigger modes.
Multi‑card synchronization via SSI (System Synchronization Interface) bus.
- Auto‑Calibration:
Onboard reference and EEPROM‑stored calibration constants ensure long‑term accuracy and temperature stability.
- Software and OS Support:
Drivers for Windows 7/8 x86/x64 and Linux.
SDKs for LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET.
Utilities: AD‑Logger, DAQPilot, DAQMaster.
- Mechanical and Electrical:
Two 68‑pin VHDCI connectors, compact 120 × 87 mm PCB, universal PCI interface, and robust industrial design.
### 3. Technical Specifications
Analog Input (AI):
- Channels: 16 SE / 8 DIFF
- Resolution: 16 bits
- Sampling Rate: 250 kS/s (single channel)
- Input Range: ±10 V to ±250 mV (8 ranges)
- Input Coupling: DC
- Input Impedance: > 1 GΩ
- Overvoltage Protection: ±30 V continuous
- Offset Error: ±0.7 mV typical (after calibration)
- Gain Error: ±0.015 % FSR (after calibration)
- FIFO Buffer: 1 k samples
- Trigger Sources: Software, external digital, SSI
- Trigger Modes: Post, retrigger, gated
- Data Transfer: Polling, scatter‑gather DMA
- Common‑mode Range: ±8 V
- Bandwidth (–3 dB): 1.5 MHz typical
- SFDR: 95 dB; SNR: 87 dB; THD: –94 dB; ENOB: 13.9 bits
Analog Output (AO):
- Channels: 2 voltage outputs
- Resolution: 16 bits
- Update Rate: 1 MS/s (simultaneous)
- Output Range: ±10 V
- Output Drive: ±5 mA max
- Slew Rate: 20 V/µs
- Settling Time: 2.6 µs (0.1 % FS)
- Offset Error: ±1 mV (after calibration)
- Gain Error: ±0.01 % FSR
- FIFO: 512 samples (shared)
- Output Impedance: 0.01 Ω max
Digital I/O:
- 16 DI / 16 DO TTL (3.3 V or 5 V logic)
- Logic Low: ≤ 0.8 V; Logic High: ≥ 2.0 V
- Output Low: ≤ 0.5 V @ 10 mA; Output High: ≥ 2.6 V @ 10 mA
- High‑Speed DIO: 2 MHz max
- FIFO: 512 samples (DI and DO)
Timer/Counter:
- 4 × 32‑bit GPTC, 80 MHz internal clock / 10 MHz external
- Modes: Event counting, period measurement, pulse generation, PWM, edge separation
- PWM Frequency: 0.005 Hz – 20 MHz; Duty Cycle: 1 – 99 %
Encoder Input:
- Channels: 2 isolated inputs
- Max Frequency: 4 MHz
- Modes: CW/CCW, ×1, ×2, ×4 AB‑phase
- Isolation: 2500 Vrms (photo‑isolated)
- Input Voltage: +24 V nominal (encoder supply)
Physical & Environmental:
- Dimensions: 120 mm × 87 mm (4.68 × 3.39 in)
- Connectors: 2 × 68‑pin VHDCI female
- Operating Temp: 0 – 55 °C (32 – 131 °F)
- Storage Temp: –20 – 70 °C (–4 – 158 °F)
- Humidity: 5 – 95 % non‑condensing
- Power Requirements: +5 V @ 1.2 A, +12 V @ 760 mA, –12 V @ 50 mA
### 4. Functionality
The PCI‑9222 integrates multiple data acquisition and control functions on a single PCI card:
- Analog Input (AI):
Converts analog signals to 16‑bit digital data using an AD7685 ADC. Supports single‑ended or differential configurations with programmable gain and range. Data acquisition can be triggered by software or external signals and transferred via DMA for high‑speed continuous sampling.
- Analog Output (AO):
Generates precise analog voltages using a DAC8812 DAC. Supports waveform generation, static output, and hardware‑timed updates. Ideal for signal simulation, control loops, and test stimulus generation.
- Digital I/O:
Provides 16 inputs and 16 outputs for TTL‑level control and monitoring. Supports static I/O, high‑speed waveform generation/acquisition, and synchronization with analog operations.
- Timer/Counter & PWM:
Four 32‑bit timers/counters support event counting, frequency measurement, pulse generation, and PWM output. PWM channels can generate modulation frequencies from 0.005 Hz to 20 MHz with 1–99 % duty cycle.
- Encoder Inputs:
Two isolated encoder channels support CW/CCW and AB‑phase modes for position feedback in motion control applications.
- Triggering & Synchronization:
Supports software and external digital triggers for AI, AO, and DIO. Multiple cards can be synchronized via the SSI bus for multi‑channel systems.
Typical Applications:
- Automotive and aerospace testing
- Transient signal measurement
- Automated test equipment (ATE)
- Laboratory and biotech instrumentation
- Motor control and feedback systems
- Mixed‑signal data acquisition and waveform generation
Compatibility:
- PCI 2.3 bus (32‑bit, 3.3 V/5 V)
- Supported OS: Windows 7/8 x86/x64, Linux
- Software APIs: LabVIEW®, MATLAB®, C/C++, VB, Visual Studio .NET
### 5. Components & Accessories
Included Items:
- PCI‑9222 DAQ card
- ADLINK All‑in‑One CD (Drivers, SDKs, Utilities)
- User Manual
Optional Terminal Boards & Cables:
- DIN‑68S‑01 (for PCI‑9222/9223)
- ACL‑10568‑1 (68‑pin VHDCI cable)
- ACL‑SSI‑2/3/4 (for multi‑card synchronization)
Connectors:
- CN1 (VHDCI 68‑pin): Analog I/O signals
- CN2 (VHDCI 68‑pin): Digital I/O and Encoder signals
- SSI (20‑pin ribbon): Synchronization interface
### 6. Installation & Setup
Requirements:
- Available 32‑bit PCI slot (3.3 V or 5 V)
- Compatible PC running Windows or Linux
- Administrative privileges for driver installation
Installation Steps:
1. Install ADLINK DAQPilot or DAQMaster drivers before hardware installation.
2. Power off the system and remove the chassis cover.
3. Insert the PCI‑9222 into an available PCI slot and secure it with a screw.
4. Replace the cover and power on the system.
5. The system BIOS automatically assigns resources (IRQ, DMA).
6. Configure the card using DAQMaster or software API.
Mounting Options:
Standard PCI slot mounting with rear bracket. Use anti‑static precautions during installation.
Configuration:
Plug‑and‑play PCI configuration; no jumpers required. All settings are software‑controlled.
### 7. Performance & Capabilities
- Analog Input: 250 kS/s max (single channel), 16‑bit resolution, 1.5 MHz bandwidth.
- Analog Output: 1 MS/s update rate, 20 V/µs slew rate, ±10 V range.
- Digital I/O: 2 MHz max transfer rate.
- Timer/Counter: 80 MHz internal clock, 32‑bit resolution.
- PWM: 0.005 Hz – 20 MHz frequency range.
- Encoder: 4 MHz max input frequency.
- DMA Transfer: Scatter‑gather DMA for continuous high‑speed data streaming.
- Auto‑Calibration: Ensures ±0.015 % FSR gain accuracy and ±0.7 mV offset error.
Limitations:
- Single A/D converter shared across channels (limits aggregate sampling rate).
- No built‑in isolation for analog channels (external isolation recommended for high‑voltage sources).
- Encoder inputs require external +24 V supply.
### 8. Standards & Compliance
- Bus Interface: PCI 2.3 compliant, 32‑bit 3.3 V/5 V universal slot.
- Electrical Safety: Meets industrial EMC and safety requirements.
- Isolation: Encoder inputs 2500 Vrms photo‑isolation.
- Environmental: Operating 0–55 °C, storage –20–70 °C, 5–95 % RH non‑condensing.
- Software Compliance: Supports LabVIEW®, MATLAB®, and industry‑standard APIs.
- RoHS and CE: Compliant with ADLINK manufacturing standards.
### 9. Additional Information
Calibration:
Factory‑calibrated with stored constants in EEPROM. Auto‑calibration routine compensates for temperature and time drift without external equipment. User can store up to three sets of calibration constants.
Maintenance:
Periodic auto‑calibration recommended every 6–12 months. Avoid exposure to static discharge and high humidity.
Warranty:
Two‑year limited warranty (one year in China). Covers manufacturing defects only. Excludes damage from misuse, improper installation, or unauthorized repair. RMA process available via [http://rma.adlinktech.com/policy](http://rma.adlinktech.com/policy).
Technical Support:
- Global Website: [www.adlinktech.com](http://www.adlinktech.com)
- Email: service@adlinktech.com
- Regional Offices: Taiwan, USA, Europe, Singapore, India, Korea, China (Beijing, Shanghai, Shenzhen)
Software Updates:
Drivers and SDK updates available through ADLINK DAQPilot and DAQMaster utilities. Legacy support via PCIS‑DASK drivers for older Windows versions.
Safety Notes:
Handle the card using anti‑static precautions. Do not apply power if the card is damaged. Allow 15 minutes warm‑up before calibration.
### Summary
The ADLINK PCI‑9222 is a robust, high‑precision, multifunction PCI data acquisition card that combines 16‑bit analog input and output, digital I/O, PWM, timer/counter, and encoder capabilities in a single compact board. With its 250 kS/s sampling rate, 1 MS/s analog output, 4 MHz encoder inputs, and 80 MHz timing engine, it delivers laboratory‑grade performance for industrial and scientific applications. Its auto‑calibration, DMA data transfer, and multi‑card synchronization features make it ideal for high‑speed, high‑accuracy measurement and control systems. Supported by comprehensive software tools and drivers, the PCI‑9222 offers a complete solution for engineers and researchers requiring flexible, reliable, and precise data acquisition on the PCI platform.
-
PCI-9222_9223_Datasheet_en_20170807_v1.pdf
PDF Catalog
-
PCI-9222+9223_Manual_10.pdf
Manual
- DIN-68S-01 - 68pin SCSI-II termination board DIN rail w/o cable
- ACL-10568-1 - SCSI-VHDCI cable 1m for DAQ series
- ACL-10568-2 - SCSI-VHDCI cable 2m for DAQ series
- ACL-10568-3 - SCSI-VHDCI cable 3m for DAQ series
