Rugged dual-port 10GbE PCIe adapter with RoCEv2 and 90 W PoE++ per port.

PCIe-PoE572bt

Rugged dual-port 10GbE PCIe adapter with RoCEv2 and 90 W PoE++ per port.

Request a quote

Manufacturer Neousys Technology
Category: Vision & Video

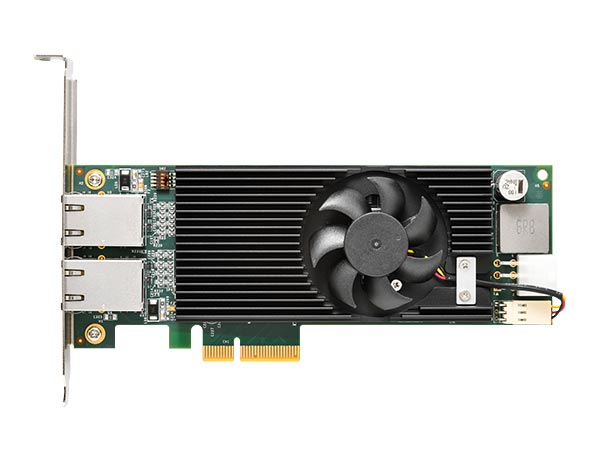

The PCIe-PoE572bt is a rugged dual-port 10GBASE-T network card for machine vision, surveillance and high-performance network applications. Its Broadcom BCM57416 controller supports RoCEv2 RDMA for direct zero-copy data transfer and jumbo frames up to 9.6 KB. Both ports provide up to 90 W each under IEEE 802.3bt PoE++, with a total budget of up to 180 W. The PCIe Gen3 x4 card supports 10G and 1G links, CAT 6a cabling up to 100 m, and operation from -25°C to 70°C with sufficient airflow.

Wide-temperature PCIe Gen3 x4 network adapter with two 10GBASE-T ports based on the Broadcom BCM57416 controller. It supports 10G/1G links, RoCEv2 RDMA, 9.6 KB jumbo frames and IEEE 802.3bt PoE++ with up to 90 W per port and 180 W total. Low-profile or standard-height installation; -25°C to 70°C operation with required airflow.

Bus Interface PCI Express Gen3 x4
Supported PCIe Lane Configurations x8, x4, x1
Bus Interface PCI Express Gen3 x4; supports x8, x4 and x1 PCIe lanes
10GbE Port Count 2 ports
Ethernet Controller Broadcom BCM57416
Supported Link Speeds 10G, 1G Gbps
Network Standards 10GBASE-T IEEE 802.3an; 1000BASE-T IEEE 802.3ab
Maximum Jumbo Frame Size 9.6 KB
RDMA Protocol RoCEv2
Verified Throughput >9.62 Gbps
Claimed CPU Usage Reduction Up to 90 %
PoE Standard IEEE 802.3bt PoE++ Type 3/Type 4 PSE
Maximum PoE Output Per Port 90 W
Maximum Total PoE Budget 180 W
PCIe-Supplied PoE Budget 66 W
Auxiliary-Supplied PoE Budget 180 W
PoE Device Compatibility IEEE 802.3bt, 802.3at and 802.3af powered devices
Per-Port PoE Control Power on/off control via API
Cable Requirement CAT 6a or better
Maximum Cable Length 100 m
Operating Temperature -25 to 70 °C
Required Airflow at 70°C 1.2 m/s
Operating Temperature -25°C to 70°C with airflow; 1.2 m/s airflow required at 70°C for full performance
EMC Compliance CE/FCC Class B; EN 55032 and EN 55035
Card Form Factor Single-slot low-profile or standard-height PCIe card
Low-Profile Dimensions 167.65 x 68.9 mm (W x H)
Standard-Height Dimensions 167.65 x 111.2 mm (W x H)
Form Factor Single-slot low-profile or standard-height PCIe card
Connector 2x 10GBASE-T Ethernet ports; 6-pin auxiliary power connector for 180 W configuration
Dimensions 167.65 mm W x 68.9 mm H with low-profile bracket; 167.65 mm W x 111.2 mm H with standard-height bracket
Optional Low-Profile Bracket Kit AccsyBx-two port PCIe low profile bracket
DMA RoCEv2 RDMA; direct zero-copy transfer to host memory
Key Features Two 10GBASE-T ports; Broadcom BCM57416 controller; RoCEv2 RDMA; IEEE 802.3bt PoE++ Type 3/Type 4; 90 W per port; 180 W total PoE budget; 9.6 KB jumbo frames; per-port PoE control via API; wide-temperature operation; CAT 6a reach up to 100 m
Accessories AccsyBx-two port PCIe low profile bracket
