Comprehensive Product Summary: PXES‑2780 Rack‑Mount Kit

---

### 1. Product Overview

Product Name: PXES‑2780 Rack‑Mount Kit
Model: PXES‑2780‑RMK
Series: PXES‑2780 PXI Express Chassis Accessories
Article Number: PXES‑2780 Rack‑Mount Kit
Manufacturer: ADLINK Technology, Inc.

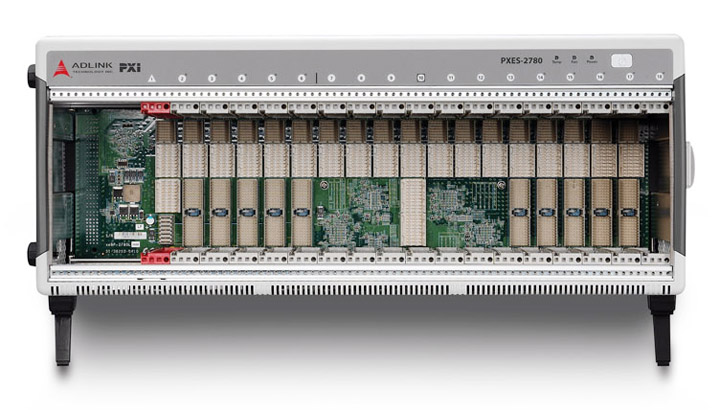

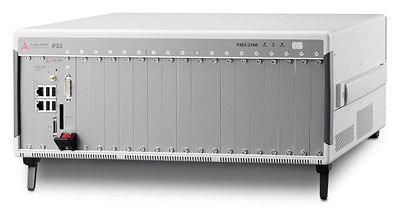

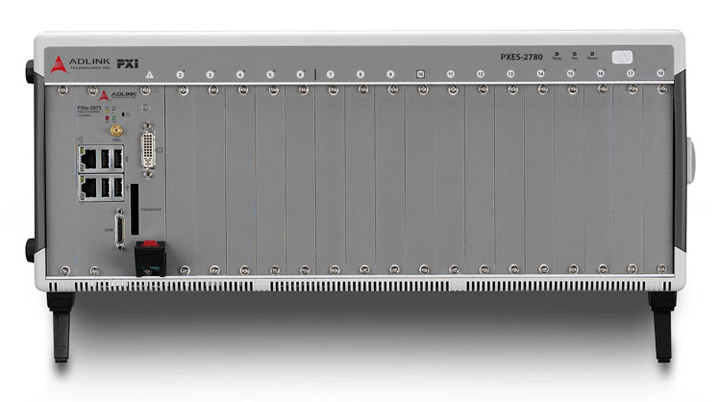

The PXES‑2780 Rack‑Mount Kit is a dedicated mechanical accessory designed for the ADLINK PXES‑2780 18‑slot PXI Express chassis. It enables secure and standardized rack installation of the chassis in 19‑inch equipment racks, ensuring stability, accessibility, and optimal cooling performance in laboratory, industrial, and automated test environments. The kit complements the PXES‑2780’s robust mechanical design and is engineered to maintain compliance with PXI Express and CompactPCI Express mechanical standards.

---

### 2. Key Features

- Purpose‑Built for PXES‑2780: Designed specifically for the ADLINK PXES‑2780 18‑slot PXI Express chassis, ensuring perfect mechanical fit and alignment with chassis mounting points.
- Standard 19‑Inch Rack Compatibility: Conforms to EIA‑310‑D rack‑mounting standards, supporting installation in standard 19‑inch racks with 3U height allocation.
- Enhanced Structural Support: Provides rigid mechanical support for the 11.9 kg chassis, preventing vibration and mechanical stress during operation.
- Optimized Airflow and Cooling: Maintains unobstructed airflow paths for the PXES‑2780’s triple‑fan cooling system (3 × 185.9 CFM), ensuring consistent thermal performance when rack‑mounted.
- Ease of Installation: Includes precision‑machined brackets, mounting screws, and alignment hardware for quick integration.
- Durable Construction: Manufactured from high‑strength steel or aluminum alloy with corrosion‑resistant surface treatment to ensure long‑term durability.
- Flexible Mounting Depth: Adjustable rail depth accommodates various rack configurations and cable management requirements.
- Vibration and Shock Resistance: Designed to withstand the PXES‑2780’s operational vibration tolerance (0.3 Grms, 5–500 Hz) and functional shock rating (30 G, 11 ms half‑sine pulse).
- Aesthetic Integration: Matches the PXES‑2780 chassis finish and front‑panel design for a professional, cohesive system appearance.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|------------------|
| Compatible Chassis | ADLINK PXES‑2780 18‑slot PXI Express chassis |
| Rack Standard | 19‑inch EIA‑310‑D |
| Rack Height | 3U (191.4 mm) |
| Chassis Dimensions (with kit installed) | 464.3 mm (W) × 191.4 mm (H) × 465.3 mm (D) (18.1 × 7.46 × 18.14 in.) |
| Chassis Weight (without modules) | 11.9 kg (26.2 lb) |
| Material | High‑strength steel or aluminum alloy |
| Surface Finish | Powder‑coated or anodized corrosion‑resistant finish |
| Mounting Hardware | Front brackets, side rails, screws, and washers |
| Load Capacity | ≥ 15 kg static load |
| Operating Temperature (with PXES‑2780) | 0 °C to 55 °C |
| Storage Temperature | −20 °C to 70 °C |
| Relative Humidity | 10 % to 90 %, non‑condensing |
| Compliance | PXI‑5 mechanical envelope, EN 61010‑1 safety, EN 61326‑1 EMC |

---

### 4. Functionality

The PXES‑2780 Rack‑Mount Kit enables the PXES‑2780 chassis to be securely installed in a standard 19‑inch rack system. The kit’s brackets attach directly to the chassis side panels using pre‑drilled mounting holes. Once installed, the chassis can be fastened to rack rails or front posts using standard rack screws.

Use Cases and Applications:
- Automated test equipment (ATE) systems in production lines
- Research and development laboratories requiring modular PXI instrumentation
- Industrial monitoring and control systems
- Aerospace and defense test benches
- Telecommunications and semiconductor validation setups

Compatibility:
- Fully compatible with the PXES‑2780 chassis and its integrated AC power supply, cooling fans, and rear I/O connectors.
- Maintains access to all front and rear interfaces, including BNC clock I/O, D‑SUB9 monitoring ports, and power inlet.
- Compatible with ADLINK PXIe‑3975 system controller and hybrid PXI/PXIe modules.

---

### 5. Components & Accessories

Included Items:
- Left and right rack‑mount brackets (pair)
- Mounting screws and washers
- Installation guide

Optional Accessories (for PXES‑2780 system):
- PXIe‑3975 embedded controller
- PMK‑1524 monitor kit (15‑inch LCD with keyboard/touchpad)
- Filler panel kit for unused PXI slots
- Power cords (region‑specific)

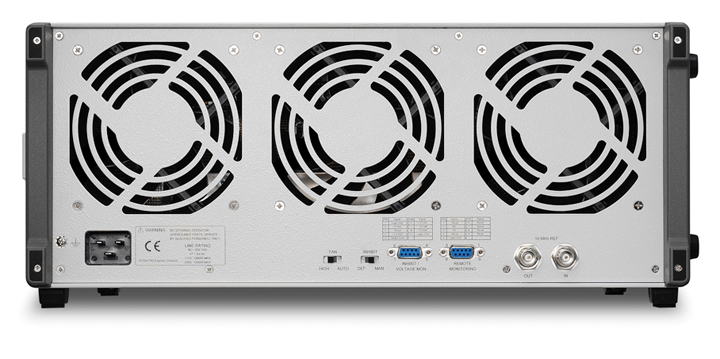

Connectors and Interfaces (on PXES‑2780 chassis):
- 2 × BNC connectors for 10 MHz clock input/output
- 2 × D‑SUB9 connectors for voltage monitoring and remote inhibit
- AC power inlet (C13 type)
- Fan speed and inhibit mode selector switches

---

### 6. Installation & Setup

Requirements:
- Standard 19‑inch rack with minimum depth of 500 mm
- Clearance of at least 1U (44.5 mm) below chassis for air intake
- Minimum 76 mm (3 in.) clearance behind chassis for exhaust airflow

Installation Procedure:
1. Power off and disconnect the PXES‑2780 chassis.
2. Attach the left and right rack‑mount brackets to the chassis using the provided screws.
3. Align the bracket holes with rack posts and secure using rack screws.
4. Verify that the chassis is level and firmly supported.
5. Reconnect power and peripheral cables, ensuring unobstructed airflow.

Configuration Notes:
- Maintain filler panels in unused PXI slots to preserve airflow.
- Ensure the fan mode switch is set appropriately (AUTO or HIGH) depending on ambient temperature.
- Connect the chassis ground lug to the rack ground for safety compliance.

---

### 7. Performance & Capabilities

When installed with the rack‑mount kit, the PXES‑2780 retains its full electrical and mechanical performance characteristics:

- System Bandwidth: Up to 8 GB/s (PCIe Gen 2 x8)
- Peripheral Bandwidth: Up to 4 GB/s per dedicated slot
- Power Supply: 800 W total usable power at 55 °C
- Cooling Capacity: 3 × 185.9 CFM fans, 38.2 W per‑slot cooling
- Acoustic Emission: 46.3 dBA (auto fan, 25 °C), 64.5 dBA (high fan)
- Shock Resistance: 30 G, 11 ms half‑sine pulse
- Vibration Tolerance: 0.3 Grms (operating), 2.46 Grms (non‑operating)

Limitations:
- Designed exclusively for the PXES‑2780 chassis; not compatible with other PXI chassis models.
- Requires adequate rack ventilation to maintain rated thermal performance.

---

### 8. Standards & Compliance

The PXES‑2780 Rack‑Mount Kit and associated chassis conform to multiple international standards:

- PXI Express Compliance: PXI‑5 PXI Express Hardware Specification Rev. 1.0
- Electrical Safety: EN 61010‑1
- Electromagnetic Compatibility: EN 61326‑1, FCC Class A
- CE Marking: Complies with Low Voltage Directive 73/23/EEC and EMC Directive 89/336/EEC
- Environmental Compliance: RoHS and WEEE directives (lead‑free, recyclable materials)
- Acoustic Testing: ISO 7779 sound power measurement standard

---

### 9. Additional Information

Warranty:
ADLINK provides a standard limited warranty covering manufacturing defects and workmanship for the PXES‑2780 chassis and its accessories, including the rack‑mount kit. Warranty terms may vary by region; typically one year from the date of purchase.

Technical Support:
ADLINK offers global technical support through regional offices in Taiwan, the United States, Europe, China, Japan, Korea, Singapore, and India. Support includes installation guidance, firmware updates, and compatibility assistance.

Maintenance:
- Periodically inspect mounting screws for tightness.
- Clean exterior surfaces with a dry cloth; avoid solvents.
- Ensure unobstructed airflow through intake and exhaust vents.

Firmware and Software Updates:
The PXES‑2780 chassis supports intelligent system monitoring via RS‑232 or SMBus interfaces. Firmware updates and monitoring utilities (e.g., FTP Monitor PXES‑2780) are available from ADLINK’s support portal.

Environmental Responsibility:
ADLINK adheres to RoHS and WEEE directives, ensuring environmentally responsible manufacturing and disposal. Customers are encouraged to recycle or dispose of products according to local regulations.

---

### Summary

The ADLINK PXES‑2780 Rack‑Mount Kit is a precision‑engineered accessory enabling secure, standards‑compliant rack installation of the PXES‑2780 18‑slot PXI Express chassis. It preserves the chassis’s superior electrical, thermal, and mechanical performance while providing robust structural support in demanding industrial and laboratory environments. With its durable construction, ease of installation, and full compliance with PXI Express and safety standards, the rack‑mount kit is an essential component for system integrators and engineers deploying high‑density PXI test platforms in rack‑based configurations.
