SM_UI_108i - Sunix

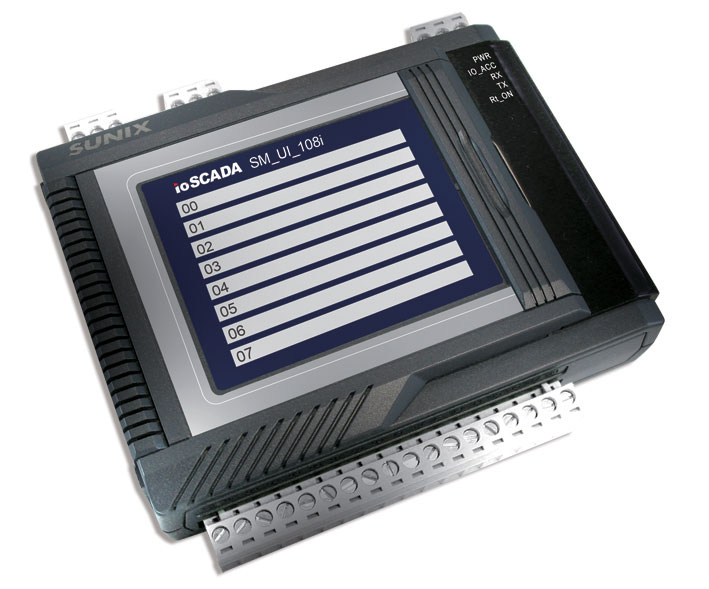

8 DI AD universal input Module

This network allows for the remote control and monitoring of IO devices using Ethernet / USB / RS485 / RS232 Modbus IO. It provides a reliable and secure connection between the IO devices and the remote user, allowing for real-time data access and control. This network is ideal for applications that require remote access to IO devices, such as industrial automation, process control, and monitoring..

Description

  • 8 DI AD universal input Module
  • 8 differential channels/±20mA/4..20mA/±0,1/0,5/5/10V/1..5V
  • thermocouple types J K T R S E B N
  • 16 bit resolution 140ms/chan conversion time
  • voltage input protection 100V
  • standard Modbus protocol RTU ASCII RS485 3 wire
  • user friendly status LED
  • up to 115,2kbaud
  • up to 63 modules without repeater
  • network isolation voltage 3kV
  • operating -30°..75°C temperature
  • DIN-Rail mount 132*125*47,5mm
  • Sunix

Details

  • Width: 132 mm
  • Height: 125 mm
  • Depth: 47.5 mm
  • Form factor: DIN-Rail
  • Manufacturer: Sunix
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
