Comprehensive Product Summary: TRP-C41S Ethernet 100TX to Fiber Media Converter (SC/40KM)

---

### 1. Product Overview

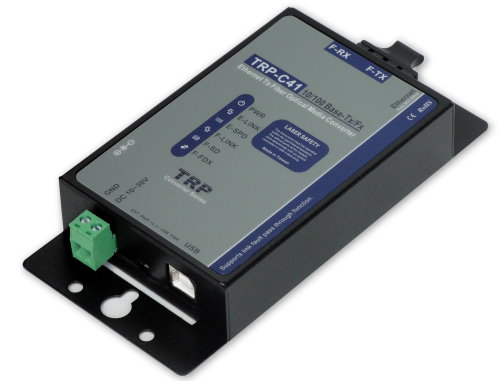

Product Name: TRP-C41S Ethernet to Fiber Media Converter
Model: TRP-C41S
Series: TRP-C41 Series
Article Number: TRP-C41S
Manufacturer: Trycom Technology Co., Ltd.
Manufacturer Address: No. 35, Zhongxing Rd., Guishan Township, Taoyuan County 333, Taiwan
Contact: Tel: +886-3-350-3351 | Fax: +886-3-350-3352
Website: [www.trycom.com.tw](http://www.trycom.com.tw)

The Trycom TRP-C41S is a compact, industrial-grade Ethernet-to-fiber media converter designed to extend Ethernet communication over long distances using single-mode fiber optic cabling. It provides seamless conversion between 10/100Base-TX copper Ethernet and 100Base-FX fiber interfaces, enabling reliable data transmission in electrically noisy or high-interference environments. The TRP-C41S supports both point-to-point and networked topologies, making it suitable for industrial automation, surveillance, and remote communication systems requiring high immunity to electrical noise and ground potential differences.

---

### 2. Key Features

- Ethernet-to-Fiber Conversion: Converts standard 10/100Base-TX Ethernet signals to 100Base-FX fiber optic signals for long-distance transmission.
- Extended Transmission Range: Supports fiber communication distances up to 20 km standard, with optional configurations extending up to 60 km (SC/40KM variant supports up to 40 km).
- Auto-Negotiation: Automatically detects and configures 10/100 Mbps data rates and half/full-duplex modes on the TX port.
- Auto MDI/MDI-X: Automatically detects cable type (straight-through or crossover) for simplified Ethernet connections.
- Wide Power Input Range: Accepts +10 to +30 VDC via screw terminal, external DC adapter, or USB power input.
- Plug-and-Play Operation: No software configuration required; installation and operation are immediate.
- Rugged Metal Enclosure: Compact, durable metal housing designed for industrial environments.
- LED Status Indicators: Provides visual feedback for power, Ethernet link/activity, fiber link, speed, and duplex status.
- Link Fault Pass-Through (LFP): Ensures network integrity by propagating link failures between copper and fiber interfaces.
- Far-End Fault (FEF) Support: Detects and reports remote fiber link failures for easier troubleshooting.
- IEEE 802.3u Compliance: Fully compliant with Ethernet standards for 100Base-TX and 100Base-FX.
- Low Power Consumption: Typical consumption of 12V/160mA, ensuring energy-efficient operation.
- High Immunity to Electrical Noise: Ideal for installations where electromagnetic interference (EMI) or ground potential differences are present.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Ethernet Port | 1 × 10/100Base-TX RJ-45 (auto-negotiation, auto MDI/MDI-X) |
| Fiber Port | 1 × 100Base-FX SC single-mode connector |
| Fiber Type | Single-mode fiber, 9/125 µm |
| Wavelength | 1310 nm |
| Optical Power Output | -15 to -8 dBm |
| Transmission Distance | Standard: 20 km; Optional: up to 60 km (SC/40KM variant: 40 km) |
| Data Rate | 10/100 Mbps auto-negotiation |
| Duplex Mode | Half or full duplex (auto-detection) |
| Buffer Memory | 128 KB RAM |
| Power Supply Options | USB power, external DC adapter, or 2-pin screw terminal |
| Input Voltage Range | +10 to +30 VDC |
| Power Consumption | 12V / 160 mA (typical) |
| Operating Temperature | -10°C to +50°C (some documentation lists -10°C to +60°C) |
| Storage Temperature | -20°C to +70°C |
| Humidity | 10–90% RH, non-condensing |
| Enclosure Material | Rugged metal housing |
| Dimensions | 151 mm (L) × 75 mm (W) × 26 mm (H) |
| Weight | Approx. 395–400 g |
| Mounting | Desktop or panel mounting |
| Standards Compliance | IEEE 802.3u 100Base-TX / 100Base-FX |
| LED Indicators | Power, Ethernet link/activity, Ethernet speed, fiber link, fiber signal detect, fiber duplex |

---

### 4. Functionality

The TRP-C41S functions as a transparent media converter between copper-based Ethernet and fiber optic networks. It receives electrical Ethernet signals through the RJ-45 port and converts them into optical signals transmitted via the SC fiber connector. Conversely, it converts incoming optical signals back into electrical Ethernet signals for copper-based devices.

Use Cases and Applications:
- Industrial Automation: Connects remote PLCs, sensors, and controllers across factory floors or between buildings.
- Surveillance Systems: Extends IP camera connections over long distances without signal degradation.
- Campus and Building Networks: Links network segments across large facilities or between separate structures.
- Telecommunications and ISP Infrastructure: Provides reliable last-mile fiber connectivity.
- Transportation and Utilities: Suitable for railway, power grid, and traffic control systems requiring EMI-resistant communication.

Compatibility:
- Compatible with standard Ethernet switches, routers, and network interface cards (NICs).
- Supports both straight-through and crossover Ethernet cables due to auto MDI/MDI-X functionality.
- Works with single-mode fiber optic cables (9/125 µm) using SC connectors.

---

### 5. Components & Accessories

Included Components:
- TRP-C41S Ethernet-to-Fiber Media Converter unit
- User manual (printed or digital)
- USB power cable (for USB power option)
- Optional DC power adapter (depending on package)

Connectors and Interfaces:
- RJ-45 Port: Standard 8P8C connector for 10/100Base-TX Ethernet.
- SC Fiber Port: Single-mode SC connector for 100Base-FX fiber link.
- DC Power Jack: 5.5 × 2.1 × 12 mm barrel connector for external DC adapter input.
- 2-Pin Screw Terminal: For direct DC power wiring (+10 to +30 VDC).
- USB Port: Type B connector for USB power input.

Optional Accessories:
- Single-mode fiber optic cables (9/125 µm, SC connectors)
- External DC power adapter (12V regulated)
- Mounting brackets or DIN-rail adapters (if required for industrial installations)

---

### 6. Installation & Setup

Power Input Options:
The TRP-C41S supports three independent power input methods:
1. USB Power: Via USB Type-B port (selectable by power switch).
2. External DC Adapter: Through 5.5 × 2.1 × 12 mm DC jack.
3. Screw Terminal Block: 2-pin connector for direct DC wiring (+10 to +30 VDC).

Power Source Selection:
A physical power select switch located beside the screw terminal allows users to toggle between:
- USB PWR: Enables USB power input, disables DC and terminal inputs.
- EXT PWR: Enables DC adapter or screw terminal input, disables USB power.

Installation Steps:
1. Connect the chosen power source and verify the PWR LED is illuminated.
2. Connect the RJ-45 Ethernet port to a network switch, hub, or PC using a standard Ethernet cable.
3. Connect the SC fiber port to the corresponding fiber optic link (TX to RX, RX to TX).
4. Observe LED indicators to confirm link establishment and activity.

LED Indicators and Their Meanings:
- PWR: Power status (ON = power applied).
- E-LINK: Ethernet link established.
- E-SPD: Ethernet speed indicator (ON = 100 Mbps, OFF = 10 Mbps).
- F-LINK: Fiber link established.
- F-SD: Fiber signal detected.
- F-FDX: Fiber full-duplex operation active.

Mounting Options:
- Desktop placement for office or lab environments.
- Panel or wall mounting for industrial or field installations (mounting accessories may be required).

---

### 7. Performance & Capabilities

Data Transmission:
- Supports 10/100 Mbps Ethernet data rates with automatic negotiation.
- Provides full-duplex and half-duplex operation modes.
- Ensures minimal latency and transparent data forwarding between copper and fiber interfaces.

Distance and Signal Integrity:
- Standard transmission distance up to 20 km using single-mode fiber (9/125 µm).
- Optional configurations available for 40 km or 60 km distances.
- High optical power budget ensures stable performance over extended fiber runs.

Reliability and Efficiency:
- Link Fault Pass-Through (LFP): Automatically propagates link failures to the opposite interface, ensuring network devices detect and respond to faults.
- Far-End Fault (FEF): Detects remote fiber link issues, simplifying diagnostics.
- Low Power Operation: Consumes only 160 mA at 12V, reducing heat generation and energy costs.
- Noise Immunity: Optical transmission eliminates susceptibility to EMI, RFI, and ground loops.

Limitations:
- Designed for single-mode fiber only; not compatible with multimode fiber.
- Maximum Ethernet cable length limited to 100 meters (standard Cat5e/Cat6).
- Does not support Gigabit Ethernet (limited to 100 Mbps).

---

### 8. Standards & Compliance

Industry Standards:
- IEEE 802.3 10Base-T (Ethernet)
- IEEE 802.3u 100Base-TX / 100Base-FX (Fast Ethernet)

Electrical and Safety Compliance:
- Designed to meet industrial-grade electrical safety and EMC requirements.
- Wide operating temperature range suitable for field and industrial environments.

Environmental Compliance:
- RoHS-compliant construction (lead-free components).
- Non-condensing humidity tolerance up to 90%.

Quality and Manufacturing:
- Manufactured by Trycom Technology Co., Ltd., an ISO-certified company specializing in industrial communication devices.
- Each unit undergoes functional testing and quality assurance before shipment.

---

### 9. Additional Information

Warranty:
Standard manufacturer warranty (typically 1 year, depending on region and distributor). Covers defects in materials and workmanship under normal use.

Technical Support:
Trycom provides technical documentation, firmware updates, and customer support via its official website and authorized distributors.
- Support Resources: User manuals, installation guides, and FAQs available online.
- Contact: support@trycom.com.tw (for technical inquiries).

Maintenance:
- No regular maintenance required beyond ensuring clean fiber connectors and stable power supply.
- Periodic inspection of LED indicators recommended to verify operational status.
- Avoid simultaneous connection of multiple power sources to prevent damage.

Firmware and Updates:
The TRP-C41S operates as a hardware-level converter with no firmware configuration required. Updates are rarely necessary, but Trycom may release revised hardware versions or documentation updates to improve reliability and compatibility.

Product Lifecycle and Reliability:
- Designed for long-term industrial operation with minimal downtime.
- Rugged metal enclosure protects internal components from mechanical stress and environmental factors.
- Passive cooling design ensures silent operation and extended lifespan.

---

### Summary

The Trycom TRP-C41S Ethernet 100TX to Fiber Media Converter (SC/40KM) is a robust, plug-and-play solution for extending Ethernet networks over long distances using single-mode fiber optic cabling. With support for 10/100 Mbps auto-negotiation, multiple power input options, and industrial-grade construction, it provides reliable, noise-immune communication for demanding applications. Its compliance with IEEE 802.3u standards ensures interoperability with existing network infrastructure, while features like Link Fault Pass-Through and Far-End Fault detection enhance network reliability and diagnostics. Compact, efficient, and easy to install, the TRP-C41S is ideal for industrial automation, surveillance, and remote networking environments requiring stable, long-distance Ethernet connectivity.
