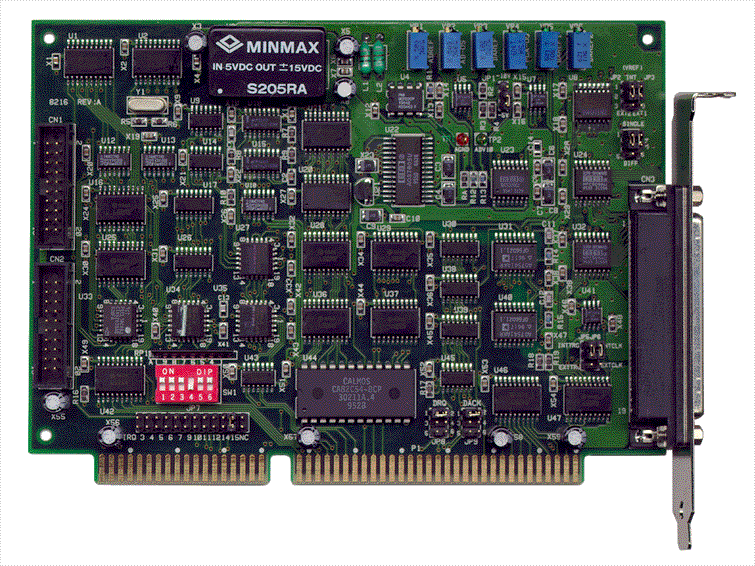

- **High‑Resolution Analog Input:** 16‑bit successive approximation A/D converter (ADS7805 or equivalent). - **Flexible Channel Configuration:** 16 single‑ended or 8 differential analog input channels. - **Programmable Input Range:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V. - **Programmable Gain:** ×1, ×2, ×4, ×8. - **High Sampling Rate:** Up to 100 kHz for single‑channel, 20 kHz for multi‑channel multiplexed operation. - **Fast Conversion:** 8 µs conversion time. - **Dual 12‑bit D/A Outputs:** Two double‑buffered analog output channels (DAC7541 or equivalent). - **Selectable Output Range:** 0–5 V or 0–10 V (internal reference), ±10 V (external reference). - **Digital I/O:** 16 TTL‑compatible inputs and 16 TTL‑compatible outputs. - **Programmable Counter/Timer:** Three 16‑bit counters (Intel 8254) with 2 MHz base clock. - **Trigger Modes:** Software, programmable pacer (timer), or external pulse trigger. - **Data Transfer Options:** Polling, interrupt, or DMA (channels 1 or 3). - **Interrupt Support:** Selectable IRQ3, 5, 6, 7, 9, 10, 11, 12, or 15. - **Integrated DC/DC Converter:** Provides stable analog power isolation. - **Compact Design:** Half‑size ISA card (163 mm × 123 mm). - **Connectors:** One 37‑pin D‑type and two 20‑pin IDC connectors. - **Software Support:** DOS C/C++ library, Windows DLL (ACLS‑DLL2), and LabVIEW driver (ACLS‑LVIEW). - **Calibration Support:** On‑board variable resistors (VRs) for A/D and D/A calibration.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution ISA

- **High‑Resolution Analog Input:** 16‑bit A/D conversion (ADS7805 or equivalent) with up to 100 kS/s sampling rate. - **Flexible Channel Configuration:** 16 single‑ended or 8 differential analog input channels. - **Programmable Gain:** x1, x2, x4, x8 for input ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V. - **On‑Board FIFO Buffer:** 1K‑word FIFO memory with half‑ and full‑ready interrupt flags for continuous data streaming. - **Dual Analog Outputs:** Two 12‑bit D/A channels (DAC2813 or equivalent) with bipolar/unipolar ranges (±10 V or 0–10 V). - **Digital I/O:** 16 TTL‑compatible digital input and 16 digital output channels. - **Programmable Counter/Timer:** Three independent 16‑bit down counters (Intel 8254 compatible) with 2 MHz base clock. - **Trigger Flexibility:** Software, internal pacer, and external trigger modes. - **DMA and Interrupt Support:** DMA channels 5, 6, or 7; IRQ levels 3, 5–7, 9, 11, 12, 15. - **Auto‑Scanning:** Hardware channel auto‑scan for sequential sampling. - **Integrated DC/DC Converter:** Provides stable analog power isolation. - **Compact Design:** Half‑size ISA card with 37‑pin D‑type and dual 20‑pin IDC connectors. - **Software Support:** C/C++ library, DOS utilities, Windows DLL (ACLS‑DLL2), and LabVIEW driver (ACLS‑LVIEW). - **Calibration Support:** On‑board variable resistors (VR1–VR7) for A/D and D/A calibration.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution ISA

- **High‑Resolution A/D Conversion:** 16‑bit successive approximation ADC (ADS7805 or equivalent). - **Sampling Rate:** Up to 100 kHz multiplexed sampling. - **Analog Input Channels:** 16 single‑ended or 8 differential inputs. - **Programmable Gain:** ×1, ×2, ×4, ×8 for flexible input scaling. - **Input Range:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V. - **FIFO Buffer:** 1 K‑word on‑board FIFO with half/full interrupt flags for continuous data streaming. - **Trigger Modes:** Software, internal pacer (timer‑based), or external trigger (TTL). - **Data Transfer Options:** Software polling, interrupt‑driven, FIFO polling, DMA (channels 5–7). - **Digital I/O:** 16 TTL‑compatible digital input/output channels. - **Programmable Counter/Timer:** Intel 8254‑compatible, three 16‑bit down counters with 2 MHz base clock. - **Interrupt and DMA Support:** IRQ selectable (3, 5–7, 9–12, 15); DMA channels 5–7. - **Power Supply:** On‑board DC/DC converter for stable analog power. - **Compact Form Factor:** Half‑size ISA card (163 mm × 123 mm). - **Connectors:** One 37‑pin D‑type connector and two 20‑pin ribbon connectors. - **Software Support:** C/C++ library, DOS utilities, Windows DLL (ACLS‑DLL2), and LabVIEW driver (ACLS‑LVIEW). - **Calibration Support:** On‑board variable resistors for A/D offset and full‑scale adjustment. - **Operating Environment:** 0 °C – 55 °C, 5–95 % RH non‑condensing.

Hersteller: Adlink Technology Inc.

Kategorie: A/D High Resolution ISA

- **High-Resolution Analog-to-Digital Conversion:** Equipped with a **16-bit A/D converter (AD669)**, the card delivers precise analog signal digitization with a maximum sampling rate of **100 kS/s** (100,000 samples per second). - **Flexible Input Configuration:** Supports **16 single-ended (SE)** or **8 differential (DI)** analog input channels. With the optional **ATCH-16(PC)** expansion module, the configuration can be extended to **32 SE / 16 DI** channels. - **Wide Input Voltage Range:** Configurable input ranges of **±10 V**, **±5 V**, **0–10 V**, and **0–5 V**, allowing compatibility with a broad range of sensors and signal sources. - **Integrated FIFO / Ring Buffer:** Features a **256K-word FIFO (First-In-First-Out) or ring buffer**, enabling continuous high-speed data acquisition without data loss, even under heavy system load. - **Intelligent Sampling Control:** Incorporates a dedicated **ASIC (Application-Specific Integrated Circuit)** for intelligent sampling management, ensuring stable and accurate timing control during high-speed data acquisition. - **Analog Output (D/A Conversion):** Includes **one 16-bit D/A output channel** with output ranges of **±10 V** or **0–10 V**, and a **conversion time of 13 µs**, suitable for waveform generation, control signals, or analog feedback applications. - **Digital I/O Capability:** Provides **4 digital input** and **4 digital output** lines (TTL level), enabling control and monitoring of external devices such as relays, switches, or indicators. - **DMA and Interrupt Support:** Compatible with **DMA channels 5, 6, and 7**, and **IRQ lines 5, 7, 9–12, and 15**, allowing flexible system integration and efficient data transfer with minimal CPU overhead. - **Standard Connector Interface:** Equipped with a **D-Sub 37-pin female connector**, providing a robust and standardized interface for analog and digital signal connections. - **Compact Form Factor:** Physical dimensions of **160 mm × 122 mm**, designed for installation in standard PC/AT expansion slots. - **Manufacturer Reliability:** Developed and produced by **Contec**, a recognized manufacturer of industrial I/O and measurement hardware, ensuring long-term reliability and support.

Hersteller: Contec

Kategorie: A/D High Resolution ISA

- **High-Speed Analog-to-Digital Conversion:** Capable of sampling at up to **1 mega-sample per second (1 MS/s)** with **16-bit resolution**, ensuring precise and rapid data acquisition for dynamic signal measurement. - **Versatile Channel Configuration:** Provides **16 single-ended (SE)** or **8 differential (DI)** analog input channels. With the optional **ATUH-16(PC)** expansion module, the configuration can be extended to **32 SE / 16 DI** channels, offering scalability for larger measurement systems. - **Wide Input Voltage Range:** Supports multiple input ranges including **±10 V**, **±5 V**, **±2.5 V**, **0–10 V**, and **0–5 V**, allowing compatibility with a broad spectrum of analog sensors and signal sources. - **Integrated Digital-to-Analog Output:** Includes **one 16-bit D/A output channel** with selectable output ranges of **±10 V** or **0–10 V**, capable of delivering up to **±5 mA** output current with a maximum conversion time of **13 µs**. - **Intelligent Sampling Control:** Incorporates an **ASIC-based intelligent sampling controller** for efficient data handling and timing precision, minimizing CPU load during high-speed acquisition. - **Large Onboard FIFO / Ring Buffer:** Equipped with a **256 K-word FIFO (First-In-First-Out) or ring buffer**, enabling continuous high-speed data streaming without data loss. - **Flexible Bus and Interrupt Configuration:** Supports **DMA channels 5, 6, and 7** and **IRQ lines 5, 7, 9–12, and 15**, providing flexible integration into various PC architectures and minimizing latency. - **Digital I/O Capability:** Offers **4 TTL-compatible digital input** and **4 TTL-compatible digital output** lines, each rated for **5 VDC** operation and a total current capacity of **2 A**, suitable for control and status signaling. - **Robust Connectivity:** Features a **37-pin D-Sub female connector** for secure and standardized signal interfacing. - **Industrial-Grade Design:** Built for reliability and precision in laboratory, industrial automation, and embedded control systems.

Hersteller: Contec

Kategorie: A/D High Resolution ISA

- **High-Resolution Analog-to-Digital Conversion:** 16-bit resolution with a maximum sampling rate of 50 kS/s, ensuring precise signal measurement and low noise performance. - **Programmable Input Amplifier:** Configurable input ranges of 0–1.25 V, 0–2.5 V, 0–5 V, 0–10 V, or bipolar ranges of ±1.25 V, ±2.5 V, ±5 V, ±10 V, with a full-scale range (FSR) accuracy of ±0.003%. - **Dual 16-bit Digital-to-Analog Outputs:** Two independent 16-bit DA channels capable of ±10 V output voltage, with a maximum output current of ±5 mA per channel. - **Digital I/O Flexibility:** 8 digital input (DI) and 8 digital output (DO) channels with TTL-level compatibility, supporting a wide range of control and monitoring tasks. - **Integrated Counters:** Three 16-bit hardware counters for event counting, frequency measurement, or timing applications. - **Interrupt Handling:** Supports up to five interrupt request lines (5 IRQs) for efficient event-driven data processing. - **DMA Support:** Two direct memory access (DMA) channels for high-speed data transfer between the card and system memory, minimizing CPU load. - **Comprehensive Driver Support:** Supplied with driver software for seamless integration into PC-based systems and compatibility with standard data acquisition frameworks. - **Compact Form Factor:** Designed for PC installation with a board size of 338 mm × 99 mm, suitable for industrial PCs and rack-mounted systems. - **Standardized Connectivity:** Equipped with a 50-pin connector for reliable signal interfacing and compatibility with existing DAS-HRES accessories and cabling systems.

Hersteller: Axiom

Kategorie: A/D High Resolution ISA

- **High-Resolution Analog-to-Digital Conversion:** 16-bit resolution with a maximum sampling rate of 100 kS/s, enabling precise signal acquisition for demanding measurement tasks. - **Programmable Input Amplifier:** Configurable input ranges of 0–1.25 V, 0–2.5 V, 0–5 V, 0–10 V, or bipolar ranges of ±1.25 V, ±2.5 V, ±5 V, ±10 V. This flexibility allows adaptation to a wide variety of sensor and signal levels. - **Exceptional Accuracy:** ±0.003% of Full Scale Range (FSR) accuracy ensures high fidelity in analog signal measurement. - **Dual 12-bit Digital-to-Analog Outputs:** Two independent DA channels with ±10 V output range and maximum output current of ±5 mA, suitable for control signal generation or analog actuation. - **Integrated Digital I/O:** 8 digital input and 8 digital output TTL-compatible channels for general-purpose control, monitoring, and interfacing with external devices. - **Counter/Timer Functionality:** One 16-bit counter for event counting, frequency measurement, or timing applications. - **Interrupt and DMA Support:** 5 interrupt request (IRQ) lines and 2 direct memory access (DMA) channels for efficient data transfer and real-time performance. - **Comprehensive Driver Support:** Supplied with driver software for easy integration into PC-based control and data acquisition systems. - **Compact Form Factor:** Standard AT card dimensions (165 mm × 100 mm) for compatibility with legacy and industrial PC systems. - **Robust Connectivity:** 50-pin connector interface for secure and organized signal wiring.

Hersteller: Axiom

Kategorie: A/D High Resolution ISA

- **High-Resolution AD Conversion:** The SC24 features a 21-bit analog-to-digital converter with an internal 24-bit architecture, ensuring exceptional precision and signal fidelity. This high resolution allows for accurate measurement of low-level analog signals across multiple input ranges. - **Galvanic Isolation:** Full galvanic isolation between the analog and digital sections prevents ground loops and electrical interference, ensuring stable and noise-free operation even in electrically noisy industrial environments. - **Multi-Channel Input Configuration:** The card supports **16 single-ended (SE) analog input channels** and **8 digital input (DI) channels**, providing flexible data acquisition capabilities for mixed-signal applications. - **Selectable Input Ranges:** The analog input channels support eight selectable voltage ranges from **±20 mV up to ±2.5 V**, allowing adaptation to various sensor and transducer output levels. - **Sampling Rate:** The SC24 supports a maximum sampling rate of **1 kS/s (1000 samples per second)** with integrated filtering, suitable for precision measurement and low-frequency signal analysis. - **Integrated Filtering:** The onboard digital filter provides up to **150 dB attenuation at 50 Hz**, effectively suppressing power-line interference and ensuring clean signal acquisition. - **Advanced Converter Architecture:** The card incorporates **nine AD771x-series sigma-delta converters**, known for their high accuracy and low noise characteristics, optimized for precision measurement applications. - **Precision Voltage Reference:** Equipped with an **AD780 voltage reference** offering a temperature coefficient of less than **3 ppm/°C** (within 15°C–25°C range

Hersteller: Keine Kategorie

Kategorie: A/D High Resolution ISA

- **16 BNC Input Channels:** Provides sixteen individual BNC connectors for signal input, allowing multiple analog or digital sources to be connected simultaneously. - **Integrated Surge Protection:** Each input channel is protected against voltage surges, ensuring system reliability and safeguarding connected equipment from transient overvoltages or electrostatic discharge. - **Optimized for SC24 Systems:** Specifically designed to interface seamlessly with the SC24 main unit, ensuring full compatibility and plug-and-play integration. - **High Signal Integrity:** The use of BNC connectors ensures secure, low-noise connections suitable for high-frequency or precision signal applications. - **Compact Input Box Design:** The enclosure is designed for efficient space utilization, suitable for rack, wall, or panel mounting depending on installation requirements. - **Durable Construction:** Built with robust materials to withstand demanding industrial or laboratory environments. - **Ease of Maintenance:** Modular design allows quick replacement or servicing of connectors and protection components. - **Scalable System Architecture:** Multiple SCBoxBNC units can be deployed to expand the total number of input channels available to the SC24 system.

Hersteller: Keine Kategorie

Kategorie: A/D High Resolution ISA

- **16 Independent Input Channels:** Supports up to sixteen temperature measurement points simultaneously, enabling multi-zone or multi-sensor monitoring. - **Thermocouple Compatibility:** Accepts standard thermocouple types (e.g., Type K, J, T, E, N, R, S, B, depending on SC24 configuration) for versatile temperature measurement. - **Integrated Cold Junction Compensation (CJC):** Each thermocouple input includes built-in CJC circuitry to automatically correct for ambient temperature variations at the connection terminals, ensuring precise readings. - **Pt100 RTD Support:** In addition to thermocouples, the SCBoxT supports Pt100 sensors, allowing for high-accuracy resistance temperature detection. - **Optimized for SC24 System:** Designed specifically as an input module for the SC24, ensuring seamless communication, synchronization, and data acquisition. - **High Measurement Accuracy:** The combination of precision input circuitry and CJC ensures stable, repeatable, and accurate temperature readings. - **Compact and Robust Design:** Engineered for industrial environments, the SCBoxT features a durable enclosure suitable for panel or rack mounting. - **Scalable Measurement Architecture:** Multiple SCBoxT units can be deployed to expand the SC24 system’s input capacity, supporting large-scale monitoring networks. - **Ease of Integration:** Plug-and-play connectivity with the SC24 system minimizes setup time and configuration complexity. - **Versatile Sensor Input:** Supports both voltage-based thermocouple signals and resistance-based RTD signals, making it adaptable to various measurement tasks.

Hersteller: Keine Kategorie

Kategorie: A/D High Resolution ISA
