- **Port Configuration:** 4 × 10/100Base‑T(X) RJ‑45 copper ports and 2 × 100Base‑FX fiber ports (multi‑mode, ST/SC connectors). - **Redundant Ethernet Ring:** SUNIX ELITE‑Ring™ technology with recovery time

Hersteller: Sunix

Kategorie: Box Type

- **High‑Reliability Industrial Design:** Built for continuous 24/7 operation in demanding environments such as factory automation, transportation, and utilities. IP30 aluminum enclosure with DIN‑rail or wall‑mount installation options. - **Fast Redundant Ethernet Ring:** Incorporates **ELITE‑Ring™** technology with recovery time

Hersteller: Sunix

Kategorie: Box Type

- **5×10/100Base‑T(X) Fast Ethernet Ports:** All ports support auto‑negotiation and auto‑MDI/MDI‑X for flexible connection to industrial controllers, PLCs, or other network devices. - **Lite‑Managed Functionality:** Offers essential management features via web browser or SUNIX Commander Pro Windows utility, providing simplified configuration and monitoring without the complexity of full SNMP management. - **ELITE‑Ring™ Redundancy:** Proprietary SUNIX ring redundancy technology with recovery time **

Hersteller: Sunix

Kategorie: Box Type

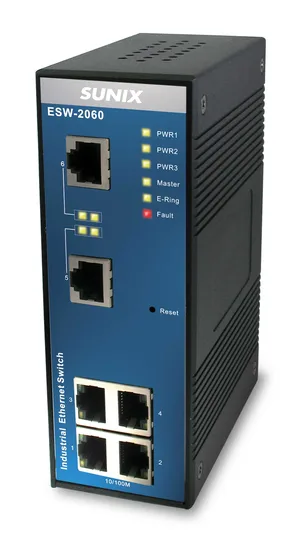

- **6× 10/100Base‑T(X) RJ‑45 Ports:** Auto‑negotiation and Auto‑MDI/MDI‑X support for flexible copper Ethernet connectivity up to 100 m per segment. - **Lite‑Managed Functionality:** Web‑based configuration and SUNIX Commander Pro Windows utility for simplified management without full SNMP overhead. - **ELITE‑Ring™ Redundancy:** Proprietary ring redundancy technology with recovery time

Hersteller: Sunix

Kategorie: Box Type

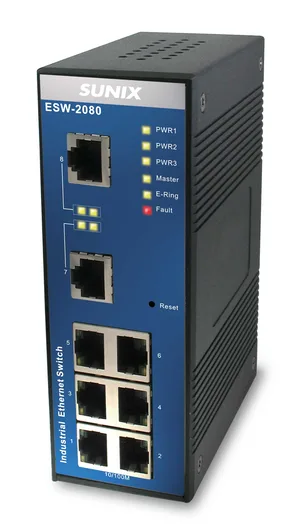

- **8× 10/100Base‑T(X) RJ‑45 Ports:** Supports auto‑negotiation and auto MDI/MDI‑X for flexible copper connectivity up to 100 m per segment. - **Lite‑Managed Functionality:** Provides essential management features via web browser or SUNIX Commander Pro Windows utility. - **ELITE‑Ring™ Redundancy:** Proprietary fast recovery ring technology with recovery time

Hersteller: Sunix

Kategorie: Box Type

- **Redundant Ethernet Ring Technology:** Supports ORing’s proprietary **O-Ring** redundancy protocol with recovery time less than **10 ms** across up to **250 connected units**, ensuring minimal network downtime. Also supports **RSTP/STP (IEEE 802.1w/D)** for compatibility with standard redundancy protocols. - **Lite-Managed Functionality:** Provides essential management features through **Web-based configuration** and **Windows utility (Open-Vision)** for centralized monitoring and control. - **Flexible Port Configuration:** - **4 × 10/100Base-T(X)** RJ45 copper ports - **2 × 100Base-FX** fiber ports (Multi-Mode, SC connector) This combination allows both short-distance copper and long-distance fiber connectivity. - **Triple Redundant Power Inputs:** Equipped with **dual DC terminal block inputs (12–48 VDC)** and an additional **DC power jack (12–45 VDC)** for maximum power reliability. - **Industrial-Grade Design:** - **IP-30 rated metal housing** for mechanical protection - **DIN-rail and panel mounting** options - **Extended operating temperature range:** -40°C to +75°C - **High immunity to electrical interference:** ESD protection up to **4 kV DC** on Ethernet ports and **2000 VDC surge protection** on power inputs. - **Event Notification and System Monitoring:** Supports **Syslog, Email, and SNMP Trap** notifications for system events and alarms. Includes a **configurable alarm relay output** for external alert integration. - **Low Power Consumption:** Typical power usage of approximately **7 W**, ensuring energy efficiency in continuous operation. - **Long-Term Reliability:** Backed by a **5-year warranty**, reflecting ORing’s commitment to industrial-grade durability and performance.

Hersteller: Oring

Kategorie: Box Type

- **High‑Performance Redundant Ethernet Ring:** Supports ORing’s proprietary **O‑Ring** redundancy protocol with recovery time **

Hersteller: Oring

Kategorie: Box Type

- **Lite-Managed Industrial Switch:** Offers essential management functions such as VLAN, QoS, and DHCP client/server capabilities, providing a balance between unmanaged simplicity and full management control. - **Port Configuration:** Equipped with **2 SFP slots for 1000Base-X fiber connections** and **4 RJ45 ports supporting 10/100Base-T(X)** Ethernet, enabling mixed media network topologies. - **High Reliability:** Features **redundant dual DC power inputs** with reverse polarity protection and **2000VDC surge protection** on power lines. - **Enhanced Protection:** Each Ethernet port is protected against **4kV ESD** to ensure stable operation in electrically noisy environments. - **Compact Slim Design:** The **145 × 95 × 26 mm** form factor allows installation in tight spaces while maintaining full industrial-grade durability. - **Wide Temperature Range:** Operates reliably from **-40°C to +70°C**, suitable for outdoor or unconditioned environments. - **Low Power Consumption:** Typical power usage is approximately **4W**, optimizing energy efficiency for continuous operation. - **Network Redundancy:** Supports **μ-Ring** and **O-Ring** technologies for rapid network recovery (

Hersteller: Oring

Kategorie: Box Type

- **High‑speed Redundant Ethernet Ring:** Supports ORing’s proprietary O‑Ring technology with recovery time of less than **10 ms** across up to **250 interconnected units**, ensuring minimal downtime in case of link or node failure. - **Standards‑based Redundancy:** Compatible with **RSTP/STP (IEEE 802.1w/D)** protocols for interoperability with other managed switches. - **Lite‑Managed Functionality:** Provides essential management capabilities through **Web‑based configuration** and **Windows utility (Open‑Vision)**, offering centralized monitoring and control without the complexity of full Layer 2 management. - **Event Notification System:** Supports **Syslog**, **Email alerts**, and **SNMP traps** for proactive fault detection and maintenance. - **Industrial‑grade Design:** Constructed with a **rigid IP‑30 metal housing** for protection against dust and mechanical impact. - **Wide Operating Temperature Range:** Operates reliably from **–40 °C to +70 °C**, suitable for extreme industrial environments. - **Redundant Power Input:** Dual **12–48 V DC** power inputs with **ORing** redundancy design ensure uninterrupted operation during power source failure. - **Compact Form Factor:** Small footprint (**88 × 102 × 24 mm**) ideal for space‑constrained control cabinets. - **Enhanced Electrical Protection:** - **ESD protection:** 4 kV DC on Ethernet ports - **Surge protection:** 2 kV DC on power input - **Flexible Mounting:** Supports **DIN‑rail** and **panel mounting** for versatile installation. - **Long‑term Reliability:** Backed by a **5‑year warranty**, reflecting ORing’s commitment to industrial‑grade durability.

Hersteller: Oring

Kategorie: Box Type

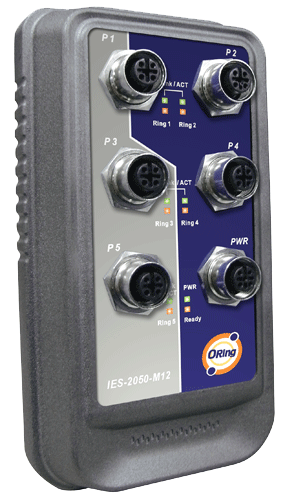

- **Five 10/100Base‑T(X) M12 Ports:** All ports use waterproof M12 connectors for secure, vibration‑resistant Ethernet connections in industrial environments. - **IP67 Protection:** Fully sealed aluminum enclosure provides complete protection against dust ingress and immersion in water, suitable for outdoor or wash‑down applications. - **O‑Ring Redundant Ethernet Technology:** Proprietary ORing redundancy protocol with recovery time

Hersteller: Oring

Kategorie: Box Type

- **High‑Speed Redundant Ethernet Ring:** Supports ORing’s O‑Ring technology with recovery times under 10 ms for up to 250 interconnected devices, ensuring continuous network availability in industrial environments. - **Standards‑Based Redundancy:** Compatible with IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) and IEEE 802.1D Spanning Tree Protocol (STP) for flexible network topology design and interoperability with third‑party equipment. - **Lite‑Managed Functionality:** Provides essential management features such as SNMP v1, Syslog, SMTP email alerts, and SNMP traps for event notification and remote monitoring. - **Web‑Based and Windows Utility Configuration:** Configurable via a built‑in web interface or ORing’s **Open‑Vision** Windows utility, enabling centralized management of multiple ORing switches. - **Multiple Event Notification Methods:** Supports Syslog, email, and SNMP trap notifications for system events, ensuring proactive fault detection and maintenance. - **Industrial‑Grade Design:** IP‑30 rated metal housing with DIN‑rail and panel mounting options, designed for harsh industrial environments. - **Wide Operating Temperature Range:** Operates reliably from **–40 °C to +70 °C**, suitable for outdoor, factory, and transportation applications. - **Redundant Power Input:** Dual 12–48 V DC power inputs with reverse polarity protection and surge immunity up to 2000 V DC, ensuring uninterrupted operation. - **High Immunity and Protection:** Ethernet ports protected against electrostatic discharge (ESD) up to 4 kV DC. - **Compact Slim Form Factor:** Space‑saving design (30 × 68.5 × 105 mm) ideal for control cabinets and constrained installations.

Hersteller: Oring

Kategorie: Box Type

- **High-Speed Redundant Ethernet Ring:** Supports ORing redundancy technology with recovery time less than 10 ms across up to 250 connected units, ensuring minimal downtime in industrial networks. - **Multiple Redundancy Protocols:** Compatible with RSTP/STP (IEEE 802.1w/D) for flexible network topology and redundancy options. - **Lite-Managed Functionality:** Offers essential management features such as web-based configuration, SNMP v1 monitoring, and event notification via Syslog, Email, and SNMP Trap. - **Triple Redundant Power Inputs:** Equipped with dual DC terminal block inputs (12–48 VDC) and an additional DC power jack (12–45 VDC) for maximum power reliability. - **Wide Operating Temperature Range:** Designed for extreme industrial conditions, operating from -40°C to +70°C. - **Compact and Durable Design:** IP-30 rated metal housing with DIN-rail and panel mounting options, suitable for space-constrained control cabinets. - **Low Power Consumption:** Typical power usage of approximately 5 W, optimizing energy efficiency in continuous operation. - **Comprehensive Event Notification:** Supports multiple alert mechanisms (Syslog, Email, SNMP Trap, and relay output) for proactive fault management. - **Centralized Management via Open-Vision:** ORing’s proprietary Windows-based utility allows centralized configuration, monitoring, and management of multiple ORing switches. - **Industrial-Grade Protection:** ESD protection up to 4 kV DC on Ethernet ports and surge protection up to 2000 VDC on power inputs.

Hersteller: Oring

Kategorie: Box Type

- **Redundant Ethernet Ring Technology:** Supports ORing redundancy with recovery time

Hersteller: Oring

Kategorie: Box Type

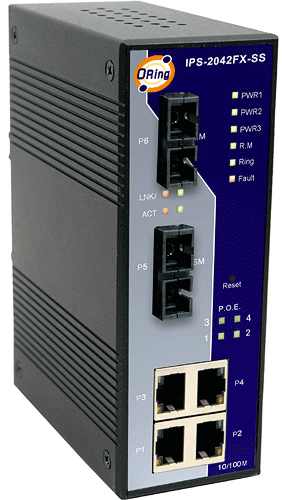

- **Hybrid Port Configuration:** Equipped with 4×10/100Base-T(X) RJ45 ports supporting IEEE 802.3af PoE (up to 25 W per port) and 2×100Base-FX single-mode fiber ports (SC connectors) for long-distance data transmission. - **Lite-Managed Functionality:** Offers essential management features such as web-based configuration, SNMP v1 monitoring, and centralized management via ORing’s Open-Vision Windows utility. - **Redundant Ethernet Ring Technology:** Supports ORing’s proprietary **O-Ring** redundancy protocol with recovery time

Hersteller: Oring

Kategorie: Box Type

- **Lite-Managed Industrial Switch:** Provides essential management functions through a web interface and ORing’s Open-Vision Windows utility for simplified configuration and monitoring. - **6-Port Configuration:** Includes 4×10/100Base-T(X) RJ45 ports with PoE PSE capability and 2×100Base-FX SFP fiber ports for flexible network topology and long-distance connectivity. - **Power over Ethernet (PoE):** Supports IEEE 802.3af standard, delivering up to 25 W per port, enabling direct powering of IP cameras, wireless access points, and VoIP phones. - **Redundant Ethernet Ring Technology:** Incorporates ORing’s proprietary O-Ring technology with recovery time

Hersteller: Oring

Kategorie: Box Type

- **Redundant Ethernet Ring Technology:** Supports ORing’s proprietary **O‑Ring** redundancy protocol with recovery times of less than 10 ms across up to 250 connected devices. This ensures near‑instantaneous network recovery in the event of a link failure. - **RSTP/STP Support:** Fully compatible with IEEE 802.1w (Rapid Spanning Tree Protocol) and IEEE 802.1D (Spanning Tree Protocol) for network redundancy and loop prevention. - **Power over Ethernet (PoE):** Four 10/100Base‑T(X) ports function as **PSE ports**, supplying up to **25 W per port** in compliance with **IEEE 802.3af**. This allows the switch to power IP cameras, VoIP phones, wireless access points, and other PoE‑enabled devices directly through Ethernet cabling. - **Triple Redundant Power Inputs:** Equipped with **three DC power inputs** (two via terminal block, one via power jack) supporting **12–48 V DC** (terminal block) and **12–45 V DC** (power jack). This triple redundancy ensures continuous operation even if one or two power sources fail. - **Wide Operating Temperature Range:** Designed for extreme environments with an **operating range of –40 °C to +70 °C**, suitable for outdoor and industrial enclosures. - **Rugged Industrial Design:** Constructed with a **metal IP‑30‑rated housing** for protection against dust and mechanical impact. - **Flexible Mounting Options:** Supports **DIN‑rail** and **panel mounting**, facilitating easy integration into control cabinets or industrial racks. - **Comprehensive Event Notification:** Provides multiple alert mechanisms including **Syslog**, **Email**, and **SNMP Trap** notifications for proactive fault management. - **Centralized Management:** Configurable via **Web‑based interface** or **Open‑Vision**, ORing’s Windows‑based network management utility for monitoring and configuration of multiple devices. - **Compact Form Factor:** Small footprint (52 × 106 × 144 mm) allows installation in space‑constrained environments. - **High Reliability:** Mean power consumption of approximately **5 W**, with built‑in surge and ESD protection (Ethernet ports: 4 kV DC ESD; power input: 2 kV DC surge).

Hersteller: Oring

Kategorie: Box Type
