- **8-Slot CompactPCI Backplane:** Supports up to eight 3U CompactPCI boards, enabling flexible system expansion and modular configuration. - **32-Bit PCI Bus Architecture:** Compliant with the CompactPCI 32-bit parallel bus standard, ensuring compatibility with a wide range of CompactPCI CPU and peripheral boards. - **Rear I/O Support:** Provides rear I/O connectivity for enhanced system integration and cable management, ideal for applications requiring front-panel space optimization. - **High-Quality 10-Layer PCB:** Multi-layer printed circuit board design ensures excellent signal integrity, reduced crosstalk, and stable power distribution across all slots. - **DIN-41612 31-Pin Power Connector:** Standardized power interface for reliable and secure power delivery to all slots, supporting industrial-grade power requirements. - **3U Form Factor:** Compact and standardized height suitable for rack-mounted or chassis-based CompactPCI systems. - **Industrial-Grade Design:** Built for continuous operation in demanding environments, with robust mechanical and electrical characteristics. - **Scalable System Integration:** Supports a variety of CompactPCI CPU, I/O, and peripheral modules, allowing flexible system customization. - **Optimized Signal Routing:** Controlled impedance traces and ground planes minimize signal degradation and EMI, ensuring stable high-speed communication. - **ADLINK Reliability:** Designed and manufactured by ADLINK, a recognized leader in industrial computing solutions, ensuring long-term availability and support.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **CompactPCI PICMG 2.0 R2.1 Compliance:** Fully compliant with the CompactPCI 32‑bit bus standard, ensuring interoperability with a wide range of CompactPCI CPU and I/O boards. - **Four‑Slot Configuration:** One system slot and three peripheral slots, supporting up to four CompactPCI boards in a single 3U chassis. - **High‑Quality PCB Design:** 10‑layer printed circuit board for controlled impedance, reduced crosstalk, and improved signal integrity in high‑speed PCI bus environments. - **Power Input Flexibility:** Equipped with two ATX‑style DC power connectors and additional screw terminals for direct DC input, allowing flexible integration with standard ATX or industrial power supplies. - **Rear I/O Support (optional):** The cBP‑3204R variant includes P2 connectors for rear I/O applications, enabling rear transition modules and enhanced system expandability. - **Selectable I/O Voltage:** V(I/O) can be configured for either +3.3 V or +5 V signaling, providing compatibility with a wide range of CompactPCI boards. - **Compact 3U Form Factor:** Designed for 3U CompactPCI chassis, suitable for rack‑mount or desktop industrial systems. - **System Slot Orientation:** System slot located on the right‑hand side for integration with ADLINK cPCIS‑1000/2000 series chassis. - **Robust Power Distribution:** Supports +3.3 V, +5 V, +12 V, and −12 V rails with sense lines and inhibit control for ATX‑type power management. - **Industrial‑Grade Construction:** Built for continuous operation in embedded and industrial environments, with high mechanical stability and EMI/EMC compliance.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **CompactPCI PICMG 2.0 R2.1 Compliant:** Ensures full interoperability with standard CompactPCI modules and systems. - **32‑bit Bus Architecture:** Supports 32‑bit CompactPCI signaling on the P1 connector, suitable for mid‑range industrial and embedded applications. - **Rear I/O Capability:** Equipped with P2 connectors for rear I/O expansion, enabling flexible system integration and cable management. - **Four‑Slot Configuration:** - 1 × System Slot (right‑hand side) - 3 × Peripheral Slots - **High‑Quality PCB Design:** 10‑layer PCB construction for precise impedance control and signal integrity. - **Power Input Options:** Dual ATX connectors with DC screw terminals for flexible power integration. - **Selectable I/O Voltage:** V(I/O) configurable for either +5 V or +3.3 V operation (factory default +5 V). - **Compact 3U Form Factor:** 133.35 mm height × 182 mm width × 3.2 mm thickness, suitable for 3U CompactPCI chassis. - **Rear I/O Option:** P2 connectors installed for rear I/O interface (R‑version). - **System Slot Orientation:** System slot positioned on the right‑hand side for standard ADLINK chassis compatibility. - **Mechanical Width:** 20 HP (horizontal pitch) for compact integration. - **High Reliability:** Designed for industrial environments with robust mechanical and electrical characteristics. - **Compatibility:** Fully compatible with ADLINK cPCIS‑1000 and cPCIS‑2000 series chassis and subsystems.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **CompactPCI PICMG 2.0 R2.1 Compliant:** Ensures full interoperability with standard CompactPCI modules and system controllers. - **32‑bit PCI Bus Architecture:** Provides a 32‑bit data path on the P1 connector, supporting up to seven bus‑mastering I/O slots. - **Rear I/O Capability (R Version):** Optional P2 connectors enable rear I/O functionality for advanced system configurations. - **6‑Slot Configuration:** One system slot and five peripheral slots, optimized for 3U CompactPCI systems. - **High‑Quality 10‑Layer PCB:** Precision impedance control for signal integrity and reduced crosstalk in high‑speed data environments. - **Multiple Power Input Options:** Dual ATX‑style connectors and general‑purpose screw terminals for flexible power integration. - **Selectable V(I/O) Voltage:** Configurable for either +3.3 V or +5 V signaling (factory default +5 V). - **Compact 3U Form Factor:** Fits standard 19‑inch rackmount chassis and ADLINK’s cPCIS‑2000A/1000 enclosures. - **System Slot Orientation:** Right‑hand system slot layout for compatibility with ADLINK’s CompactPCI CPU boards. - **Robust Mechanical Design:** 10‑layer PCB construction and industrial‑grade connectors ensure long‑term reliability. - **Rear I/O Support:** Versions designated “R” (e.g., cBP‑3206R) include P2 connectors for rear I/O transition modules.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **CompactPCI Compliance:** Fully compliant with PICMG 2.0 R2.1 CompactPCI specification, ensuring interoperability with standard CompactPCI CPU and I/O boards. - **32‑bit PCI Bus Architecture:** Supports 32‑bit data transfer on the P1 connector, providing high‑speed parallel communication between system and peripheral slots. - **Rear I/O Capability:** Equipped with P2 connectors on peripheral slots for rear I/O applications, enabling cable‑free front panels and improved EMI performance. - **Slot Configuration:** 6 total slots — one system slot (right‑hand side) and five peripheral slots. - **Power Interface:** Dual ATX‑style DC input connectors and general‑purpose screw terminals for flexible power input options. - **Selectable I/O Voltage:** V(I/O) selectable between +3.3 V and +5 V (factory default +5 V). - **High‑Layer PCB Design:** 10‑layer PCB construction ensures controlled impedance, reduced crosstalk, and stable signal transmission. - **Mechanical Form Factor:** 3U height, 28HP width, suitable for 19‑inch rackmount or desktop CompactPCI chassis. - **Rear I/O Option:** The “R” variant includes P2 connectors for rear I/O transition modules. - **System Slot Orientation:** System slot located on the right‑hand side for compatibility with ADLINK cPCIS‑2000 and cPCIS‑1000 chassis. - **Robust Power Distribution:** Supports ATX and screw terminal power inputs, providing +3.3 V, +5 V, +12 V, and −12 V rails with sense and control signals. - **Signal Management:** Includes FAL# (Fail), DEG# (Derate), INH# (Inhibit), and RST# (Reset) signal headers for system monitoring and control. - **Industrial‑Grade Design:** Designed for continuous operation in embedded and industrial environments with high electrical and mechanical reliability.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

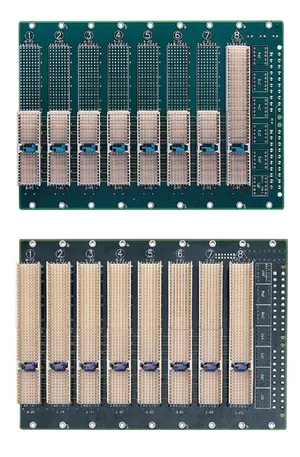

- **CompactPCI Compliance:** Fully compliant with PICMG 2.0 R2.1 CompactPCI standard. - **Bus Architecture:** 32‑bit PCI bus on P1 connector; optional P2 connector for rear I/O (R‑version). - **Slot Configuration:** 8 total slots — 1 system slot and 7 peripheral slots. - **Rear I/O Support:** Optional rear I/O capability on models cBP‑3208R, cBP‑3206R, and cBP‑3204R. - **Power Interface:** Dual ATX‑style DC power connectors (CN1, CN2) and screw terminal block for flexible power input. - **Selectable I/O Voltage:** V(I/O) selectable between +3.3 V and +5 V (factory default +5 V). - **High‑Density PCB:** 10‑layer printed circuit board for precise impedance control and signal integrity. - **Mechanical Design:** Standard 3U CompactPCI form factor, 9‑slot width (36HP), system slot positioned on the right. - **Power Management Signals:** Integrated connectors for power fail (FAL#), derating (DEG#), inhibit (INH#), and reset (RST#). - **Compatibility:** Designed for use with ADLINK cPCIS‑1000/2000 chassis and compatible CompactPCI CPU and I/O boards. - **Construction:** Industrial‑grade materials ensuring mechanical rigidity and EMI/EMC compliance.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **CompactPCI PICMG 2.0 R2.1 Compliant:** Ensures full interoperability with standard CompactPCI boards and modules. - **32‑bit Bus Architecture:** Supports 32‑bit CompactPCI signaling on the P1 connector for system and peripheral slots. - **Rear I/O Capability:** Equipped with P2 connectors on all peripheral slots for rear I/O applications (R‑version). - **8‑Slot Configuration:** One system slot (right‑hand side) and seven peripheral slots for I/O or expansion cards. - **High‑Quality PCB Design:** 10‑layer PCB construction for precise impedance control and minimized crosstalk. - **Flexible Power Input:** Dual ATX‑style connectors and screw terminals for DC input; supports both +3.3 V and +5 V V(I/O) selection. - **Rear I/O Option:** P2 connectors installed for rear signal routing, enabling advanced I/O expansion. - **Compact 3U Form Factor:** Ideal for integration into 3U CompactPCI chassis such as ADLINK’s cPCIS‑1000 and cPCIS‑2000 series. - **System Slot Orientation:** Right‑hand system slot configuration for compatibility with ADLINK CompactPCI chassis layouts. - **Industrial‑Grade Reliability:** Designed for continuous operation in embedded and industrial environments. - **Compatibility:** Works seamlessly with ADLINK CompactPCI power supplies (cPS‑150R, cPS‑175 series) and ATX PSUs via cPCI‑PSF frame.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **13-Slot CompactPCI Architecture:** Provides one system slot and twelve peripheral I/O slots, enabling flexible system expansion and modular configuration. - **32-bit PCI Bus Support:** Fully compliant with the CompactPCI 32-bit bus standard, ensuring compatibility with a wide range of cPCI CPU boards and peripheral modules. - **47-Pin Power Connectors:** Equipped with three 47-pin power sockets for reliable power distribution and redundancy, supporting high-current loads and stable operation. - **Right-Hand System Slot Configuration:** The system slot is located on the right-hand side, suitable for chassis and system designs that require right-oriented system boards. - **Industrial-Grade Design:** Built for continuous operation in demanding environments, offering high durability, signal integrity, and mechanical stability. - **Scalable and Modular:** Supports multiple peripheral boards for applications requiring high I/O density or distributed processing. - **Optimized Signal Routing:** Designed to minimize crosstalk and maintain signal integrity across all slots, ensuring consistent data throughput. - **High Reliability Power Distribution:** The triple 47-pin connectors provide balanced power delivery to all slots, reducing voltage drop and improving system reliability. - **Compatibility:** Works seamlessly with ADLINK’s range of CompactPCI CPU boards, peripheral modules, and industrial chassis.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **12-Slot CompactPCI Backplane:** Provides one system slot and twelve I/O slots, enabling extensive peripheral expansion and modular system design. - **32-bit PCI Bus Architecture:** Compliant with the CompactPCI 32-bit standard, ensuring compatibility with a wide range of cPCI boards and modules. - **Right-Hand System Slot Configuration:** The system slot is positioned on the right-hand side, ideal for chassis designs that require right-oriented controller placement. - **47-Pin Power Connectors:** Equipped with three 47-pin power sockets for stable and redundant power input, supporting high-current industrial applications. - **Rear I/O Support:** Designed with rear I/O connectivity to facilitate clean cable management and improved accessibility in rackmount or enclosure-based systems. - **High Signal Integrity Design:** Optimized PCB layout and controlled impedance traces ensure reliable data transmission across all slots. - **Scalable and Modular:** Supports multiple peripheral boards for data acquisition, communication, control, and processing tasks. - **Industrial-Grade Reliability:** Built with high-quality materials and connectors to withstand continuous operation in harsh environments. - **ADLINK Quality Assurance:** Manufactured under strict quality control standards, ensuring long-term stability and compatibility with ADLINK system components.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **8-Slot CompactPCI Configuration:** Supports up to eight CompactPCI peripheral boards, including one system slot and seven peripheral slots, allowing flexible system expansion and modular design. - **64-Bit Data Bus:** Provides a full 64-bit PCI bus interface for high-bandwidth data transfer, ensuring compatibility with 32-bit and 64-bit CompactPCI cards. - **10-Layer PCB Design:** Multi-layer printed circuit board enhances signal integrity, reduces crosstalk, and ensures stable power and ground distribution across all slots. - **High-Speed PCI Signaling:** Compliant with PCI specifications for 33 MHz and 66 MHz operation, supporting high-performance data communication between system and peripheral boards. - **Industrial-Grade Reliability:** Designed for continuous operation in industrial and embedded environments, with robust mechanical construction and high-quality connectors. - **Scalable System Architecture:** Enables flexible system configurations for control, data acquisition, and communication applications. - **Optimized Power Distribution:** Integrated power planes and decoupling capacitors ensure stable voltage delivery to all slots, minimizing noise and voltage drops. - **Backplane Management Support:** Provides system management signals and clock distribution for synchronized operation of all connected modules. - **Compatibility:** Fully compliant with PICMG 2.0 CompactPCI specifications, ensuring interoperability with a wide range of CompactPCI boards and chassis.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **8-Slot CompactPCI Configuration:** Supports up to eight cPCI slots, enabling flexible system expansion and modular design. - **64-Bit Bus Architecture:** Provides high data throughput and compatibility with 64-bit CompactPCI cards, ensuring optimal performance for data-intensive applications. - **3U Form Factor:** Compact 3U height suitable for space-constrained industrial and embedded systems. - **Rear I/O Support:** Designed with rear I/O capability for improved cable management and system integration flexibility. - **DIN 41612 31-Pin Power Socket:** Standardized power interface ensuring reliable power delivery and compatibility with industrial-grade power supplies. - **10-Layer PCB Design:** Multi-layer printed circuit board enhances signal integrity, reduces crosstalk, and supports high-speed data transmission. - **High Reliability and Durability:** Engineered for continuous operation in industrial environments with extended temperature and vibration tolerance. - **Scalable System Integration:** Supports a range of CompactPCI CPU and peripheral boards, allowing system designers to tailor configurations for specific applications. - **Optimized Signal Routing:** Controlled impedance traces and ground planes ensure stable signal performance across all slots. - **Compliance with CompactPCI Standards:** Fully compliant with PICMG 2.0 specifications for interoperability and long-term support.

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

rear removable bridge card, Adlink

Hersteller: Adlink Technology Inc.

Kategorie: cPCI Backplanes

- **CompactPCI to PCI Expansion:** Provides seamless connectivity between a CompactPCI host system and up to four standard PCI peripheral cards. - **Integrated Intel 21152 Bridge:** Utilizes the Intel 21152 PCI-to-PCI bridge controller for reliable data transfer, bus arbitration, and transparent communication between the CompactPCI and PCI buses. - **Four PCI Slots:** Offers four independent PCI expansion slots, allowing multiple PCI cards to be installed and operated simultaneously. - **Plug and Play Operation:** Fully plug-and-play compliant, automatically recognized by Windows operating systems without the need for manual driver installation. - **Auto Voltage Adaptation:** Supports automatic voltage detection and adaptation for both 3.3 V and 5 V PCI cards, ensuring broad compatibility with a wide range of PCI devices. - **Mechanical Format:** Designed in a 3U CompactPCI form factor with a front panel width of 28 HP, suitable for integration into standard CompactPCI chassis. - **Compact Dimensions:** Physical dimensions of 128.7 mm × 136.9 mm, optimized for space-constrained industrial or embedded systems. - **Windows Integration:** Native support under Windows environments; no additional software or configuration utilities required. - **Industrial-Grade Design:** Engineered for reliability and long-term operation in industrial, laboratory, and embedded computing applications.

Hersteller: Keine Kategorie

Kategorie: cPCI Backplanes
