- **Dual Serial Interface:** One RS-232 (DB9 male) and one RS-422/485 (terminal block) port with auto-detection capability. - **High-Performance CPU:** ST ARM Cortex™-M3 32-bit processor operating at 72 MHz, optimized for real-time data conversion and low power consumption. - **Ethernet Connectivity:** 10/100 Mbps auto-detect Ethernet interface with RJ-45 connector and 1.5 kV magnetic isolation for robust network protection. - **Flexible Communication Modes:** Supports TCP Server, TCP Client, UDP, Virtual COM, and Pairing modes for versatile integration into various network architectures. - **Web-Based Configuration:** Built-in HTTP server allows configuration via standard web browsers (Internet Explorer, Netscape) without additional software. - **Virtual COM Port Support:** Includes Windows-compatible Virtual COM software for transparent serial communication over TCP/IP networks. - **Dynamic IP Management:** DHCP client support for automatic IP address assignment. - **Security and Reliability:** Password-protected access, watchdog function, and firmware update capability via Ethernet. - **Industrial-Grade Protection:** Surge and overcurrent protection on RS-422/485 lines, 15 kV ESD protection on all signal lines. - **Environmental Durability:** Wide operating temperature range (-10°C to 70°C) and storage range (-20°C to 80°C). - **Compact and Stackable Design:** ABS plastic enclosure, lightweight (140 g), and optional DIN-rail or panel mounting. - **Remote Firmware Update:** Firmware can be updated online via Ethernet to maintain compatibility with evolving network standards.

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

- **Dual Serial Interface:** One RS-232 port (DB9 male) and one RS-422/RS-485 (auto-detect, terminal block) interface for flexible connectivity. - **High-Performance Processor:** Powered by an ST ARM Cortex™-M3 32-bit CPU running at 72 MHz, ensuring efficient data handling and low latency. - **Memory Resources:** Equipped with 64 KB SRAM and 256 KB Flash ROM for stable operation and firmware storage. - **Ethernet Connectivity:** Supports 10/100 Mbps Ethernet with auto-detection and built-in 1.5 kV magnetic isolation for network protection. - **Multiple Communication Modes:** Operates in TCP Server, TCP Client, UDP, Virtual COM, and Pairing modes, allowing versatile integration with various network architectures. - **Web-Based Configuration:** Configuration via standard web browsers (HTTP interface) without the need for proprietary software. - **Dynamic IP Support:** DHCP client mode for automatic IP assignment and simplified network management. - **Security and Access Control:** Password-protected login to prevent unauthorized configuration changes. - **Firmware Upgradeable:** Supports remote firmware updates via Ethernet to maintain compatibility with evolving network standards. - **Industrial-Grade Design:** Extended operating temperature range (-10°C to +70°C) and robust PVC enclosure suitable for industrial environments. - **Optional Digital I/O (DIO):** Eight TTL-level digital I/O channels available on certain models for sensor monitoring or control applications. - **Comprehensive Software Support:** Includes Virtual COM port software for Windows (2000 through Windows 10) and IP search utility for device discovery.

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

- **High-Performance Embedded Processor:** Equipped with an ST ARM Cortex™-M3 32-bit CPU running at 72 MHz, providing efficient data handling and low latency for serial-to-Ethernet communication. - **Memory Architecture:** 64 KB SRAM and 256 KB Flash ROM ensure stable operation and sufficient storage for firmware and configuration data. - **Dual Serial Interface Support:** Supports RS-422 and RS-485 (auto-detect) communication standards, allowing flexible integration with a wide range of industrial devices such as PLCs, sensors, meters, and controllers. - **Ethernet Connectivity:** 10/100 Mbps auto-detecting Ethernet port with RJ-45 connector and built-in 1.5 kV magnetic isolation for enhanced electrical protection. - **Multiple Communication Modes:** Operates in TCP Server, TCP Client, UDP, Virtual COM, and Pairing modes, providing versatile network integration options. - **Web-Based Configuration:** Configuration via standard web browsers (Internet Explorer, Netscape) using HTTP protocol—no proprietary software required. - **Dynamic IP Configuration:** Supports DHCP client mode for automatic IP assignment, simplifying network setup and management. - **Security and Access Control:** Password-protected login prevents unauthorized access to configuration settings. - **Firmware Upgrade via Ethernet:** Supports remote firmware updates over the network, ensuring long-term maintainability and compatibility with evolving standards. - **Industrial-Grade Design:** Compact PVC enclosure, extended operating temperature range (-10°C to 70°C), and surge/overcurrent protection on serial lines. - **Diagnostic Indicators:** LED indicators for power, system status, data transmission (TX/RX), and LAN activity. - **Optional Digital I/O (DIO):** Some EX9132CST variants include 8 TTL-level digital I/O channels for remote monitoring and control. - **Cross-Platform Utility Support:** Includes Windows-based IP search and configuration utility (EX9132CST.exe) compatible with Windows 2000 through Windows 10.

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

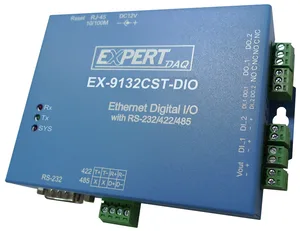

- **Dual Serial Interface:** One RS-232 port (DB9 male) and one RS-422/485 port (auto-detect, terminal block). Enables simultaneous connection of multiple serial devices to Ethernet. - **Digital I/O Integration:** Two digital input channels and two relay output channels (5V/12V selectable). Allows remote monitoring and control of sensors, switches, and actuators. - **High-Performance Processor:** Powered by an ST ARM Cortex-M3 32-bit CPU running at 72 MHz, providing efficient data handling and low latency. - **Flexible Network Operation Modes:** Supports TCP Server, TCP Client, UDP, Virtual COM, and Pairing modes for versatile communication setups. - **Web-Based Configuration:** Configuration via standard web browsers (Internet Explorer, Netscape) using HTTP protocol. No proprietary software required for setup. - **Dynamic IP Configuration:** DHCP client support for automatic IP assignment. - **Security and Reliability:** Password-protected login, built-in watchdog timer, and 1.5 kV magnetic isolation on Ethernet port. - **Firmware Upgradability:** Supports remote firmware updates via Ethernet to maintain compatibility with evolving network standards. - **Industrial-Grade Design:** Rugged metal housing, extended operating temperature range (-10°C to 70°C), and ESD protection (15 kV). - **Compatibility:** Works with Windows 2000/2003/XP/Vista/7/8/10 via Virtual COM software (downloadable).

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

- **Multi‑Protocol Serial Conversion:** Converts RS‑232, RS‑422, or RS‑485 serial data to Ethernet (TCP/IP) seamlessly. Auto‑detects RS‑422/RS‑485 interface type. - **High‑Performance Processor:** Equipped with an ARM Cortex‑M4 32‑bit CPU running at 120 MHz, providing 1.25 DMIPS/MHz computational efficiency and low power consumption. - **Memory Resources:** 128 KB SRAM and 512 KB Flash ROM for firmware, buffering, and configuration storage. - **Flexible Network Operation Modes:** Supports TCP Server, TCP Client, UDP Client, Virtual COM, and Pairing modes for versatile integration with networked systems. - **Web‑Based Configuration:** All parameters can be configured via a standard web browser (HTTP interface). No proprietary software required. - **Virtual COM Port Support:** Includes Windows Virtual COM software (Windows 2000/2003/XP/Vista/7/10) for transparent serial‑over‑Ethernet communication. - **Dynamic IP Management:** Supports DHCP client mode for automatic IP assignment or static IP configuration. - **Security and Access Control:** Password‑protected login prevents unauthorized configuration changes. - **Remote Firmware Update:** Firmware can be updated directly via Ethernet to maintain compatibility with evolving network standards. - **Industrial‑Grade Reliability:** Built‑in watchdog timer, 15 kV ESD protection on all signal lines, and 1.5 kV magnetic isolation on Ethernet port. - **Extended Temperature Operation:** Designed for 0 °C – 70 °C operating range, suitable for industrial environments. - **Optional Digital I/O (TTL):** Eight digital input/output pins (optional) for remote sensor monitoring or control via TCP/IP. - **PoE (Power over Ethernet) Option:** Optional PoE splitter provides approximately 12 V DC output from Cat5 cabling, enabling single‑cable data and power delivery.

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

The EX9133C-2-PoE converter allows your serial devices to be integrated easily to your network, It features 1 x RS232 und 1 x RS485 / 422 interfaces with PoE, It is designed for industrial use, is especially robust, can work in a wide temperature range and stands out through a very long durability.One RS232 output and one RS422 / RS485 output, PoE, easy configuration via web-interface, extended temperature range, Din Rail Mounting Kit (2 Euro, just give me a hint on your order), Power cable (2 Euro, just give me a hint on your order), 12V power adapter (9 Euro, just give me a hint on your order)

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

- **High‑Performance ARM Cortex‑M4 CPU:** 32‑bit processor operating at 120 MHz with 128 KB SRAM and 512 KB Flash ROM ensures fast data handling and efficient protocol conversion. - **Ethernet to RS‑232 Serial Conversion:** Converts serial data streams (RS‑232 via DB9 connector) into TCP/IP packets for transmission over Ethernet networks, and vice versa. - **Auto‑Detection and Flexible Serial Configuration:** Supports automatic detection of serial parameters and manual configuration of baud rate, parity, data bits, and stop bits. - **Web‑Based Configuration Interface:** Integrated HTTP server allows configuration through any standard web browser (Internet Explorer, Netscape, or equivalent) without additional software. - **Virtual COM Port Support:** Includes Windows‑compatible Virtual COM software enabling legacy applications to communicate over Ethernet as if connected to a local COM port. - **Multiple Operating Modes:** Supports TCP Server, TCP Client, UDP Client, Virtual COM, and Pairing modes for flexible network integration. - **Dynamic IP Configuration:** DHCP client support simplifies network setup and IP address management. - **Built‑in Security:** Password‑protected login prevents unauthorized access to configuration settings. - **Remote Firmware Update:** Firmware can be updated directly via Ethernet to maintain compatibility with evolving network standards. - **Industrial‑Grade Design:** Plastic enclosure with 1.5 kV magnetic isolation, 15 kV ESD protection, and surge/over‑current protection on serial lines. - **Wide Operating Temperature Range:** Designed for 0 °C to 70 °C operation, suitable for industrial and field environments. - **Compact and Lightweight:** Small form factor (115 × 90 × 27 mm) and 140 g weight for easy installation in space‑constrained systems.

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

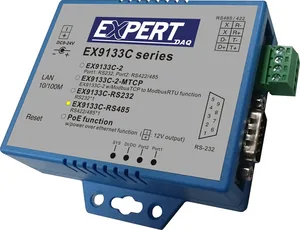

With the help of EX9133C-RS232 Converter you can easily integrate serial devices in a LAN-network, The EX9133C-RS485 has one RS485 / RS422 port, The Ethernet Converter can be operated in a wide temperature range, Set up is easy because the transmission parameters can be adjusted via a web interface, Included Virtual Com Software for: Windows can be downloaded for free (see at bottom), Features: output RS485 / RS422, PoE PD, easy configuration via web-interface, extended temperature range

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

- **High‑Performance ARM Cortex‑M4 CPU:** 32‑bit processor running at 120 MHz, optimized for real‑time data conversion between serial and Ethernet interfaces. - **Memory Architecture:** 128 KB SRAM and 512 KB Flash ROM ensure stable operation and firmware upgradability. - **Dual Serial Interface:** One auto‑detecting RS‑422/RS‑485 port supporting full‑duplex (RS‑422) and half‑duplex (RS‑485) communication. - **Ethernet Connectivity:** 10/100 Mbps auto‑detecting RJ‑45 port with built‑in 1.5 kV magnetic isolation for electrical protection. - **PoE Support (Optional):** Integrated PoE splitter provides approximately 12 V DC output from a Cat.5 Ethernet cable, eliminating the need for a separate power supply. - **Flexible Network Modes:** Supports TCP Server, TCP Client, UDP Client, Virtual COM, and Pairing modes for versatile integration. - **Web‑Based Configuration:** Full configuration via standard web browsers (HTTP interface). No proprietary software required. - **Dynamic IP Management:** DHCP client support for automatic IP assignment. - **Security Control:** Password‑protected login to prevent unauthorized access. - **Remote Firmware Update:** Firmware can be updated directly over Ethernet to maintain compatibility with evolving network standards. - **Digital I/O (Optional):** Eight TTL‑level digital I/O pins for remote monitoring and control of sensors or actuators. - **Industrial Reliability:** Surge and over‑current protection on all serial lines, 15 kV ESD protection, and watchdog functionality for system stability. - **Wide Temperature Range:** Operating from 0 °C to 70 °C, suitable for industrial and field environments.

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater

With the help of EX9133C-RS485 Converter you can easily integrate serial devices in a LAN-network, The EX9133C-RS485 has one RS485 / RS422 port, The Ethernet Converter can be operated in a wide temperature range, Set up is easy because the transmission parameters can be adjusted via a web interface, Included Virtual Com Software for: Windows can be downloaded for free (see at bottom), Features: output RS485 / RS422, PoE PD, easy configuration via web-interface, extended temperature range

Hersteller: TOPSCCC

Kategorie: Gateway serial USB LoRa Bluetooth Repeater
