Comprehensive Product Summary – AHM-6081 8" RISC-based Human Machine Interface

---

### 1. Product Overview

Product Name: AHM-6081
Model Number: AHM-6081
Series: AHM Series – RISC-based Human Machine Interfaces
Article Number: AHM-6081
Manufacturer: Aplex Technology Inc.

The Aplex AHM-6081 is an industrial-grade 8-inch RISC-based Human Machine Interface (HMI) designed for embedded control, automation, and monitoring applications. It integrates a high-performance ARM9-based Intel® PXA255 processor operating at 400 MHz, optimized for low power consumption and reliable operation in industrial environments. The unit features a robust construction with a plastic molding front panel and metal housing, ensuring durability and compliance with NEMA 4 / IP65 standards for dust and water resistance. The AHM-6081 is engineered for panel or VESA 75 mounting, providing flexibility for integration into various industrial systems and operator interfaces.

---

### 2. Key Features

- 8-inch RISC-based HMI: Compact and efficient interface for industrial control and monitoring.
- ARM9-based Intel® PXA255 CPU (400 MHz): Delivers reliable processing performance with low power consumption.
- Memory Configuration: 128 MB DRAM, 1 MB SRAM with battery backup, and 32 MB onboard Flash memory for OS storage.
- Operating System Support: Windows CE 4.2 and Windows CE 5.0, providing a stable embedded platform for industrial applications.
- Touch Interface: 4-wire analog resistive touchscreen for precise and responsive user input.
- Comprehensive I/O Connectivity:
- COM1 (RS-232/422/485)
- COM2 (RS-232)
- 1 x PS/2 for keyboard and mouse
- 1 x 10/100 LAN port
- USB 1.1 Client and USB 1.1 Host ports
- External VGA output
- Audio I/O (Speaker out, Microphone in)
- CompactFlash (CF) slot for application software or data storage
- Power Input: Wide-range DC 11–28V input for flexible power integration.
- Mounting Options: Supports both panel mount and VESA 75 mount configurations.
- Environmental Robustness: Designed for industrial environments with extended temperature and vibration tolerance.
- Certifications: CE and FCC Class A compliant, ensuring electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Processor (CPU): Intel® XScale™ PXA255, 400 MHz (ARM9 architecture)
Memory:
- 128 MB DRAM
- 1 MB SRAM with battery backup
- 32 MB onboard Flash memory for OS storage
- CompactFlash (CF) slot for application software

Display:
- 8-inch TFT LCD (resolution not specified in source)
- Resistive 4-wire analog touchscreen

Power Supply:
- Input Voltage: DC 11–28V
- Typical Supply Voltage: 24V DC

I/O Interfaces:
- Serial Ports:
- COM1: RS-232/422/485 (configurable)
- COM2: RS-232
- USB Ports:
- 1 x USB 1.1 Client
- 1 x USB 1.1 Host
- Network: 1 x 10/100 LAN port
- PS/2: 1 x PS/2 port for keyboard and mouse
- Video Output: 1 x external VGA port
- Audio: 1 x speaker out, 1 x microphone in
- Storage Expansion: 1 x CompactFlash slot

Construction:
- Front Panel: Plastic molding
- Housing: Metal
- Color: Black

Dimensions: 231 mm (W) × 176 mm (H) × 57 mm (D)
Cut-out Dimensions: 222 mm × 167 mm
Weight: Approximately 1.4 kg (3.09 lbs)

Environmental Specifications:
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +70°C
- Relative Humidity: 10% to 90% @ 50°C, non-condensing
- Vibration Resistance:
- 5–17 Hz, 0.1" double amplitude displacement
- 17–640 Hz, 1.5G acceleration peak-to-peak
- Shock Resistance: 10–25 Hz, 2G in X, Y, Z directions for 30 minutes
- Ingress Protection: NEMA 4 / IP65 compliant front bezel

Certifications: CE / FCC Class A

---

### 4. Functionality

The Aplex AHM-6081 functions as a Human Machine Interface (HMI), providing a graphical and interactive platform for operators to monitor, control, and configure industrial processes. It is designed for embedded control systems, automation panels, and machine interfaces where reliability, compactness, and low power consumption are critical.

Operational Concept:
The device runs on Windows CE 4.2 or 5.0, offering a lightweight, real-time operating environment suitable for industrial applications. The resistive touchscreen allows users to interact directly with graphical user interfaces, while the ARM9-based processor ensures responsive performance for control logic, data visualization, and communication tasks.

Use Cases and Applications:
- Factory automation and process control
- Machine operation panels
- Building management systems (BMS)
- Energy monitoring and control systems
- Transportation and logistics terminals
- Embedded control systems in OEM equipment

Compatibility:
The AHM-6081 supports standard industrial communication interfaces (RS-232/422/485, Ethernet, USB), ensuring compatibility with PLCs, sensors, controllers, and other industrial devices. The external VGA port allows for connection to larger displays for extended visualization.

---

### 5. Components & Accessories

Included Components:
- AHM-6081 main unit
- Mounting brackets for panel or VESA 75 installation
- Power connector (for DC input)
- User documentation and installation guide

Optional Accessories (depending on configuration):
- CompactFlash card for application software or data logging
- External keyboard and mouse (via PS/2 port)
- External display (via VGA output)
- Audio peripherals (microphone, speakers)
- Network cables for LAN connectivity

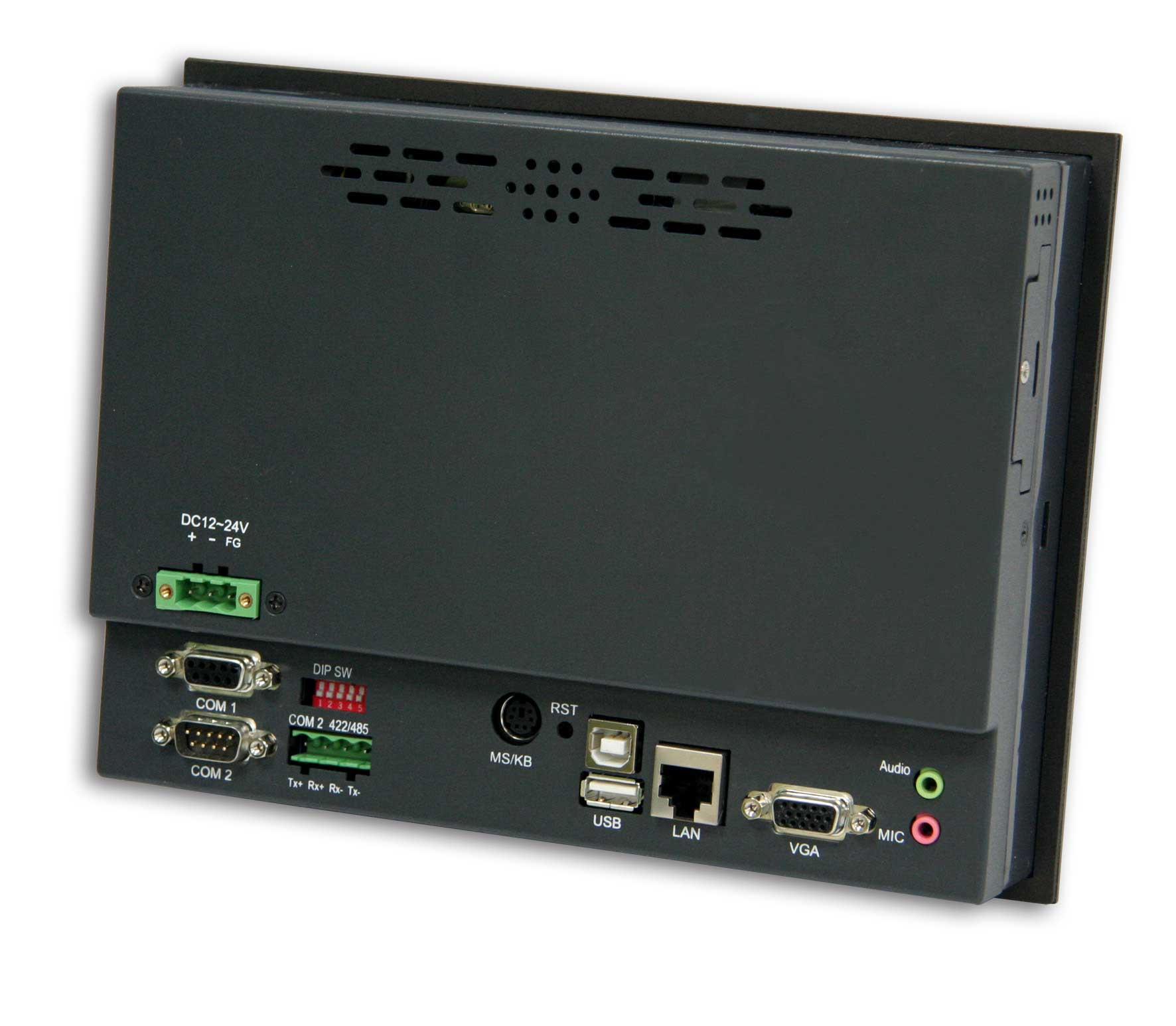

Connectors and Ports Summary:
- COM1: RS-232/422/485 (DB9 or terminal block, depending on configuration)
- COM2: RS-232
- LAN: RJ45 connector
- USB Host and Client: Type A and Mini-B connectors
- PS/2: Mini-DIN connector
- VGA: D-Sub 15-pin connector
- Audio: 3.5 mm jacks for mic and speaker
- CF Slot: Accessible for storage expansion

---

### 6. Installation & Setup

Mounting Options:
- Panel Mount: Designed for flush installation into control panels or operator consoles using the specified cut-out dimensions (222 × 167 mm).
- VESA 75 Mount: Compatible with standard VESA 75 mm mounting brackets for flexible positioning on arms, stands, or walls.

Power Requirements:
- DC input range: 11–28V (nominal 24V DC recommended).
- Ensure stable power supply with appropriate protection against surges and noise typical in industrial environments.

Setup Procedure:
1. Prepare the panel cut-out according to the specified dimensions.
2. Secure the unit using the provided mounting brackets or VESA mount.
3. Connect power, communication, and peripheral cables.
4. Insert CompactFlash card if required for application software.
5. Power on the device and configure network and serial communication parameters.
6. Load or deploy the HMI application under Windows CE environment.

Configuration:
- Communication ports can be configured for RS-232, RS-422, or RS-485 operation.
- Network settings (IP address, subnet mask, gateway) are adjustable via the Windows CE interface.
- USB and PS/2 ports support plug-and-play peripherals for setup and maintenance.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel® XScale™ PXA255 (ARM9) processor at 400 MHz provides efficient performance for real-time control and visualization tasks. The architecture is optimized for low power consumption, making it suitable for continuous operation in embedded environments.

Memory and Storage:
128 MB DRAM ensures smooth multitasking and graphical rendering, while the 32 MB Flash memory stores the operating system. The CompactFlash slot allows for additional storage or application deployment, enabling flexible system expansion.

Display and Input:
The 8-inch resistive touchscreen offers accurate input recognition, even when operated with gloves or styluses—ideal for industrial settings. The display size provides a balance between compactness and readability for control dashboards.

Communication and Connectivity:
Dual serial ports and Ethernet connectivity enable integration with a wide range of industrial controllers and networks. USB ports support data transfer, firmware updates, and peripheral connections.

Efficiency and Reliability:
The wide DC input range (11–28V) and rugged construction ensure stable operation under fluctuating power conditions and mechanical stress. The unit’s compliance with vibration and shock standards confirms its suitability for harsh industrial environments.

Limitations:
- Limited to Windows CE 4.2/5.0 operating systems (no support for newer OS versions).
- USB 1.1 interface limits data transfer speed compared to modern USB standards.
- Display resolution and brightness specifications are not detailed, which may limit high-visibility applications.

---

### 8. Standards & Compliance

Ingress Protection:
- Front Bezel: NEMA 4 / IP65 compliant, providing protection against dust, water splashes, and industrial contaminants.

Electromagnetic Compatibility (EMC):
- CE Certified: Conforms to European safety and EMC directives.
- FCC Class A: Meets U.S. Federal Communications Commission standards for industrial and commercial environments.

Environmental and Mechanical Standards:
- Designed to withstand vibration and shock conditions typical in industrial installations.
- Operating and storage temperature ranges ensure reliability across diverse environmental conditions.

Mounting Standards:
- VESA 75 mm compliance ensures compatibility with standard mounting accessories.

---

### 9. Additional Information

Warranty:
Typically covered under Aplex’s standard industrial product warranty (duration may vary by region and distributor). Warranty covers manufacturing defects and hardware failures under normal operating conditions.

Technical Support:
Aplex provides technical documentation, driver support, and firmware updates for Windows CE platforms. Support includes configuration assistance, troubleshooting, and integration guidance for OEM and system integrators.

Maintenance:
- Periodic cleaning of the front panel and ventilation areas is recommended.
- Ensure stable power supply and proper grounding to prevent electrical interference.
- Firmware and application updates can be deployed via CompactFlash or USB interface.

Software Updates and Customization:
- Supports application development under Windows CE using standard development tools (e.g., Microsoft Embedded Visual C++).
- Custom HMI applications can be deployed via CF card or network transfer.
- System integrators can tailor the interface for specific industrial processes or machine control systems.

Longevity and Reliability:
The AHM-6081 is designed for long-term availability and stable operation in industrial environments. Its fanless design, solid-state storage, and rugged housing contribute to extended service life and reduced maintenance requirements.

---

### Summary

The Aplex AHM-6081 is a compact, durable, and efficient 8-inch RISC-based Human Machine Interface built for industrial automation and embedded control applications. Powered by an Intel XScale PXA255 ARM9 processor, it combines low power consumption with reliable performance. Its resistive touchscreen, wide DC input range, and comprehensive I/O connectivity make it a versatile solution for machine control, process visualization, and system monitoring.

With NEMA 4 / IP65 front protection, CE/FCC Class A compliance, and flexible panel or VESA mounting, the AHM-6081 is engineered to meet the demands of industrial environments. Its support for Windows CE 4.2/5.0 ensures compatibility with a wide range of embedded applications, while its modular design and connectivity options enable seamless integration into existing control architectures.

Overall, the AHM-6081 represents a robust, cost-effective, and reliable HMI platform for OEMs, system integrators, and industrial automation professionals seeking a proven embedded interface solution.
