Comprehensive Product Summary – AHM-6125 Fanless Panel PC
### 1. Product Overview
Product Name: AHM-6125
Model Number: AHM-6125
Series: AHM Industrial Panel PC Series
Article Number: AHM-6125
Manufacturer: Aplex Technology Inc.

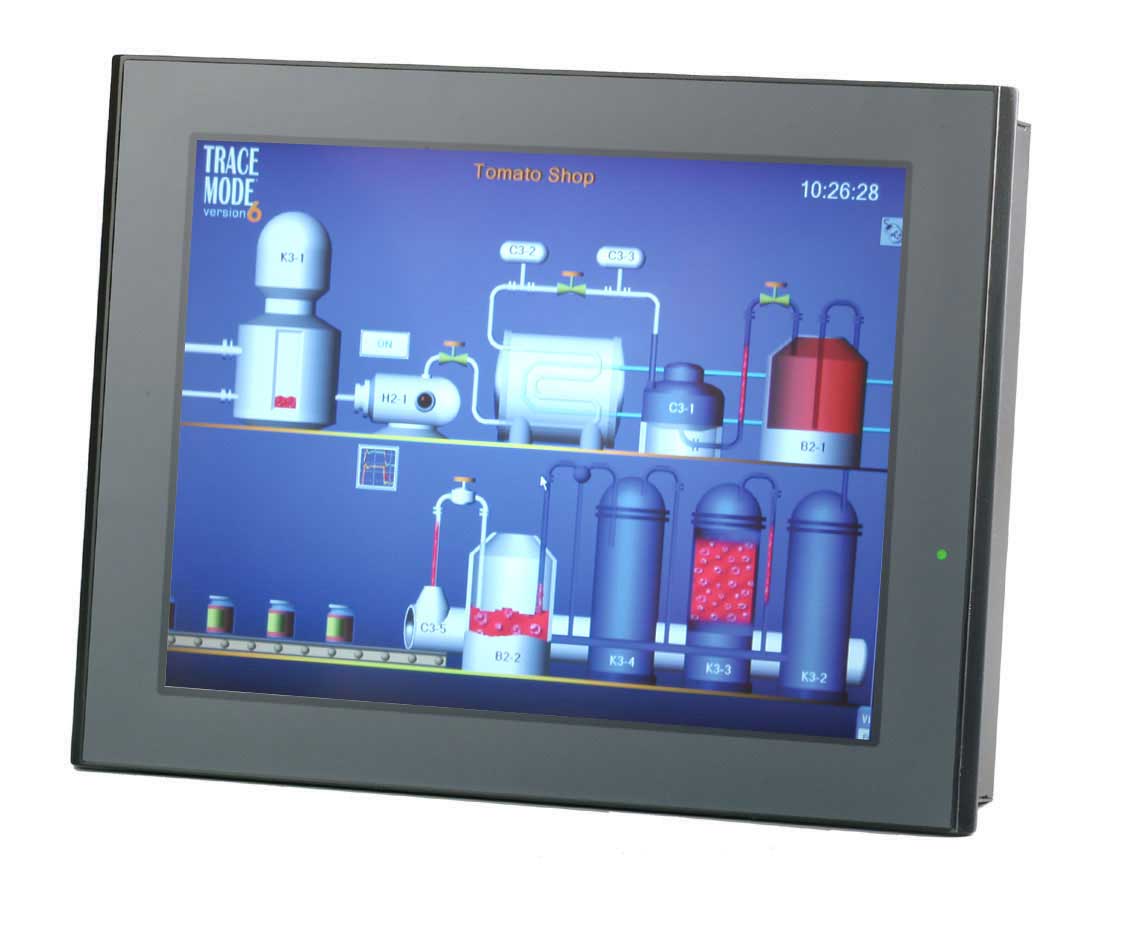

The AHM-6125 is a 12.1-inch fanless industrial panel PC designed for embedded and industrial automation applications. It integrates a low-power Intel® Celeron® M processor, a resistive touch interface, and a robust mechanical design suitable for harsh environments. The system combines performance, reliability, and flexibility, making it ideal for HMI (Human-Machine Interface), factory control, and process monitoring tasks.
### 2. Key Features
- 12.1-inch SVGA TFT LCD Display:
Resolution of 800 × 600 pixels, providing clear and bright visualization for industrial control and monitoring applications.
- Fanless Design:
The system operates without active cooling fans, reducing noise, dust ingress, and mechanical wear, ensuring long-term reliability in industrial environments.
- Intel® Celeron® M Processor:
Equipped with a 1.0 GHz or optional 1.5 GHz Celeron M CPU, offering a balance between performance and energy efficiency for embedded computing tasks.
- Touchscreen Interface:
4-wire analog resistive touchscreen for precise input, suitable for gloved or stylus operation in industrial settings.
- Flexible Storage Options:
Supports one 2.5" HDD bay and one CompactFlash (CF) card slot, allowing for both solid-state and mechanical storage configurations.
- Comprehensive I/O Connectivity:
Includes dual serial ports (RS-232 and RS-232/422/485), dual USB 2.0 ports, 10/100 Mbps LAN, parallel port, audio I/O, and PS/2 keyboard/mouse connectors. Optional COM3 and VGA ports are available for extended connectivity.
- Wide DC Power Input Range:
Operates from 11 to 28 VDC, accommodating various industrial power supply standards.
- Durable Construction:
Plastic molded front bezel with a metal rear housing ensures mechanical strength and electromagnetic shielding.
- Environmental Protection:
Front panel rated NEMA 4 / IP65, providing protection against dust and water ingress.
- Mounting Flexibility:
Supports both panel mounting and VESA 75 mm mounting standards for versatile installation options.
- Long-Life Display Panel:
LCD backlight rated for 50,000 hours of operation, ensuring extended service life in continuous-use environments.
### 3. Technical Specifications
Display:
- Size: 12.1 inches (diagonal)
- Type: TFT LCD
- Resolution: 800 × 600 (SVGA)
- Brightness: 300 cd/m²
- Viewing Angle: 120° (horizontal) / 95° (vertical)
- Backlight Lifetime: 50,000 hours
Processor (CPU):
- Intel® Celeron® M 1.0 GHz (standard)
- Optional Intel® Celeron® M 1.5 GHz
Memory (DRAM):
- 1 × SO-DIMM socket
- Supports DDR 200/266 MHz SDRAM
- Maximum capacity: 1 GB
Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot
Touchscreen:
- 4-wire analog resistive type
Power Input:
- DC 11–28 V

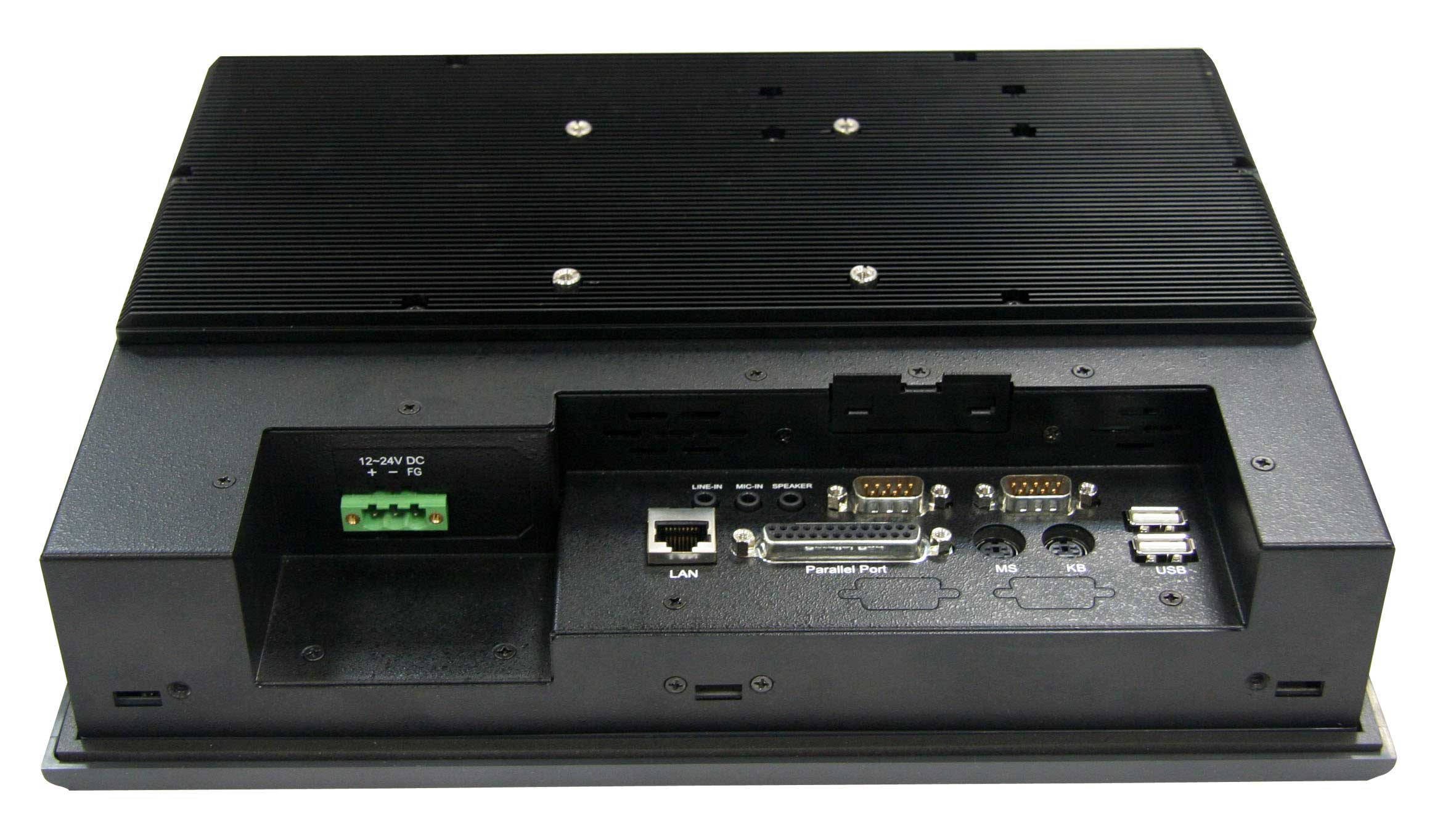

I/O Interfaces:
- 2 × COM ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- 1 × LAN port (10/100 Mbps Ethernet)
- 2 × USB 2.0 ports
- 1 × Parallel port
- 1 × Audio (Mic-in, Line-in, Line-out)
- 1 × PS/2 keyboard port
- 1 × PS/2 mouse port
- Optional: COM3, VGA output
Mechanical Construction:
- Front Panel: Plastic molding
- Rear Housing: Metal
- Color: Black
Dimensions:
- Width: 317 mm
- Height: 243 mm
- Depth: 74 mm
Panel Cutout:
- 303 mm × 229 mm
Weight:
- Approximately 4.08 kg
### 4. Functionality
The AHM-6125 functions as an all-in-one embedded computing platform for industrial automation, process control, and HMI applications. Its fanless architecture ensures silent operation and high reliability in dusty or vibration-prone environments.
Operation Principle:
The system integrates a CPU, memory, storage, and display into a single compact unit. The resistive touchscreen allows direct user interaction with control software or SCADA interfaces. The wide range of I/O ports enables communication with PLCs, sensors, actuators, and other industrial devices.
Use Cases and Applications:
- Factory automation and production line control
- Machine interface terminals (HMI)
- Building automation systems
- Process monitoring and data acquisition
- Kiosk and information terminals
- Transportation and logistics control panels
Compatibility:
The AHM-6125 supports standard operating systems commonly used in industrial environments, such as Windows Embedded, Linux, or other x86-compatible OS distributions. It can interface with standard industrial communication protocols via its serial and Ethernet ports.
### 5. Components & Accessories
Included Components:
- AHM-6125 main unit (panel PC)
- Mounting brackets for panel or VESA installation
- Power connector terminal block
- User manual and documentation
Optional Accessories:
- Additional COM3 port module
- External VGA output module
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash storage card
- Power adapter (11–28 VDC input compatible)
- Wall-mount or arm-mount kits (VESA 75 mm standard)
Connectors:
- Standard industrial-grade connectors for power and I/O
- Lockable connectors for vibration resistance in mobile or industrial applications
### 6. Installation & Setup
Installation Requirements:
- DC power supply within 11–28 V range
- Panel cutout dimensions: 303 mm × 229 mm
- Mounting depth clearance: minimum 74 mm
Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets for flush installation in control cabinets or operator panels.
- VESA Mount (75 mm): Compatible with standard VESA 75 × 75 mm mounting arms or brackets for flexible positioning.
Configuration:
- BIOS setup accessible via standard keyboard interface
- Operating system installation via USB or CF card
- Serial port configuration (RS-232/422/485) selectable through BIOS or jumper settings
- Network configuration through integrated 10/100 Mbps Ethernet interface
Setup Procedure:
1. Prepare the panel cutout according to specified dimensions.
2. Insert the unit into the cutout and secure it using the provided mounting brackets.
3. Connect the DC power input (11–28 VDC).
4. Attach peripheral devices (keyboard, mouse, LAN, USB, serial devices).
5. Power on and configure BIOS and operating system settings.
### 7. Performance & Capabilities
Processing Performance:
The Intel® Celeron® M 1.0 GHz processor provides sufficient computing power for typical industrial control and HMI applications, balancing performance with low thermal output. The optional 1.5 GHz variant offers enhanced responsiveness for more demanding tasks.
Memory and Storage:
With up to 1 GB DDR SDRAM and support for both HDD and CF storage, the system accommodates a range of operating systems and application software. The CF slot allows for solid-state operation in vibration-sensitive environments.
Display and Touch Performance:
The 12.1" SVGA display delivers 300 cd/m² brightness and wide viewing angles, ensuring visibility under various lighting conditions. The resistive touchscreen provides accurate input even when operated with gloves or styluses.
Power Efficiency:
The wide DC input range (11–28 V) and fanless design contribute to low power consumption and high reliability.
Environmental Durability:
The AHM-6125 is designed to withstand industrial conditions, including vibration, shock, and temperature variations.
Limitations:
- Limited memory capacity (up to 1 GB) may restrict use with modern high-demand applications.
- SVGA resolution (800 × 600) is suitable for standard HMI interfaces but not for high-resolution graphics.
- No built-in wireless connectivity (can be added via USB or expansion modules).
### 8. Standards & Compliance
Environmental Ratings:
- Front Panel: NEMA 4 / IP65 compliant (dust-tight and protected against water jets)
Certifications:
- CE (Conformité Européenne)
- FCC Class A (for industrial and commercial environments)
Environmental Specifications:
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +60°C
- Relative Humidity: 10% to 90% @ 50°C, non-condensing
- Vibration Resistance:
- 5–17 Hz: 0.1" double amplitude displacement
- 17–640 Hz: 1.5 G acceleration peak-to-peak
- Shock Resistance:
- 10–25 Hz, 2 G in X, Y, Z directions for 30 minutes
Compliance with Industrial Standards:
- Meets CE and FCC Class A electromagnetic compatibility requirements
- Designed for industrial-grade reliability and continuous operation
### 9. Additional Information
Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship.
Technical Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Engineering support is available for system integration and customization.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and inspection of connectors recommended.
- Storage devices (HDD/CF) can be replaced or upgraded as needed.
Software Updates:
Compatible with standard x86 operating systems, allowing for software updates and security patches through the OS vendor. BIOS updates may be available from Aplex for performance or compatibility improvements.
Service Life:
The long-life LCD panel (50,000 hours) and solid-state design ensure extended operational lifespan in continuous-use environments.
Customization Options:
OEM/ODM customization available for specific industrial applications, including branding, I/O configuration, and pre-installed software images.
### Summary
The Aplex AHM-6125 is a robust, fanless 12.1-inch panel PC engineered for industrial automation and embedded control environments. Featuring an Intel® Celeron® M processor, resistive touchscreen, and a comprehensive set of I/O interfaces, it delivers reliable performance in demanding conditions. Its rugged construction, wide power input range, and compliance with NEMA 4/IP65 and CE/FCC standards make it suitable for a wide range of industrial and commercial applications.
With flexible mounting options, long-life components, and low maintenance requirements, the AHM-6125 provides a dependable platform for HMI, process control, and embedded computing tasks where durability, stability, and ease of integration are critical.
### 1. Product Overview
Product Name: AHM-6125
Model Number: AHM-6125
Series: AHM Industrial Panel PC Series
Article Number: AHM-6125
Manufacturer: Aplex Technology Inc.
The AHM-6125 is a 12.1-inch fanless industrial panel PC designed for embedded and industrial automation applications. It integrates a low-power Intel® Celeron® M processor, a resistive touch interface, and a robust mechanical design suitable for harsh environments. The system combines performance, reliability, and flexibility, making it ideal for HMI (Human-Machine Interface), factory control, and process monitoring tasks.
### 2. Key Features
- 12.1-inch SVGA TFT LCD Display:
Resolution of 800 × 600 pixels, providing clear and bright visualization for industrial control and monitoring applications.
- Fanless Design:
The system operates without active cooling fans, reducing noise, dust ingress, and mechanical wear, ensuring long-term reliability in industrial environments.
- Intel® Celeron® M Processor:
Equipped with a 1.0 GHz or optional 1.5 GHz Celeron M CPU, offering a balance between performance and energy efficiency for embedded computing tasks.
- Touchscreen Interface:
4-wire analog resistive touchscreen for precise input, suitable for gloved or stylus operation in industrial settings.
- Flexible Storage Options:
Supports one 2.5" HDD bay and one CompactFlash (CF) card slot, allowing for both solid-state and mechanical storage configurations.
- Comprehensive I/O Connectivity:
Includes dual serial ports (RS-232 and RS-232/422/485), dual USB 2.0 ports, 10/100 Mbps LAN, parallel port, audio I/O, and PS/2 keyboard/mouse connectors. Optional COM3 and VGA ports are available for extended connectivity.
- Wide DC Power Input Range:
Operates from 11 to 28 VDC, accommodating various industrial power supply standards.
- Durable Construction:
Plastic molded front bezel with a metal rear housing ensures mechanical strength and electromagnetic shielding.
- Environmental Protection:
Front panel rated NEMA 4 / IP65, providing protection against dust and water ingress.
- Mounting Flexibility:
Supports both panel mounting and VESA 75 mm mounting standards for versatile installation options.
- Long-Life Display Panel:
LCD backlight rated for 50,000 hours of operation, ensuring extended service life in continuous-use environments.
### 3. Technical Specifications
Display:
- Size: 12.1 inches (diagonal)
- Type: TFT LCD
- Resolution: 800 × 600 (SVGA)
- Brightness: 300 cd/m²
- Viewing Angle: 120° (horizontal) / 95° (vertical)
- Backlight Lifetime: 50,000 hours
Processor (CPU):
- Intel® Celeron® M 1.0 GHz (standard)
- Optional Intel® Celeron® M 1.5 GHz
Memory (DRAM):
- 1 × SO-DIMM socket
- Supports DDR 200/266 MHz SDRAM
- Maximum capacity: 1 GB
Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot
Touchscreen:
- 4-wire analog resistive type
Power Input:
- DC 11–28 V
I/O Interfaces:
- 2 × COM ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- 1 × LAN port (10/100 Mbps Ethernet)
- 2 × USB 2.0 ports
- 1 × Parallel port
- 1 × Audio (Mic-in, Line-in, Line-out)
- 1 × PS/2 keyboard port
- 1 × PS/2 mouse port
- Optional: COM3, VGA output
Mechanical Construction:
- Front Panel: Plastic molding
- Rear Housing: Metal
- Color: Black
Dimensions:
- Width: 317 mm
- Height: 243 mm
- Depth: 74 mm
Panel Cutout:
- 303 mm × 229 mm
Weight:
- Approximately 4.08 kg
### 4. Functionality
The AHM-6125 functions as an all-in-one embedded computing platform for industrial automation, process control, and HMI applications. Its fanless architecture ensures silent operation and high reliability in dusty or vibration-prone environments.
Operation Principle:
The system integrates a CPU, memory, storage, and display into a single compact unit. The resistive touchscreen allows direct user interaction with control software or SCADA interfaces. The wide range of I/O ports enables communication with PLCs, sensors, actuators, and other industrial devices.
Use Cases and Applications:
- Factory automation and production line control
- Machine interface terminals (HMI)
- Building automation systems
- Process monitoring and data acquisition
- Kiosk and information terminals
- Transportation and logistics control panels
Compatibility:
The AHM-6125 supports standard operating systems commonly used in industrial environments, such as Windows Embedded, Linux, or other x86-compatible OS distributions. It can interface with standard industrial communication protocols via its serial and Ethernet ports.
### 5. Components & Accessories
Included Components:
- AHM-6125 main unit (panel PC)
- Mounting brackets for panel or VESA installation
- Power connector terminal block
- User manual and documentation
Optional Accessories:
- Additional COM3 port module
- External VGA output module
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash storage card
- Power adapter (11–28 VDC input compatible)
- Wall-mount or arm-mount kits (VESA 75 mm standard)
Connectors:
- Standard industrial-grade connectors for power and I/O
- Lockable connectors for vibration resistance in mobile or industrial applications
### 6. Installation & Setup
Installation Requirements:
- DC power supply within 11–28 V range
- Panel cutout dimensions: 303 mm × 229 mm
- Mounting depth clearance: minimum 74 mm
Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets for flush installation in control cabinets or operator panels.
- VESA Mount (75 mm): Compatible with standard VESA 75 × 75 mm mounting arms or brackets for flexible positioning.
Configuration:
- BIOS setup accessible via standard keyboard interface
- Operating system installation via USB or CF card
- Serial port configuration (RS-232/422/485) selectable through BIOS or jumper settings
- Network configuration through integrated 10/100 Mbps Ethernet interface
Setup Procedure:
1. Prepare the panel cutout according to specified dimensions.
2. Insert the unit into the cutout and secure it using the provided mounting brackets.
3. Connect the DC power input (11–28 VDC).
4. Attach peripheral devices (keyboard, mouse, LAN, USB, serial devices).
5. Power on and configure BIOS and operating system settings.
### 7. Performance & Capabilities
Processing Performance:
The Intel® Celeron® M 1.0 GHz processor provides sufficient computing power for typical industrial control and HMI applications, balancing performance with low thermal output. The optional 1.5 GHz variant offers enhanced responsiveness for more demanding tasks.
Memory and Storage:
With up to 1 GB DDR SDRAM and support for both HDD and CF storage, the system accommodates a range of operating systems and application software. The CF slot allows for solid-state operation in vibration-sensitive environments.
Display and Touch Performance:
The 12.1" SVGA display delivers 300 cd/m² brightness and wide viewing angles, ensuring visibility under various lighting conditions. The resistive touchscreen provides accurate input even when operated with gloves or styluses.
Power Efficiency:
The wide DC input range (11–28 V) and fanless design contribute to low power consumption and high reliability.
Environmental Durability:
The AHM-6125 is designed to withstand industrial conditions, including vibration, shock, and temperature variations.
Limitations:
- Limited memory capacity (up to 1 GB) may restrict use with modern high-demand applications.
- SVGA resolution (800 × 600) is suitable for standard HMI interfaces but not for high-resolution graphics.
- No built-in wireless connectivity (can be added via USB or expansion modules).
### 8. Standards & Compliance
Environmental Ratings:
- Front Panel: NEMA 4 / IP65 compliant (dust-tight and protected against water jets)
Certifications:
- CE (Conformité Européenne)
- FCC Class A (for industrial and commercial environments)
Environmental Specifications:
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +60°C
- Relative Humidity: 10% to 90% @ 50°C, non-condensing
- Vibration Resistance:
- 5–17 Hz: 0.1" double amplitude displacement
- 17–640 Hz: 1.5 G acceleration peak-to-peak
- Shock Resistance:
- 10–25 Hz, 2 G in X, Y, Z directions for 30 minutes
Compliance with Industrial Standards:
- Meets CE and FCC Class A electromagnetic compatibility requirements
- Designed for industrial-grade reliability and continuous operation
### 9. Additional Information
Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship.
Technical Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Engineering support is available for system integration and customization.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and inspection of connectors recommended.
- Storage devices (HDD/CF) can be replaced or upgraded as needed.
Software Updates:
Compatible with standard x86 operating systems, allowing for software updates and security patches through the OS vendor. BIOS updates may be available from Aplex for performance or compatibility improvements.
Service Life:
The long-life LCD panel (50,000 hours) and solid-state design ensure extended operational lifespan in continuous-use environments.
Customization Options:
OEM/ODM customization available for specific industrial applications, including branding, I/O configuration, and pre-installed software images.
### Summary
The Aplex AHM-6125 is a robust, fanless 12.1-inch panel PC engineered for industrial automation and embedded control environments. Featuring an Intel® Celeron® M processor, resistive touchscreen, and a comprehensive set of I/O interfaces, it delivers reliable performance in demanding conditions. Its rugged construction, wide power input range, and compliance with NEMA 4/IP65 and CE/FCC standards make it suitable for a wide range of industrial and commercial applications.
With flexible mounting options, long-life components, and low maintenance requirements, the AHM-6125 provides a dependable platform for HMI, process control, and embedded computing tasks where durability, stability, and ease of integration are critical.
-
AHM-6125.pdf
PDF Catalog
Kein Zubehör vorhanden.
