Comprehensive Product Summary – AHM-6153 15" XVGA Fanless Panel PC (LX800 Series)
### 1. Product Overview
Product Name: AHM-6153
Model Number: AHM-6153
Series: LX800 Fanless Panel PC Series
Article Number: AHM-6153
Manufacturer: Aplex Technology Inc.

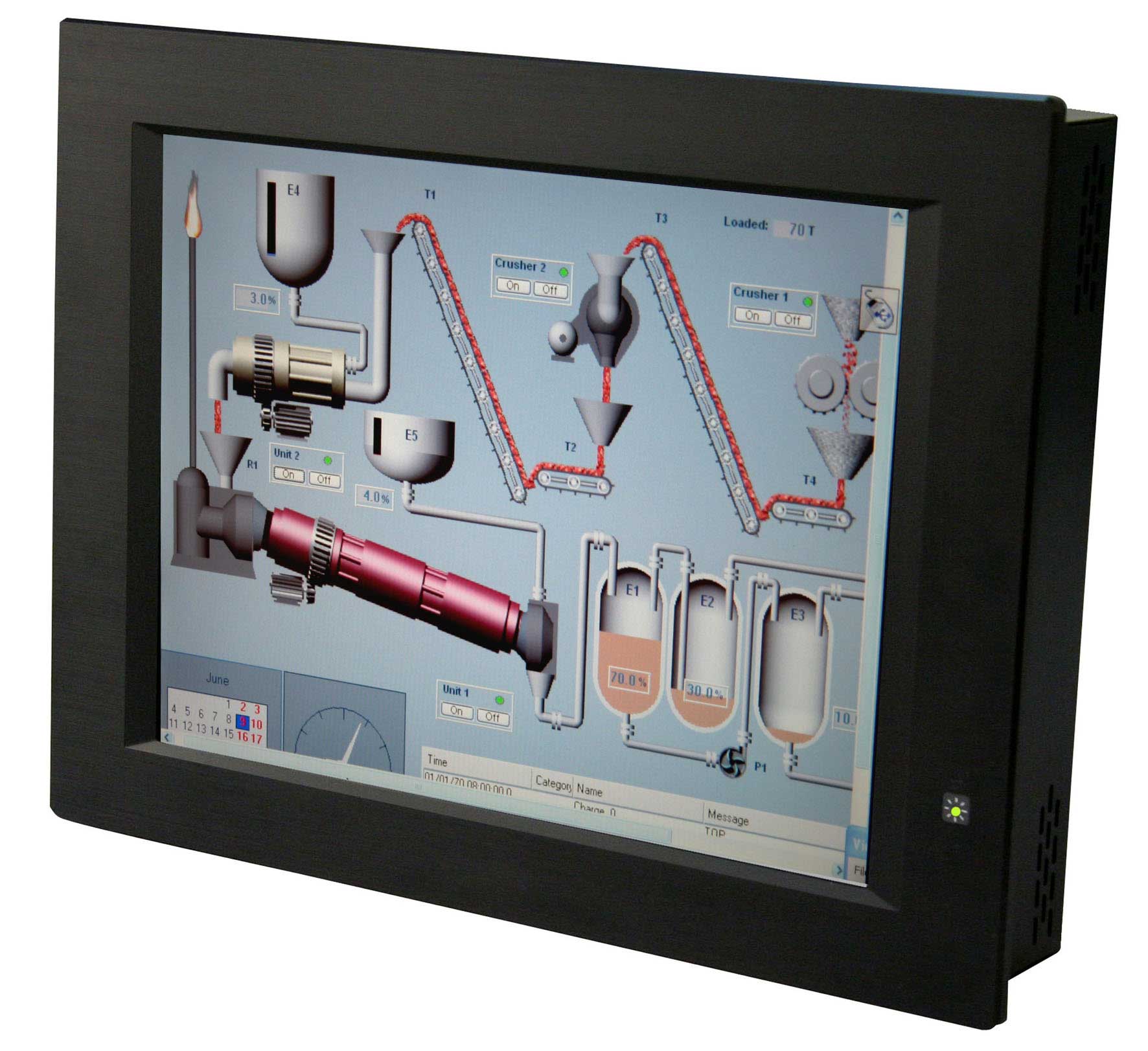

The AHM-6153 is a 15-inch fanless industrial panel PC designed for embedded control, automation, and human-machine interface (HMI) applications. It integrates a low-power AMD LX-800 processor, a high-brightness XVGA display, and a rugged metal housing suitable for harsh industrial environments. The system is engineered for reliability, silent operation, and long-term deployment in manufacturing, transportation, and process control systems.
### 2. Key Features
- Fanless Design: The AHM-6153 employs a fanless thermal architecture, ensuring silent operation and enhanced reliability by eliminating moving parts. This design minimizes dust ingress and mechanical wear, making it ideal for industrial and cleanroom environments.
- 15" XVGA Display: Features a 15-inch XGA (1024 × 768) TFT LCD panel with a brightness of 400 cd/m², providing clear and vivid visuals suitable for both indoor and semi-outdoor applications.
- Resistive Touchscreen: Equipped with an analog resistive touch interface, allowing precise input even when operated with gloves or styluses—ideal for industrial control panels.
- Rugged Construction: The front bezel is made of black alloy with a metal housing, providing durability and resistance to vibration and shock. The front panel meets NEMA 4 / IP65 standards for dust and water resistance.
- Flexible Mounting Options: Supports both panel mount and VESA 75 mounting configurations, enabling versatile installation in control cabinets, kiosks, or machinery interfaces.
- Wide Power Input Range: Accepts DC 11–28V input, accommodating various industrial power systems and ensuring stable operation under fluctuating voltage conditions.
- Comprehensive I/O Connectivity: Offers multiple serial ports, USB interfaces, LAN, VGA, audio, and expansion options for peripheral integration and communication with external devices.
- Extended Environmental Tolerance: Designed to operate in temperatures from 0°C to 50°C, with storage capability from –20°C to 60°C, and resistance to vibration and shock per industrial standards.
- OS Compatibility: Supports multiple operating systems including Windows CE.NET 4.2 / 5.0, Windows XP Professional, and Windows XP Embedded, providing flexibility for various software environments.
### 3. Technical Specifications
| Category | Specification |
|---------------|-------------------|
| Display | 15" XGA TFT LCD, 1024 × 768 resolution, 400 cd/m² brightness, 130° viewing angle, 40,000-hour backlight life |
| Touchscreen | Analog resistive type |
| Processor (CPU) | AMD LX-800, 500 MHz |
| Memory (DRAM) | 1 × 200-pin SO-DIMM DDR 266/333 MHz, up to 1 GB (standard 256 MB) |
| Storage Options | Space for 2.5" HDD and 1 CompactFlash (CF) card slot |
| Graphics Output | 1 × VGA port (supports 800 × 600 resolution) |
| Audio | AC’97 Codec, Line-in, Line-out, Microphone input |
| Network | 1 × 10/100 Mbps Ethernet LAN port |
| USB Ports | 2 × external USB 2.0 ports, 2 × internal USB 2.0 via 2×5 2.0 mm pin header |
| Serial Ports | COM1: RS-232, COM2: RS-232/422/485, COM3: RS-232, COM4: reserved for touchscreen controller |
| Parallel Port | 1 × parallel port |
| PS/2 Interface | 1 × PS/2 for keyboard and mouse |
| Expansion / Optional Ports | 2 × SATA ports (optional) |
| Control Interfaces | 1 × Reset switch, 1 × Power On/Off switch, onboard buzzer |
| Power Input | DC 11–28 V |
| Dimensions | 409 mm (W) × 309 mm (H) × 69 mm (D) |
| Panel Cutout | 392 mm × 292 mm |
| Weight | Approximately 7.18 kg |
| Front Panel Color | Black |
| Material | Alloy front bezel with metal housing |
### 4. Functionality
The AHM-6153 functions as a fully integrated industrial panel PC, combining computing, display, and input capabilities in a single unit. It is designed for continuous operation in industrial automation, process monitoring, and machine control environments.
Operational Concept:
- The AMD LX-800 CPU provides efficient processing for embedded applications, balancing performance and low power consumption.
- The resistive touchscreen enables intuitive user interaction for HMI applications, allowing operators to control machinery, monitor processes, or input data directly on the screen.
- The integrated I/O ports facilitate communication with PLCs, sensors, actuators, and other industrial devices via serial, USB, or Ethernet connections.
- The VGA output allows connection to an external display for extended visualization or mirrored output.
- The system supports both HDD and CompactFlash storage, offering flexibility between high-capacity and solid-state storage options.
Typical Applications:
- Industrial automation and control systems
- Factory and process monitoring terminals
- Building management systems (BMS)
- Transportation and logistics control panels
- Kiosk and point-of-information systems
- Embedded control in machinery and production lines
Compatibility:
The AHM-6153 supports multiple Microsoft operating systems, including Windows CE.NET 4.2/5.0, Windows XP Professional, and Windows XP Embedded, ensuring compatibility with a wide range of industrial software and SCADA platforms.
### 5. Components & Accessories
Included Components:
- AHM-6153 main unit (panel PC)
- Integrated 15" resistive touchscreen display
- Power input terminal block (DC 11–28V)
- Mounting brackets for panel or VESA 75 installation
- User manual and driver CD (depending on configuration)
Optional Accessories:
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash card for solid-state storage
- SATA interface expansion (optional)
- External keyboard and mouse via PS/2 or USB
- Wall-mount or arm-mount kits (VESA 75 compatible)
- Power adapter (if not included in base configuration)

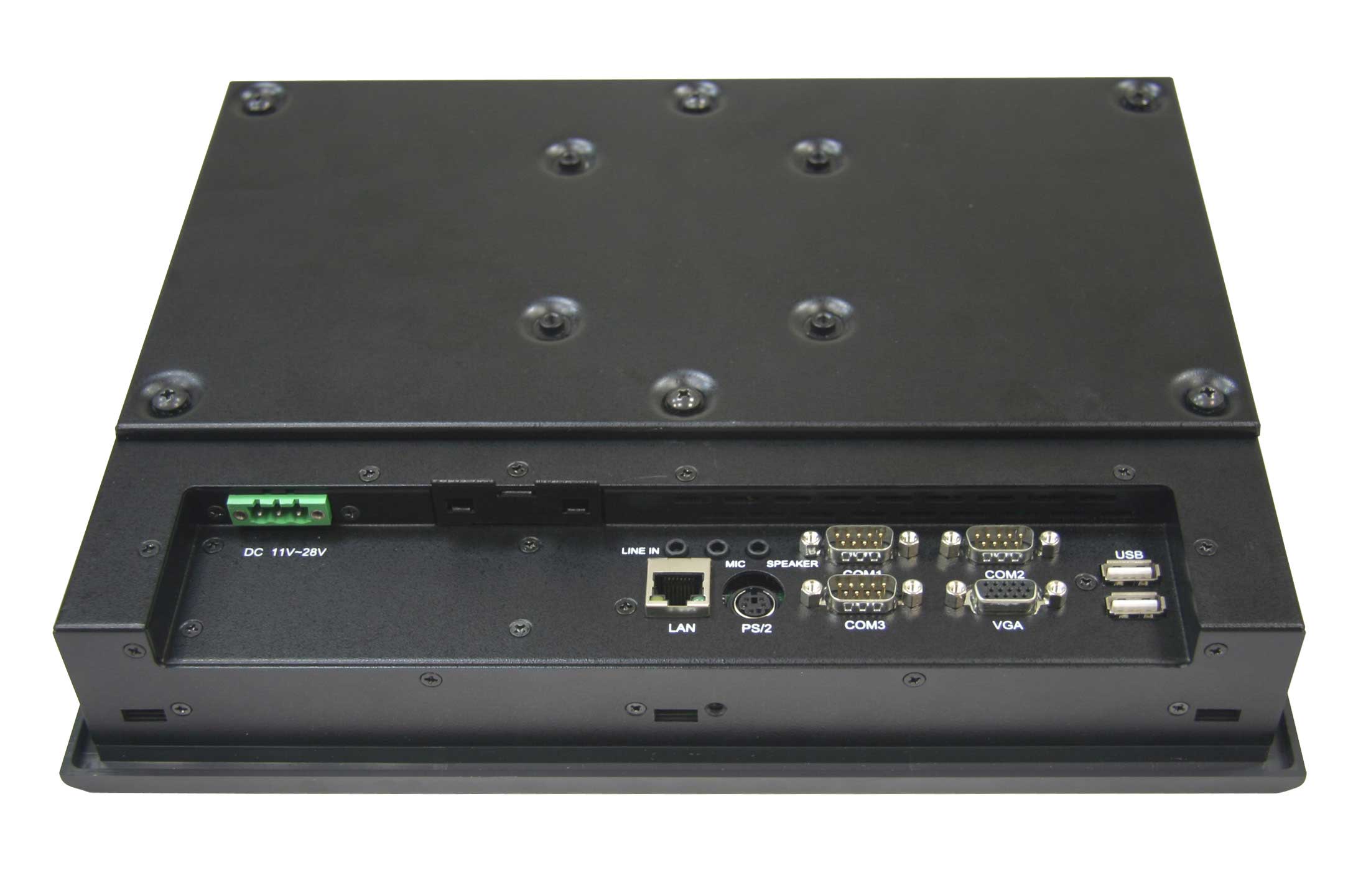

Connectors and Interfaces:
- Serial: 3 × RS-232, 1 × RS-232/422/485
- USB: 2 × external USB 2.0, 2 × internal USB 2.0 headers
- LAN: 1 × 10/100 Mbps Ethernet
- VGA: 1 × analog video output
- Audio: Line-in, Line-out, Mic (AC’97 Codec)
- PS/2: Keyboard and mouse combo port
- Parallel: 1 × standard parallel port
- Power: DC input terminal (11–28V)
- Switches: Power On/Off, Reset
- Buzzer: Onboard system buzzer
### 6. Installation & Setup
Installation Requirements:
- Power supply providing regulated DC voltage between 11V and 28V.
- Mounting surface or enclosure compatible with panel cutout dimensions (392 × 292 mm).
- Adequate ventilation or passive heat dissipation area to maintain operating temperature within 0–50°C.
Mounting Options:
- Panel Mount: The unit can be flush-mounted into control panels or enclosures using the provided brackets.
- VESA 75 Mount: Compatible with standard VESA 75 mm mounting patterns for arm or wall installations.
Setup Procedure:
1. Prepare the panel cutout according to specified dimensions.
2. Insert the AHM-6153 into the cutout and secure it using the mounting brackets.
3. Connect the DC power input (11–28V) to the terminal block.
4. Attach peripheral devices (keyboard, mouse, LAN, USB, serial devices).
5. Install the desired operating system (Windows CE.NET, XP Pro, or XP Embedded).
6. Configure BIOS and system settings as required for the application.
7. Calibrate the resistive touchscreen using the OS utility.
### 7. Performance & Capabilities
Processing Performance:
- The AMD LX-800 500 MHz processor provides stable performance for embedded and control applications, optimized for low power consumption and fanless operation.
Memory & Storage:
- Supports up to 1 GB DDR memory, ensuring smooth operation for lightweight industrial applications.
- Dual storage options (HDD and CF) allow flexible data management—HDD for large data logging, CF for solid-state reliability.
Display Performance:
- 15" XGA display with 400 cd/m² brightness ensures visibility in various lighting conditions.
- 130° viewing angle supports multi-angle readability.
- Backlight life of approximately 40,000 hours ensures long-term usability.
Environmental Performance:
- Operating temperature: 0°C to 50°C
- Storage temperature: –20°C to 60°C
- Relative humidity: 10–90% @ 40°C, non-condensing
- Vibration resistance: 5–500 Hz (random), 1G acceleration peak-to-peak
- Shock resistance: 15G acceleration peak-to-peak (11 ms duration)
Power Efficiency:
- Wide-range DC input (11–28V) supports stable operation in industrial power environments.
- Low power consumption due to fanless design and efficient LX-800 CPU.
Limitations:
- Designed for moderate computational tasks; not suitable for high-end graphics or intensive data processing.
- Limited to legacy operating systems (Windows CE and XP series).
### 8. Standards & Compliance
Ingress Protection:
- Front bezel rated NEMA 4 / IP65, ensuring protection against dust, water splashes, and industrial contaminants.
Certifications:
- CE Certified – Conforms to European safety and electromagnetic compatibility standards.
- FCC Class A – Meets U.S. Federal Communications Commission standards for industrial and commercial environments.
Industry Standards:
- Compliant with VESA 75 mounting standard.
- Meets industrial vibration and shock resistance criteria for embedded systems.
These certifications and compliance standards ensure that the AHM-6153 is suitable for deployment in regulated industrial environments and adheres to international quality and safety benchmarks.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–2 years, depending on region and distributor policy).
Support & Maintenance:
- Aplex provides technical documentation, driver support, and firmware updates through its official channels.
- Preventive maintenance involves periodic cleaning of the front panel and inspection of connectors to ensure reliable operation.
- The fanless design minimizes maintenance requirements and reduces downtime.
Software & Updates:
- Compatible with legacy Windows operating systems for embedded applications.
- BIOS and driver updates available from Aplex support portal.
- Touchscreen calibration and configuration utilities included with OS installation packages.
Serviceability:
- Easy access to internal components (HDD, memory, CF slot) for upgrades or replacements.
- Modular design simplifies field servicing and integration into existing systems.
Longevity & Reliability:
- Designed for 24/7 operation in industrial environments.
- Long backlight life (40,000 hours) and solid-state components ensure extended product lifecycle.
### Summary
The Aplex AHM-6153 is a robust, fanless 15-inch industrial panel PC built around the AMD LX-800 processor platform. It combines a high-quality XGA display, resistive touchscreen, and versatile I/O connectivity in a durable metal enclosure. With its wide DC input range, IP65-rated front bezel, and support for multiple legacy Windows operating systems, the AHM-6153 is engineered for demanding industrial automation, control, and monitoring applications.
Its combination of silent operation, rugged design, and flexible mounting options makes it a reliable choice for system integrators and OEMs seeking a long-life embedded HMI solution.
Key Technical Summary:
- Display: 15" XGA (1024×768), 400 cd/m², resistive touch
- CPU: AMD LX-800, 500 MHz
- Memory: Up to 1 GB DDR 266/333 MHz
- Storage: 2.5" HDD + CF slot
- I/O: 3×RS-232, 1×RS-232/422/485, 2×USB 2.0, 1×LAN, 1×VGA, Audio, PS/2, Parallel
- Power: DC 11–28V
- Dimensions: 409×309×69 mm; Cutout 392×292 mm
- Weight: 7.18 kg
- Operating Temp: 0–50°C
- Protection: NEMA 4 / IP65 front bezel
- Certifications: CE, FCC Class A
- Mounting: Panel / VESA 75
- OS Support: Windows CE.NET 4.2/5.0, XP Pro, XP Embedded
In essence, the AHM-6153 delivers a balanced combination of durability, performance, and flexibility for industrial HMI and embedded computing applications, ensuring dependable operation in mission-critical environments.
### 1. Product Overview
Product Name: AHM-6153
Model Number: AHM-6153
Series: LX800 Fanless Panel PC Series
Article Number: AHM-6153
Manufacturer: Aplex Technology Inc.
The AHM-6153 is a 15-inch fanless industrial panel PC designed for embedded control, automation, and human-machine interface (HMI) applications. It integrates a low-power AMD LX-800 processor, a high-brightness XVGA display, and a rugged metal housing suitable for harsh industrial environments. The system is engineered for reliability, silent operation, and long-term deployment in manufacturing, transportation, and process control systems.
### 2. Key Features
- Fanless Design: The AHM-6153 employs a fanless thermal architecture, ensuring silent operation and enhanced reliability by eliminating moving parts. This design minimizes dust ingress and mechanical wear, making it ideal for industrial and cleanroom environments.
- 15" XVGA Display: Features a 15-inch XGA (1024 × 768) TFT LCD panel with a brightness of 400 cd/m², providing clear and vivid visuals suitable for both indoor and semi-outdoor applications.
- Resistive Touchscreen: Equipped with an analog resistive touch interface, allowing precise input even when operated with gloves or styluses—ideal for industrial control panels.
- Rugged Construction: The front bezel is made of black alloy with a metal housing, providing durability and resistance to vibration and shock. The front panel meets NEMA 4 / IP65 standards for dust and water resistance.
- Flexible Mounting Options: Supports both panel mount and VESA 75 mounting configurations, enabling versatile installation in control cabinets, kiosks, or machinery interfaces.
- Wide Power Input Range: Accepts DC 11–28V input, accommodating various industrial power systems and ensuring stable operation under fluctuating voltage conditions.
- Comprehensive I/O Connectivity: Offers multiple serial ports, USB interfaces, LAN, VGA, audio, and expansion options for peripheral integration and communication with external devices.
- Extended Environmental Tolerance: Designed to operate in temperatures from 0°C to 50°C, with storage capability from –20°C to 60°C, and resistance to vibration and shock per industrial standards.
- OS Compatibility: Supports multiple operating systems including Windows CE.NET 4.2 / 5.0, Windows XP Professional, and Windows XP Embedded, providing flexibility for various software environments.
### 3. Technical Specifications
| Category | Specification |
|---------------|-------------------|
| Display | 15" XGA TFT LCD, 1024 × 768 resolution, 400 cd/m² brightness, 130° viewing angle, 40,000-hour backlight life |
| Touchscreen | Analog resistive type |
| Processor (CPU) | AMD LX-800, 500 MHz |
| Memory (DRAM) | 1 × 200-pin SO-DIMM DDR 266/333 MHz, up to 1 GB (standard 256 MB) |
| Storage Options | Space for 2.5" HDD and 1 CompactFlash (CF) card slot |
| Graphics Output | 1 × VGA port (supports 800 × 600 resolution) |
| Audio | AC’97 Codec, Line-in, Line-out, Microphone input |
| Network | 1 × 10/100 Mbps Ethernet LAN port |
| USB Ports | 2 × external USB 2.0 ports, 2 × internal USB 2.0 via 2×5 2.0 mm pin header |
| Serial Ports | COM1: RS-232, COM2: RS-232/422/485, COM3: RS-232, COM4: reserved for touchscreen controller |
| Parallel Port | 1 × parallel port |
| PS/2 Interface | 1 × PS/2 for keyboard and mouse |
| Expansion / Optional Ports | 2 × SATA ports (optional) |
| Control Interfaces | 1 × Reset switch, 1 × Power On/Off switch, onboard buzzer |
| Power Input | DC 11–28 V |
| Dimensions | 409 mm (W) × 309 mm (H) × 69 mm (D) |
| Panel Cutout | 392 mm × 292 mm |
| Weight | Approximately 7.18 kg |
| Front Panel Color | Black |
| Material | Alloy front bezel with metal housing |
### 4. Functionality
The AHM-6153 functions as a fully integrated industrial panel PC, combining computing, display, and input capabilities in a single unit. It is designed for continuous operation in industrial automation, process monitoring, and machine control environments.
Operational Concept:
- The AMD LX-800 CPU provides efficient processing for embedded applications, balancing performance and low power consumption.
- The resistive touchscreen enables intuitive user interaction for HMI applications, allowing operators to control machinery, monitor processes, or input data directly on the screen.
- The integrated I/O ports facilitate communication with PLCs, sensors, actuators, and other industrial devices via serial, USB, or Ethernet connections.
- The VGA output allows connection to an external display for extended visualization or mirrored output.
- The system supports both HDD and CompactFlash storage, offering flexibility between high-capacity and solid-state storage options.
Typical Applications:
- Industrial automation and control systems
- Factory and process monitoring terminals
- Building management systems (BMS)
- Transportation and logistics control panels
- Kiosk and point-of-information systems
- Embedded control in machinery and production lines
Compatibility:
The AHM-6153 supports multiple Microsoft operating systems, including Windows CE.NET 4.2/5.0, Windows XP Professional, and Windows XP Embedded, ensuring compatibility with a wide range of industrial software and SCADA platforms.
### 5. Components & Accessories
Included Components:
- AHM-6153 main unit (panel PC)
- Integrated 15" resistive touchscreen display
- Power input terminal block (DC 11–28V)
- Mounting brackets for panel or VESA 75 installation
- User manual and driver CD (depending on configuration)
Optional Accessories:
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash card for solid-state storage
- SATA interface expansion (optional)
- External keyboard and mouse via PS/2 or USB
- Wall-mount or arm-mount kits (VESA 75 compatible)
- Power adapter (if not included in base configuration)
Connectors and Interfaces:
- Serial: 3 × RS-232, 1 × RS-232/422/485
- USB: 2 × external USB 2.0, 2 × internal USB 2.0 headers
- LAN: 1 × 10/100 Mbps Ethernet
- VGA: 1 × analog video output
- Audio: Line-in, Line-out, Mic (AC’97 Codec)
- PS/2: Keyboard and mouse combo port
- Parallel: 1 × standard parallel port
- Power: DC input terminal (11–28V)
- Switches: Power On/Off, Reset
- Buzzer: Onboard system buzzer
### 6. Installation & Setup
Installation Requirements:
- Power supply providing regulated DC voltage between 11V and 28V.
- Mounting surface or enclosure compatible with panel cutout dimensions (392 × 292 mm).
- Adequate ventilation or passive heat dissipation area to maintain operating temperature within 0–50°C.
Mounting Options:
- Panel Mount: The unit can be flush-mounted into control panels or enclosures using the provided brackets.
- VESA 75 Mount: Compatible with standard VESA 75 mm mounting patterns for arm or wall installations.
Setup Procedure:
1. Prepare the panel cutout according to specified dimensions.
2. Insert the AHM-6153 into the cutout and secure it using the mounting brackets.
3. Connect the DC power input (11–28V) to the terminal block.
4. Attach peripheral devices (keyboard, mouse, LAN, USB, serial devices).
5. Install the desired operating system (Windows CE.NET, XP Pro, or XP Embedded).
6. Configure BIOS and system settings as required for the application.
7. Calibrate the resistive touchscreen using the OS utility.
### 7. Performance & Capabilities
Processing Performance:
- The AMD LX-800 500 MHz processor provides stable performance for embedded and control applications, optimized for low power consumption and fanless operation.
Memory & Storage:
- Supports up to 1 GB DDR memory, ensuring smooth operation for lightweight industrial applications.
- Dual storage options (HDD and CF) allow flexible data management—HDD for large data logging, CF for solid-state reliability.
Display Performance:
- 15" XGA display with 400 cd/m² brightness ensures visibility in various lighting conditions.
- 130° viewing angle supports multi-angle readability.
- Backlight life of approximately 40,000 hours ensures long-term usability.
Environmental Performance:
- Operating temperature: 0°C to 50°C
- Storage temperature: –20°C to 60°C
- Relative humidity: 10–90% @ 40°C, non-condensing
- Vibration resistance: 5–500 Hz (random), 1G acceleration peak-to-peak
- Shock resistance: 15G acceleration peak-to-peak (11 ms duration)
Power Efficiency:
- Wide-range DC input (11–28V) supports stable operation in industrial power environments.
- Low power consumption due to fanless design and efficient LX-800 CPU.
Limitations:
- Designed for moderate computational tasks; not suitable for high-end graphics or intensive data processing.
- Limited to legacy operating systems (Windows CE and XP series).
### 8. Standards & Compliance
Ingress Protection:
- Front bezel rated NEMA 4 / IP65, ensuring protection against dust, water splashes, and industrial contaminants.
Certifications:
- CE Certified – Conforms to European safety and electromagnetic compatibility standards.
- FCC Class A – Meets U.S. Federal Communications Commission standards for industrial and commercial environments.
Industry Standards:
- Compliant with VESA 75 mounting standard.
- Meets industrial vibration and shock resistance criteria for embedded systems.
These certifications and compliance standards ensure that the AHM-6153 is suitable for deployment in regulated industrial environments and adheres to international quality and safety benchmarks.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–2 years, depending on region and distributor policy).
Support & Maintenance:
- Aplex provides technical documentation, driver support, and firmware updates through its official channels.
- Preventive maintenance involves periodic cleaning of the front panel and inspection of connectors to ensure reliable operation.
- The fanless design minimizes maintenance requirements and reduces downtime.
Software & Updates:
- Compatible with legacy Windows operating systems for embedded applications.
- BIOS and driver updates available from Aplex support portal.
- Touchscreen calibration and configuration utilities included with OS installation packages.
Serviceability:
- Easy access to internal components (HDD, memory, CF slot) for upgrades or replacements.
- Modular design simplifies field servicing and integration into existing systems.
Longevity & Reliability:
- Designed for 24/7 operation in industrial environments.
- Long backlight life (40,000 hours) and solid-state components ensure extended product lifecycle.
### Summary
The Aplex AHM-6153 is a robust, fanless 15-inch industrial panel PC built around the AMD LX-800 processor platform. It combines a high-quality XGA display, resistive touchscreen, and versatile I/O connectivity in a durable metal enclosure. With its wide DC input range, IP65-rated front bezel, and support for multiple legacy Windows operating systems, the AHM-6153 is engineered for demanding industrial automation, control, and monitoring applications.
Its combination of silent operation, rugged design, and flexible mounting options makes it a reliable choice for system integrators and OEMs seeking a long-life embedded HMI solution.
Key Technical Summary:
- Display: 15" XGA (1024×768), 400 cd/m², resistive touch
- CPU: AMD LX-800, 500 MHz
- Memory: Up to 1 GB DDR 266/333 MHz
- Storage: 2.5" HDD + CF slot
- I/O: 3×RS-232, 1×RS-232/422/485, 2×USB 2.0, 1×LAN, 1×VGA, Audio, PS/2, Parallel
- Power: DC 11–28V
- Dimensions: 409×309×69 mm; Cutout 392×292 mm
- Weight: 7.18 kg
- Operating Temp: 0–50°C
- Protection: NEMA 4 / IP65 front bezel
- Certifications: CE, FCC Class A
- Mounting: Panel / VESA 75
- OS Support: Windows CE.NET 4.2/5.0, XP Pro, XP Embedded
In essence, the AHM-6153 delivers a balanced combination of durability, performance, and flexibility for industrial HMI and embedded computing applications, ensuring dependable operation in mission-critical environments.
-
AHM-6153.pdf
PDF Catalog
Kein Zubehör vorhanden.
