Comprehensive Product Summary: AHM-6175 17" SXGA Fanless Panel PC

---

### 1. Product Overview

Product Name: AHM-6175
Model Number: AHM-6175
Series: AHM Industrial Panel PC Series
Article Number: AHM-6175
Manufacturer: Aplex Technology Inc.

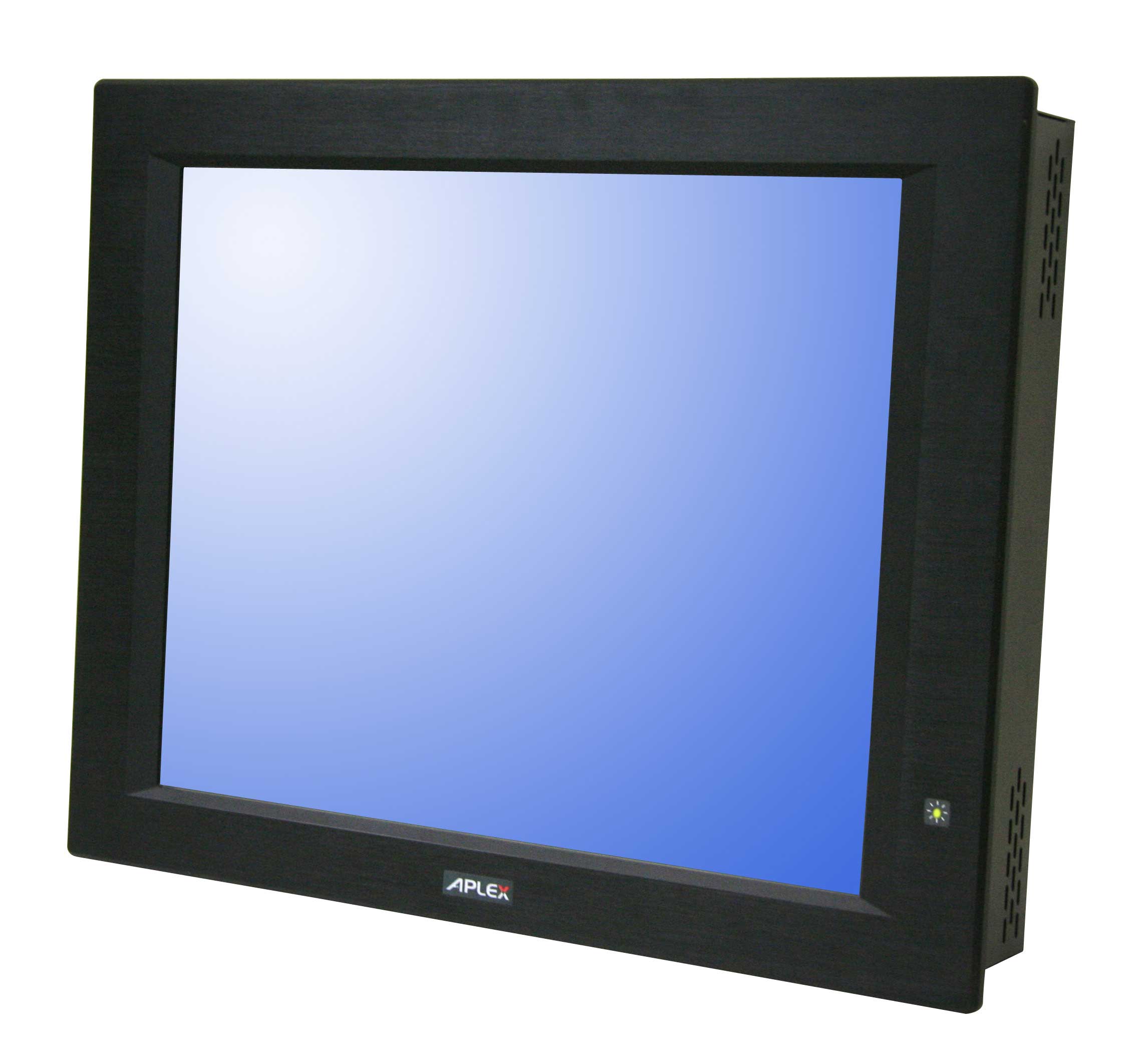

The AHM-6175 is a 17-inch SXGA fanless industrial panel PC designed for demanding industrial automation, control, and monitoring applications. Engineered by Aplex Technology, this model combines robust construction, efficient thermal management, and versatile connectivity in a compact, sealed enclosure. It is optimized for environments requiring reliable, continuous operation without active cooling, making it suitable for factory automation, process control, and embedded system integration.

---

### 2. Key Features

- 17-inch SXGA Display: High-resolution 1280 × 1024 TFT LCD panel providing sharp, clear visuals for industrial HMI (Human-Machine Interface) applications.
- Fanless Architecture: Passive cooling design ensures silent operation and enhanced reliability by eliminating moving parts, reducing maintenance needs, and improving durability in dusty or vibration-prone environments.
- Flexible CPU Options: Supports Intel® Celeron® M processors at 1.0 GHz or 1.5 GHz, and upgradeable up to Intel® Pentium® M 1.8 GHz for higher performance requirements.
- Resistive Touchscreen: Sealed analog resistive touch panel for precise input, suitable for gloved operation and industrial settings.
- Rugged Construction: Aluminum alloy front panel and metal housing provide mechanical strength and electromagnetic shielding.
- Wide Power Input Range: Operates from 11 to 28 VDC, accommodating various industrial power sources.
- Comprehensive I/O Connectivity: Includes serial, USB, LAN, parallel, audio, and PS/2 interfaces for peripheral integration.
- IP65 / NEMA 4 Front Protection: Dust-tight and water-resistant front bezel suitable for harsh industrial environments.
- Mounting Flexibility: Supports both panel mounting and VESA 75 mm mounting standards.
- Environmental Resilience: Designed to operate in temperatures from 0°C to 50°C and withstand vibration and shock typical of industrial environments.

---

### 3. Technical Specifications

Display:
- Size: 17 inches (diagonal)
- Resolution: SXGA 1280 × 1024 pixels
- Type: TFT LCD
- Touchscreen: Analog resistive, sealed front surface

Processor (CPU):
- Standard: Intel® Celeron® M 1.0 GHz / 1.5 GHz
- Optional Upgrade: Intel® Pentium® M up to 1.8 GHz

Memory (DRAM):
- 1 × SO-DIMM socket
- Supports DDR 200/266 MHz
- Maximum capacity: 1 GB

Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot

Power Input:
- DC 11–28 V wide-range input

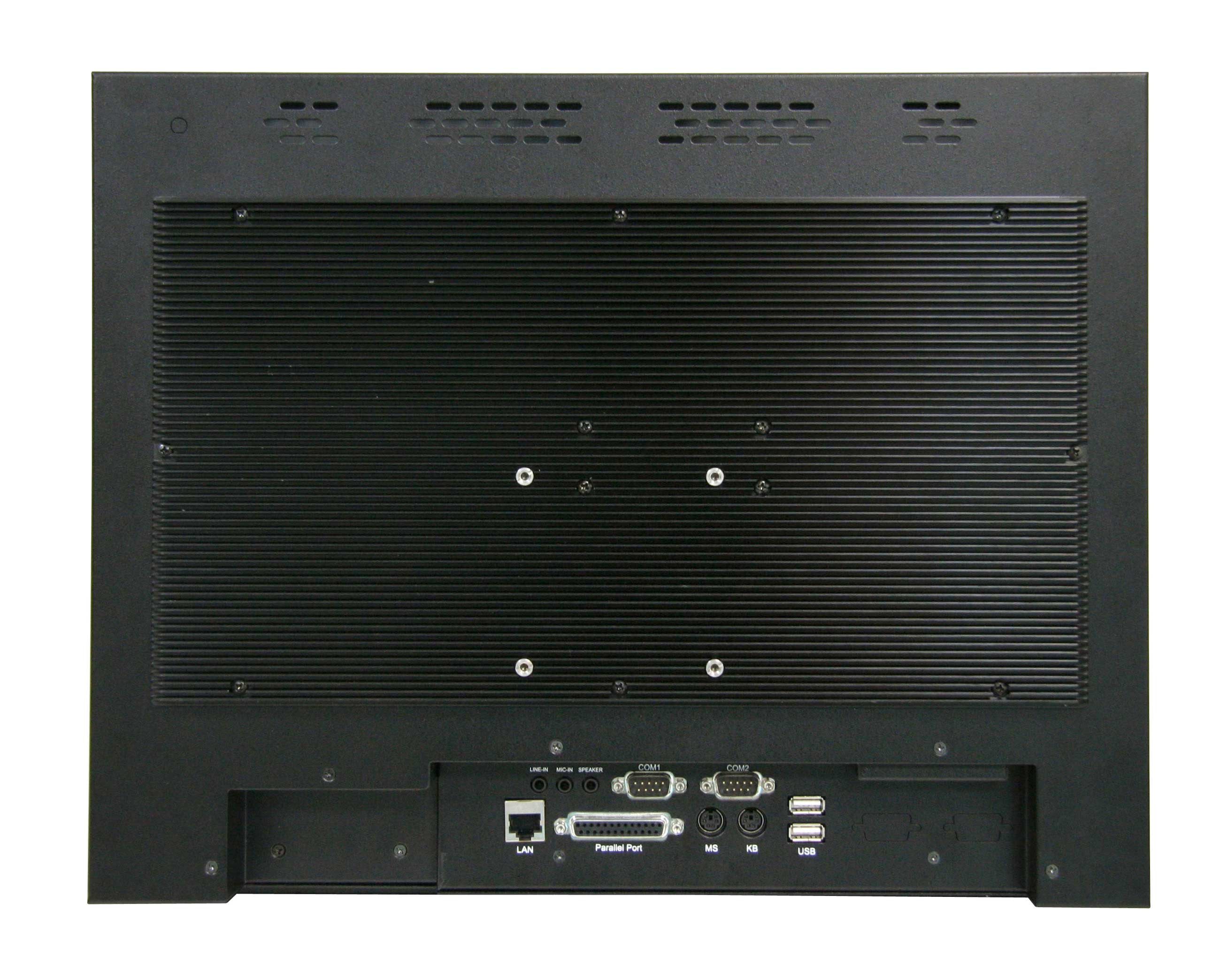

I/O Interfaces:
- Serial Ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- Optional: COM3 (factory option)
- LAN: 1 × 10/100 Mbps Ethernet port
- USB: 2 × USB 2.0 ports
- Parallel Port: 1 × standard parallel interface
- Audio: 1 × speaker output, 1 × line-in, 1 × line-out
- PS/2: 1 × keyboard port, 1 × mouse port
- Optional: VGA output for external display

Construction:
- Front Panel: Aluminum alloy
- Housing: Metal chassis
- Color: Black

Dimensions:
- Width: 439 mm
- Height: 348 mm
- Depth: 86 mm

Weight:
- (Not specified; estimated range 6–8 kg depending on configuration)

---

### 4. Functionality

The AHM-6175 functions as a fully integrated industrial panel PC, combining computing, display, and touch input in a single unit. It is designed for embedded control, HMI, and data acquisition applications in manufacturing, automation, and process monitoring.

Operation:
The system boots from either the internal 2.5" HDD or CompactFlash card, depending on configuration. The resistive touchscreen provides direct user interaction with industrial control software or SCADA interfaces. The fanless design ensures silent operation and minimizes dust ingress, while the IP65-rated front bezel protects against water splashes and contaminants.

Use Cases and Applications:
- Factory automation and production line control
- Machine interface terminals
- Process monitoring and data logging
- Building automation systems
- Kiosk and information terminals
- Transportation and logistics control panels
- Embedded control systems in harsh environments

Compatibility:
Compatible with standard x86 operating systems such as Windows XP Embedded, Windows 7 Embedded, Linux distributions, and other industrial OS platforms supporting Intel Celeron M/Pentium M architectures.

---

### 5. Components & Accessories

Included Components:
- AHM-6175 main unit (panel PC)
- Integrated 17" resistive touchscreen display
- Built-in speaker
- Power input terminal block or cable (depending on configuration)
- Mounting brackets for panel or VESA installation
- User manual and driver CD (typical inclusion for Aplex products)

Optional Accessories:
- Additional COM3 port (factory option)
- External VGA output module
- Wall-mount or arm-mount kits (VESA 75 compatible)
- Power adapter (if not supplied)
- CompactFlash storage card
- 2.5" HDD or SSD for internal storage

Connectors:
- Standard industrial-grade connectors for serial, USB, LAN, and power interfaces
- Audio jacks for line-in/out and speaker
- PS/2 mini-DIN connectors for keyboard and mouse

---

### 6. Installation & Setup

Power Requirements:
- DC input voltage: 11–28 VDC
- Power consumption depends on CPU configuration and peripheral load

Mounting Options:
- Panel Mount: Designed for flush installation into control panels or enclosures using mounting brackets.
- VESA Mount: Supports VESA 75 mm standard for flexible mounting on arms, stands, or walls.

Setup Procedure:
1. Secure the panel PC into the desired mounting frame or bracket.
2. Connect DC power input within the specified voltage range.
3. Attach required peripherals (keyboard, mouse, LAN, USB devices).
4. Install operating system and drivers as required.
5. Calibrate the resistive touchscreen using the provided utility.
6. Configure serial and network interfaces for communication with external devices or control systems.

Environmental Considerations:
Ensure adequate ventilation around the rear housing for passive heat dissipation. Avoid direct exposure to liquids or excessive dust on the rear panel. The front bezel is sealed to IP65, but the rear housing should be protected within an enclosure if used in harsh environments.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel Celeron M and Pentium M processors deliver efficient performance for industrial control, HMI visualization, and data processing tasks. The fanless design leverages low-power CPU architecture to maintain stable operation without thermal throttling.

Memory and Storage:
Up to 1 GB DDR memory supports multitasking for embedded applications. The combination of a 2.5" HDD bay and CompactFlash slot allows flexible storage configurations—solid-state CF for reliability or HDD for higher capacity.

Networking and Communication:
The integrated 10/100 Mbps Ethernet port ensures reliable network connectivity for SCADA systems, remote monitoring, or data exchange. Dual serial ports (RS-232 and RS-232/422/485) provide compatibility with a wide range of industrial devices such as PLCs, sensors, and controllers.

Input/Output Performance:
USB 2.0 ports support high-speed data transfer for external devices. The parallel port enables legacy peripheral support, while PS/2 ports maintain compatibility with traditional input devices.

Audio and Display:
Built-in audio interfaces allow multimedia or alert functions. Optional VGA output supports external display extension for dual-screen or mirrored operation.

Environmental Performance:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 10–90% @ 50°C, non-condensing
- Vibration Resistance:
- 5–17 Hz, 0.1" double amplitude displacement
- 17–640 Hz, 1.5G acceleration peak-to-peak
- Shock Resistance:
- 10–25 Hz, 2G in X, Y, Z directions for 30 minutes

These specifications ensure stable operation in industrial environments with mechanical stress, vibration, and temperature fluctuations.

Limitations:
- Maximum memory limited to 1 GB DDR
- Single Ethernet interface (no Gigabit LAN)
- No built-in wireless connectivity
- Limited CPU upgrade path (up to Pentium M 1.8 GHz)

---

### 8. Standards & Compliance

Ingress Protection:
- Front Bezel: IP65 / NEMA 4 compliant (dust-tight and water-resistant)

Certifications:
- CE (Conformité Européenne)
- FCC Class A (for industrial and commercial environments)

Industry Standards:
- VESA 75 mm mounting standard
- RS-232/422/485 serial communication standards
- USB 2.0 and IEEE 1284 parallel interface compliance

These certifications and standards ensure the AHM-6175 meets international requirements for electromagnetic compatibility, safety, and mechanical integrity in industrial applications.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (duration varies by region and distributor, commonly 1–2 years). Warranty covers defects in materials and workmanship under normal industrial use.

Technical Support:
Aplex Technology provides technical documentation, driver downloads, and firmware updates through its official support channels. Engineering support is available for system integration and customization.

Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and connectors recommended.
- Ensure secure mounting and stable power supply for long-term reliability.

Software & Firmware Updates:
Compatible with standard BIOS and firmware update utilities provided by Aplex. Operating system drivers for touch, LAN, and serial interfaces are available for Windows and Linux platforms.

Lifecycle & Availability:
As part of Aplex’s industrial product line, the AHM-6175 is designed for long-term availability and support, ensuring continuity for OEM and system integrator projects.

---

### Summary

The Aplex AHM-6175 is a rugged, fanless 17-inch SXGA industrial panel PC engineered for reliability, flexibility, and performance in industrial automation and control environments. With its Intel Celeron M/Pentium M processor options, resistive touchscreen, IP65-rated front bezel, and wide DC power input, it provides a robust solution for HMI, SCADA, and embedded control applications. Its comprehensive I/O set, including dual serial ports, USB, LAN, and audio interfaces, ensures seamless integration with industrial equipment and networks. The AHM-6175’s durable aluminum alloy construction, vibration and shock resistance, and compliance with CE/FCC standards make it a dependable choice for mission-critical operations in manufacturing, transportation, and process industries.

---
