Comprehensive Product Summary – MOXA EtherDevice™ Switch ED6008 Series
### 1. Product Overview

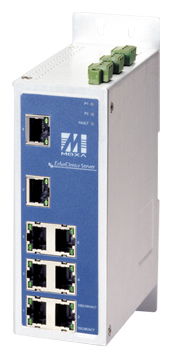

Product Name: EtherDevice™ Switch
Model: ED6008
Series: ED6008 Series – Managed Redundant Industrial Ethernet Switches
Article Number: ED6008
Manufacturer: MOXA Inc.
The MOXA ED6008 is an industrial-grade, managed, redundant Ethernet device server designed for high-reliability networking in automation and control environments. As part of the EtherDevice™ Switch family, the ED6008 series provides robust, high-performance Ethernet connectivity with advanced redundancy, management, and diagnostic capabilities. It is engineered to ensure continuous operation in harsh industrial conditions, supporting mission-critical applications such as SCADA, HMI, and process control systems.
### 2. Key Features
High-Performance Network Switching
- 8 Ethernet ports supporting 10/100BaseT(X) (RJ45) or 100BaseFX (fiber) connections.
- IEEE 802.3, 802.3u, 802.3x, and 802.1D compliant for full interoperability.
- Store-and-forward switching architecture with a 4K MAC address table.
- Auto-negotiation for 10/100 Mbps and full/half-duplex operation.
- Auto MDI/MDI-X crossover detection for simplified cabling.
Redundant Ethernet Ring Technology
- MOXA’s patented Turbo Ring redundancy protocol with recovery time < 300 ms under full load (up to 120 nodes).
- Line-Swap Fast Recovery feature (< 1 second) for rapid reconnection when devices are relocated.
- Ring coupling capability for complex network topologies.
Industrial Reliability
- Dual redundant DC power inputs for uninterrupted operation.
- Automatic e-mail and relay alarms triggered by user-defined events (e.g., power failure, link loss, configuration change).
- IP30-rated aluminum housing for mechanical durability.
- Extended operating temperature models (-40 to 75°C) for extreme environments.
- Designed for hazardous locations (UL/cUL Class 1 Div. 2, ATEX Zone 2).
Advanced Management and Diagnostics
- SNMP v1/v2c, DHCP Server/Client, BOOTP, RARP, and SMTP support.
- Web browser, Telnet, serial console, and Windows utility configuration.
- Port mirroring for real-time traffic analysis and debugging.
- Ping utility for network integrity verification.
- Integration with EDS-SNMP OPC Server Pro for SCADA/OPC-based network management.
Ease of Use
- Batch configuration utility for simultaneous setup of multiple switches.
- Automatic IP address recovery for connected devices.
- Compact DIN-rail or wall-mountable design for flexible installation.
### 3. Technical Specifications
Technology
- Standards: IEEE 802.3, 802.3u, 802.3x, 802.1D
- Protocols: SNMP v1/v2c, DHCP Server/Client, BOOTP, SMTP, RARP
- Optional Software: EDS-SNMP OPC Server Pro
- MIB Support: MIB-II, Ethernet-Like MIB, Bridge MIB
- Flow Control: IEEE 802.3x (full-duplex), back pressure (half-duplex)
- Switching Method: Store-and-forward
- MAC Address Table: 4096 entries
Interfaces
- RJ45 Ports: 10/100BaseT(X), auto-negotiation, full/half-duplex, auto MDI/MDI-X
- Fiber Ports (optional): 100BaseFX (SC connector)
- Console Port: RS-232 (RJ45)
- LED Indicators: P1, P2, FAULT, 10/100 LNK/ACT
- Alarm Contact: 1 relay output, 1A @ 24 VDC
Optical Fiber Specifications
- Transmission Distance:
- Single-mode fiber: up to 15 km
- Multi-mode fiber: 5 km (50/125 µm, 800 MHz·km) or 4 km (62.5/125 µm, 500 MHz·km)
- Wavelength: 1310 nm
- Optical Power:
- TX Output (Single): -15 to -6 dBm
- TX Output (Multi): -20 to -14 dBm
- RX Sensitivity (Single): -36 to -32 dBm
- RX Sensitivity (Multi): -34 to -30 dBm
Power
- Input Voltage:
- Pre-Ver. 2.0: 9–32 VDC (dual redundant inputs)
- Post-Ver. 2.0: 12–48 VDC (dual redundant inputs)
- Input Current (@24V):
- ED6008: 0.35 A
- ED6008-M-SC / ED6008-S-SC: 0.45 A
- ED6008-MM-SC / ED6008-SS-SC: 0.55 A
- Connection Type: Removable terminal block (max. cable Ø 1.5 mm)
- Protection: Reverse polarity protection, thermal fuse (< 2.5 A)
Mechanical
- Casing: Aluminum, IP30 protection
- Dimensions: 51.8 × 136.7 × 101.2 mm (W × H × D)
- Weight: 0.57 kg
- Mounting: DIN-rail or wall-mount
Environmental
- Operating Temperature:
- Standard models: 0 to 60°C (32 to 140°F)
- Extended (-T) models: -40 to 75°C (-40 to 167°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5% to 95% RH (non-condensing)
Reliability
- MTBF: 230,000 hours (MIL-HDBK-217F, GB database)
- Warranty: 5 years
### 4. Functionality
The ED6008 operates as a managed Ethernet switch optimized for industrial automation networks. It provides eight 10/100 Mbps Ethernet ports (RJ45 or fiber) that can interconnect PLCs, HMIs, sensors, and controllers within a plant or process environment. The switch uses store-and-forward packet switching to ensure data integrity and supports full-duplex communication for maximum throughput.
Use Cases and Applications
- Factory automation and process control networks
- SCADA and HMI systems
- Transportation and traffic control systems
- Power and energy distribution networks
- Oil, gas, and petrochemical facilities (hazardous zones)
- Building automation and security systems
Compatibility
- Compatible with standard Ethernet devices and protocols.
- Integrates with SNMP-based network management systems and OPC-based SCADA software.
- Supports DHCP/BootP for automatic IP assignment and RARP for address recovery.
### 5. Components & Accessories
Included Items
- ED6008 switch unit
- User’s manual
- DIN-rail mounting kit
Optional Accessories
- Power Supplies:
- DR-4524: 45W/2A DIN-rail 24 VDC power supply (85–264 VAC input)
- DR-75-24: 75W/3.2A DIN-rail 24 VDC power supply (85–264 VAC input)
- DR-120-24: 120W/5A DIN-rail 24 VDC power supply (88–132 VAC / 176–264 VAC input selectable)
- Software:
- EDS-SNMP OPC Server Pro (CD with software and manual)
Connectors
- RJ45 Ethernet connectors for copper ports
- SC connectors for fiber ports
- Removable terminal block for power input
- RJ45 console port for serial configuration
### 6. Installation & Setup
Installation Requirements
- 24 VDC power source (redundant inputs recommended)
- DIN-rail or wall-mounting surface
- Proper grounding and shielding for industrial environments
Mounting Options

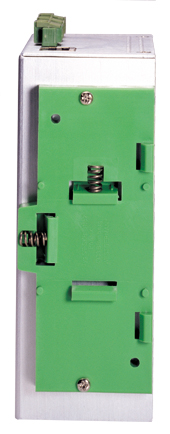

- DIN-rail mounting (standard)

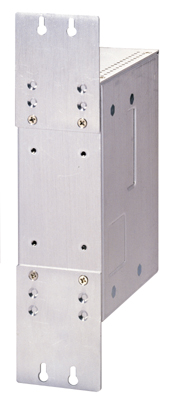

- Wall mounting (optional bracket)
Configuration Methods
- Web Browser Interface: Intuitive GUI for configuration and monitoring.
- Telnet/Serial Console: Command-line configuration for advanced users.
- Windows Utility: Moxa’s configuration software for batch setup and parameter management.
- Batch Configurator: Enables import/export of configuration files to multiple devices simultaneously.
Setup Features
- DHCP/BootP server for automatic IP assignment.
- SNMP configuration for network management integration.
- Event-triggered e-mail and relay alarms for proactive maintenance.
### 7. Performance & Capabilities
Switching Performance
- 10/100 Mbps auto-negotiation ensures optimal link speed.
- Store-and-forward architecture minimizes packet loss.
- 4K MAC address table supports large-scale industrial networks.
Redundancy and Recovery
- Turbo Ring redundancy with < 300 ms recovery time under full load.
- Line-Swap Fast Recovery (< 1 s) for rapid reconnection after topology changes.
- Dual power inputs ensure continuous operation during power source failure.
Capacity and Efficiency
- Full wire-speed switching on all ports.
- Flow control (IEEE 802.3x) prevents packet loss under heavy load.
- Port mirroring enables real-time traffic analysis without network disruption.
Limitations
- 10/100 Mbps maximum per port (no Gigabit support).
- IP30 enclosure (not waterproof).
- Fiber port availability depends on model variant.
### 8. Standards & Compliance
Safety Certifications
- UL60950 (E212360)
- UL 508
- CSA C22.2 No. 60950
- EN60950
Hazardous Location Approvals
- UL/cUL Class 1, Division 2, Groups A, B, C, D (E238559)
- ATEX Class 1, Zone 2, EEx nC IIC (03CA24537)
EMI/EMS Compliance
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD) Level 3
- EN61000-4-3 (RS) Level 3
- EN61000-4-4 (EFT) Level 3
- EN61000-4-5 (Surge) Level 3
- EN61000-4-6 (CS) Level 3
Environmental and Mechanical Standards
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
Industry Standards
- IEEE 802.3 Ethernet standards compliance
- SNMP and OPC interoperability for industrial automation
### 9. Additional Information
Warranty & Support
- 5-year limited hardware warranty.
- Technical support available via MOXA’s global service network.
- Firmware updates and configuration utilities downloadable from www.moxa.com.
Maintenance
- Minimal maintenance required due to fanless design.
- Periodic inspection recommended for power connections and environmental conditions.
- Firmware upgrades supported via web or console interface.
Model Variants and Ordering Information
| Model | Ports | Fiber Type | Operating Temp | Description |
|--------|--------|-------------|----------------|-------------|
| ED6008 | 8 × 10/100BaseT(X) | — | 0–60°C | Standard copper model |
| ED6008-M-SC | 7 × 10/100BaseT(X), 1 × 100BaseFX | Multi-mode | 0–60°C | 1 fiber port |
| ED6008-S-SC | 7 × 10/100BaseT(X), 1 × 100BaseFX | Single-mode | 0–60°C | 1 fiber port |
| ED6008-MM-SC | 6 × 10/100BaseT(X), 2 × 100BaseFX | Multi-mode | 0–60°C | 2 fiber ports |
| ED6008-SS-SC | 6 × 10/100BaseT(X), 2 × 100BaseFX | Single-mode | 0–60°C | 2 fiber ports |
| ED6008-T Series | Same as above | — | -40–75°C | Extended temperature models |
Extended Temperature Models
- ED6008-T
- ED6008-M-SC-T
- ED6008-S-SC-T
- ED6008-MM-SC-T
- ED6008-SS-SC-T
Software Integration
- EDS-SNMP OPC Server Pro: Converts SNMP data into OPC format for integration with SCADA systems, enabling unified monitoring and control across IT and OT networks.
Operational Advantages
- Continuous uptime through redundant ring topology.
- Rapid fault detection and recovery mechanisms.
- Simplified configuration and maintenance for large-scale deployments.
- Proven reliability in industrial automation, transportation, and energy sectors.
### Summary
The MOXA EtherDevice™ ED6008 Series represents a robust, industrial-grade solution for managed Ethernet networking in automation environments. With its combination of redundant ring technology, rugged design, and advanced management capabilities, the ED6008 ensures high availability and reliability for mission-critical systems. Its flexible configuration options, wide operating temperature range, and compliance with global industrial standards make it a preferred choice for engineers seeking dependable network infrastructure in demanding conditions.
Manufacturer Contact:
MOXA Inc.
Email: info@moxanet.com
Website: [www.moxa.com](http://www.moxa.com)
### 1. Product Overview
Product Name: EtherDevice™ Switch
Model: ED6008
Series: ED6008 Series – Managed Redundant Industrial Ethernet Switches
Article Number: ED6008
Manufacturer: MOXA Inc.
The MOXA ED6008 is an industrial-grade, managed, redundant Ethernet device server designed for high-reliability networking in automation and control environments. As part of the EtherDevice™ Switch family, the ED6008 series provides robust, high-performance Ethernet connectivity with advanced redundancy, management, and diagnostic capabilities. It is engineered to ensure continuous operation in harsh industrial conditions, supporting mission-critical applications such as SCADA, HMI, and process control systems.
### 2. Key Features
High-Performance Network Switching
- 8 Ethernet ports supporting 10/100BaseT(X) (RJ45) or 100BaseFX (fiber) connections.
- IEEE 802.3, 802.3u, 802.3x, and 802.1D compliant for full interoperability.
- Store-and-forward switching architecture with a 4K MAC address table.
- Auto-negotiation for 10/100 Mbps and full/half-duplex operation.
- Auto MDI/MDI-X crossover detection for simplified cabling.
Redundant Ethernet Ring Technology
- MOXA’s patented Turbo Ring redundancy protocol with recovery time < 300 ms under full load (up to 120 nodes).
- Line-Swap Fast Recovery feature (< 1 second) for rapid reconnection when devices are relocated.
- Ring coupling capability for complex network topologies.
Industrial Reliability
- Dual redundant DC power inputs for uninterrupted operation.
- Automatic e-mail and relay alarms triggered by user-defined events (e.g., power failure, link loss, configuration change).
- IP30-rated aluminum housing for mechanical durability.
- Extended operating temperature models (-40 to 75°C) for extreme environments.
- Designed for hazardous locations (UL/cUL Class 1 Div. 2, ATEX Zone 2).
Advanced Management and Diagnostics
- SNMP v1/v2c, DHCP Server/Client, BOOTP, RARP, and SMTP support.
- Web browser, Telnet, serial console, and Windows utility configuration.
- Port mirroring for real-time traffic analysis and debugging.
- Ping utility for network integrity verification.
- Integration with EDS-SNMP OPC Server Pro for SCADA/OPC-based network management.
Ease of Use
- Batch configuration utility for simultaneous setup of multiple switches.
- Automatic IP address recovery for connected devices.
- Compact DIN-rail or wall-mountable design for flexible installation.
### 3. Technical Specifications
Technology
- Standards: IEEE 802.3, 802.3u, 802.3x, 802.1D
- Protocols: SNMP v1/v2c, DHCP Server/Client, BOOTP, SMTP, RARP
- Optional Software: EDS-SNMP OPC Server Pro
- MIB Support: MIB-II, Ethernet-Like MIB, Bridge MIB
- Flow Control: IEEE 802.3x (full-duplex), back pressure (half-duplex)
- Switching Method: Store-and-forward
- MAC Address Table: 4096 entries
Interfaces
- RJ45 Ports: 10/100BaseT(X), auto-negotiation, full/half-duplex, auto MDI/MDI-X
- Fiber Ports (optional): 100BaseFX (SC connector)
- Console Port: RS-232 (RJ45)
- LED Indicators: P1, P2, FAULT, 10/100 LNK/ACT
- Alarm Contact: 1 relay output, 1A @ 24 VDC
Optical Fiber Specifications
- Transmission Distance:
- Single-mode fiber: up to 15 km
- Multi-mode fiber: 5 km (50/125 µm, 800 MHz·km) or 4 km (62.5/125 µm, 500 MHz·km)
- Wavelength: 1310 nm
- Optical Power:
- TX Output (Single): -15 to -6 dBm
- TX Output (Multi): -20 to -14 dBm
- RX Sensitivity (Single): -36 to -32 dBm
- RX Sensitivity (Multi): -34 to -30 dBm
Power
- Input Voltage:
- Pre-Ver. 2.0: 9–32 VDC (dual redundant inputs)
- Post-Ver. 2.0: 12–48 VDC (dual redundant inputs)
- Input Current (@24V):
- ED6008: 0.35 A
- ED6008-M-SC / ED6008-S-SC: 0.45 A
- ED6008-MM-SC / ED6008-SS-SC: 0.55 A
- Connection Type: Removable terminal block (max. cable Ø 1.5 mm)
- Protection: Reverse polarity protection, thermal fuse (< 2.5 A)
Mechanical
- Casing: Aluminum, IP30 protection
- Dimensions: 51.8 × 136.7 × 101.2 mm (W × H × D)
- Weight: 0.57 kg
- Mounting: DIN-rail or wall-mount
Environmental
- Operating Temperature:
- Standard models: 0 to 60°C (32 to 140°F)
- Extended (-T) models: -40 to 75°C (-40 to 167°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5% to 95% RH (non-condensing)
Reliability
- MTBF: 230,000 hours (MIL-HDBK-217F, GB database)
- Warranty: 5 years
### 4. Functionality
The ED6008 operates as a managed Ethernet switch optimized for industrial automation networks. It provides eight 10/100 Mbps Ethernet ports (RJ45 or fiber) that can interconnect PLCs, HMIs, sensors, and controllers within a plant or process environment. The switch uses store-and-forward packet switching to ensure data integrity and supports full-duplex communication for maximum throughput.
Use Cases and Applications
- Factory automation and process control networks
- SCADA and HMI systems
- Transportation and traffic control systems
- Power and energy distribution networks
- Oil, gas, and petrochemical facilities (hazardous zones)
- Building automation and security systems
Compatibility
- Compatible with standard Ethernet devices and protocols.
- Integrates with SNMP-based network management systems and OPC-based SCADA software.
- Supports DHCP/BootP for automatic IP assignment and RARP for address recovery.
### 5. Components & Accessories
Included Items
- ED6008 switch unit
- User’s manual
- DIN-rail mounting kit
Optional Accessories
- Power Supplies:
- DR-4524: 45W/2A DIN-rail 24 VDC power supply (85–264 VAC input)
- DR-75-24: 75W/3.2A DIN-rail 24 VDC power supply (85–264 VAC input)
- DR-120-24: 120W/5A DIN-rail 24 VDC power supply (88–132 VAC / 176–264 VAC input selectable)
- Software:
- EDS-SNMP OPC Server Pro (CD with software and manual)
Connectors
- RJ45 Ethernet connectors for copper ports
- SC connectors for fiber ports
- Removable terminal block for power input
- RJ45 console port for serial configuration
### 6. Installation & Setup
Installation Requirements
- 24 VDC power source (redundant inputs recommended)
- DIN-rail or wall-mounting surface
- Proper grounding and shielding for industrial environments
Mounting Options
- DIN-rail mounting (standard)
- Wall mounting (optional bracket)
Configuration Methods
- Web Browser Interface: Intuitive GUI for configuration and monitoring.
- Telnet/Serial Console: Command-line configuration for advanced users.
- Windows Utility: Moxa’s configuration software for batch setup and parameter management.
- Batch Configurator: Enables import/export of configuration files to multiple devices simultaneously.
Setup Features
- DHCP/BootP server for automatic IP assignment.
- SNMP configuration for network management integration.
- Event-triggered e-mail and relay alarms for proactive maintenance.
### 7. Performance & Capabilities
Switching Performance
- 10/100 Mbps auto-negotiation ensures optimal link speed.
- Store-and-forward architecture minimizes packet loss.
- 4K MAC address table supports large-scale industrial networks.
Redundancy and Recovery
- Turbo Ring redundancy with < 300 ms recovery time under full load.
- Line-Swap Fast Recovery (< 1 s) for rapid reconnection after topology changes.
- Dual power inputs ensure continuous operation during power source failure.
Capacity and Efficiency
- Full wire-speed switching on all ports.
- Flow control (IEEE 802.3x) prevents packet loss under heavy load.
- Port mirroring enables real-time traffic analysis without network disruption.
Limitations
- 10/100 Mbps maximum per port (no Gigabit support).
- IP30 enclosure (not waterproof).
- Fiber port availability depends on model variant.
### 8. Standards & Compliance
Safety Certifications
- UL60950 (E212360)
- UL 508
- CSA C22.2 No. 60950
- EN60950
Hazardous Location Approvals
- UL/cUL Class 1, Division 2, Groups A, B, C, D (E238559)
- ATEX Class 1, Zone 2, EEx nC IIC (03CA24537)
EMI/EMS Compliance
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD) Level 3
- EN61000-4-3 (RS) Level 3
- EN61000-4-4 (EFT) Level 3
- EN61000-4-5 (Surge) Level 3
- EN61000-4-6 (CS) Level 3
Environmental and Mechanical Standards
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
Industry Standards
- IEEE 802.3 Ethernet standards compliance
- SNMP and OPC interoperability for industrial automation
### 9. Additional Information
Warranty & Support
- 5-year limited hardware warranty.
- Technical support available via MOXA’s global service network.
- Firmware updates and configuration utilities downloadable from www.moxa.com.
Maintenance
- Minimal maintenance required due to fanless design.
- Periodic inspection recommended for power connections and environmental conditions.
- Firmware upgrades supported via web or console interface.
Model Variants and Ordering Information
| Model | Ports | Fiber Type | Operating Temp | Description |
|--------|--------|-------------|----------------|-------------|
| ED6008 | 8 × 10/100BaseT(X) | — | 0–60°C | Standard copper model |
| ED6008-M-SC | 7 × 10/100BaseT(X), 1 × 100BaseFX | Multi-mode | 0–60°C | 1 fiber port |
| ED6008-S-SC | 7 × 10/100BaseT(X), 1 × 100BaseFX | Single-mode | 0–60°C | 1 fiber port |
| ED6008-MM-SC | 6 × 10/100BaseT(X), 2 × 100BaseFX | Multi-mode | 0–60°C | 2 fiber ports |
| ED6008-SS-SC | 6 × 10/100BaseT(X), 2 × 100BaseFX | Single-mode | 0–60°C | 2 fiber ports |
| ED6008-T Series | Same as above | — | -40–75°C | Extended temperature models |
Extended Temperature Models
- ED6008-T
- ED6008-M-SC-T
- ED6008-S-SC-T
- ED6008-MM-SC-T
- ED6008-SS-SC-T
Software Integration
- EDS-SNMP OPC Server Pro: Converts SNMP data into OPC format for integration with SCADA systems, enabling unified monitoring and control across IT and OT networks.
Operational Advantages
- Continuous uptime through redundant ring topology.
- Rapid fault detection and recovery mechanisms.
- Simplified configuration and maintenance for large-scale deployments.
- Proven reliability in industrial automation, transportation, and energy sectors.
### Summary
The MOXA EtherDevice™ ED6008 Series represents a robust, industrial-grade solution for managed Ethernet networking in automation environments. With its combination of redundant ring technology, rugged design, and advanced management capabilities, the ED6008 ensures high availability and reliability for mission-critical systems. Its flexible configuration options, wide operating temperature range, and compliance with global industrial standards make it a preferred choice for engineers seeking dependable network infrastructure in demanding conditions.
Manufacturer Contact:
MOXA Inc.
Email: info@moxanet.com
Website: [www.moxa.com](http://www.moxa.com)
-
ED6008.pdf
PDF Catalog
Kein Zubehör vorhanden.
