Comprehensive Product Summary – Moxa ED6008-M-SC Industrial Managed Ethernet Switch
### 1. Product Overview

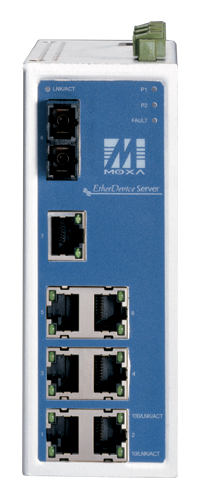

Product Name: Moxa EtherDevice™ Switch
Model: ED6008-M-SC
Series: ED6008 Series – Managed Redundant EtherDevice™ Switch Solutions
Article Number: ED6008-M-SC
Manufacturer: Moxa Inc.
Product Type: Industrial 8-Port Managed Redundant Ethernet Switch
Description: The Moxa ED6008-M-SC is a high-performance, industrial-grade managed Ethernet switch designed for mission-critical automation and control networks. It features seven 10/100BaseT(X) RJ45 ports and one 100BaseFX multimode fiber port (SC connector), providing robust network redundancy, advanced management capabilities, and rugged reliability for harsh industrial environments.
### 2. Key Features
High-Performance Switching Technology
- Supports 10/100BaseT(X) (RJ45) and 100BaseFX (multimode fiber) interfaces.
- Compliant with IEEE 802.3, 802.3u, 802.3x, and 802.1D Ethernet standards.
- Implements store-and-forward switching with a 4K MAC address table for efficient packet handling.
- Auto-negotiation for speed and duplex mode, and auto MDI/MDI-X for cable type detection.
- Full/Half-duplex operation with IEEE 802.3x flow control and back pressure flow control.
Industrial-Grade Reliability
- Redundant Ethernet Ring (Turbo Ring) with recovery time <300 ms under full load (up to 120 nodes).
- Line-Swap Fast Recovery (Moxa patented) restores network connectivity in <1 second after topology changes.
- Dual redundant DC power inputs for uninterrupted operation.
- Automatic IP recovery for connected devices via DHCP/BootP/RARP.
- User-configurable e-mail and relay alarms for power, link, and configuration events.
Rugged Design
- IP30-rated aluminum housing for mechanical protection.
- Wide operating temperature range: 0–60°C (standard), -40–75°C for -T models.
- DIN-rail or wall-mountable for flexible installation.
- Certified for hazardous locations (Class 1 Div. 2 / Zone 2).
- High MTBF (230,000 hours) ensures long-term reliability.
Advanced Management and Diagnostics
- Web browser, Telnet, and serial console configuration interfaces.
- Windows utility and Batch Configurator for multi-device setup.
- Port mirroring for real-time traffic monitoring and debugging.
- SNMP v1/v2c support for network management integration.
- EDS-SNMP OPC Server Pro software for SCADA/OPC integration.
### 3. Technical Specifications
Technology & Standards
- IEEE Standards: 802.3 (Ethernet), 802.3u (Fast Ethernet), 802.3x (Flow Control), 802.1D (Spanning Tree).
- Protocols: SNMP v1/v2c, DHCP Server/Client, BOOTP, SMTP, RARP.
- MIB Support: MIB-II, Ethernet-Like MIB, Bridge MIB.
- Switching Method: Store-and-forward.
- MAC Address Table: 4096 entries.
Interfaces
- RJ45 Ports: 7 × 10/100BaseT(X), auto-negotiation, auto MDI/MDI-X.
- Fiber Port: 1 × 100BaseFX multimode (SC connector).
- Console Port: 1 × RS-232 (RJ45).
- Alarm Contact: 1 × relay output, 1A @ 24VDC.
- LED Indicators: P1, P2, Fault, 10/100 LNK/ACT.
Optical Fiber Specifications (Multimode)
- Wavelength: 1310 nm.
- Transmission Distance: Up to 5 km (50/125 µm, 800 MHz·km) or 4 km (62.5/125 µm, 500 MHz·km).
- TX Output Power: -20 dBm (min), -14 dBm (max).
- RX Sensitivity: -34 to -30 dBm.
Power
- Input Voltage: 24 VDC nominal (9–32 VDC for pre-v2.0 units; 12–48 VDC for v2.0+).
- Input Current (@24V): 0.45 A typical.
- Power Connection: Removable terminal block (max cable Ø 1.5 mm).
- Protection: Reverse polarity protection and thermal fuse (<2.5A).
- Power Consumption: Approx. 10.8 W at 24 VDC.
Mechanical
- Casing: Aluminum, IP30 protection.
- Dimensions: 51.8 × 136.7 × 101.2 mm (W × H × D).
- Weight: 0.57 kg.
- Mounting: DIN-rail or wall mount.
Environmental
- Operating Temperature: 0–60°C (standard), -40–75°C (-T models).
- Storage Temperature: -40–85°C.
- Humidity: 5–95% RH (non-condensing).
- Shock Resistance: IEC 60068-2-27.
- Vibration Resistance: IEC 60068-2-6.
- Free Fall: IEC 60068-2-32.
Reliability
- MTBF: 230,000 hours (MIL-HDBK-217F, GB database).
- Warranty: 5 years.
### 4. Functionality
Operational Overview
The ED6008-M-SC functions as a managed Ethernet switch optimized for industrial automation networks. It provides both copper and fiber connectivity, enabling flexible network topologies and long-distance communication. The switch supports redundant ring configurations using Moxa’s Turbo Ring technology, ensuring network recovery within 300 ms in case of link failure.
Use Cases & Applications
- Factory automation: PLC, HMI, and SCADA network integration.
- Transportation systems: Traffic control, railway signaling, and surveillance.
- Energy and utilities: Substation automation, renewable energy monitoring.
- Oil & gas and hazardous environments: Certified for Class 1 Div. 2 / Zone 2.
- Building automation: IP-based control and monitoring systems.
Compatibility
- Compatible with standard Ethernet devices and industrial controllers.
- Integrates with SNMP-based network management systems and OPC-based SCADA software.
- Supports Moxa’s EDS-SNMP OPC Server Pro for seamless IT/OT convergence.
### 5. Components & Accessories
Included Items
- ED6008-M-SC switch unit.
- User’s manual and documentation.
- DIN-rail mounting kit.
Optional Accessories
- Power Supplies:
- DR-4524: 45W/2A DIN-rail 24VDC PSU (85–264VAC input).
- DR-75-24: 75W/3.2A DIN-rail 24VDC PSU (85–264VAC input).
- DR-120-24: 120W/5A DIN-rail 24VDC PSU (88–132VAC / 176–264VAC input).
- Software:
- EDS-SNMP OPC Server Pro (CD with software and manual).
- Mounting Accessories: Wall-mount brackets (optional).
Connectors
- RJ45 connectors for copper Ethernet ports.
- SC connector for fiber port.
- Removable terminal block for power input.
- RJ45 console port for serial management.
### 6. Installation & Setup
Installation Requirements
- Power supply: 24VDC nominal (9–32VDC or 12–48VDC depending on version).
- DIN-rail or wall-mount surface.
- Proper grounding and surge protection recommended for industrial environments.
Mounting Options
- DIN-rail mounting: Standard method for control cabinets.
- Wall mounting: Optional brackets available for panel installation.
Configuration & Setup
- Initial Configuration: Via web browser, Telnet, or RS-232 console.
- Windows Utility: Moxa’s configuration tool allows batch setup of multiple devices.
- Network Management: SNMP and OPC integration for centralized monitoring.
- Firmware Updates: Performed through web interface or TFTP.
Indicators & Diagnostics
- LED indicators for power (P1, P2), fault, and link/activity per port.
- Relay output for external alarm signaling.
- E-mail alerts for predefined events (power failure, link loss, configuration change, etc.).
### 7. Performance & Capabilities
Switching Performance
- Bandwidth: 1.6 Gbps switching fabric.
- Packet Forwarding Rate: 1.19 Mpps (64-byte packets).
- Latency: <10 µs typical.
- MAC Table: 4096 entries for efficient traffic management.
- Buffer Memory: 4 MB SDRAM.
Redundancy & Recovery
- Turbo Ring: <300 ms recovery time with up to 120 nodes.
- Line-Swap Fast Recovery: <1 second reconnection after topology change.
- Dual Power Inputs: Ensures continuous operation during power source failure.
Efficiency & Reliability
- Low power consumption: ~10.8 W typical.
- High MTBF: 230,000 hours ensures long service life.
- Automatic IP recovery: Reduces downtime during device replacement.
Limitations
- Fiber distance limited to 5 km (multimode).
- No PoE support.
- Management limited to SNMP v1/v2c (no v3).
### 8. Standards & Compliance
Safety Certifications
- UL60950 (E212360)
- UL508
- CSA C22.2 No. 60950
- EN60950
Hazardous Location Approvals
- UL/cUL Class 1, Division 2, Groups A, B, C, D (E238559).
- ATEX Class 1, Zone 2, EEx nC IIC (03CA24537).
EMI/EMS Compliance
- EMI: FCC Part 15, CISPR (EN55022) Class A.
- EMS:
- EN61000-4-2 (ESD) Level 3
- EN61000-4-3 (RS) Level 3
- EN61000-4-4 (EFT) Level 3
- EN61000-4-5 (Surge) Level 3
- EN61000-4-6 (CS) Level 3
Environmental & Mechanical Standards
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
Quality & Reliability
- MTBF: 230,000 hours (MIL-HDBK-217F).
- Protection Rating: IP30.
- RoHS Compliant: Yes.
### 9. Additional Information
Warranty & Support
- Warranty Period: 5 years standard manufacturer warranty.
- Technical Support: Available via Moxa’s global support network and online resources.
- Firmware Updates: Provided through Moxa’s website for product lifecycle maintenance.
Maintenance
- Periodic inspection of power connections and fiber cleanliness recommended.
- Firmware and configuration backups advised for redundancy.
- Relay and alarm outputs can be integrated into maintenance alert systems.
Software & Management Tools
- EDS-SNMP OPC Server Pro: Converts SNMP data into OPC format for SCADA integration.
- Moxa Windows Utility: Simplifies configuration, monitoring, and firmware management.
- Web Interface: Intuitive GUI for port configuration, VLAN setup, and diagnostics.
Extended Temperature Models
- Available as ED6008-M-SC-T for environments requiring -40 to 75°C operation.
Ordering Information
- ED6008: 8 × 10/100BaseT(X) ports.
- ED6008-M-SC: 7 × 10/100BaseT(X) + 1 × 100BaseFX (multimode SC).
- ED6008-S-SC: 7 × 10/100BaseT(X) + 1 × 100BaseFX (single mode SC).
- ED6008-MM-SC: 6 × 10/100BaseT(X) + 2 × 100BaseFX (multimode SC).
- ED6008-SS-SC: 6 × 10/100BaseT(X) + 2 × 100BaseFX (single mode SC).
- -T variants: Extended temperature versions for each model.
### Summary
The Moxa ED6008-M-SC is a robust, managed industrial Ethernet switch engineered for high-availability automation networks. Combining redundant ring technology, rugged construction, and comprehensive management tools, it ensures continuous operation in demanding industrial environments. With dual power inputs, fast recovery mechanisms, and broad protocol support, it provides a reliable backbone for mission-critical Ethernet infrastructures in manufacturing, energy, transportation, and process control applications.
Its compact aluminum housing, wide temperature tolerance, and certified safety compliance make it ideal for deployment in control cabinets, substations, and hazardous zones. The ED6008-M-SC exemplifies Moxa’s commitment to industrial networking reliability, offering long-term stability, advanced diagnostics, and seamless integration with both IT and OT systems.
### 1. Product Overview
Product Name: Moxa EtherDevice™ Switch
Model: ED6008-M-SC
Series: ED6008 Series – Managed Redundant EtherDevice™ Switch Solutions
Article Number: ED6008-M-SC
Manufacturer: Moxa Inc.
Product Type: Industrial 8-Port Managed Redundant Ethernet Switch
Description: The Moxa ED6008-M-SC is a high-performance, industrial-grade managed Ethernet switch designed for mission-critical automation and control networks. It features seven 10/100BaseT(X) RJ45 ports and one 100BaseFX multimode fiber port (SC connector), providing robust network redundancy, advanced management capabilities, and rugged reliability for harsh industrial environments.
### 2. Key Features
High-Performance Switching Technology
- Supports 10/100BaseT(X) (RJ45) and 100BaseFX (multimode fiber) interfaces.
- Compliant with IEEE 802.3, 802.3u, 802.3x, and 802.1D Ethernet standards.
- Implements store-and-forward switching with a 4K MAC address table for efficient packet handling.
- Auto-negotiation for speed and duplex mode, and auto MDI/MDI-X for cable type detection.
- Full/Half-duplex operation with IEEE 802.3x flow control and back pressure flow control.
Industrial-Grade Reliability
- Redundant Ethernet Ring (Turbo Ring) with recovery time <300 ms under full load (up to 120 nodes).
- Line-Swap Fast Recovery (Moxa patented) restores network connectivity in <1 second after topology changes.
- Dual redundant DC power inputs for uninterrupted operation.
- Automatic IP recovery for connected devices via DHCP/BootP/RARP.
- User-configurable e-mail and relay alarms for power, link, and configuration events.
Rugged Design
- IP30-rated aluminum housing for mechanical protection.
- Wide operating temperature range: 0–60°C (standard), -40–75°C for -T models.
- DIN-rail or wall-mountable for flexible installation.
- Certified for hazardous locations (Class 1 Div. 2 / Zone 2).
- High MTBF (230,000 hours) ensures long-term reliability.
Advanced Management and Diagnostics
- Web browser, Telnet, and serial console configuration interfaces.
- Windows utility and Batch Configurator for multi-device setup.
- Port mirroring for real-time traffic monitoring and debugging.
- SNMP v1/v2c support for network management integration.
- EDS-SNMP OPC Server Pro software for SCADA/OPC integration.
### 3. Technical Specifications
Technology & Standards
- IEEE Standards: 802.3 (Ethernet), 802.3u (Fast Ethernet), 802.3x (Flow Control), 802.1D (Spanning Tree).
- Protocols: SNMP v1/v2c, DHCP Server/Client, BOOTP, SMTP, RARP.
- MIB Support: MIB-II, Ethernet-Like MIB, Bridge MIB.
- Switching Method: Store-and-forward.
- MAC Address Table: 4096 entries.
Interfaces
- RJ45 Ports: 7 × 10/100BaseT(X), auto-negotiation, auto MDI/MDI-X.
- Fiber Port: 1 × 100BaseFX multimode (SC connector).
- Console Port: 1 × RS-232 (RJ45).
- Alarm Contact: 1 × relay output, 1A @ 24VDC.
- LED Indicators: P1, P2, Fault, 10/100 LNK/ACT.
Optical Fiber Specifications (Multimode)
- Wavelength: 1310 nm.
- Transmission Distance: Up to 5 km (50/125 µm, 800 MHz·km) or 4 km (62.5/125 µm, 500 MHz·km).
- TX Output Power: -20 dBm (min), -14 dBm (max).
- RX Sensitivity: -34 to -30 dBm.
Power
- Input Voltage: 24 VDC nominal (9–32 VDC for pre-v2.0 units; 12–48 VDC for v2.0+).
- Input Current (@24V): 0.45 A typical.
- Power Connection: Removable terminal block (max cable Ø 1.5 mm).
- Protection: Reverse polarity protection and thermal fuse (<2.5A).
- Power Consumption: Approx. 10.8 W at 24 VDC.
Mechanical
- Casing: Aluminum, IP30 protection.
- Dimensions: 51.8 × 136.7 × 101.2 mm (W × H × D).
- Weight: 0.57 kg.
- Mounting: DIN-rail or wall mount.
Environmental
- Operating Temperature: 0–60°C (standard), -40–75°C (-T models).
- Storage Temperature: -40–85°C.
- Humidity: 5–95% RH (non-condensing).
- Shock Resistance: IEC 60068-2-27.
- Vibration Resistance: IEC 60068-2-6.
- Free Fall: IEC 60068-2-32.
Reliability
- MTBF: 230,000 hours (MIL-HDBK-217F, GB database).
- Warranty: 5 years.
### 4. Functionality
Operational Overview
The ED6008-M-SC functions as a managed Ethernet switch optimized for industrial automation networks. It provides both copper and fiber connectivity, enabling flexible network topologies and long-distance communication. The switch supports redundant ring configurations using Moxa’s Turbo Ring technology, ensuring network recovery within 300 ms in case of link failure.
Use Cases & Applications
- Factory automation: PLC, HMI, and SCADA network integration.
- Transportation systems: Traffic control, railway signaling, and surveillance.
- Energy and utilities: Substation automation, renewable energy monitoring.
- Oil & gas and hazardous environments: Certified for Class 1 Div. 2 / Zone 2.
- Building automation: IP-based control and monitoring systems.
Compatibility
- Compatible with standard Ethernet devices and industrial controllers.
- Integrates with SNMP-based network management systems and OPC-based SCADA software.
- Supports Moxa’s EDS-SNMP OPC Server Pro for seamless IT/OT convergence.
### 5. Components & Accessories
Included Items
- ED6008-M-SC switch unit.
- User’s manual and documentation.
- DIN-rail mounting kit.
Optional Accessories
- Power Supplies:
- DR-4524: 45W/2A DIN-rail 24VDC PSU (85–264VAC input).
- DR-75-24: 75W/3.2A DIN-rail 24VDC PSU (85–264VAC input).
- DR-120-24: 120W/5A DIN-rail 24VDC PSU (88–132VAC / 176–264VAC input).
- Software:
- EDS-SNMP OPC Server Pro (CD with software and manual).
- Mounting Accessories: Wall-mount brackets (optional).
Connectors
- RJ45 connectors for copper Ethernet ports.
- SC connector for fiber port.
- Removable terminal block for power input.
- RJ45 console port for serial management.
### 6. Installation & Setup
Installation Requirements
- Power supply: 24VDC nominal (9–32VDC or 12–48VDC depending on version).
- DIN-rail or wall-mount surface.
- Proper grounding and surge protection recommended for industrial environments.
Mounting Options
- DIN-rail mounting: Standard method for control cabinets.
- Wall mounting: Optional brackets available for panel installation.
Configuration & Setup
- Initial Configuration: Via web browser, Telnet, or RS-232 console.
- Windows Utility: Moxa’s configuration tool allows batch setup of multiple devices.
- Network Management: SNMP and OPC integration for centralized monitoring.
- Firmware Updates: Performed through web interface or TFTP.
Indicators & Diagnostics
- LED indicators for power (P1, P2), fault, and link/activity per port.
- Relay output for external alarm signaling.
- E-mail alerts for predefined events (power failure, link loss, configuration change, etc.).
### 7. Performance & Capabilities
Switching Performance
- Bandwidth: 1.6 Gbps switching fabric.
- Packet Forwarding Rate: 1.19 Mpps (64-byte packets).
- Latency: <10 µs typical.
- MAC Table: 4096 entries for efficient traffic management.
- Buffer Memory: 4 MB SDRAM.
Redundancy & Recovery
- Turbo Ring: <300 ms recovery time with up to 120 nodes.
- Line-Swap Fast Recovery: <1 second reconnection after topology change.
- Dual Power Inputs: Ensures continuous operation during power source failure.
Efficiency & Reliability
- Low power consumption: ~10.8 W typical.
- High MTBF: 230,000 hours ensures long service life.
- Automatic IP recovery: Reduces downtime during device replacement.
Limitations
- Fiber distance limited to 5 km (multimode).
- No PoE support.
- Management limited to SNMP v1/v2c (no v3).
### 8. Standards & Compliance
Safety Certifications
- UL60950 (E212360)
- UL508
- CSA C22.2 No. 60950
- EN60950
Hazardous Location Approvals
- UL/cUL Class 1, Division 2, Groups A, B, C, D (E238559).
- ATEX Class 1, Zone 2, EEx nC IIC (03CA24537).
EMI/EMS Compliance
- EMI: FCC Part 15, CISPR (EN55022) Class A.
- EMS:
- EN61000-4-2 (ESD) Level 3
- EN61000-4-3 (RS) Level 3
- EN61000-4-4 (EFT) Level 3
- EN61000-4-5 (Surge) Level 3
- EN61000-4-6 (CS) Level 3
Environmental & Mechanical Standards
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
Quality & Reliability
- MTBF: 230,000 hours (MIL-HDBK-217F).
- Protection Rating: IP30.
- RoHS Compliant: Yes.
### 9. Additional Information
Warranty & Support
- Warranty Period: 5 years standard manufacturer warranty.
- Technical Support: Available via Moxa’s global support network and online resources.
- Firmware Updates: Provided through Moxa’s website for product lifecycle maintenance.
Maintenance
- Periodic inspection of power connections and fiber cleanliness recommended.
- Firmware and configuration backups advised for redundancy.
- Relay and alarm outputs can be integrated into maintenance alert systems.
Software & Management Tools
- EDS-SNMP OPC Server Pro: Converts SNMP data into OPC format for SCADA integration.
- Moxa Windows Utility: Simplifies configuration, monitoring, and firmware management.
- Web Interface: Intuitive GUI for port configuration, VLAN setup, and diagnostics.
Extended Temperature Models
- Available as ED6008-M-SC-T for environments requiring -40 to 75°C operation.
Ordering Information
- ED6008: 8 × 10/100BaseT(X) ports.
- ED6008-M-SC: 7 × 10/100BaseT(X) + 1 × 100BaseFX (multimode SC).
- ED6008-S-SC: 7 × 10/100BaseT(X) + 1 × 100BaseFX (single mode SC).
- ED6008-MM-SC: 6 × 10/100BaseT(X) + 2 × 100BaseFX (multimode SC).
- ED6008-SS-SC: 6 × 10/100BaseT(X) + 2 × 100BaseFX (single mode SC).
- -T variants: Extended temperature versions for each model.
### Summary
The Moxa ED6008-M-SC is a robust, managed industrial Ethernet switch engineered for high-availability automation networks. Combining redundant ring technology, rugged construction, and comprehensive management tools, it ensures continuous operation in demanding industrial environments. With dual power inputs, fast recovery mechanisms, and broad protocol support, it provides a reliable backbone for mission-critical Ethernet infrastructures in manufacturing, energy, transportation, and process control applications.
Its compact aluminum housing, wide temperature tolerance, and certified safety compliance make it ideal for deployment in control cabinets, substations, and hazardous zones. The ED6008-M-SC exemplifies Moxa’s commitment to industrial networking reliability, offering long-term stability, advanced diagnostics, and seamless integration with both IT and OT systems.
-
ED6008.pdf
PDF Catalog
Kein Zubehör vorhanden.
