Comprehensive Product Summary – Moxa ED6008-MM-SC Industrial Managed Ethernet Switch
### 1. Product Overview

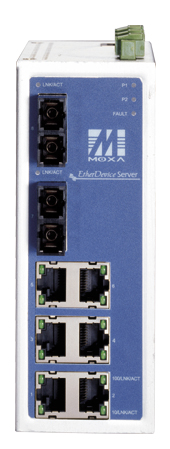

Product Name: Moxa EtherDevice™ Switch ED6008-MM-SC
Model: ED6008-MM-SC
Series: ED6008 Series – Managed Redundant EtherDevice™ Switch Solutions
Article Number: ED6008-MM-SC
Manufacturer: Moxa Inc.
Product Type: Industrial 8-Port Managed Redundant Ethernet Switch
Product Description: The Moxa ED6008-MM-SC is an industrial-grade, managed Ethernet device server designed for high-reliability networking in automation and control environments. It features 2 multi-mode 100BaseFX fiber ports and 6 10/100BaseT(X) copper ports, providing robust redundancy, advanced management capabilities, and rugged construction for harsh industrial conditions.
### 2. Key Features
High-Performance Network Switching
- Supports 10/100BaseT(X) (RJ45) and 100BaseFX (multi-mode fiber) interfaces.
- Compliant with IEEE 802.3, 802.3u, 802.3x, and 802.1D standards.
- Store-and-forward switching architecture with 4096 MAC address entries.
- Full/Half-duplex operation with auto-negotiation and auto MDI/MDI-X detection.
- SNMP v1/v2c, DHCP Server/Client, BootP, RARP, and SMTP protocol support.
- Flow control via IEEE 802.3x and back pressure mechanisms.
Industrial Reliability and Redundancy
- Moxa Turbo Ring™ technology for redundant Ethernet ring topology with recovery time < 300 ms under full load (up to 120 nodes).
- Patented Line-Swap Fast Recovery (< 1 second) for rapid reconnection after topology changes.
- Dual redundant DC power inputs for uninterrupted operation.
- Automatic IP address recovery for connected devices.
- Configurable relay and e-mail alerts for power, link, and configuration events.
Rugged Industrial Design
- IP30-rated aluminum housing for mechanical durability.
- Wide operating temperature range: 0–60°C (standard), -40–75°C for -T models.
- Designed for hazardous locations (UL/cUL Class 1 Div. 2, ATEX Zone 2).
- DIN-rail or wall-mount installation options.
- High resistance to shock, vibration, and electromagnetic interference.
Advanced Management and Diagnostics
- Web browser, Telnet, serial console, and Windows utility configuration.
- Port mirroring for online debugging and traffic analysis.
- Ping utility for network integrity verification.
- Integration with Moxa EDS-SNMP OPC Server Pro for SCADA/OPC-based network management.
- Batch configuration support for multiple devices.
### 3. Technical Specifications
Technology & Standards
- IEEE Standards: 802.3 (Ethernet), 802.3u (Fast Ethernet), 802.3x (Flow Control), 802.1D (Spanning Tree).
- Protocols: SNMP v1/v2c, DHCP Server/Client, BootP, RARP, SMTP.
- MIB Support: MIB-II, Ethernet-Like MIB, Bridge MIB.
- Switching Method: Store-and-forward.
- MAC Address Table: 4096 entries.
- Flow Control: IEEE 802.3x (full-duplex), back pressure (half-duplex).
Interfaces
- Copper Ports: 6 × 10/100BaseT(X) RJ45 ports, auto-negotiation, auto MDI/MDI-X.
- Fiber Ports: 2 × 100BaseFX multi-mode SC connectors.
- Console Port: 1 × RS-232 (RJ45).
- Alarm Contact: 1 × relay output, 1A @ 24VDC.
- LED Indicators: P1, P2, FAULT, 10/100 LNK/ACT.
Optical Fiber Characteristics
- Wavelength: 1310 nm.
- Transmission Distance:
- Multi-mode (50/125 µm, 800 MHz·km): up to 5 km.
- Multi-mode (62.5/125 µm, 500 MHz·km): up to 4 km.
- TX Output Power: -20 dBm (min), -14 dBm (max).
- RX Sensitivity: -34 to -30 dBm.
Power Requirements
- Input Voltage: 24 VDC nominal (9–32 VDC for pre-v2.0 units; 12–48 VDC for v2.0+).
- Input Current (@24V): 0.55 A typical.
- Power Consumption: Approx. 13.2 W.
- Power Inputs: Dual redundant, reverse polarity protected.
- Connection Type: Removable terminal block (max. cable diameter 1.5 mm).
- Overcurrent Protection: Thermal fuse (< 2.5 A).
Mechanical
- Casing: Aluminum, IP30 protection.
- Dimensions: 51.8 × 136.7 × 101.2 mm (W × H × D).
- Weight: 0.57 kg.
- Mounting: DIN-rail or wall-mount.
Environmental
- Operating Temperature: 0–60°C (standard), -40–75°C (-T models).
- Storage Temperature: -40–85°C.
- Humidity: 5–95% RH (non-condensing).
- MTBF: 230,000 hours (MIL-HDBK-217F, GB database).
### 4. Functionality
Operational Overview
The ED6008-MM-SC functions as a managed Ethernet switch designed for industrial automation networks requiring high reliability and redundancy. It connects multiple Ethernet-enabled devices—such as PLCs, HMIs, and SCADA systems—via copper and fiber interfaces, ensuring continuous communication even under fault conditions.
Redundancy and Recovery
Moxa’s Turbo Ring™ protocol provides sub-300 ms recovery time in case of link failure, maintaining network uptime. The patented Line-Swap Fast Recovery feature allows near-instantaneous reconnection (<1 s) when devices are moved or replaced, minimizing downtime.
Network Management
The switch supports SNMP for remote monitoring, DHCP/BootP for automatic IP assignment, and SMTP for event-triggered e-mail alerts. It can be configured via web interface, Telnet, or serial console, and supports batch configuration for large-scale deployments.
Use Cases and Applications
- Industrial automation and control systems.
- SCADA and HMI network backbones.
- Transportation and traffic control networks.
- Oil, gas, and petrochemical facilities (hazardous zones).
- Power substations and renewable energy systems.
- Factory floor and process control environments.
Compatibility
- Compatible with standard Ethernet devices (IEEE 802.3 compliant).
- Integrates with Moxa EDS-SNMP OPC Server Pro for OPC-based SCADA systems.
- Works with Moxa DR-series DIN-rail power supplies (DR-45-24, DR-75-24, DR-120-24).
### 5. Components & Accessories
Included Items
- ED6008-MM-SC switch unit.
- User’s manual/documentation.
- DIN-rail mounting kit.
- Terminal block for power input.
Optional Accessories
- Power Supplies:
- DR-45-24: 45W/2A DIN-rail 24VDC PSU (85–264VAC input).
- DR-75-24: 75W/3.2A DIN-rail 24VDC PSU (85–264VAC input).
- DR-120-24: 120W/5A DIN-rail 24VDC PSU (88–132VAC / 176–264VAC input).
- Software:
- EDS-SNMP OPC Server Pro – converts SNMP data to OPC format for SCADA integration.
- Mounting Options: Wall-mount brackets (optional).
### 6. Installation & Setup
Installation Requirements
- Power supply: 24VDC nominal (redundant dual inputs recommended).
- Mounting surface: DIN-rail or flat panel.
- Ambient environment within specified temperature and humidity limits.
Mounting Options
- DIN-Rail Mounting: Standard installation method for control cabinets.
- Wall Mounting: Optional brackets available for panel installation.
Configuration Methods
- Web Browser: Intuitive GUI for configuration and monitoring.
- Telnet/Serial Console: Command-line interface for advanced users.
- Windows Utility: Moxa’s configuration software for batch setup.
- Batch Configurator: Import/export configuration files to multiple devices simultaneously.
Setup Steps
1. Mount the device on DIN-rail or wall surface.
2. Connect power inputs (P1, P2) to 24VDC sources.
3. Connect Ethernet and fiber cables to respective ports.
4. Access the device via web or console interface for initial configuration.
5. Set up IP addressing, VLANs, redundancy, and alarm parameters as required.
6. Verify network connectivity and redundancy operation.
### 7. Performance & Capabilities
Switching Performance
- Store-and-forward architecture ensures reliable packet delivery.
- Supports full wire-speed switching on all ports.
- 4096 MAC address table for efficient traffic management.
- Full/Half-duplex operation with auto-negotiation.
Redundancy and Recovery
- Turbo Ring™ recovery < 300 ms under full load (120 nodes).
- Line-Swap Fast Recovery < 1 s for topology changes.
- Dual power inputs for uninterrupted operation.
Network Management
- SNMP-based monitoring and control.
- DHCP/BootP server for automatic IP assignment.
- SMTP e-mail alerts for predefined events (power failure, link loss, configuration change).
- Relay output for external alarm systems.
Diagnostics and Monitoring
- Port mirroring for traffic analysis.
- Ping utility for network integrity testing.
- Event logs and status indicators for fault detection.
Limitations
- Fiber distance limited to 5 km (multi-mode).
- No PoE support (power over Ethernet not available).
- Management limited to Layer 2 (no Layer 3 routing).
### 8. Standards & Compliance
Safety Certifications
- UL60950 (E212360), UL508, CSA C22.2 No. 60950, EN60950.
- Hazardous Location Approvals:
- UL/cUL Class 1, Division 2, Groups A, B, C, D (E238559).
- ATEX Class 1, Zone 2, EEx nC IIC (03CA24537).
EMI/EMS Compliance
- EMI: FCC Part 15, CISPR (EN55022) Class A.
- EMS:
- EN61000-4-2 (ESD) Level 3.
- EN61000-4-3 (RS) Level 3.
- EN61000-4-4 (EFT) Level 3.
- EN61000-4-5 (Surge) Level 3.
- EN61000-4-6 (CS) Level 3.
Environmental & Mechanical Standards
- Shock: IEC60068-2-27.
- Vibration: IEC60068-2-6.
- Free Fall: IEC60068-2-32.
- Ingress Protection: IP30.
Quality & Reliability
- MTBF: 230,000 hours (MIL-HDBK-217F).
- Designed for continuous 24/7 industrial operation.
### 9. Additional Information
Warranty
- 5-year limited hardware warranty from Moxa.
Support & Maintenance
- Firmware updates available via Moxa support portal.
- Technical support via e-mail (info@moxanet.com) and online resources.
- User manuals and configuration guides included.
- Optional software tools for network management and diagnostics.
Product Variants
- ED6008: 8 × 10/100BaseT(X) ports.
- ED6008-M-SC: 7 × 10/100BaseT(X), 1 × 100BaseFX (multi-mode).
- ED6008-S-SC: 7 × 10/100BaseT(X), 1 × 100BaseFX (single-mode).
- ED6008-MM-SC: 6 × 10/100BaseT(X), 2 × 100BaseFX (multi-mode).
- ED6008-SS-SC: 6 × 10/100BaseT(X), 2 × 100BaseFX (single-mode).
- -T Models: Extended temperature versions (-40 to 75°C).
Recommended Software
- EDS-SNMP OPC Server Pro: Converts SNMP data to OPC format for integration with SCADA/HMI systems, enabling unified monitoring of network and process data.
Maintenance Notes
- Periodic inspection of fiber and copper connections recommended.
- Ensure adequate ventilation and stable power supply.
- Firmware updates should be applied to maintain security and performance.
### Summary
The Moxa ED6008-MM-SC is a robust, managed industrial Ethernet switch engineered for mission-critical automation networks. With dual multi-mode fiber ports, six copper ports, and advanced redundancy mechanisms, it ensures continuous communication even under adverse conditions. Its rugged IP30 aluminum housing, wide temperature tolerance, and compliance with industrial safety and EMC standards make it ideal for deployment in harsh environments such as manufacturing plants, transportation systems, and hazardous zones.
The device’s management capabilities—including SNMP, DHCP, and web-based configuration—simplify integration into existing control systems. Moxa’s Turbo Ring™ and Line-Swap Fast Recovery technologies provide exceptional network resilience, while dual power inputs and relay alarms enhance operational reliability. Combined with a 5-year warranty and long MTBF, the ED6008-MM-SC delivers dependable, high-performance Ethernet connectivity for industrial automation and control applications.
### 1. Product Overview
Product Name: Moxa EtherDevice™ Switch ED6008-MM-SC
Model: ED6008-MM-SC
Series: ED6008 Series – Managed Redundant EtherDevice™ Switch Solutions
Article Number: ED6008-MM-SC
Manufacturer: Moxa Inc.
Product Type: Industrial 8-Port Managed Redundant Ethernet Switch
Product Description: The Moxa ED6008-MM-SC is an industrial-grade, managed Ethernet device server designed for high-reliability networking in automation and control environments. It features 2 multi-mode 100BaseFX fiber ports and 6 10/100BaseT(X) copper ports, providing robust redundancy, advanced management capabilities, and rugged construction for harsh industrial conditions.
### 2. Key Features
High-Performance Network Switching
- Supports 10/100BaseT(X) (RJ45) and 100BaseFX (multi-mode fiber) interfaces.
- Compliant with IEEE 802.3, 802.3u, 802.3x, and 802.1D standards.
- Store-and-forward switching architecture with 4096 MAC address entries.
- Full/Half-duplex operation with auto-negotiation and auto MDI/MDI-X detection.
- SNMP v1/v2c, DHCP Server/Client, BootP, RARP, and SMTP protocol support.
- Flow control via IEEE 802.3x and back pressure mechanisms.
Industrial Reliability and Redundancy
- Moxa Turbo Ring™ technology for redundant Ethernet ring topology with recovery time < 300 ms under full load (up to 120 nodes).
- Patented Line-Swap Fast Recovery (< 1 second) for rapid reconnection after topology changes.
- Dual redundant DC power inputs for uninterrupted operation.
- Automatic IP address recovery for connected devices.
- Configurable relay and e-mail alerts for power, link, and configuration events.
Rugged Industrial Design
- IP30-rated aluminum housing for mechanical durability.
- Wide operating temperature range: 0–60°C (standard), -40–75°C for -T models.
- Designed for hazardous locations (UL/cUL Class 1 Div. 2, ATEX Zone 2).
- DIN-rail or wall-mount installation options.
- High resistance to shock, vibration, and electromagnetic interference.
Advanced Management and Diagnostics
- Web browser, Telnet, serial console, and Windows utility configuration.
- Port mirroring for online debugging and traffic analysis.
- Ping utility for network integrity verification.
- Integration with Moxa EDS-SNMP OPC Server Pro for SCADA/OPC-based network management.
- Batch configuration support for multiple devices.
### 3. Technical Specifications
Technology & Standards
- IEEE Standards: 802.3 (Ethernet), 802.3u (Fast Ethernet), 802.3x (Flow Control), 802.1D (Spanning Tree).
- Protocols: SNMP v1/v2c, DHCP Server/Client, BootP, RARP, SMTP.
- MIB Support: MIB-II, Ethernet-Like MIB, Bridge MIB.
- Switching Method: Store-and-forward.
- MAC Address Table: 4096 entries.
- Flow Control: IEEE 802.3x (full-duplex), back pressure (half-duplex).
Interfaces
- Copper Ports: 6 × 10/100BaseT(X) RJ45 ports, auto-negotiation, auto MDI/MDI-X.
- Fiber Ports: 2 × 100BaseFX multi-mode SC connectors.
- Console Port: 1 × RS-232 (RJ45).
- Alarm Contact: 1 × relay output, 1A @ 24VDC.
- LED Indicators: P1, P2, FAULT, 10/100 LNK/ACT.
Optical Fiber Characteristics
- Wavelength: 1310 nm.
- Transmission Distance:
- Multi-mode (50/125 µm, 800 MHz·km): up to 5 km.
- Multi-mode (62.5/125 µm, 500 MHz·km): up to 4 km.
- TX Output Power: -20 dBm (min), -14 dBm (max).
- RX Sensitivity: -34 to -30 dBm.
Power Requirements
- Input Voltage: 24 VDC nominal (9–32 VDC for pre-v2.0 units; 12–48 VDC for v2.0+).
- Input Current (@24V): 0.55 A typical.
- Power Consumption: Approx. 13.2 W.
- Power Inputs: Dual redundant, reverse polarity protected.
- Connection Type: Removable terminal block (max. cable diameter 1.5 mm).
- Overcurrent Protection: Thermal fuse (< 2.5 A).
Mechanical
- Casing: Aluminum, IP30 protection.
- Dimensions: 51.8 × 136.7 × 101.2 mm (W × H × D).
- Weight: 0.57 kg.
- Mounting: DIN-rail or wall-mount.
Environmental
- Operating Temperature: 0–60°C (standard), -40–75°C (-T models).
- Storage Temperature: -40–85°C.
- Humidity: 5–95% RH (non-condensing).
- MTBF: 230,000 hours (MIL-HDBK-217F, GB database).
### 4. Functionality
Operational Overview
The ED6008-MM-SC functions as a managed Ethernet switch designed for industrial automation networks requiring high reliability and redundancy. It connects multiple Ethernet-enabled devices—such as PLCs, HMIs, and SCADA systems—via copper and fiber interfaces, ensuring continuous communication even under fault conditions.
Redundancy and Recovery
Moxa’s Turbo Ring™ protocol provides sub-300 ms recovery time in case of link failure, maintaining network uptime. The patented Line-Swap Fast Recovery feature allows near-instantaneous reconnection (<1 s) when devices are moved or replaced, minimizing downtime.
Network Management
The switch supports SNMP for remote monitoring, DHCP/BootP for automatic IP assignment, and SMTP for event-triggered e-mail alerts. It can be configured via web interface, Telnet, or serial console, and supports batch configuration for large-scale deployments.
Use Cases and Applications
- Industrial automation and control systems.
- SCADA and HMI network backbones.
- Transportation and traffic control networks.
- Oil, gas, and petrochemical facilities (hazardous zones).
- Power substations and renewable energy systems.
- Factory floor and process control environments.
Compatibility
- Compatible with standard Ethernet devices (IEEE 802.3 compliant).
- Integrates with Moxa EDS-SNMP OPC Server Pro for OPC-based SCADA systems.
- Works with Moxa DR-series DIN-rail power supplies (DR-45-24, DR-75-24, DR-120-24).
### 5. Components & Accessories
Included Items
- ED6008-MM-SC switch unit.
- User’s manual/documentation.
- DIN-rail mounting kit.
- Terminal block for power input.
Optional Accessories
- Power Supplies:
- DR-45-24: 45W/2A DIN-rail 24VDC PSU (85–264VAC input).
- DR-75-24: 75W/3.2A DIN-rail 24VDC PSU (85–264VAC input).
- DR-120-24: 120W/5A DIN-rail 24VDC PSU (88–132VAC / 176–264VAC input).
- Software:
- EDS-SNMP OPC Server Pro – converts SNMP data to OPC format for SCADA integration.
- Mounting Options: Wall-mount brackets (optional).
### 6. Installation & Setup
Installation Requirements
- Power supply: 24VDC nominal (redundant dual inputs recommended).
- Mounting surface: DIN-rail or flat panel.
- Ambient environment within specified temperature and humidity limits.
Mounting Options
- DIN-Rail Mounting: Standard installation method for control cabinets.
- Wall Mounting: Optional brackets available for panel installation.
Configuration Methods
- Web Browser: Intuitive GUI for configuration and monitoring.
- Telnet/Serial Console: Command-line interface for advanced users.
- Windows Utility: Moxa’s configuration software for batch setup.
- Batch Configurator: Import/export configuration files to multiple devices simultaneously.
Setup Steps
1. Mount the device on DIN-rail or wall surface.
2. Connect power inputs (P1, P2) to 24VDC sources.
3. Connect Ethernet and fiber cables to respective ports.
4. Access the device via web or console interface for initial configuration.
5. Set up IP addressing, VLANs, redundancy, and alarm parameters as required.
6. Verify network connectivity and redundancy operation.
### 7. Performance & Capabilities
Switching Performance
- Store-and-forward architecture ensures reliable packet delivery.
- Supports full wire-speed switching on all ports.
- 4096 MAC address table for efficient traffic management.
- Full/Half-duplex operation with auto-negotiation.
Redundancy and Recovery
- Turbo Ring™ recovery < 300 ms under full load (120 nodes).
- Line-Swap Fast Recovery < 1 s for topology changes.
- Dual power inputs for uninterrupted operation.
Network Management
- SNMP-based monitoring and control.
- DHCP/BootP server for automatic IP assignment.
- SMTP e-mail alerts for predefined events (power failure, link loss, configuration change).
- Relay output for external alarm systems.
Diagnostics and Monitoring
- Port mirroring for traffic analysis.
- Ping utility for network integrity testing.
- Event logs and status indicators for fault detection.
Limitations
- Fiber distance limited to 5 km (multi-mode).
- No PoE support (power over Ethernet not available).
- Management limited to Layer 2 (no Layer 3 routing).
### 8. Standards & Compliance
Safety Certifications
- UL60950 (E212360), UL508, CSA C22.2 No. 60950, EN60950.
- Hazardous Location Approvals:
- UL/cUL Class 1, Division 2, Groups A, B, C, D (E238559).
- ATEX Class 1, Zone 2, EEx nC IIC (03CA24537).
EMI/EMS Compliance
- EMI: FCC Part 15, CISPR (EN55022) Class A.
- EMS:
- EN61000-4-2 (ESD) Level 3.
- EN61000-4-3 (RS) Level 3.
- EN61000-4-4 (EFT) Level 3.
- EN61000-4-5 (Surge) Level 3.
- EN61000-4-6 (CS) Level 3.
Environmental & Mechanical Standards
- Shock: IEC60068-2-27.
- Vibration: IEC60068-2-6.
- Free Fall: IEC60068-2-32.
- Ingress Protection: IP30.
Quality & Reliability
- MTBF: 230,000 hours (MIL-HDBK-217F).
- Designed for continuous 24/7 industrial operation.
### 9. Additional Information
Warranty
- 5-year limited hardware warranty from Moxa.
Support & Maintenance
- Firmware updates available via Moxa support portal.
- Technical support via e-mail (info@moxanet.com) and online resources.
- User manuals and configuration guides included.
- Optional software tools for network management and diagnostics.
Product Variants
- ED6008: 8 × 10/100BaseT(X) ports.
- ED6008-M-SC: 7 × 10/100BaseT(X), 1 × 100BaseFX (multi-mode).
- ED6008-S-SC: 7 × 10/100BaseT(X), 1 × 100BaseFX (single-mode).
- ED6008-MM-SC: 6 × 10/100BaseT(X), 2 × 100BaseFX (multi-mode).
- ED6008-SS-SC: 6 × 10/100BaseT(X), 2 × 100BaseFX (single-mode).
- -T Models: Extended temperature versions (-40 to 75°C).
Recommended Software
- EDS-SNMP OPC Server Pro: Converts SNMP data to OPC format for integration with SCADA/HMI systems, enabling unified monitoring of network and process data.
Maintenance Notes
- Periodic inspection of fiber and copper connections recommended.
- Ensure adequate ventilation and stable power supply.
- Firmware updates should be applied to maintain security and performance.
### Summary
The Moxa ED6008-MM-SC is a robust, managed industrial Ethernet switch engineered for mission-critical automation networks. With dual multi-mode fiber ports, six copper ports, and advanced redundancy mechanisms, it ensures continuous communication even under adverse conditions. Its rugged IP30 aluminum housing, wide temperature tolerance, and compliance with industrial safety and EMC standards make it ideal for deployment in harsh environments such as manufacturing plants, transportation systems, and hazardous zones.
The device’s management capabilities—including SNMP, DHCP, and web-based configuration—simplify integration into existing control systems. Moxa’s Turbo Ring™ and Line-Swap Fast Recovery technologies provide exceptional network resilience, while dual power inputs and relay alarms enhance operational reliability. Combined with a 5-year warranty and long MTBF, the ED6008-MM-SC delivers dependable, high-performance Ethernet connectivity for industrial automation and control applications.
-
ED6008.pdf
PDF Catalog
Kein Zubehör vorhanden.
