1. Product Overview
Product Name: M-505
Model: M-505
Series: ARM-9 Industrial Embedded Computer Series
Article Number: M-505
Manufacturer: Artila Electronics Co., Ltd.

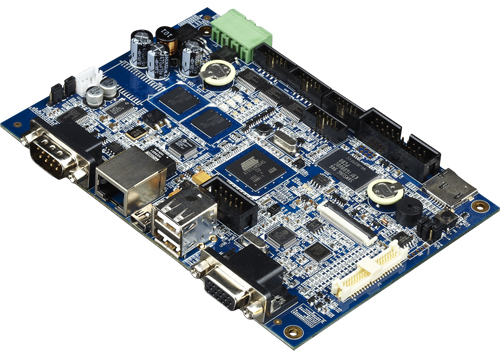

The Artila M-505 is an industrial-grade embedded Linux computer module built around the ATMEL AT91SAM9G45 ARM9 processor running at 400 MHz. Designed for robust industrial automation and control applications, the M-505 integrates a comprehensive set of communication interfaces, including Ethernet, USB, RS-232/485/422, and GPIO, along with VGA and LCD touch display support. It is a fanless, flash-based embedded system optimized for reliability, low power consumption, and flexible integration into industrial environments.
The M-505 is part of Artila’s ARM9-based embedded computing family, offering a compact, DIN-rail mountable solution for OEMs and system integrators requiring a stable Linux platform with extensive I/O and networking capabilities.
2. Key Features
- High-Performance ARM9 Processor: Powered by the ATMEL AT91SAM9G45 running at 400 MHz, providing efficient processing for industrial control and automation tasks.
- Pre-installed Embedded Linux: Ships with Linux kernel 2.6.29, including a pre-built web server (lighttpd), SSH, and SSL support for secure remote management.
- Comprehensive Connectivity:
- 1× 10/100 Mbps Ethernet port with 1.5 kV magnetic isolation.
- 4× USB 2.0 host ports (12 Mbps each).
- 4× RS-232/485 serial ports, one of which supports RS-422.
- 16× programmable GPIO channels (3.3 V logic).
- Display and User Interface: Supports VGA output and LCD touch screens up to 1280×860 resolution, enabling direct human–machine interface (HMI) integration.
- Memory Architecture:
- 128 MB SDRAM
- 128 MB NAND Flash
- 2 MB DataFlash for system backup and bootloader storage.
- Storage Expansion: SD memory card interface compliant with SD Specification 1.0.
- Fanless, Compact Design: Operates silently and reliably in harsh environments with a -10 °C to +60 °C temperature range.
- Low Power Consumption: Operates from 3.0–3.6 V DC (nominal 3.3 V) with a typical power draw of 2 W.
- Industrial-Grade Reliability: Flash-based architecture eliminates moving parts; includes watchdog timers and RTC for system stability.
- Software Development Support: Includes GNU C/C++ toolchain for Linux and Windows, WinCE support, and Java accelerator.
3. Technical Specifications
Processor & Memory
- CPU: ATMEL AT91SAM9G45 ARM926EJ-S, 400 MHz
- SDRAM: 128 MB
- NAND Flash: 128 MB
- DataFlash: 2 MB (for system backup and bootloader)
Networking
- Ethernet: 10/100 Mbps (DAVICOM DM9161 PHY)
- Isolation: 1.5 kV magnetic isolation
Serial Communication
- 4× RS-232/485 ports (one supports RS-422)
- Baud rate: up to 921.6 kbps
- Parity: None, Even, Odd, Mark, Space
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Flow control: RTS/CTS, XON/XOFF, None
- RS-485 mode: 9-bit multi-drop, hardware auto-direction control
USB Interfaces
- 4× USB 2.0 host ports (12 Mbps)
- 1× USB 2.0 device/client port
Display & User Interface
- VGA output supporting up to 1280×860 resolution
- LCD interface with touch screen support
Digital I/O
- 16× programmable GPIO channels (3.3 V CMOS compatible)
- Interrupt capability on input configuration
Expansion Interfaces
- SD card slot (SD 1.0 compliant)
- SPI, I²C, I²S, and 8-bit local bus interfaces
Power & Environmental
- Input voltage: 3.0–3.6 V DC (nominal 3.3 V)
- Power consumption: 2 W typical
- Operating temperature: -10 °C to +60 °C
- Form factor: 3.5"
- Dimensions: 146 mm × 102 mm
- Weight: Approx. 150 g (module only)
Mechanical & Mounting
- Fanless design
- DIN-rail mountable enclosure
- 4× mounting holes (M2, 2.0 mm diameter)
4. Functionality
The M-505 functions as a compact, embedded industrial computer capable of running a full Linux operating system. It is designed for integration into automation systems, data acquisition units, and networked control environments.
Operation:
The ARM9 processor executes embedded Linux applications stored in NAND Flash, with the bootloader (U-Boot) residing in DataFlash. The system initializes network, serial, and USB interfaces automatically, enabling immediate connectivity for peripheral devices and remote management.
Use Cases:
- Industrial automation controllers
- Building management systems (BMS)
- Intelligent transportation systems (ITS)
- Energy monitoring and control
- Embedded web servers and gateways
- Human–machine interface (HMI) terminals
Compatibility:
- Compatible with Linux 2.6.x kernel and WinCE
- Supports standard USB peripherals (Wi-Fi adapters, flash drives, serial converters)
- SD card expansion for data logging and firmware updates
5. Components & Accessories
Included Components:
- M-505 main module
- Pre-installed Linux 2.6.29 OS with lighttpd web server
- Bootloader (U-Boot 1.3.4)
- Preloaded utilities and drivers
- RTC with lithium backup battery (48 mAh)
Connectors:
- CN1: 28-pin (2.0 mm pitch)
- CN2: 50-pin (2.0 mm pitch)
- CN3: 50-pin (2.0 mm pitch)
Predefined I/O Pins:
- Reset button (CN2 pin 35)
- Buzzer output (CN2 pin 37)
- 2-pin DIP switch (CN2 pins 12, 13)
- System-ready LED (CN2 pin 38)
- LAN activity LED (CN3 pin 11)
Optional Accessories:
- LCD touch panel kits
- DIN-rail mounting brackets
- Power supply adapters (3.3 V DC regulated)
- USB Wi-Fi adapters (Ralink, Realtek, ZyDAS supported)
- RS-232/485 converter cables
6. Installation & Setup
Requirements:
- 3.3 V DC regulated power supply (minimum 2 W capacity)
- Compatible LCD or VGA display (optional)
- Ethernet connection for network configuration
- Serial console cable for initial setup
Mounting Options:
- DIN-rail mounting for industrial cabinets
- Panel or enclosure integration using M2 mounting holes
Configuration Steps:
1. Connect power and network interfaces.
2. Access the system via serial console or SSH.
3. Configure network parameters using standard Linux utilities.
4. Deploy applications via FTP, SCP, or SD card.
5. Optionally, enable web-based administration using Webmin.
Software Setup:
- Bootloader: U-Boot 1.3.4 initializes kernel and file system.
- File systems supported: UBI, JFFS2, EXT2/EXT3, VFAT/FAT, NFS.
- Package management: ipkg for installation, upgrade, and removal.
7. Performance & Capabilities
Processing Performance:
The 400 MHz ARM926EJ-S core provides sufficient computational power for multitasking embedded applications, real-time data acquisition, and network communication.
Memory Performance:
128 MB SDRAM ensures stable operation of Linux-based applications, while 128 MB NAND Flash provides ample space for OS, utilities, and user programs.
Networking:
10/100 Mbps Ethernet interface supports TCP/IP, UDP, SSH, FTP, and HTTP protocols, enabling the M-505 to function as a web server, data logger, or network gateway.
Serial Communication:
Four serial ports with flexible RS-232/485/422 configuration allow integration with PLCs, sensors, and industrial controllers.
USB Performance:
Four USB 2.0 host ports (12 Mbps) support a wide range of peripherals, including storage devices, Wi-Fi adapters, and serial converters.
Display & Graphics:
VGA and LCD interfaces support resolutions up to 1280×860, suitable for graphical user interfaces and monitoring dashboards.
Power Efficiency:
At only 2 W power consumption, the M-505 is ideal for energy-sensitive applications and continuous 24/7 operation.
Limitations:
- Limited to 400 MHz CPU speed (not suitable for high-end multimedia).
- USB host ports operate at 12 Mbps (Full Speed, not High Speed).
- Requires 3.3 V DC regulated power input.
8. Standards & Compliance
Hardware Standards:
- ARM926EJ-S architecture compliant
- USB 2.0 (Full Speed)
- Ethernet IEEE 802.3 10/100 Mbps
- SD Card Specification 1.0
Software Standards:
- POSIX-compliant GLIBC library
- GNU GCC toolchain for C/C++ development
- Linux kernel 2.6.x compatibility
Regulatory Compliance:
- CE and FCC Class A (industrial environment)
- RoHS compliant (lead-free manufacturing)
Certifications:
- ISO 9001:2015 manufacturing process certification (Artila Electronics)
9. Additional Information
Warranty:
- Standard 1-year limited hardware warranty covering manufacturing defects.
Technical Support:
- Email: sales@artila.com
- Online documentation and firmware updates available at www.artila.com.
- Developer resources include SDK, sample code, and cross-compilation tools.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Flash-based storage eliminates mechanical wear.
- RTC battery (48 mAh lithium) should be replaced every 3–5 years.
Software Updates:
- Firmware and kernel updates available via SD card or network.
- Package management through ipkg for adding or updating utilities.
Development Environment:
- Cross-compilation supported under Linux and Windows.
- Pre-installed utilities: bash, busybox, sysvinit, wget, ipkg, procps, lighttpd, vsftpd, iptables, ppp, ssh, wireless_tools, usbutils, and Artila utilities.
- Default daemons: SSH (with SFTP), syslog/klogd, telnet (root disabled), FTP (vsftpd), lighttpd web server, and amgrd broadcast search daemon.
Supported USB Devices:
- Flash drives
- Wi-Fi adapters (Ralink rt73usb, rt2500usb; Realtek RTL8187; ZyDAS zd1211rw)
- Ethernet adapters (Realtek RT8150)
- RS-232 adapters (Prolific PL-2303)
- ADSL and ISDN modems (CDC/ACM compatible)
System Administration:
- Web-based management via Webmin (installable through ipkg).
- SSH and Telnet access for remote configuration.
- FTP and HTTP servers for file transfer and web interface hosting.
### Summary
The Artila M-505 ARM9 Industrial Linux Computer is a compact, fanless embedded system designed for industrial automation, control, and communication applications. Featuring a 400 MHz ARM9 processor, 128 MB RAM, and 128 MB Flash, it delivers reliable performance for embedded Linux environments. Its extensive I/O options—Ethernet, USB, serial, GPIO, VGA, and LCD touch—make it a versatile platform for OEMs and system integrators developing intelligent control systems, data loggers, and networked devices.
With its robust Linux 2.6.29 operating system, preloaded utilities, and comprehensive development support, the M-505 provides a ready-to-deploy solution for industrial computing tasks requiring stability, connectivity, and long-term availability.
Product Name: M-505
Model: M-505
Series: ARM-9 Industrial Embedded Computer Series
Article Number: M-505
Manufacturer: Artila Electronics Co., Ltd.
The Artila M-505 is an industrial-grade embedded Linux computer module built around the ATMEL AT91SAM9G45 ARM9 processor running at 400 MHz. Designed for robust industrial automation and control applications, the M-505 integrates a comprehensive set of communication interfaces, including Ethernet, USB, RS-232/485/422, and GPIO, along with VGA and LCD touch display support. It is a fanless, flash-based embedded system optimized for reliability, low power consumption, and flexible integration into industrial environments.
The M-505 is part of Artila’s ARM9-based embedded computing family, offering a compact, DIN-rail mountable solution for OEMs and system integrators requiring a stable Linux platform with extensive I/O and networking capabilities.
2. Key Features
- High-Performance ARM9 Processor: Powered by the ATMEL AT91SAM9G45 running at 400 MHz, providing efficient processing for industrial control and automation tasks.
- Pre-installed Embedded Linux: Ships with Linux kernel 2.6.29, including a pre-built web server (lighttpd), SSH, and SSL support for secure remote management.
- Comprehensive Connectivity:
- 1× 10/100 Mbps Ethernet port with 1.5 kV magnetic isolation.
- 4× USB 2.0 host ports (12 Mbps each).
- 4× RS-232/485 serial ports, one of which supports RS-422.
- 16× programmable GPIO channels (3.3 V logic).
- Display and User Interface: Supports VGA output and LCD touch screens up to 1280×860 resolution, enabling direct human–machine interface (HMI) integration.
- Memory Architecture:
- 128 MB SDRAM
- 128 MB NAND Flash
- 2 MB DataFlash for system backup and bootloader storage.
- Storage Expansion: SD memory card interface compliant with SD Specification 1.0.
- Fanless, Compact Design: Operates silently and reliably in harsh environments with a -10 °C to +60 °C temperature range.
- Low Power Consumption: Operates from 3.0–3.6 V DC (nominal 3.3 V) with a typical power draw of 2 W.
- Industrial-Grade Reliability: Flash-based architecture eliminates moving parts; includes watchdog timers and RTC for system stability.
- Software Development Support: Includes GNU C/C++ toolchain for Linux and Windows, WinCE support, and Java accelerator.
3. Technical Specifications
Processor & Memory
- CPU: ATMEL AT91SAM9G45 ARM926EJ-S, 400 MHz
- SDRAM: 128 MB
- NAND Flash: 128 MB
- DataFlash: 2 MB (for system backup and bootloader)
Networking
- Ethernet: 10/100 Mbps (DAVICOM DM9161 PHY)
- Isolation: 1.5 kV magnetic isolation
Serial Communication
- 4× RS-232/485 ports (one supports RS-422)
- Baud rate: up to 921.6 kbps
- Parity: None, Even, Odd, Mark, Space
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Flow control: RTS/CTS, XON/XOFF, None
- RS-485 mode: 9-bit multi-drop, hardware auto-direction control
USB Interfaces
- 4× USB 2.0 host ports (12 Mbps)
- 1× USB 2.0 device/client port
Display & User Interface
- VGA output supporting up to 1280×860 resolution
- LCD interface with touch screen support
Digital I/O
- 16× programmable GPIO channels (3.3 V CMOS compatible)
- Interrupt capability on input configuration
Expansion Interfaces
- SD card slot (SD 1.0 compliant)
- SPI, I²C, I²S, and 8-bit local bus interfaces
Power & Environmental
- Input voltage: 3.0–3.6 V DC (nominal 3.3 V)
- Power consumption: 2 W typical
- Operating temperature: -10 °C to +60 °C
- Form factor: 3.5"
- Dimensions: 146 mm × 102 mm
- Weight: Approx. 150 g (module only)
Mechanical & Mounting
- Fanless design
- DIN-rail mountable enclosure
- 4× mounting holes (M2, 2.0 mm diameter)
4. Functionality
The M-505 functions as a compact, embedded industrial computer capable of running a full Linux operating system. It is designed for integration into automation systems, data acquisition units, and networked control environments.
Operation:
The ARM9 processor executes embedded Linux applications stored in NAND Flash, with the bootloader (U-Boot) residing in DataFlash. The system initializes network, serial, and USB interfaces automatically, enabling immediate connectivity for peripheral devices and remote management.
Use Cases:
- Industrial automation controllers
- Building management systems (BMS)
- Intelligent transportation systems (ITS)
- Energy monitoring and control
- Embedded web servers and gateways
- Human–machine interface (HMI) terminals
Compatibility:
- Compatible with Linux 2.6.x kernel and WinCE
- Supports standard USB peripherals (Wi-Fi adapters, flash drives, serial converters)
- SD card expansion for data logging and firmware updates
5. Components & Accessories
Included Components:
- M-505 main module
- Pre-installed Linux 2.6.29 OS with lighttpd web server
- Bootloader (U-Boot 1.3.4)
- Preloaded utilities and drivers
- RTC with lithium backup battery (48 mAh)
Connectors:
- CN1: 28-pin (2.0 mm pitch)
- CN2: 50-pin (2.0 mm pitch)
- CN3: 50-pin (2.0 mm pitch)
Predefined I/O Pins:
- Reset button (CN2 pin 35)
- Buzzer output (CN2 pin 37)
- 2-pin DIP switch (CN2 pins 12, 13)
- System-ready LED (CN2 pin 38)
- LAN activity LED (CN3 pin 11)
Optional Accessories:
- LCD touch panel kits
- DIN-rail mounting brackets
- Power supply adapters (3.3 V DC regulated)
- USB Wi-Fi adapters (Ralink, Realtek, ZyDAS supported)
- RS-232/485 converter cables
6. Installation & Setup
Requirements:
- 3.3 V DC regulated power supply (minimum 2 W capacity)
- Compatible LCD or VGA display (optional)
- Ethernet connection for network configuration
- Serial console cable for initial setup
Mounting Options:
- DIN-rail mounting for industrial cabinets
- Panel or enclosure integration using M2 mounting holes
Configuration Steps:
1. Connect power and network interfaces.
2. Access the system via serial console or SSH.
3. Configure network parameters using standard Linux utilities.
4. Deploy applications via FTP, SCP, or SD card.
5. Optionally, enable web-based administration using Webmin.
Software Setup:
- Bootloader: U-Boot 1.3.4 initializes kernel and file system.
- File systems supported: UBI, JFFS2, EXT2/EXT3, VFAT/FAT, NFS.
- Package management: ipkg for installation, upgrade, and removal.
7. Performance & Capabilities
Processing Performance:
The 400 MHz ARM926EJ-S core provides sufficient computational power for multitasking embedded applications, real-time data acquisition, and network communication.
Memory Performance:
128 MB SDRAM ensures stable operation of Linux-based applications, while 128 MB NAND Flash provides ample space for OS, utilities, and user programs.
Networking:
10/100 Mbps Ethernet interface supports TCP/IP, UDP, SSH, FTP, and HTTP protocols, enabling the M-505 to function as a web server, data logger, or network gateway.
Serial Communication:
Four serial ports with flexible RS-232/485/422 configuration allow integration with PLCs, sensors, and industrial controllers.
USB Performance:
Four USB 2.0 host ports (12 Mbps) support a wide range of peripherals, including storage devices, Wi-Fi adapters, and serial converters.
Display & Graphics:
VGA and LCD interfaces support resolutions up to 1280×860, suitable for graphical user interfaces and monitoring dashboards.
Power Efficiency:
At only 2 W power consumption, the M-505 is ideal for energy-sensitive applications and continuous 24/7 operation.
Limitations:
- Limited to 400 MHz CPU speed (not suitable for high-end multimedia).
- USB host ports operate at 12 Mbps (Full Speed, not High Speed).
- Requires 3.3 V DC regulated power input.
8. Standards & Compliance
Hardware Standards:
- ARM926EJ-S architecture compliant
- USB 2.0 (Full Speed)
- Ethernet IEEE 802.3 10/100 Mbps
- SD Card Specification 1.0
Software Standards:
- POSIX-compliant GLIBC library
- GNU GCC toolchain for C/C++ development
- Linux kernel 2.6.x compatibility
Regulatory Compliance:
- CE and FCC Class A (industrial environment)
- RoHS compliant (lead-free manufacturing)
Certifications:
- ISO 9001:2015 manufacturing process certification (Artila Electronics)
9. Additional Information
Warranty:
- Standard 1-year limited hardware warranty covering manufacturing defects.
Technical Support:
- Email: sales@artila.com
- Online documentation and firmware updates available at www.artila.com.
- Developer resources include SDK, sample code, and cross-compilation tools.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Flash-based storage eliminates mechanical wear.
- RTC battery (48 mAh lithium) should be replaced every 3–5 years.
Software Updates:
- Firmware and kernel updates available via SD card or network.
- Package management through ipkg for adding or updating utilities.
Development Environment:
- Cross-compilation supported under Linux and Windows.
- Pre-installed utilities: bash, busybox, sysvinit, wget, ipkg, procps, lighttpd, vsftpd, iptables, ppp, ssh, wireless_tools, usbutils, and Artila utilities.
- Default daemons: SSH (with SFTP), syslog/klogd, telnet (root disabled), FTP (vsftpd), lighttpd web server, and amgrd broadcast search daemon.
Supported USB Devices:
- Flash drives
- Wi-Fi adapters (Ralink rt73usb, rt2500usb; Realtek RTL8187; ZyDAS zd1211rw)
- Ethernet adapters (Realtek RT8150)
- RS-232 adapters (Prolific PL-2303)
- ADSL and ISDN modems (CDC/ACM compatible)
System Administration:
- Web-based management via Webmin (installable through ipkg).
- SSH and Telnet access for remote configuration.
- FTP and HTTP servers for file transfer and web interface hosting.
### Summary
The Artila M-505 ARM9 Industrial Linux Computer is a compact, fanless embedded system designed for industrial automation, control, and communication applications. Featuring a 400 MHz ARM9 processor, 128 MB RAM, and 128 MB Flash, it delivers reliable performance for embedded Linux environments. Its extensive I/O options—Ethernet, USB, serial, GPIO, VGA, and LCD touch—make it a versatile platform for OEMs and system integrators developing intelligent control systems, data loggers, and networked devices.
With its robust Linux 2.6.29 operating system, preloaded utilities, and comprehensive development support, the M-505 provides a ready-to-deploy solution for industrial computing tasks requiring stability, connectivity, and long-term availability.
-
M-502_Data-Sheet.pdf
PDF Catalog
-
Warranty Declaration.pdf
PDF Catalog
Kein Zubehör vorhanden.
