Name: Compact rugged Intel Core box PC with three PCIe Gen3 expansion slots.
Brand: Neousys Technology
SKU: Nuvo-10003

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

Compact rugged Intel Core box PC with three PCIe Gen3 expansion slots.

Nuvo-10003

Compact rugged Intel Core box PC with three PCIe Gen3 expansion slots.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Nuvo-2000-Series and others

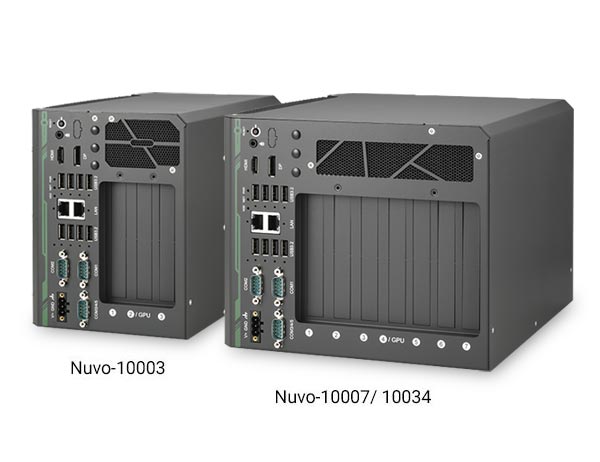

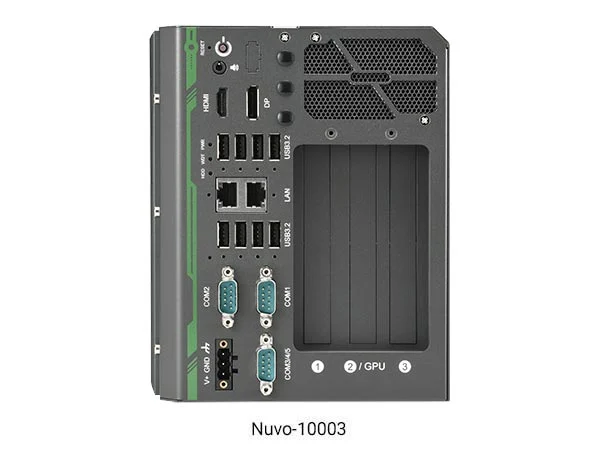

Der Nuvo-10003 ist die kompakte Variante der robusten Nuvo-10000 Erweiterungs-Box-PCs. Das System unterstützt Intel Core Prozessoren der 14., 13. und 12. Generation im LGA1700-Sockel sowie bis zu 64 GB DDR5-4800. Ein PCIe-x16- und zwei PCIe-x8-Steckplätze ermöglichen die Integration industrieller Erweiterungskarten. Acht USB-3.2-Ports, 2,5-GbE und GbE, fünf COM-Schnittstellen, HDMI und DisplayPort bieten vielseitige Konnektivität. Zwei interne 2,5-Zoll-SATA-Laufwerke unterstützen RAID 0/1. Trotz nur 157 mm Gehäusebreite kann das System eine NVIDIA-GPU mit bis zu 115 W aufnehmen.

Compact rugged wall-mount box PC with Intel Q670E chipset and support for 14th, 13th and 12th Gen Intel Core LGA1700 processors. Provides three PCIe slots: one PCIe x16 Gen3 with 16 lanes and two PCIe x8 Gen3 with 4 lanes. Supports up to 64 GB DDR5-4800, dual 2.5-inch SATA drives with RAID 0/1, eight USB 3.2 ports, 2.5GbE, GbE, five COM ports and a GPU up to 115 W TDP. Its chassis is 157 mm wide and weighs 4.2 kg.

Supported Processor Generations Intel 14th, 13th and 12th Gen Core i9/i7/i5/i3; selected Pentium and Celeron
Processor Socket LGA1700
Chipset Intel Q670E
Maximum Memory 64 GB
Memory Type DDR5-4800 SDRAM, two SODIMM slots
PCI Express Slots 1x PCIe x16 Gen3 with 16 lanes; 2x PCIe x8 Gen3 with 4 lanes
Mini PCI Express Sockets 2x full-size mini PCI Express with internal micro SIM socket
Bus Interface 3x PCIe Gen3 slots; 2x full-size mini PCIe
Ethernet Interfaces 1x 2.5GbE I226-IT; 1x GbE I219-LM
USB 3.2 Ports 4x Gen2 at 10 Gbps; 4x Gen1 at 5 Gbps
Serial Ports 2x programmable RS-232/422/485; 3x 3-wire RS-232
Internal SATA Drive Bays 2x internal 2.5-inch SATA HDD/SSD, RAID 0/1
M.2 Storage Interface 1x M.2 2280 SATA M key
Display Outputs 1x HDMI 1.4b; 1x DisplayPort
Maximum Display Resolution HDMI 3840 x 2160; DisplayPort 4096 x 2304 pixels
DC Input Range 12 to 35 VDC
Maximum Supported GPU TDP 115 W
Key Features Three PCIe Gen3 slots; compact 157 mm width; 14th/13th/12th Gen Intel Core support; up to 64 GB DDR5-4800; eight screw-lock USB 3.2 ports; dual SATA RAID 0/1; up to 115 W NVIDIA GPU; 12 to 35 VDC input
Dimensions 157 x 280 x 188 mm
Weight 4.2 kg
Mounting Wall-mount
Form Factor Compact rugged wall-mount box PC
Connector 3-pin DC terminal block; 8x USB 3.2; 1x 2.5GbE; 1x GbE; HDMI; DisplayPort; 5x COM; audio
Dimensions 157 x 280 x 188 mm (W x D x H)
Operating Temperature -25 to 60 °C
Storage Temperature -40 to 85 °C
Operating Humidity 10 to 90, non-condensing %
Vibration Compliance MIL-STD-810H Method 514.8, Category 4
Shock Compliance MIL-STD-810H Method 516.8, Procedure I
Operating Temperature -25°C to 60°C
Resolution HDMI: 3840 x 2160; DisplayPort: 4096 x 2304
Accessories PA-280W-ET2, PA-600W-ENC, Cbl-W212F-W210F-23CM
