Compact rugged Intel Core box PC with three PCIe Gen3 expansion slots.

Nuvo-10003

Compact rugged Intel Core box PC with three PCIe Gen3 expansion slots.

Request a quote

Manufacturer Neousys Technology
Category: Nuvo-2000-Series and others

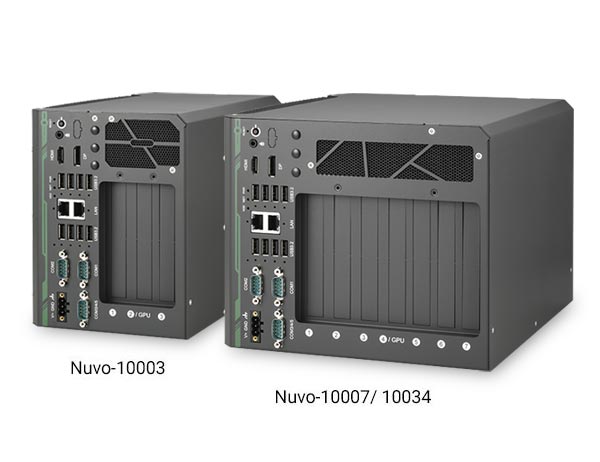

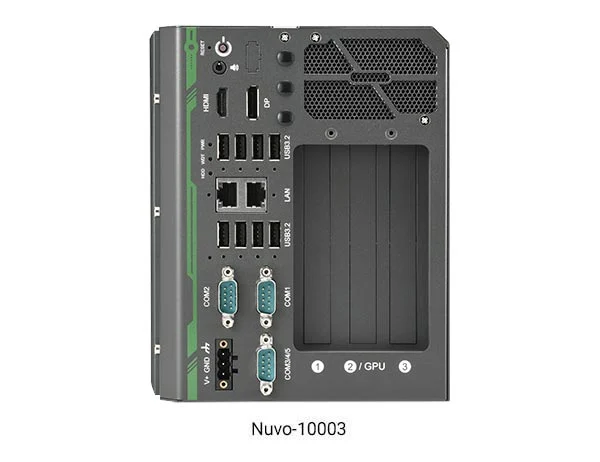

The Nuvo-10003 is the compact variant of the rugged Nuvo-10000 expansion box PC family. It supports 14th, 13th and 12th Gen Intel Core processors in an LGA1700 socket and up to 64 GB of DDR5-4800 memory. One PCIe x16 and two PCIe x8 slots accommodate industrial expansion cards. Eight USB 3.2 ports, 2.5GbE and GbE, five COM ports, HDMI and DisplayPort provide versatile connectivity. Two internal 2.5-inch SATA drives support RAID 0/1. Despite its chassis width of only 157 mm, the system can accommodate a single NVIDIA GPU with a TDP of up to 115 W.

Compact rugged wall-mount box PC with Intel Q670E chipset and support for 14th, 13th and 12th Gen Intel Core LGA1700 processors. Provides three PCIe slots: one PCIe x16 Gen3 with 16 lanes and two PCIe x8 Gen3 with 4 lanes. Supports up to 64 GB DDR5-4800, dual 2.5-inch SATA drives with RAID 0/1, eight USB 3.2 ports, 2.5GbE, GbE, five COM ports and a GPU up to 115 W TDP. Its chassis is 157 mm wide and weighs 4.2 kg.

Supported Processor Generations Intel 14th, 13th and 12th Gen Core i9/i7/i5/i3; selected Pentium and Celeron
Processor Socket LGA1700
Chipset Intel Q670E
Maximum Memory 64 GB
Memory Type DDR5-4800 SDRAM, two SODIMM slots
PCI Express Slots 1x PCIe x16 Gen3 with 16 lanes; 2x PCIe x8 Gen3 with 4 lanes
Mini PCI Express Sockets 2x full-size mini PCI Express with internal micro SIM socket
Bus Interface 3x PCIe Gen3 slots; 2x full-size mini PCIe
Ethernet Interfaces 1x 2.5GbE I226-IT; 1x GbE I219-LM
USB 3.2 Ports 4x Gen2 at 10 Gbps; 4x Gen1 at 5 Gbps
Serial Ports 2x programmable RS-232/422/485; 3x 3-wire RS-232
Internal SATA Drive Bays 2x internal 2.5-inch SATA HDD/SSD, RAID 0/1
M.2 Storage Interface 1x M.2 2280 SATA M key
Display Outputs 1x HDMI 1.4b; 1x DisplayPort
Maximum Display Resolution HDMI 3840 x 2160; DisplayPort 4096 x 2304 pixels
DC Input Range 12 to 35 VDC
Maximum Supported GPU TDP 115 W
Key Features Three PCIe Gen3 slots; compact 157 mm width; 14th/13th/12th Gen Intel Core support; up to 64 GB DDR5-4800; eight screw-lock USB 3.2 ports; dual SATA RAID 0/1; up to 115 W NVIDIA GPU; 12 to 35 VDC input
Dimensions 157 x 280 x 188 mm
Weight 4.2 kg
Mounting Wall-mount
Form Factor Compact rugged wall-mount box PC
Connector 3-pin DC terminal block; 8x USB 3.2; 1x 2.5GbE; 1x GbE; HDMI; DisplayPort; 5x COM; audio
Dimensions 157 x 280 x 188 mm (W x D x H)
Operating Temperature -25 to 60 °C
Storage Temperature -40 to 85 °C
Operating Humidity 10 to 90, non-condensing %
Vibration Compliance MIL-STD-810H Method 514.8, Category 4
Shock Compliance MIL-STD-810H Method 516.8, Procedure I
Operating Temperature -25°C to 60°C
Resolution HDMI: 3840 x 2160; DisplayPort: 4096 x 2304
Accessories PA-280W-ET2, PA-600W-ENC, Cbl-W212F-W210F-23CM
