Comprehensive Product Summary – Neousys Nuvo‑3003LP

---

### 1. Product Overview

Product Name: Nuvo‑3003LP
Model: Nuvo‑3003LP‑C1020 / Nuvo‑3003LP‑I5DC / Nuvo‑3003LP‑I7QC (depending on CPU configuration)
Series: Nuvo‑3000 Low‑Profile Fanless Embedded Controller Series
Article Number: Nuvo‑3003LP
Manufacturer: Neousys Technology Inc. (Taipei, Taiwan)

The Nuvo‑3003LP is a compact, low‑profile, fanless embedded controller designed for industrial and embedded computing applications requiring high reliability, ruggedness, and extended temperature operation. It belongs to Neousys’ Nuvo‑3000 family and represents a reduced‑height variant (69 mm) optimized for space‑constrained environments. The system integrates Intel® 3rd‑Generation Core™ i7/i5/i3 or Celeron® processors (Ivy Bridge architecture) with the Intel® HM76 Platform Controller Hub, providing a balance of performance, energy efficiency, and industrial durability.

---

### 2. Key Features

- Intel® 3rd‑Generation Core™ i7/i5/i3/Celeron® CPU support
Supports Intel® Core™ i7‑3610QE (2.3/3.3 GHz, 6 MB cache), i5‑3610ME (2.7/3.3 GHz, 3 MB cache), or Celeron® 1020E (2.2 GHz, 2 MB cache).
Quad‑core and dual‑core options deliver scalable performance for industrial automation, machine vision, and surveillance.

- Low‑profile fanless chassis (240 × 225 × 69 mm)
Compact aluminum enclosure with passive conduction cooling for silent, maintenance‑free operation in harsh environments.

- Dual 2.5″ SATA storage design
One fixed internal 2.5″ SATA III bay and one external hot‑swappable 2.5″ HDD/SSD tray for easy maintenance and data exchange.

- Triple Intel® I210 Gigabit Ethernet ports
Three independent GbE interfaces supporting 9.5 KB jumbo frames, ideal for multi‑camera or networked control applications.

- Dual independent display outputs
Integrated Intel® HD Graphics 4000 with one VGA (2048 × 1536) and two DVI‑D (1920 × 1080) outputs supporting dual‑display operation.

- Rich I/O connectivity
2 × USB 3.0, 2 × USB 2.0, 1 × RS‑232/422/485 (software‑selectable), PS/2 keyboard/mouse, mic‑in, speaker‑out, and external CFast slot.

- Expansion flexibility
Two Mini‑PCIe slots (one with SIM socket) for wireless, GPS, or I/O expansion modules.

- Rugged environmental design
Fanless operation from −25 °C to +70 °C (with i5/Celeron CPU), vibration resistance up to 5 Grms, and shock tolerance up to 50 Grms.

- Wide‑range DC power input (8–25 VDC)
Built‑in DC input circuitry with optional ignition control for in‑vehicle use; optional 120 W AC/DC adapter available.

- Optional features
- Power‑over‑Ethernet (PoE) capability (on Nuvo‑3005LP variant)
- Isolated digital I/O (8 DI + 8 DO) with Change‑of‑State interrupt
- DIN‑rail mounting kit
- Ignition power control module for automotive systems

---

### 3. Technical Specifications

Processor Options:
- Intel® Core™ i7‑3610QE (2.3/3.3 GHz, 6 MB cache)
- Intel® Core™ i5‑3610ME (2.7/3.3 GHz, 3 MB cache)
- Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache)

Chipset: Intel® HM76 Platform Controller Hub
Graphics: Integrated Intel® HD Graphics 4000
Memory: 2 × 204‑pin DDR3 SO‑DIMM sockets, up to 16 GB DDR3 1333/1600 MHz
Storage:
- 1 × internal 2.5″ SATA III HDD/SSD bay
- 1 × external hot‑swappable 2.5″ SATA III HDD/SSD tray
- 1 × external CFast socket

Ethernet: 3 × Intel® I210 Gigabit Ethernet ports (9.5 KB jumbo frame support)
Video Outputs:
- 1 × VGA (DB‑15) – 2048 × 1536 resolution
- 2 × DVI‑D – 1920 × 1080 resolution (dual independent display support)

USB: 2 × USB 3.0 + 2 × USB 2.0
Serial: 1 × software‑programmable RS‑232/422/485 (COM1)
Audio: 1 × Mic‑in, 1 × Speaker‑out (Realtek ALC262 codec)
PS/2: 1 × 6‑pin Mini‑DIN for keyboard/mouse
Expansion: 2 × Mini‑PCI Express slots (1 with SIM socket)
Power Input: 8 – 25 V DC via 4‑pin Mini‑DIN or 3‑pin terminal block
Power Consumption:
- i7‑3610QE: ≈ 72.96 W (3.84 A @ 19 V)
- i5‑3610ME: ≈ 48.83 W (2.57 A @ 19 V)
- Celeron 1020E: ≈ 42.75 W (2.25 A @ 19 V)

Dimensions: 240 (W) × 225 (D) × 69 (H) mm
Weight: 3.4 kg (including 2.5″ HDD and DDR3 SO‑DIMM)
MTBF: 93,732 hours

Environmental Ratings:
- Operating Temperature: −25 °C to +70 °C (@ 100 % CPU load with i5/Celeron)
- Storage Temperature: −40 °C to +85 °C
- Humidity: 10 % – 90 %, non‑condensing
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD per IEC 60068‑2‑64)
- Shock: 50 Grms (half‑sine 11 ms, SSD per IEC 60068‑2‑27)

---

### 4. Functionality

The Nuvo‑3003LP operates as a ruggedized embedded controller for industrial automation, machine vision, transportation, and surveillance. Its fanless thermal design ensures silent operation and long‑term reliability in dusty or vibration‑prone environments.

Operation Principle:
The system uses conduction cooling through its aluminum chassis. Heat from the CPU and chipset is dissipated via internal heat spreaders to the enclosure surface. The wide‑range DC input allows direct connection to vehicle or industrial power sources.

Use Cases:
- Industrial control and data acquisition
- Machine vision and multi‑camera inspection systems
- Intelligent transportation and in‑vehicle computing
- Digital signage and dual‑display kiosks
- Network security and surveillance NVRs

Compatibility:
Supports Windows XP/7 (32/64‑bit), Linux (Ubuntu, Debian, CentOS, Fedora). Drivers for Intel I210 LAN, HD Graphics, USB 3.0, and Realtek audio are provided via Neousys Drivers & Utilities DVD.

---

### 5. Components & Accessories

Included Items:
- Nuvo‑3003LP fanless controller unit
- Wall‑mount brackets and M4 screws
- 3‑pin pluggable terminal block for DC input
- Foot pads
- HDD thermal pad (for 2.5″ drive)
- Neousys Drivers & Utilities DVD

Optional Accessories:
- 120 W AC/DC power adapter
- DIN‑rail mounting kit
- Ignition power control module
- Isolated DIO module (8 DI + 8 DO)
- PoE module (for Nuvo‑3005LP variant)
- Additional Mini‑PCIe wireless modules (Wi‑Fi, 3G, LTE, GPS)

Connectors:

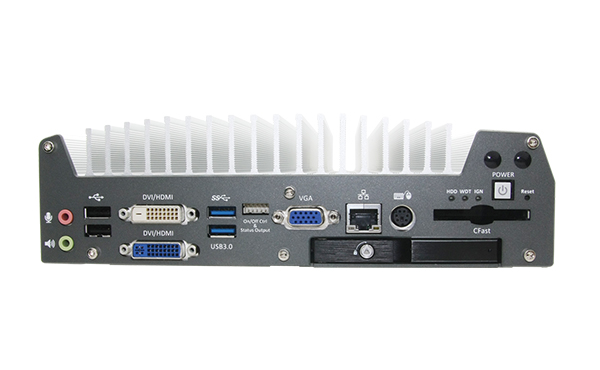

- Front panel: Power button, reset button, LED indicators (HDD/WDT/IGN), CFast slot, USB ports, audio jacks, VGA/DVI, PS/2, Ethernet.

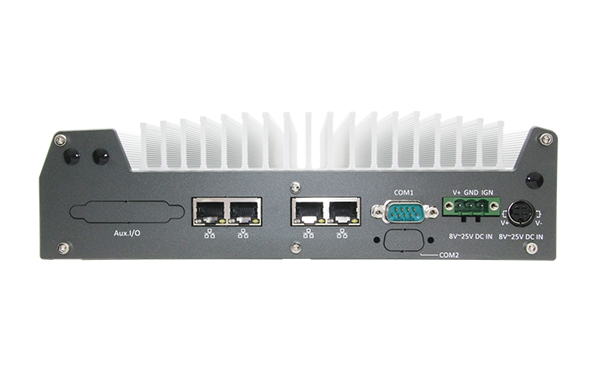

- Rear panel: DC input connectors, COM port, additional Ethernet ports, auxiliary I/O connector (for optional DIO).

---

### 6. Installation & Setup

Mounting Options:
- Wall‑mounting: Standard brackets included.
- DIN‑rail mounting: Optional kit available for cabinet installation.

Power Connection:
- 4‑pin Mini‑DIN (for AC/DC adapter) or 3‑pin terminal block (for direct DC wiring).
- Input range 8–25 V DC.
- Optional ignition signal input (IGN/GND/V+) for automotive applications.

Storage Installation:
- Internal 2.5″ HDD/SSD mounted via SATA cable and thermal pad.

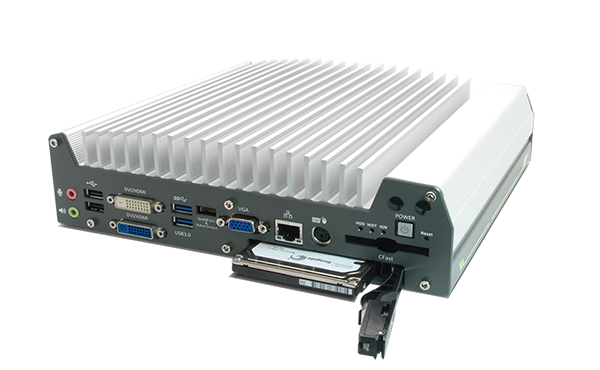

- External hot‑swappable HDD tray accessible from front panel.

Memory Installation:
- Two 204‑pin SO‑DIMM slots accessible internally; supports up to 16 GB DDR3.

Configuration:
- BIOS accessible via F2 key at boot.
- Supports Wake‑on‑LAN, watchdog timer, and ignition control settings.
- “One‑Click” driver installation utility simplifies Windows setup.

---

### 7. Performance & Capabilities

Processing Performance:
- Quad‑core Intel® Core™ i7‑3610QE delivers high multi‑thread performance for real‑time control and vision processing.
- Integrated Intel® HD Graphics 4000 supports hardware acceleration for H.264 video and OpenGL applications.

Networking:
- Three Intel® I210 GbE controllers with dedicated PCIe lanes ensure full bandwidth per port.
- Supports Wake‑on‑LAN and jumbo frames (9.5 KB).

Storage Throughput:
- SATA III (6 Gb/s) interfaces for high‑speed SSD performance.
- Hot‑swappable HDD tray enables rapid data exchange without system shutdown.

Reliability:
- Fanless design eliminates moving parts.
- Wide temperature operation (−25 °C to +70 °C).
- Vibration and shock tested per IEC 60068 standards.

Limitations:
- No internal PCI/PCIe expansion slot (due to low‑profile design).
- PoE and isolated DIO options available only on Nuvo‑3005LP variant.

---

### 8. Standards & Compliance

Certifications:
- CE (Class A) – EN 55022 & EN 55024
- FCC Class A – Part 15 of FCC Rules
- RoHS compliant

Environmental & Mechanical Compliance:
- Vibration testing per IEC 60068‑2‑64
- Shock testing per IEC 60068‑2‑27
- Designed for industrial EMC environments

Safety & Reliability:
- MTBF > 93,000 hours demonstrates long‑term operational stability.
- Requires wide‑temperature HDD or SSD for sub‑zero operation.

---

### 9. Additional Information

Warranty:
Standard Neousys limited warranty (typically 2 years; extendable by agreement).

Support & Maintenance:
- Comprehensive user manual and driver DVD included.
- BIOS and firmware updates available from Neousys Technology website.
- Technical support via email and authorized distributors.

Maintenance Recommendations:
- Ensure adequate airflow around chassis for optimal heat dissipation.
- Use industrial‑grade SSD for high‑vibration applications.
- Periodically inspect DC power connections and mounting hardware.

Software Utilities:
- Neousys “Drivers & Utilities DVD” includes chipset, graphics, LAN, audio, USB 3.0, and ME drivers.
- WDT & DIO library for Windows XP/7 provides API for watchdog and digital I/O control.

Ignition Power Control (optional):
- MCU‑based module monitors vehicle ignition signal and controls system power on/off with programmable delays.
- Modes 0–7 define various on/off delay profiles (10 s to 5 h off‑delay).
- Includes battery‑low protection and hard‑off timeout (10 min).

Watchdog Timer:
- Hardware WDT ensures system recovery from software hangs.
- Configurable timeout (1–65535 s or min) via API or BIOS.

Isolated Digital I/O (optional):
- 8 × isolated DI (5–24 V logic high, 2500 Vrms isolation)
- 8 × isolated DO (100 mA continuous, 250 mA peak per channel)
- Supports polling and Change‑of‑State interrupt modes.

Operating System Support:
- Windows XP SP2/SP3, Windows 7 (32/64‑bit)
- Linux (Ubuntu ≥ 11.04, Debian ≥ 6.0, CentOS 6.4, Fedora 14)
- Driver installation via “one‑click” utility or manual setup.

---

### Summary

The Neousys Nuvo‑3003LP is a robust, low‑profile, fanless embedded controller engineered for industrial and vehicular environments requiring high reliability, compact form factor, and extended temperature tolerance. Combining Intel® Ivy Bridge processing, triple Gigabit Ethernet, dual independent displays, and flexible storage options, it serves as a versatile platform for automation, vision, and surveillance systems. Its rugged mechanical design, wide DC input range, and optional ignition control make it suitable for both factory and mobile deployments.

With comprehensive I/O interfaces, expandability via Mini‑PCIe, and industrial certifications, the Nuvo‑3003LP delivers a balanced combination of performance, durability, and serviceability for mission‑critical embedded applications.
