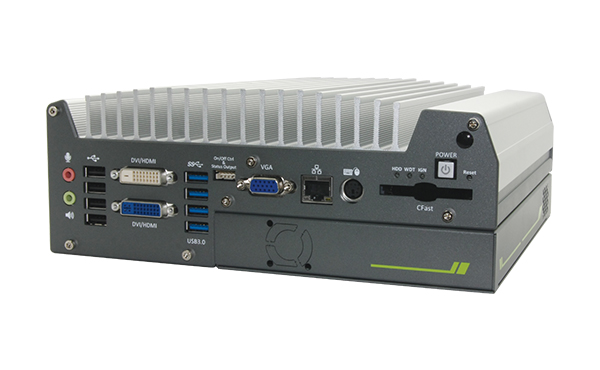

1. Product Overview
Product Name: Nuvo-3005E-PoE
Model/Article Number: Nuvo-3005E-PoE
Series: Nuvo-3000E Series (Embedded Fanless Controller Series)
Manufacturer: Neousys Technology Inc.
Product Type: Intel® Core™ i5/i7 Ivy Bridge Fanless Embedded Controller with PoE and PCIe Expansion
The Nuvo-3005E-PoE is a rugged, fanless embedded computing platform designed for industrial and mission-critical applications. It integrates Intel’s 3rd Generation Core™ i7/i5 processors with the Intel® HM76 chipset, providing high-performance computing in a compact, thermally efficient enclosure. The system features five Gigabit Ethernet ports, four of which support Power over Ethernet (PoE) compliant with IEEE 802.3af, and a patented expansion cassette that allows PCIe x8 add-on cards or additional PoE ports. It is engineered for harsh environments, supporting -25°C to +70°C operation, high vibration, and shock resistance, making it ideal for machine vision, surveillance, in-vehicle, and medical imaging applications.
2. Key Features
- High-Performance Quad-Core Processing:
Supports Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache) and Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache) processors, delivering up to 233% performance improvement over previous generations. Integrated Intel® HD Graphics 4000 ensures enhanced visual performance for imaging and video analytics.
- Fanless, Rugged Design:
Completely fanless operation from -25°C to +70°C under 100% CPU load. The system is designed for industrial reliability with vibration resistance up to 5 Grms and shock resistance up to 50 Grms (with SSD).
- Integrated PoE Capability:
Four Intel® I210 Gigabit Ethernet ports with PoE P.S.E. functionality compliant with IEEE 802.3af, each providing up to 15.4 W power output. Software-controllable PoE on/off switching for power management and maintenance efficiency.

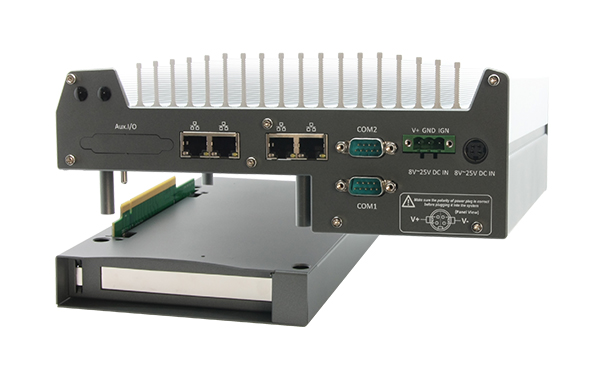

- Patented Expansion Cassette:
Innovative modular design isolates thermal zones between the system and add-on cards, maintaining optimal thermal conditions. Supports PCIe x8 expansion and optional modules such as additional PoE ports (up to 8 total), USB 3.0 expansion, or GPU cards.
- Intelligent Ignition Power Control (Optional):
MCU-based ignition control with configurable on/off delay modes for in-vehicle applications. Supports low battery protection, smart off-delay, and hard-off safety mechanisms.

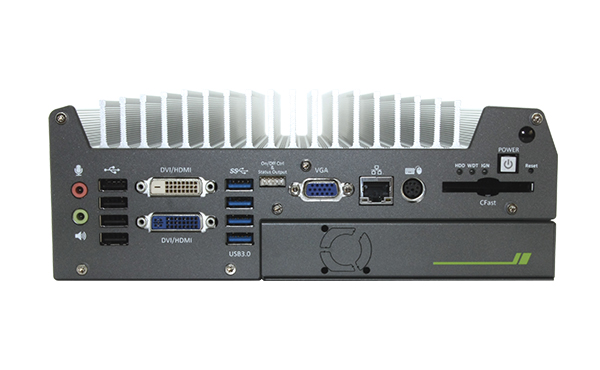

- Rich I/O Connectivity:
5x GbE, 4x USB 3.0, 4x USB 2.0, 2x RS-232/422/485, VGA, dual DVI/HDMI, PS/2, audio I/O, and external CFast slot. Two Mini PCIe slots (one with SIM socket) for wireless or communication modules.
- Industrial-Grade Reliability:
MTBF of 93,732 hours, CE/FCC Class A compliance, and IEC60068-2-64/27 vibration and shock standards.
3. Technical Specifications
- Processor Options:
- Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache)
- Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache)
- Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache)
- Chipset: Intel® HM76 Platform Controller Hub
- Graphics: Integrated Intel® HD Graphics 4000
- VGA: up to 2048×1536 resolution
- DVI/HDMI: up to 1920×1200 resolution
- Dual independent display support
- Memory:
2× 204-pin DDR3 SO-DIMM sockets, up to 16 GB DDR3 1333/1600 MHz
- Storage:
- 1× internal SATA III port for 2.5" HDD/SSD
- 1× external CFast slot
- Expansion:
- 1× PCIe x16 slot (8-lane signals) in expansion cassette
- 2× Mini PCIe slots (one with SIM socket)
- Ethernet:
5× Intel® I210 Gigabit Ethernet ports (4× PoE IEEE 802.3af compliant)
- USB:
4× USB 3.0 ports, 4× USB 2.0 ports
- Serial Ports:
2× software-programmable RS-232/422/485 (COM1 & COM2)
- Digital I/O (Optional):
8× isolated DI with Change-of-State interrupt
8× isolated DO channels (2500 Vrms isolation)
- Audio:
1× Mic-in, 1× Speaker-out (Realtek ALC262 codec)
- Keyboard/Mouse:
1× 6-pin Mini-DIN PS/2 connector
- Power Supply:
- Input: 8–25 VDC via 4-pin Mini-DIN or 3-pin terminal block
- Optional 120 W or 160 W AC/DC adapter
- Power consumption:
- i7-3610QE: 72.96 W (3.84 A @ 19 V)
- i5-3610ME: 48.83 W (2.57 A @ 19 V)
- Mechanical:
- Dimensions: 240 mm (W) × 225 mm (D) × 90 mm (H)
- Weight: 4.4 kg (with HDD and RAM)
- Mounting: Wall-mount (standard) or DIN-rail (optional)
- Environmental:
- Operating Temperature: -25°C to +70°C (i5/i3), -25°C to +60°C (i7)
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90%, non-condensing
- Vibration: 5 Grms, 5–500 Hz, 3 axes (IEC60068-2-64)
- Shock: 50 Grms, half-sine 11 ms (IEC60068-2-27)
- Certifications: CE/FCC Class A (EN 55022 & EN 55024)
4. Functionality
The Nuvo-3005E-PoE operates as a high-performance embedded controller for industrial automation, machine vision, and surveillance systems. Its fanless architecture ensures silent, maintenance-free operation in dusty or vibration-prone environments. The system’s PoE ports allow direct connection and powering of IP cameras or sensors, simplifying cabling and deployment. The integrated expansion cassette enables users to install PCIe cards for additional I/O, GPU acceleration, or extra PoE ports.
Use Cases:
- Machine Vision: Connect multiple GigE cameras for synchronized image acquisition and processing.
- Surveillance/Security: Power and manage PoE cameras for video analytics.
- In-Vehicle Systems: Utilize ignition control for fleet management or mobile DVR applications.
- Medical Imaging: Leverage high CPU/GPU performance for diagnostic imaging systems.
Compatibility:
Supports Windows XP/7/8, Linux distributions (Ubuntu, Debian, CentOS, Fedora). Drivers for Intel® I210 Ethernet, USB 3.0, and HD Graphics are provided.
5. Components & Accessories
Included Items:
- 1× Nuvo-3005E-PoE unit
- 1× Accessory box containing:
- Wall-mount brackets and screws
- 3-pin terminal block
- Driver & Utilities DVD
- Foot pads and HDD thermal pad
Optional Accessories:
- PCIe-PoE4P module (adds 4 additional PoE ports)
- Isolated DIO module (8DI + 8DO)
- Intelligent ignition power control module
- Smart fan for expansion cassette
- DIN-rail mounting kit
- 120 W or 160 W AC/DC power adapter
- nVidia GT730 or PCIe-USB380 expansion modules
6. Installation & Setup
Requirements:
- DC power input (8–25 VDC)
- Compatible OS (Windows or Linux)
- Proper mounting surface or DIN rail
Mounting Options:
- Wall Mount: Standard brackets included.
- DIN Rail: Optional kit available for cabinet installations.
Configuration Steps:
1. Install DDR3 SO-DIMM modules (up to 16 GB).
2. Mount 2.5" SATA HDD/SSD using the provided bracket and thermal pad.
3. Connect DC power via 4-pin Mini-DIN or 3-pin terminal block.
4. Configure BIOS for COM port modes, SATA mode (IDE/AHCI), and power behavior.
5. Install OS and drivers using the “One-Click” installation utility.
6. Optionally configure ignition control or watchdog timer for automated power management.
7. Performance & Capabilities
- Processing Power:
Quad-core i7-3610QE delivers up to 3.3 GHz turbo frequency, supporting multi-threaded workloads for real-time analytics and image processing.
- Graphics Performance:
Intel® HD Graphics 4000 supports dual independent displays, ideal for visualization and monitoring applications.
- Network Throughput:
Five Intel® I210 GbE controllers with dedicated PCIe lanes ensure full-bandwidth communication. Supports 9.5 KB jumbo frames for high-speed data transfer.
- PoE Power Delivery:
Each PoE port provides up to 15.4 W, sufficient for powering IP cameras or sensors. Software control allows selective power cycling.
- Thermal Efficiency:
Fanless design with optimized heat dissipation enables continuous operation at 70°C ambient temperature.
- Reliability Metrics:
MTBF of 93,732 hours ensures long-term deployment in industrial environments.
- Limitations:
For sub-zero operation, wide-temperature SSDs or HDDs are required. High-power PCIe cards may require optional fan-assisted cassette cooling.
8. Standards & Compliance
- Electrical & Safety:
IEEE 802.3af PoE compliance
IEC60068-2-64 (vibration)
IEC60068-2-27 (shock)
- EMC & Regulatory:
CE/FCC Class A (EN 55022, EN 55024)
R.O.C. Patent No. M456527 (Cassette design)
- Environmental:
RoHS compliant materials
Designed for industrial-grade temperature and humidity ranges
9. Additional Information
- Warranty:
Standard manufacturer warranty (contact Neousys for regional terms).
- Support & Maintenance:
- Driver and BIOS updates available via Neousys website.
- Technical documentation and SDKs for Watchdog Timer and DIO functions provided.
- Optional extended support for OEM integration.
- Maintenance:
Fanless design minimizes maintenance. Periodic inspection of connectors and power input recommended.
- Software Tools:
- “One-Click” driver installation utility for Windows.
- WDT_DIO library for watchdog and digital I/O programming.
- BIOS configuration for ignition control, COM modes, and watchdog timer.
- MTBF & Reliability:
MTBF: 93,732 hours (calculated under full load conditions).
- Product Variants:
- Nuvo-3005E-I7QC: i7-3610QE with PCIe x8 Cassette
- Nuvo-3005E-I5DC: i5-3610ME with PCIe x8 Cassette
- Nuvo-3003E-C1020: Celeron 1020E with 3× GbE
Summary
The Neousys Nuvo-3005E-PoE is a robust, high-performance embedded controller engineered for industrial automation, machine vision, and surveillance applications. Combining Intel® 3rd-Gen Core™ processing power, integrated PoE networking, and a patented thermal-isolated expansion cassette, it delivers exceptional reliability and flexibility in harsh environments. With its wide operating temperature range, intelligent ignition control, and modular expandability, the Nuvo-3005E-PoE stands as a versatile platform for edge computing, in-vehicle systems, and intelligent vision solutions.
