Comprehensive Product Summary – Nuvo-3005E-PoE-i7QC

---

### 1. Product Overview

Product Name: Nuvo-3005E-PoE-i7QC
Model: Nuvo-3005E-PoE-i7QC
Series: Nuvo-3000E/3000P Series (Embedded Fanless Controller Series)
Article Number: Nuvo-3005E-PoE-i7QC
Manufacturer: Neousys Technology Inc.
Product Type: Fanless Embedded Controller with PoE and PCIe Expansion Cassette

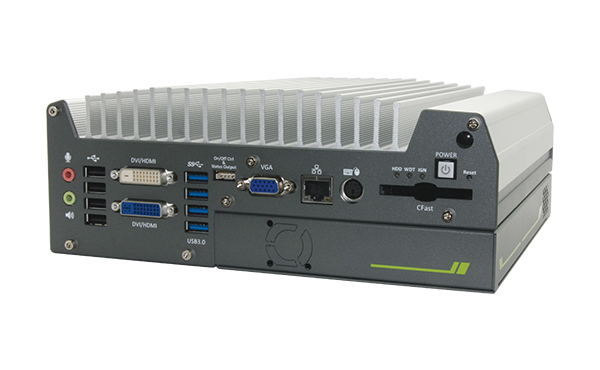

The Nuvo-3005E-PoE-i7QC is a rugged, fanless embedded controller designed for industrial and in-vehicle applications. It integrates Intel’s 3rd Generation Core™ i7-3610QE quad-core processor and Intel® HM76 chipset, offering high-performance computing in a compact, thermally efficient chassis. The system is part of Neousys’ Nuvo-3000 series, known for its patented expansion cassette design, wide operating temperature range, and versatile I/O configuration.

---

### 2. Key Features

- Intel® 3rd-Gen Core™ i7 Quad-Core Processor:
Equipped with Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache), delivering exceptional multi-threaded performance and integrated Intel® HD Graphics 4000.

- Fanless Operation:
Completely fanless design ensures silent operation and long-term reliability in harsh environments. Supports -25°C to +60°C operation at 100% CPU load.

- Integrated Power over Ethernet (PoE):
Includes 4x Intel® I210 Gigabit Ethernet ports with IEEE 802.3af PoE P.S.E. functionality (15.4W per port). Each PoE port can be software-controlled for power management. Expandable to 8x PoE ports via optional PCIe-PoE4P module.

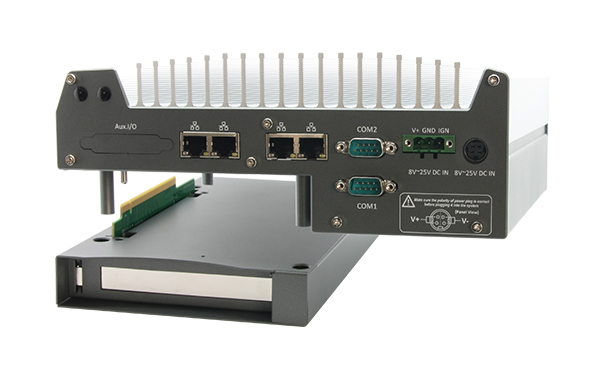

- Patented Expansion Cassette:
Innovative thermal-isolated cassette design allows installation of PCIe x16 (8-lane) add-on cards with minimal heat interference. Supports optional fan or heat-spreader for high-power cards.

- Rich I/O Connectivity:

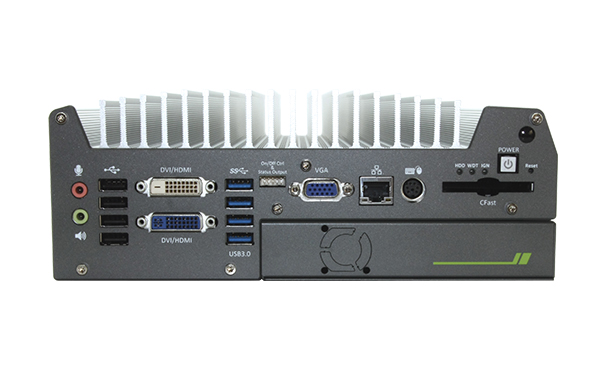

5x GbE ports, 4x USB 3.0, 4x USB 2.0, 2x RS-232/422/485, VGA, dual DVI/HDMI, PS/2, audio I/O, and external CFast slot.

- Optional Intelligent Ignition Power Control:
MCU-based ignition control with configurable on/off delay for in-vehicle applications. Supports 8 preset modes, low-battery protection, and smart off-delay.

- Optional Isolated Digital I/O:
8x isolated digital inputs and 8x isolated digital outputs with 2500 Vrms isolation and Change-of-State (COS) interrupt support.

- Rugged Industrial Design:
Withstands vibration up to 5 Grms and shock up to 50 Grms (SSD configuration). CE/FCC Class A compliant.

- Wide Power Input Range:
Accepts 8–25 VDC input via 4-pin mini-DIN or 3-pin terminal block. Optional 120W or 160W AC/DC adapter available.

---

### 3. Technical Specifications

Processor:
- Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache, quad-core, 8 threads)
- Intel® HM76 Platform Controller Hub

Memory:
- 2x 204-pin DDR3 SO-DIMM sockets
- Supports up to 16 GB DDR3 1333/1600 MHz SDRAM

Graphics:
- Integrated Intel® HD Graphics 4000
- VGA output: up to 2048×1536
- Dual DVI/HDMI output: up to 1920×1200
- Dual independent display support

Storage:
- 1x internal SATA III port for 2.5” HDD/SSD
- 1x external CFast slot
- Optional additional SATA port in cassette for 3.5” HDD

Expansion:
- 1x PCIe x16 slot (8-lane signals) in cassette
- 2x Mini PCIe slots (one with SIM card socket)
- Optional PCIe-PoE4P, PCIe-USB380, or GPU modules

Ethernet:
- 5x Intel® I210 Gigabit Ethernet ports
- 4x ports with IEEE 802.3af PoE P.S.E. (15.4W each)
- Supports 9.5 KB jumbo frames

USB:
- 4x USB 3.0 ports
- 4x USB 2.0 ports
- 2x internal USB 2.0 headers

Serial Communication:
- 2x software-programmable RS-232/422/485 ports (COM1 & COM2)
- Optional internal COM3 (RS-232)

Digital I/O (optional):
- 8x isolated DI (5–24V logic high, 0–1.5V logic low)
- 8x isolated DO (100 mA sustained, 250 mA peak per channel)
- 2500 Vrms isolation

Audio:
- 1x Mic-in, 1x Speaker-out (Realtek ALC262 codec)

Keyboard/Mouse:
- 1x 6-pin Mini-DIN PS/2 connector

Power Supply:
- Input: 8–25 VDC
- Connectors: 4-pin mini-DIN and 3-pin terminal block
- Power consumption:
- i7-3610QE: 72.96W (3.84A @ 19V)
- i5-3610ME: 48.83W (2.57A @ 19V)
- Optional ignition control module

Mechanical:
- Dimensions: 240 mm (W) × 225 mm (D) × 90 mm (H)
- Weight: 4.4 kg (with 2.5” HDD and DDR3 SO-DIMM)
- Mounting: Wall-mount (standard) or DIN-rail (optional)

Environmental:
- Operating Temperature:
- -25°C to +60°C (i7-3610QE)
- -25°C to +70°C (i5/i3/Celeron models)
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90%, non-condensing
- Vibration: 5 Grms, 5–500 Hz, 3 axes (IEC60068-2-64)
- Shock: 50 Grms, half-sine 11 ms (IEC60068-2-27)

EMC Compliance:
- CE/FCC Class A (EN 55022 & EN 55024)

---

### 4. Functionality

The Nuvo-3005E-PoE-i7QC functions as a high-performance embedded controller for industrial automation, machine vision, surveillance, and in-vehicle computing. Its fanless architecture ensures reliability in dusty or vibration-prone environments.

Operation Principle:
The system integrates a quad-core CPU, high-speed memory, and multiple I/O interfaces to process data from cameras, sensors, and network devices. The PoE ports supply both data and power to connected devices such as IP cameras, simplifying cabling and deployment.

Use Cases:
- Machine Vision: Multi-camera inspection systems using PoE cameras.
- In-Vehicle Monitoring: Fleet management, mobile DVR, and data logging.
- Medical Imaging: High-resolution image acquisition and processing.
- Surveillance/Security: Video analytics and IP camera management.

Compatibility:
Supports Windows XP/7/10, Linux (Ubuntu, Debian, CentOS), and other x86 OS. Compatible with Intel® I210 network drivers and Neousys WDT/DIO libraries.

---

### 5. Components & Accessories

Included Items:
- 1x Nuvo-3005E-PoE-i7QC unit
- 1x Accessory box containing:
- Wall-mount brackets and screws
- 3-pin terminal block
- Driver & Utilities DVD
- Foot pads
- HDD thermal pad (if HDD not installed)

Optional Accessories:
- PCIe-PoE4P module (adds 4x PoE ports)
- Isolated DIO module (8DI + 8DO)
- Ignition power control module
- Smart fan for cassette cooling
- DIN-rail mounting kit
- 120W or 160W AC/DC power adapter
- nVidia GT730 GPU cassette module
- PCIe-USB380 expansion module

---

### 6. Installation & Setup

Power Connection:
- Use either the 4-pin mini-DIN connector (for AC/DC adapter) or 3-pin terminal block (for direct DC wiring).
- Input voltage: 8–25 VDC. Do not connect both simultaneously.

Mounting Options:
- Standard wall-mount brackets (included).
- Optional DIN-rail kit for cabinet installation.

Storage Installation:
- 2.5” HDD/SSD mounted via internal SATA port and thermal pad.
- Optional 3.5” HDD supported in cassette or TB variant.

Expansion Installation:
- Remove cassette cover, insert PCIe/PCI card, secure with M3 screw, and reassemble.
- Optional fan or heat-spreader can be installed for thermal management.

Ignition Control Setup:
- Rotary switch on SBC selects one of 8 ignition modes (0–7).
- Modes define power-on/off delays and hard-off timeouts for vehicle integration.

Software Setup:
- BIOS configurable for COM port modes, SATA AHCI/IDE, WOL, and watchdog timer.
- Drivers installed via “One-Click” utility or manually from DVD.

---

### 7. Performance & Capabilities

Processing Power:
- Quad-core i7-3610QE delivers up to 233% performance improvement over previous-gen i7-620M.
- Integrated HD Graphics 4000 supports dual independent displays.

Networking:
- 5x Intel® I210 GbE controllers ensure dedicated PCIe lanes for each port, maximizing throughput.
- PoE ports deliver 15.4W each, suitable for powering IP cameras and sensors.

Storage Performance:
- SATA III interface supports up to 6 Gbps data transfer.
- CFast slot enables fast, removable storage for OS or data logging.

Thermal Efficiency:
- Fanless design with conduction cooling and optional cassette fan ensures stable operation under full load.

Reliability:
- MTBF: 93,732 hours.
- Designed for 24/7 operation in industrial environments.

Limitations:
- For sub-zero operation, wide-temperature SSD or HDD required.
- PoE power limited to IEEE 802.3af standard (15.4W per port).

---

### 8. Standards & Compliance

Certifications:
- CE (EN 55022, EN 55024)
- FCC Class A (Part 15)
- RoHS compliant

Industry Standards:
- IEEE 802.3af PoE
- IEC60068-2-64 (vibration)
- IEC60068-2-27 (shock)
- R.O.C. Patent No. M456527 (Cassette design)

Regulatory Notes:
- Designed for industrial and commercial environments.
- Not intended for residential use due to Class A emission levels.

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (contact Neousys for terms).
- Technical support via Neousys website and authorized distributors.
- Firmware and driver updates available online.

Maintenance:
- Minimal maintenance due to fanless design.
- Periodic inspection of connectors and power input recommended.
- Optional fan module requires occasional cleaning if installed.

Software Tools:
- Neousys WDT/DIO library for watchdog and digital I/O programming.
- BIOS utilities for system configuration and monitoring.

Operating System Support:
- Windows XP/7/10 (32/64-bit)
- Linux distributions (Ubuntu ≥11.04, Debian ≥6.0, CentOS 6.4+)

MTBF and Reliability:
- MTBF: 93,732 hours (calculated under full load conditions).
- Designed for continuous operation in mission-critical environments.

Applications Summary:
- Machine Vision: Multi-camera inspection, industrial automation.
- In-Vehicle Systems: Fleet management, mobile surveillance, data acquisition.
- Medical Imaging: Diagnostic imaging, data processing.
- Security & Surveillance: IP camera control, video analytics, NVR systems.

---

### Summary

The Neousys Nuvo-3005E-PoE-i7QC is a high-performance, fanless embedded controller engineered for demanding industrial and vehicular applications. Combining Intel’s 3rd-Gen Core™ i7 processing power, robust PoE networking, and Neousys’ patented expansion cassette, it delivers exceptional reliability, expandability, and thermal efficiency. Its wide operating temperature range, rugged mechanical design, and intelligent ignition control make it ideal for mission-critical deployments in harsh environments.

With comprehensive I/O, flexible expansion, and compliance with industrial standards, the Nuvo-3005E-PoE-i7QC stands as a versatile platform for machine vision, surveillance, and embedded automation systems requiring both performance and durability.
