Name: Compact rugged fanless computer with 4x 2.5GbE, 4x USB 3.2 and hot-swappable storage.
Brand: Neousys Technology
SKU: Nuvo-9531

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

Compact rugged fanless computer with 4x 2.5GbE, 4x USB 3.2 and hot-swappable storage.

Nuvo-9531

Compact rugged fanless computer with 4x 2.5GbE, 4x USB 3.2 and hot-swappable storage.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Nuvo-9000-Series

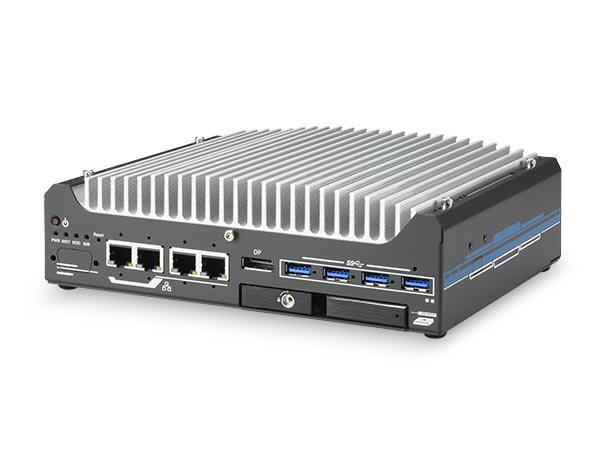

Der Nuvo-9531 ist ein kompakter, lüfterloser Industriecomputer für Intel Core Prozessoren der 14., 13. und 12. Generation mit 35 oder 65 W TDP. Sein nur 212 x 165 x 63 mm großes Gehäuse eignet sich für beengte Einbauräume, etwa in Robotik-, AMR-, Bildverarbeitungs- und Überwachungsanwendungen. Vier 2,5-GbE-Ports mit optionalem PoE+, vier USB-3.2-Gen-1-Anschlüsse, isolierte digitale Ein- und Ausgänge sowie VGA und DisplayPort bieten vielseitige Konnektivität. Für Speicher stehen ein M.2-NVMe-Steckplatz mit PCIe Gen4 x4 und ein im Betrieb wechselbarer 2,5-Zoll-Laufwerkseinschub bereit.

Compact fanless embedded computer supporting Intel 14th, 13th and 12th Gen Core processors in an LGA1700 socket with 35 W or 65 W TDP. It provides up to 32 GB DDR4-3200, four 2.5GbE ports with optional PoE+, four USB 3.2 Gen 1 ports, isolated 4-channel DI and 4-channel DO, VGA and DisplayPort outputs, an M.2 2280 PCIe Gen4 x4 NVMe socket and a hot-swappable 2.5-inch HDD/SSD tray. The rugged 212 x 165 x 63 mm system operates from 8 to 48 VDC and supports -25°C to 60°C fanless operation under the stated CPU conditions.

Supported Processor Generations Intel 14th, 13th and 12th Gen Core; selected Pentium and Celeron models
Processor Socket LGA1700
Processor TDP 35 or 65 W
Maximum Processor Core Count 24 cores / 32 threads
Chipset Intel H610E platform controller hub
Integrated Graphics Intel UHD Graphics 770 (32 EU) or 730 (24 EU)
Maximum Memory 32 GB
Memory Type Non-ECC DDR4-3200 SDRAM; one SODIMM slot
Trusted Platform Module dTPM 2.0 support with 35 W CPU
Ethernet Ports 4x 2.5GBASE-T using Intel I226-IT controllers
Optional PoE Standard IEEE 802.3at PoE+ PSE on four Ethernet ports
PoE Power Budget 100 W total
USB 3.2 Ports 4x USB 3.2 Gen 1, 5 Gbps
USB 2.0 Ports 2 ports
Isolated Digital Input Channels 4 channels
Isolated Digital Output Channels 4 channels
Digital I/O 4-channel isolated DI; 4-channel isolated DO
VGA Output 1 output; maximum 1920 x 1200 pixels
DisplayPort Output 1 output; maximum 4096 x 2304 pixels
Programmable Serial Port 1x software-programmable RS-232/422/485 (COM1)
Additional Serial Interfaces 3x 3-wire RS-232 (COM2/3/4) or 1x RS-422/485 (COM2)
Audio Connector 1x 3.5 mm jack for microphone input and speaker output
Mini PCI Express Sockets 2x full-size sockets with internal SIM sockets
M.2 E Key Socket 1x M.2 2230 E key for WiFi 5, WiFi 6 or Google Edge TPU module
NVMe Socket 1x M.2 2280 M key, PCIe Gen4 x4
NVMe Transfer Speed Up to 7000 MB/s read/write
Hot-Swappable Drive Tray 1x 2.5-inch tray for 7 mm HDD or SSD
DC Input Voltage 8-48 VDC
DC Input Connector 3-pin pluggable terminal block
Ignition Power Control Optional
Dimensions 212 x 165 x 63 mm (W x D x H)
Weight 2.4 kg
Mounting Wall mount standard; DIN-rail mount optional
Form Factor Compact low-profile fanless embedded computer

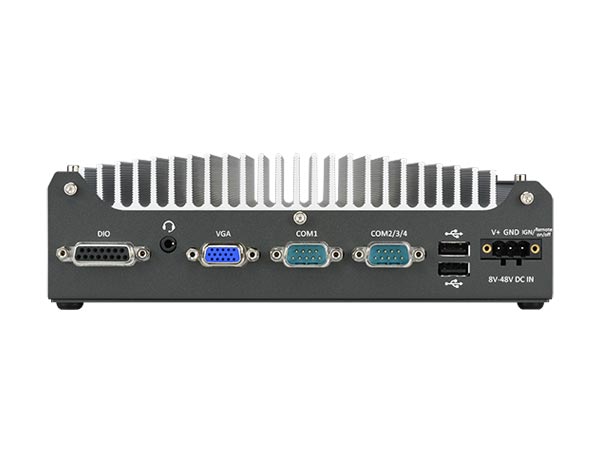

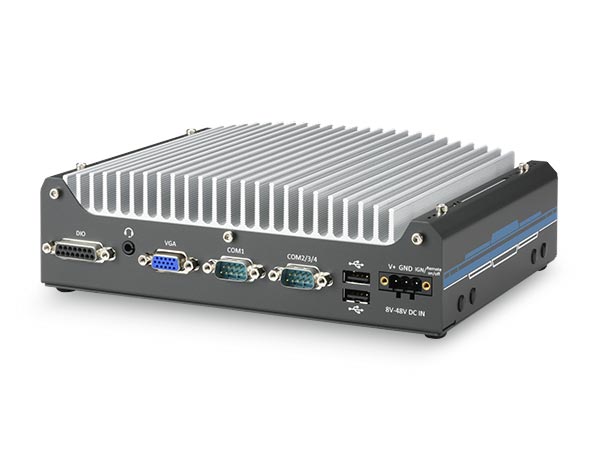

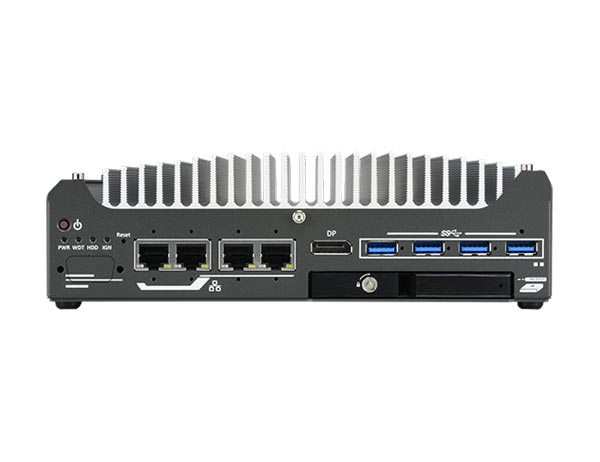

Connector 4x RJ45 2.5GbE; 4x USB 3.2 Gen 1; 2x USB 2.0; VGA; DisplayPort; serial ports; 3.5 mm audio jack; DIO; 3-pin DC terminal block
Dimensions 212 x 165 x 63 mm (W x D x H)
Operating Temperature -25 to 60 °C
65 W CPU Thermal Condition Optional fan kit recommended above 50°C ambient
Storage Temperature -40 to 85 °C
Relative Humidity 10-90, non-condensing %
Vibration Compliance MIL-STD-810G Method 514.8, Category 4, operating
Shock Compliance MIL-STD-810G Method 516.8, Procedure I, Table 516.6-II, operating
Operating Temperature -25°C to 60°C; optional fan kit recommended above 50°C with 65 W CPU
EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
160 W Power Adapter PA-160W-OW; 20 V/8 A; -30°C to 70°C
280 W Power Adapter PA-280W-ET2; 24 V/11.67 A; recommended for 65 W CPU
DIN-Rail Mounting Assembly DINRAIL-31

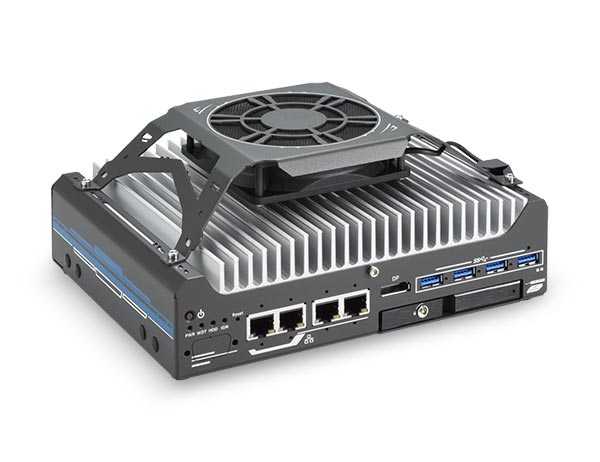

Fan Kit AccsyBx-FAN-Nuvo9531_9501; 92 x 92 mm fan
Bus Interface 2x full-size Mini PCI Express; 1x M.2 2230 E key; 1x M.2 2280 M key PCIe Gen4 x4
Resolution VGA: 1920 x 1200; DisplayPort: 4096 x 2304
Key Features 14th/13th/12th Gen Intel Core support; compact fanless design; 4x 2.5GbE with optional PoE+; 4x USB 3.2 Gen 1; M.2 PCIe Gen4 x4 NVMe; hot-swappable 2.5-inch drive tray; 4-channel isolated DI and DO; dual display; 8-48 VDC input; optional ignition control
Accessories PA-160W-OW, PA-280W-ET2, DINRAIL-31, AccsyBx-FAN-Nuvo9531_9501
