- High-Resolution Analog Output:
8 independent 16-bit DAC channels with ±10 V output range and 15-bit guaranteed monotonicity.
- Fast Response:
Typical settling time of 2–4 µs for a full-scale (20 V) step, with a slew rate of 10–25 V/µs depending on model revision.
- Stable Power Supply:
On-board DC/DC converter ensures stable analog power rails and minimizes noise and power-on glitches.
- Digital I/O Support:
4 TTL-compatible digital input channels and 4 TTL-compatible digital output channels for auxiliary control and status monitoring.
- High Accuracy:
Gain error within ±0.2% (max), differential nonlinearity (DNL) ±0.65 LSB typical, and integral nonlinearity (INL) ±2.5 LSB typical.
- Output Drive Capability:
±5 mA maximum per channel, suitable for driving moderate loads directly.
- Software Programmable:
Fully programmable via ADLINK’s software libraries and drivers for Windows and Linux environments.
- Plug and Play PCI Interface:
32-bit PCI bus interface with automatic resource allocation (PnP BIOS compliant).
- Compact Design:
Half-size PCI card (175 mm × 107 mm) with a 37-pin D-sub female connector for all analog and digital I/O signals.
- Compatibility:
Fully compatible with ADLINK’s DAQPilot, PCIS-DASK, and third-party environments such as MATLAB®, LabVIEW™, and Agilent VEE™.
8 independent 16-bit DAC channels with ±10 V output range and 15-bit guaranteed monotonicity.
- Fast Response:
Typical settling time of 2–4 µs for a full-scale (20 V) step, with a slew rate of 10–25 V/µs depending on model revision.
- Stable Power Supply:
On-board DC/DC converter ensures stable analog power rails and minimizes noise and power-on glitches.
- Digital I/O Support:
4 TTL-compatible digital input channels and 4 TTL-compatible digital output channels for auxiliary control and status monitoring.
- High Accuracy:
Gain error within ±0.2% (max), differential nonlinearity (DNL) ±0.65 LSB typical, and integral nonlinearity (INL) ±2.5 LSB typical.
- Output Drive Capability:
±5 mA maximum per channel, suitable for driving moderate loads directly.
- Software Programmable:
Fully programmable via ADLINK’s software libraries and drivers for Windows and Linux environments.
- Plug and Play PCI Interface:
32-bit PCI bus interface with automatic resource allocation (PnP BIOS compliant).
- Compact Design:
Half-size PCI card (175 mm × 107 mm) with a 37-pin D-sub female connector for all analog and digital I/O signals.
- Compatibility:
Fully compatible with ADLINK’s DAQPilot, PCIS-DASK, and third-party environments such as MATLAB®, LabVIEW™, and Agilent VEE™.

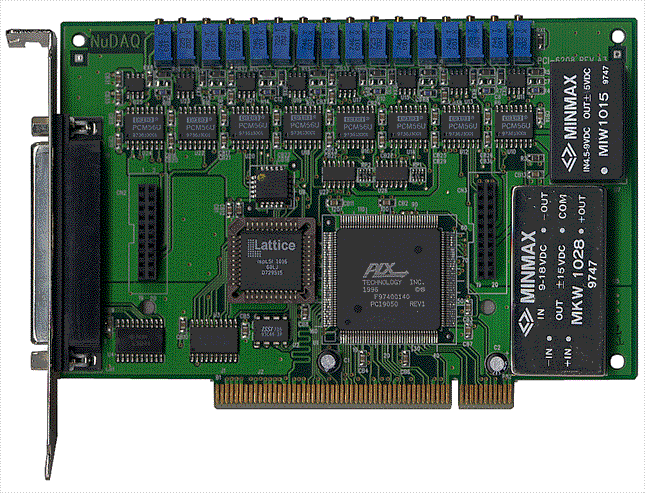

Comprehensive Product Summary: ADLINK PCI-6208V 8-Channel 16-Bit Analog Output Card
### 1. Product Overview
Product Name: PCI-6208V
Model: PCI-6208V
Series: ADLINK PCI-6208/6216 Series (NuDAQ® Family)
Article Number: PCI-6208V
Manufacturer: ADLINK Technology Inc.
Product Type: 8-Channel, 16-Bit Analog Output PCI Card (±10 V Range)
Form Factor: Standard PCI Half-size Card
Bus Interface: 32-bit PCI Bus, Plug and Play
The ADLINK PCI-6208V is a high-performance analog output card designed for precision voltage generation and control applications. It belongs to ADLINK’s NuDAQ® series of data acquisition and control products, offering 8 independent 16-bit analog output channels with ±10 V output range. The card integrates high-quality Burr-Brown PCM56U digital-to-analog converters (DACs) or equivalent, ensuring excellent linearity, monotonicity, and low distortion. It is widely used in industrial process control, signal generation, servo control, and automated test equipment (ATE) systems.
### 2. Key Features
- High-Resolution Analog Output:
8 independent 16-bit DAC channels with ±10 V output range and 15-bit guaranteed monotonicity.
- Fast Response:
Typical settling time of 2–4 µs for a full-scale (20 V) step, with a slew rate of 10–25 V/µs depending on model revision.
- Stable Power Supply:
On-board DC/DC converter ensures stable analog power rails and minimizes noise and power-on glitches.
- Digital I/O Support:
4 TTL-compatible digital input channels and 4 TTL-compatible digital output channels for auxiliary control and status monitoring.
- High Accuracy:
Gain error within ±0.2% (max), differential nonlinearity (DNL) ±0.65 LSB typical, and integral nonlinearity (INL) ±2.5 LSB typical.
- Output Drive Capability:
±5 mA maximum per channel, suitable for driving moderate loads directly.
- Software Programmable:
Fully programmable via ADLINK’s software libraries and drivers for Windows and Linux environments.
- Plug and Play PCI Interface:
32-bit PCI bus interface with automatic resource allocation (PnP BIOS compliant).
- Compact Design:
Half-size PCI card (175 mm × 107 mm) with a 37-pin D-sub female connector for all analog and digital I/O signals.
- Compatibility:
Fully compatible with ADLINK’s DAQPilot, PCIS-DASK, and third-party environments such as MATLAB®, LabVIEW™, and Agilent VEE™.
### 3. Technical Specifications
Analog Output (Voltage Mode):
- Channels: 8 voltage output channels
- Resolution: 16 bits (15-bit guaranteed monotonicity)
- Output Range: ±10 V
- Output Type: Bipolar voltage output
- Output Drive: ±5 mA maximum
- Settling Time: 2–4 µs typical (20 V step)
- Slew Rate: 10–25 V/µs typical
- Gain Error: ±0.2% maximum
- Offset Error: ±0.0005% FSR typical (GL version)
- Differential Nonlinearity (DNL): ±0.65 LSB typical
- Integral Nonlinearity (INL): ±2.5 LSB typical
- Output Initial State: 0 V after reset or power-on
- Data Transfer: Programmed I/O
Digital I/O:
- Channels: 4 digital inputs, 4 digital outputs (TTL compatible)
- Input Voltage Levels:
- Low: 0–0.8 V
- High: 2.0–5.5 V
- Output Voltage Levels:
- Low: ≤0.4 V @ 8 mA sink
- High: ≥2.4 V @ 0.4 mA source
- Input Load: 0.2 mA max at 0.8 V
- Output Drive: 8 mA sink, 0.4 mA source
General:
- Connector: 37-pin D-sub female
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +80°C
- Humidity: 5–95% RH, non-condensing
- Power Requirements:
- +5 VDC @ 580 mA typical
- +12 VDC @ 70–90 mA typical
- Dimensions: 175 mm × 107 mm (PCI half-size)
- Weight: Approx. 200 g
### 4. Functionality
The PCI-6208V performs digital-to-analog conversion using eight independent 16-bit DACs. Each channel can output a precise voltage within ±10 V, suitable for controlling actuators, generating reference signals, or simulating sensor outputs. The card’s on-board DC/DC converter provides isolated analog power rails, ensuring stable and low-noise operation.
Use Cases and Applications:
- Industrial process control (temperature, pressure, flow regulation)
- Servo and motor control systems
- Signal and waveform generation
- Automated test equipment (ATE)
- Data acquisition and simulation systems
- Laboratory instrumentation and calibration setups
Compatibility:
- Operating Systems: Windows 95/98/2000/XP/Vista/7/10, Linux
- Software Environments: DAQPilot, PCIS-DASK, MATLAB®, LabVIEW™, Agilent VEE™, ActiveX/COM interfaces
- Programming Languages: C/C++, Visual Basic, Delphi, and other high-level languages via ADLINK libraries
### 5. Components & Accessories
Included Items:
- PCI-6208V analog output card
- ADLINK All-in-One Software CD (drivers, utilities, manuals)
- Printed or digital user manual
Optional Accessories:
- DIN-37D: 37-pin D-sub termination board with DIN-rail mounting and 1-meter ACL-10137 cable
- ACLD-9137: General-purpose termination board with 37-pin D-sub male connector
- ACL-10137: 37-pin D-sub male-to-male shielded cable (1 m standard length)
- EXP-8V: Expansion daughterboard for PCI-6216V (adds 8 additional voltage output channels)
Connectors:
- CN1: 37-pin D-sub female connector providing all analog outputs, digital I/O, and power reference signals (AGND, ±15 V out, +5 V out).
### 6. Installation & Setup
System Requirements:
- Available 32-bit PCI slot (3.3 V or 5 V signaling)
- Compatible PC running Windows or Linux
- Administrative privileges for driver installation
Installation Steps:
1. Power off the PC and disconnect from mains.
2. Insert the PCI-6208V card into an available PCI slot.
3. Secure the card with the bracket screw.
4. Reconnect power and boot the system.
5. Windows Plug and Play automatically detects the card.
6. Install drivers from the ADLINK All-in-One CD or download DAQPilot from ADLINK’s website.
7. Verify installation using the included 6208UTIL.EXE utility or DAQMaster device manager.
Configuration:
- No jumpers or DIP switches required; all resource allocation (I/O address, IRQ) is handled automatically by the PCI BIOS.
- Calibration and functional testing can be performed using the 6208UTIL utility.
### 7. Performance & Capabilities
Analog Output Performance:
- High-speed 16-bit DACs ensure precise voltage generation with minimal distortion.
- Typical full-scale settling time: 2 µs (legacy) to 130 µs (GL version).
- Slew rate up to 25 V/µs ensures fast response for dynamic control systems.
- Output drive capability of ±5 mA allows direct connection to moderate loads.
Digital I/O Performance:
- TTL-compatible I/O suitable for control signals, status monitoring, or synchronization.
- Programmed I/O access ensures deterministic control in real-time applications.
Limitations:
- Maximum output current limited to ±5 mA per channel.
- No simultaneous update across all channels (each channel updated individually).
- Requires external buffering for high-current loads or capacitive loads.
Reliability:
- On-board DC/DC converter and analog switches minimize power-on transients.
- High-quality components (Burr-Brown PCM56U DACs) ensure long-term stability and low drift.
### 8. Standards & Compliance
Bus Interface:
- PCI Local Bus Specification Revision 2.2 compliant
- 32-bit, 33 MHz PCI target device
Electrical & Environmental Compliance:
- CE and FCC Class A compliant (industrial environment)
- RoHS compliant (lead-free manufacturing)
- Operating temperature: 0–50°C
- Storage temperature: -20–80°C
- Humidity: 5–95% non-condensing
Industry Standards:
- TTL logic levels for digital I/O
- Analog output accuracy per IEEE instrumentation standards
- Compatible with PXI/CompactPCI expansion via ADLINK adapters
### 9. Additional Information
Calibration:
- Factory calibrated using precision 6½-digit DMMs.
- Calibration data stored in on-board Flash memory.
- Recommended recalibration interval: 12 months (6 months in high-temperature or vibration environments).
- Calibration utility: 6208UTIL.EXE (DOS-based) or DAQPilot calibration module.
Maintenance:
- Keep card free from dust and moisture.
- Handle only in ESD-safe environments.
- Avoid mechanical stress on connectors and components.
Warranty:
- Standard ADLINK warranty: 2 years (1 year in China).
- Covers defects in materials and workmanship.
- Excludes damage from misuse, improper installation, or unauthorized repair.
Technical Support:
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- Email: service@adlinktech.com
- Phone: +886-2-8226-5877 (Taiwan HQ)
- Regional Offices: USA, Germany, Japan, China, Korea, Singapore, India
Software Support:
- DAQPilot: Modern driver and SDK with graphical configuration tools.
- PCIS-DASK: Legacy 32-bit driver library for custom C/C++ applications.
- DAQ-LVIEW PnP: LabVIEW™ VI set for ADLINK DAQ cards.
- DAQ-MTLB: MATLAB® Data Acquisition Toolbox adapter.
- PCIS-VEE: Agilent VEE™ interface for visual programming.
- ActiveX Controls: For SCADA/HMI and Visual Basic integration.
Documentation:
- User’s Manual (Rev. 4.02, May 28, 2008)
- Part Number: 50-11234-2010
- Includes detailed register maps, pin assignments, and calibration procedures.
### Summary
The ADLINK PCI-6208V is a robust, high-precision 8-channel analog output card engineered for demanding industrial and laboratory applications. With 16-bit resolution, ±10 V output range, and fast 2 µs settling time, it delivers accurate and stable voltage outputs for control and simulation tasks. The inclusion of 4 digital inputs and 4 digital outputs enhances flexibility for system integration. Its plug-and-play PCI interface, comprehensive software support, and optional termination accessories make it a versatile solution for automation, testing, and measurement systems.
The PCI-6208V’s combination of precision, speed, and reliability—backed by ADLINK’s global support and calibration infrastructure—positions it as a preferred choice for engineers and system integrators seeking dependable analog output performance in PCI-based platforms.
### 1. Product Overview
Product Name: PCI-6208V
Model: PCI-6208V
Series: ADLINK PCI-6208/6216 Series (NuDAQ® Family)
Article Number: PCI-6208V
Manufacturer: ADLINK Technology Inc.
Product Type: 8-Channel, 16-Bit Analog Output PCI Card (±10 V Range)
Form Factor: Standard PCI Half-size Card
Bus Interface: 32-bit PCI Bus, Plug and Play
The ADLINK PCI-6208V is a high-performance analog output card designed for precision voltage generation and control applications. It belongs to ADLINK’s NuDAQ® series of data acquisition and control products, offering 8 independent 16-bit analog output channels with ±10 V output range. The card integrates high-quality Burr-Brown PCM56U digital-to-analog converters (DACs) or equivalent, ensuring excellent linearity, monotonicity, and low distortion. It is widely used in industrial process control, signal generation, servo control, and automated test equipment (ATE) systems.
### 2. Key Features
- High-Resolution Analog Output:
8 independent 16-bit DAC channels with ±10 V output range and 15-bit guaranteed monotonicity.
- Fast Response:
Typical settling time of 2–4 µs for a full-scale (20 V) step, with a slew rate of 10–25 V/µs depending on model revision.
- Stable Power Supply:
On-board DC/DC converter ensures stable analog power rails and minimizes noise and power-on glitches.
- Digital I/O Support:
4 TTL-compatible digital input channels and 4 TTL-compatible digital output channels for auxiliary control and status monitoring.
- High Accuracy:
Gain error within ±0.2% (max), differential nonlinearity (DNL) ±0.65 LSB typical, and integral nonlinearity (INL) ±2.5 LSB typical.
- Output Drive Capability:
±5 mA maximum per channel, suitable for driving moderate loads directly.
- Software Programmable:
Fully programmable via ADLINK’s software libraries and drivers for Windows and Linux environments.
- Plug and Play PCI Interface:
32-bit PCI bus interface with automatic resource allocation (PnP BIOS compliant).
- Compact Design:
Half-size PCI card (175 mm × 107 mm) with a 37-pin D-sub female connector for all analog and digital I/O signals.
- Compatibility:
Fully compatible with ADLINK’s DAQPilot, PCIS-DASK, and third-party environments such as MATLAB®, LabVIEW™, and Agilent VEE™.
### 3. Technical Specifications
Analog Output (Voltage Mode):
- Channels: 8 voltage output channels
- Resolution: 16 bits (15-bit guaranteed monotonicity)
- Output Range: ±10 V
- Output Type: Bipolar voltage output
- Output Drive: ±5 mA maximum
- Settling Time: 2–4 µs typical (20 V step)
- Slew Rate: 10–25 V/µs typical
- Gain Error: ±0.2% maximum
- Offset Error: ±0.0005% FSR typical (GL version)
- Differential Nonlinearity (DNL): ±0.65 LSB typical
- Integral Nonlinearity (INL): ±2.5 LSB typical
- Output Initial State: 0 V after reset or power-on
- Data Transfer: Programmed I/O
Digital I/O:
- Channels: 4 digital inputs, 4 digital outputs (TTL compatible)
- Input Voltage Levels:
- Low: 0–0.8 V
- High: 2.0–5.5 V
- Output Voltage Levels:
- Low: ≤0.4 V @ 8 mA sink
- High: ≥2.4 V @ 0.4 mA source
- Input Load: 0.2 mA max at 0.8 V
- Output Drive: 8 mA sink, 0.4 mA source
General:
- Connector: 37-pin D-sub female
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +80°C
- Humidity: 5–95% RH, non-condensing
- Power Requirements:
- +5 VDC @ 580 mA typical
- +12 VDC @ 70–90 mA typical
- Dimensions: 175 mm × 107 mm (PCI half-size)
- Weight: Approx. 200 g
### 4. Functionality
The PCI-6208V performs digital-to-analog conversion using eight independent 16-bit DACs. Each channel can output a precise voltage within ±10 V, suitable for controlling actuators, generating reference signals, or simulating sensor outputs. The card’s on-board DC/DC converter provides isolated analog power rails, ensuring stable and low-noise operation.
Use Cases and Applications:
- Industrial process control (temperature, pressure, flow regulation)
- Servo and motor control systems
- Signal and waveform generation
- Automated test equipment (ATE)
- Data acquisition and simulation systems
- Laboratory instrumentation and calibration setups
Compatibility:
- Operating Systems: Windows 95/98/2000/XP/Vista/7/10, Linux
- Software Environments: DAQPilot, PCIS-DASK, MATLAB®, LabVIEW™, Agilent VEE™, ActiveX/COM interfaces
- Programming Languages: C/C++, Visual Basic, Delphi, and other high-level languages via ADLINK libraries
### 5. Components & Accessories
Included Items:
- PCI-6208V analog output card
- ADLINK All-in-One Software CD (drivers, utilities, manuals)
- Printed or digital user manual
Optional Accessories:
- DIN-37D: 37-pin D-sub termination board with DIN-rail mounting and 1-meter ACL-10137 cable
- ACLD-9137: General-purpose termination board with 37-pin D-sub male connector
- ACL-10137: 37-pin D-sub male-to-male shielded cable (1 m standard length)
- EXP-8V: Expansion daughterboard for PCI-6216V (adds 8 additional voltage output channels)
Connectors:
- CN1: 37-pin D-sub female connector providing all analog outputs, digital I/O, and power reference signals (AGND, ±15 V out, +5 V out).
### 6. Installation & Setup
System Requirements:
- Available 32-bit PCI slot (3.3 V or 5 V signaling)
- Compatible PC running Windows or Linux
- Administrative privileges for driver installation
Installation Steps:
1. Power off the PC and disconnect from mains.
2. Insert the PCI-6208V card into an available PCI slot.
3. Secure the card with the bracket screw.
4. Reconnect power and boot the system.
5. Windows Plug and Play automatically detects the card.
6. Install drivers from the ADLINK All-in-One CD or download DAQPilot from ADLINK’s website.
7. Verify installation using the included 6208UTIL.EXE utility or DAQMaster device manager.
Configuration:
- No jumpers or DIP switches required; all resource allocation (I/O address, IRQ) is handled automatically by the PCI BIOS.
- Calibration and functional testing can be performed using the 6208UTIL utility.
### 7. Performance & Capabilities
Analog Output Performance:
- High-speed 16-bit DACs ensure precise voltage generation with minimal distortion.
- Typical full-scale settling time: 2 µs (legacy) to 130 µs (GL version).
- Slew rate up to 25 V/µs ensures fast response for dynamic control systems.
- Output drive capability of ±5 mA allows direct connection to moderate loads.
Digital I/O Performance:
- TTL-compatible I/O suitable for control signals, status monitoring, or synchronization.
- Programmed I/O access ensures deterministic control in real-time applications.
Limitations:
- Maximum output current limited to ±5 mA per channel.
- No simultaneous update across all channels (each channel updated individually).
- Requires external buffering for high-current loads or capacitive loads.
Reliability:
- On-board DC/DC converter and analog switches minimize power-on transients.
- High-quality components (Burr-Brown PCM56U DACs) ensure long-term stability and low drift.
### 8. Standards & Compliance
Bus Interface:
- PCI Local Bus Specification Revision 2.2 compliant
- 32-bit, 33 MHz PCI target device
Electrical & Environmental Compliance:
- CE and FCC Class A compliant (industrial environment)
- RoHS compliant (lead-free manufacturing)
- Operating temperature: 0–50°C
- Storage temperature: -20–80°C
- Humidity: 5–95% non-condensing
Industry Standards:
- TTL logic levels for digital I/O
- Analog output accuracy per IEEE instrumentation standards
- Compatible with PXI/CompactPCI expansion via ADLINK adapters
### 9. Additional Information
Calibration:
- Factory calibrated using precision 6½-digit DMMs.
- Calibration data stored in on-board Flash memory.
- Recommended recalibration interval: 12 months (6 months in high-temperature or vibration environments).
- Calibration utility: 6208UTIL.EXE (DOS-based) or DAQPilot calibration module.
Maintenance:
- Keep card free from dust and moisture.
- Handle only in ESD-safe environments.
- Avoid mechanical stress on connectors and components.
Warranty:
- Standard ADLINK warranty: 2 years (1 year in China).
- Covers defects in materials and workmanship.
- Excludes damage from misuse, improper installation, or unauthorized repair.
Technical Support:
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- Email: service@adlinktech.com
- Phone: +886-2-8226-5877 (Taiwan HQ)
- Regional Offices: USA, Germany, Japan, China, Korea, Singapore, India
Software Support:
- DAQPilot: Modern driver and SDK with graphical configuration tools.
- PCIS-DASK: Legacy 32-bit driver library for custom C/C++ applications.
- DAQ-LVIEW PnP: LabVIEW™ VI set for ADLINK DAQ cards.
- DAQ-MTLB: MATLAB® Data Acquisition Toolbox adapter.
- PCIS-VEE: Agilent VEE™ interface for visual programming.
- ActiveX Controls: For SCADA/HMI and Visual Basic integration.
Documentation:
- User’s Manual (Rev. 4.02, May 28, 2008)
- Part Number: 50-11234-2010
- Includes detailed register maps, pin assignments, and calibration procedures.
### Summary
The ADLINK PCI-6208V is a robust, high-precision 8-channel analog output card engineered for demanding industrial and laboratory applications. With 16-bit resolution, ±10 V output range, and fast 2 µs settling time, it delivers accurate and stable voltage outputs for control and simulation tasks. The inclusion of 4 digital inputs and 4 digital outputs enhances flexibility for system integration. Its plug-and-play PCI interface, comprehensive software support, and optional termination accessories make it a versatile solution for automation, testing, and measurement systems.
The PCI-6208V’s combination of precision, speed, and reliability—backed by ADLINK’s global support and calibration infrastructure—positions it as a preferred choice for engineers and system integrators seeking dependable analog output performance in PCI-based platforms.
-
05-24.pdf
PDF Catalog
-
P6208 Manual.PDF
Manual
- Exp-8V - Extra 8Chan Voltage Out for PCI-6208V
- Exp-8A - Extra 8Chan Voltage to Current Module (PCI-6208V)
- ACLD-9188 - Panel for mounting low pass filter etc.
- ACLD-9137-01 - Direct 37 small screw terminal
- DIN-37D-01 - 37pin D-type panel DIN rail w/o cable
