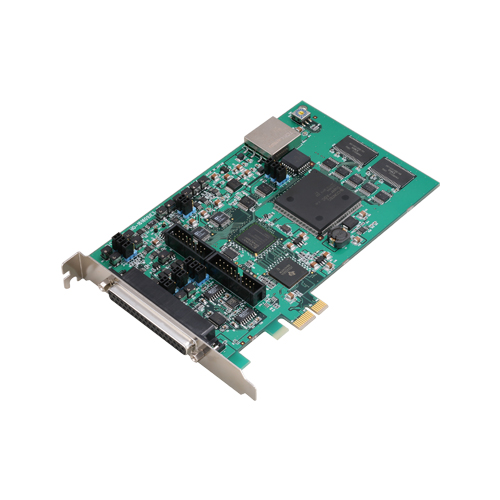

AIO-161601UE3-PE
PCIe I/O card AD 1MS/s 12 Bit 16 channels 1*DA 4*DI 4*DO
950,00 EUR
including VAT 1,130.50 EUR
- High‑Speed, High‑Resolution A/D Conversion:
16‑bit resolution with a maximum conversion speed of 1 µs per channel, enabling precise and rapid analog signal acquisition.
- Flexible Analog Input Configuration:
16 single‑ended or 8 differential input channels selectable via jumper settings. Input ranges include bipolar ±10 V/±5 V or unipolar 0–10 V/0–5 V.
- Analog Output Capability:
One 16‑bit D/A output channel supporting bipolar ±10 V or unipolar 0–10 V ranges, with 10 µs maximum conversion speed.
- Integrated Digital I/O and Counter:
Four TTL‑level digital inputs and four TTL‑level digital outputs, with one 32‑bit counter (i8254‑equivalent) supporting internal 4 MHz or external clock operation.
- Large On‑Board Memory:
16 M‑sample buffer memory configurable as FIFO or ring buffer for continuous or cyclic data acquisition independent of host CPU load.
- Software‑Controlled Sampling:
Sampling start/stop can be triggered by software, external TTL signals, or data comparison events. Internal or external clocks selectable.
- Software Calibration:
Full analog input/output calibration can be performed via software, allowing environmental adjustment without hardware modification.
- Comprehensive Software Support:
Bundled with CONTEC’s C‑LOGGER data logger software and API‑PAC(W32) driver libraries for Windows and Linux. Compatible with MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ) through dedicated plug‑ins.
- Extensive Accessory Ecosystem:
Optional accessories include buffer amplifiers, isolation modules, simultaneous sampling units, multiplexers, and termination panels for flexible system expansion.
- PCI Express Interface:
Compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring high‑speed data transfer and compatibility with modern PCs.
16‑bit resolution with a maximum conversion speed of 1 µs per channel, enabling precise and rapid analog signal acquisition.
- Flexible Analog Input Configuration:
16 single‑ended or 8 differential input channels selectable via jumper settings. Input ranges include bipolar ±10 V/±5 V or unipolar 0–10 V/0–5 V.
- Analog Output Capability:
One 16‑bit D/A output channel supporting bipolar ±10 V or unipolar 0–10 V ranges, with 10 µs maximum conversion speed.
- Integrated Digital I/O and Counter:
Four TTL‑level digital inputs and four TTL‑level digital outputs, with one 32‑bit counter (i8254‑equivalent) supporting internal 4 MHz or external clock operation.
- Large On‑Board Memory:
16 M‑sample buffer memory configurable as FIFO or ring buffer for continuous or cyclic data acquisition independent of host CPU load.
- Software‑Controlled Sampling:
Sampling start/stop can be triggered by software, external TTL signals, or data comparison events. Internal or external clocks selectable.
- Software Calibration:
Full analog input/output calibration can be performed via software, allowing environmental adjustment without hardware modification.
- Comprehensive Software Support:
Bundled with CONTEC’s C‑LOGGER data logger software and API‑PAC(W32) driver libraries for Windows and Linux. Compatible with MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ) through dedicated plug‑ins.
- Extensive Accessory Ecosystem:
Optional accessories include buffer amplifiers, isolation modules, simultaneous sampling units, multiplexers, and termination panels for flexible system expansion.
- PCI Express Interface:
Compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring high‑speed data transfer and compatibility with modern PCs.
Comprehensive Product Summary – AIO‑161601UE3‑PE PCI Express Analog I/O Board
### 1. Product Overview
Product Name: AIO‑161601UE3‑PE
Article Number: AIO‑161601UE3‑PE
Series: AIO‑16×1601UE3‑PE Series (High‑Speed, High‑Precision PCI Express Analog I/O Boards)
Manufacturer: CONTEC Co., Ltd.
Product Type: PCI Express Analog/Digital I/O Interface Board
Version: Ver. 1.01
The CONTEC AIO‑161601UE3‑PE is a high‑speed, high‑precision analog input/output board designed for PCI Express (PCIe) bus systems. It provides 16 analog input channels (configurable as 16 single‑ended or 8 differential), one analog output channel, four digital input and four digital output channels (TTL level), and one 32‑bit counter. The board supports 16‑bit resolution and a maximum analog‑to‑digital conversion speed of 1 µs per channel. It is equipped with a large 16 M‑sample buffer memory and supports both FIFO and ring data acquisition modes.
### 2. Key Features
- High‑Speed, High‑Resolution A/D Conversion:
16‑bit resolution with a maximum conversion speed of 1 µs per channel, enabling precise and rapid analog signal acquisition.
- Flexible Analog Input Configuration:
16 single‑ended or 8 differential input channels selectable via jumper settings. Input ranges include bipolar ±10 V/±5 V or unipolar 0–10 V/0–5 V.
- Analog Output Capability:
One 16‑bit D/A output channel supporting bipolar ±10 V or unipolar 0–10 V ranges, with 10 µs maximum conversion speed.
- Integrated Digital I/O and Counter:
Four TTL‑level digital inputs and four TTL‑level digital outputs, with one 32‑bit counter (i8254‑equivalent) supporting internal 4 MHz or external clock operation.
- Large On‑Board Memory:
16 M‑sample buffer memory configurable as FIFO or ring buffer for continuous or cyclic data acquisition independent of host CPU load.
- Software‑Controlled Sampling:
Sampling start/stop can be triggered by software, external TTL signals, or data comparison events. Internal or external clocks selectable.
- Software Calibration:
Full analog input/output calibration can be performed via software, allowing environmental adjustment without hardware modification.
- Comprehensive Software Support:
Bundled with CONTEC’s C‑LOGGER data logger software and API‑PAC(W32) driver libraries for Windows and Linux. Compatible with MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ) through dedicated plug‑ins.
- Extensive Accessory Ecosystem:
Optional accessories include buffer amplifiers, isolation modules, simultaneous sampling units, multiplexers, and termination panels for flexible system expansion.
- PCI Express Interface:
Compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring high‑speed data transfer and compatibility with modern PCs.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Bus Interface | PCI Express Base Specification Rev. 1.0a ×1 |
| Analog Inputs | 16 ch single‑ended or 8 ch differential (jumper‑selectable) |
| Input Type | Un‑isolated |
| Input Range | Bipolar ±10 V, ±5 V / Unipolar 0–10 V, 0–5 V (jumper‑selectable) |
| Absolute Max Input Voltage | ±15 V |
| Input Impedance | ≥ 1 MΩ |
| Resolution (A/D) | 16 bit |
| Non‑Linearity Error | ±3 LSB typical (±5 LSB max) |
| Conversion Speed (A/D) | 1 µs per channel (max) |
| Buffer Memory | 16 M samples (FIFO or ring mode) |
| A/D Start Trigger | Software, data comparison, or external TTL signal |
| A/D Stop Trigger | Specified sample count, data comparison, external TTL, or software |
| Analog Output Channels | 1 ch, un‑isolated |
| Output Range | Bipolar ±10 V / Unipolar 0–10 V (jumper‑selectable) |
| Output Current Drive | ±5 mA |
| Output Impedance | ≤ 1 Ω |
| Resolution (D/A) | 16 bit |
| D/A Conversion Speed | 10 µs per channel (max) |
| Digital Inputs | 4 ch TTL (shared with counter control) |
| Digital Outputs | 4 ch TTL (shared with counter output) |
| Counter | 1 × 32‑bit (i8254‑equivalent), internal 4 MHz or external clock |
| I/O Address | Any 32‑byte boundary |
| Interrupts | 1 level |
| Power Consumption | +3.3 V @ 2.0 A (max) |
| Operating Temperature | 0 – 50 °C |
| Operating Humidity | 10 – 90 % RH (non‑condensing) |
| Dimensions | 169.33 mm (L) × 110.18 mm (H) |
| Weight | Approx. 160 g |
| Connectors | CN1: 37‑pin D‑SUB (F) / CN2: 16‑pin pin‑header |
| Connector Models | CN1: DCLC‑J37SAF‑20L9E (JAE) / CN2: PS‑16SEN‑D4P1‑1C (JAE) |
### 4. Functionality and Applications
Operating Principle:
The AIO‑161601UE3‑PE performs high‑speed analog‑to‑digital conversion using a 16‑bit ADC with 1 µs/channel throughput. Analog signals are multiplexed, sampled, and digitized, then stored in the on‑board 16 M‑sample memory. Data can be streamed to the host PC via PCIe in FIFO or ring mode. The board also provides one 16‑bit DAC for analog output generation and TTL‑level digital I/O for control or synchronization.
Use Cases and Applications:
- Industrial measurement and control systems
- Data acquisition and logging for sensors and transducers
- Laboratory instrumentation and test automation
- Real‑time signal monitoring and waveform generation
- MATLAB/LabVIEW‑based research and simulation environments
- Embedded PC‑based control systems requiring high‑speed analog I/O
Compatibility:
- Windows 2000/XP/Vista/Server 2003/7 and later
- Linux distributions (Red Hat, TurboLinux, etc.)
- MATLAB Data Acquisition Toolbox (via ML‑DAQ)
- National Instruments LabVIEW (via VI‑DAQ)
### 5. Components & Accessories
Included in Package:
- AIO‑161601UE3‑PE board × 1
- First Step Guide × 1
- CD‑ROM (API‑PAC(W32)) × 1 – includes drivers, libraries, and user’s guide
Optional Cables (Analog I/O):
- PCA37P‑1.5 (1.5 m flat cable)
- PCA37PS‑0.5P / 1.5P (shielded single 37‑pin)
- PCB37P‑1.5 (flat dual 37‑pin)
- PCB37PS‑0.5P / 1.5P (shielded dual 37‑pin)
- PCC16PS‑1.5 / 3 (coaxial for single‑ended inputs)
- PCD8PS‑1.5 / 3 (2‑wire shielded for differential inputs)
Optional Cables (Digital I/O):
- PCA15P‑1.5 (flat 15‑pin)
- PCB15P‑1.5 (flat dual 15‑pin)
- DT/E1 (16‑pin header to open end)
- DT/E2 (16‑pin to 15‑pin bracket 100 mm)
- DT‑E3 (16‑pin to 15‑pin bracket 150 mm)
Optional Termination Panels and Expansion Modules:
- DTP‑3A / DTP‑4A (screw terminal panels)
- ATP‑16E (BNC termination panel)
- ATBA‑16E (buffer amplifier panel)
- FTP‑15 (digital I/O termination panel)
- EPD‑37 / EPD‑37A (screw terminal units)
- ATSS‑16A (16‑ch simultaneous sample & hold unit)
- ATII‑8C (8‑ch isolation board)
- ATLF‑8A (8‑ch gain amplifier board)
- ATUH‑16A(PCI) (16‑ch multiplexer sub‑board for UE3 models)
### 6. Installation & Setup
Hardware Installation:
1. Power off the PC and remove the cover.
2. Insert the AIO‑161601UE3‑PE into an available PCIe ×1 slot.
3. Secure the bracket and reconnect power.
4. Connect external devices to CN1 (analog) and CN2 (digital/control).
Software Installation:
- Install the API‑PAC(W32) driver library from the bundled CD before inserting the board.
- Windows: API‑AIO(WDM) or API‑AIO(98/PC) drivers.
- Linux: API‑AIO(LNX) module (caioXXX.tgz).
- Verify installation using the included diagnostic utility.
Configuration:
- Input mode (single‑ended/differential) and voltage range are set via jumpers (JP4–JP11).
- Output range configured via JP13–JP15.
- Counter and digital I/O functions selectable via JP1–JP3.
- Board ID (0–Fh) set by rotary switch SW1 for multi‑board systems.
Calibration:
Performed in software; factory calibration data is stored, and user calibration can be added for environmental compensation.
### 7. Performance & Capabilities
- Analog Input Throughput: 1 MS/s (1 µs/channel)
- Analog Output Update Rate: 100 kS/s (10 µs/channel)
- Resolution: 16 bits (65,536 steps)
- Input Accuracy: ±3 LSB typical; ±0.02 % FS error possible at extreme temperatures or ±5 V range.
- Output Accuracy: ±3 LSB non‑linearity.
- Buffer Capacity: 16 M samples (continuous or cyclic recording).
- Counter Frequency: Internal 4 MHz or external TTL clock.
- Digital I/O Drive: 24 mA sink current per output bit.
- Power Output: +5 V DC (0.9 A max per connector CN1/CN2).
Limitations:
- Non‑isolated analog channels; external isolation modules recommended for high‑voltage or noisy environments.
- Input voltage must not exceed ±15 V relative to AGND.
- Output current limited to ±5 mA per channel.
### 8. Standards & Compliance
- Bus Standard: PCI Express Base Specification Rev. 1.0a ×1
- Electrical Interface: TTL logic for digital I/O and control signals
- Environmental Conditions: 0–50 °C / 10–90 % RH (non‑condensing)
- Safety & Quality: Manufactured under CONTEC quality standards; RoHS compliant (where applicable)
- Software Standards: Win32 API DLL interface for Windows; shared library modules for Linux
- Regulatory Compliance: Designed for industrial and laboratory use in accordance with CE and FCC requirements for PCIe devices
### 9. Additional Information
Warranty:
Limited three‑year warranty against defects in materials and workmanship from the date of purchase. Covers electronic circuitry only; excludes mechanical damage or misuse.
Technical Support:
- Websites: [https://www.contec.com](https://www.contec.com) (English) / [https://www.contec.co.jp](https://www.contec.co.jp) (Japanese)
- Downloads: Updated drivers, sample programs, and manuals available online.
- RMA Service: Return authorization required for repairs or replacement.
Maintenance:
- Periodically inspect connectors and clean edge contacts with industrial alcohol.
- Avoid operation in environments with excessive dust, vibration, or corrosive gases.
- Store in original anti‑static packaging when not in use.
Software Updates:
- Updated API‑PAC(W32) and C‑LOGGER versions available for download.
- Free LabVIEW (VI‑DAQ) and MATLAB (ML‑DAQ) libraries provided online.
Safety Precautions:
- Do not connect outputs to ground or power lines.
- Ensure signal sources do not exceed specified voltage limits.
- Use shielded cables for long connections or high‑frequency signals.
### Summary
The CONTEC AIO‑161601UE3‑PE is a professional‑grade PCI Express analog I/O board engineered for high‑speed, high‑accuracy data acquisition and control. With 16‑bit resolution, 1 MS/s throughput, and a 16 M‑sample buffer, it delivers reliable performance for demanding measurement and automation tasks. Its flexible analog and digital I/O configuration, software‑based calibration, and broad OS and application support make it ideal for laboratory instrumentation, industrial monitoring, and embedded control systems.
The board’s robust accessory ecosystem, comprehensive driver suite, and long‑term manufacturer support ensure seamless integration into both new and legacy data acquisition environments.
### 1. Product Overview
Product Name: AIO‑161601UE3‑PE
Article Number: AIO‑161601UE3‑PE
Series: AIO‑16×1601UE3‑PE Series (High‑Speed, High‑Precision PCI Express Analog I/O Boards)
Manufacturer: CONTEC Co., Ltd.
Product Type: PCI Express Analog/Digital I/O Interface Board
Version: Ver. 1.01
The CONTEC AIO‑161601UE3‑PE is a high‑speed, high‑precision analog input/output board designed for PCI Express (PCIe) bus systems. It provides 16 analog input channels (configurable as 16 single‑ended or 8 differential), one analog output channel, four digital input and four digital output channels (TTL level), and one 32‑bit counter. The board supports 16‑bit resolution and a maximum analog‑to‑digital conversion speed of 1 µs per channel. It is equipped with a large 16 M‑sample buffer memory and supports both FIFO and ring data acquisition modes.
### 2. Key Features
- High‑Speed, High‑Resolution A/D Conversion:
16‑bit resolution with a maximum conversion speed of 1 µs per channel, enabling precise and rapid analog signal acquisition.
- Flexible Analog Input Configuration:
16 single‑ended or 8 differential input channels selectable via jumper settings. Input ranges include bipolar ±10 V/±5 V or unipolar 0–10 V/0–5 V.
- Analog Output Capability:
One 16‑bit D/A output channel supporting bipolar ±10 V or unipolar 0–10 V ranges, with 10 µs maximum conversion speed.
- Integrated Digital I/O and Counter:
Four TTL‑level digital inputs and four TTL‑level digital outputs, with one 32‑bit counter (i8254‑equivalent) supporting internal 4 MHz or external clock operation.
- Large On‑Board Memory:
16 M‑sample buffer memory configurable as FIFO or ring buffer for continuous or cyclic data acquisition independent of host CPU load.
- Software‑Controlled Sampling:
Sampling start/stop can be triggered by software, external TTL signals, or data comparison events. Internal or external clocks selectable.
- Software Calibration:
Full analog input/output calibration can be performed via software, allowing environmental adjustment without hardware modification.
- Comprehensive Software Support:
Bundled with CONTEC’s C‑LOGGER data logger software and API‑PAC(W32) driver libraries for Windows and Linux. Compatible with MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ) through dedicated plug‑ins.
- Extensive Accessory Ecosystem:
Optional accessories include buffer amplifiers, isolation modules, simultaneous sampling units, multiplexers, and termination panels for flexible system expansion.
- PCI Express Interface:
Compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring high‑speed data transfer and compatibility with modern PCs.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Bus Interface | PCI Express Base Specification Rev. 1.0a ×1 |
| Analog Inputs | 16 ch single‑ended or 8 ch differential (jumper‑selectable) |
| Input Type | Un‑isolated |
| Input Range | Bipolar ±10 V, ±5 V / Unipolar 0–10 V, 0–5 V (jumper‑selectable) |
| Absolute Max Input Voltage | ±15 V |
| Input Impedance | ≥ 1 MΩ |
| Resolution (A/D) | 16 bit |
| Non‑Linearity Error | ±3 LSB typical (±5 LSB max) |
| Conversion Speed (A/D) | 1 µs per channel (max) |
| Buffer Memory | 16 M samples (FIFO or ring mode) |
| A/D Start Trigger | Software, data comparison, or external TTL signal |
| A/D Stop Trigger | Specified sample count, data comparison, external TTL, or software |
| Analog Output Channels | 1 ch, un‑isolated |
| Output Range | Bipolar ±10 V / Unipolar 0–10 V (jumper‑selectable) |
| Output Current Drive | ±5 mA |
| Output Impedance | ≤ 1 Ω |
| Resolution (D/A) | 16 bit |
| D/A Conversion Speed | 10 µs per channel (max) |
| Digital Inputs | 4 ch TTL (shared with counter control) |
| Digital Outputs | 4 ch TTL (shared with counter output) |
| Counter | 1 × 32‑bit (i8254‑equivalent), internal 4 MHz or external clock |
| I/O Address | Any 32‑byte boundary |
| Interrupts | 1 level |
| Power Consumption | +3.3 V @ 2.0 A (max) |
| Operating Temperature | 0 – 50 °C |
| Operating Humidity | 10 – 90 % RH (non‑condensing) |
| Dimensions | 169.33 mm (L) × 110.18 mm (H) |
| Weight | Approx. 160 g |
| Connectors | CN1: 37‑pin D‑SUB (F) / CN2: 16‑pin pin‑header |
| Connector Models | CN1: DCLC‑J37SAF‑20L9E (JAE) / CN2: PS‑16SEN‑D4P1‑1C (JAE) |
### 4. Functionality and Applications
Operating Principle:
The AIO‑161601UE3‑PE performs high‑speed analog‑to‑digital conversion using a 16‑bit ADC with 1 µs/channel throughput. Analog signals are multiplexed, sampled, and digitized, then stored in the on‑board 16 M‑sample memory. Data can be streamed to the host PC via PCIe in FIFO or ring mode. The board also provides one 16‑bit DAC for analog output generation and TTL‑level digital I/O for control or synchronization.
Use Cases and Applications:
- Industrial measurement and control systems
- Data acquisition and logging for sensors and transducers
- Laboratory instrumentation and test automation
- Real‑time signal monitoring and waveform generation
- MATLAB/LabVIEW‑based research and simulation environments
- Embedded PC‑based control systems requiring high‑speed analog I/O
Compatibility:
- Windows 2000/XP/Vista/Server 2003/7 and later
- Linux distributions (Red Hat, TurboLinux, etc.)
- MATLAB Data Acquisition Toolbox (via ML‑DAQ)
- National Instruments LabVIEW (via VI‑DAQ)
### 5. Components & Accessories
Included in Package:
- AIO‑161601UE3‑PE board × 1
- First Step Guide × 1
- CD‑ROM (API‑PAC(W32)) × 1 – includes drivers, libraries, and user’s guide
Optional Cables (Analog I/O):
- PCA37P‑1.5 (1.5 m flat cable)
- PCA37PS‑0.5P / 1.5P (shielded single 37‑pin)
- PCB37P‑1.5 (flat dual 37‑pin)
- PCB37PS‑0.5P / 1.5P (shielded dual 37‑pin)
- PCC16PS‑1.5 / 3 (coaxial for single‑ended inputs)
- PCD8PS‑1.5 / 3 (2‑wire shielded for differential inputs)
Optional Cables (Digital I/O):
- PCA15P‑1.5 (flat 15‑pin)
- PCB15P‑1.5 (flat dual 15‑pin)
- DT/E1 (16‑pin header to open end)
- DT/E2 (16‑pin to 15‑pin bracket 100 mm)
- DT‑E3 (16‑pin to 15‑pin bracket 150 mm)
Optional Termination Panels and Expansion Modules:
- DTP‑3A / DTP‑4A (screw terminal panels)
- ATP‑16E (BNC termination panel)
- ATBA‑16E (buffer amplifier panel)
- FTP‑15 (digital I/O termination panel)
- EPD‑37 / EPD‑37A (screw terminal units)
- ATSS‑16A (16‑ch simultaneous sample & hold unit)
- ATII‑8C (8‑ch isolation board)
- ATLF‑8A (8‑ch gain amplifier board)
- ATUH‑16A(PCI) (16‑ch multiplexer sub‑board for UE3 models)
### 6. Installation & Setup
Hardware Installation:
1. Power off the PC and remove the cover.
2. Insert the AIO‑161601UE3‑PE into an available PCIe ×1 slot.
3. Secure the bracket and reconnect power.
4. Connect external devices to CN1 (analog) and CN2 (digital/control).
Software Installation:
- Install the API‑PAC(W32) driver library from the bundled CD before inserting the board.
- Windows: API‑AIO(WDM) or API‑AIO(98/PC) drivers.
- Linux: API‑AIO(LNX) module (caioXXX.tgz).
- Verify installation using the included diagnostic utility.
Configuration:
- Input mode (single‑ended/differential) and voltage range are set via jumpers (JP4–JP11).
- Output range configured via JP13–JP15.
- Counter and digital I/O functions selectable via JP1–JP3.
- Board ID (0–Fh) set by rotary switch SW1 for multi‑board systems.
Calibration:
Performed in software; factory calibration data is stored, and user calibration can be added for environmental compensation.
### 7. Performance & Capabilities
- Analog Input Throughput: 1 MS/s (1 µs/channel)
- Analog Output Update Rate: 100 kS/s (10 µs/channel)
- Resolution: 16 bits (65,536 steps)
- Input Accuracy: ±3 LSB typical; ±0.02 % FS error possible at extreme temperatures or ±5 V range.
- Output Accuracy: ±3 LSB non‑linearity.
- Buffer Capacity: 16 M samples (continuous or cyclic recording).
- Counter Frequency: Internal 4 MHz or external TTL clock.
- Digital I/O Drive: 24 mA sink current per output bit.
- Power Output: +5 V DC (0.9 A max per connector CN1/CN2).
Limitations:
- Non‑isolated analog channels; external isolation modules recommended for high‑voltage or noisy environments.
- Input voltage must not exceed ±15 V relative to AGND.
- Output current limited to ±5 mA per channel.
### 8. Standards & Compliance
- Bus Standard: PCI Express Base Specification Rev. 1.0a ×1
- Electrical Interface: TTL logic for digital I/O and control signals
- Environmental Conditions: 0–50 °C / 10–90 % RH (non‑condensing)
- Safety & Quality: Manufactured under CONTEC quality standards; RoHS compliant (where applicable)
- Software Standards: Win32 API DLL interface for Windows; shared library modules for Linux
- Regulatory Compliance: Designed for industrial and laboratory use in accordance with CE and FCC requirements for PCIe devices
### 9. Additional Information
Warranty:
Limited three‑year warranty against defects in materials and workmanship from the date of purchase. Covers electronic circuitry only; excludes mechanical damage or misuse.
Technical Support:
- Websites: [https://www.contec.com](https://www.contec.com) (English) / [https://www.contec.co.jp](https://www.contec.co.jp) (Japanese)
- Downloads: Updated drivers, sample programs, and manuals available online.
- RMA Service: Return authorization required for repairs or replacement.
Maintenance:
- Periodically inspect connectors and clean edge contacts with industrial alcohol.
- Avoid operation in environments with excessive dust, vibration, or corrosive gases.
- Store in original anti‑static packaging when not in use.
Software Updates:
- Updated API‑PAC(W32) and C‑LOGGER versions available for download.
- Free LabVIEW (VI‑DAQ) and MATLAB (ML‑DAQ) libraries provided online.
Safety Precautions:
- Do not connect outputs to ground or power lines.
- Ensure signal sources do not exceed specified voltage limits.
- Use shielded cables for long connections or high‑frequency signals.
### Summary
The CONTEC AIO‑161601UE3‑PE is a professional‑grade PCI Express analog I/O board engineered for high‑speed, high‑accuracy data acquisition and control. With 16‑bit resolution, 1 MS/s throughput, and a 16 M‑sample buffer, it delivers reliable performance for demanding measurement and automation tasks. Its flexible analog and digital I/O configuration, software‑based calibration, and broad OS and application support make it ideal for laboratory instrumentation, industrial monitoring, and embedded control systems.
The board’s robust accessory ecosystem, comprehensive driver suite, and long‑term manufacturer support ensure seamless integration into both new and legacy data acquisition environments.
-
ds_aio161601ue3pe_en.pdf
PDF Catalog
- ATUH-16A(PCI) - Extension board 32SE/16DI extra inputs for AIO-161601 series
