1. Product Overview

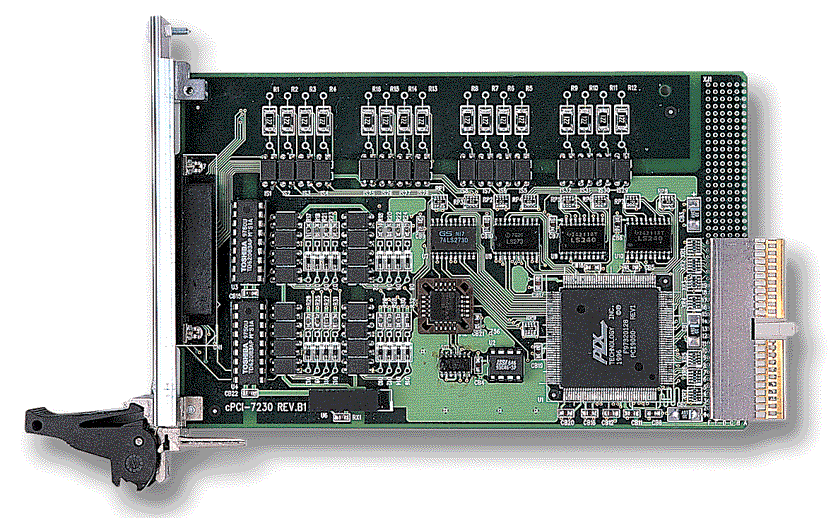

Product Name: cPCI-7230
Model: cPCI-7230
Series: PCI-/cPCI-/LPCI-/LPCIe-723X Series
Article Number: cPCI-7230
Manufacturer: ADLINK Technology Inc.
Product Type: CompactPCI Isolated 16-Channel Digital Input and 16-Channel Digital Output Card
Form Factor: 3U Eurocard, CompactPCI compliant (PICMG 2.0 R2.1)
The ADLINK cPCI-7230 is part of the ADLINK 723X family of isolated digital I/O cards designed for industrial automation, data acquisition, and control applications. It provides 16 optically isolated digital input channels and 16 optically isolated digital output channels, offering robust electrical isolation and high reliability in harsh industrial environments. The module interfaces with CompactPCI systems and is engineered for high-voltage isolation, rugged connectivity, and flexible software integration.
2. Key Features
- Isolation Protection: 5000 V RMS optical isolation between channels and system, ensuring protection against high-voltage transients and ground loops.
- Digital I/O Configuration: 16 isolated digital input (DI) channels and 16 isolated digital output (DO) channels.
- Output Type: Darlington transistor outputs capable of sinking up to 500 mA per channel at 100% duty cycle.
- Input Range: Accepts non-polarity 0–24 V DC input signals, with logic thresholds of 0–1.5 V (Low) and 5–24 V (High).
- External Interrupts: Two interrupt sources available on digital input channels 0 and 1.
- Bus Interface: CompactPCI 32-bit, 5 V signaling, compliant with PICMG 2.0 R2.1.
- Connector Type: Rugged 50-pin SCSI-II female connector for secure industrial connectivity.
- Software Support: Compatible with Windows and Linux operating systems; supports ADLINK DAQPilot, PCIS-DASK, DAQBench, LabVIEW™, and MATLAB® integration.
- High Output Drive Capability: Supports external load voltages from 5 V to 35 V DC for relay, solenoid, or motor control.
- Compact Design: 3U Eurocard form factor (160 mm × 100 mm) suitable for embedded and rack-mounted CompactPCI systems.
- Industrial Reliability: Operating temperature range of 0°C to 60°C, humidity tolerance up to 95% non-condensing.
3. Technical Specifications
Isolated Digital Inputs (DI):
- Channels: 16
- Input Voltage Range: 0–24 V DC, non-polarity
- Logic Levels:
- Logic Low: 0–1.5 V
- Logic High: 5–24 V
- Input Resistance: 1.2 kΩ @ 0.5 W
- Isolation Voltage: 5000 V RMS
- Input Throughput: 10 kHz
- Interrupt Sources: Channels 0 and 1
- Data Transfer Mode: Programmed I/O
Isolated Digital Outputs (DO):
- Channels: 16
- Output Type: Darlington transistor (open collector)
- Output Voltage Range: 5–35 V DC
- Sink Current:
- 500 mA for one channel @ 100% duty
- 370 mA for all channels @ 10% duty
- 130 mA for all channels @ 50% duty
- Power Dissipation: Max. 1.47 W per chip (8 DO channels)
- Isolation Voltage: 2500 V RMS
- Data Transfer Mode: Programmed I/O
General Specifications:
- Bus Interface: CompactPCI 32-bit, 5 V signaling
- Connector: 50-pin SCSI-II female
- Dimensions: 160 mm (L) × 100 mm (H)
- Power Consumption: +5 V @ 270 mA typical
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -20°C to 80°C
- Relative Humidity: 5% to 95%, non-condensing
- Form Factor: 3U Eurocard, CompactPCI compliant
4. Functionality
The cPCI-7230 provides isolated digital input and output channels for interfacing with external industrial devices such as sensors, relays, solenoids, and actuators. Each input channel is optically isolated to protect the host system from voltage surges and ground potential differences. The non-polarity input design simplifies wiring and allows flexible connection to various signal sources.
The output channels use Darlington transistor drivers capable of sinking up to 500 mA per channel, suitable for driving high-current loads such as relays or indicator lamps. The outputs are open-collector type, requiring an external power supply (5–35 V DC) connected to the VDD terminal.
The card supports two external interrupt sources on input channels 0 and 1, enabling event-driven control and real-time response in automation systems. Data transfer is handled via programmed I/O, ensuring deterministic control without complex DMA configurations.
Typical Applications:
- Industrial automation and process control
- Machine status monitoring
- Relay and solenoid actuation
- Safety interlock systems
- Data acquisition and digital signal interfacing
- Laboratory instrumentation and test systems
Compatibility:
- CompactPCI systems compliant with PICMG 2.0 R2.1
- Supported operating systems: Windows 7/Vista/XP/2000/2003 Server, Linux
- Compatible with ADLINK DAQPilot, PCIS-DASK, DAQBench, LabVIEW™, and MATLAB®
5. Components & Accessories
Included Items:
- cPCI-7230 module
- User’s Manual
- ADLINK Software CD (drivers and utilities)
- Software Installation Guide
Optional Accessories:
- DIN-50S-01: Terminal board with one 50-pin SCSI-II connector and DIN-rail mounting (cables not included).
- ACL-10250-1: 50-pin SCSI-II cable (1 meter, mating with AMP-787082-5).
- ACLD-9137-01: General-purpose terminal board with 37-pin D-sub male connector (for other 723X models).
- DIN-37D-01: Terminal board with 37-pin D-sub connector and DIN-rail mounting (for PCI-7230/7233/7234).
Connectors:
- One 50-pin SCSI-II female connector for isolated digital I/O signals.
- Onboard terminals for external power (VDD) and ground (EOGND).
6. Installation & Setup
System Requirements:
- CompactPCI chassis with available 3U slot
- +5 V DC power supply
- External DC power source (5–35 V) for output channels
Installation Procedure:
1. Power off the CompactPCI system and disconnect all peripherals.
2. Insert the cPCI-7230 module into an available 3U CompactPCI slot.
3. Secure the module using the front panel screws.
4. Connect the external I/O devices to the 50-pin SCSI-II connector.
5. Supply external VDD (5–35 V DC) to the output power terminal.
6. Power on the system; the card will be automatically detected via Plug and Play.
7. Install the appropriate ADLINK driver (DAQPilot or PCIS-DASK) following the Software Installation Guide.
Configuration:
- The card uses Plug and Play PCI configuration; no manual jumper or DIP switch settings are required.
- Interrupts and I/O base addresses are automatically assigned by the system BIOS.
Mounting Options:
- Standard CompactPCI rack mounting
- DIN-rail mounting via optional terminal boards
7. Performance & Capabilities
- Throughput: 10 kHz for both input and output channels
- Isolation Voltage: 5000 V RMS (input/output to system)
- Output Drive Capability: Up to 500 mA per channel at 100% duty cycle
- Input Protection: Up to 24 V DC non-polarity input protection
- Response Time: Fast optical isolation response suitable for real-time control
- Power Efficiency: Typical consumption +5 V @ 270 mA
- Reliability: Designed for continuous industrial operation within 0–60°C ambient temperature
Limitations:
- No analog input/output capability (digital-only card)
- Requires external DC power for output operation
- Programmed I/O only (no DMA or bus mastering)
8. Standards & Compliance
- CompactPCI Compliance: PICMG 2.0 Revision 2.1
- Bus Interface Standards: 32-bit, 5 V PCI signaling
- Electrical Isolation: 5000 V RMS optical isolation (input/output to system)
- Safety & EMC: Designed for industrial environments with high noise immunity
- Software Standards:
- Windows and Linux driver support
- LabVIEW™ VI library (DAQ-LVIEW PnP)
- MATLAB® Data Acquisition Toolbox adapter (DAQ-MTLB)
- ActiveX and .NET support via DAQBench and DAQPilot
- Environmental Compliance: RoHS-compliant manufacturing (per ADLINK standard practices)
9. Additional Information
Warranty & Support:
- Standard ADLINK limited warranty (contact ADLINK for regional terms).
- Technical support available via email (Service@adlinktech.com) and phone (+886-2-82265877).
- Online resources, driver downloads, and documentation available at [www.adlinktech.com](http://www.adlinktech.com).
Maintenance:
- Periodically inspect connectors and cables for wear or oxidation.
- Ensure proper grounding and shielding in high-noise environments.
- Avoid exposure to moisture or corrosive atmospheres.
Software Updates:
- Latest drivers and SDKs available for download:
- DAQPilot: Unified driver and SDK for Windows
- PCIS-DASK/X: Legacy driver for Windows/Linux
- DAQ-MTLB: MATLAB® integration
- DAQ-LVIEW PnP: LabVIEW™ VI set
- DAQBench: ActiveX control package for SCADA/HMI applications
Manufacturer Contact:
ADLINK Technology Inc.
9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Tel: +886-2-82265877 | Fax: +886-2-82265717
Email: Service@adlinktech.com
Website: [www.adlinktech.com](http://www.adlinktech.com)
Summary
The ADLINK cPCI-7230 is a high-performance, isolated digital I/O module designed for CompactPCI systems. It provides 16 optically isolated digital input channels and 16 optically isolated digital output channels, each capable of handling industrial-level voltages and currents. With 5000 V RMS isolation, robust Darlington transistor outputs, and comprehensive software support, the cPCI-7230 is ideal for industrial automation, process control, and data acquisition applications requiring reliable digital interfacing and protection against electrical noise and transients.
Its compliance with PICMG 2.0 R2.1 ensures seamless integration into CompactPCI systems, while its software ecosystem—including DAQPilot, DAQBench, LabVIEW™, and MATLAB® drivers—enables rapid development and deployment in both Windows and Linux environments. The cPCI-7230 combines rugged hardware design with flexible software integration, making it a dependable choice for engineers and system integrators seeking reliable isolated digital I/O performance in industrial and embedded computing applications.

Product Name: cPCI-7230
Model: cPCI-7230
Series: PCI-/cPCI-/LPCI-/LPCIe-723X Series
Article Number: cPCI-7230
Manufacturer: ADLINK Technology Inc.
Product Type: CompactPCI Isolated 16-Channel Digital Input and 16-Channel Digital Output Card
Form Factor: 3U Eurocard, CompactPCI compliant (PICMG 2.0 R2.1)
The ADLINK cPCI-7230 is part of the ADLINK 723X family of isolated digital I/O cards designed for industrial automation, data acquisition, and control applications. It provides 16 optically isolated digital input channels and 16 optically isolated digital output channels, offering robust electrical isolation and high reliability in harsh industrial environments. The module interfaces with CompactPCI systems and is engineered for high-voltage isolation, rugged connectivity, and flexible software integration.
2. Key Features
- Isolation Protection: 5000 V RMS optical isolation between channels and system, ensuring protection against high-voltage transients and ground loops.
- Digital I/O Configuration: 16 isolated digital input (DI) channels and 16 isolated digital output (DO) channels.
- Output Type: Darlington transistor outputs capable of sinking up to 500 mA per channel at 100% duty cycle.
- Input Range: Accepts non-polarity 0–24 V DC input signals, with logic thresholds of 0–1.5 V (Low) and 5–24 V (High).
- External Interrupts: Two interrupt sources available on digital input channels 0 and 1.
- Bus Interface: CompactPCI 32-bit, 5 V signaling, compliant with PICMG 2.0 R2.1.
- Connector Type: Rugged 50-pin SCSI-II female connector for secure industrial connectivity.
- Software Support: Compatible with Windows and Linux operating systems; supports ADLINK DAQPilot, PCIS-DASK, DAQBench, LabVIEW™, and MATLAB® integration.
- High Output Drive Capability: Supports external load voltages from 5 V to 35 V DC for relay, solenoid, or motor control.
- Compact Design: 3U Eurocard form factor (160 mm × 100 mm) suitable for embedded and rack-mounted CompactPCI systems.
- Industrial Reliability: Operating temperature range of 0°C to 60°C, humidity tolerance up to 95% non-condensing.
3. Technical Specifications
Isolated Digital Inputs (DI):
- Channels: 16
- Input Voltage Range: 0–24 V DC, non-polarity
- Logic Levels:
- Logic Low: 0–1.5 V
- Logic High: 5–24 V
- Input Resistance: 1.2 kΩ @ 0.5 W
- Isolation Voltage: 5000 V RMS
- Input Throughput: 10 kHz
- Interrupt Sources: Channels 0 and 1
- Data Transfer Mode: Programmed I/O
Isolated Digital Outputs (DO):
- Channels: 16
- Output Type: Darlington transistor (open collector)
- Output Voltage Range: 5–35 V DC
- Sink Current:
- 500 mA for one channel @ 100% duty
- 370 mA for all channels @ 10% duty
- 130 mA for all channels @ 50% duty
- Power Dissipation: Max. 1.47 W per chip (8 DO channels)
- Isolation Voltage: 2500 V RMS
- Data Transfer Mode: Programmed I/O
General Specifications:
- Bus Interface: CompactPCI 32-bit, 5 V signaling
- Connector: 50-pin SCSI-II female
- Dimensions: 160 mm (L) × 100 mm (H)
- Power Consumption: +5 V @ 270 mA typical
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -20°C to 80°C
- Relative Humidity: 5% to 95%, non-condensing
- Form Factor: 3U Eurocard, CompactPCI compliant
4. Functionality
The cPCI-7230 provides isolated digital input and output channels for interfacing with external industrial devices such as sensors, relays, solenoids, and actuators. Each input channel is optically isolated to protect the host system from voltage surges and ground potential differences. The non-polarity input design simplifies wiring and allows flexible connection to various signal sources.
The output channels use Darlington transistor drivers capable of sinking up to 500 mA per channel, suitable for driving high-current loads such as relays or indicator lamps. The outputs are open-collector type, requiring an external power supply (5–35 V DC) connected to the VDD terminal.
The card supports two external interrupt sources on input channels 0 and 1, enabling event-driven control and real-time response in automation systems. Data transfer is handled via programmed I/O, ensuring deterministic control without complex DMA configurations.
Typical Applications:
- Industrial automation and process control
- Machine status monitoring
- Relay and solenoid actuation
- Safety interlock systems
- Data acquisition and digital signal interfacing
- Laboratory instrumentation and test systems
Compatibility:
- CompactPCI systems compliant with PICMG 2.0 R2.1
- Supported operating systems: Windows 7/Vista/XP/2000/2003 Server, Linux
- Compatible with ADLINK DAQPilot, PCIS-DASK, DAQBench, LabVIEW™, and MATLAB®
5. Components & Accessories
Included Items:
- cPCI-7230 module
- User’s Manual
- ADLINK Software CD (drivers and utilities)
- Software Installation Guide
Optional Accessories:
- DIN-50S-01: Terminal board with one 50-pin SCSI-II connector and DIN-rail mounting (cables not included).
- ACL-10250-1: 50-pin SCSI-II cable (1 meter, mating with AMP-787082-5).
- ACLD-9137-01: General-purpose terminal board with 37-pin D-sub male connector (for other 723X models).
- DIN-37D-01: Terminal board with 37-pin D-sub connector and DIN-rail mounting (for PCI-7230/7233/7234).
Connectors:
- One 50-pin SCSI-II female connector for isolated digital I/O signals.
- Onboard terminals for external power (VDD) and ground (EOGND).
6. Installation & Setup
System Requirements:
- CompactPCI chassis with available 3U slot
- +5 V DC power supply
- External DC power source (5–35 V) for output channels
Installation Procedure:
1. Power off the CompactPCI system and disconnect all peripherals.
2. Insert the cPCI-7230 module into an available 3U CompactPCI slot.
3. Secure the module using the front panel screws.
4. Connect the external I/O devices to the 50-pin SCSI-II connector.
5. Supply external VDD (5–35 V DC) to the output power terminal.
6. Power on the system; the card will be automatically detected via Plug and Play.
7. Install the appropriate ADLINK driver (DAQPilot or PCIS-DASK) following the Software Installation Guide.
Configuration:
- The card uses Plug and Play PCI configuration; no manual jumper or DIP switch settings are required.
- Interrupts and I/O base addresses are automatically assigned by the system BIOS.
Mounting Options:
- Standard CompactPCI rack mounting
- DIN-rail mounting via optional terminal boards
7. Performance & Capabilities
- Throughput: 10 kHz for both input and output channels
- Isolation Voltage: 5000 V RMS (input/output to system)
- Output Drive Capability: Up to 500 mA per channel at 100% duty cycle
- Input Protection: Up to 24 V DC non-polarity input protection
- Response Time: Fast optical isolation response suitable for real-time control
- Power Efficiency: Typical consumption +5 V @ 270 mA
- Reliability: Designed for continuous industrial operation within 0–60°C ambient temperature
Limitations:
- No analog input/output capability (digital-only card)
- Requires external DC power for output operation
- Programmed I/O only (no DMA or bus mastering)
8. Standards & Compliance
- CompactPCI Compliance: PICMG 2.0 Revision 2.1
- Bus Interface Standards: 32-bit, 5 V PCI signaling
- Electrical Isolation: 5000 V RMS optical isolation (input/output to system)
- Safety & EMC: Designed for industrial environments with high noise immunity
- Software Standards:
- Windows and Linux driver support
- LabVIEW™ VI library (DAQ-LVIEW PnP)
- MATLAB® Data Acquisition Toolbox adapter (DAQ-MTLB)
- ActiveX and .NET support via DAQBench and DAQPilot
- Environmental Compliance: RoHS-compliant manufacturing (per ADLINK standard practices)
9. Additional Information
Warranty & Support:
- Standard ADLINK limited warranty (contact ADLINK for regional terms).
- Technical support available via email (Service@adlinktech.com) and phone (+886-2-82265877).
- Online resources, driver downloads, and documentation available at [www.adlinktech.com](http://www.adlinktech.com).
Maintenance:
- Periodically inspect connectors and cables for wear or oxidation.
- Ensure proper grounding and shielding in high-noise environments.
- Avoid exposure to moisture or corrosive atmospheres.
Software Updates:
- Latest drivers and SDKs available for download:
- DAQPilot: Unified driver and SDK for Windows
- PCIS-DASK/X: Legacy driver for Windows/Linux
- DAQ-MTLB: MATLAB® integration
- DAQ-LVIEW PnP: LabVIEW™ VI set
- DAQBench: ActiveX control package for SCADA/HMI applications
Manufacturer Contact:
ADLINK Technology Inc.
9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Tel: +886-2-82265877 | Fax: +886-2-82265717
Email: Service@adlinktech.com
Website: [www.adlinktech.com](http://www.adlinktech.com)
Summary
The ADLINK cPCI-7230 is a high-performance, isolated digital I/O module designed for CompactPCI systems. It provides 16 optically isolated digital input channels and 16 optically isolated digital output channels, each capable of handling industrial-level voltages and currents. With 5000 V RMS isolation, robust Darlington transistor outputs, and comprehensive software support, the cPCI-7230 is ideal for industrial automation, process control, and data acquisition applications requiring reliable digital interfacing and protection against electrical noise and transients.
Its compliance with PICMG 2.0 R2.1 ensures seamless integration into CompactPCI systems, while its software ecosystem—including DAQPilot, DAQBench, LabVIEW™, and MATLAB® drivers—enables rapid development and deployment in both Windows and Linux environments. The cPCI-7230 combines rugged hardware design with flexible software integration, making it a dependable choice for engineers and system integrators seeking reliable isolated digital I/O performance in industrial and embedded computing applications.
-
