1. Product Overview

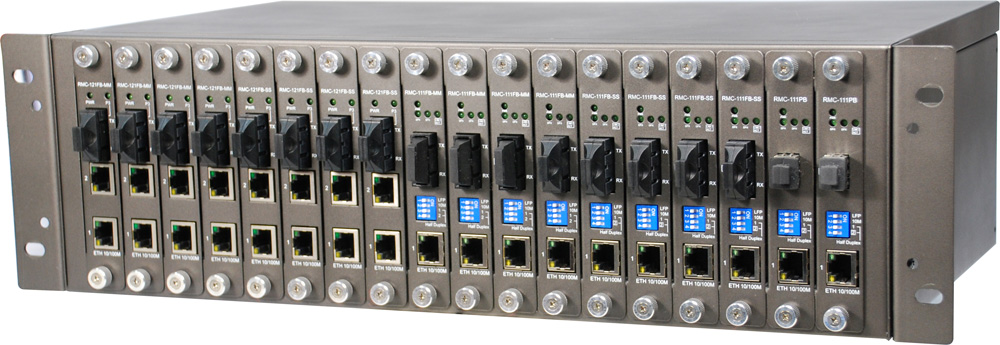

The RMC‑1000 is a high‑density, industrial‑grade rack‑mount chassis designed to house and operate up to 18 card‑type media converters from ORing Industrial Networking Corp. The chassis supports the RMC‑111PB, RMC‑111FB, and RMC‑121FB series converters, enabling scalable Ethernet‑to‑fiber media conversion for industrial, enterprise, and carrier‑grade network environments.
Manufacturer: ORing Industrial Networking Corp.
Product Name: RMC‑1000
Model: RMC‑1000
Series: RMC media converter chassis
Article/Part Number: RMC‑1000
Product Type: 19‑inch rack‑mount media converter chassis
Primary Purpose: Dense deployment of hot‑swappable Ethernet‑to‑fiber media converters

2. Key Features
• Supports 18 individual card‑type media converters
• Full compatibility with RMC‑111PB, RMC‑111FB, and RMC‑121FB converter series
• Each slot supports 10/100Base‑T(X) auto‑negotiation and auto‑MDI/MDI‑X
• Supports single‑mode and multi‑mode 100Base‑FX optical fiber interfaces
• Dual redundant power supply design, with optional dual 100–240 VAC inputs
• Hot‑swappable converter modules and hot‑swappable power supplies
• 19‑inch rack‑mount industrial chassis, designed for high‑density converter deployment
• High reliability design suitable for harsh industrial conditions
• Robust mechanical construction supporting vibration, shock, and free‑fall resilience
• Wide environmental operating range: –10°C to 60°C
• Wide storage temperature: –40°C to 85°C
• Supports non‑condensing humidity from 5% to 95%
• Internal power design prevents service interruption during power module removal
• Straightforward installation and maintenance through modular architecture

3. Technical Specifications
Dimensions: 430 x 243 x 132 mm (W x D x H)
Dimensions (inches): 16.93 x 9.57 x 5.2 inches
Weight: 4955 g (approx. 5 kg)
Material/Construction: Industrial‑grade metal chassis, 19‑inch rack‑mount form factor
Slot Count: 18 independent media converter slots
Supported Media Converters: RMC‑111PB / RMC‑111FB / RMC‑121FB series
Network Support: 10/100Base‑T(X) electrical + 100Base‑FX fiber
Fiber Support: Single‑mode and multi‑mode, dependent on installed card
Power Input: Two optional 100–240 VAC power inputs (power redundancy)
Protection: Overload current protection integrated
Environmental
• Operating Temperature: –10°C to 60°C
• Storage Temperature: –40°C to 85°C
• Operating Humidity: 5%–95%, non‑condensing
Mechanical Reliability
• Free Fall: IEC 60068‑2‑32
• Vibration: IEC 60068‑2‑6
• Shock: IEC 60068‑2‑27
EMI Compliance: FCC Part 15, CISPR EN55022 Class A
EMS Compliance:
• EN61000‑4‑2 (ESD)
• EN61000‑4‑3 (RS)
• EN61000‑4‑4 (EFT)
• EN61000‑4‑5 (Surge)
• EN61000‑4‑6 (CS)
• EN61000‑4‑8
• EN61000‑4‑11

4. Functionality
The RMC‑1000 functions as a centralized chassis for large‑scale media conversion environments. Each of its 18 slots can house an independent media converter module that transforms electrical Ethernet (10/100Base‑T(X)) into optical fiber (100Base‑FX). The hot‑swap design ensures modules can be inserted or removed without powering down the chassis.
Use Cases
• Industrial automation networks requiring fiber extension
• Surveillance networks where long‑distance fiber connectivity is needed
• Building‑to‑building network backbones
• Factory floors with electrically noisy environments
• Data centers needing modular 10/100Base‑T to fiber conversion
• Telecom and carrier networks requiring scalable rack‑mount media conversion
Compatibility
• Full compatibility with supported RMC‑111PB/111FB/121FB media converter series
• Supports various fiber types provided by the converter modules (single‑mode, multi‑mode)

5. Components & Accessories
Included Items
• 1 rack‑mount kit
• 2 quick installation guides (QIG)
• 3 round screws (M4 × 6)
Chassis Components
• 18 converter card slots
• Dual redundant AC power supply bays
• Cooling design suitable for high‑density deployment
Optional/Separate Accessories
• Additional RMC‑series media converter cards
• Replacement power supply modules
• Fiber patch cords and connector kits (per converter requirement)

6. Installation & Setup
Installation Requirements
• Standard 19‑inch rack with sufficient space for 430 mm width
• AC mains input between 100–240 VAC
• Adequate ventilation in rack cabinet
Mounting Options
• Standard 19‑inch rack‑mount using included mounting brackets
• Front‑facing installation for easy module access
Setup Process
• Mount chassis into rack
• Connect one or two AC power cables depending on redundancy requirements
• Insert media converter cards into designated slots (hot‑swappable)
• Connect Ethernet and fiber cables to each installed card
• Power up and verify LED status on converter modules
• Follow QIG instructions for additional configuration (varies by converter module type)

7. Performance & Capabilities
Electrical Interface
• Supports 10/100Base‑T(X) with auto‑negotiation
• Auto‑MDI/MDI‑X simplifies cabling
Fiber Interface
• Supports 100Base‑FX single‑mode and multi‑mode, per installed module
Efficiency & Power
• Dual‑power redundancy ensures uninterrupted operation
• Overload protection prevents electrical damage
Hot‑Swap Capability
• Converter modules and power supplies can be removed or replaced while powered
Capacity
• Supports up to 18 simultaneous media conversions in a single chassis
Thermal/Environmental
• Designed for industrial temperature ranges and non‑condensing humidity
• Suitable for harsh installations where vibration or shock may be present
Limitations
• Only supports 10/100 Mbps electrical Ethernet
• Fiber interface limited to 100Base‑FX (no gigabit support)
• Dependent on converter modules for specific fiber connector types and wavelengths

8. Standards & Compliance
Electromagnetic Interference (EMI)
• FCC Part 15 Class A
• CISPR (EN55022) Class A
Electromagnetic Susceptibility (EMS):
• EN61000‑4‑2 (ESD immunity)
• EN61000‑4‑3 (radiated susceptibility)
• EN61000‑4‑4 (electrical fast transient)
• EN61000‑4‑5 (surge immunity)
• EN61000‑4‑6 (conducted immunity)
• EN61000‑4‑8 (power frequency magnetic field)
• EN61000‑4‑11 (voltage dips/interruptions)
Mechanical Standards
• IEC60068‑2‑32 (free fall)
• IEC60068‑2‑6 (vibration)
• IEC60068‑2‑27 (shock)
Industry Standards Supported (through converter cards)
• IEEE 802.3 10Base‑T
• IEEE 802.3u 100Base‑T(X) / 100Base‑FX

9. Additional Information
Warranty: 2 years
Maintenance
• Hot‑swappable architecture reduces service downtime
• Regular cleaning of rack air pathways recommended
• Periodic inspection of power supplies suggested
Support
• Technical support via support@oring-networking.com
• Website: www.oring-networking.com
• Phone: +886‑2‑2218‑1066
• Fax: +886‑2‑2218‑1014
Documentation
• Quick Installation Guide (QIG): 1907‑2‑29‑RMC1000‑0
• Product printed on recycled paper
Updates
• Firmware or functional updates depend on media converter modules, not chassis

---
