- **GPU Architecture:** NVIDIA Pascal GP107 Quadro P2000 - **CUDA Cores:** 768 parallel processing cores - **Peak Performance:** 2.3 TFLOPS single‑precision (FP32) - **Memory:** 4 GB GDDR5, 128‑bit interface, 96 GB/s bandwidth - **Display Support:** Up to four independent UHD (4K) displays via DisplayPort 1.4 - **Form Factor:** MXM 3.1 Type A (82 × 70 mm) - **Power Consumption:** 58 W Total Graphics Power (TGP) - **Clock Speeds:** Base 1455 MHz, Boost 1480 MHz - **Operating Temperature Range:** ‑40 °C to +85 °C (ETT version) - **Long‑Term Availability:** 5‑year product lifecycle support - **Software Ecosystem:** CUDA Toolkit 8.0, OpenCL 1.2, DirectX 12, OpenGL 4.5, Vulkan 1.0 - **Connectivity:** PCI Express Gen3 x16 interface - **Compliance:** CE, FCC, EU‑RoHS, WHQL certified for Windows 7/10 The EGX‑MXM‑P2000 combines high compute density with low power draw, making it ideal for embedded systems in medical imaging, industrial automation, digital signage, and defense applications.

Manufacturer: Adlink Technology Inc.

Category: Inference & Deep Learning

- **ActiveX/OCX Interface:** Provides an OLE Control Extension (OCX) interface for ADLINK PCI and cPCI cards, enabling straightforward integration into Windows-based applications that support ActiveX controls. - **Broad Hardware Compatibility:** Supports a wide range of ADLINK PCI and CompactPCI data acquisition (DAQ), digital I/O, analog I/O, and motion control cards. - **Simplified Development:** Allows developers to access hardware functions through intuitive, high-level commands without requiring low-level driver programming. - **Rapid Application Development (RAD) Support:** Fully compatible with RAD environments such as Microsoft Visual Basic, Visual C++, Delphi, and LabVIEW (via ActiveX containers). - **Comprehensive Function Library:** Includes functions for analog input/output, digital input/output, counter/timer operations, and event handling. - **Plug-and-Play Configuration:** Automatically detects installed ADLINK cards and configures communication parameters for immediate use. - **Stable and Reliable Operation:** Built on ADLINK’s proven driver architecture, ensuring robust performance in industrial and laboratory environments. - **Cross-Platform Compatibility:** Designed for Windows operating systems (Windows 7/8/10/11, 32-bit and 64-bit editions). - **Scalable Integration:** Supports multiple ADLINK cards within a single system, allowing complex multi-channel or multi-device configurations. - **Comprehensive Documentation:** Includes detailed API references, sample code, and integration guides for rapid deployment.

Manufacturer: Adlink Technology Inc.

Category: ADLink Driver, Software

- **Removable Terminal Design:** The RST-20P features detachable screw terminal blocks that simplify maintenance, testing, and replacement without disturbing permanent wiring. - **20-Pin Configuration:** Each terminal block supports 20 individual connections, enabling high-density signal interfacing for analog, digital, or mixed-signal I/O modules. - **Secure Screw-Type Contacts:** Screw terminals ensure firm mechanical and electrical contact, minimizing signal loss and vibration-induced disconnection. - **High Reliability:** Designed for industrial environments, the RST-20P provides stable performance under varying temperature and vibration conditions. - **Ease of Integration:** Compatible with ADLINK data acquisition (DAQ) cards, I/O modules, and backplanes that utilize 20-pin connectors. - **Compact Form Factor:** Optimized for space-constrained installations, allowing efficient cable management and panel organization. - **Durable Construction:** Built from high-quality insulating and conductive materials to ensure long service life and consistent performance. - **Polarity and Pin Number Markings:** Clearly labeled pin numbers and polarity indicators facilitate accurate wiring and troubleshooting. - **Pair Configuration:** Supplied as a matched pair to support dual-channel or redundant wiring setups.

Manufacturer: Adlink Technology Inc.

Category: USB Data Acquisition

- **Full OPC Compliance:** Implements the OPC Data Access (DA) specification, ensuring compatibility with any OPC-compliant client software such as SCADA, HMI, MES, and data historian systems. - **Broad Hardware Support:** Compatible with a wide range of ADLINK PCI and CompactPCI (cPCI) data acquisition (DAQ), digital I/O, analog I/O, and motion control cards. - **Real-Time Data Exchange:** Provides high-speed, low-latency communication between ADLINK hardware and OPC clients, enabling real-time monitoring and control. - **Unified Interface:** Offers a standardized interface for multiple ADLINK cards, reducing integration complexity and development time. - **Automatic Tag Generation:** Automatically detects installed ADLINK cards and generates corresponding OPC tags for all available channels and parameters. - **Scalable Architecture:** Supports multiple cards and channels simultaneously, allowing flexible system expansion. - **User-Friendly Configuration:** Includes an intuitive configuration utility for mapping hardware channels to OPC items without programming. - **Robust Error Handling:** Built-in diagnostics and error reporting mechanisms ensure reliable operation and simplified troubleshooting. - **Windows Compatibility:** Designed for Microsoft Windows operating systems commonly used in industrial automation environments. - **Secure Data Access:** Supports user authentication and access control through OPC server security settings. - **High Reliability:** Optimized for continuous 24/7 operation in industrial and laboratory applications.

Manufacturer: Adlink Technology Inc.

Category: ADLink Driver, Software

- **OPC Compliance:** Fully compliant with the OPC Data Access (DA) specification, ensuring compatibility with a wide range of SCADA, HMI, and MES systems. - **Integration with ADLINK HSL Systems:** Specifically optimized for ADLINK’s HSL distributed I/O modules, providing direct access to digital and analog input/output channels. - **Real-Time Data Exchange:** Enables high-speed, deterministic communication between field devices and supervisory systems. - **Vendor-Neutral Connectivity:** Allows integration with third-party OPC clients, ensuring flexibility in system design and deployment. - **Scalable Architecture:** Supports multiple HSL nodes and modules, allowing expansion of distributed I/O networks without reconfiguration of the OPC interface. - **User-Friendly Configuration:** Includes intuitive setup tools for defining I/O mappings, channel names, and data types. - **Robust Error Handling:** Built-in diagnostics and communication status monitoring for reliable operation in industrial environments. - **Secure Communication:** Supports standard Windows authentication and network security features to protect data integrity. - **Low Latency Performance:** Optimized for minimal communication delay between OPC clients and HSL hardware. - **Comprehensive Data Access:** Provides read/write access to all I/O points, including digital inputs, digital outputs, analog inputs, and analog outputs.

Manufacturer: Adlink Technology Inc.

Category: ADLink Driver, Software

- **Full‑Function OPC Server:** Implements the complete OPC Data Access interface, allowing real‑time data exchange between NuDAM modules and OPC clients. - **Wide Compatibility:** Works with any OPC‑compliant client software, including SCADA, HMI, and custom industrial control applications. - **Integrated Configuration Utility (NuDAM Explorer):** A graphical tool for configuring both hardware and server parameters, simplifying setup and reducing configuration time. - **Interactive Module Configuration:** Enables users to set module parameters such as input range, data format, and filtering directly through the Explorer interface. - **Customizable Server Operation:** Users can define I/O scan times, timeout limits, and assign descriptive names (tags) to each data item for easy identification in client applications. - **Sample OPC Client Application:** Includes a fully functional sample client (OpcClient.exe) demonstrating digital input/output (DI/DO) and analog input/output (AI/AO) operations. - **Flexible Installation Options:** Offers Typical, Compact, and Custom installation modes to suit different deployment needs. - **DCOM‑Based Communication:** Utilizes Microsoft’s Distributed Component Object Model (DCOM) for local and remote OPC communications. - **Comprehensive Documentation:** Includes user guides, installation manuals, and reference documentation in both help and PDF formats. - **Automatic System Registration:** The installation process registers the OPC server (NDOPCSvr.EXE) within the Windows system registry for immediate use.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **OPC Compliance:** Fully compliant with the OPC Data Access (DA) standard, ensuring interoperability with any OPC-compliant client software. - **Runtime Environment:** Provides a stable, production-ready runtime version of the OPC driver for ADLINK PCI and cPCI cards, optimized for continuous operation in industrial environments. - **Hardware Compatibility:** Supports a broad range of ADLINK data acquisition (DAQ), digital I/O, analog I/O, and motion control cards in both PCI and CompactPCI form factors. - **Standardized Communication:** Enables standardized data exchange between ADLINK hardware and third-party SCADA, HMI, MES, or DCS systems. - **Low-Latency Data Access:** Optimized for real-time data acquisition and control, ensuring minimal latency between hardware signals and OPC client applications. - **Scalable Architecture:** Suitable for small-scale laboratory setups as well as large industrial automation networks. - **Robust Error Handling:** Includes built-in diagnostics and error reporting mechanisms to ensure reliable operation and simplified troubleshooting. - **Security and Stability:** Designed for 24/7 operation in mission-critical environments, with stable runtime performance and minimal resource overhead. - **Ease of Integration:** Compatible with standard Windows operating systems and integrates seamlessly with ADLINK’s driver libraries and SDKs. - **Maintenance-Free Operation:** Once configured, the runtime version requires minimal maintenance, making it ideal for long-term deployment.

Manufacturer: Adlink Technology Inc.

Category: ADLink Driver, Software

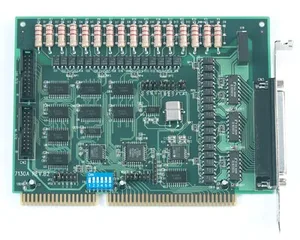

- **32 total isolated channels:** 16 opto‑isolated digital inputs and 16 opto‑isolated digital outputs. - **Additional 32 non‑isolated TTL/DTL channels:** 16 digital inputs and 16 digital outputs for direct logic‑level interfacing. - **High isolation protection:** 2,500 VDC isolation between field and logic sides for both input and output channels. - **Wide input voltage range:** Accepts 5 V to 24 V DC (non‑polarity photo‑coupler inputs). - **Open‑collector outputs:** Supports 5 V to 40 V DC external voltage with up to 500 mA sink current per channel (single active channel). - **Dual interrupt capability:** - External interrupt from digital input channels (IRQ3–7). - Internal interrupt from onboard timer pacer (IRQ9–12, 15). - **Integrated 8254 programmable counter/timer:** - Three 16‑bit counters. - Two cascaded counters for timer pacer generation. - One free counter for user applications. - Base frequency: 2 MHz. - **Flexible software support:** Compatible with DOS, Windows 95/98/NT, and LabVIEW via optional libraries (ACLS‑DLL1, ACLS‑LVIEW). - **Compact half‑size ISA form factor:** 163 mm × 123 mm PCB. - **Standard connectors:** - One DB‑37 female connector for isolated I/O. - Two 20‑pin headers for TTL I/O. - **Industrial‑grade reliability:** Designed for 0 °C – 60 °C operation, 5 – 95 % non‑condensing humidity. - **Low power consumption:** +5 V @ 360 mA typical.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated ISA

- **Dual 9‑pin D‑type Connectors:** Provides two standard D‑sub 9‑pin female connectors for signal input/output interfacing. - **Integrated Screw Terminals:** Two 6‑position small screw terminal blocks allow direct wire termination without soldering, ideal for field wiring and quick maintenance. - **Designed for ACL‑6128 Compatibility:** Specifically engineered to interface with the ACL‑6128 module, ensuring pin‑to‑pin correspondence and electrical compatibility. - **Panel‑Mount Configuration:** The panel form factor allows secure installation in control cabinets, test benches, or rack systems. - **High‑Reliability Connectors:** D‑type connectors are known for robust mechanical coupling and EMI shielding, ensuring stable signal transmission. - **Ease of Maintenance:** Modular design allows easy replacement or reconfiguration without disturbing the main system wiring. - **Compact and Organized Layout:** The dual D‑type and terminal arrangement minimizes wiring clutter and supports efficient signal management. - **Industrial‑Grade Construction:** Built with durable materials suitable for continuous operation in industrial or laboratory environments. - **Versatile Signal Support:** Suitable for analog, digital, or control signal interfacing depending on the connected module’s configuration.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **68-Pin High-Density Interface:** Provides a complete breakout for all signal lines from the Mitsubishi J3A servo amplifier, ensuring full connectivity for control, feedback, and I/O signals. - **DIN-Rail Mountable Design:** Compact and robust DIN-rail mounting allows easy integration into control cabinets and industrial panels. - **Direct Compatibility:** Specifically engineered for Mitsubishi J3A servo amplifier systems, ensuring pin-to-pin compatibility and reliable signal mapping. - **Industrial-Grade Construction:** Built with durable materials suitable for industrial automation environments, offering high mechanical stability and electrical reliability. - **Simplified Wiring and Maintenance:** Terminal labeling and organized layout reduce wiring errors and simplify maintenance or system upgrades. - **Shielded Signal Integrity:** Optimized for low-noise signal transmission, minimizing interference in high-speed servo control applications. - **Plug-and-Play Interface:** Designed for quick connection to standard 68-pin cables or connectors, reducing setup time and ensuring consistent performance. - **Versatile Application Support:** Suitable for use in motion control systems, robotics, CNC machinery, and automated production lines.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Dedicated Interface for Mitsubishi MR-J2S-A Servo Amplifiers:** Engineered to match the electrical and mechanical interface requirements of the Mitsubishi J2 series servo amplifiers, ensuring compatibility and reliable performance. - **100-Pin Female SCSI-II Connector:** Provides a high-density, shielded connection interface for servo control signals, feedback, and I/O communication. - **DIN Rail Mounting Design:** Compact and robust form factor optimized for standard DIN rail installation in control cabinets, enabling quick and secure mounting. - **Termination Board Functionality:** Acts as a termination and breakout interface for servo amplifier connections, simplifying wiring and reducing installation complexity. - **Industrial-Grade Construction:** Built with durable materials suitable for industrial environments, ensuring long-term stability and resistance to vibration and electrical noise. - **Compact Dimensions:** 123 mm (W) × 107 mm (H) × 44 mm (D), allowing efficient use of panel space. - **Cable-Free Configuration:** Delivered without the ACL-102100-1 cable, allowing users to select or fabricate custom-length cables as needed. - **Optimized for Signal Integrity:** The SCSI-II connector and PCB layout are designed to minimize signal interference and maintain high-quality data transmission between the servo amplifier and control system. - **Manufacturer Reliability:** Produced by Adlink, a recognized provider of industrial I/O and automation interface solutions, ensuring quality and compatibility with leading automation platforms.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Dedicated Interface for Mitsubishi MR-J2S-A Servo Amplifiers:** Designed to provide seamless connectivity and termination for Mitsubishi’s J2S-A servo amplifier series. - **100-pin SCSI-II Termination Board:** Supports high-density signal connections using a standard 100-pin SCSI-II interface, ensuring reliable data and control signal transmission. - **DIN Rail Mounting:** Compact form factor (123 × 107 × 44 mm) optimized for standard DIN rail installations in control cabinets and automation panels. - **Industrial-Grade Construction:** Built with durable materials suitable for industrial environments, ensuring long-term reliability and mechanical stability. - **Cable-Free Configuration:** Delivered without the ACL-102100-1 cable, providing flexibility for users to select appropriate cable lengths or configurations. - **Simplified Wiring and Maintenance:** Terminal labeling and structured layout facilitate quick installation, easy maintenance, and reduced wiring errors. - **Adlink Quality Assurance:** Manufactured by Adlink, a trusted provider of industrial I/O and motion control hardware, ensuring compatibility, performance, and support.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Dedicated Interface for Mitsubishi MR-J3-A Servo Amplifiers:** Specifically designed to match the electrical and mechanical interface requirements of the Mitsubishi MR-J3-A servo amplifier series. - **100-pin SCSI-II Termination Board:** Provides a standardized, high-density connection interface for servo control signals, feedback, and I/O communication. - **DIN Rail Mounting Design:** Enables quick and secure installation within industrial control cabinets, optimizing space utilization and simplifying maintenance. - **Compact Form Factor:** With dimensions of **123 × 107 × 44 mm**, the panel offers a space-efficient solution suitable for dense automation setups. - **High Signal Integrity:** The SCSI-II interface ensures reliable high-speed data transmission with minimal signal degradation, suitable for precision servo control applications. - **Cable-Free Configuration (w/o ACL-102100-1):** The unit is supplied without the ACL-102100-1 cable, allowing users to select or customize cabling according to system requirements. - **Industrial-Grade Construction:** Built to withstand the mechanical and electrical demands of industrial automation environments, ensuring long-term durability and consistent performance. - **Plug-and-Play Compatibility:** Designed for seamless integration with Mitsubishi servo systems, minimizing setup time and reducing wiring complexity. - **Adlink Quality Assurance:** Manufactured by Adlink, a recognized provider of industrial connectivity and automation solutions, ensuring compliance with quality and performance standards.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Dedicated Compatibility:** Designed exclusively for **Mitsubishi J2S-A Servo Amplifiers**, ensuring seamless electrical and mechanical integration. - **DIN-Rail Mountable Design:** The panel conforms to standard DIN-rail mounting dimensions, simplifying installation within control cabinets and automation panels. - **High-Quality Interface Construction:** Built with industrial-grade connectors and terminal interfaces to ensure stable signal transmission and long-term reliability. - **Cable-Free Configuration:** Supplied without pre-attached cables, allowing flexible wiring configurations and custom cable lengths for specific system layouts. - **Compact and Modular Form Factor:** Optimized for space efficiency in dense control enclosures, supporting modular expansion and easy maintenance. - **Robust Industrial Build:** Constructed from durable materials suitable for continuous operation in industrial environments with vibration, temperature variation, and electrical noise. - **Adlink Engineering Quality:** Manufactured by Adlink, a recognized provider of industrial computing and automation interface solutions, ensuring adherence to high manufacturing and quality standards.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Dedicated Interface Panel for Panasonic MINAS A Servo Amplifiers:** Specifically engineered to match the electrical and mechanical interface requirements of Panasonic’s MINAS A servo drive series. - **100-Pin SCSI-II Termination Board:** Provides a high-density, shielded connection interface for servo control signals, feedback lines, and I/O channels. - **DIN Rail Mounting Design:** Enables quick and secure installation within industrial control cabinets, ensuring easy integration into standard automation enclosures. - **Compact Form Factor:** With dimensions of **123 mm (W) × 107 mm (H) × 44 mm (D)**, the panel offers a space-efficient solution suitable for dense control panel layouts. - **High Signal Integrity:** The SCSI-II interface ensures reliable high-speed data transmission and minimal signal degradation, critical for precision servo control. - **Cable-Free Configuration (w/o Cable ACL-102100-1):** The unit is supplied without the connecting cable, allowing users to select or fabricate custom-length cables to suit specific installation requirements. - **Industrial-Grade Construction:** Built with durable materials and designed for long-term operation in demanding industrial environments. - **Adlink Quality Assurance:** Manufactured by Adlink, a recognized provider of industrial connectivity and automation components, ensuring compatibility, reliability, and performance consistency.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Dedicated Interface Panel:** Specifically designed for Panasonic MINAS A4 servo amplifier systems, ensuring full electrical and mechanical compatibility. - **100-pin SCSI-II Termination Board:** Provides a high-density, shielded connection interface for servo control signals, feedback lines, and I/O communication. - **DIN Rail Mounting:** Supports standard DIN rail installation for quick, secure, and organized panel integration within control cabinets. - **Compact Form Factor:** With dimensions of 123 × 107 × 44 mm, the panel fits efficiently into space-constrained automation enclosures. - **Industrial-Grade Construction:** Built for durability and long-term reliability in demanding industrial environments. - **Cable-Free Configuration:** Delivered without the ACL-102100-1 cable, allowing users to select or fabricate custom cable assemblies based on system requirements. - **Optimized Signal Integrity:** The SCSI-II interface ensures stable, low-noise signal transmission between the servo amplifier and control hardware. - **Plug-and-Play Integration:** Simplifies wiring and reduces installation time by providing a preconfigured termination interface. - **Manufacturer Quality Assurance:** Produced by Adlink, a recognized manufacturer of industrial computing and automation components, ensuring adherence to high-quality standards.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Universal Screw Terminal Interface:** Provides 40 screw terminal points for secure, heavy-duty signal wiring. Each terminal corresponds to a channel on the connected DAQ card, simplifying field wiring and maintenance. - **Dual Connector Support:** Equipped with both a 37-pin D-type connector and two 20-pin flat cable connectors, allowing flexible connection options for shielded or ribbon cables. - **Signal Conditioning Capability:** Includes reserved circuit pads for implementing passive signal conditioning such as low-pass filters, voltage attenuators, current-to-voltage converters, or break detection circuits. - **Industrial-Grade Construction:** Features robust terminal blocks suitable for industrial environments, ensuring reliable electrical contact and mechanical stability. - **Compatibility with Multiple ADLINK DAQ Cards:** Designed for use with a wide range of ADLINK PCI and ACL series cards, including analog and digital I/O modules such as PCI-9114, PCI-9111, PCI-6208, PCI-7200, PCI-7230, PCI-7250/7251, ACL-8312/8316, ACL-8112, ACL-8216, ACL-8111, ACL-6126, ACL-7130, and ACL-7225. - **Flexible Mounting Options:** Supplied with nylon standoffs for table-top or panel mounting, supporting both benchtop testing and permanent installation. - **Low-Cost, High-Reliability Design:** Offers a cost-effective solution for signal termination and conditioning in industrial automation and data acquisition systems.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Universal Screw Terminal Interface:** Provides 40 screw terminal points arranged as two 20-pin connectors (CNA and CNB), allowing direct connection to 20-pin flat ribbon cables. - **Signal Conditioning Capability:** Designed with reserved circuit pads for passive components (resistors and capacitors), enabling users to implement custom signal conditioning circuits such as: - Low-pass filters - Voltage attenuators - Current-to-voltage converters (e.g., 0–20 mA to 0–5 VDC) - **Flexible Configuration:** Each channel pair (A1–A2, B1–B2, etc.) can be configured for straight-through connection, attenuation, or filtering by populating or shorting specific resistor and capacitor positions. - **Compatibility:** Fully compatible with ADLINK’s ACL and PCI series DAQ cards, including ACL-8312/8316, ACL-8216, ACL-6126, and ACL-7120. - **Ease of Installation:** Equipped with nylon standoffs for secure table-top or panel mounting. Includes two 20-pin flat cables (ACL-10120-1) for direct connection to DAQ cards. - **Low-Cost, High-Reliability Design:** Provides a cost-effective and durable solution for laboratory, industrial, and educational signal interfacing applications. - **TTL/CMOS Signal Compatibility:** Supports TTL/CMOS-level signals for direct interfacing with digital I/O ports of ADLINK DAQ cards.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Comprehensive Signal Termination:** Provides 32 single‑ended analog input channels accessible via screw terminals and a 37‑pin D‑sub connector. - **Integrated RC Filter Network:** Each channel includes provisions for user‑configurable resistor (R) and capacitor (C) components, enabling low‑pass filtering, voltage attenuation, or current‑to‑voltage conversion. - **Flexible Signal Conditioning:** Supports installation of custom RC components for noise suppression, bandwidth limitation, or signal scaling. - **Universal Connectivity:** Equipped with a 37‑pin D‑sub female connector compatible with ADLINK’s ACL‑8113A and PCI‑9113A DAQ cards via the included ACL‑10137‑1 cable. - **Industrial‑Grade Screw Terminals:** Heavy‑duty screw clamp terminals ensure secure, vibration‑resistant connections suitable for laboratory and industrial environments. - **Included Accessories:** Ships with a 1‑meter ACL‑10137‑1 cable and nylon standoffs for table‑top or panel mounting. - **Low‑Cost, High‑Reliability Design:** Provides a cost‑effective solution for analog signal interfacing, filtering, and conditioning without requiring external circuitry. - **Ground Reference Flexibility:** Allows grounding of input channels by modifying resistor configuration (e.g., cutting RA and setting RB = 0 Ω) for offset calibration or current sensing. - **Compact Form Factor:** Board dimensions of approximately 221 mm × 105 mm allow easy integration into control panels or test benches.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Purpose-Built Compatibility:** Designed exclusively for the Panasonic MINAS A4 Servo Amplifier, ensuring perfect mechanical fit and electrical alignment. - **DIN Rail Mounting:** Supports standard DIN rail installation (typically 35 mm width), enabling quick and secure mounting within control cabinets or automation panels. - **Industrial-Grade Construction:** Manufactured from high-quality materials suitable for industrial environments, offering durability, vibration resistance, and long service life. - **Optimized Wiring Interface:** Provides organized terminal access for power, control, and feedback signals, reducing wiring complexity and improving maintenance efficiency. - **Compact Form Factor:** Space-efficient design allows integration into dense control enclosures without compromising accessibility or cooling. - **Enhanced Safety and Reliability:** Incorporates secure mechanical locking and grounding provisions to ensure stable operation under continuous industrial loads. - **Plug-and-Play Integration:** Simplifies connection between the servo amplifier and peripheral devices such as motion controllers, I/O modules, and sensors. - **Adlink Quality Assurance:** Developed and manufactured by Adlink, a recognized provider of industrial computing and automation solutions, ensuring compliance with stringent quality and performance standards.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

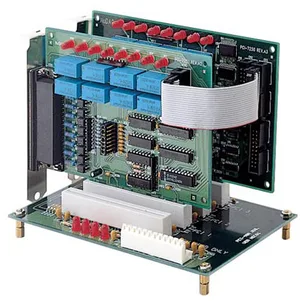

- **Expansion Capability:** Adds 8 relay outputs and 8 isolated digital inputs to the PCI-7250 main card. - **Scalability:** Supports up to three PCI-7251 modules per PCI-7250, expanding total I/O to 32 relay outputs and 32 isolated inputs. - **Relay Configuration:** 4 SPDT (Form C) and 4 SPST (Form A) relays, non-latching type. - **Optical Isolation:** 8 optically isolated digital input channels for noise immunity and signal integrity. - **LED Indicators:** Onboard LEDs display the status of each relay output for easy monitoring. - **High Isolation Voltage:** 5000 VRMS isolation between input channels and system ground. - **Programmable I/O:** Supports programmed I/O data transfer for flexible control. - **Compact Design:** PCB dimensions of 141 mm x 102 mm, suitable for industrial and laboratory environments. - **Compatibility:** Designed to operate seamlessly with the PCI-7250 main card; controlled via the PCI-7250 bus interface. - **Durability:** Relay life expectancy exceeds 500,000 operations at 1 A, 24 VDC. - **Environmental Robustness:** Operates in 0–60°C temperature range with 5–95% non-condensing humidity. - **Software Support:** Compatible with ADLINK’s DAQPilot, PCIS-DASK, and DAQ-MTLB drivers for Windows and Linux.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCI

- **Dedicated Interface for Yaskawa Sigma II Servo Amplifiers:** Specifically designed to provide a seamless connection and termination interface for the Sigma II series, ensuring compatibility and stable communication. - **100-Pin SCSI-II Termination Board:** Utilizes a high-density 100-pin SCSI-II connector standard, supporting multiple signal lines for servo control, feedback, and I/O communication. - **DIN Rail Mounting Design:** Compact form factor with integrated DIN rail mounting capability (standard 35 mm rail), allowing quick installation within industrial control cabinets. - **High-Quality Construction:** Built with industrial-grade materials to ensure mechanical stability, electrical reliability, and long-term performance in demanding environments. - **Compact Dimensions:** Measuring **123 mm (L) × 107 mm (W) × 44 mm (H)**, the panel offers a space-efficient design suitable for dense control panel layouts. - **Cable-Free Configuration:** Delivered **without cable (ACL-102100-1)**, allowing users to select or fabricate custom cable assemblies according to system requirements. - **Optimized Signal Integrity:** The termination board design minimizes signal noise and crosstalk, ensuring accurate servo feedback and control signal transmission. - **Ease of Integration:** Designed for plug-and-play compatibility with Yaskawa Sigma II servo amplifiers, reducing wiring complexity and installation time. - **Industrial Reliability:** Engineered for continuous operation in industrial automation systems, motion control setups, and machine tool environments.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Purpose-Built for Yaskawa SigmaII Servo Amplifiers:** Engineered specifically for the SigmaII series, ensuring perfect mechanical fit and electrical compatibility. - **DIN Rail Mounting Design:** Supports standard **DIN EN 60715** rail installation, simplifying integration into industrial control panels. - **High-Quality Industrial Construction:** Built from durable, corrosion-resistant materials suitable for continuous operation in factory automation environments. - **Optimized Cable Management:** Provides organized routing for power, feedback, and control signal cables, minimizing electromagnetic interference (EMI) and improving serviceability. - **Thermal and Electrical Safety:** Designed to maintain proper airflow and electrical isolation, supporting the amplifier’s thermal management and safety compliance. - **Plug-and-Play Integration:** Preconfigured mounting and connector alignment allow quick installation without modification to the amplifier or cabinet. - **Compact and Modular Form Factor:** Enables efficient use of panel space and supports modular system expansion. - **Adlink Quality Assurance:** Manufactured under strict quality control standards, ensuring long-term reliability and consistent performance.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Universal Screw Terminal Interface:** Provides 2×20 small screw terminals for secure, tool‑accessible wiring of field signals. - **37‑Pin D‑Sub Connector:** Standard female DB‑37 connector for direct connection to ADLINK DAQ cards or external devices. - **16 Single‑Ended Channels:** Supports 16 single‑ended analog input channels (AI0–AI15) with shared ground reference. - **On‑Board Signal Conditioning Pads:** User‑configurable resistor and capacitor positions (RAx, RBx, Cx) allow implementation of filters, attenuators, or current‑to‑voltage converters. - **Power Status Indicator:** On‑board LED indicates active power supply between DB‑37 pins 15 (+5 V) and 19 (ground). - **Compact, Panel‑Mountable Design:** Includes nylon standoffs for table‑top or panel installation. - **Compatibility:** Designed for use with ADLINK PCI‑9111/9112, ACL‑8112, ACL‑8216, and ACL‑8312/8316 series DAQ cards. - **Ease of Integration:** Two 20‑pin flat‑ribbon connectors simplify connection to host DAQ boards. - **Flexible Signal Conditioning:** Supports user‑defined passive circuits for low‑pass filtering, voltage attenuation, or current‑loop conversion. - **Industrial Reliability:** Screw terminals and plated through‑holes ensure robust mechanical and electrical connections.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Dedicated Interface for Mitsubishi J3A Servo Drives:** Specifically designed to connect Adlink PCI-8253 and PCI-8256 motion control cards to Mitsubishi J3A series servo amplifiers, ensuring full compatibility and signal integrity. - **DIN-Rail Mountable Design:** The board features a compact DIN-rail form factor, allowing quick installation in standard industrial control enclosures. - **Simplified Wiring and Maintenance:** Terminal blocks provide clear labeling and easy access for wiring, reducing setup time and minimizing wiring errors. - **High Signal Integrity:** Optimized PCB layout and grounding ensure stable signal transmission between the motion controller and servo drives. - **Industrial-Grade Construction:** Built with robust materials suitable for continuous operation in industrial environments, offering durability and long service life. - **Plug-and-Play Compatibility:** Designed for direct connection with Adlink motion control cards via standard flat cables, eliminating the need for custom wiring harnesses. - **Supports Multi-Axis Motion Control:** Enables connection of multiple servo channels, supporting complex motion control applications such as CNC, robotics, and automated assembly systems. - **Clear Terminal Identification:** Each terminal is clearly marked for signal type and function, facilitating quick troubleshooting and maintenance.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels
