- **16 Optically Isolated Digital Inputs:** Each channel supports 0–30 VDC logic signals, with 3750 Vrms optical isolation to protect against voltage spikes and ground potential differences. - **Dual Communication Protocols:** Supports both **ASCII** and **Modbus RTU** protocols for flexible integration with various control systems. - **Wide Power Supply Range:** Operates from **+10 VDC to +30 VDC**, suitable for industrial power environments. - **High-Speed Communication:** Baud rates configurable from **1.2 Kbps to 115.2 Kbps**. - **Counter Functionality:** Each of the 16 input channels can function as a **16-bit counter** (0–65535) with a maximum counting frequency of **100 Hz**. - **Dual Watchdog System:** Includes both hardware and software watchdogs to monitor module and host operation, ensuring system reliability and automatic recovery from faults. - **LED Indicators:** Individual LEDs for each input channel and a power LED provide real-time status indication. - **Flexible Mounting:** Supports both **DIN rail** and **panel mounting** for easy installation in control cabinets. - **Configuration and Self-Test:** External DIP switches allow users to enter configuration mode, select protocol type, restore factory defaults, and perform self-tests. - **Low Power Consumption:** Maximum power consumption of **1.5 W**, ensuring energy efficiency. - **Rugged Design:** Built for industrial environments with wide operating temperature and humidity ranges.

Manufacturer: Trycom

Category: Ethernet / USB / RS485 / RS232 Modbus IO

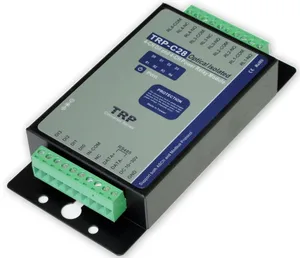

- **4 Isolated Digital Inputs and 4 Power Relay Outputs:** Provides four optically isolated digital input channels and four relay output channels for flexible control and monitoring. - **High Isolation Protection:** Each input channel features 3750 Vrms optical isolation to protect against high-voltage transients and ground potential differences. - **Dual Communication Protocols:** Supports both ASCII and Modbus RTU protocols for versatile integration with various control systems. - **Wide Baud Rate Range:** Configurable communication speeds from 1.2 kbps to 115.2 kbps. - **Counter Functionality:** Each digital input can function as an independent counter channel with a frequency capability of up to 100 Hz. - **Dual Watchdog System:** Includes both hardware and software watchdogs to ensure continuous operation and automatic recovery from communication or system faults. - **LED Indicators:** Individual LEDs for each channel and power status provide real-time visual feedback. - **Flexible Mounting Options:** Supports both DIN rail and panel mounting for easy installation in control cabinets. - **User-Friendly Configuration:** External DIP switch allows quick selection between Modbus RTU and ASCII modes, as well as reset to factory defaults and self-test mode. - **Surge Protection:** RS-485 communication lines are protected against surge and transient voltages. - **Power Supply Flexibility:** Accepts DC power via screw terminal or external DC adapter. - **Compact and Durable Design:** Industrial-grade enclosure with screw terminal connectors for secure wiring.

Manufacturer: Trycom

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **8 Isolated Digital Inputs and 8 Open-Collector Outputs:** Each input and output channel is optically isolated to 3750 Vrms, ensuring electrical protection and noise immunity. - **Dual Communication Protocols:** Supports both **ASCII** and **Modbus RTU** protocols for flexible integration with various control systems and SCADA platforms. - **Wide Baud Rate Range:** Configurable communication speeds from **1.2 kbps to 115.2 kbps**, compatible with most RS485 networks. - **Counter Functionality:** All 8 digital input channels can function as **16-bit counters** (0–65535 dec / 0000–FFFF hex) with a maximum counting frequency of **100 Hz**. - **Dual Watchdog System:** Includes both **hardware and software watchdogs** to ensure continuous operation and automatic recovery from communication or system faults. - **LED Indicators:** Individual LEDs for each channel display real-time input/output status, plus a power LED for system monitoring. - **Flexible Mounting Options:** Supports **DIN rail** and **panel mounting**, suitable for control cabinets and industrial enclosures. - **Surge and Isolation Protection:** 3750 Vrms isolation on I/O channels and surge protection on RS485 lines safeguard against voltage spikes and ground potential differences. - **User-Friendly Configuration:** External **DIP-switch** allows quick selection between Modbus RTU and ASCII modes, self-test activation, and reset to factory defaults. - **Power Supply Flexibility:** Operates from a wide DC input range via **screw terminal** or **external DC adapter** connection.

Manufacturer: Trycom

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Dual‑Function I/O:** 8 optically isolated digital inputs and 8 open‑collector digital outputs. - **High Isolation Protection:** 3750 Vrms optical isolation between input channels and logic circuitry. - **USB 2.0 Interface:** Built‑in USB‑to‑serial bridge providing plug‑and‑play connectivity; automatically enumerates as a virtual COM port. - **Protocol Support:** Fully compatible with ASCII and Modbus RTU protocols for flexible integration with industrial control systems. - **Counter Functionality:** Each digital input can function as a 16‑bit counter (0–65535 dec / 0000–FFFF hex) with a maximum counting frequency of 100 Hz. - **Dual Watchdog System:** Hardware watchdog for module self‑recovery and software watchdog for host communication monitoring. - **Status Indication:** Individual LED indicators for each channel and power status. - **Configuration & Self‑Test:** External DIP‑switch for protocol selection, configuration reset, and self‑test mode activation. - **Power Supply:** Directly powered from the USB port (no external power required). - **Mounting Flexibility:** Supports both DIN‑rail and panel mounting. - **Cross‑Platform Driver Support:** Compatible with Windows (98/ME/2000/XP/Vista/7/8.1/CE5.0–7.0), Linux, Mac OS, and Android. - **Rugged Industrial Design:** Compact metal enclosure with screw‑terminal connectors supporting AWG #12–32 wiring.

Manufacturer: Trycom

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **8 Isolated Analog Input Channels:** Each channel supports voltage or current input with configurable ranges (±650 mV, ±1.25 V, ±2.5 V, ±5 V, ±10 V, ±20 mA). - **High‑Resolution Conversion:** 24‑bit resolution at 10 samples/s (Normal Mode) or 16‑bit resolution at 60 samples/s (Fast Mode). - **Wide Communication Range:** RS‑485 interface supporting baud rates from 1.2 kbps to 115.2 kbps. - **Protocol Flexibility:** Supports both ASCII and Modbus RTU communication protocols for easy integration with PLCs, SCADA, and PC‑based systems. - **Electrical Isolation:** 3750 Vrms photo‑isolation between analog and digital sections ensures protection against ground loops and high‑voltage transients. - **Surge Protection:** Built‑in surge protection on RS‑485 data lines safeguards against electrical spikes. - **Dual Watchdog System:** Hardware and host watchdogs ensure continuous operation and automatic recovery from communication or system faults. - **Auto and Manual Calibration:** Automatic voltage calibration at power‑up; manual calibration commands available for zero and full‑scale adjustments. - **LED Indicators:** Power and communication status LEDs for visual diagnostics. - **Flexible Mounting:** Supports both DIN‑rail and panel mounting. - **Wide Power Supply Range:** Operates from +10 V DC to +30 V DC. - **Compact and Rugged Design:** Industrial‑grade enclosure with screw terminal connections for secure wiring.

Manufacturer: Trycom

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **8 Differential Analog Input Channels:** Each channel supports voltage or current input modes, selectable via internal jumpers. - **High Resolution and Sampling Rate:** 16-bit or 24-bit resolution with selectable sampling modes—Normal (10 samples/sec) and Fast (60 samples/sec). - **Wide Input Range:** Voltage input ranges of ±10V, ±5V, ±2.5V, ±1.25V, ±650mV; current input range of ±20mA or 4–20mA. - **Electrical Isolation:** 3750 Vrms optical isolation between input channels and communication interface for enhanced safety and noise immunity. - **Surge Protection:** Built-in surge absorbers on each channel to prevent damage from transient voltages. - **Multi-Protocol Support:** Automatically detects and supports TRP-ASCII, Modbus RTU, and Modbus ASCII communication protocols. - **Ethernet Connectivity:** RJ45 interface with Auto-MDIX support for automatic crossover detection and correction. - **Web-Based Configuration:** Integrated web server for configuration, monitoring, and firmware updates via LAN. - **Network Security:** Supports up to 8 authorized host IP addresses for controlled network access. - **Watchdog Function:** Ensures stable operation and automatic recovery from system or network failures. - **Heartbeat Function:** Periodic TCP keep-alive messages every 5 seconds to maintain reliable communication. - **Multiple TCP Connections:** Supports up to 16 simultaneous TCP client connections. - **Flexible Power Input:** Dual power input options—screw terminal or DC jack (10–30V DC). - **Mounting Options:** DIN-rail and panel mounting supported for versatile installation. - **LED Indicators:** Power, link, and per-channel status LEDs for quick diagnostics. - **Factory Reset Button:** External button for restoring factory default configuration. - **Firmware Upgrade via LAN:** Simplified update process through network interface. - **Virtual COM Port Support:** Enables legacy serial applications to communicate over Ethernet.

Manufacturer: Trycom

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Single‑Circuit Power Measurement:** Measures one electrical circuit with selectable primary current clamps (5 A / 60 A / 100 A / 200 A / 300 A / 400 A / 600 A). - **Multi‑Parameter Monitoring:** Capable of recording up to **50 electrical parameters simultaneously**, including voltage, current, power, energy, frequency, and power factor. - **Modbus RTU Communication:** Fully compliant with Modbus/RTU protocol over RS‑485 interface; supports baud rates from **1 200 bps to 115 200 bps**. - **Wide Power Supply Range:** Operates from **10 V DC – 60 V DC**, consuming approximately **5 W**. - **Industrial‑Grade Design:** EMC‑tested, 3 000 V DC isolation protection, and robust operation in harsh industrial environments. - **Compact Form Factor:** Slim vertical housing (129.6 × 135 × 47.2 mm) for high‑density DIN‑rail installations. - **Hot‑Swap and Auto‑Configuration:** Detachable EEPROM retains configuration; modules can be replaced without re‑wiring. - **Programmable Safety and Power‑On Values:** Ensures safe system states during startup or communication loss. - **High Reliability:** Dual watchdog architecture (module and system) for automatic recovery from communication or hardware faults. - **Ease of Maintenance:** Rotary switches for Modbus address setup; LED indicators for power, communication, and system status. - **Long‑Term Warranty:** 5‑year manufacturer warranty covering manufacturing defects.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Four‑Circuit Power Measurement:** Simultaneous monitoring of up to four independent electrical circuits, enabling multi‑channel energy management within a single compact module. - **Wide Current Clamp Range:** Compatible with external current clamps rated for 5 A, 60 A, 100 A, 200 A, 300 A, 400 A, and 600 A primary current, allowing flexible deployment across low‑ and high‑current systems. - **High‑Speed Modbus RTU Communication:** RS‑485 interface supporting baud rates from 1200 bps to 115 200 bps for integration with PLCs, SCADA, and energy management systems. - **Multi‑Parameter Data Acquisition:** Capable of recording up to 50 electrical parameters simultaneously, including voltage, current, power factor, frequency, and energy consumption. - **Compact, Space‑Saving Design:** Slim vertical housing (129.6 × 135 × 47.2 mm) optimized for DIN‑rail or wall mounting; up to 1.5 times more modules can be installed in the same space compared with conventional flat‑type I/O devices. - **Industrial‑Grade Reliability:** Designed for continuous operation in harsh environments with isolation protection up to 3000 V DC, watchdog timers, and programmable safe‑state outputs. - **Flexible Power Supply:** Operates from +10 V DC to +60 V DC (typical 24 V DC), consuming approximately 5 W; reverse‑polarity protection included. - **Hot‑Swap and Auto‑Configuration:** Detachable EEPROM retains configuration data; modules can be replaced without re‑wiring or re‑programming. - **Ease of Installation and Maintenance:** Front‑facing terminal blocks, rotary address switches, and LED status indicators simplify setup, diagnostics, and field servicing. - **Extended Environmental Range:** Operating temperature –25 °C to +70 °C; humidity 5 % to 95 % RH (non‑condensing). - **Long‑Term Warranty:** Backed by a 5‑year manufacturer warranty covering defects under normal industrial use.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Universal Analog Input Capability:** Eight independent differential analog input channels supporting voltage, current, and thermocouple signals. Each channel can be configured individually for different input types and ranges. - **High Voltage and Common‑Mode Protection:** ±240 V input protection and 240 V common‑mode voltage tolerance ensure resilience against wiring errors, ground potential differences, and transient surges. - **High Accuracy and Resolution:** 16‑bit A/D conversion with ±0.1 % FSR accuracy and 2.5 samples/s per channel sampling rate. - **Wide Input Range:** Supports ±100 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0–100 mV, 0–500 mV, 0–1 V, 0–5 V, 0–10 V, ±20 mA, 0–20 mA, and 4–20 mA signal ranges. - **Thermocouple Compatibility:** Direct connection for J, K, T, E, R, S, B, and N type thermocouples with built‑in cold‑junction compensation (CJC) and disconnection detection. - **Industrial‑Grade Isolation:** 3 kV DC isolation between power, communication, and I/O circuits to prevent noise coupling and protect host systems. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring. Configuration parameters are stored in a removable EEPROM for quick transfer to replacement units. - **Programmable Power‑On and Safety Values:** Ensures predictable startup behavior and safe output states during communication loss or watchdog timeout. - **Wide Power Supply Range:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p), compatible with 12 V, 24 V, 36 V, and 48 V industrial supplies. - **Compact, Space‑Saving Design:** Slim 47.2 mm vertical housing allows dense DIN‑rail installation—up to 1.5 × more modules per panel compared to conventional flat designs. - **Simple Addressing and Diagnostics:** Two rotary switches for Modbus node address (1–247) and three LED indicators for power, communication, and system status simplify setup and troubleshooting. - **Rugged Industrial Reliability:** Integrated hardware and system watchdogs automatically recover from noise‑induced faults. Designed for continuous operation from –25 °C to +70 °C. - **Modbus/RTU Communication:** Standard RS‑485 interface supporting baud rates from 1200 bps to 115.2 kbps and communication distances up to 1.2 km.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Universal Analog Input Capability:** Sixteen independent differential analog input channels supporting voltage, current, and thermocouple signals. - **Wide Input Range:** Configurable per channel for ±100 mV, ±500 mV, ±1 V, ±5 V, ±10 V, or 0–100 mV, 0–500 mV, 0–1 V, 0–5 V, 0–10 V; current ranges ±20 mA, 0–20 mA, 4–20 mA. - **Thermocouple Compatibility:** Direct connection for J, K, T, E, R, S, B, N types with built‑in cold‑junction compensation (CJC) and disconnection detection. - **High Accuracy and Resolution:** 16‑bit A/D conversion with ±0.1 % FSR accuracy and 2.5 samples per second per channel. - **High Voltage and Common‑Mode Protection:** ±240 V input protection and 240 V common‑mode isolation between channels. - **Robust Isolation:** 3 kV DC isolation between power, communication, and I/O circuits. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM for quick restoration. - **Programmable Power‑On and Safety Values:** Ensures safe system states during startup or communication failure. - **Wide Power Supply Range:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p). - **RS‑485 Modbus/RTU Communication:** Baud rates selectable from 1200 bps to 115.2 kbps; node address set via dual rotary switches (1–247). - **Compact, Space‑Saving Design:** 47.2 mm slim vertical housing for dense DIN‑rail installations. - **Industrial‑Grade Reliability:** Built‑in hardware and system watchdogs, 3‑LED diagnostic indicators, and rugged EMC‑certified design.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Universal Analog Input Capability:** Supports multiple signal types per channel, including voltage (±100 mV to ±10 V), current (±20 mA, 0–20 mA, 4–20 mA), and thermocouple (J, K, T, E, R, S, B, N). Each channel is independently configurable via Modbus registers and DIP switches. - **High‑Resolution Measurement:** 16‑bit A/D conversion with 2.5 samples/s per channel, providing ±0.1 % FSR accuracy. - **Cold Junction Compensation (CJC):** Integrated temperature sensor for automatic thermocouple cold‑junction compensation, configurable via Modbus. - **Channel‑to‑Channel Isolation and Protection:** ±35 V input protection and 3 kVDC isolation between power, communication, and I/O circuits. - **EEPROM‑Based Configuration Backup:** Non‑volatile EEPROM stores all configuration parameters; easily transferable between modules for hot‑swap replacement. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration automatically restored from EEPROM. - **Wide Power Input Range:** Operates from +10 VDC to +60 VDC (ripple ≤ 5 V p‑p), supporting 12 V, 24 V, 36 V, 48 V industrial supplies. - **Compact, Space‑Saving Design:** Slim 47.2 mm vertical housing allows dense DIN‑rail installation; up to 1.5× more modules per panel compared to flat designs. - **Rugged Industrial Reliability:** Built‑in hardware and system watchdogs ensure automatic recovery from communication or power faults. - **Programmable Safety and Power‑On Values:** User‑defined safe states prevent unintended actuator operation during startup or communication loss. - **Easy Node Addressing:** Two rotary switches allow quick Modbus address setup (1–247) without software tools. - **Diagnostic LED Indicators:** Three front LEDs display power, communication, and system status for quick on‑site troubleshooting. - **Modbus/RTU Communication:** Standard RS‑485 interface, baud rates from 1200 bps to 115.2 kbps, up to 1.2 km communication distance.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Universal Analog Input Capability:** Supports voltage, current, and thermocouple inputs on each of 16 channels. Configurable per channel for ±100 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0–100 mV, 0–500 mV, 0–1 V, 0–5 V, 0–10 V, ±20 mA, 0–20 mA, 4–20 mA, and thermocouple types J, K, T, E, R, S, B, N. - **High‑Resolution Data Acquisition:** 16‑bit A/D conversion with 2.5 samples/sec per channel, ±0.1 % FSR accuracy. - **Independent Channel Configuration:** Each channel can be individually set for voltage, current, or thermocouple input, enabling mixed‑signal acquisition within one module. - **Cold Junction Compensation (CJC):** Integrated thermal sensor for automatic CJC when using thermocouples. - **Sensor Burn‑Out and Disconnection Detection:** Detects open‑circuit or failed sensors for voltage, current, and thermocouple inputs. - **High Isolation and Protection:** 3 kV DC isolation between power, communication, and I/O; ±35 V input overvoltage protection; 240 V channel‑to‑channel isolation. - **Wide Power Supply Range:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p). - **Compact, Space‑Saving Design:** Slim 47.2 mm vertical housing allows dense DIN‑rail installation; up to 1.5× more modules per panel compared to conventional flat designs. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM for quick restoration. - **Programmable Power‑On and Safety Values:** Ensures safe output states during startup or communication failure. - **Easy Node Addressing:** Two rotary switches for Modbus node address (1–247) – no PC required. - **Diagnostic LED Indicators:** Three front LEDs display power, communication, and system status for quick on‑site troubleshooting. - **Rugged Industrial Reliability:** Built‑in hardware and system watchdogs automatically recover from communication or system faults. - **Modbus/RTU Communication:** Baud rates from 1200 bps to 115.2 kbps; communication distance up to 1.2 km over RS‑485.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Universal Thermocouple Input:** Supports J, K, T, E, R, S, B, and N thermocouple types for wide‑range temperature measurement. - **High‑Resolution Conversion:** 16‑bit A/D resolution with 2.5 samples per second per channel ensures precise analog‑to‑digital conversion. - **Cold Junction Compensation (CJC):** Integrated thermal sensor for automatic cold junction compensation, configurable via Modbus registers. - **Channel Independence:** Each of the 8 channels can be configured independently for different thermocouple types. - **Burn‑Out Detection:** Detects open‑circuit or sensor disconnection conditions to prevent false readings or unsafe operations. - **High Isolation:** 3000 VDC isolation between power, communication, and I/O circuits for noise immunity and safety. - **Wide Power Input Range:** Operates from +10 VDC to +60 VDC with reverse polarity protection; ripple peak ≤ 5 V. - **Compact Design:** Slim 47.2 mm vertical housing for space‑constrained installations such as control panels or distribution boxes. - **Hot‑Swap Capability:** Modules can be replaced without rewiring; configuration stored in removable EEPROM for quick recovery. - **Easy Address Configuration:** Modbus node address set via dual rotary switches (1–247). - **LED Diagnostics:** Three front‑panel LEDs indicate power, communication, and system status for quick on‑site troubleshooting. - **Programmable Safety Values:** User‑defined power‑on and fail‑safe output states to ensure controlled behavior during faults. - **Industrial‑Grade Reliability:** Designed for continuous operation in ‑25 °C to +70 °C environments with built‑in watchdog timers. - **Modbus/RTU Communication:** Standard RS‑485 interface supporting baud rates from 1200 bps to 115.2 kbps, up to 1.2 km communication distance. - **EMC Compliance:** Tested for EMI/EMS immunity; CE and FCC Part 15 compliant. - **5‑Year Warranty:** Long‑term reliability backed by Advanio’s extended warranty program.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Universal 16‑Channel Thermocouple/Analog Input:** Accepts direct connection of J, K, T, E, R, S, B, N thermocouples or low‑level voltage signals (±100 mV to ±10 V). - **High‑Resolution Data Acquisition:** 16‑bit A/D conversion with 2.5 samples per second per channel ensures precise measurement for temperature and voltage inputs. - **Cold Junction Compensation (CJC):** Integrated temperature sensor provides automatic cold‑junction compensation for thermocouple accuracy. - **Independent Channel Configuration:** Each channel can be individually configured for input type and range via Modbus registers. - **Sensor Burn‑Out and Disconnection Detection:** Detects open‑circuit or failed sensors to prevent erroneous readings and unsafe control actions. - **Electrical Isolation:** 3 kV DC isolation between power, communication, and I/O circuits protects against ground loops and industrial noise. - **Wide Power Supply Range:** Operates from **+10 V DC to +60 V DC** with reverse‑polarity protection; ripple peak ≤ 5 V. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM for quick restoration. - **Compact, Space‑Saving Design:** Slim 47.2 mm vertical housing allows dense DIN‑rail installation—up to 1.5× more modules per panel than flat‑mounted competitors. - **User‑Friendly Setup:** Modbus node address set by dual rotary switches (1–247); no PC required. - **Diagnostic LEDs:** Three front‑panel LEDs indicate power, communication, and system status for rapid on‑site troubleshooting. - **Programmable Power‑On and Safety Values:** Ensures controlled startup and safe fallback states during communication loss. - **Rugged Industrial Reliability:** Built‑in hardware and software watchdogs automatically recover from transient faults or host communication failures. - **Modbus/RTU Compatibility:** Fully compliant with standard Modbus RTU protocol; baud rates selectable from 1200 bps to 115.2 kbps.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Eight Differential Current Input Channels:** Each channel independently configurable for ±20 mA, 4–20 mA, or 0–20 mA input ranges. - **High‑Resolution Conversion:** 16‑bit A/D resolution with 2.5 samples/s per channel sampling rate. - **High Accuracy:** ±0.1 % of full‑scale range (FSR). - **Wide Power Supply Range:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p). - **Robust Isolation:** 3 kV DC isolation between power, communication, and I/O circuits. - **Input Protection:** ±35 V over‑voltage protection and 120 Ω input impedance per channel. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM. - **Sensor Disconnection Detection:** Detects open‑loop or failed 4–20 mA transmitters. - **Programmable Power‑On and Safety Values:** Ensures safe system states during startup or communication loss. - **Compact Form Factor:** 47.2 mm slim vertical housing for space‑constrained control panels. - **Simple Node Addressing:** Two rotary switches for Modbus address setup (1–247). - **LED Diagnostics:** Three front LEDs indicate power, communication, and system status. - **Wide Baud Rate Range:** 1200 bps to 115.2 kbps, configurable parity (N, E, O). - **Industrial Reliability:** Built‑in hardware and system watchdogs for automatic recovery from faults. - **EMC‑Certified Design:** Complies with CE and FCC Part 15 standards for EMI/EMS immunity. - **Long‑Term Warranty:** 5‑year manufacturer warranty.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **16 Independent Current Input Channels:** Each channel configurable for ±20 mA, 4–20 mA, or 0–20 mA input ranges. - **High‑Resolution Conversion:** 16‑bit A/D resolution with 2.5 samples per second per channel. - **High Accuracy:** ±0.1 % of Full‑Scale Range (FSR). - **Wide Power Input Range:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p). - **Robust Isolation:** 3 kV DC isolation between power, communication, and I/O circuits. - **Input Protection:** ±35 V overvoltage protection and 240 V channel‑to‑channel isolation. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM. - **Programmable Power‑On and Safety Values:** Ensures safe system states during startup or communication loss. - **Sensor Disconnection Detection:** Detects open‑loop or failed sensors in 4–20 mA mode. - **Compact Design:** Slim 47.2 mm vertical housing for space‑constrained installations. - **Easy Node Addressing:** Dual rotary switches for Modbus node address (1–247). - **LED Diagnostics:** Three front‑panel LEDs indicate power, communication, and system status. - **Wide Temperature Range:** Operates from −25 °C to +70 °C. - **Industrial‑Grade Reliability:** Built‑in hardware and system watchdogs for self‑recovery. - **Modbus/RTU Compatibility:** Baud rates from 1200 bps to 115.2 kbps. - **5‑Year Warranty:** Long‑term reliability assurance.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Eight Differential Analog Voltage Inputs:** Each channel independently configurable for ±1 V, ±5 V, ±10 V, 0–1 V, 0–5 V, or 0–10 V ranges. - **High Resolution and Accuracy:** 16‑bit A/D conversion with ±0.1 % of full‑scale accuracy. - **Channel‑to‑Channel Isolation:** Input protection up to ±35 V and 3 kV isolation between I/O, power, and communication circuits. - **Independent Channel Configuration:** Each channel can be set individually for different voltage ranges. - **Sensor Disconnection Detection:** Built‑in detection of open‑circuit or failed sensor conditions. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM. - **Programmable Power‑On and Safety Values:** Ensures safe system states during startup or communication failure. - **Wide Power Supply Range:** Operates from +10 VDC to +60 VDC (ripple ≤ 5 V p‑p). - **Compact, Space‑Saving Design:** 47.2 mm slim vertical housing for dense DIN‑rail installations. - **Easy Node Addressing:** Two rotary switches for Modbus node address (1–247). - **LED Diagnostics:** Three front LEDs indicate power, communication, and system status. - **Industrial‑Grade Reliability:** EMC‑tested, with watchdog timers and fault recovery mechanisms. - **Modbus/RTU Communication:** Baud rates selectable from 1200 bps to 115.2 kbps. - **Operating Temperature:** −25 °C to +70 °C for harsh industrial environments. - **Low Power Consumption:** 1.6 W at 24 VDC. - **5‑Year Warranty:** Long‑term reliability assurance.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **16 Independent Analog Input Channels:** Each channel can be configured independently for voltage ranges of ±1 V, ±5 V, ±10 V, or 0–1/5/10 V. - **High Resolution and Accuracy:** 16‑bit A/D conversion with ±0.1 % FSR accuracy and 2.5 samples/s per channel. - **Wide Input Protection:** ±35 V overvoltage protection and 240 V channel‑to‑channel isolation safeguard against wiring errors and ground potential differences. - **Industrial‑Grade Isolation:** 3 kV DC isolation between power, communication, and I/O circuits ensures reliable operation in noisy environments. - **Flexible Power Supply:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p). - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration is stored in a removable EEPROM for quick restoration. - **Programmable Power‑On and Safety Values:** Ensures defined output states during startup or communication failure. - **Easy Node Addressing:** Two rotary switches allow Modbus node address setup (1–247) without software tools. - **LED Diagnostics:** Three front‑panel LEDs indicate power, communication, and system status for quick on‑site troubleshooting. - **Compact, Space‑Saving Design:** 47.2 mm slim vertical housing allows dense DIN‑rail installation. - **Rugged Industrial Reliability:** Built‑in hardware and system watchdogs automatically recover from communication or system faults. - **Modbus RTU Compatibility:** Standard RS‑485 interface supports baud rates from 1200 bps to 115.2 kbps and communication distances up to 1.2 km. - **Wide Operating Temperature:** −25 °C to +70 °C for harsh industrial environments. - **5‑Year Warranty:** Long‑term reliability backed by Advanio’s extended warranty program.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Multi‑Sensor RTD Support:** Compatible with Pt100 (IEC 0.00385 / JIS 0.00392), Pt1000, Cu100, Cu1000, Cu50, Ni100, Ni120, Ni507.5, Ni604, and BALCO 500 sensors. - **Six Independent Channels:** Each channel uses a discrete A/D converter for improved accuracy and channel‑to‑channel isolation. - **High Electrical Isolation:** 3 kV DC isolation between power, communication, and I/O circuits. - **Overvoltage Protection:** ±55 V input protection and 240 V channel‑to‑channel dielectric protection. - **Disconnection Detection:** Automatic sensor break/failure detection for safety‑critical applications. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration is restored via removable EEPROM. - **Programmable Power‑On and Safety Values:** Ensures safe system states during startup or communication loss. - **Wide Power Input Range:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p). - **Compact, Space‑Saving Design:** 47.2 mm slim vertical housing for dense DIN‑rail installations. - **Easy Node Addressing:** Two rotary switches for Modbus node address (1–247). - **LED Diagnostics:** Three front‑panel LEDs indicate power, communication, and system status. - **Industrial‑Grade Reliability:** Built‑in hardware and system watchdogs for self‑recovery from communication or host failures. - **Wide Operating Temperature:** −25 °C to +70 °C operation, −30 °C to +75 °C storage. - **Modbus/RTU Communication:** Baud rates from 1200 bps to 115.2 kbps; maximum cable length 1.2 km. - **Low Power Consumption:** 1.6 W @ 24 V DC typical. - **5‑Year Warranty:** Long‑term reliability assurance for industrial deployments.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **8 Differential Analog Input Channels:** Each channel independently configurable for voltage or current measurement. - **Wide Input Range:** ±100 mV / ±500 mV / ±1 V / ±5 V / ±10 V and 0–100 mV / 0–500 mV / 0–1 V / 0–5 V / 0–10 V / ±20 mA / 4–20 mA / 0–20 mA. - **High Resolution and Accuracy:** 16‑bit A/D conversion, 2.5 samples per second per channel, ±0.1 % FSR accuracy. - **Channel‑to‑Channel Isolation and Protection:** 240 V common‑mode voltage protection and ±240 V input over‑voltage protection. - **3 kV Isolation Barrier:** Isolation between I/O, power, and communication circuits for industrial noise immunity. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; EEPROM retains configuration parameters. - **Programmable Power‑On and Safety Values:** Ensures safe output states during power up or communication failure. - **Wide Power Input Range:** +10 to +60 V DC with reverse polarity protection and ripple tolerance ≤ 5 V p‑p. - **Compact Slim Design:** 47.2 mm width for space‑saving DIN‑rail mounting. - **Easy Modbus Node Address Setting:** Two rotary switches for address selection (1–247). - **LED Diagnostics:** Three status LEDs for power, system, and communication indication. - **Sensor Disconnection Detection:** Automatic fault detection for open sensor circuits. - **Watchdog Timers:** Hardware (module) and software (system) watchdogs for fail‑safe operation. - **Industrial Grade Reliability:** Designed for continuous operation in ‑25 °C to +70 °C environments. - **Modbus RTU Protocol:** Standard RS‑485 communication compatible with PLC, PAC, and SCADA systems. - **5‑Year Warranty:** Extended manufacturer support for industrial applications.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **High‑Density Analog Input:** 16 differential analog input channels supporting voltage and current measurement ranges with ±240 V common‑mode protection. - **Universal Input Configuration:** Each channel independently configurable for ±100 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0–100 mV, 0–500 mV, 0–1 V, 0–5 V, 0–10 V, ±20 mA, 0–20 mA, or 4–20 mA via DIP switch. - **High Accuracy and Resolution:** 16‑bit A/D conversion with ±0.1 % FSR accuracy and 2.5 samples/s per channel sampling rate. - **Robust Electrical Protection:** Channel‑to‑channel isolation and over‑voltage protection up to ±240 V; common‑mode voltage tolerance up to 240 V; 3 kV isolation between I/O, power, and communication. - **Wide Power Input Range:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p), consuming approximately 2.8 W @ 24 V DC. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM for quick transfer between units. - **Programmable Power‑On and Safety Values:** Ensures safe startup and fail‑safe operation during communication loss or watchdog timeout. - **Simple Node Addressing:** Two rotary switches allow Modbus node address setup (1–247) without software tools. - **Diagnostic LEDs:** Three front‑panel LEDs indicate power, communication, and system status for quick on‑site troubleshooting. - **Compact, Space‑Saving Design:** 47.2 mm slim vertical housing allows 1.5× higher module density compared to conventional flat I/O modules. - **Industrial‑Grade Reliability:** Designed for harsh environments with operating temperature –25 °C to +70 °C, humidity 5–95 % RH, and built‑in hardware/software watchdogs. - **Communication Interface:** RS‑485 serial interface supporting Modbus/RTU protocol, baud rates from 1200 bps to 115.2 kbps, and communication distance up to 1.2 km.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **Eight Isolated Analog Output Channels:** Each channel supports multiple voltage and current output ranges, including ±5 V, ±10 V, 0–5 V, 0–10 V, 0–20 mA, and 4–20 mA. - **Programmable Output Slope:** Adjustable output ramp rate for voltage (0.0625 – 512 V/s) and current (0.125 – 1024 mA/s) to ensure smooth transitions and prevent sudden load changes. - **High Isolation Protection:** 3000 V DC isolation between power, communication, and I/O channels for enhanced safety and noise immunity. - **Wide Power Supply Range:** Operates from +10 V DC to +60 V DC with reverse polarity protection; ripple peak must not exceed 5 V. - **Compact, Space‑Saving Design:** Slim 47.2 mm vertical housing allows dense installation on DIN rails, increasing module density by up to 1.5× compared to conventional flat‑mount I/O devices. - **Industrial‑Grade Reliability:** Designed for continuous operation in harsh environments with built‑in hardware and software watchdogs to recover from communication or system faults. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration data stored in removable EEPROM for quick restoration. - **Ease of Installation and Maintenance:** Rotary switches for Modbus node addressing, front‑facing terminal blocks, and LED indicators for power, communication, and system diagnostics. - **Flexible Communication:** RS‑485 interface supporting Modbus/RTU protocol with baud rates from 1200 bps to 115.2 kbps and communication distances up to 1.2 km. - **Programmable Power‑On and Safety Values:** User‑defined startup and fail‑safe output states to protect connected actuators during power‑up or communication loss. - **Long‑Term Warranty:** Backed by a 5‑year manufacturer warranty, reflecting Advanio’s confidence in product durability.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **16 Isolated Digital Inputs:** Supports both dry and wet contact modes for flexible integration with sensors, switches, and logic signals. - **Dry/Wet Configurable Inputs:** - *Dry Contact:* Logic 0 = open, Logic 1 = closed to GND. - *Wet Contact:* Logic 0 ≤ 3 V DC, Logic 1 = 10 – 50 V DC. - **High Isolation:** 2.5 kV DC isolation between channels and system logic for noise immunity and protection. - **DI Latch Function:** Captures transient input pulses ≥ 5 ms to ensure reliable detection of short‑duration events. - **Integrated Counter Function:** 16‑bit counters on each channel, up to 100 Hz input frequency. - **Normal/Inverted Logic Selection:** Each input can be configured as normal or inverted for compatibility with existing control logic. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM for quick recovery. - **Rotary Switch Addressing:** Two rotary switches allow simple Modbus node address setup (1 – 247). - **Wide Power Input Range:** +10 V DC to +60 V DC (ripple ≤ 5 V p‑p). - **Compact Form Factor:** 47.2 mm slim vertical housing for space‑constrained installations. - **LED Diagnostics:** Three front‑panel LEDs indicate power, communication, and system status for quick on‑site troubleshooting. - **Programmable Safety Values:** User‑defined safe states on power‑on or communication failure. - **Watchdog Protection:** Hardware and software watchdogs ensure automatic recovery from communication or system faults. - **Industrial‑Grade Design:** Operating temperature –25 °C to +70 °C; humidity 5 – 95 % RH; EMC‑tested for EMI/EMS compliance. - **Modbus/RTU Communication:** Standard RS‑485 interface supporting baud rates from 1200 bps to 115.2 kbps. - **Long‑Distance Communication:** Up to 1.2 km over RS‑485 network; supports daisy‑chain, star, or mixed topologies. - **5‑Year Warranty:** Extended manufacturer warranty ensuring long‑term reliability.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **32 Isolated Digital Inputs:** Supports both dry and wet contact configurations for maximum flexibility. - **Dry/Wet Input Modes:** - *Dry contact:* Logic 0 = open, Logic 1 = closed to GND. - *Wet contact:* Logic 0 = ≤ 3 V DC, Logic 1 = 10 – 50 V DC. - **DI Latch Function:** Captures transient signals ≥ 5 ms to prevent missed pulses during polling. - **DI Counter Function:** 16‑bit hardware counter per channel, up to 100 Hz input frequency. - **Normal/Inverted Logic:** Each channel can be configured as normal or inverted for compatibility with existing control logic. - **Hot‑Swap & Auto‑Configuration:** Modules can be replaced without rewiring; configuration stored in removable EEPROM. - **Rotary Switch Addressing:** Two hexadecimal rotary switches allow quick Modbus node address setup (1 – 247). - **Wide Power Input Range:** +10 V DC to +60 V DC with reverse‑polarity protection; ripple ≤ 5 V p‑p. - **High Isolation:** 2.5 kV DC isolation between I/O, power, and communication circuits. - **Compact Form Factor:** 47.2 mm slim vertical housing for space‑constrained control panels. - **LED Diagnostics:** Three front LEDs indicate power, communication, and system status for easy on‑site troubleshooting. - **Watchdog Protection:** Hardware and software watchdogs ensure automatic recovery from communication or system faults. - **Programmable Safety Values:** User‑defined safe states on power‑up or communication failure. - **Industrial‑Grade Design:** EMC‑tested for EMI/EMS immunity; operating temperature –25 °C to +70 °C. - **Modbus/RTU Protocol:** Standard RS‑485 communication up to 115.2 kbps, 1.2 km bus length. - **5‑Year Warranty:** Long‑term reliability backed by Advanio’s extended warranty program.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO

- **16 Isolated NPN Digital Outputs:** Each channel supports up to 500 mA load current with 3.5 – 30 V DC output range. - **RS‑485 Modbus/RTU Communication:** Standard industrial serial interface supporting baud rates from 1200 bps to 115.2 kbps and communication distances up to 1.2 km. - **Hot‑Swap and Auto‑Configuration:** Modules can be replaced without rewiring; configuration parameters are stored in a removable EEPROM for quick restoration. - **Programmable Power‑On and Safety Values:** User‑defined startup and fail‑safe output states ensure predictable behavior during power‑up or communication loss. - **High Isolation Protection:** 2.5 – 3.0 kV DC isolation between power, communication, and I/O circuits protects against industrial noise and surges. - **Wide Power Supply Range:** Operates from +10 V DC to +60 V DC (ripple ≤ 5 V p‑p), compatible with 12 V, 24 V, 36 V, and 48 V systems. - **Compact, Space‑Saving Design:** 47.2 mm slim vertical housing allows dense installation on DIN rails; up to 1.5 × more modules per panel compared to flat designs. - **Easy Node Addressing:** Two rotary switches set Modbus node address (1 – 247) without software tools. - **LED Diagnostics:** Three front‑panel LEDs indicate power, communication, and system status for quick on‑site troubleshooting. - **Rugged Industrial Reliability:** Built‑in hardware and system watchdogs automatically recover from communication or system faults. - **Modular Mounting System:** Detachable DIN‑rail base with integrated power and bus connectors simplifies installation and expansion. - **5‑Year Warranty:** Long‑term reliability backed by Advanio’s extended warranty and global support network.

Manufacturer: Advanio

Category: Ethernet / USB / RS485 / RS232 Modbus IO
