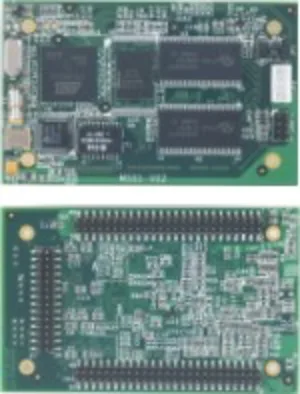

- **ARM9 RISC Processor:** Atmel AT91RM9200 ARM920T core running at 180MHz with integrated Memory Management Unit (MMU), delivering up to 200 MIPS performance. - **Linux-Ready Platform:** Pre-installed Linux kernel 2.6.14 with U-Boot 1.1.2 bootloader and full file system support (JFFS2, EXT2/3, VFAT/FAT, NFS). - **Memory Architecture:** 64MB SDRAM and 16MB NOR Flash (expandable to 32/64MB Flash options). - **Networking:** Integrated 10/100Mbps Ethernet interface with DAVICOM DM9161 PHY and 1.5KV magnetic isolation. - **USB Connectivity:** Two USB 2.0 full-speed (12Mbps) host ports for peripheral expansion (WiFi, flash drives, modems, serial adapters). - **Serial Communication:** Four UARTs supporting RS-232/422/485 modes, up to 921.6Kbps, with hardware flow control and 9-bit multi-drop mode on COM1. - **Digital I/O:** 32 programmable GPIOs (3.3V CMOS compatible) with interrupt capability. - **External Bus Interface:** 8-bit data and address bus with four chip selects for external peripheral expansion. - **Storage Expansion:** SD/MMC interface compliant with SD 1.0 specification, supporting up to 4GB SD cards. - **Low Power Design:** Typical consumption under 2.5W at 3.3VDC input. - **Industrial Reliability:** Fanless, flash-based architecture for 24/7 operation; operating temperature 0–70°C (M-501) or -20–80°C (M-501T). - **Development Support:** Includes GNU C/C++ cross-compilation toolchain for Linux and Windows (Cygwin environment). - **Compact Form Factor:** 80mm x 50mm SoM with 2.0mm pitch connectors for easy integration into OEM designs.

Manufacturer: Artila

Category: SBC Modules

- **ARM9-based Industrial Computer:** Powered by the ATMEL AT91RM9200 CPU running at 180 MHz with integrated Memory Management Unit (MMU). - **Linux-ready Platform:** Preloaded with Linux kernel 2.6.14, U-Boot 1.1.2 bootloader, and multiple file systems (JFFS2, EXT2, VFAT/FAT, NFS). - **Comprehensive Development Environment:** Includes GNU C/C++ cross-compilation toolchain and POSIX-compliant GLIBC library for application development on Linux or Windows hosts. - **Integrated Networking:** 10/100 Mbps Ethernet interface with DAVICOM DM9161 PHY and 1.5 kV magnetic isolation for industrial reliability. - **Multiple Serial Interfaces:** Four high-speed UARTs (up to 921.6 Kbps), one configurable as RS-232/422/485 with hardware auto-direction control and 9-bit multi-drop mode. - **USB Connectivity:** Two USB 2.0 full-speed host ports (12 Mbps) supporting flash drives, Wi-Fi adapters, Ethernet adapters, and serial converters. - **Expandable Storage:** One SD card interface (SD 1.0 standard, up to 2 GB non-SDHC). - **Rich I/O Options:** 32 programmable GPIO channels, I2C, SPI, I2S, and local bus interfaces for peripheral expansion. - **Low Power, Fanless Design:** Consumes less than 2.5 W, ideal for embedded and industrial environments. - **Wide Operating Range:** Supports 9–48 VDC input, 300 mA @ 12 VDC, and operates from -10°C to +60°C (standard kit) or -20°C to +80°C (M-501T wide-temperature version). - **Compact Form Factor:** SoM dimensions 80 × 50 mm; carrier board 150 × 100 mm. - **Preloaded Network Services:** SSH, FTP, Telnet, web server (lighttpd), and system daemons for remote management. - **Industrial-grade Reliability:** Flash-based architecture, watchdog timer, and hardware-level protection for stable long-term operation.

Manufacturer: Artila

Category: SBC Modules

- **Processor:** ATMEL AT91RM9200 ARM920T CPU, 180 MHz, with Memory Management Unit (MMU) - **Operating System:** Pre-installed Linux kernel 2.6.14 with JFFS2/EXT2/VFAT/NFS file systems - **Memory:** 64 MB SDRAM and 16 MB NOR Flash (Intel StrataFlash or equivalent) - **Networking:** 10/100 Mbps Ethernet with DAVICOM DM9161 PHY and 1.5 kV magnetic isolation - **USB:** Two USB 2.0 full-speed (12 Mbps) host ports - **Serial Interfaces:** Four UARTs (up to 921.6 Kbps) with hardware flow control; COM1 configurable as RS-232/422/485 - **Storage Expansion:** SD (Secure Digital) interface compliant with SD 1.0 specification - **Peripheral Interfaces:** I²C, I²S, SPI, external 8-bit data/address bus, and 32 programmable GPIOs - **Power Efficiency:** Ultra-low power consumption (

Manufacturer: Artila

Category: SBC Modules

- **ARM9 Architecture:** Powered by the Atmel AT91RM9200 ARM920T processor running at 180 MHz, delivering approximately 200 MIPS performance with integrated Memory Management Unit (MMU). - **Linux-Ready Platform:** Pre-installed Linux kernel 2.6.x with U-Boot 1.1.2 bootloader and full GNU C/C++ toolchain support for both Linux and Windows development environments. - **Low Power Operation:** Consumes less than 3 Watts, ideal for energy-sensitive or battery-powered embedded systems. - **Industrial-Grade Design:** M-508T variant supports -20°C to +80°C operation range and includes 512KB non-volatile SRAM for data retention during power loss. - **Comprehensive Connectivity:** - One 10/100 Mbps Ethernet port with 1.5KV magnetic isolation. - Four RS-232/485 serial ports (Port 4 also supports RS-422). - Two USB 2.0 full-speed host ports (12 Mbps). - One SD 1.0 compliant memory card slot for storage expansion. - 32 CMOS-level GPIO channels, individually programmable as input or output. - **Integrated Peripherals:** Real-Time Clock (RTC), Watchdog Timer, Buzzer, and system status LEDs (Power, Ready, LAN, Serial Activity, Debug). - **Compact Form Factor:** 105 mm x 75 mm PCB with 5VDC single power input. - **Software Stack:** Includes TCP/IP networking, SSH, SSL, SNMP, FTP, Telnet, HTTP, and firewall utilities. - **Development Support:** Ships with Artila CD containing GNU toolchain, user guide, and example programs.

Manufacturer: Artila

Category: SBC Modules

- **ARM9 Architecture:** Powered by the Atmel AT91RM9200 ARM920T processor (180 MHz, 200 MIPS) with integrated Memory Management Unit (MMU), 16 KB instruction cache, and 16 KB data cache. - **Linux-Ready Platform:** Pre-installed Linux 2.6.x kernel with U-Boot 1.1.2 bootloader, supporting JFFS2, EXT2/EXT3, VFAT/FAT, and NFS file systems. - **Wide Temperature Operation:** Industrial-grade components ensure reliable operation from –20 °C to +80 °C (M-508T model). - **Non-Volatile SRAM:** 512 KB FRAM for data retention during power loss (M-508T only). - **Low Power Consumption:** Typical power draw of 600 mA at 5 VDC (

Manufacturer: Artila

Category: SBC Modules

- **Processor:** Freescale i.MX537 ARM Cortex-A8, 800 MHz - **Memory:** 1 GB DDR3 SDRAM (expandable to 2 GB optional) - **Storage:** 4 GB eMMC Flash onboard, SD card slot (up to 32 GB) - **Graphics:** Integrated GPU supporting OpenGL ES 1.1/2.0 and OpenVG 1.1 - **Display Interfaces:** - Dual 24-bit LVDS channels (up to 1600 × 1200 pixels) - Analog VGA output (synchronized with LVDS port 0) - Full HD 1080p video decode capability - **Networking:** 1 × 10/100 Mbps Ethernet (SMSC LAN8720AI PHY) - **Serial Interfaces:** - 4 × UART (COM1–COM4) supporting RS‑232/RS‑485 - 2 × CAN 2.0 channels - I²C, I²S, SPI, and 1‑Wire interfaces - **USB Connectivity:** - 1 × USB 2.0 Host (480 Mbps) - 1 × USB OTG (Mini‑AB) - **Audio:** I²S digital audio interface, Line‑Out and Mic‑In connectors - **Touchscreen:** 4‑wire resistive touch interface - **Storage Expansion:** SATA II interface for external drives - **GPIO:** 9 programmable general‑purpose I/O lines - **Power Input:** 3.3 V DC (module), 5 V DC and 9–48 V DC (starter kit) - **Form Factor:** 3.5‑inch embedded module (80 × 50 mm) - **Operating Systems:** Linux (Ubuntu 10.4 preinstalled), Android, Windows Compact 7 - **Additional Features:** Real‑time clock (RTC), watchdog timer, external battery backup

Manufacturer: Artila

Category: SBC Modules

- **Processor:** Freescale i.MX537 ARM Cortex-A8, 800 MHz core frequency - **Memory:** 1 GB DDR3 RAM (expandable to 2 GB optional) - **Storage:** 4 GB eMMC Flash onboard - **Graphics:** Integrated GPU supporting OpenGL ES 2.0, OpenVG 1.1, and full HD 1080p video decode - **Display Interfaces:** Dual 24-bit LVDS channels and analog VGA output (up to 1920×1080 @ 60 Hz) - **Touchscreen Support:** 4-wire resistive touchscreen interface - **Networking:** 10/100 Mbps Ethernet (SMSC LAN8720AI PHY) - **Serial Interfaces:** - 2 × RS-232 (one full, one 4-wire) - 1 × RS-485 - 2 × CAN 2.0 channels - **USB Connectivity:** - 4 × USB 2.0 Host ports - 1 × USB OTG (Mini-AB) - **Expansion Interfaces:** SATA, SD, SPI, I²C, I²S, 1-Wire, GPIO - **Power Input:** 9–48 VDC wide-range input (5V and 3.3V internal rails) - **Operating Temperature:** 0°C to +70°C - **Form Factor:** 146 mm × 102 mm (3.5-inch board) - **Operating Systems Supported:** Ubuntu Linux 10.4 (preinstalled), Android, Windows Compact 7.0 - **Fanless Design:** Passive cooling for industrial reliability

Manufacturer: Artila

Category: SBC Modules

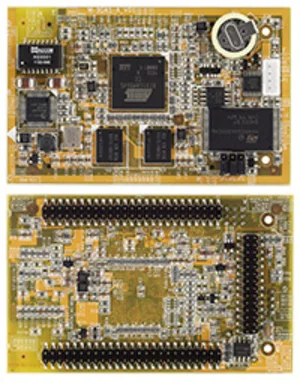

- **High‑Performance ARM9 Processor:** 400 MHz Atmel AT91SAM9G45 CPU with integrated MMU (Memory Management Unit) for full Linux support. - **Pre‑installed Linux Environment:** Linux kernel 2.6.38 with U‑Boot bootloader and root file system pre‑loaded in NAND Flash. - **Integrated Memory:** 128 MB DDR2 SDRAM and 256 MB NAND Flash, plus 2 MB DataFlash® for system backup. - **Networking:** On‑board 10/100 Mbps Ethernet interface with integrated PHY (DAVICOM DM9161) and 1.5 kV magnetic isolation. - **Display & Touch Interface:** 24‑bit TTL LCD interface supporting up to 1280 × 860 TFT panels with dimming and backlight control; 4‑wire resistive touchscreen interface. - **Multiple Serial Interfaces:** Four UARTs (up to 921.6 kbps) with hardware flow control and software‑configurable RS‑232/RS‑485 modes. - **USB Connectivity:** One USB 2.0 high‑speed (480 Mbps) host port and one USB 2.0 device (client) port. - **Expandable I/O:** 15 GPIO pins (CMOS/3.3 V compatible), I²C, SPI, I²S, and AC97 interfaces. - **Storage Expansion:** SD/MMC interface supporting SD 2.0 cards up to 32 GB. - **Low Power Consumption:** Operates from 3.0 – 3.6 V DC (3.3 V nominal) with typical power draw under 2.5 W. - **Compact Form Factor:** 80 mm × 50 mm board with 128‑pin (2.0 mm pitch) connectors. - **Industrial‑Grade Reliability:** Operating temperature range 0 °C – 70 °C; on‑board watchdog timer and real‑time clock with lithium backup battery. - **Comprehensive Software Stack:** Includes GNU C/C++ toolchain, web server (lighttpd), SSH, FTP, Telnet, MySQL, PHP, Python, Perl, QT4‑Embedded, GTK+, and more.

Manufacturer: Artila

Category: SBC Modules

- **Processor:** Atmel AT91SAM9G45 ARM9 CPU, 400 MHz with Memory Management Unit (MMU). - **Operating System:** Linux kernel 2.6.38 pre‑installed with U‑Boot bootloader. - **Memory:** 128 MB DDR2 SDRAM, 256 MB NAND Flash, and 2 MB DataFlash® for system backup. - **Compact Form Factor:** SoM dimensions 50 × 80 mm; carrier board designed for direct integration. - **Low Power Consumption:** Typical power usage below 2.5 W. - **Display Support:** 24‑bit TTL LCD interface with dimming control; supports TFT panels up to 1280 × 860 pixels. - **Touchscreen Interface:** 4‑wire resistive touchscreen support. - **Networking:** Integrated 10/100 Mbps Ethernet with on‑board PHY (DAVICOM DM9161) and 1.5 kV magnetic isolation. - **Multiple Serial Interfaces:** Four UARTs supporting up to 921.6 kbps with full modem control signals. - **USB Connectivity:** One USB 2.0 host port and one USB 2.0 device (client) port, both supporting 480 Mbps high‑speed mode. - **Peripheral Interfaces:** I²C, I²S, SPI, SD/MMC, GPIO, AC97 audio, and watchdog timers. - **Real‑Time Clock:** ST M41T81 RTC with on‑board 48 mAh lithium backup battery and external battery input. - **Software Ecosystem:** Pre‑installed Linux utilities, web server, SSH, FTP, and package management via IPKG. - **Development Tools:** GNU C/C++ cross‑compiler toolchain, GTK+, X11, GPE, and Qt4‑Embedded GUI support. - **Expansion and Debugging:** RS‑232 console port, GPIO headers, and local bus connectors for peripheral expansion. - **Starter Kit Availability:** Includes SoM, carrier board, power circuitry, and all essential I/O interfaces.

Manufacturer: Artila

Category: SBC Modules

- **High-performance ARM9 Processor:** Equipped with a 400 MHz Atmel AT91SAM9G45 CPU with integrated Memory Management Unit (MMU), enabling efficient multitasking and Linux kernel operation. - **Linux-ready Platform:** Preloaded with Linux kernel 2.6.38, U-Boot bootloader, and a complete GNU C/C++ toolchain for immediate development. - **Integrated Memory:** 128 MB DDR2 SDRAM and 256 MB NAND Flash, plus 2 MB DataFlash® for system backup. - **Compact and Efficient Design:** Small 50 × 80 mm SoM footprint with typical power consumption under 2.5 W. - **Comprehensive I/O Interfaces:** Includes Ethernet, multiple UARTs, USB host/client, I²C, SPI, I²S, SD card, GPIO, AC97, LCD, and touchscreen interfaces. - **Advanced Display Support:** 24-bit TTL LCD interface supporting TFT panels up to 1280 × 860 pixels with dimming and backlight control. - **Networking Capability:** Integrated 10/100 Mbps Ethernet interface with onboard PHY (DAVICOM DM9161) and 1.5 kV magnetic isolation. - **Rich Peripheral Support:** Compatible with USB flash drives, Wi-Fi adapters, webcams, keyboards, mice, 3G modems, and Bluetooth devices. - **Software Ecosystem:** Includes preinstalled utilities, daemons, and drivers for rapid deployment—SSH, FTP, web server (lighttpd), MySQL, PHP, Python, and more. - **Expandable and Customizable:** Supports IPKG package management for software installation and updates; customizable USB device drivers. - **Industrial-grade Reliability:** Features watchdog timers, RTC with battery backup, and robust GPIO control for embedded applications.

Manufacturer: Artila

Category: SBC Modules

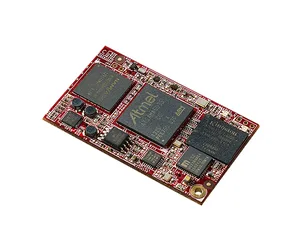

- **Processor:** Atmel ATSAMA5D35 ARM Cortex‑A5 MPU, 536 MHz, with MMU and VFPv4 floating‑point unit. - **Memory:** 512 MB LPDDR2 SDRAM, 8 GB eMMC Flash, and 8 MB DataFlash for system backup. - **Networking:** Dual Ethernet interfaces — one Gigabit (Micrel KSZ9031RNXCA) and one 10/100 Mbps (Micrel KSZ8081RNAIA) with onboard transformers and 1.5 kV isolation. - **Serial Communication:** Four UARTs (up to 921.6 kbps) with hardware/software flow control; two CAN 2.0A/B interfaces. - **USB:** Two USB 2.0 high‑speed (480 Mbps) host ports and one USB device/console port. - **Expansion Interfaces:** SPI (4 chip selects), I²C, I²S (TX/RX), SD 2.0/SDHC, and 21 GPIO pins. - **Power Efficiency:** Single 5 V DC input, typical consumption 

Manufacturer: Artila

Category: SBC Modules

- **Processor:** Atmel ATSAMA5D35 ARM Cortex‑A5 MPU, 536 MHz, with MMU and VFPv4 floating‑point unit. - **Memory:** 512 MB LPDDR2 SDRAM, 8 GB eMMC Flash, and 8 MB DataFlash for system backup. - **Operating System:** Linux kernel 4.9.x with EXT4 file system and Barebox bootloader. - **Networking:** Dual Ethernet interfaces — one Gigabit (Micrel KSZ9031RNXCA) and one 10/100 Mbps (Micrel KSZ8081RNAIA). - **Interfaces:** SPI, I²C, I²S, UART × 4, CAN × 2, USB 2.0 Host × 2, SD 2.0 (SDHC), GPIO × 21. - **Power Efficiency:** Single 5 V DC input, typical consumption 0.75 W (

Manufacturer: Artila

Category: SBC Modules

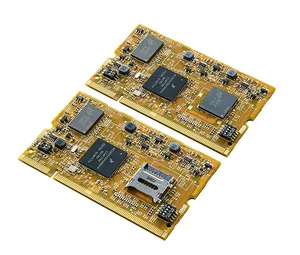

- **Processor:** ARM Cortex‑A7 core (ATMEL/Microchip i.MX6ULL) optimized for low‑power embedded computing. - **Operating System:** Pre‑installed **Linux Kernel 4.14.x**, supporting standard GNU/Linux utilities and development environments. - **Memory Configuration:** - **512 MB LPDDR3 SDRAM** for high‑speed system memory. - **4 GB eMMC Flash** for OS and application storage. - **16 MB DataFlash** for bootloader and configuration data. - **Connectivity Interfaces:** - **4 × UART ports** (921.6 kbps each) with full hardware flow control (RTS/CTS). - **2 × USB 2.0** host/device ports. - **2 × 10/100 Mbps Ethernet** interfaces for dual‑LAN or redundant networking. - **8 × GPIO** (General Purpose Input/Output) lines for digital control and monitoring. - **Power Efficiency:** Operates on **5 V DC**, consuming **less than 1 W**, ideal for fanless and battery‑powered systems. - **Compact Form Factor:** **63 mm × 43 mm**, enabling integration into space‑constrained designs. - **Industrial Reliability:** Designed for continuous operation in industrial environments, supporting extended temperature ranges and stable long‑term supply. - **OEM‑Ready Design:** Provides a ready‑to‑integrate embedded computing core for custom carrier boards or system designs.

Manufacturer: Artila

Category: SBC Modules

M-X6ULL with CB-X6ULL carrier board with power circuitry, Ethernet, Serial port, USB, CAN, SD socket, mini-PCIe socket, 9..48VDC, Artila

Manufacturer: Artila

Category: SBC Modules
