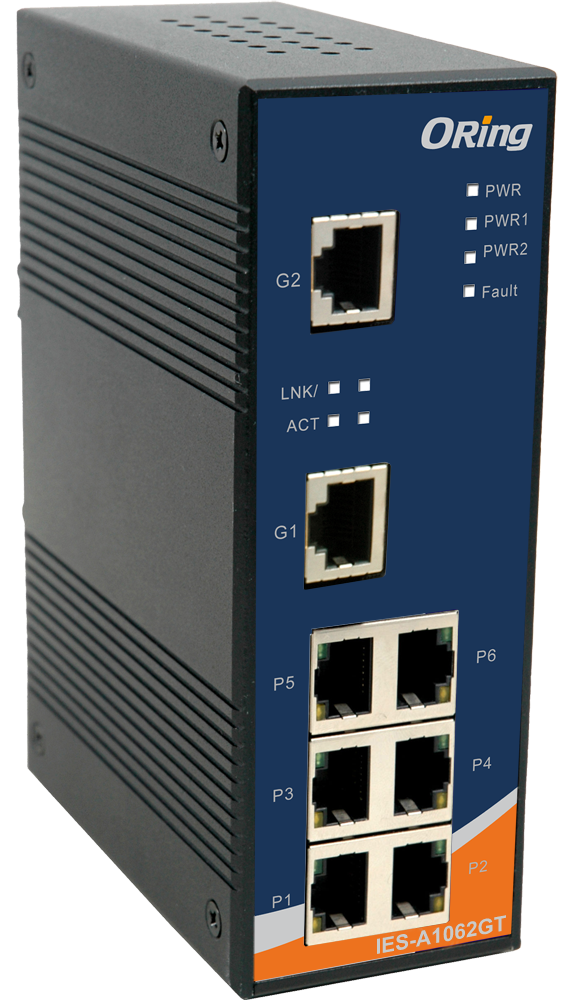

Comprehensive Product Summary – ORing IES-A1062GT Industrial Ethernet Switch
### 1. Product Overview
Product Name: ORing IES-A1062GT
Model: IES-A1062GT
Series: IES-A1 Series
Article Number: IES-A1062GT
Manufacturer: ORing Industrial Networking Corp.
Drawing Number: IES-A1 Series
Revision: v1.0
Revision Date: 2013-11-27
Product Type: Oil & Gas Industrial Unmanaged Ethernet Switch
Certifications: C1D2 (Class I Division 2), ATEX Class 1 Zone 2
The ORing IES-A1062GT is an unmanaged industrial Ethernet switch designed for hazardous and harsh environments, particularly in oil and gas, petrochemical, and industrial automation sectors. It belongs to the IES-A1 series of ruggedized switches certified for use in explosive atmospheres under ATEX and UL Class I Division 2 standards. The device provides reliable Ethernet connectivity with redundant power inputs, extended temperature tolerance, and robust mechanical construction suitable for mission-critical field installations.
### 2. Key Features
- Hazardous Location Certification: Fully compliant with CID2 (Class I Division 2) and ATEX Class 1 Zone 2 standards, ensuring safe operation in explosive or flammable environments.
- Port Configuration:
- 6 × 10/100Base-T(X) RJ45 ports (Auto MDI/MDI-X)
- 2 × 10/100/1000Base-T(X) RJ45 ports (Auto MDI/MDI-X)
- Triple Redundant Power Inputs:
- Two terminal block inputs (12–48 VDC)
- One DC power jack input (12–45 VDC)
- Automatic failover between power sources for uninterrupted operation.
- Wide Operating Temperature: -40°C to +70°C, suitable for extreme industrial conditions.
- Rugged Construction: IP-30 rated metal enclosure for mechanical durability and electromagnetic shielding.
- Mounting Flexibility: Supports both DIN-rail and wall-mount installation.
- High Reliability: Store-and-forward switching architecture with 8192 MAC address table.
- Surge and ESD Protection: Built-in protection against electrical transients and surges.
- LED Indicators: Power, fault, and port activity LEDs for quick status monitoring.
- Compact Design: Space-efficient form factor for control cabinets and field enclosures.
- Low Power Consumption: Typical consumption of 7 W.
- Long-Term Warranty: 5-year manufacturer warranty.
### 3. Technical Specifications
Physical Characteristics:
- Dimensions: 52 mm (W) × 106 mm (D) × 144 mm (H)
(2.05 × 4.17 × 5.67 inches)
- Weight: 677 g (typical)
- Enclosure Rating: IP-30, metal housing
- Mounting Options: DIN-rail and wall-mount compatible
Power Requirements:
- Input Voltage:
- Terminal Block: 12–48 VDC
- Power Jack: 12–45 VDC
- Power Consumption: 7 W (typical)
- Protection: Overload current protection and reverse polarity protection
- Power Inputs: Triple redundant (PWR1, PWR2 via terminal block; PWR3 via DC jack)
Environmental Conditions:
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Operating Humidity: 5% to 95% (non-condensing)
Ethernet Standards Supported:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3z (1000Base-T)
- IEEE 802.3ab (1000Base-X)
- IEEE 802.3x (Flow Control)
Switching Performance:
- MAC Address Table: 8192 entries
- Switching Method: Store-and-forward
- Flow Control: IEEE 802.3x compliant
LED Indicators:
- Power LEDs: 3 (Green) – indicate active power inputs
- Fault LED: Amber – indicates power failure or fault condition
- Port LEDs:
- Green: Link/Activity
- Amber: Duplex/Collision
### 4. Functionality
The IES-A1062GT functions as an unmanaged Ethernet switch, automatically detecting and forwarding Ethernet frames between connected devices. It supports auto-negotiation and auto MDI/MDI-X, allowing seamless connection to various Ethernet devices without manual configuration.
Typical Use Cases:
- Oil and gas field instrumentation networks
- Industrial automation and control systems
- Remote monitoring and SCADA systems
- Hazardous area communication nodes
- IP camera and sensor network aggregation
Operation Principle:
The switch uses a store-and-forward mechanism to ensure data integrity, buffering incoming packets and verifying CRC before forwarding. It automatically adjusts transmission speed and duplex mode based on connected devices.
Compatibility:
Compatible with standard Ethernet devices such as PLCs, HMIs, IP cameras, industrial PCs, and other unmanaged or managed switches. It supports both 10/100 Mbps and Gigabit Ethernet connections.
### 5. Components & Accessories
Included Items (Standard Package):
1. IES-A1062GT Switch Unit
2. DIN-Rail Mounting Kit (45 mm)
3. 7-Pin Terminal Block Connector
4. Wall-Mounting Kit
5. Dust Covers (8 pcs for RJ45 ports)
6. Screws (M3×5, 6 pcs)
7. Quick Installation Guide (QIG)
Optional Accessories:
- Additional DIN-rail brackets
- Power supply units (12–48 VDC industrial-grade)
- Protective IP54-rated enclosures for ATEX compliance
Connectors:
- Ethernet Ports: RJ45 (shielded, auto MDI/MDI-X)
- Power Connector: 7-pin terminal block (Dinkle 5EHDRC-07P, rated 300 V, 15 A, 105°C)
- Mating Connector: Dinkle 5ESDV-07P (rated 300 V, 15 A, 105°C)
- Wire Size: 28–12 AWG
- Torque Value: 4.5 lb-in
### 6. Installation & Setup
Installation Requirements:
- Must be installed in an ATEX-certified IP54 enclosure.
- Accessible only by tools to ensure safety in hazardous environments.
- Cable temperature rating must be ≥104°C.
- Pollution degree ≤2 per IEC 60664-1.
- Transient disturbances must not exceed 140% of peak rated voltage.
Mounting Options:
- DIN-Rail Installation:
Attach the included DIN-rail clip to the back of the unit and snap onto a standard 35 mm DIN rail.
- Wall-Mount Installation:
Use the provided wall-mount brackets and screws to secure the unit to a flat surface.
Power Connection:
- Connect DC power to the 7-pin terminal block (PWR1 and PWR2).
- Optional DC jack (PWR3) for non-hazardous locations only.
- Ensure correct polarity and secure wiring to prevent reverse connection.
Safety Warning:
The DC power jack is not certified for hazardous locations and must not be used in ATEX or C1D2 environments.
Grounding:
Connect the frame ground terminal to the system ground to minimize electromagnetic interference and ensure safety compliance.
### 7. Performance & Capabilities
Switching Capacity:
- Supports simultaneous full-duplex communication on all ports.
- Provides non-blocking wire-speed forwarding for all Ethernet frames.
Data Handling:
- Store-and-forward architecture ensures error-free packet transmission.
- Flow control prevents packet loss under heavy traffic conditions.
Reliability Features:
- Triple redundant power inputs ensure continuous operation during power source failure.
- Surge and ESD protection safeguard against transient voltage spikes.
- Fault LED provides immediate visual indication of power or link issues.
Efficiency:
- Low power consumption (7 W typical) reduces heat generation and energy cost.
- Passive cooling design eliminates moving parts, enhancing reliability.
Limitations:
- Unmanaged switch – no VLAN, QoS, or SNMP management features.
- Power jack not suitable for hazardous environments.
- Requires external IP54-rated enclosure for ATEX compliance.
### 8. Standards & Compliance
Electrical and Communication Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX, 100Base-FX)
- IEEE 802.3z (1000Base-T)
- IEEE 802.3ab (1000Base-X)
- IEEE 802.3x (Flow Control)
EMI/EMS Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT/Burst)
- EN61000-4-5 (Surge)
- EN61000-4-6 (Conducted Susceptibility)
- EN61000-4-8 (Magnetic Field)
- EN61000-4-11 (Voltage Dips/Interruptions)
Mechanical and Environmental Tests:
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
Safety Certifications:
- EN60950-1 (Information Technology Equipment Safety)
- UL508 (Industrial Control Equipment, E331061)
- UL/cUL Class I Division 2, Groups A, B, C, D
- ATEX Certificate No. 13 ATEX 1317577X
- Standards: EN 60079-0:2012, EN 60079-15:2010
Ingress Protection: IP-30 (device), IP54 (required enclosure for ATEX compliance)
### 9. Additional Information
Warranty:
- 5-year limited warranty covering manufacturing defects and hardware reliability.
Support & Contact Information:
- Manufacturer: ORing Industrial Networking Corp.
- Address: 3F, No. 542-2 Zhongzheng Road, Xindian District, New Taipei City 231, Taiwan
- Telephone: +886-2-2218-1066
- Fax: +886-2-2218-1014
- Website: [www.oring-networking.com](http://www.oring-networking.com)
- Email: support@oring-networking.com
Maintenance:
- Periodically inspect power and Ethernet connections for corrosion or looseness.
- Ensure enclosure seals remain intact for ATEX compliance.
- Clean exterior surfaces with a dry cloth; avoid solvents or water ingress.
- Verify LED indicators for normal operation during routine maintenance.
Firmware & Updates:
- As an unmanaged switch, the IES-A1062GT does not require firmware updates.
- Hardware revisions are documented by ORing through updated datasheets and revision notes.
Operational Notes:
- The device must be installed and serviced by qualified personnel familiar with hazardous area requirements.
- Ensure all wiring complies with local electrical codes and ATEX installation standards.
- Maintain proper grounding and shielding for optimal EMC performance.
### Summary
The ORing IES-A1062GT is a robust, unmanaged industrial Ethernet switch engineered for hazardous environments such as oil and gas facilities, refineries, and chemical plants. With 6 Fast Ethernet ports and 2 Gigabit Ethernet ports, it provides flexible connectivity for mixed-speed networks. Its triple redundant power inputs, wide temperature range, and rugged IP-30 housing ensure continuous operation under extreme conditions. Certified for ATEX Class 1 Zone 2 and UL Class I Division 2, the IES-A1062GT meets stringent safety and reliability standards required in explosive atmospheres.
This switch is ideal for mission-critical applications demanding high reliability, minimal maintenance, and compliance with international industrial safety standards. Its compact design, versatile mounting options, and comprehensive protection features make it a dependable choice for industrial network infrastructure in hazardous zones.
### 1. Product Overview
Product Name: ORing IES-A1062GT
Model: IES-A1062GT
Series: IES-A1 Series
Article Number: IES-A1062GT
Manufacturer: ORing Industrial Networking Corp.
Drawing Number: IES-A1 Series
Revision: v1.0
Revision Date: 2013-11-27
Product Type: Oil & Gas Industrial Unmanaged Ethernet Switch
Certifications: C1D2 (Class I Division 2), ATEX Class 1 Zone 2
The ORing IES-A1062GT is an unmanaged industrial Ethernet switch designed for hazardous and harsh environments, particularly in oil and gas, petrochemical, and industrial automation sectors. It belongs to the IES-A1 series of ruggedized switches certified for use in explosive atmospheres under ATEX and UL Class I Division 2 standards. The device provides reliable Ethernet connectivity with redundant power inputs, extended temperature tolerance, and robust mechanical construction suitable for mission-critical field installations.
### 2. Key Features
- Hazardous Location Certification: Fully compliant with CID2 (Class I Division 2) and ATEX Class 1 Zone 2 standards, ensuring safe operation in explosive or flammable environments.
- Port Configuration:
- 6 × 10/100Base-T(X) RJ45 ports (Auto MDI/MDI-X)
- 2 × 10/100/1000Base-T(X) RJ45 ports (Auto MDI/MDI-X)
- Triple Redundant Power Inputs:
- Two terminal block inputs (12–48 VDC)
- One DC power jack input (12–45 VDC)
- Automatic failover between power sources for uninterrupted operation.
- Wide Operating Temperature: -40°C to +70°C, suitable for extreme industrial conditions.
- Rugged Construction: IP-30 rated metal enclosure for mechanical durability and electromagnetic shielding.
- Mounting Flexibility: Supports both DIN-rail and wall-mount installation.
- High Reliability: Store-and-forward switching architecture with 8192 MAC address table.
- Surge and ESD Protection: Built-in protection against electrical transients and surges.
- LED Indicators: Power, fault, and port activity LEDs for quick status monitoring.
- Compact Design: Space-efficient form factor for control cabinets and field enclosures.
- Low Power Consumption: Typical consumption of 7 W.
- Long-Term Warranty: 5-year manufacturer warranty.
### 3. Technical Specifications
Physical Characteristics:
- Dimensions: 52 mm (W) × 106 mm (D) × 144 mm (H)
(2.05 × 4.17 × 5.67 inches)
- Weight: 677 g (typical)
- Enclosure Rating: IP-30, metal housing
- Mounting Options: DIN-rail and wall-mount compatible
Power Requirements:
- Input Voltage:
- Terminal Block: 12–48 VDC
- Power Jack: 12–45 VDC
- Power Consumption: 7 W (typical)
- Protection: Overload current protection and reverse polarity protection
- Power Inputs: Triple redundant (PWR1, PWR2 via terminal block; PWR3 via DC jack)
Environmental Conditions:
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Operating Humidity: 5% to 95% (non-condensing)
Ethernet Standards Supported:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3z (1000Base-T)
- IEEE 802.3ab (1000Base-X)
- IEEE 802.3x (Flow Control)
Switching Performance:
- MAC Address Table: 8192 entries
- Switching Method: Store-and-forward
- Flow Control: IEEE 802.3x compliant
LED Indicators:
- Power LEDs: 3 (Green) – indicate active power inputs
- Fault LED: Amber – indicates power failure or fault condition
- Port LEDs:
- Green: Link/Activity
- Amber: Duplex/Collision
### 4. Functionality
The IES-A1062GT functions as an unmanaged Ethernet switch, automatically detecting and forwarding Ethernet frames between connected devices. It supports auto-negotiation and auto MDI/MDI-X, allowing seamless connection to various Ethernet devices without manual configuration.
Typical Use Cases:
- Oil and gas field instrumentation networks
- Industrial automation and control systems
- Remote monitoring and SCADA systems
- Hazardous area communication nodes
- IP camera and sensor network aggregation
Operation Principle:
The switch uses a store-and-forward mechanism to ensure data integrity, buffering incoming packets and verifying CRC before forwarding. It automatically adjusts transmission speed and duplex mode based on connected devices.
Compatibility:
Compatible with standard Ethernet devices such as PLCs, HMIs, IP cameras, industrial PCs, and other unmanaged or managed switches. It supports both 10/100 Mbps and Gigabit Ethernet connections.
### 5. Components & Accessories
Included Items (Standard Package):
1. IES-A1062GT Switch Unit
2. DIN-Rail Mounting Kit (45 mm)
3. 7-Pin Terminal Block Connector
4. Wall-Mounting Kit
5. Dust Covers (8 pcs for RJ45 ports)
6. Screws (M3×5, 6 pcs)
7. Quick Installation Guide (QIG)
Optional Accessories:
- Additional DIN-rail brackets
- Power supply units (12–48 VDC industrial-grade)
- Protective IP54-rated enclosures for ATEX compliance
Connectors:
- Ethernet Ports: RJ45 (shielded, auto MDI/MDI-X)
- Power Connector: 7-pin terminal block (Dinkle 5EHDRC-07P, rated 300 V, 15 A, 105°C)
- Mating Connector: Dinkle 5ESDV-07P (rated 300 V, 15 A, 105°C)
- Wire Size: 28–12 AWG
- Torque Value: 4.5 lb-in
### 6. Installation & Setup
Installation Requirements:
- Must be installed in an ATEX-certified IP54 enclosure.
- Accessible only by tools to ensure safety in hazardous environments.
- Cable temperature rating must be ≥104°C.
- Pollution degree ≤2 per IEC 60664-1.
- Transient disturbances must not exceed 140% of peak rated voltage.
Mounting Options:
- DIN-Rail Installation:
Attach the included DIN-rail clip to the back of the unit and snap onto a standard 35 mm DIN rail.
- Wall-Mount Installation:
Use the provided wall-mount brackets and screws to secure the unit to a flat surface.
Power Connection:
- Connect DC power to the 7-pin terminal block (PWR1 and PWR2).
- Optional DC jack (PWR3) for non-hazardous locations only.
- Ensure correct polarity and secure wiring to prevent reverse connection.
Safety Warning:
The DC power jack is not certified for hazardous locations and must not be used in ATEX or C1D2 environments.
Grounding:
Connect the frame ground terminal to the system ground to minimize electromagnetic interference and ensure safety compliance.
### 7. Performance & Capabilities
Switching Capacity:
- Supports simultaneous full-duplex communication on all ports.
- Provides non-blocking wire-speed forwarding for all Ethernet frames.
Data Handling:
- Store-and-forward architecture ensures error-free packet transmission.
- Flow control prevents packet loss under heavy traffic conditions.
Reliability Features:
- Triple redundant power inputs ensure continuous operation during power source failure.
- Surge and ESD protection safeguard against transient voltage spikes.
- Fault LED provides immediate visual indication of power or link issues.
Efficiency:
- Low power consumption (7 W typical) reduces heat generation and energy cost.
- Passive cooling design eliminates moving parts, enhancing reliability.
Limitations:
- Unmanaged switch – no VLAN, QoS, or SNMP management features.
- Power jack not suitable for hazardous environments.
- Requires external IP54-rated enclosure for ATEX compliance.
### 8. Standards & Compliance
Electrical and Communication Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX, 100Base-FX)
- IEEE 802.3z (1000Base-T)
- IEEE 802.3ab (1000Base-X)
- IEEE 802.3x (Flow Control)
EMI/EMS Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT/Burst)
- EN61000-4-5 (Surge)
- EN61000-4-6 (Conducted Susceptibility)
- EN61000-4-8 (Magnetic Field)
- EN61000-4-11 (Voltage Dips/Interruptions)
Mechanical and Environmental Tests:
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
Safety Certifications:
- EN60950-1 (Information Technology Equipment Safety)
- UL508 (Industrial Control Equipment, E331061)
- UL/cUL Class I Division 2, Groups A, B, C, D
- ATEX Certificate No. 13 ATEX 1317577X
- Standards: EN 60079-0:2012, EN 60079-15:2010
Ingress Protection: IP-30 (device), IP54 (required enclosure for ATEX compliance)
### 9. Additional Information
Warranty:
- 5-year limited warranty covering manufacturing defects and hardware reliability.
Support & Contact Information:
- Manufacturer: ORing Industrial Networking Corp.
- Address: 3F, No. 542-2 Zhongzheng Road, Xindian District, New Taipei City 231, Taiwan
- Telephone: +886-2-2218-1066
- Fax: +886-2-2218-1014
- Website: [www.oring-networking.com](http://www.oring-networking.com)
- Email: support@oring-networking.com
Maintenance:
- Periodically inspect power and Ethernet connections for corrosion or looseness.
- Ensure enclosure seals remain intact for ATEX compliance.
- Clean exterior surfaces with a dry cloth; avoid solvents or water ingress.
- Verify LED indicators for normal operation during routine maintenance.
Firmware & Updates:
- As an unmanaged switch, the IES-A1062GT does not require firmware updates.
- Hardware revisions are documented by ORing through updated datasheets and revision notes.
Operational Notes:
- The device must be installed and serviced by qualified personnel familiar with hazardous area requirements.
- Ensure all wiring complies with local electrical codes and ATEX installation standards.
- Maintain proper grounding and shielding for optimal EMC performance.
### Summary
The ORing IES-A1062GT is a robust, unmanaged industrial Ethernet switch engineered for hazardous environments such as oil and gas facilities, refineries, and chemical plants. With 6 Fast Ethernet ports and 2 Gigabit Ethernet ports, it provides flexible connectivity for mixed-speed networks. Its triple redundant power inputs, wide temperature range, and rugged IP-30 housing ensure continuous operation under extreme conditions. Certified for ATEX Class 1 Zone 2 and UL Class I Division 2, the IES-A1062GT meets stringent safety and reliability standards required in explosive atmospheres.
This switch is ideal for mission-critical applications demanding high reliability, minimal maintenance, and compliance with international industrial safety standards. Its compact design, versatile mounting options, and comprehensive protection features make it a dependable choice for industrial network infrastructure in hazardous zones.
-
Datasheet_IES-A1080_IESA1062_Series_v1.0.pdf
PDF Catalog
-
QIG_IES-A1080_1062_V1.0.pdf
Manual
No accessories available.
