1. Product Overview
Product Name: RIO-2010BM
Model: RIO-2010BM
Series: RIO-2000 Series
Article Number: RIO-2010BM
Manufacturer: Artila Electronics Co., Ltd.

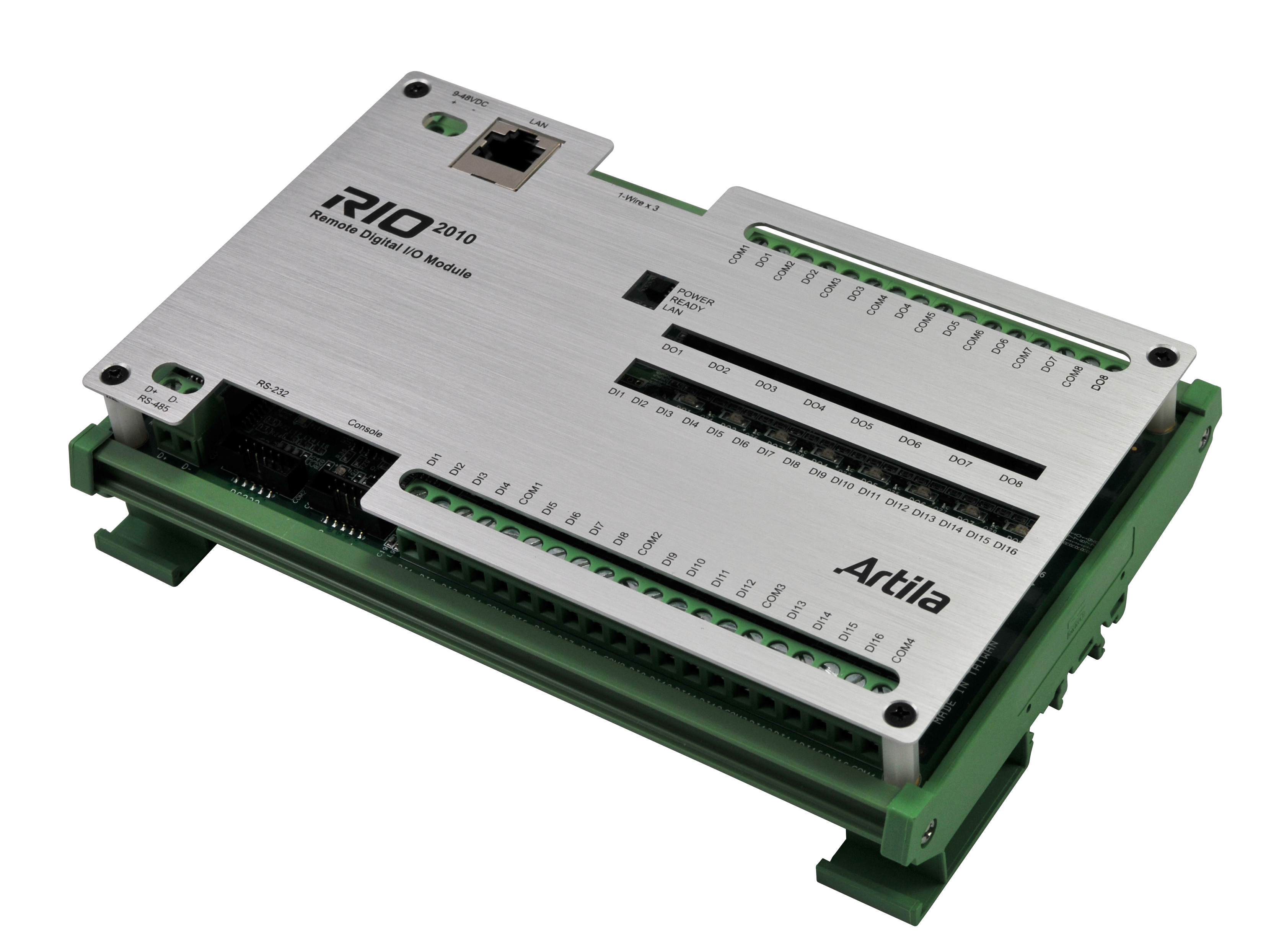

The Artila RIO-2010BM is a high-performance Modbus/TCP and Modbus RTU/ASCII Remote Digital I/O Module, designed for industrial automation, remote monitoring, and IoT integration. It provides 16 opto-isolated digital inputs and 8 relay outputs, supporting both Ethernet (Modbus/TCP) and RS-485 (Modbus RTU/ASCII) communication interfaces. The device is Bluemix-ready, enabling seamless integration with cloud-based IoT platforms and supports web-based I/O control for remote configuration and monitoring. The RIO-2010BM is part of Artila’s RIO-2000 series, known for robust design, high isolation protection, and flexible connectivity for industrial control systems.
2. Key Features
- Dual Modbus Protocol Support: Operates as a remote I/O device using Modbus/TCP over Ethernet or Modbus RTU/ASCII over RS-485.
- High Isolation Protection: 2500 Vrms isolation for both digital inputs and RS-485 interface ensures reliable operation in electrically noisy environments.
- 16 Opto-Isolated Digital Inputs: Accepts logic high levels from 5 VDC to 24 VDC and logic low from 0 VDC to 1.5 VDC, with LED indicators for each channel.
- 8 Relay Outputs: Each relay channel supports 30 VDC @ 1 A or 125 VAC @ 0.5 A, configurable as Normally Open (NO) or Normally Closed (NC) via jumpers.
- Integrated 1-Wire Interface: Three 1-Wire channels for connecting Maxim/Dallas Semiconductor sensors such as DS18B20 temperature sensors.
- Web-Based I/O Control: Built-in HTTP server with AJAX-enabled demo page for real-time monitoring and control via browser.
- Windows Configuration Utility: Simplifies device discovery, configuration, and web page upload through a graphical interface.
- DIN-Rail Mounting: Industrial-grade mechanical design for easy installation in control cabinets.
- Wide Power Input Range: Operates from 9 VDC to 48 VDC, suitable for diverse industrial power systems.
- Bluemix and Node-RED Ready: Compatible with IBM Bluemix and Node-RED for IoT data flow management and cloud integration.
- Compact and Rugged Design: 182 × 118 × 35.82 mm enclosure with operating temperature range from 0 °C to 70 °C.
3. Technical Specifications
Network Interface
- Type: 1 × 10/100 Mbps Ethernet (RJ-45)
- Protection: 1.5 kV magnetic isolation
- Protocol: Modbus/TCP
- Default Ports: Modbus/TCP – 502, Telnet – 5001, HTTP – 5003
RS-485 Interface
- Isolation: 2500 Vrms
- Direction Control: Automatic (hardware-based)
- Connector: Terminal block
- Baud Rate: 1200 – 460,800 bps
- Parity: None, Even, Odd, Mark, Space
- Data Bits: 5 – 8
- Stop Bits: 1, 1.5, 2
RS-232 Console Port
- Baud Rate: 115,200 bps
- Data Bits: 8
- Stop Bit: 1
- Flow Control: None
Digital Inputs
- Channels: 16 opto-isolated inputs
- Isolation: 2500 Vrms
- Logical High: 5 – 24 VDC
- Logical Low: 0 – 1.5 VDC
- Input Resistance: 1.2 kΩ @ 0.5 W
- Response Time: 20 µs
- LED Indicators: Yes (DI1–DI16)
Relay Outputs
- Channels: 8
- Contact Rating: 30 VDC @ 1 A or 125 VAC @ 0.5 A
- Configurable: NO/NC via jumpers (JP5–JP12)
- LED Indicators: Yes (DO1–DO8)
1-Wire Interface
- Channels: 3
- Connector: 3-pin header (VDD, DQ, GND)
- Compatible Devices: Maxim/Dallas 1-Wire sensors (e.g., DS18B20)

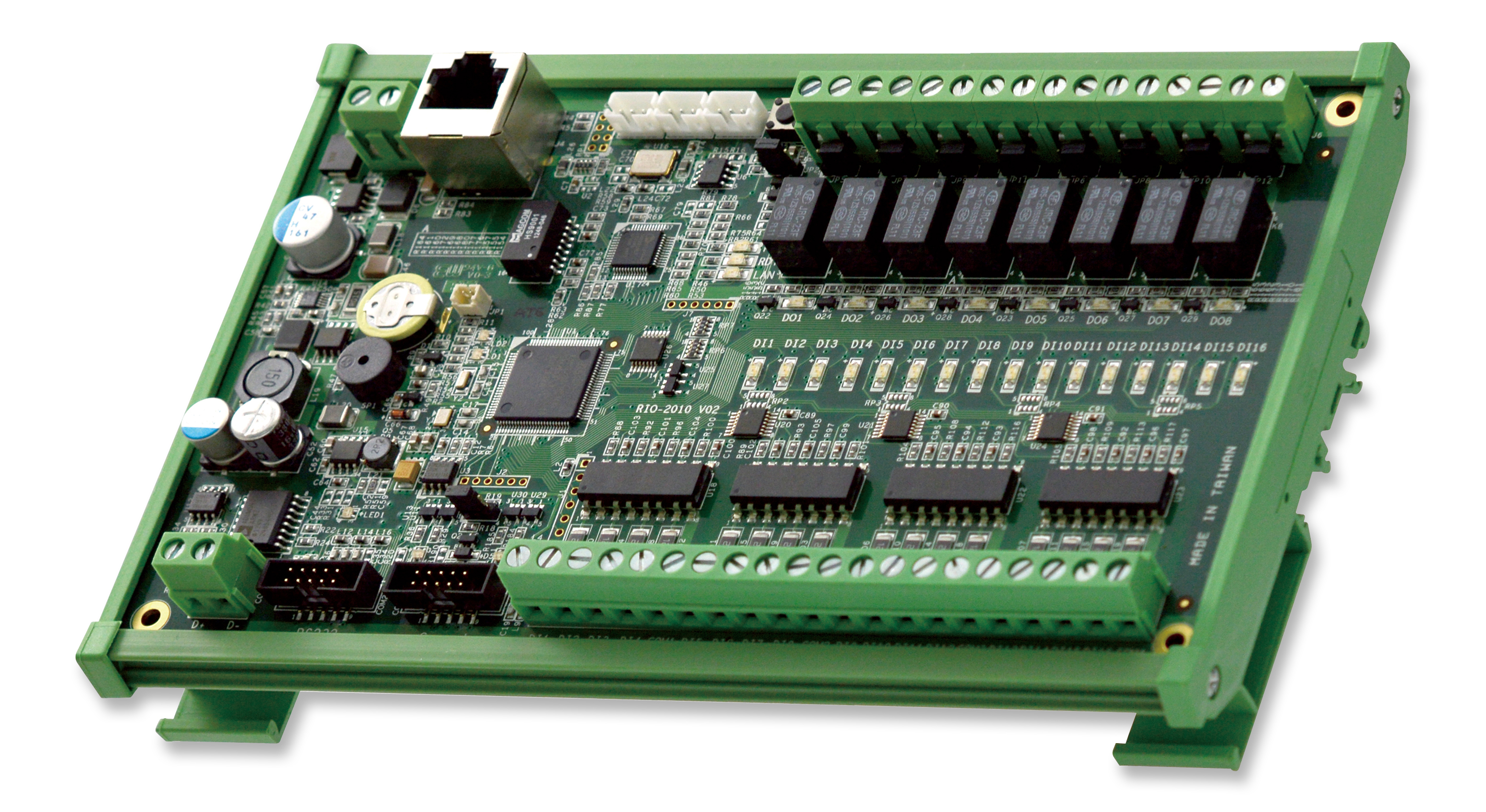

CPU
- Type: 32-bit ARM Cortex-M3 series processor
Power
- Input Voltage: 9 – 48 VDC
- Connector: Terminal block
- Power LED: Solid green when power is correctly supplied
Physical Characteristics
- Dimensions (W × H × D): 182 × 118 × 35.82 mm
- Weight: Approx. 0.5 kg (typical)
- Mounting: DIN-Rail
- Enclosure: Industrial-grade metal housing
Environmental
- Operating Temperature: 0 °C – 70 °C
- Storage Temperature: −20 °C – 85 °C
- Humidity: 5 % – 95 % RH (non-condensing)
4. Functionality
The RIO-2010BM functions as a remote digital I/O expansion module for industrial automation systems. It connects to a Modbus master (PLC, SCADA, or IoT gateway) via Ethernet (Modbus/TCP) or RS-485 (Modbus RTU/ASCII). The module’s digital inputs capture status signals from sensors, switches, or alarms, while the relay outputs control actuators, solenoids, or indicator lamps.
Use Cases and Applications:
- Industrial process monitoring and control
- Building automation and access control
- Remote equipment management
- Environmental monitoring (temperature, humidity, etc.)
- IoT data acquisition and cloud integration via Node-RED or Bluemix
Compatibility:
- Works with standard Modbus/TCP and Modbus RTU/ASCII masters
- Compatible with Artila’s IoT gateways and Node-RED environments
- Supports HTTP GET/POST for RESTful web integration
- Web interface accessible via any modern browser
Operation:
- Inputs and outputs are monitored and controlled through Modbus registers or web commands.
- The built-in web server allows direct browser-based control and monitoring.
- The Windows utility enables configuration of network parameters, Modbus mode, and I/O behavior.
5. Components & Accessories
Included Items:
1. RIO-2010BM main module
2. Artila CD (includes Windows configuration utility, AJAX demo web page, Modbus function list, and documentation)
Optional Accessories:
- CB-RJ2CON-100: Serial console cable for RS-232 connection

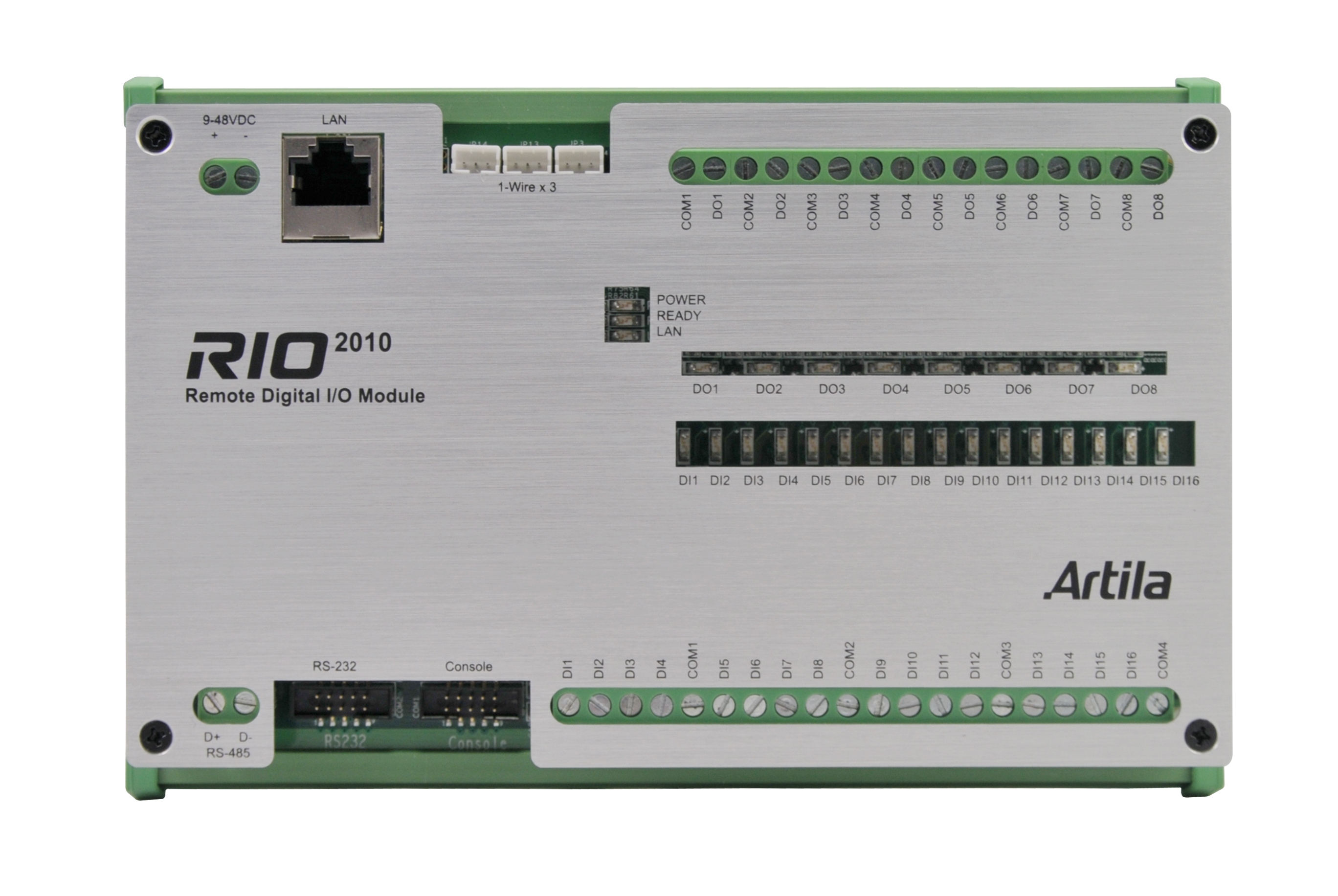

Connectors:
- Ethernet (RJ-45)
- RS-485 terminal block
- RS-232 console port
- Power input terminal block (9–48 VDC)
- Digital input terminal block (DI1–DI16, grouped by common ground)
- Relay output terminal block (DO1–DO8, configurable NO/NC)
- 1-Wire connectors (JP3, JP13, JP14)
6. Installation & Setup
Mounting:
The RIO-2010BM is designed for DIN-Rail mounting, suitable for industrial control panels.
Power Connection:
Connect a 9–48 VDC power source to the terminal block labeled “Power In.” When power is applied, the PWR LED lights solid green, and an audible beep confirms startup.
Network Configuration:
- Default IP Address: 192.168.2.127
- Netmask: 255.255.255.0
- Default Modbus Mode: Modbus/TCP
- Default Web Server Port: 5003
- Default Telnet Console Port: 5001
Configuration Utility:
Install the Manager Utility from the included CD before powering on the device. The utility supports:
- Broadcast search to discover RIO-2010BM units on the network
- Configuration of device name, network settings, Modbus mode, and digital output behavior
- Upload of customized web pages (.anf files)
Relay Jumper Settings (JP5–JP12):
- Normal Open (NO): Jumper shorted to pins 2–3
- Normal Closed (NC): Jumper shorted to pins 1–2
Factory Default Reset:
Press the hardware reset button (SW1) to restore factory settings.
7. Performance & Capabilities
Speed and Communication:
- Ethernet: 10/100 Mbps auto-negotiation
- RS-485: Up to 460,800 bps
- Low-latency I/O response suitable for real-time control
Capacity:
- 16 digital inputs and 8 relay outputs
- 3 additional 1-Wire channels for sensor integration
Efficiency:
- Low power consumption due to ARM Cortex-M3 CPU
- High isolation ensures signal integrity and protection against surges
Limitations:
- Relay outputs limited to 30 VDC @ 1 A or 125 VAC @ 0.5 A
- Operating temperature limited to 70 °C (not suitable for extreme environments)
Reliability:
- LED indicators for all I/O channels and communication ports
- Watchdog and ready indicators ensure stable operation
8. Standards & Compliance
Supported Protocols:
- Modbus/TCP (Ethernet)
- Modbus RTU/ASCII (RS-485)
- HTTP GET/POST (Web API)
- Telnet Console (Artila proprietary commands)
Supported Modbus Function Codes:
- 0x01: Read Coils
- 0x02: Read Discrete Inputs
- 0x03: Read Holding Registers
- 0x05: Write Single Coil
- 0x0F: Write Multiple Coils
Isolation and Safety:
- 2500 Vrms isolation for digital inputs and RS-485 interface
- 1.5 kV magnetic isolation for Ethernet port
Compliance:
- Designed for industrial EMC and safety standards (manufacturer-grade compliance)
- Compatible with industrial automation protocols and IoT frameworks
9. Additional Information
Warranty:
Standard manufacturer warranty (refer to Artila’s warranty policy).
Support:
- Technical documentation and software tools available on the included CD and Artila’s website.
- Firmware updates and configuration utilities provided by Artila Electronics.
Maintenance:
- Periodic inspection of terminal connections and relay contacts recommended.
- Firmware can be updated via network or serial console.
Software & Integration:
- Windows Utility: For configuration, broadcast search, and web page upload.
- Web Interface: AJAX-enabled demo page for real-time monitoring and control.
- Command Line Interface (CLI): Accessible via Telnet or serial console for advanced configuration using getter/setter commands.
- Node-RED Integration:
- Node-RED, developed by IBM, provides a graphical flow-based programming environment for IoT applications.
- The RIO-2010BM can be integrated into Node-RED flows using HTTP GET/POST nodes to retrieve or control digital I/O data.
- Data is exchanged in JSON format, enabling easy parsing and visualization.
- Example flow: A Node-RED gateway (e.g., Artila Matrix-700) connects to RIO-2010BM via RESTful API to monitor and control outputs.
Cloud Connectivity:
- Bluemix-ready for IBM Cloud integration.
- Supports RESTful web APIs for IoT data exchange.
- Compatible with MQTT-based IoT gateways for cloud data push.
Firmware & Updates:
- Firmware updates can be applied via Telnet or web interface.
- Custom web pages can be converted to .anf format and uploaded to the device for tailored control interfaces.
Summary
The Artila RIO-2010BM is a versatile, industrial-grade remote digital I/O module designed for seamless integration into Modbus-based automation systems and IoT environments. With dual communication interfaces (Ethernet and RS-485), high isolation protection, and web-based control, it provides a reliable and flexible solution for distributed control and monitoring applications. Its 16 opto-isolated digital inputs, 8 configurable relay outputs, and 1-Wire sensor support make it ideal for a wide range of industrial and building automation tasks. The inclusion of Windows configuration tools, AJAX web interface, and Node-RED compatibility further enhances its usability in modern IoT and cloud-connected systems.
Robust, compact, and easy to deploy, the RIO-2010BM exemplifies Artila’s commitment to providing intelligent, network-ready I/O solutions for the evolving industrial Internet of Things landscape.
