RS485 1 channel transmitter input module with LED display, Adlink

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Processor:** Dual-core Intel® Celeron® N2807 SoC (Bay Trail-M) operating at 1.58 GHz (up to 2.16 GHz burst). - **Operating Systems:** Android 4.4.2 (KitKat) preinstalled; Windows Embedded 8.1 and Windows 10 optional. - **Display:** 10.1-inch TFT LCD with 1280×800 WXGA resolution, 600 cd/m² brightness, and Corning® Gorilla® Glass protection. - **Touchscreen:** 2-point projected capacitive touch (PCT) for precise input and glove-friendly operation. - **Wireless Connectivity:** - WLAN: IEEE 802.11 a/b/g/n/ac - WPAN: Bluetooth 4.0 - WWAN: Optional 3.5G HSPA+ or 4G LTE (Mini PCIe module) - **Sensors:** Integrated GPS (uBlox AMY-6M), E-compass, G-sensor, gyroscope, and illuminance sensor. - **Data Capture:** HF 13.56 MHz NFC RFID reader supporting ISO15693, ISO14443A/B, NFC 18000-3 standards, with SAM encryption. - **Cameras:** 5 MP rear camera with flash and autofocus; 2 MP front camera for video conferencing. - **Rugged Design:** IP65 ingress protection, 1.2 m drop resistance (1.5 m with optional protective housing). - **Battery:** 7.4 V, 6300 mAh Li-ion battery with

Manufacturer: Adlink Technology Inc.

Category: LCD HMI

- **Processor:** Dual-core Intel® Celeron® N2807 SoC (Bay Trail-M) operating at 1.58 GHz (up to 2.16 GHz burst frequency). - **Display:** 10.1” TFT LCD with 1280×800 WXGA resolution, 600 cd/m² brightness, and Corning® Gorilla® Glass protection. - **Touchscreen:** 2-point projected capacitive touch (PCT) for intuitive multi-touch operation. - **Operating Systems:** Windows Embedded 8.1, Windows 10 IoT CBB Value, or Android 4.4.2 (KitKat). - **Memory & Storage:** 4 GB DDR3L 1333 MHz RAM and 64 GB mSATA SSD (eMMC). - **Wireless Connectivity:** - WLAN: IEEE 802.11 a/b/g/n/ac - WPAN: Bluetooth 4.0 - WWAN (optional): 3.5G HSPA+ or 4G LTE (EU/USA variants) - **Sensors:** Integrated GPS (uBlox AMY-6M), E-compass, G-sensor, gyroscope, and illuminance sensor. - **Data Capture:** HF 13.56 MHz NFC RFID reader supporting ISO15693, ISO14443A/B, NFC 18000-3 standards with SAM encryption. - **Cameras:** 5 MP rear camera with flash and autofocus; 2 MP front camera. - **Rugged Design:** IP65 ingress protection, 1.2 m drop resistance (1.5 m with optional protective housing). - **Battery:** 7.4 V / 6300 mAh Li-ion battery with

Manufacturer: Adlink Technology Inc.

Category: LCD HMI

10.1-inch widescreen industrial touch monitor

10.1-inch open-frame industrial touch monitor with 1280 x 800 resolution, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 inputs, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature -20°C to 70°C.

Manufacturer: Adlink Technology Inc.

Category: No category

- **High-Density 100-Pin SCSI-II Interface:** Supports the SCSI-II standard with a 100-pin male connector on both ends, ensuring compatibility with a wide range of SCSI-based data acquisition and control hardware. - **Optimized for ADLINK DAQ and I/O Cards:** Designed to interface seamlessly with ADLINK’s PCI, PXI, and cPCI data acquisition modules and digital I/O boards that utilize 100-pin SCSI-II connectors. - **1.5-Meter Cable Length:** Provides an optimal balance between flexibility and signal integrity, suitable for rack-mounted or benchtop configurations. - **Shielded Construction:** Incorporates internal shielding to minimize electromagnetic interference (EMI) and crosstalk, ensuring stable data transmission even in electrically noisy industrial environments. - **Durable Industrial-Grade Build:** Features robust molded connectors and strain reliefs to withstand repeated insertions and mechanical stress. - **Plug-and-Play Compatibility:** No additional configuration required; supports direct connection between host and peripheral SCSI-II devices. - **Backward Compatibility:** Compatible with legacy SCSI-II and certain SCSI-III devices that maintain the 100-pin interface standard. - **Reliable Signal Integrity:** Engineered for consistent impedance and low signal attenuation across the full cable length.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **High-Density 100-Pin SCSI-II Interface:** Supports the SCSI-II standard with a 100-pin male-to-male configuration, ensuring compatibility with a wide range of SCSI-based systems and devices. - **Extended Length (10 meters):** Provides flexibility for installations where devices are physically separated, maintaining signal quality over longer distances. - **Precision Shielding and Twisted-Pair Construction:** Minimizes electromagnetic interference (EMI) and crosstalk, ensuring stable data transmission and signal integrity. - **Industrial-Grade Build Quality:** Designed for demanding environments, featuring robust connectors and durable cable sheathing for long-term reliability. - **Plug-and-Play Compatibility:** Fully compliant with SCSI-II interface standards, allowing seamless integration with ADLINK data acquisition cards, controllers, and other SCSI-compatible equipment. - **Male-to-Male Connector Configuration:** Enables direct connection between two SCSI-II ports without the need for gender changers or adapters. - **Backward Compatibility:** Supports legacy SCSI devices and controllers adhering to SCSI-I and SCSI-II protocols. - **Optimized for Data Acquisition and Control Systems:** Ideal for connecting ADLINK DAQ modules, industrial PCs, and instrumentation systems requiring high-speed parallel data transfer.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Interface Type:** SCSI-II (100-pin) - **Connector Type:** Male-to-Male, 100-pin high-density connectors - **Cable Length:** 1 meter (approx. 3.28 feet) - **High-Speed Data Transfer:** Supports SCSI-II data rates up to 10 MB/s (Fast SCSI) and backward compatibility with SCSI-I devices. - **Signal Integrity:** Shielded twisted-pair construction minimizes crosstalk and electromagnetic interference (EMI). - **Industrial-Grade Durability:** Designed for continuous operation in demanding environments such as test benches, industrial automation systems, and embedded computing platforms. - **Precision Molded Connectors:** Ensures secure mechanical fit and stable electrical contact. - **Backward Compatibility:** Fully compatible with legacy SCSI-I and forward-compatible with certain SCSI-III devices using appropriate adapters. - **Plug-and-Play Design:** No additional configuration required; supports hot-swappable SCSI devices where applicable. - **Manufacturer Quality Assurance:** Produced by ADLINK, a recognized leader in industrial computing and connectivity solutions.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **High-Density 100-Pin SCSI-II Interface:** Supports the SCSI-II standard, providing a 100-pin high-density connector on both ends for secure and stable data connections. - **Male-to-Male Configuration:** Both ends feature male connectors, enabling direct device-to-device or device-to-controller connections without intermediate adapters. - **Optimized for Data Integrity:** Shielded cable construction minimizes electromagnetic interference (EMI) and crosstalk, ensuring consistent signal quality even in electrically noisy environments. - **Industrial-Grade Durability:** Designed for long-term use in industrial and laboratory settings, with robust connector housings and strain relief to prevent mechanical stress and cable fatigue. - **2.5-Meter Length:** Provides an optimal balance between flexibility and signal performance, suitable for short- to medium-distance interconnections within equipment racks or test setups. - **Compatibility with ADLINK DAQ and I/O Cards:** Specifically designed to interface with ADLINK data acquisition (DAQ) boards, digital I/O modules, and other SCSI-II compatible devices. - **Plug-and-Play Connectivity:** No additional configuration required; supports standard SCSI-II pin assignments and signaling. - **Backward Compatibility:** Compatible with legacy SCSI-II and some SCSI-III devices that maintain the 100-pin interface standard.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **100-pin SCSI-II Interface:** Supports the SCSI-II standard, ensuring compatibility with a wide range of legacy and industrial SCSI devices. - **Male-to-Male Configuration:** Equipped with 100-pin male connectors on both ends for direct device-to-device or device-to-controller connections. - **High Signal Integrity:** Designed to minimize crosstalk and electromagnetic interference (EMI), ensuring stable data transmission even in electrically noisy environments. - **Industrial-Grade Construction:** Built with durable shielding and robust connector housings to withstand frequent connection cycles and mechanical stress. - **Optimized Cable Length (2m):** Provides sufficient reach for typical rack-mounted or benchtop setups without excessive signal degradation. - **Backward Compatibility:** Fully compatible with SCSI-I and SCSI-II devices, and adaptable to certain SCSI-III configurations with appropriate adapters. - **Reliable Data Throughput:** Supports SCSI-II data transfer rates up to 10 MB/s (Fast SCSI mode), depending on device configuration and bus termination. - **Secure Connection:** Precision-molded connectors ensure tight mating and secure locking, reducing the risk of accidental disconnection. - **Plug-and-Play Operation:** No software configuration required; the cable functions as a passive interconnect medium.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Interface Type:** SCSI-II (100-pin) - **Connector Type:** Male-to-Male (100-pin high-density connectors on both ends) - **Cable Length:** 3 meters (approximately 9.84 feet) - **High-Speed Data Transfer:** Supports SCSI-II data rates up to 10 MB/s (Fast SCSI) and compatible with legacy SCSI-I and certain SCSI-III devices. - **Signal Integrity:** Shielded twisted-pair construction minimizes electromagnetic interference (EMI) and crosstalk, ensuring stable data transmission. - **Durable Construction:** Ruggedized connectors and strain-relief boots enhance mechanical stability and longevity under frequent connection cycles. - **Backward Compatibility:** Fully compatible with earlier SCSI standards and devices using 100-pin high-density connectors. - **Industrial-Grade Reliability:** Designed for continuous operation in demanding environments such as test benches, data acquisition systems, and industrial automation setups. - **Plug-and-Play Design:** No additional configuration required; supports direct connection between SCSI host adapters and peripheral devices. - **Adlink Quality Assurance:** Manufactured under strict quality control to ensure consistent electrical performance and mechanical precision.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Interface Type:** SCSI-II (100-pin) - **Connector Type:** Male-to-Male (100-pin high-density connectors on both ends) - **Cable Length:** 4 meters (13.12 feet) - **High-Speed Data Transfer:** Supports SCSI-II data rates up to 10 MB/s (Fast SCSI) and compatible with legacy SCSI-I and certain SCSI-III devices depending on controller compatibility. - **Signal Integrity:** Shielded twisted-pair construction minimizes electromagnetic interference (EMI) and crosstalk, ensuring stable data transmission over extended distances. - **Durable Construction:** Industrial-grade cable jacket and molded connectors provide mechanical strength and long service life in demanding environments. - **Backward Compatibility:** Fully compatible with SCSI-I and SCSI-II devices, allowing integration with existing systems. - **Secure Connection:** Precision-molded connectors with retention clips ensure a firm and reliable connection to SCSI ports. - **Plug-and-Play Design:** No additional configuration required; supports direct connection between host adapters and peripheral devices. - **Adlink Quality Assurance:** Manufactured under strict quality control standards to ensure consistent performance and reliability.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **100-pin SCSI-II Interface:** Supports the SCSI-II standard, ensuring compatibility with a wide range of legacy and industrial SCSI devices. - **Male-to-Male Connectors:** Equipped with 100-pin male connectors on both ends for direct device-to-device or device-to-controller connections. - **5-Meter Cable Length:** Provides extended reach for installations where devices are spaced apart, maintaining signal quality over longer distances. - **High Signal Integrity:** Designed with precision shielding and twisted-pair wiring to minimize electromagnetic interference (EMI) and crosstalk. - **Industrial-Grade Construction:** Built for durability and reliability in demanding environments such as test benches, industrial automation systems, and laboratory setups. - **Plug-and-Play Compatibility:** Fully compliant with SCSI-II signaling and pinout standards, allowing seamless integration with existing SCSI hardware. - **Robust Connector Design:** The 100-pin connectors feature secure locking mechanisms to prevent accidental disconnection and ensure stable data transmission. - **Backward Compatibility:** Compatible with SCSI-I and certain SCSI-III devices when used with appropriate adapters or controllers. - **Optimized for Data Acquisition Systems:** Commonly used with ADLINK DAQ cards, PXI systems, and other industrial computing platforms requiring high-density parallel data transfer.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **High-Density 100-Pin Configuration:** Supports compact, multi-signal connections in a single interface, ideal for space-constrained systems. - **SCSI-II Compliance:** Fully compliant with the SCSI-II interface standard, ensuring interoperability with standard SCSI-II cables, terminators, and devices. - **Male Connector Assembly Kit:** Includes the male connector housing and pin assembly components for secure mating with corresponding female connectors. - **AMP Quality Construction:** Manufactured by AMP (TE Connectivity), known for precision-engineered interconnect solutions with high reliability and long service life. - **Compatibility with Adlink Components:** Specifically designed to connect with Adlink’s HDRA-E100W1LFDT1EC-SL connector, ensuring mechanical and electrical compatibility. - **Durable Contact Interface:** Gold-plated contacts for superior conductivity, corrosion resistance, and long-term signal integrity. - **Secure Locking Mechanism:** Provides stable mechanical retention under vibration or movement, suitable for industrial and embedded environments. - **Versatile Mounting Options:** Supports panel, cable, or board-level integration depending on system design. - **RoHS-Compliant Materials:** Constructed from environmentally safe materials meeting modern compliance standards.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **100-pin SCSI-II Interface:** Provides a direct, shielded connection between the PCI-8136 card and external servo driver or I/O devices. - **DIN-Rail Mountable:** Designed for quick installation in industrial control cabinets and enclosures. - **1.5-Meter Shielded Cable:** Ensures signal integrity and noise immunity in electrically noisy environments. - **Full Compatibility with PCI-8136:** Supports all analog, digital, and pulse I/O channels of the PCI-8136 card. - **High Isolation:** Maintains the 2500V DC optical isolation provided by the PCI-8136 for safe operation in industrial environments. - **Comprehensive Signal Access:** Breaks out all analog input/output, digital input/output, and pulse train signals for easy wiring and diagnostics. - **Robust Construction:** Industrial-grade materials and connectors ensure long-term reliability under continuous operation. - **Ease of Maintenance:** Clearly labeled terminal points and pin assignments simplify troubleshooting and system integration.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **100-pin SCSI-II Interface:** Provides a standardized, high-density connection for servo driver and motion control applications. - **DIN Rail Mountable Termination Board:** Designed for easy installation in industrial control cabinets, ensuring secure and organized wiring. - **Optimized for ADLINK PCI-8136:** Fully compatible with the ADLINK PCI-8136 servo driver interface card, enabling seamless integration and communication. - **3-Meter Shielded Cable Included:** Ensures reliable data transmission and noise immunity in electrically noisy industrial environments. - **High Signal Integrity:** The SCSI-II interface supports differential signaling, minimizing crosstalk and maintaining signal quality over extended cable lengths. - **Industrial-Grade Construction:** Built with durable materials suitable for continuous operation in factory automation and motion control systems. - **Simplified Wiring and Maintenance:** Terminal labeling and structured layout facilitate quick installation, troubleshooting, and maintenance. - **Compact Form Factor:** Space-efficient design suitable for dense control panel installations. - **Plug-and-Play Compatibility:** Pre-terminated connectors reduce setup time and eliminate wiring errors.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **100-pin SCSI-II Interface:** Supports standard 100-pin SCSI-II connectors, ensuring compatibility with a wide range of SCSI-based data acquisition and control modules. - **DIN Rail Mounting:** Integrated DIN rail mounting capability allows for quick and secure installation in industrial enclosures and control panels. - **High Signal Integrity:** Provides proper termination for SCSI-II buses, minimizing signal reflections, noise, and data transmission errors. - **Compact Form Factor:** Space-efficient design (157 × 112 × 51 mm) suitable for dense control cabinet layouts. - **Industrial-Grade Construction:** Built with robust materials to withstand vibration, temperature variations, and continuous operation in industrial environments. - **Plug-and-Play Compatibility:** Designed for direct connection to SCSI-II devices without the need for additional adapters or converters. - **No ACL-102100 Cable Included:** The board is supplied without the ACL-102100 male-to-male cable, allowing users to select or reuse existing cabling as needed. - **Reliable Termination Network:** Ensures stable impedance matching across the SCSI-II bus, improving communication reliability and reducing data loss. - **Manufacturer Quality Assurance:** Produced by ADLINK, a recognized manufacturer of industrial computing and data acquisition hardware.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

- **100-pin SCSI-II Interface:** Supports standard 100-pin SCSI-II connections, ensuring compatibility with a wide range of industrial and instrumentation devices. - **DIN Rail Mounting:** Designed for direct installation on standard DIN rails, simplifying integration into control cabinets and industrial enclosures. - **High Signal Integrity:** Provides proper termination for SCSI-II buses, reducing signal reflections and maintaining data transmission quality. - **Compact Form Factor:** Space-efficient design (157 × 112 × 51 mm) suitable for dense control panel layouts. - **Robust Construction:** Built with industrial-grade materials for durability and long-term reliability in harsh environments. - **Cable Compatibility:** Designed for use with ADLINK ACL-102100-x male-to-male SCSI-II cables (not included). - **Passive Termination Design:** Ensures stable impedance matching without requiring external power. - **Ease of Maintenance:** Modular design allows quick replacement or reconfiguration without extensive rewiring. - **Universal Application:** Suitable for data acquisition systems, motion control, test and measurement setups, and other SCSI-based industrial automation systems.

Manufacturer: Adlink Technology Inc.

Category: DIN Rail Panels

12.1-inch open-frame industrial touch monitor

12.1-inch open-frame industrial touch monitor with 1024 x 768 XGA resolution, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 input, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature -20°C to 70°C.

Manufacturer: Adlink Technology Inc.

Category: No category

- **Highly Integrated Portable PXI Platform:** Combines display, input devices, and PXI backplane in one compact 3U chassis. - **14‑Slot Configuration:** One system slot and 13 PXI/CompactPCI peripheral slots for flexible module integration. - **PXI and CompactPCI Compatibility:** Fully compliant with PXI Specification Rev. 2.2 and PICMG 2.2 standards. - **Integrated 15" High‑Brightness TFT LCD:** Supports up to 1024 × 768 resolution with touch‑panel functionality. - **Multiple Input Interfaces:** Built‑in 87‑key keyboard, touchpad, and touch‑screen for direct user interaction. - **Built‑in Slim‑Type DVD Combo Drive:** Supports optical media for software installation and data storage. - **Rugged Aluminum Alloy Construction:** Lightweight yet durable for mobile and industrial environments. - **Industrial‑Grade 500 W ATX Power Supply:** Provides stable power for system and peripheral modules. - **Advanced Cooling System:** Three 120 mm × 120 mm × 25 mm ball‑bearing fans (74.5 CFM each) ensure optimal airflow. - **Environmental Robustness:** Operates from 0 °C to 50 °C, withstands 10 G shock and 0.31 G RMS vibration. - **Comprehensive EMC/EMI Compliance:** Meets EN 55022, EN 55024, and FCC Class A standards. - **Protective Top Cover:** Shields installed PXI/cPCI modules and cabling during transport. - **Portability Accessories:** Supplied with a carriage bag for field deployment. - **Serviceability:** Modular design for easy installation, maintenance, and upgrades.

Manufacturer: Adlink Technology Inc.

Category: PXIe PXI Chassis

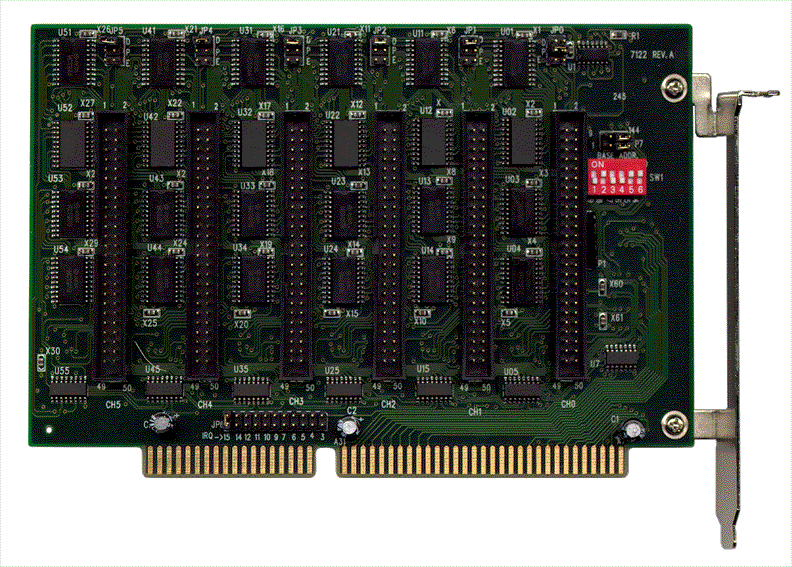

- **High‑Density I/O:** 144 TTL/DTL‑compatible digital input/output lines organized as six 24‑channel groups. - **8255 Mode 0 Emulation:** Fully emulates six industry‑standard 8255 PPIs, each providing three 8‑bit ports (PA, PB, PC). - **Buffered Circuit Design:** Ensures higher current driving capability and signal integrity. - **OPTO‑22 Compatibility:** Directly interfaces with OPTO‑22 compatible I/O modules and terminal boards. - **Programmable Interrupt Sources:** Supports multiple interrupt levels (IRQ3–15) with jumper‑selectable configuration. - **Output Status Read‑Back:** Allows software to verify output states. - **Hardware/Software Compatibility:** Fully compatible with Advantech PCL‑722. - **Compact Form Factor:** Suitable for installation in standard or compact ISA chassis. - **Software Support:** Compatible with DOS, Windows 95/98/NT, and LabVIEW environments via ADLINK’s ACLS‑DLL1 and ACLS‑LVIEW libraries. - **Flexible Address Mapping:** Selectable 96‑bit or 144‑bit operation modes to avoid I/O address conflicts. - **Tri‑State Interrupt Lines:** Enables multiple ACL‑7122 boards to share the same IRQ line. - **Industrial‑Grade Reliability:** Designed for continuous operation in industrial environments (0°C–55°C).

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated ISA

15-inch open-frame industrial touch monitor

15-inch open-frame industrial touch monitor with 1024 x 768 XGA resolution, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 input, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature 0°C to 60°C.

Manufacturer: Adlink Technology Inc.

Category: No category

- **PXI and CompactPCI Compatibility:** Supports 6U PXI and CompactPCI modules, ensuring flexibility for mixed‑standard test systems. - **PXI Specification Rev. 2.2 Compliance:** Fully compliant with PXI standards, including trigger bus, star trigger, local bus, and 10 MHz reference clock distribution. - **15‑Slot Architecture:** One system controller slot and fourteen peripheral slots for modular expansion. - **High‑Power Redundant Supply:** Dual hot‑swappable CompactPCI power modules (4 × 250 W for 1000 W total output) with universal 100–240 V AC input. - **Advanced Cooling System:** Ten dual‑ball‑bearing fans (five intake, five exhaust) delivering a combined 482 CFM airflow for superior thermal stability. - **System Monitoring and Alarms:** Front‑panel LEDs and buzzer alarms for voltage, temperature, and fan status; reset button for alarm acknowledgment. - **Magnetic Circuit Breaker:** Integrated AC input protection for electrical safety. - **Hot‑Swappable Components:** Power modules and fan trays can be replaced without system downtime, minimizing MTTR. - **Optional Trigger Bus Connectivity:** Configurable trigger bus segments for synchronized multi‑module operation. - **Industrial‑Grade Construction:** Rugged 19‑inch rackmount chassis with reinforced aluminum frame and UL 94V‑0 rated backplane materials.

Manufacturer: Adlink Technology Inc.

Category: PXIe PXI Chassis

- **PXI and CompactPCI Compatibility:** Supports 6U PXI and CompactPCI modules, ensuring flexibility across instrumentation and industrial control applications. - **PXI Specification Rev. 2.2 Compliance:** Guarantees interoperability with PXI‑compliant modules and controllers. - **15‑Slot Architecture:** One system slot and fourteen peripheral slots for extensive module integration. - **Dual Hot‑Swappable Power Supplies:** Two 250 W CompactPCI power modules with universal 100–240 VAC input; optional 1000 W configuration for power‑intensive systems. - **Advanced Cooling System:** Ten dual‑ball‑bearing fans (five intake, five exhaust) delivering a combined 482 CFM airflow for superior thermal stability. - **System Monitoring and Alarms:** Front‑panel LEDs and buzzer alarms for voltage, temperature, and fan status; includes alarm reset button. - **Magnetic Circuit Breaker Protection:** Provides AC input protection and easy reset capability. - **Star Trigger and Trigger Bus Support:** Enables precise synchronization among multiple PXI modules with

Manufacturer: Adlink Technology Inc.

Category: PXIe PXI Chassis

15.6-inch widescreen industrial touch monitor

15.6-inch open-frame industrial touch monitor with 1920 x 1080 resolution, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 inputs, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature 0°C to 70°C.

Manufacturer: Adlink Technology Inc.

Category: No category

- **High‑Resolution Analog Output:** 16‑bit D/A resolution with guaranteed 15‑bit monotonicity for precise voltage generation. - **Multi‑Channel Output:** 16 independent voltage output channels (±10 V range) with simultaneous update capability. - **CompactPCI Bus Interface:** Fully compliant with PICMG 2.0 R2.1 CompactPCI standard, 3U Eurocard form factor (100 × 160 mm). - **Fast Output Response:** Typical slew rate of 26 V/µs and settling time of 130 µs for a 20 V step. - **High Accuracy:** Gain error ±0.2 % FSR (max), DNL ±1 LSB (typical), monotonic 15 bits. - **Integrated DC/DC Converter:** Provides isolated power for stable analog performance. - **Digital I/O Support:** 4 TTL digital inputs and 4 TTL digital outputs for auxiliary control and synchronization. - **Plug‑and‑Play Configuration:** Automatic resource allocation via PCI PnP BIOS; no manual jumper settings required. - **Software & OS Support:** Drivers and SDKs for Windows 7/8 (x86/x64) and Linux; compatible with LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Calibration & Utility Tools:** Factory‑calibrated with precision DMM; includes DOS‑based utility for function testing and calibration. - **Industrial‑Grade Design:** Operating temperature 0 °C – 50 °C, humidity 5 % – 95 % (non‑condensing).

Manufacturer: Adlink Technology Inc.

Category: D/A Intelligent PXI/cPCI
