- **ARM‑based Industrial Gateway:** Built around the TI Sitara AM3352 ARM Cortex‑A8 processor running at 1 GHz, optimized for low‑power, high‑reliability embedded applications. - **Pre‑installed Debian OS:** Ships with Debian 8 or 9, providing a stable, open‑source Linux environment for application development and deployment. - **Rugged Fanless Design:** Operates fanlessly from –25 °C to +70 °C at 100 % CPU load, ensuring reliability in industrial and outdoor environments. - **Wide Power Input Range:** Accepts 8 VDC – 25 VDC input, suitable for factory and field power systems. - **Comprehensive I/O:** - 1 × 10/100 Mbps Ethernet port - 1 × USB 2.0 port - 2 × software‑configurable RS‑232/422/485 serial ports - 1 × 3‑wire RS‑232 console port - 4 × isolated digital inputs and 4 × isolated digital outputs - 1 × isolated CAN bus 2.0 A/B interface (IGT‑21 only) - **Wireless Expansion:** Full‑size mini‑PCIe slot (USB 2.0 signal only) and external USIM holder for 3G/4G/LTE or Wi‑Fi modules. - **Dual microSDHC Storage:** One internal and one external slot for system and user data separation or rapid OS deployment. - **User Interaction:** Six user‑programmable LEDs and two programmable function buttons for custom control and status indication. - **Industrial Durability:** CE/FCC Class A certified, 5 Grms vibration and 50 Grms shock resistance. - **Compact Footprint:** 41 mm (W) × 77 mm (D) × 104 mm (H), weight 0.4 kg, DIN‑rail mountable.

Manufacturer: Neousys Technology

Category: IoT Gateway

- **Industrial‑grade ARM‑based gateway:** Built around the TI Sitara AM3352 ARM Cortex‑A8 1 GHz processor for efficient, low‑power operation. - **Rugged design:** Fanless, vibration‑ and shock‑resistant enclosure rated for –25 °C to +70 °C continuous operation at 100 % CPU load. - **Real‑Time Clock (RTC):** Integrated RTC for precise timekeeping and event logging. - **High I/O density:** 8 isolated digital inputs and 8 isolated digital outputs for direct connection to sensors, switches, and actuators. - **Flexible communication:** - 1 × 10/100 Mb Ethernet port - 1 × USB 2.0 port - 1 × RS‑232 console port - 1 × RS‑485 port - 1 × full‑size mini PCIe slot (USB signal only) for 3G/4G/LTE or Wi‑Fi modules - 1 × external SIM card slot - **Dual microSDHC storage:** Internal and external T‑Flash slots supporting SDHC cards, allowing separation of system and user data or rapid OS deployment. - **User interface elements:** 6 user‑programmable LEDs and 2 user‑programmable buttons for custom control and status indication. - **Compact footprint:** 41 mm (W) × 77 mm (D) × 104 mm (H), 0.4 kg, DIN‑rail mountable. - **Wide power input range:** 8 V DC to 25 V DC input with 3‑pin terminal block connector. - **Pre‑installed Debian Linux:** Ready‑to‑use system with open‑source flexibility for industrial IoT applications. - **Wireless expansion:** Optional NSIO‑LTE‑7455 Cat. 6 LTE embedded modem supported. - **Industrial certifications:** CE/FCC Class A compliance, 5 Grms vibration and 50 Grms shock resistance.

Manufacturer: Neousys Technology

Category: IoT Gateway

UL-certified ultra-compact embedded computer with Intel Atom x7425E and 4x GbE

UL-certified ultra-compact embedded computer based on Intel Alder Lake Atom x7425E (4C/4T, 1.5/3.4 GHz, 12W) with Intel UHD Graphics 24EUs, up to 16GB DDR5-4800, 4x GbE, 4x USB 3.2 Gen 2, DP++ and HDMI 1.4b, 4 isolated DI and 4 isolated DO, M.2 2280 M-key, mini-PCIe, and MezIO expansion.

Manufacturer: Neousys Technology

Category: No category

UL-certified ultra-compact embedded computer with Intel Core i3-N305 and 4x PoE+

UL-certified ultra-compact embedded computer based on Intel Alder Lake Core i3-N305 (8C/8T, 1.8/3.8 GHz, 15W) with Intel UHD Graphics 32EUs, up to 16GB DDR5-4800, 4x GbE with IEEE 802.3at PoE+ on ports 1-4, 4x USB 3.2 Gen 2, DP++ and HDMI 1.4b, 4 isolated DI and 4 isolated DO, M.2 2280 M-key, mini-PCIe, and MezIO expansion.

Manufacturer: Neousys Technology

Category: No category

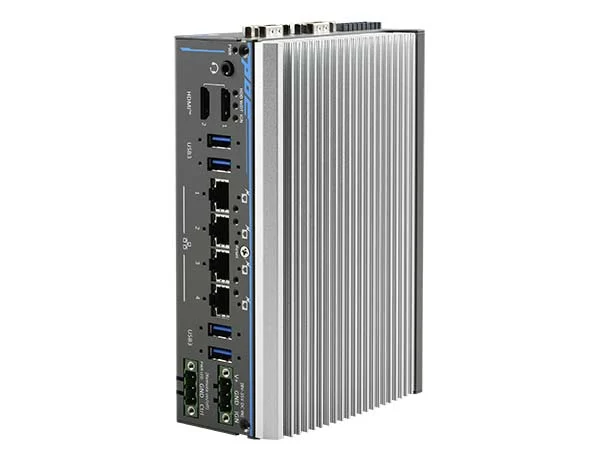

Ultra-compact AMD Ryzen PRO 8640U embedded PC with 4x PoE+ and MezIO

AMD Ryzen PRO 8640U embedded computer with 6C/12T CPU, 3.5/4.9 GHz, 15W-30W TDP, AMD Radeon RDNA3 graphics, Ryzen AI NPU up to 16 TOPS and total SoC 31 TOPS. Supports up to 32 GB DDR5-5600 SDRAM via one SODIMM socket, 1x M.2 2280 M-key PCIe Gen4 x4 NVMe SSD, 4x GbE with IEEE 802.3at PoE+ on ports 1-4, 4x USB 3.2 Gen2x1, 2x HDMI 2.0b, 4-CH isolated DI and 4-CH isolated DO, serial COM ports, mini-PCIe, MezIO expansion, 8 to 35V DC input, DIN-rail mounting, and -25°C to 70°C operation depending on configuration.

Manufacturer: Neousys Technology

Category: No category

Ultra-compact fanless embedded computer with 2.5GbE and PoE+

- **Processor:** Intel® Atom® x6425E Quad-Core CPU, base frequency 2.0 GHz, burst up to 3.0 GHz, 12 W TDP. - **Fanless Design:** Completely fanless thermal solution for silent, maintenance-free operation in industrial environments. - **Compact Form Factor:** Ultra-compact enclosure measuring only 56 mm (H) × 108 mm (W) × 153 mm (D). - **High-Speed Networking:** - 3 × 2.5GBASE-T Ethernet ports for high-bandwidth data transmission. - 2 × PoE+ ports (optional) supporting IEEE 802.3at standard with a total power budget of 50 W. - **Memory Support:** 1 × DDR4-3200 SODIMM socket supporting up to 32 GB system memory. - **Storage Options:** - 1 × M.2 2280 SATA interface for SSD storage. - 1 × M.2 2230 E-key slot for Wi-Fi, AI accelerator (TPU/VPU), or other wireless modules. - **Display Capabilities:** Integrated Intel® UHD Graphics supporting dual independent displays via 2 × DisplayPort outputs, each up to 4096 × 2160 resolution at 60 Hz. - **USB Connectivity:** - 2 × USB 3.1 Gen1 (5 Gbps) ports with screw-lock connectors. - 2 × USB 2.0 ports with screw-lock connectors. - **Serial Communication:** - 1 × RS-232/422/485 (COM1). - 3 × RS-232 (COM2/3/4) or 1 × RS-422/485 (COM2) configurable. - **Audio Interface:** Optional mic-in and speaker-out ports. - **Expansion:** MezIO® expansion slot for additional I/O or function modules. - **Power Input:** 8–35 V DC wide-range input via 3-pin terminal block. - **Rugged Operation:** Designed for -25°C to +70°C fanless operation. - **Mounting Options:** DIN-rail mounting standard; wall-mount kit optional. - **Weight:** 0.96 kg.

Manufacturer: Neousys Technology

Category: No category

Ultra-compact fanless embedded computer with 3x 2.5GbE

Intel Elkhart Lake Atom x6425E ultra-compact DIN-rail fanless rugged computer with 3x 2.5GbE and 2x USB 3.1 Gen1. Shares the POC-400 series platform with front I/O access, fanless design, and compact enclosure.

Manufacturer: Neousys Technology

Category: Atom Powered Embedded

Ultra-compact fanless embedded computer with Intel Atom x7425E and 4x GbE

Ultra-compact embedded computer based on Intel Alder Lake Atom x7425E (4C/4T, 1.5/3.4 GHz, 12W) with Intel UHD Graphics 24EUs, up to 16GB DDR5-4800, 4x GbE, 4x USB 3.2 Gen 2, DP++ and HDMI 1.4b, 4 isolated DI and 4 isolated DO, M.2 2280 M-key, mini-PCIe, and MezIO expansion.

Manufacturer: Neousys Technology

Category: No category

Ultra-compact fanless embedded computer with Intel Core i3-N305 and 4x PoE+

Ultra-compact embedded computer based on Intel Alder Lake Core i3-N305 (8C/8T, 1.8/3.8 GHz, 15W) with Intel UHD Graphics 32EUs, up to 16GB DDR5-4800, 4x GbE with IEEE 802.3at PoE+ on ports 1-4, 4x USB 3.2 Gen 2, DP++ and HDMI 1.4b, 4 isolated DI and 4 isolated DO, M.2 2280 M-key, mini-PCIe, and MezIO expansion.

Manufacturer: Neousys Technology

Category: No category

- **Independent USB 3.0 Controllers:** Each group of ports is managed by its own NEC/Renesas μPD720202 USB 3.0 host controller, ensuring no bandwidth sharing and maintaining full 5 Gbps throughput per port. - **High‑Bandwidth PCI Express Interface:** Utilizes a 4‑lane PCI Express Gen2 interface compliant with PCI Express Base Specification Revision 2.0, providing up to 20 Gbps total bandwidth to the host system. - **Industrial‑Grade Power Design:** On‑board regulated 5 V DC power supply with user‑configurable per‑port current limits (900 mA or 1500 mA). This ensures stable power delivery to connected USB devices, even under heavy load. - **Software‑Programmable Power Control:** Each port supports software‑controlled power on/off switching, enabling fault recovery and remote device reset without physical intervention. - **Mechanical Reliability:** Panel‑accessible USB 3.0 Type‑A connectors feature M2 screw threads for secure cable retention. On‑board connectors include fixing points for cable ties, preventing accidental disconnection in vibration‑prone environments. - **Backward Compatibility:** Fully compatible with USB 2.0, USB 1.1, and USB 1.0 devices, ensuring seamless integration with legacy peripherals. - **Operating System Support:** Compatible with Windows XP, Windows 7, Windows 8 (32‑bit and 64‑bit), and Linux distributions supporting xHCI (Extensible Host Controller Interface). - **Optional Accessory:** The USB3‑Cable‑3M provides a robust, latched connection between the host adapter and USB 3.0 devices, ideal for machine vision cameras and industrial sensors.

Manufacturer: Neousys Technology

Category: General Purpose Cards

x6211E fanless embedded controller with 8x isolated DIO.

Extreme-compact fanless embedded controller based on Intel Atom x6211E dual-core processor. Includes 2x GbE, 2x USB 3.1 Gen1, 2x USB 2.0, DisplayPort, 4x COM, 8x isolated DIO, M.2 2280 SATA, M.2 B-key for 4G/5G, and wide-temperature operation.

Manufacturer: Neousys Technology

Category: No category

x6211E fanless embedded controller with ignition power control.

Extreme-compact fanless embedded controller based on Intel Atom x6211E dual-core processor. Includes 2x GbE, 2x USB 3.1 Gen1, ignition power control, 2x USB 2.0, DisplayPort, 4x COM, M.2 2280 SATA, M.2 B-key for 4G/5G, and wide-temperature operation.

Manufacturer: Neousys Technology

Category: No category

x6413E fanless IoT gateway with isolated RS-422/485 and 8x DIO.

Extreme-compact fanless IoT gateway computer based on Intel Atom x6413E quad-core processor. Provides 2x GbE, 2x USB 3.1 Gen1, 2x USB 2.0, DisplayPort, COM1 RS-232/422/485, isolated COM2 RS-422/485, 8x isolated DIO, M.2 2280 SATA, M.2 E-key for WiFi 5/WiFi 6, 12-20V DC input, and -25°C to 60°C operation.

Manufacturer: Neousys Technology

Category: No category

x6413E fanless IoT gateway with isolated RS-422/485 and ignition control.

Extreme-compact fanless IoT gateway computer based on Intel Atom x6413E quad-core processor. Includes 2x GbE, 2x USB 3.1 Gen1, isolated RS-422/485, ignition power control, 2x USB 2.0, DisplayPort, M.2 2280 SATA, M.2 E-key for WiFi 5/WiFi 6, and wide-temperature operation.

Manufacturer: Neousys Technology

Category: No category

- **High-Performance Edge AI Computing:** Supports a full-length, high-power **250W NVIDIA® GPU**, delivering up to **14 TFLOPS FP32** performance for AI inference, deep learning, and GPU-accelerated analytics. - **Flexible CPU Options:** Compatible with **Intel® Xeon® E** and **8th/9th Gen Core™ i3/i5/i7** processors (LGA1151 socket), offering up to **8 cores / 16 threads** for parallel processing and multitasking. - **Workstation-Grade Chipset:** Integrated **Intel® C246 Platform Controller Hub (PCH)** ensures robust I/O performance, ECC memory support, and enterprise-level reliability. - **Memory Capacity:** Up to **128 GB DDR4-2133** ECC or non-ECC SODIMM memory across **four slots**, enabling large-scale data processing and AI model deployment. - **Rugged Industrial Design:** Features **Neousys’ patented thermal design**, **damping brackets**, and a **GPU press bar** for mechanical stability under vibration and shock. Operates reliably in **-25°C to +60°C** environments (depending on CPU configuration). - **Wide-Range DC Input:** Accepts **8–35 VDC** input with **built-in ignition control**, making it suitable for in-vehicle and mobile deployments. - **Comprehensive Expansion Options:** Includes **PCIe Gen3 x16/x8 slots**, **M.2**, and **mini-PCIe** interfaces for flexible system expansion, communication modules, and storage upgrades. - **Front-Accessible I/O with Locking Mechanisms:** Front-panel **USB 3.1 Gen1/Gen2** and **Gigabit Ethernet** ports feature screw-lock connectors for secure industrial connections. - **Storage Flexibility:** Provides **one hot-swappable 2.5” HDD/SSD tray**, **one internal 2.5” drive bay**, and **M.2 NVMe** support for high-speed data access. - **Vehicle-Grade Reliability:** Complies with **MIL-STD-810G** vibration and shock standards, ensuring durability in harsh environments.

Manufacturer: Neousys Technology

Category: Embedded with GPU

- **Dual 250W GPU Support:** Accommodates two full-length, full-height NVIDIA® GPUs (up to 250W each), providing exceptional parallel computing power for AI and deep learning workloads. - **High-Performance CPU Options:** Supports Intel® Xeon® E-2176G/E-2124G or 8th-Gen Core™ i7/i5 processors (LGA1151 socket), offering up to 6 cores and 12 threads for intensive computational tasks. - **Workstation-Grade Chipset:** Integrated **Intel® C246** platform controller hub ensures stable performance, ECC memory support, and enterprise-level reliability. - **Wide Temperature Operation:** Patented thermal design enables reliable operation from **-25°C to +60°C** under full CPU/GPU load. - **Rugged Mechanical Design:** Features patented damping brackets and a GPU press bar to withstand **3 Grms vibration** and harsh industrial conditions. - **Flexible Power Input:** Wide-range **8–48 VDC** input with ignition control supports in-vehicle and field deployments. - **Extensive Expansion Capability:** Offers multiple PCIe slots (2x x16, 2x x8, 1x x4), M.2, and mini-PCIe interfaces for additional cards and modules. - **Comprehensive I/O Connectivity:** Includes dual Gigabit Ethernet ports, multiple USB 3.1 Gen1/Gen2 ports, serial ports, and triple display outputs (VGA, DVI-D, DisplayPort). - **Hot-Swappable Storage:** Two front-accessible 2.5” HDD/SSD trays and an M.2 NVMe slot for high-speed storage and easy maintenance. - **Industrial Compliance:** Meets **MIL-STD-810G** vibration and shock standards, and **CE/FCC Class A** EMC compliance.

Manufacturer: Neousys Technology

Category: Embedded with GPU

- **GPU Computing Capability:** Supports one high-end NVIDIA® GPU card up to 250W TDP, enabling CUDA®, AI inference, deep learning, and GPU-accelerated analytics. - **Processor Support:** Compatible with Intel® Xeon® E3 v5 and 6th-Gen Core™ i7/i5 LGA1151 CPUs (Skylake architecture) using the Intel® C236 chipset. - **Memory:** Up to 32GB DDR4-2133 ECC or non-ECC SODIMM memory across two slots, ensuring both performance and data integrity. - **Thermal Design:** Patented cold air intake and optimized airflow architecture for stable GPU operation at ambient temperatures up to 60°C under full load. - **Ignition Control:** Integrated ignition power control for in-vehicle and mobile applications, allowing synchronized system startup/shutdown with vehicle ignition. - **Storage Flexibility:** Three 2.5" SATA III drive bays supporting RAID 0/1/5; two bays feature Neousys’ patented easy-swap trays for quick HDD/SSD replacement. - **Expansion Capability:** One PCIe x16 Gen3 slot for GPU, plus two PCIe x8 Gen3 slots for additional high-bandwidth expansion cards. - **Connectivity:** Dual Intel® Gigabit Ethernet ports (I219-LM and I210-IT), four USB 3.0 ports, two software-programmable RS-232/422/485 serial ports, and dual DVI-D video outputs. - **Industrial Reliability:** Wide operating temperature range (-25°C to +60°C), vibration resistance up to 1Grms (5–500Hz, 3 axes), and compliance with IEC60068-2-64. - **Compact Form Factor:** 178 mm (W) × 360 mm (D) × 174 mm (H) rugged chassis with wall-mounting brackets. - **Power Input:** 24 VDC input via 3-pin pluggable terminal block (IGN/GND/V+).

Manufacturer: Neousys Technology

Category: Embedded with GPU

- **Industrial GPU Computing:** First ruggedized embedded system capable of hosting a full‑length, high‑power NVIDIA® GPU (up to 250 W TDP). - **Processor Support:** Intel® Xeon® E3 v5 or 6th‑Gen Core™ i7/i5 (Skylake) LGA1151 CPUs. - **Chipset:** Intel® C236 platform controller hub. - **Memory:** Up to 32 GB DDR4‑2133 MHz ECC or non‑ECC SODIMM (2 slots). - **PCIe Expansion:** - 1 × PCIe x16 Gen3 slot (16 lanes) for GPU - 2 × PCIe x8 Gen3 slots (4 lanes each) for additional expansion cards - **Storage:** 4 × 2.5″ SATA III ports supporting RAID 0/1/5/10. - **Networking:** Dual Intel® Gigabit Ethernet ports (I219‑LM and I210‑IT). - **Video Output:** Dual DVI‑D connectors supporting up to 1920 × 1200 resolution. - **Serial Communication:** 2 × software‑programmable RS‑232/422/485 ports. - **USB Connectivity:** 4 × USB 3.0 external ports, 1 × internal USB 2.0 port. - **Audio:** 1 × 3.5 mm speaker‑out jack (Realtek ALC262 codec). - **Thermal Design:** Patented cold‑air intake system ensuring stable GPU operation at 60 °C under full load. - **Mechanical Design:** Shock‑absorbing wall‑mount brackets and anti‑vibration grommets for field deployment. - **Power Input:** 24 V DC via 3‑pin terminal block; optional 280 W or 480 W AC/DC adapters. - **Operating Range:** ‑25 °C to +60 °C with 100 % CPU/GPU load; vibration resistance 1 Grms (5–500 Hz, 3 axes). - **Compliance:** CE/FCC Class A, EN 55022/55024/55032, IEC 60068‑2‑64 vibration standard.

Manufacturer: Neousys Technology

Category: Embedded with GPU

- **High-Performance GPU Support:** Supports up to 250W NVIDIA® GeForce® GTX 1080 Ti GPU via PCIe x16 Gen3 slot, enabling CUDA-based parallel computing, AI inference, and deep learning workloads. - **Powerful CPU Options:** Compatible with Intel® Xeon® E3 v5 and 6th-Gen Core™ i7/i5 LGA1151 CPUs (Skylake architecture) using Intel® C236 chipset. - **ECC/Non-ECC Memory Support:** Dual 260-pin DDR4-2133 SODIMM slots supporting up to 32GB ECC or non-ECC memory for data integrity and performance. - **Advanced Thermal Design:** Patented cold air intake system ensures stable GPU operation at up to 60°C under full load, maintaining reliability in harsh industrial environments. - **Comprehensive I/O Connectivity:** Dual Intel® Gigabit Ethernet ports (I219-LM and I210-IT), four USB 3.0 ports, two software-programmable RS-232/422/485 ports, dual DVI-D video outputs, and audio output. - **Flexible Expansion:** One PCIe x16 Gen3 slot for GPU, two PCIe x8 Gen3 slots for additional high-bandwidth cards, one M.2 B-key socket with SIM slot for 3G/4G modules, and one full-size mini-PCIe slot. - **Industrial Reliability:** Operating temperature range of -25°C to +60°C, vibration resistance up to 1Grms (5–500Hz, 3 axes), and CE/FCC Class A compliance. - **Storage Flexibility:** Four SATA III ports supporting 2.5” HDD/SSD with RAID 0/1/5/10 configurations for performance and redundancy. - **Rugged Mechanical Design:** Compact aluminum chassis (164 x 360 x 174 mm), wall-mountable with damping brackets, and anti-vibration grommets for in-vehicle or field deployment.

Manufacturer: Neousys Technology

Category: Embedded with GPU
