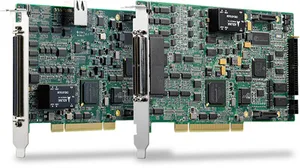

- **DSP-Based Architecture:** Equipped with a TI 375 MHz floating-point DSP and FPGA for real-time motion computation and PID control. - **High-Speed Servo Update:** Hardware-based PID + Feedforward control loop with update rates up to **20 kHz** and trajectory cycle time up to **1 kHz**. - **Multi-Axis Control:** Supports **8 independent axes** with hybrid command outputs (±10 V analog and pulse-train). - **Encoder Feedback:** Up to **20 MHz** encoder input frequency with digital filtering and 1x/2x/4x AB phase decoding. - **High-Speed Pulse Output:** Pulse output rate up to **6.55 Mpps**, supporting CW/CCW and OUT/DIR modes. - **Advanced Motion Profiles:** - Trapezoidal and S-curve velocity profiles - On-the-fly parameter modification - Multi-axis linear, circular, and helical interpolation - Electronic gearing and gantry synchronization - Backlash compensation and homing modes - **Integrated Digital I/O:** 16 optically isolated digital inputs and 16 digital outputs on the DIN-825-GP4 terminal board. - **High-Speed Triggering:** Position compare and trigger output up to **1 MHz** for AOI and laser control applications. - **Multi-Task Execution:** Supports up to **8 concurrent programs** using ADLINK Motion Code (AMC). - **Safety and Reliability:** Includes watchdog timer, emergency stop input, limit switch protection, and servo alarm handling. - **Software Suite:** Bundled with **MotionCreatorPro 2™**, a Windows-based GUI for setup, tuning, diagnostics, and frequency analysis. - **Scalability:** Supports up to **16 cards per system**, enabling control of up to 128 axes.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

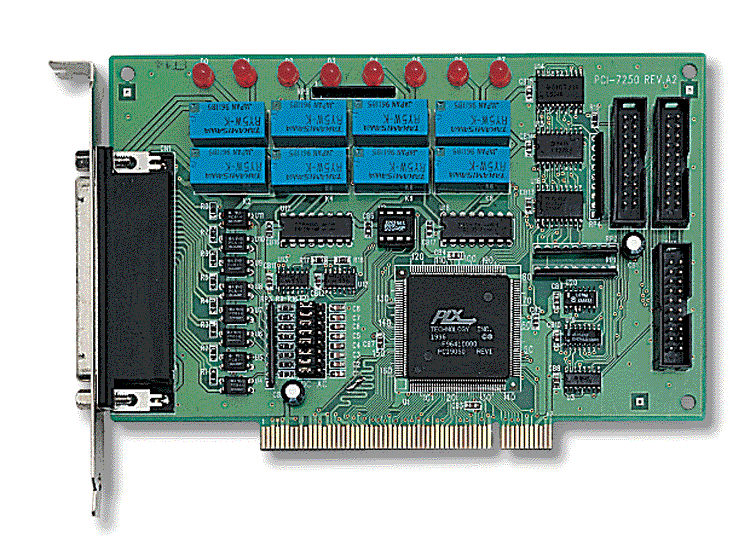

- **8-Channel Relay Outputs:** Provides four SPDT (Form C) and four SPST (Form A) relays for flexible control of external devices. - **8-Channel Isolated Digital Inputs:** Optically isolated, non-polarity digital inputs with optional RC filtering for noise immunity. - **Expandable Architecture:** Supports up to three PCI-7251 extension modules, expanding total capacity to 32 relay outputs and 32 isolated inputs. - **High Isolation and Reliability:** 5000 VRMS isolation voltage between channels and system; robust against industrial noise. - **LED Status Indicators:** Onboard LEDs display the ON/OFF state of each relay output for easy monitoring. - **Programmable I/O Operation:** Supports programmed I/O data transfer for both input and output channels. - **Non-Latching Relays:** Ensures predictable relay state after power-up or reset. - **Software and OS Compatibility:** Supports Windows (XP/Vista/7/2000/2003 Server) and Linux with ADLINK’s PCIS-DASK and DAQPilot drivers. - **Comprehensive Software Support:** Compatible with LabVIEW™, MATLAB®, DAQBench, and ADLINK’s DAQMaster configuration utility. - **Industrial-Grade Design:** Designed for reliable operation in harsh environments with wide temperature and humidity tolerance.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCI

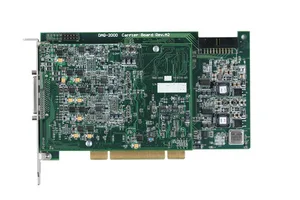

- **Simultaneous Sampling:** Four differential analog input channels sampled simultaneously at up to **250 kS/s per channel**, ensuring phase-coherent data acquisition across multiple inputs. - **High Resolution:** 16-bit analog-to-digital conversion with no missing codes, providing high accuracy and fine granularity in signal measurement. - **Analog Output Capability:** Two 12-bit analog output channels with waveform generation capability, supporting update rates up to **1 MS/s** and output ranges of **±10 V or 0–10 V**. - **Auto-Calibration:** Fully automatic calibration of gain and offset errors using onboard precision reference (5.000 V, ±2 ppm/°C), eliminating manual trimpot adjustments. - **Flexible Triggering:** Supports **software, external analog, external digital, and SSI (System Synchronization Interface)** triggers with multiple trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger. - **Digital I/O:** 24 programmable TTL/CMOS-compatible digital I/O lines (8255 PIO compatible), configurable as input or output. - **Timer/Counter Functions:** Two 16-bit general-purpose up/down counters with internal 40 MHz or external clock sources up to 10 MHz. - **Scatter-Gather DMA:** High-speed bus-mastering DMA with scatter-gather capability for efficient, CPU-independent data transfer. - **System Synchronization Interface (SSI):** Enables synchronization of multiple DAQ cards for expanded channel count and coordinated sampling. - **Compact Design:** Half-size PCI card (175 mm × 107 mm) with a 68-pin VHDCI connector for all analog, digital, and timing signals. - **Software Support:** Compatible with Windows (NT4/98/2000/XP/7/8) and Linux (kernel 2.4.x) via ADLINK’s D2K-DASK and D2K-DASK/X drivers. Supports LabVIEW®, MATLAB®, Visual C++, Visual Basic, Delphi, and ActiveX environments.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **Simultaneous Sampling:** 4 differential analog input channels sampled simultaneously at up to **2 MS/s** total throughput. - **High Resolution:** 14-bit analog-to-digital conversion with no missing codes. - **Programmable Input Ranges:** Bipolar (±10 V, ±5 V, ±2.5 V, ±1.25 V) and unipolar (0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V). - **Analog Output:** Two 12-bit voltage output channels with waveform generation capability, up to **1 MS/s** update rate. - **Digital I/O:** 24 programmable TTL/CMOS-compatible digital I/O lines (8255 PIO compatible). - **Timer/Counter:** Two 16-bit general-purpose up/down counters with 40 MHz internal or up to 10 MHz external clock. - **Triggering:** Supports software, external analog, external digital, and SSI (System Synchronization Interface) triggers. - **Auto-Calibration:** Fully automatic calibration of analog input and output channels using onboard precision reference (5.000 V ±2 ppm/°C). - **Scatter-Gather DMA:** High-speed bus-mastering DMA with scatter/gather capability for efficient data transfer without CPU overhead. - **Synchronization:** Multiple card synchronization via SSI bus for scalable multi-channel systems. - **Noise Immunity:** Differential input configuration and isolated analog/digital circuitry for high CMRR and low noise. - **Software Support:** Drivers and SDKs for Windows and Linux, including LabVIEW®, MATLAB®, Visual C++, Delphi, and ActiveX controls. - **Compact Design:** Half-size PCI card (175 mm × 107 mm) with VHDCI 68-pin connector.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **Simultaneous Sampling:** Four differential analog input channels with simultaneous sampling capability, ensuring phase-coherent data acquisition across multiple channels. - **High Resolution and Speed:** 16-bit resolution with a maximum sampling rate of 500 kS/s per channel. - **Programmable Input Ranges:** Bipolar: ±10 V, ±5 V, ±2.5 V, ±1.25 V Unipolar: 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V Programmable gain settings of ×1, ×2, ×4, ×8. - **Dual Analog Outputs:** Two 12-bit analog output channels with waveform generation capability, supporting up to 1 MS/s update rate and ±10 V or 0–10 V output ranges. - **Digital I/O:** 24-channel programmable TTL/CMOS-compatible digital I/O, 8255 PIO compatible. - **Timer/Counter:** Two 16-bit general-purpose up/down timer/counters with 40 MHz internal or up to 10 MHz external clock. - **Triggering Flexibility:** Supports software, external analog, external digital, and SSI (System Synchronization Interface) triggers. Trigger modes include pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger. - **Auto-Calibration:** Fully automatic calibration using on-board 5.000 V reference with ±2 ppm/°C temperature drift and 6 ppm/1000 hr long-term stability. - **Data Transfer:** Supports programmed I/O and scatter-gather bus-mastering DMA for high-speed data throughput. - **Synchronization:** Multiple cards can be synchronized via the SSI bus for multi-card, multi-channel acquisition systems. - **Software Support:** Compatible with Windows (NT/98/2000/XP/7/8) and Linux. Supported development environments include LabVIEW®, MATLAB®, Visual C++, Visual Basic, Delphi, and C/C++ SDKs.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **High-Speed Sampling:** - 65 MS/s per channel (dual-channel mode) - 130 MS/s in single-channel ping-pong mode - **High Resolution:** - 14-bit analog-to-digital conversion for precise waveform capture - **Deep Onboard Memory:** - 128 MB SDRAM standard, expandable to 512 MB via 144-pin SODIMM - 3k-sample FIFO buffer for real-time streaming - **Flexible Input Configuration:** - Two simultaneous-sampled, single-ended analog input channels - Programmable input ranges: ±1 V or ±5 V - Selectable input impedance: 50 Ω or 1.5 MΩ - **Wide Bandwidth:** - ≥30 MHz (-3 dB) analog input bandwidth - **Advanced Triggering:** - Supports software, analog, digital, and SSI (System Synchronization Interface) triggers - Trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger - Programmable trigger thresholds and slopes (rising/falling) - Repeated trigger acquisition with 2-cycle rearming interval - **Multiple Device Synchronization:** - SSI bus for clock and trigger synchronization across multiple PCI-9820 boards - **Auto-Calibration:** - Fully automatic offset and gain calibration using onboard reference - Calibration constants stored in EEPROM - **Software Support:** - Drivers for Windows (WD-DASK), Linux (WD-DASK/X), and LabVIEW® (WD-LVIEW) - ActiveX controls (WD-OCX) and DAQBench visualization tools - **Compact PCI Form Factor:** - Half-size PCI card (175 mm × 107 mm) - Universal PCI interface (3.3 V / 5 V signaling)

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High-Speed Sampling:** - 65 MS/s per channel simultaneous sampling - Up to 130 MS/s in single-channel ping-pong mode - **High Resolution:** - 14-bit analog-to-digital conversion for precise waveform capture - **Deep Onboard Memory:** - Standard 128 MB SDRAM, expandable to 512 MB SODIMM SDRAM - 3k-sample FIFO buffer for real-time streaming - **Flexible Input Configuration:** - Two simultaneous-sampled single-ended analog input channels - Programmable input ranges: ±1 V or ±5 V - Selectable input impedance: 50 Ω or 1.5 MΩ - **Wide Bandwidth:** - Minimum 30 MHz (-3 dB) analog input bandwidth - **Advanced Triggering:** - Supports software, analog, digital, and SSI triggers - Trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger - Repeated trigger acquisition with 2-cycle rearming interval - **Multiple Device Synchronization:** - System Synchronization Interface (SSI) for timing and trigger sharing across multiple boards - **Auto-Calibration:** - Fully automated offset and gain calibration using onboard DACs - Calibration constants stored in EEPROM - **Bus Mastering DMA:** - Scatter-gather DMA for efficient data transfer to host memory - **Software Support:** - Drivers for Windows and Linux (WD-DASK, WD-DASK/X) - LabVIEW® and ActiveX (WD-LVIEW, WD-OCX) support - DAQBench™ ActiveX controls for rapid application development - **Compact Design:** - Half-size PCI card (175 mm × 107 mm)

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **Simultaneous Sampling:** Four differential analog input channels sampled simultaneously to ensure phase alignment and minimal cross-channel delay. - **High Resolution and Speed:** 16-bit analog-to-digital conversion with a maximum sampling rate of **800 kS/s per channel**. - **Programmable Input Ranges:** Bipolar: ±10 V, ±5 V, ±2.5 V, ±1.25 V Unipolar: 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V Programmable gain settings of 1, 2, 4, and 8. - **Dual Analog Outputs:** Two 12-bit analog output channels with waveform generation capability, supporting ±10 V or 0–10 V ranges and up to **1 MS/s update rate**. - **Digital I/O:** 24 programmable digital I/O lines (8255-compatible, TTL/CMOS levels). - **Timer/Counter:** Two 16-bit general-purpose up/down counters, TTL-compatible, with internal 40 MHz or external clock up to 10 MHz. - **Triggering Options:** Supports software, external analog, external digital, and SSI (System Synchronization Interface) triggers. Trigger modes include pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger. - **Auto-Calibration:** Fully automatic calibration of analog input and output channels using onboard precision reference (5.000 V, ±2 ppm/°C). - **Bus-Mastering DMA with Scatter-Gather:** High-speed data transfer directly to system memory without CPU intervention, supporting fragmented memory blocks. - **System Synchronization Interface (SSI):** Enables synchronization of multiple DAQ cards for expanded channel count and coordinated sampling. - **Compact Design:** Half-size PCI card (175 mm × 107 mm) suitable for space-constrained systems. - **Software Support:** Compatible with Windows (NT/98/2000/XP) and Linux (kernel 2.4.x). Supported libraries: D2K-DASK, D2K-DASK/X, LabVIEW® driver (D2K-LVIEW), ActiveX (D2K-OCX), and DAQBench.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **High-Speed Analog Input:** 16 single-ended analog input channels with 12-bit resolution and up to 100 kS/s sampling rate. - **Programmable Input Ranges:** Bipolar voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, and ±0.625 V, software-selectable with programmable gains of x1, x2, x4, x8, and x16. - **Onboard Filtering:** Each analog input channel includes an RC filter for signal conditioning and noise attenuation. - **Analog Output:** One 12-bit D/A output channel with jumper-selectable unipolar (0–10 V) or bipolar (±10 V) output range. - **Digital I/O:** 16 TTL-compatible digital input channels and 16 TTL-compatible digital output channels, plus 4 extended digital inputs and 4 extended digital outputs. - **FIFO Buffer:** 1 k-sample (1024-word) A/D FIFO buffer for efficient data streaming and reduced CPU overhead. - **Triggering and Timing:** Supports software, timer pacer, and external trigger modes. Includes pre-trigger and post-trigger control for event-based data acquisition. - **Counter/Timer:** Integrated Intel 8254-compatible programmable counter/timer with three 16-bit counters and a 2 MHz base clock. - **Dual Interrupt System:** Two independent interrupt sources (EOC, FIFO half-full, pacer, or external trigger) for flexible interrupt-driven data transfer. - **Compact Design:** Half-size PCI form factor (175 mm × 107 mm) with plug-and-play PCI configuration. - **Software Support:** Compatible with Windows and Linux operating systems; supports LabVIEW™, MATLAB®, DAQBench™, and ADLINK’s PCIS-DASK driver library.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **High-Resolution Analog Input:** 16-bit A/D resolution (PCI-9111HR) with 16 single-ended analog input channels. - **High Sampling Rate:** Supports up to 100 kS/s maximum sampling rate with 8 µs conversion time. - **Programmable Input Ranges:** Five software-selectable bipolar ranges: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V. - **Onboard Filtering:** Each analog input channel includes an RC low-pass filter for signal conditioning and noise reduction. - **Analog Output Channel:** One 12-bit D/A output channel with jumper-selectable unipolar (0–10 V) or bipolar (±10 V) range. - **Digital I/O:** 16 TTL-compatible digital inputs and 16 TTL-compatible digital outputs, plus 4 extended digital inputs and 4 extended digital outputs. - **FIFO Buffer:** 1 k-sample onboard FIFO buffer for efficient data streaming and reduced CPU load. - **Triggering and Timing:** Supports software, pacer (timer-based), and external trigger modes. Includes pre-trigger and post-trigger functionality. - **Programmable Gain Amplifier (PGA):** Software-programmable gains of x1, x2, x4, x8, and x16. - **Timer/Counter:** Integrated 8254 programmable timer/counter with three 16-bit counters and a 2 MHz base clock. - **Dual Interrupt System:** Two independent interrupt sources for flexible event handling (EOC, FIFO half-full, pacer, or external trigger). - **Compact Design:** Half-size PCI card (175 mm x 107 mm) with plug-and-play PCI configuration. - **Software and OS Support:** Compatible with Windows 7/Vista/XP/2000/2003 Server and Linux. Supported by ADLINK’s DAQPilot, PCIS-DASK, DAQBench, and LabVIEW™/MATLAB® drivers.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion with up to 100 kS/s sampling rate. - **Channel Configuration:** 16 single-ended or 8 differential analog input channels. - **Programmable Input Range:** Bipolar ±0.625 V to ±5 V or unipolar 0–1.25 V to 0–10 V. - **Channel-Gain Queue:** 256-entry hardware queue allowing per-channel gain and sequence configuration. - **Onboard FIFO Buffer:** 1 k-sample A/D FIFO ensures reliable high-speed data acquisition under multitasking OS environments. - **Triggering Flexibility:** Supports software, programmable pacer, and external triggers (TTL/5 V compatible). - **Data Transfer Modes:** Polling, interrupt-driven, and bus-mastering DMA for continuous, gap-free data throughput. - **Digital I/O:** 4 TTL-compatible digital inputs and 4 digital outputs for control and monitoring. - **Compatibility:** Functionally compatible with MetraByte DAS-1800 series. - **Connector Interface:** 50-pin SCSI-II female connector for analog, digital, and trigger signals. - **Software Support:** Comprehensive driver suite for Windows (PCIS-DASK, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, OPC). - **Calibration Support:** Onboard variable resistors (VRs) for A/D and D/A calibration; software utility provided for automated calibration. - **Compact Design:** Half-size PCI card suitable for industrial PCs and laboratory systems.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion (Burr-Brown ADS7805 or equivalent). - **Sampling Rate:** Up to 100 kS/s (single channel). - **Analog Input Channels:** 16 single-ended or 8 differential, software-selectable. - **Analog Output:** Two 12-bit D/A channels (Burr-Brown DAC2813 or equivalent), ±10 V output range. - **FIFO Buffer:** 1K-sample onboard A/D FIFO for continuous high-speed acquisition. - **Channel-Gain Queue:** 256-entry programmable queue for mixed-channel, mixed-gain sampling. - **Programmable Gain:** ×1, ×2, ×4, ×8 for flexible input scaling. - **Input Ranges:** Bipolar ±0.625 V to ±5 V; unipolar 0–1.25 V to 0–10 V. - **Triggering Modes:** Software, programmable pacer, external pulse, pre-/post-/about-trigger, and burst mode. - **Burst Mode Sampling:** Emulates simultaneous sample-and-hold for multi-channel synchronization. - **Digital I/O:** 4 TTL-compatible inputs and 4 TTL-compatible outputs. - **Counter/Timer:** One 82C54 programmable counter/timer with 32-bit pacer (4 MHz base clock). - **Bus Interface:** 32-bit PCI bus, plug-and-play configuration. - **Connector:** 50-pin SCSI-II type D-sub female connector (CN1). - **Software Support:** Comprehensive driver suite for Windows and DOS, including LabVIEW®, HP VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC server support. - **Compatibility:** Functionally compatible with MetraByte DAS-1800 series. - **Compact Design:** Half-size PCI card for space-constrained systems.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion with up to 32 single-ended or 16 differential input channels. - **Sampling Performance:** Maximum throughput of 100 kS/s per channel (PCI-9114DG/HG models). - **Programmable Input Ranges:** Bipolar input ranges of ±10 V, ±5 V, ±2.5 V, and ±1.25 V (DG version). Software-selectable gain settings: 1, 2, 4, 8. - **Isolation and Protection:** 16 isolated digital inputs and 16 isolated digital outputs with 2500 V RMS isolation. Continuous overvoltage protection up to ±35 V on analog inputs. - **Digital I/O Capabilities:** 16 isolated digital input channels (0–24 V, non-polarity). 16 isolated digital output channels (open-emitter Darlington transistor type, 5–35 V supply). - **Integrated Timer/Counter:** One 16-bit general-purpose timer/counter compatible with 8254 architecture, supporting up to 2 MHz base clock. - **Onboard Cold Junction Compensation (CJC):** Built-in sensor for thermocouple measurement accuracy. - **FIFO Buffer:** 1K-sample FIFO memory for efficient data buffering and reduced CPU overhead. - **Triggering and Data Transfer:** Supports software, pacer, and external triggers (5 V/TTL compatible). Data transfer via polling or interrupt-driven modes. - **Software Support:** Comprehensive driver and library support for Windows and DOS environments, including LabVIEW®, HP-VEE™, DASYLab™, InTouch™, and OPC Server integration. - **Plug-and-Play PCI Interface:** Fully compliant with PCI 2.1 specifications, automatic resource allocation via BIOS.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

- **High-Speed Analog Input:** 16 single-ended or 8 differential analog input channels with 12-bit resolution and up to 110 kS/s sampling rate. - **Flexible Input Ranges:** Programmable bipolar and unipolar ranges: - Bipolar: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V - Unipolar: 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V - **Programmable Gain Amplifier:** Software-selectable gains of ×0.5, ×1, ×2, ×4, ×8 for optimized signal conditioning. - **Analog Output:** Two 12-bit D/A channels (DAC7541 or equivalent) with software-programmable ranges (0–5 V, 0–10 V, or external reference up to ±10 V). Output drive: ±5 mA, settling time: 30 µs to 0.5 LSB. - **Digital I/O:** 16 TTL-compatible digital inputs and 16 TTL-compatible digital outputs for control and monitoring. - **Timer/Counter:** One 16-bit general-purpose counter (8254 device) with 2 MHz base clock, external clock up to 10 MHz. - **Bus-Mastering DMA:** High-speed data transfer via PCI bus mastering DMA for efficient analog input acquisition. - **Auto-Scan Function:** Automatic channel scanning for sequential analog input sampling. - **Trigger Modes:** Software, timer pacer, and external trigger modes for flexible acquisition control. - **Operating System Support:** Windows 7/8 (x86/x64) and Linux. - **Software & SDK Support:** Compatible with LabVIEW®, MATLAB®, Visual Studio®, C/C++, and Visual Basic. Includes AD-Logger utility and PCIS-DASK driver library. - **Calibration Options:** - PCI-9112: Analog Output calibrated on 5 V reference - PCI-9112A: Analog Output calibrated on 10 V reference - **Plug-and-Play PCI Configuration:** Fully compliant with PCI 2.1 specification, automatic resource allocation (IRQ, I/O base address).

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **PCI Bus Compatibility:** Fully compliant with 32-bit PCI bus architecture; supports both 3.3 V and 5 V signaling environments. - **High-Speed Analog Input:** 12-bit resolution with a maximum sampling rate of 110 kS/s and 8 µs conversion time. - **Flexible Input Configuration:** 16 single-ended or 8 differential analog input channels. - **Programmable Gain Control:** Software-selectable gains of ×0.5, ×1, ×2, ×4, and ×8 for optimal signal scaling. - **Wide Input Ranges:** Bipolar (±0.625 V to ±10 V) and unipolar (0–1.25 V to 0–10 V) ranges. - **Automatic Channel Scanning:** Hardware-supported auto-scan for sequential multi-channel sampling. - **Bus-Mastering DMA:** High-speed, CPU-independent data transfer for analog input operations. - **Dual Analog Outputs:** Two 12-bit multiplying DAC channels with programmable output ranges (0–5 V, 0–10 V, or external reference). - **Digital I/O:** 16 TTL-compatible digital inputs and 16 TTL-compatible digital outputs. - **Timer/Counter:** One 16-bit general-purpose counter/timer with a 2 MHz base clock and external clock capability up to 10 MHz. - **Overvoltage Protection:** Continuous ±35 V protection on analog input channels. - **High Input Impedance:** 1 GΩ input impedance ensures minimal signal loading. - **Integrated DC/DC Converter:** Provides stable analog power for improved accuracy. - **Plug-and-Play Installation:** Automatic resource allocation via PCI BIOS; no manual configuration required. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; drivers available for LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio.NET. - **Utility Software:** Includes AD-Logger for data logging and calibration utilities.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **High‑Speed Simultaneous Sampling:** Four single‑ended analog input channels, each capable of 20 MS/s simultaneous sampling using dedicated A/D converters (Burr‑Brown ADS800 series). - **Resolution:** 10‑bit analog‑to‑digital conversion accuracy. - **Input Range and Impedance:** Bipolar input ranges of ±1 V or ±5 V, selectable via solder jumpers. Input impedance options include 50 Ω, 1.25 kΩ, or 15 MΩ, allowing adaptation to various signal sources. - **FIFO Buffer:** On‑board 32 k‑sample (32 k‑word) A/D FIFO memory for temporary data buffering, preventing data loss during high‑speed acquisition. - **Triggering Flexibility:** Supports software, analog threshold, and external digital triggers. Trigger modes include software, pre‑trigger, post‑trigger, middle‑trigger, and delay‑trigger. - **Clock Sources:** Internal 40 MHz time base or external clock input (sine wave or digital). External clock frequency range: 20 kHz–40 MHz. - **Bus Mastering DMA:** Direct memory access (DMA) data transfer for high‑speed throughput without CPU intervention. - **Connectors:** Five BNC connectors (four analog inputs + one external sine clock) and one 10‑pin ribbon header for digital I/O and external digital clock/trigger. - **Plug‑and‑Play PCI Interface:** Fully compliant with 32‑bit PCI bus architecture, automatic resource allocation (IRQ and I/O address). - **Software Support:** Compatible with ADLINK’s PCIS‑DASK driver library, DAQBench ActiveX controls, LabVIEW VIs, and DASYLab software for data acquisition and analysis. - **Applications:** Ideal for vibration analysis, ultrasonic measurement, image digitizing, biomedical instrumentation, automated test equipment (ATE), and high‑speed signal digitization.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High-Speed Sampling:** Up to 20 MS/s simultaneous sampling across four channels. - **Resolution:** 12-bit A/D conversion (10-bit for PCI-9810 variant). - **Simultaneous Sampling:** Four independent A/D converters allow true simultaneous acquisition. - **Input Ranges:** Bipolar ±1 V or ±5 V, selectable via solder jumpers. - **Input Impedance Options:** 50 Ω, 1.25 kΩ, or 15 MΩ (solder-selectable). - **FIFO Buffer:** 32k-sample onboard FIFO (128k-sample for PCI-9812A). - **Triggering:** Supports software, analog, and external digital triggers with multiple modes (pre-, post-, middle-, delay-, and software-trigger). - **Clock Sources:** Internal 40 MHz time base, external digital clock (TTL), or external sine wave clock (AC-coupled). - **Bus Interface:** 32-bit PCI bus with bus-mastering DMA for high-speed data transfer. - **Connectors:** Five BNC connectors (four analog inputs + one external sine clock) and one 10-pin digital I/O header. - **Software Support:** Comprehensive C/C++ libraries, ActiveX controls, LabVIEW drivers, and DASYLab compatibility. - **Applications:** Ideal for high-speed data acquisition in DSP, FFT, imaging, ultrasonic, and vibration testing systems.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High-Speed Sampling:** Up to **20 million samples per second (20 MS/s)** per channel with true simultaneous sampling across four channels. - **High Resolution:** **12-bit resolution** A/D conversion using Burr-Brown ADS800 series converters ensures precise signal digitization. - **Simultaneous Sampling Architecture:** Four independent A/D converters allow all channels to sample concurrently, eliminating phase skew between channels. - **Large On-Board FIFO Buffer:** **128K-sample A/D FIFO** (double the 32K of the PCI-9812) provides extended buffering for high-throughput applications. - **Multiple Input Ranges and Impedances:** Hardware-selectable input ranges of **±1 V** and **±5 V**, with selectable input impedances of **50 Ω**, **1.25 kΩ**, or **15 MΩ** for flexible signal interfacing. - **Flexible Triggering Options:** Supports **software, analog threshold, and external digital triggers** with multiple trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger, and software-trigger. - **Clock Source Flexibility:** Operates with **internal 40 MHz time base**, or accepts **external digital or sine wave clocks** (20 kHz–40 MHz range). - **Bus Mastering DMA:** Direct memory access (DMA) transfers data to host memory without CPU intervention, ensuring efficient high-speed throughput. - **Plug-and-Play PCI Interface:** Fully compliant with 32-bit PCI bus architecture, supporting automatic resource allocation and configuration. - **Comprehensive Software Support:** Includes drivers and libraries for **MS-DOS, Windows 95/98/NT**, and supports **C/C++**, **LabVIEW**, **ActiveX (DAQBench)**, and **DASYLab** environments. - **Industrial-Grade Design:** Rugged construction with wide operating temperature range and high reliability for continuous operation in demanding environments.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High‑Resolution Analog Input:** 16‑bit A/D conversion with no missing codes, supporting 16 single‑ended or 8 differential channels (software‑selectable). - **High Sampling Rate:** Maximum aggregate sampling rate of 250 kS/s for all channels combined. - **Flexible Input Ranges:** Bipolar ranges: ±10 V, ±5 V, ±2.5 V, ±1.25 V Unipolar ranges: 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V - **Programmable Gain:** Gains of ×1, ×2, ×4, ×8 selectable per channel. - **Channel Gain Queue:** 512‑entry configuration queue allowing mixed channel, gain, and range settings for sequential scans. - **FIFO Buffers:** 1 k‑sample A/D FIFO for continuous high‑speed acquisition. - **Triggering Options:** Software, external digital, external analog, and SSI (System Synchronization Interface) triggers. Supports pre‑trigger, post‑trigger, middle‑trigger, delay‑trigger, and repeated trigger modes. - **Digital I/O:** 24‑channel TTL‑compatible programmable I/O (8255 PIO). - **Timer/Counter:** Two 16‑bit general‑purpose up/down counters with 40 MHz base clock and external clock input up to 10 MHz. - **Auto‑Calibration:** Fully automatic calibration with onboard 5 V reference (±2 ppm/°C). - **System Synchronization Interface (SSI):** Enables synchronization of multiple DAQ cards for simultaneous sampling. - **Bus Compatibility:** 32‑bit PCI bus supporting both 3.3 V and 5 V signaling. - **Software Support:** Drivers and SDKs for Windows 7/8 x86/x64 and Linux. Compatible with LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Utility Software:** AD‑Logger for data logging and configuration.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **High‑Resolution Analog Input:** 16‑bit A/D converter with no missing codes, supporting up to 16 single‑ended or 8 differential channels. Maximum sampling rate: **250 kS/s**. - **Dual Analog Output Channels:** Two 12‑bit D/A converters with waveform generation capability. Maximum update rate: **1 MS/s** per channel. - **Flexible Input Ranges:** Bipolar: ±10 V, ±5 V, ±2.5 V, ±1.25 V Unipolar: 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V Programmable gain: ×1, ×2, ×4, ×8. - **Auto‑Calibration:** Fully automatic calibration for both A/D and D/A circuits using onboard 5.000 V reference (±2 ppm/°C). - **Triggering and Synchronization:** Supports software, external analog, and digital triggers. Multiple trigger modes: pre‑trigger, post‑trigger, middle‑trigger, delay‑trigger, and re‑trigger. Synchronization of multiple cards via **SSI (System Synchronization Interface)** bus. - **Digital I/O and Timing:** 24‑channel TTL‑compatible programmable digital I/O (8255 PIO). Two 16‑bit general‑purpose timers/counters (up to 10 MHz external clock). - **High‑Speed Data Transfer:** Scatter‑gather DMA for efficient, high‑throughput data movement. 1 k‑sample FIFO buffers for both A/D and D/A operations. - **Software and OS Support:** Compatible with Windows 7/8 x86/x64 and Linux. Drivers and SDKs for LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. Utility software: **AD‑Logger** for data logging and configuration. - **Connectivity:** Two 68‑pin VHDCI connectors for analog, digital, and timing signals. Optional terminal boards and cables: DIN‑68S‑01, ACL‑10568‑1, ACL‑SSI‑2/3/4.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion with up to 250 kS/s sampling rate. - **Flexible Channel Configuration:** 16 single-ended or 8 differential analog input channels. - **Dual Analog Output:** Two 16-bit static analog output channels with ±5 V range. - **Programmable Function I/O:** Configurable as digital I/O, timer/counter, PWM, or encoder input. - **Encoder Support:** Two 4 MHz encoder inputs supporting AB phase and CW/CCW modes. - **PWM Generation:** Two PWM outputs with 1–99% duty cycle and 20 MHz–0.005 Hz modulation frequency. - **Auto-Calibration:** Built-in self-calibration for maintaining measurement accuracy. - **Universal PCI Interface:** Compatible with both 3.3 V and 5 V PCI slots. - **Bus-Mastering DMA:** High-speed data transfer with scatter/gather DMA support. - **Comprehensive Software Support:** Compatible with ADLINK PCIS-DASK library, LabVIEW®, and Windows OS environments. - **Compact Design:** 120 mm × 87 mm PCB with a 37-pin D-Sub connector. - **Ideal Applications:** Manufacturing automation, laboratory research, ATE systems, and motion control.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **High-Speed Analog-to-Digital Conversion:** 16-bit resolution with a maximum sampling rate of 250 kS/s (4 µs conversion time). - **Flexible Analog Input Configuration:** Supports 32 single-ended (SE) or 16 differential (DI) analog input channels with software-programmable input ranges. - **Programmable Input Ranges:** ±10 V, ±5 V, ±2.5 V, ±1.25 V for the DG version; software-selectable for bipolar and unipolar signals. - **High Isolation Digital I/O:** 16 isolated digital input channels and 16 isolated digital output channels, each with 2500 V RMS isolation protection. - **Robust Digital Output Capability:** Open-emitter Darlington transistor outputs capable of sinking up to 350 mA per channel (100% duty) or 260 mA (10% duty for all channels). - **Integrated Timer/Counter:** One 16-bit general-purpose timer/counter compatible with 8254 architecture, supporting up to 2 MHz base clock or external clock input. - **Cold Junction Compensation (CJC):** On-board cold junction sensor for thermocouple measurement applications. - **Plug-and-Play PCI Interface:** Fully compliant with 32-bit PCI bus architecture, supporting automatic resource allocation via BIOS. - **On-Board FIFO Buffer:** 1K-sample FIFO memory for efficient data buffering and reduced CPU overhead. - **Multiple Trigger Modes:** Software, pacer timer, and external trigger modes (5 V TTL compatible). - **Comprehensive Software Support:** Compatible with ADLINK’s PCIS-DASK driver library, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC Server environments. - **Industrial-Grade Reliability:** Designed for continuous operation in industrial environments with wide temperature and humidity tolerance.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

- **Bus Interface:** 32-bit PCI bus supporting 3.3 V or 5 V signaling; plug-and-play configuration. - **Analog Inputs:** 64 single-ended or 32 differential channels, software-selectable per channel. - **Resolution:** 16-bit, no missing codes. - **Sampling Rate:** Up to 250 kS/s aggregate throughput. - **Input Range:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V; Unipolar 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V. - **Programmable Gain:** x1, x2, x4, x8. - **FIFO Buffer:** 1024-sample A/D FIFO and 1024-sample D/A FIFO. - **Analog Outputs:** Two 12-bit voltage output channels (0–10 V, ±10 V, or external reference). - **Digital I/O:** 24-channel TTL-compatible programmable I/O (8255 PIO). - **Counters/Timers:** Two 16-bit general-purpose up/down counters with 40 MHz base clock. - **Triggering:** Supports software, external analog, and digital triggers; pre-, post-, middle-, and delay-trigger modes. - **Auto Calibration:** Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C). - **Synchronization:** Multi-card synchronization via SSI (System Synchronization Interface) or PXI trigger bus. - **Software Support:** Compatible with Windows and Linux; drivers for LabVIEW, MATLAB, C/C++, Visual Basic, and .NET. - **Utility Software:** AD-Logger for data logging and analysis. - **Connectors:** Two 68-pin VHDCI connectors for analog, digital, and timing signals. - **Form Factor:** PCI card, dimensions 175 mm × 107 mm.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **High-Speed Analog Input:** 12-bit resolution with a maximum sampling rate of 333 kS/s. Supports 16 single-ended or 8 differential analog input channels. - **Programmable Gain and Range:** Software-selectable gain settings of ×1, ×10, ×100, and ×1000. Bipolar ranges: ±5 V, ±0.5 V, ±0.05 V, ±0.005 V. Unipolar ranges: 0–10 V, 0–1 V, 0–0.1 V, 0–0.01 V. - **Channel-Gain Queue:** 256-entry hardware queue allows high-speed scanning with different gains per channel and non-sequential channel order. - **Onboard FIFO Buffer:** 1 k-sample A/D FIFO ensures reliable high-speed data acquisition under multitasking OS environments. - **Triggering and Timing:** Supports software, pacer (internal timer), and external triggers (TTL/5 V compatible). Programmable pre-trigger, post-trigger, and about-trigger modes. Burst mode and burst mode with sample-and-hold (SSH) supported. - **Digital I/O:** 4 digital input and 4 digital output channels, TTL-compatible. - **Bus-Mastering DMA:** High-throughput, gap-free data transfer directly to system memory without CPU overhead. - **Robust Input Protection:** Continuous overvoltage protection up to ±35 V. Input impedance of 1 GΩ ensures minimal loading on signal sources. - **Software Support:** Compatible with ADLINK’s PCIS-DASK driver library and supports LabVIEW®, HP-VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC interfaces.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **High-Speed Analog-to-Digital Conversion:** 12-bit resolution with a maximum sampling rate of 333 kS/s (330 kHz typical). On-board 1K-sample FIFO buffer for continuous high-speed data acquisition. - **Flexible Analog Input Configuration:** 16 single-ended or 8 differential analog input channels. Programmable gain settings of ×1, ×10, ×100, and ×1000 for high-gain precision measurement. Bipolar input ranges: ±5V, ±0.5V, ±0.05V, ±0.005V. Unipolar input ranges: 0–10V, 0–1V, 0–0.1V, 0–0.01V. - **Dual 12-bit Analog Outputs:** Two monolithic multiplying DAC channels (Burr-Brown DAC2813 or equivalent). Output range: ±10V bipolar, 0–10V unipolar. Typical settling time: 4.5 µs (max 6 µs). Output drive capability: ±5 mA minimum. - **Digital I/O:** 4 TTL-compatible digital input channels and 4 digital output channels. Input voltage levels: - Low ≤ 0.8V, High ≥ 2.0V. Output voltage levels: - Low ≤ 0.5V @ 8 mA, High ≥ 2.7V @ 400 µA. - **Triggering and Timing:** Multiple trigger modes: software, programmable pacer, and external pulse trigger. Supports pre-trigger, post-trigger, and about-trigger acquisition modes. Programmable burst mode sampling with optional simultaneous sample-and-hold (SSH). Internal 82C54 programmable counter/timer with 4 MHz base clock. - **Data Transfer Modes:** Supports program-controlled, interrupt-driven, and DMA (bus mastering) data transfer. Channel-gain queue with 256 entries for high-speed multi-channel acquisition. - **Software and Driver Support:** Compatible with Windows 95/98/NT/2000. Supported environments: LabVIEW®, HP VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC. Includes PCIS-DASK driver library and ActiveX controls (DAQBench™). - **Compact and Robust Design:** Half-size PCI card (173 mm × 102 mm). 50-pin SCSI-II type D connector for all analog, digital, and timing signals. On-board DC/DC converter for stable analog reference voltages.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI
