- **High-Speed Analog Input:** 12-bit resolution with a maximum sampling rate of 333 kS/s. 16 single-ended or 8 differential analog input channels. - **Channel-Gain Queue:** 256-location channel/gain queue allows high-speed acquisition with different gains per channel and non-sequential scanning. - **On-Board FIFO Buffer:** 1 k-sample A/D FIFO ensures reliable high-speed data acquisition under Windows OS. - **Triggering Flexibility:** Supports software, programmable pacer, and external triggers (TTL compatible). Includes pre-trigger, post-trigger, and about-trigger modes. - **Programmable Gain and Input Range:** Bipolar ranges: ±5 V, ±2.5 V, ±1.25 V, ±0.625 V Unipolar ranges: 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V Software-selectable gain factors (×1, ×2, ×4, ×8). - **Digital I/O:** 4 digital input and 4 digital output channels, TTL/DTL compatible. - **Bus-Mastering DMA:** Supports gap-free, continuous high-throughput data transfer. - **Compact PCI Design:** 32-bit PCI bus, plug-and-play configuration, half-size PCB. - **Robust Protection:** Continuous overvoltage protection up to ±35 V (70 V peak-to-peak). - **Software Support:** Compatible with ADLINK PCIS-DASK, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC Server.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **High-Speed Analog Input:** 12-bit resolution with up to 333 kS/s sampling rate (DG/HG models). 16 single-ended or 8 differential analog input channels. - **Analog Output:** Two 12-bit monolithic multiplying DAC channels (±10 V output range). - **FIFO Buffer:** 1K-sample onboard A/D FIFO memory for high-speed data streaming. - **Channel-Gain Queue:** 256-entry hardware queue allowing per-channel gain and range configuration for sequential sampling. - **Programmable Gain:** x1, x2, x4, x8 for DG/HR models; software-selectable bipolar/unipolar ranges. - **Triggering and Sampling Modes:** - Software, programmable pacer, or external pulse trigger. - Pre-trigger, post-trigger, and about-trigger acquisition modes. - Burst mode and burst mode with sample-and-hold (SSH) emulation. - **Digital I/O:** 4 TTL-compatible digital inputs and 4 digital outputs. - **Timer/Counter:** 82C54 programmable counter with 32-bit pacer timer (4 MHz base clock). - **Interface:** 32-bit PCI bus, plug-and-play configuration, 50-pin SCSI-II type connector. - **Software Support:** Comprehensive driver suite for Windows and DOS, including LabVIEW®, HP-VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC server support. - **Compact Design:** Half-size PCI card suitable for embedded and industrial PCs.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **High-Speed Analog Input:** 64 single-ended or 32 differential analog input channels with 12-bit resolution and up to 3 MS/s sampling rate. Supports both unipolar and bipolar input ranges from ±0.05 V to ±10 V and 0–10 V to 0–0.1 V. - **Analog Output Capability:** Two 12-bit analog output channels with ±10 V or 0–10 V ranges and 1 MS/s maximum update rate. Each channel includes a 1 k-sample FIFO buffer for waveform generation. - **Digital I/O:** 24-channel TTL-compatible programmable digital I/O (8255 PIO) for control and monitoring applications. - **Timer/Counter:** Two 16-bit general-purpose up/down counters with 40 MHz internal or up to 10 MHz external clock input. - **Triggering and Synchronization:** Supports software, external analog/digital, and SSI (System Synchronization Interface) triggers. Multiple trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger, and re-trigger. Synchronization across multiple cards via SSI or PXI trigger bus. - **Auto-Calibration:** Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C) ensures long-term accuracy. - **High Bandwidth and Low Noise:** 2 MHz small-signal bandwidth at ±10 V range and 90 dB CMRR (gain = 1). Typical system noise

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **High Channel Density:** 96 single-ended (SE) or 48 differential (DI) analog input channels, with software-selectable mixed-mode operation. - **High-Speed Sampling:** Maximum sampling rate of **3 mega-samples per second (3 MS/s)** with 12-bit resolution and no missing codes. - **Flexible Input Ranges:** Bipolar ranges: ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±0.5 V, ±0.25 V, ±0.2 V, ±0.05 V Unipolar ranges: 0–10 V, 0–5 V, 0–4 V, 0–2.5 V, 0–1 V, 0–0.5 V, 0–0.4 V, 0–0.1 V - **Programmable Gain:** Selectable gains of ×1, ×2, ×4, ×5, ×8, ×10, ×20, ×40, ×50, and ×200. - **Auto Calibration:** Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C), ensuring long-term accuracy and stability. - **FIFO Buffer:** 1 k-sample (1024-word) onboard A/D FIFO for efficient data buffering. - **Triggering Options:** Supports software, external digital, external analog, and SSI (System Synchronization Interface) triggers. Trigger modes include pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger. - **Digital I/O:** 24-channel TTL-compatible programmable digital I/O (8255 PIO). - **Synchronization:** Multiple card synchronization via SSI bus or PXI trigger bus for multi-card, multi-channel systems. - **Software & OS Support:** Compatible with Windows 7/8 (x86/x64) and Linux. Supported development environments: LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET. - **Plug-and-Play PCI Interface:** 32-bit PCI bus, 3.3 V/5 V signaling, automatic resource configuration (IRQ, DMA).

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion with no missing codes, supporting 64 single-ended (SE) or 32 differential (DI) channels, software-selectable per channel. - **Sampling Rate:** Maximum sampling rate of 500 kS/s for single-channel operation. - **Analog Input Ranges:** Bipolar: ±10 V, ±5 V, ±2.5 V, ±1.25 V Unipolar: 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V - **Programmable Gain:** x1, x2, x4, x8 programmable gain settings. - **Analog Output:** Two 12-bit D/A channels with ±10 V or 0–10 V output ranges, 1 MS/s update rate, and 1 k-sample FIFO per channel. - **Digital I/O:** 24-channel TTL-compatible programmable I/O (8255 PIO). - **Timer/Counter:** Two 16-bit general-purpose up/down counters with 40 MHz base clock and external clock input up to 10 MHz. - **Triggering:** Supports software, external analog, and digital triggers, as well as SSI (System Synchronization Interface) for multi-card synchronization. - **Auto Calibration:** Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C). - **FIFO Buffers:** 1 k-sample A/D FIFO and 1 k-sample D/A FIFO for efficient data buffering. - **Bus Interface:** 32-bit PCI bus, 3.3 V or 5 V signaling, plug-and-play configuration. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; drivers available for LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET. - **Synchronization:** Multiple card synchronization via SSI bus or PXI trigger bus. - **Utility Software:** AD-Logger for data logging and monitoring.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCI

- **High-Speed Sampling:** - 65 MS/s per channel (dual-channel mode) - 130 MS/s (single-channel ping-pong mode) - **High Resolution:** 14-bit A/D conversion for precise waveform digitization. - **Deep Onboard Memory:** - 128 MB standard SODIMM SDRAM - Expandable up to 512 MB for extended waveform recording. - **Flexible Input Configuration:** - Two simultaneous-sampled single-ended analog inputs. - Programmable input ranges: ±1 V or ±5 V. - Selectable input impedance: 50 Ω or 1.5 MΩ. - **Wide Bandwidth:** Minimum 30 MHz (-3 dB), suitable for high-frequency signal acquisition. - **Advanced Triggering:** - Supports software, analog, digital, and SSI triggers. - Trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger. - Repeated trigger acquisition with 2-cycle rearming interval. - **Multiple Device Synchronization:** - System Synchronization Interface (SSI) for timing and trigger sharing across multiple boards. - **Auto-Calibration:** - Fully automated offset and gain calibration using onboard reference DACs. - Calibration constants stored in EEPROM. - **Efficient Data Transfer:** - Scatter-gather bus mastering DMA for high-throughput data transfer. - 3k-sample FIFO for real-time streaming when SDRAM buffering is unnecessary. - **Software Support:** - Drivers for Windows (WD-DASK), Linux (WD-DASK/X), LabVIEW® (WD-LVIEW), and ActiveX (WD-OCX). - Compatible with ADLINK DAQBench™ for visualization and automation. - **Compact Design:** Half-size PCI card (175 mm × 107 mm). - **Plug-and-Play Configuration:** Automatic IRQ and address assignment via PCI BIOS.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High-Speed Sampling:** - 65 MS/s per channel simultaneous sampling. - Up to 130 MS/s in single-channel ping-pong mode. - **High Resolution:** - 14-bit analog-to-digital conversion for precise waveform digitization. - **Deep Onboard Memory:** - Standard 128 MB SDRAM, expandable to 512 MB SODIMM SDRAM. - 3k-sample FIFO buffer for real-time streaming. - **Flexible Input Configuration:** - Two simultaneous-sampled single-ended analog input channels. - Programmable input ranges of ±1 V and ±5 V. - Selectable input impedance: 50 Ω or 1.5 MΩ. - **Wide Bandwidth:** - Minimum -3 dB bandwidth of 30 MHz per channel. - Input coupling: DC. - **Advanced Triggering:** - Supports software, analog, digital, and SSI triggers. - Trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger. - Repeated trigger acquisition with 2-cycle rearming interval. - Analog trigger sensitivity: 256 steps across full-scale range. - Digital trigger compatibility: 5 V TTL, minimum pulse width 10 ns. - **Multiple Device Synchronization:** - System Synchronization Interface (SSI) for multi-card synchronization. - Common trigger and timebase sharing across multiple PCI-9820 boards. - **Auto-Calibration:** - Fully software-controlled calibration using onboard trim DACs. - Calibration constants stored in EEPROM. - Reference voltage: +5.000 V, drift ±2 ppm/°C, stability 6 ppm/1000 hrs. - **Bus Interface:** - 32-bit, 33 MHz PCI bus (3.3 V or 5 V signaling). - Scatter-gather bus mastering DMA for efficient data transfer. - **Compact Design:** - Half-size PCI form factor (175 mm × 107 mm).

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High-Speed Sampling:** - Up to 65 MS/s per channel (dual-channel mode) - Up to 130 MS/s in single-channel “ping-pong” mode - **High Resolution:** - 14-bit A/D conversion for precise signal digitization - **Deep Onboard Memory:** - Standard 128 MB SDRAM, expandable to 512 MB - 3k-sample FIFO for real-time streaming - **Flexible Input Configuration:** - Two simultaneous-sampled single-ended analog channels - Programmable input ranges: ±1 V or ±5 V - Selectable input impedance: 50 Ω or 1.5 MΩ - **Wide Bandwidth:** - Analog input bandwidth exceeds 30 MHz (-3 dB) - **Advanced Triggering:** - Supports software, analog, digital, and SSI triggers - Trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger - Repeated trigger acquisition with minimal rearming interval (2 timebase cycles) - **Multiple Device Synchronization:** - System Synchronization Interface (SSI) for timing and trigger sharing across multiple PCI-9820 boards - **Auto-Calibration:** - Fully automated offset and gain calibration using onboard DACs - Calibration constants stored in EEPROM - **Software Support:** - Drivers for Windows (WD-DASK), Linux (WD-DASK/X) - LabVIEW® driver (WD-LVIEW) and ActiveX controls (WD-OCX) - DAQBench™ ActiveX visualization toolkit - **Compact PCI Form Factor:** - Half-size PCI card supporting both 3.3 V and 5 V signaling environments

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High-Speed, High-Resolution Digitization:** Four simultaneous 16-bit analog input channels with sampling rates up to 10 MS/s per channel (PCI-9816H), ensuring precise waveform capture for high-frequency signals. - **Large Onboard Memory:** 512 MB SDRAM onboard memory enables extended waveform recording without being limited by PCI bus transfer rates. - **Flexible Input Configuration:** Software-selectable input impedance of 50 Ω or 1 MΩ, and programmable input voltage ranges of ±1 V or ±5 V, allowing compatibility with a wide range of signal sources. - **Wide Analog Bandwidth:** Typical -3 dB bandwidth of 5.1 MHz at 50 Ω input impedance, optimized for high-frequency applications. - **Advanced Triggering Options:** Supports software, external digital, and analog triggers, as well as PXI STAR and PXI Trigger Bus triggers. Trigger modes include post-, pre-, middle-, and delay-trigger, with re-trigger capability for segmented acquisitions. - **Multi-Module Synchronization:** Synchronization via PXI Trigger Bus or dedicated SSI interface allows multiple digitizers to operate in phase for multi-channel systems. - **Auto-Calibration:** Fully automated calibration using a precision onboard 5 V reference with ±3 ppm/°C temperature drift ensures long-term accuracy and stability. - **High Dynamic Range and Low Noise:** Typical SFDR of 90 dBc, SINAD of 79 dBc, and ENOB of 12.8 bits (PCI-9816H), providing excellent spectral purity and low distortion. - **Comprehensive Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and WD-DASK drivers for Windows, with support for LabVIEW®, MATLAB®, and ActiveX environments.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High‑Speed Sampling:** 4 simultaneous 16‑bit ADC channels, each capable of up to **20 MS/s** sampling rate. - **Deep Onboard Memory:** **512 MB SDRAM** shared across channels for long waveform recording independent of PCI bus bandwidth. - **Programmable Input Range:** Software‑selectable **±1 V or ±5 V** input range for flexible signal scaling. - **Selectable Input Impedance:** **50 Ω or 1 MΩ** input impedance, software‑configurable for high‑frequency or high‑impedance sources. - **Wide Analog Bandwidth:** Typical **9.6 MHz (‑3 dB)** bandwidth at 50 Ω input impedance. - **Flexible Triggering:** Supports software, external digital, and analog triggers, as well as PXI STAR and PXI Trigger Bus sources. - **Multiple Trigger Modes:** Post‑trigger, pre‑trigger, middle‑trigger, delay‑trigger, and re‑trigger acquisition modes. - **Multi‑Module Synchronization:** Synchronize multiple digitizers via PXI Trigger Bus or SSI interface for scalable systems. - **Auto‑Calibration:** Built‑in precision 5 V reference with ±3 ppm/°C drift for fully automated calibration. - **Scatter‑Gather DMA:** Efficient high‑throughput data transfer to host memory without large contiguous buffers. - **PXI and PCI Compatibility:** Available in both PXI 3U Eurocard and standard PCI half‑length form factors. - **Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and WD‑DASK drivers for Windows, LabVIEW®, and MATLAB®. - **High Dynamic Performance:** Typical SINAD 78.6 dBc, SFDR 88.9 dBc, and ENOB 12.77 bits at 20 MS/s.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High‑Speed Sampling:** Up to **40 MS/s per channel** simultaneous sampling across four channels. - **High Resolution:** **16‑bit ADC** resolution (1 in 65,536) for precise signal digitization. - **Wide Bandwidth:** Typical **20 MHz (‑3 dB)** analog input bandwidth at 50 Ω. - **Deep Onboard Memory:** **512 MB SDRAM** shared across four channels for extended waveform capture. - **Flexible Input Configuration:** - Software‑selectable **input impedance**: 50 Ω or 1 MΩ. - Programmable **input voltage ranges**: ±0.2 V or ±1 V. - DC coupling for accurate low‑frequency measurements. - **Multiple Trigger Sources:** Software, external digital (SMB), analog threshold (CH0–CH3), PXI STAR, PXI Trigger Bus, and SSI bus. - **Trigger Modes:** Post‑trigger, pre‑trigger, middle‑trigger, delay‑trigger, and re‑trigger acquisition. - **Clock Sources:** Internal oscillator (40 MHz), external clock via SMB, PXI STAR, PXI Trigger Bus, PXI 10 MHz, or SSI bus. - **Scatter‑Gather DMA:** Efficient high‑throughput data transfer to host memory. - **Auto‑Calibration:** Built‑in precision 5 V reference with ±3 ppm/°C drift for software‑controlled calibration. - **Multi‑Module Synchronization:** PXI Trigger Bus or SSI interface for synchronized operation of multiple digitizers. - **Software Support:** DAQPilot, DAQMaster, and WD‑DASK drivers for Windows, LabVIEW®, and MATLAB®. - **Form Factor:** Standard height, half‑length PCI card (167.64 mm × 106.68 mm). - **Plug‑and‑Play PCI Interface:** 32‑bit/66 MHz PCI bus supporting both 3.3 V and 5 V signaling.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High-Speed Sampling:** Up to **40 MS/s per channel** simultaneous sampling across four channels. - **High Resolution:** 16-bit ADC resolution (1 part in 65,536). - **Large Onboard Memory:** 512 MB SDRAM for long-duration waveform capture independent of PCI bus bandwidth. - **Wide Bandwidth:** 20 MHz (-3 dB typical) analog input bandwidth at 50 Ω input impedance. - **Flexible Input Configuration:** Software-selectable **50 Ω or 1 MΩ input impedance**; DC coupling. - **Programmable Input Ranges:** ±1 V or ±5 V (software selectable). - **Multiple Trigger Sources:** Software, external digital (SMB), analog threshold, PXI STAR, PXI Trigger Bus, and SSI bus. - **Trigger Modes:** Post-trigger, pre-trigger, middle-trigger, delay-trigger, and re-trigger acquisition. - **Multi-Module Synchronization:** Supports synchronization via PXI Trigger Bus or SSI interface for multi-board operation. - **Auto Calibration:** Built-in precision 5 V reference with ±3 ppm/°C drift for software-controlled self-calibration. - **Scatter-Gather DMA:** Efficient high-speed data transfer to host memory without large contiguous memory blocks. - **PCI Interface:** 32-bit, 66 MHz PCI bus supporting both 3.3 V and 5 V signaling. - **Comprehensive Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and WD-DASK drivers for Windows, LabVIEW®, and MATLAB®. - **Compact Form Factor:** Standard height, half-length PCI card for easy integration into desktop or industrial PCs.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PCI

- **High-Resolution Analog Input:** 16-bit A/D conversion with up to 100 kS/s sampling rate. - **Channel Configuration:** 32 single-ended or 16 differential analog input channels. - **Programmable Gain Amplifier (PGA):** Software-selectable gains of 1, 10, 100, and 1000 for high-gain (HG) version. - **Input Range:** Bipolar ±10 V, ±1 V, ±100 mV, ±10 mV (HG version). - **Cold Junction Compensation (CJC):** On-board sensor for thermocouple measurement accuracy. - **Isolation:** 16 isolated digital inputs and 16 isolated digital outputs, each with 2500–5000 V RMS isolation. - **Digital I/O:** - 16 isolated digital inputs (0–24 V, non-polarity). - 16 isolated digital outputs (open-emitter Darlington transistor drivers, 5–35 V supply). - **Timer/Counter:** One 16-bit general-purpose timer/counter (8254 compatible) with 2 MHz base clock. - **FIFO Buffer:** 1K-sample hardware FIFO for analog input buffering. - **Trigger Modes:** Software, pacer timer, and external 5 V/TTL trigger. - **Plug-and-Play PCI Interface:** Fully compliant with 32-bit PCI bus architecture. - **Software Support:** Comprehensive driver suite for Windows and DOS, including LabVIEW®, HP VEE™, DASYLab™, and OPC server support. - **Applications:** Industrial process control, thermocouple and RTD measurement, biomedical instrumentation, and power monitoring.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

- **High-Speed Analog-to-Digital Conversion:** 16-bit resolution with a maximum sampling rate of 250 kS/s (4 µs conversion time per channel). - **Flexible Analog Input Configuration:** 32 single-ended or 16 differential channels with programmable gain and input ranges. - **Programmable Gain Amplifier (PGA):** High-gain version supports gain factors of 1, 10, 100, and 1000, enabling precise low-level signal measurement. - **Wide Input Range:** Bipolar input ranges of ±10 V, ±1 V, ±0.1 V, and ±0.01 V (software programmable). - **High Isolation Digital I/O:** 16 isolated digital inputs and 16 isolated digital outputs with 2500 V RMS isolation voltage. - **Cold Junction Compensation (CJC):** Onboard sensor for accurate thermocouple temperature measurement. - **Integrated Timer/Counter:** One 16-bit general-purpose timer/counter compatible with 8254 architecture, supporting up to 2 MHz base clock. - **FIFO Buffer:** 1K-sample onboard FIFO for efficient data buffering and high-speed acquisition. - **Triggering and Data Transfer Modes:** Supports software, pacer timer, and external triggers; data transfer via polling, interrupt, or FIFO half-full interrupt. - **Plug-and-Play PCI Interface:** Fully compliant with PCI 2.1 specification, automatic resource allocation via BIOS. - **Software Support:** Compatible with ADLINK’s PCIS-DASK, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, ISaGRAF™, and OPC server environments. - **Industrial-Grade Design:** Operating temperature range 0–55°C, with robust isolation and protection circuitry for reliable operation in harsh environments.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

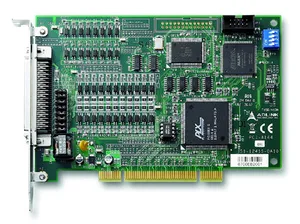

- **Bus Interface:** 32-bit PCI/PXI bus, Rev. 2.2, 33 MHz, Plug and Play compliant. - **Axes Supported:** 4 independent axes for stepper or servo motor control. - **Pulse Output Rate:** Up to 6.55 MHz (6.55 Mpps). - **Pulse Output Modes:** OUT/DIR, CW/CCW, or AB Phase. - **Interpolation:** - 2–4 axes linear interpolation. - Any 2 of 4 axes circular interpolation. - Multi-axis continuous interpolation for contouring. - **Motion Profiles:** Trapezoidal and S-curve velocity profiles with programmable acceleration/deceleration. - **Dynamic Control:** Real-time position and speed change on the fly. - **Encoder Interface:** 28-bit up/down counter for incremental encoder feedback, up to 6.55 MHz input rate. - **Home Return:** 13 programmable home return modes with auto-search capability. - **Triggering & Latching:** - Hardware position compare and trigger with auto-loading FIFO. - High-speed position latch function. - **Backlash Compensation:** Hardware-based backlash compensator and vibration suppression. - **Isolation:** 2500 V RMS optical isolation for all digital I/O. - **Interrupts:** Fully programmable interrupt sources. - **Scalability:** Supports up to 12 cards per system (48 axes total). - **Software Support:** - Windows 8/7/XP, DOS, Linux. - Compatible with VB, VC++, BCB, Delphi, VB.NET. - Includes MotionCreatorPro software and over 250 thread-safe API functions. - **Compatibility:** Works with stepper, AC/DC servo, linear, or rotary motors.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **Dual 10/100 Mbps Ethernet Ports:** Two independent Fast Ethernet interfaces based on Intel® 82559 controllers, supporting IEEE 802.3 and 802.3u standards for 10Base-T and 100Base-TX operation. - **Bypass Functionality:** Hardware relay-based bypass mechanism automatically connects the two Ethernet ports when system power is off or when the software watchdog timer (WDT) detects a fault. This ensures uninterrupted network traffic flow in fail-safe applications. - **Watchdog Timer (WDT):** Programmable watchdog timer monitors system health. If the system halts or fails to refresh the WDT, the card switches to bypass mode automatically. - **Intel® 21154 PCI-to-PCI Bridge:** Provides 64-bit PCI bus compatibility and efficient data throughput between the host system and Ethernet controllers. - **PXE Remote Boot Support:** Supports Intel® Preboot Execution Environment (PXE) for remote booting over the network, enabling diskless system deployment and remote management. - **Auto-Negotiation and Flow Control:** Complies with IEEE 802.3u auto-negotiation for 10/100 Mbps speed selection and IEEE 802.3x flow control for full-duplex operation. - **LED Indicators:** Each port includes dual LEDs for link/activity and speed indication (10/100 Mbps), providing clear visual status feedback. - **Operating System Support:** Compatible with DOS, Windows® 98 SE/ME/NT/2000, and Linux® operating systems. Drivers are included on the ADLINK support CD. - **Industrial Reliability:** Designed for industrial environments with extended temperature tolerance, robust EMI/EMS compliance, and long-term operational stability.

Manufacturer: Adlink Technology Inc.

Category: Switch Card

PCI card 4*Ethernet, 4*Intel 82559 10/100Mbps controller, support 32/64bit 33/66MHz PCI bus, Intel 21154 64bit PCI bridge on board, Adlink

Manufacturer: Adlink Technology Inc.

Category: Switch Card

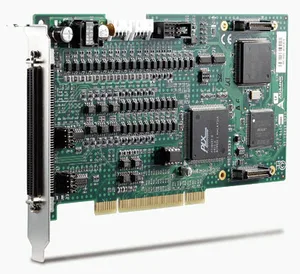

- **4-Axis Pulse Train Control:** Supports up to four independent or synchronized axes for stepper, servo, or linear motor control. - **High-Speed Pulse Output:** Up to 6.55 MHz pulse output rate with 28-bit resolution. - **Advanced Motion Profiles:** Supports trapezoidal and S-curve velocity profiles, linear and circular interpolation, and continuous contouring. - **On-the-Fly Adjustments:** Allows position and speed changes during motion execution. - **13 Home Return Modes:** Multiple homing configurations for flexible mechanical setups. - **Hardware Position Compare & Trigger:** Hardware-based position compare with up to 1 MHz trigger output (with DB-8150). - **Position Latch Function:** High-speed hardware latch for precise position capture. - **Automatic Backlash Compensation:** Hardware-based compensation for mechanical backlash. - **Simultaneous Start/Stop:** Multi-axis synchronization across single or multiple cards. - **Emergency Stop Input:** Hardware emergency input for immediate motion halt. - **Security Protection:** EEPROM-based software protection key. - **High Isolation:** All digital I/O channels are 2500V RMS optically isolated. - **Expandable Architecture:** Supports distributed I/O via HSL network (with DB-8151). - **Multi-Card Support:** Up to 12 PCI-8154 cards can operate in one system. - **Software Tools:** Bundled with MotionCreatorPro™ for configuration, debugging, and motion testing. - **Comprehensive API Library:** Over 100 thread-safe API functions for C/C++, VB, Delphi, and .NET environments.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **4‑Axis Pulse‑Train Control:** Supports up to four independent motion axes with pulse output rates from 0.5 pps to 2.4 Mpps. - **High‑Speed Pulse Generation:** Maximum acceleration rate up to 737 Mpps, enabling smooth and rapid motion transitions. - **Flexible Pulse Output Modes:** CW/CCW or OUT/DIR modes selectable via software or jumpers. - **Programmable Motion Profiles:** Supports trapezoidal and S‑curve velocity profiles for smooth acceleration/deceleration. - **Dynamic Speed Adjustment:** Allows on‑the‑fly speed changes during motion execution. - **Home Return and Limit Functions:** Three home return modes with programmable ORG, PEL, MEL, PSD, and MSD inputs. - **Simultaneous Start/Stop:** External STA/STP signal control for synchronized multi‑axis operation. - **Isolated Digital I/O:** 8 optically isolated digital inputs and 8 isolated digital outputs (2500 V RMS isolation). - **Emergency Stop Input:** Dedicated STP/EMG input for immediate motion halt. - **Multi‑Card Support:** Up to 12 PCI‑8144 cards can be installed in one system for up to 48‑axis control. - **Software Security:** User program protection and password‑based security key functions. - **Comprehensive Software Library:** Over 30 thread‑safe API functions for C/C++, VB, Delphi, and BCB. - **Windows‑Based Configuration Utility:** Bundled MotionCreatorPro software for setup, testing, and debugging. - **Plug‑and‑Play PCI Interface:** Automatic resource allocation via BIOS; no manual IRQ or memory configuration required.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

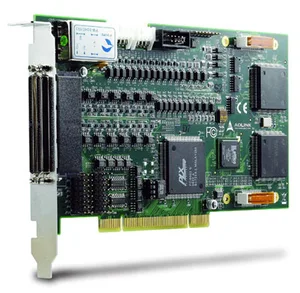

- **High-Density 8-Axis Control:** Supports up to eight independent or synchronized motion axes for stepper or servo motors. - **Pulse Train Output:** Generates high-frequency pulse trains up to **6.55 MHz** for precise motion control. - **Interpolation Capabilities:** - 2–4 axis linear interpolation - 2-axis circular interpolation - Continuous contouring for smooth trajectory transitions - **Dynamic Motion Control:** - On-the-fly position and speed changes - Continuous motion with pre-register buffering - 13 programmable home return modes with auto-search - **Advanced Motion Profiles:** - Trapezoidal and S-curve acceleration/deceleration - Programmable acceleration/deceleration times - Vibration suppression and backlash compensation - **Feedback and Monitoring:** - 28-bit up/down encoder counters per axis - Hardware position latch and compare functions - Hardware-triggered output for synchronization (CMP up to 1 MHz with DB-8150) - **Safety and Reliability:** - Hardware emergency stop input - 2500 Vrms optical isolation on all I/O channels - Hardware security protection via EEPROM key - **Multi-Card Scalability:** Supports up to **12 PCI-8158 cards** in one system for large-scale automation. - **Software Integration:** - Bundled **MotionCreatorPro™** configuration and debugging software - Over 100 thread-safe API functions for C/C++, VB, Delphi, and .NET environments - Compatible with Windows 2000/XP and Linux distributions - **Applications:** Semiconductor equipment, LCD/TFT manufacturing, electronic assembly, AOI systems, CNC machinery, and simulation platforms.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **High-Speed Analog Output:** - 4 analog output channels, 12-bit resolution, up to 1 MS/s update rate. - Programmable output ranges: ±10 V, 0–10 V, or external reference (±AOEXTREF). - Hardware-based arbitrary waveform generation with onboard 8K-sample FIFO. - **Analog Input Capability:** - 8 single-ended analog input channels, 14-bit resolution, up to 400 kS/s sampling rate. - Bipolar (±10 V) and unipolar (0–10 V) input ranges. - Onboard 2K-sample A/D FIFO buffer. - **Digital I/O and Counter Functions:** - 24-channel TTL/CMOS-compatible digital I/O (8255 programmable). - 2-channel, 16-bit general-purpose timer/counter with 40 MHz base clock. - **Triggering and Synchronization:** - Supports software, external digital, and analog triggers. - System Synchronization Interface (SSI) for multi-card synchronization. - Post-trigger, delay-trigger, and retrigger modes for both A/D and D/A operations. - **Auto-Calibration:** - Fully automatic internal calibration using a 5 V reference (±2 ppm/°C). - No external reference required for calibration. - **Bus Interface and Compatibility:** - 32-bit PCI bus (3.3 V or 5 V signaling). - Plug-and-play configuration with automatic IRQ and address assignment. - **Software and OS Support:** - Drivers for Windows 7/8 (x86/x64) and Linux. - SDKs for LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET. - AD-Logger utility for data logging and visualization. - **Robust Design:** - Short-circuit protection, ±30 V overvoltage protection on inputs. - Compact PCI form factor with 68-pin VHDCI connector.

Manufacturer: Adlink Technology Inc.

Category: D/A Intelligent PCI

- **High‑speed analog output:** 8 channels, 12‑bit resolution, up to **1 MS/s** per channel. - **Analog input capability:** 4 single‑ended channels, 14‑bit resolution, up to **400 kS/s** sampling rate. - **Simultaneous waveform generation:** Hardware‑based arbitrary waveform generation with onboard FIFO buffering. - **Auto‑calibration:** Fully automatic internal calibration using a precision 5 V reference (±2 ppm/°C). - **Programmable voltage ranges:** Bipolar (±10 V) and unipolar (0–10 V) ranges for both input and output. - **Flexible triggering:** Supports software, external digital, external analog, and SSI (System Synchronization Interface) triggers. - **Scatter‑gather DMA:** High‑speed data transfer for both A/D and D/A operations with minimal CPU load. - **Digital I/O:** 24‑channel TTL/CMOS‑compatible programmable I/O (8255‑compatible). - **Timer/Counter:** Two 16‑bit general‑purpose up/down counters with 40 MHz internal or 10 MHz external clock. - **Synchronization:** Multiple‑card synchronization via SSI bus or PXI trigger bus. - **Software support:** Drivers and SDKs for Windows and Linux; compatible with LabVIEW®, MATLAB®, C/C++, Visual Basic, and .NET. - **Plug‑and‑play PCI configuration:** No jumpers required; automatic IRQ and address assignment. - **Compact design:** 175 mm × 107 mm PCI form factor with 68‑pin VHDCI connector.

Manufacturer: Adlink Technology Inc.

Category: D/A Intelligent PCI

- **High-Speed Analog Output:** 8 channels of 12-bit resolution with a maximum update rate of 1 MS/s per channel. Programmable output ranges: ±10 V, 0–10 V, or external reference (±AOEXTREF / 0–AOEXTREF). - **Analog Input Capability:** 4 single-ended 14-bit analog input channels with a maximum sampling rate of 400 kS/s. Input ranges: ±10 V or 0–10 V, DC coupling, 1 GΩ input impedance. - **Digital I/O:** 24-channel TTL-compatible programmable digital I/O (8255 PIO compatible). - **Timer/Counter:** Two 16-bit general-purpose up/down counters with 40 MHz internal or up to 10 MHz external clock. - **Auto-Calibration:** Fully automatic internal calibration using a precision 5 V reference (±2 ppm/°C). - **Triggering and Synchronization:** Software, external analog/digital, and SSI (System Synchronization Interface) triggers supported. Supports post-trigger, delay-trigger, and repeated trigger modes. - **FIFO Buffers:** 16 k-sample D/A FIFO and 2 k-sample A/D FIFO for efficient data streaming. - **Bus Interface:** 32-bit PCI bus, 3.3 V or 5 V signaling, plug-and-play configuration. - **Software and OS Support:** Compatible with Windows 7/8 (x86/x64) and Linux. Drivers and SDKs for LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET. - **Utility Software:** Includes AD-Logger for data logging and visualization. - **Form Factor:** Standard PCI card, 175 mm × 107 mm, 68-pin VHDCI connector.

Manufacturer: Adlink Technology Inc.

Category: D/A Intelligent PCI

- **High-Speed Digital I/O:** 32 digital input and 32 digital output channels, TTL-compatible, optimized for high-speed data transfer and pattern generation. - **High Data Throughput:** Up to **12 MB/s** transfer rate using bus-mastering DMA via 32-bit PCI bus architecture. - **Multiple Transfer Modes:** Supports **programmed I/O**, **interrupt-driven I/O**, **bus-mastering DMA**, **timer pacer control**, **external clock mode**, and **handshaking mode**. - **Programmable Timer/Counter:** Integrated **82C54-10 programmable counter** with a 4 MHz base clock for generating pacer signals and timing control. - **Flexible Triggering and Handshaking:** Supports **I_REQ/I_ACK** and **O_REQ/O_ACK** signals for synchronized data transfer with external devices. - **FIFO Buffers:** Onboard **32-word FIFO** for both input and output (PCI-7200/LPCI-7200S) and **2K + 8-word FIFO** for cPCI-7200 input channels. - **Bus-Mastering DMA:** Enables direct memory access for high-speed, low-latency data transfer without CPU intervention. - **Software-Selectable Interrupt Sources:** Multiple interrupt sources including EO_ACK, EI_REQ, Timer 0, Timer 1, and Timer 2. - **Cross-Platform Software Support:** Compatible with **Windows 7/Vista/XP/2000/2003** and **Linux**. Supported by **DAQPilot**, **DAQBench**, **LabVIEW™**, **MATLAB®**, and **PCIS-DASK** drivers. - **Compact Design:** Half-size PCI card (148 mm x 102 mm) suitable for space-constrained systems. - **Plug and Play Configuration:** Fully compliant with PCI Plug and Play standards; no jumper or DIP switch configuration required.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **High‑Performance DSP Core:** Equipped with a 250 MHz TI TMS320C6711D DSP delivering 1500 MFLOPS for real‑time motion computation. - **Multi‑Axis Analog Control:** Supports 3 axes (PCI‑8253) or 6 axes (PCI‑8256) of ±10 V analog command output for servo motor control with differential or single‑ended signal types. - **High‑Speed Feedback and Control:** - Encoder feedback frequency up to 20 MHz (4×AB mode). - Servo update rate as low as 150 µs (PCI‑8253) or 300 µs (PCI‑8256). - Position counter resolution: 32‑bit up/down counter per axis. - **Closed‑Loop PID + Feed‑Forward Control:** Built‑in PID controller with adjustable proportional (Kp), integral (Ki), derivative (Kd), and feed‑forward (Aff, Vff) gains (0–32,767 range) for precise trajectory tracking and minimal following error. - **Advanced Motion Functions:** - Point‑to‑point, velocity, and jogging modes. - 2–4‑axis linear interpolation and 2‑axis circular interpolation. - Multi‑axis synchronous and continuous interpolation. - On‑the‑fly speed and position override. - Gantry and E‑Gear functions for coordinated motion. - **Trigger and Comparison Functions:** - Up to 4 differential trigger outputs (2 high‑speed @ 1 MHz, 2 low‑speed @ 25 kHz). - Programmable pulse width (0.2 µs – 300 ms). - FIFO and linear comparison modes for continuous triggering. - **Comprehensive I/O:** - Dedicated motion I/O per axis: PEL/MEL, ORG, ALM, SVON, ZSP, INP. - General‑purpose isolated I/O: 4 DI/4 DO (PCI‑8253) or 8 DI/8 DO (PCI‑8256). - One emergency stop input shared across all axes. - **Analog I/O:** - 3/6 × 14‑bit analog inputs (±10 V). - 3/6 × 16‑bit analog outputs (±10 V, ±5 V programmable). - **Software and Development Tools:** - **MotionCreatorPro 2™** graphical configuration and tuning suite. - Windows DLL libraries for C/C++, Visual Basic, and other languages. - Real‑time data sampling and PID tuning utilities. - **System Integration:** - 32‑bit PCI Rev 2.2, 33 MHz interface. - Plug‑and‑Play resource allocation. - Support for up to 16 cards per system. - **Safety and Reliability:** - Watchdog timer. - Noise‑resistant encoder input with digital filtering. - Short‑circuit protection on analog outputs. - Operating temperature 0 – 55 °C.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI
