- **Interface Conversion:** Converts SMB male connector (PXI module side) to BNC male connector (instrumentation side), enabling direct connection to standard laboratory equipment. - **Optimized for PXI Digitizers:** Designed for seamless integration with ADLINK PXI-9816, PXI-9826, and PXI-9846 modules, ensuring impedance matching and minimal signal loss. - **High Signal Integrity:** Utilizes precision coaxial construction with 50 Ω impedance to maintain consistent signal quality across the full frequency range supported by the PXI digitizers. - **Durable Construction:** Features high-quality shielding and robust connector housings to minimize electromagnetic interference (EMI) and mechanical wear. - **Standard Length:** 1-meter cable length provides flexibility for bench setups while maintaining low attenuation and minimal phase distortion. - **Plug-and-Play Compatibility:** No configuration required; simply connect between PXI module SMB ports and external BNC-based instruments. - **Versatile Application:** Suitable for analog input/output, waveform generation, and signal monitoring in test and measurement systems. - **Reliable Mechanical Coupling:** SMB snap-on connector ensures secure attachment to PXI modules, while BNC bayonet coupling provides quick and stable connection to oscilloscopes, analyzers, or other test devices.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **High-Frequency SMB-to-SMB Connectivity:** Equipped with male SMB connectors on both ends, the cable supports secure snap-on coupling for quick, reliable connections in high-density setups. - **Optimized for ADLINK PCIe-7350:** Designed to interface directly with ADLINK’s PCIe-7350 high-speed digital I/O card, ensuring signal integrity and compatibility with the card’s timing and triggering functions. - **Low Signal Loss and High Shielding Efficiency:** Constructed with precision coaxial cable featuring a high-quality dielectric and braided shielding to minimize electromagnetic interference (EMI) and maintain signal fidelity. - **Compact and Flexible Design:** The 1-meter length provides sufficient reach for internal or bench-top setups while maintaining manageable cable routing and minimal signal degradation. - **Durable Construction:** Built with robust materials suitable for repeated connections and disconnections, ensuring long-term reliability in test and measurement environments. - **Broad Application Range:** Suitable for high-speed digital signal transmission, clock synchronization, trigger signal routing, and other timing-critical applications. - **Standardized SMB Interface:** Complies with industry-standard SMB connector specifications, ensuring interoperability with other SMB-compatible devices and instruments.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Dual-Device Connectivity:** Supports simultaneous connection of **two SSI devices** to a single controller or interface card, enabling multi-axis or dual-sensor configurations. - **High Signal Integrity:** Designed with **shielded twisted-pair conductors** to minimize electromagnetic interference (EMI) and maintain accurate synchronous serial communication. - **Optimized for ADLINK Motion Controllers:** Fully compatible with ADLINK’s motion control and data acquisition systems, ensuring plug-and-play operation and reliable performance. - **Industrial-Grade Construction:** Built with durable materials and robust connectors suitable for continuous operation in industrial environments. - **Precise Data Transmission:** Maintains synchronization between master and slave devices, supporting high-resolution encoder feedback and deterministic communication. - **Ease of Integration:** Pre-terminated connectors and standardized pin assignments simplify installation and reduce setup time. - **Compact and Flexible Design:** Cable length and flexibility allow for easy routing within control cabinets or machinery. - **Reliable SSI Communication:** Supports standard SSI protocol for absolute encoders and sensors, ensuring compatibility with a wide range of industrial devices.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Multi-Device Connectivity:** Supports simultaneous connection of up to **three SSI devices** to a single controller or host interface. - **Optimized for SSI Communication:** Designed specifically for **Synchronous Serial Interface (SSI)** signal transmission, ensuring accurate clock and data synchronization. - **High Signal Integrity:** Shielded cable construction minimizes electromagnetic interference (EMI) and crosstalk, maintaining stable communication in electrically noisy industrial environments. - **Plug-and-Play Compatibility:** Pre-terminated connectors simplify installation and reduce wiring errors. - **Industrial-Grade Durability:** Built with robust materials suitable for continuous operation in factory automation, robotics, and motion control systems. - **Compact and Flexible Design:** Facilitates easy routing within control cabinets or machinery with limited space. - **Reliable Data Transmission:** Ensures consistent performance for high-resolution encoders and sensors requiring precise timing. - **Adlink System Integration:** Fully compatible with ADLINK motion controllers, data acquisition cards, and other SSI-enabled modules.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

- **Multi-Device Connectivity:** Supports simultaneous connection of up to **four SSI devices** (e.g., encoders, sensors, or position transducers) to a single SSI interface channel. - **High Signal Integrity:** Engineered for **low-noise, shielded signal transmission**, ensuring accurate data communication over extended cable lengths. - **Industrial-Grade Construction:** Built with **durable insulation, shielding, and strain relief** to withstand mechanical stress, vibration, and electromagnetic interference (EMI). - **Plug-and-Play Compatibility:** Designed for seamless integration with **ADLINK motion control cards, data acquisition modules, and industrial PCs** that support SSI communication. - **Optimized for Synchronization:** Maintains precise timing and synchronization between connected devices, critical for motion control and position feedback systems. - **Flexible Configuration:** Supports both **point-to-point** and **multi-drop** SSI configurations, depending on the host controller’s capabilities. - **Reliable Electrical Performance:** Ensures stable clock and data signal transmission with minimal latency and distortion. - **Compact and Organized Design:** Provides a clean, organized wiring solution for multi-device SSI setups, reducing installation complexity. - **Extended Temperature Range:** Suitable for operation in industrial temperature conditions, ensuring consistent performance in harsh environments.

Manufacturer: Adlink Technology Inc.

Category: Cables and Accessories

**TB‑6201‑01 Terminal Board** - 62‑pin D‑Sub female connector for direct interface with PXI‑7901. - Screw‑terminal design for secure and flexible signal wiring. - Supports all relay channels, auxiliary I/O, and trigger lines from the PXI‑7901. - No cable included (optional ACL‑10262 cable available). - Compact, durable construction for bench or rack‑mount use. **PXI‑7901 Relay Module** - 16 independent SPDT (Single‑Pole Double‑Throw, 1 Form C) non‑latching relays. - PXI Specification Rev. 2.2 compliant; CompactPCI (PICMG 2.0 R3.0) and Hot‑Swap (PICMG 2.1 R2.0) compliant. - 3 A switching and carrying capacity at up to 220 V DC or 250 V AC. - 125 operations per second with full contact settling. - Onboard 1 k‑sample scan list for deterministic auto‑scanning. - Programmable handshaking signals for synchronization with external instruments. - Safety‑critical design with hardware emergency shutdown and watchdog timer. - 8 auxiliary 3.3 V/TTL digital I/O channels (5 V tolerant). - Software‑programmable operation modes and PXI trigger synchronization. - Fully supported by ADLINK’s ADL‑SWITCH driver for Windows.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **Task-Oriented Design:** DAQPilot is structured around measurement tasks rather than low-level hardware commands, allowing users to focus on application objectives such as analog input, analog output, digital I/O, or counter/timer operations. - **Comprehensive LabVIEW Integration:** Provides a complete set of polymorphic Virtual Instruments (VIs) for LabVIEW, enabling intuitive graphical programming and rapid application development. - **Broad Hardware Compatibility:** Supports ADLINK DAQ and PCI card families, including digitizer, dynamic signal acquisition (DSA), and USB DAQ series. - **Polymorphic VI Architecture:** Offers flexible VI interfaces that automatically adapt to different data types and configurations, reducing programming complexity. - **Cross-Version Windows Support:** Compatible with Windows 7, Windows 8, and Windows 10, in both 32-bit (x86) and 64-bit (x64) environments. - **Integration with MAPS Core:** Works seamlessly with ADLINK’s MAPS Core v20.01 Windows Software Suite, which provides foundational drivers, libraries, and runtime components for measurement and automation applications. - **Enhanced Performance and Stability:** Optimized for high-speed data throughput and reliable communication with ADLINK hardware, ensuring consistent performance in demanding measurement environments. - **Scalable SDK Framework:** Supports both entry-level and advanced users through a layered API structure, from simple task-based functions to low-level hardware control. - **Backward Compatibility:** Maintains support for legacy ADLINK DAQ cards and earlier LabVIEW versions, ensuring long-term usability and smooth migration paths. - **Simplified Deployment:** Includes installation packages and configuration tools that streamline setup and reduce integration time.

Manufacturer: Adlink Technology Inc.

Category: ADLink Driver, Software

- **68-pin SCSI-II Connector Interface:** Provides a standard high-density 68-pin SCSI-II (Half-Pitch) connector for direct connection to compatible DAQ cards, motion controllers, or digital I/O modules. - **DIN-Rail Mounting:** Designed for easy installation on standard 35 mm DIN rails, enabling quick integration into control cabinets, test benches, or industrial enclosures. - **Direct Signal Termination:** Facilitates direct wiring of field signals to the corresponding pins of the SCSI-II connector, simplifying system wiring and reducing installation time. - **Passive Design:** No active components; ensures signal integrity without introducing additional noise or delay. - **High-Density Terminal Layout:** Provides clearly labeled screw terminals corresponding to each SCSI-II pin, allowing organized and error-free wiring. - **Industrial-Grade Construction:** Built with durable materials suitable for harsh environments, ensuring long-term reliability and mechanical stability. - **Compatibility:** Fully compatible with ADLINK DAQ cards and other SCSI-II interface devices, supporting both analog and digital signal routing. - **Maintenance-Friendly:** Modular design allows easy replacement or reconfiguration without disturbing other system components. - **No Cable Included:** The DIN-68M0 is supplied without a connecting cable, allowing users to select the appropriate cable length and type for their specific application.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Purpose‑Built Portability:** Custom‑fitted for the PXES‑2590 chassis and PMK‑1524 monitor kit, enabling a fully integrated, mobile PXI Express test system. - **Rugged Construction:** Engineered to protect sensitive instrumentation during transport and deployment. - **Compact Dimensions:** 570 × 270 × 390 mm overall footprint for efficient storage and mobility. - **Lightweight Design:** Total weight of 5 kg, optimized for portability without compromising structural integrity. - **Integrated Mobility:** Equipped with trolley‑style handle and wheels (implied by product type) for easy movement between laboratory, production, and field environments. - **Compatibility:** Designed specifically for ADLINK PXES‑2590 9‑slot PXI Express chassis and PMK‑1524 LCD/keyboard kit. - **Ease of Deployment:** Facilitates rapid setup of PXI Express systems in mobile or temporary test environments. - **Manufacturer Quality:** Developed by ADLINK Technology, a global leader in PXI/PXIe modular instrumentation and embedded computing solutions.

Manufacturer: Adlink Technology Inc.

Category: PXIe PXI Chassis

- **High-Density Input Configuration:** Provides two sets of 32 discrete input channels (total 64 channels) for efficient signal acquisition in industrial control systems. - **NPN Sinking Input Type:** Designed for NPN-type sensors or dry contact inputs, allowing flexible integration with a wide range of industrial devices. - **HSL System Compatibility:** Fully compatible with ADLINK’s HSL (High Speed Link) distributed I/O system, enabling high-speed, deterministic communication between modules and controllers. - **DIN-Rail Mountable Terminal Base:** Supplied with the HSL-TB64-DIN terminal base, which simplifies wiring and installation in control cabinets. - **LED Status Indicators:** Equipped with LED indicators for power, link status, and individual input channel activity, providing immediate visual feedback for diagnostics. - **Flexible Address Configuration:** DIP switch settings allow easy address assignment within the HSL network, supporting continuous address allocation starting from odd-numbered addresses. - **Wide Power Supply Range:** Operates from +10 VDC to +30 VDC, accommodating various industrial power environments. - **Fast Response Time:** Input response time of 2 ms (ON/OFF), suitable for high-speed digital signal monitoring. - **Compact and Lightweight Design:** The module and terminal base combination maintains a small footprint, ideal for space-constrained automation panels.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **High-Density Output Configuration:** Provides two independent 32-channel NPN sinking output modules, offering a total of 64 discrete outputs when combined with the HSL-TB64-DIN terminal base. - **HSL System Integration:** Fully compatible with ADLINK’s HSL distributed I/O architecture, enabling high-speed, deterministic communication between controllers and remote I/O modules. - **NPN Sinking Output Type:** Each channel supports NPN transistor sinking output, capable of driving loads up to 60 mA at 24 VDC. - **Fast Response Time:** Output switching response time is 2 ms maximum for both ON and OFF transitions, ensuring precise timing control in automation processes. - **Flexible Power Input:** Operates with an external power supply ranging from +10 VDC to +30 VDC, allowing compatibility with standard industrial power systems. - **LED Status Indicators:** Equipped with multi-color LEDs for power (red), link (green), and output status (yellow), providing immediate visual feedback for diagnostics and operation monitoring. - **DIN-Rail Mountable Terminal Base:** The HSL-TB64-DIN terminal base provides a robust, easy-to-install DIN socket interface for field wiring and modular expansion. - **Compact and Modular Design:** The module’s compact form factor (125 × 22.4 × 80 mm) allows high channel density within limited panel space, while modular connectivity simplifies maintenance and scalability. - **Address Configuration via DIP Switch:** Supports DIP switch-based address assignment, occupying two consecutive address allocations starting from an odd-numbered address, simplifying system configuration.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **High-Density Input Configuration:** Provides two sets of 32-channel discrete PNP sourcing inputs, totaling 64 input channels per daughter board assembly. - **HSL System Integration:** Fully compatible with ADLINK’s HSL (High Speed Link) distributed I/O system, enabling fast, deterministic communication between field I/O and host controllers. - **PNP Sourcing Input Type:** Designed for PNP (sourcing) or wet contact input signals, supporting +10 mA input current and 4.7 kΩ input impedance. - **Flexible Address Configuration:** DIP switch settings allow address allocation in continuous pairs, starting from odd-numbered addresses. Switch bit 1 is fixed to ON for proper addressing. - **LED Status Indicators:** Equipped with LED indicators for DC power (red), link status (green), and individual discrete input channels (green), providing immediate visual feedback for diagnostics and operation. - **DIN-Rail Mountable Terminal Base:** Utilizes the HSL-TB64-DIN terminal base with DIN socket for simplified wiring, installation, and maintenance. - **Wide Power Supply Range:** Operates from an external +10 VDC to +30 VDC power source, ensuring compatibility with standard industrial power systems. - **Compact and Lightweight Design:** The modular form factor allows efficient use of control cabinet space while maintaining robust mechanical integrity. - **Fast Response Time:** Input response time of 2 ms (ON/OFF), ensuring reliable detection of high-speed digital signals. - **Industrial-Grade Reliability:** Designed for harsh industrial environments with robust electrical isolation and noise immunity.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

- **Dual 32-Channel PNP Sourcing Outputs:** Provides two independent 32-channel PNP output modules, enabling a total of 64 discrete output points for large-scale control systems. - **High-Speed Link (HSL) Architecture:** Utilizes ADLINK’s proprietary HSL technology for fast, deterministic communication between controllers and distributed I/O modules. - **PNP Sourcing Output Type:** Each channel provides a sourcing output of up to +60 mA at 24 VDC, suitable for driving relays, solenoids, indicators, and other DC loads. - **Fast Response Time:** Maximum ON/OFF switching time of 2 ms ensures precise and responsive control in time-critical automation tasks. - **DIN-Rail Mountable Terminal Base:** The included **HSL-TB64-DIN** terminal base simplifies wiring and installation, supporting standard DIN-rail mounting for industrial enclosures. - **LED Status Indicators:** Integrated LEDs provide visual feedback for power, link status, and individual output channel activity (Red for power, Green for link, Yellow for output). - **Flexible Address Configuration:** DIP switch settings allow easy address assignment within the HSL network, supporting consecutive address allocation for multi-module systems. - **Compact and Modular Design:** The modular form factor allows scalable expansion and easy maintenance within distributed control architectures. - **Wide Power Supply Range:** Operates from +10 VDC to +30 VDC, accommodating various industrial power environments. - **Robust Industrial Construction:** Designed for durability and reliability in harsh industrial conditions, with solid-state transistor outputs and protective circuitry.

Manufacturer: Adlink Technology Inc.

Category: HSL RT IO System

Type 6 rugged module with Intel Core i3-1115GRE

COM Express Compact Size Type 6 module with 11th Gen Intel Core i3-1115GRE processor, dual-core, 3.0/3.9 GHz, Intel UHD graphics, DDR4 up to 3200 MT/s with GRE-series IBECC support, 2.5GbE, PCIe Gen4 x4, configurable PCIe Gen3 lanes, SATA, USB, UART, GPIO. Rugged t1 variant.

Manufacturer: Adlink Technology Inc.

Category: No category

Type 6 rugged module with Intel Core i5-1145GRE

COM Express Compact Size Type 6 module with 11th Gen Intel Core i5-1145GRE processor, quad-core, 2.6/4.1 GHz, Intel Iris Xe graphics, DDR4 up to 3200 MT/s with GRE-series IBECC support, 2.5GbE, PCIe Gen4 x4, configurable PCIe Gen3 lanes, SATA, USB, UART, GPIO. Rugged t1 variant for extended temperature deployment.

Manufacturer: Adlink Technology Inc.

Category: No category

Type 6 rugged module with Intel Core i7-1185GRE

COM Express Compact Size Type 6 module with 11th Gen Intel Core i7-1185GRE processor, quad-core, 2.8/4.4 GHz, Intel Iris Xe graphics, DDR4 up to 3200 MT/s and optional IBECC support on GRE processors, 2.5GbE with optional TSN, PCIe Gen4 x4, PCIe Gen3 lanes, SATA, USB, UART, GPIO. t1 variant ruggedized for extended temperature operation.

Manufacturer: Adlink Technology Inc.

Category: No category

- **Universal Compatibility:** Designed for direct interfacing with the ADLINK PCI-9221 DAQ card, ensuring full signal compatibility and straightforward integration. - **Dual DB37 Female Connectors:** Equipped with two DB37 (37-pin) female connectors that correspond to the I/O channels of the PCI-9221, allowing easy connection via standard 37-pin cables. - **Screw Terminal Interface:** Features two sets of 2×25 screw clamp terminals, providing secure and reusable connections for signal wiring. Each terminal is clearly labeled for easy identification of signal lines. - **Integrated Breadboard Area:** Includes a dedicated breadboard or prototyping area that allows users to implement custom circuits, signal conditioning, or additional components directly on the board. - **Compact Form Factor:** With dimensions of 125 mm × 73 mm, the TB-9221-01 offers a compact footprint suitable for benchtop use or integration within control panels and test setups. - **Cable-Free Configuration:** The panel is supplied without cables, giving users flexibility to select appropriate cable lengths and types for their specific application. - **Robust Construction:** Built with durable materials and high-quality connectors to ensure long-term reliability in laboratory, industrial, and educational environments. - **Ease of Use:** Simplifies wiring and reduces setup time for data acquisition systems by providing a clear, organized interface between the PCI-9221 and external devices.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Universal Connectivity:** Supports both input and output configurations through opto‑isolated or relay‑driven channels. - **Opto‑22 Compatibility:** 50‑pin connectors conform to the Opto‑22 standard, ensuring direct interfacing with ADLINK DAQ cards such as ACL‑7122, ACL‑7124, PET‑48DIO, PCI‑7248, and PCI‑7296. - **Multiple Configurations:** Available in several variants: - **TB‑24P:** 24 opto‑isolated digital inputs. - **TB‑24R:** 24 relay outputs. - **TB‑16P8R:** 16 opto‑isolated inputs + 8 relay outputs. - **DIN‑24P:** 24 opto‑isolated inputs with DIN‑rail mounting. - **DIN‑24R:** 24 relay outputs with DIN‑rail mounting. - **DIN‑24G:** 24‑position I/O module rack for modular expansion. - **LED Status Indicators:** 24 channel‑mapped LEDs provide real‑time visual feedback of input or output states. - **High Isolation:** Up to **2500 V DC** (TB‑24P) or **5000 Vrms** (DIN‑24P) isolation between field and logic sides. - **Relay Switching Capability:** SPDT relays rated up to **250 V AC / 220 V DC**, 2 A switching current, 3 A carrying current. - **Flexible Power Options:** 12 V DC or 24 V DC coil voltage versions available. - **Breadboard Area:** Integrated prototyping section for custom circuitry or signal conditioning. - **Compact and Modular Design:** 125 mm × 73 mm PCB with detachable terminal blocks for easy wiring. - **DIN‑Rail Mounting (DIN Series):** Industrial‑grade mechanical design for control cabinets. - **Comprehensive LED Color Coding:** Green, yellow, and red LEDs distinguish channel groups (A, B, C). - **Jumper‑Selectable Input Modes:** Configurable for dry contact or photo‑coupler input operation. - **Full Compatibility with ADLINK NuDAQ and NuDAM Systems.**

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **High‑Resolution Analog Input:** 16 single‑ended or 8 differential channels, 16‑bit resolution, up to 250 kS/s sampling rate per channel. Programmable input ranges: ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±500 mV, ±250 mV. Programmable gains: 1, 2, 4, 5, 8, 10, 20, 40. - **Simultaneous Analog Output:** Two 16‑bit analog output channels, up to 1 MS/s simultaneous update rate, ±10 V output range, 20 V/µs slew rate. - **Programmable Function I/O:** 16 DI and 16 DO TTL channels (3.3 V/5 V compatible). Supports high‑speed DIO up to 2 MHz, 4 × 32‑bit general‑purpose timer/counters (80 MHz base clock), 4 PWM outputs, and 2 encoder inputs. - **Encoder Inputs:** Two isolated 4 MHz encoder channels supporting CW/CCW and AB‑phase (×1, ×2, ×4) modes with 2500 Vrms isolation. - **Advanced Triggering and Synchronization:** Software and external digital triggers for AI, AO, and DIO. Supports post‑trigger, retrigger, and gated trigger modes. Multi‑card synchronization via SSI (System Synchronization Interface) bus. - **Auto‑Calibration:** Onboard reference and EEPROM‑stored calibration constants ensure long‑term accuracy and temperature stability. - **Software and OS Support:** Drivers for Windows 7/8 x86/x64 and Linux. SDKs for LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. Utilities: AD‑Logger, DAQPilot, DAQMaster. - **Mechanical and Electrical:** Two 68‑pin VHDCI connectors, compact 120 × 87 mm PCB, universal PCI interface, and robust industrial design.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **High‑Resolution Analog Input:** 32 single‑ended or 16 differential analog input channels with 16‑bit resolution and up to 500 kS/s sampling rate per channel. - **Simultaneous Analog Output:** Two 16‑bit analog output channels with up to 1 MS/s update rate, ±10 V output range, and 512‑sample FIFO buffer. - **Programmable Function I/O:** 16 DI / 16 DO TTL‑compatible lines supporting 3.3 V and 5 V logic levels. Configurable as digital I/O, high‑speed DIO (2 MHz), general‑purpose timer/counter, PWM output, or encoder input. - **Encoder Inputs:** Two isolated 4 MHz encoder channels supporting CW/CCW and AB‑phase (X1, X2, X4) modes for motion feedback. - **PWM Generation:** Four PWM outputs with modulation frequency from 20 MHz down to 0.005 Hz and duty cycle adjustable from 1 % to 99 %. - **High‑Speed Data Transfer:** Dedicated DMA channels for A/D, D/A, and high‑speed DIO with scatter/gather bus‑mastering for efficient large‑block transfers. - **Triggering and Synchronization:** Supports software and external digital triggers for A/D, D/A, and DIO operations. Multiple‑card synchronization via SSI (System Synchronization Interface) bus. - **Auto‑Calibration:** Onboard reference and EEPROM‑stored calibration constants ensure long‑term accuracy with automatic self‑calibration. - **Software and OS Support:** Compatible with Windows 7/8 x86/x64 and Linux. Drivers and SDKs available for LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Utility Software:** AD‑Logger, DAQPilot, and DAQMaster for configuration, logging, and device management.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI

- **24‑bit Sigma‑Delta ADC and DAC:** High‑resolution converters for superior dynamic range and low noise. - **Simultaneous Sampling and Output:** Two analog input channels and two analog output channels operate concurrently for synchronized acquisition and generation. - **High Sampling Rates:** - Analog input: up to **432 kS/s** per channel. - Analog output: up to **216 kS/s** per channel. - **Programmable Input Ranges:** ±0.316 V, ±1 V, ±3.16 V, ±10 V, ±40 V. - **Programmable Output Ranges:** ±0.1 V, ±1 V, ±10 V. - **AC/DC Coupling:** Software‑selectable input coupling for flexible measurement of DC or AC signals. - **IEPE Sensor Support:** Built‑in 4 mA excitation current for integrated electronic piezoelectric sensors (accelerometers, microphones). - **Triggering Flexibility:** Supports software, analog, and external digital triggers; compatible with 5 V TTL logic. - **System Synchronization Interface (SSI):** Enables synchronization of multiple PCI‑9527 cards for multi‑channel systems. - **Universal PCI Interface:** 32‑bit/33 MHz PCI bus supporting both 3.3 V and 5 V signaling. - **Comprehensive Software Support:** Drivers for Windows and Linux, with APIs for LabVIEW™, MATLAB®, and Visual Studio environments. - **Applications:** Audio testing, acoustic measurement, vibration and noise analysis, machine condition monitoring, and structural dynamics.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

- **High‑Resolution Conversion:** 24‑bit sigma‑delta ADCs and DACs for superior dynamic range and low noise performance. - **Simultaneous Sampling and Output:** Two analog input channels and two analog output channels operate simultaneously, ensuring phase‑coherent data acquisition and generation. - **High Sampling and Update Rates:** - Analog Input: up to **432 kS/s** per channel - Analog Output: up to **216 kS/s** per channel - **Programmable Input and Output Ranges:** - Input: ±0.316 V, ±1 V, ±3.16 V, ±10 V, ±40 V - Output: ±0.1 V, ±1 V, ±10 V - **Flexible Coupling and Configuration:** Software‑selectable **AC/DC coupling** and **differential or pseudo‑differential** configurations for both input and output channels. - **Integrated IEPE Sensor Support:** Built‑in 4 mA to 10 mA excitation current for IEPE sensors (accelerometers, microphones), with 24 V compliance voltage. - **Triggering and Synchronization:** Supports software, analog, and external digital triggers; includes System Synchronization Interface (SSI) for multi‑module synchronization. - **FIFO Buffering and DMA Transfer:** 2048‑sample FIFO per channel with bus‑mastering DMA for continuous, high‑speed data streaming. - **Software and OS Support:** Compatible with Windows 7/Vista/XP and Linux; drivers available for DAQPilot, DASK, and LabVIEW™ environments. - **Environmental and Regulatory Compliance:** CE and FCC Class A certified; RoHS and WEEE compliant.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

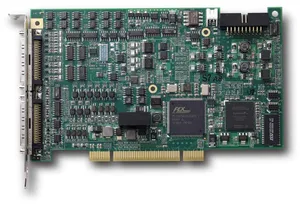

- **High‑Resolution Data Acquisition:** 24‑bit A/D conversion with up to 30 kS/s sampling rate for single‑channel operation. 4 differential load‑cell transducer inputs and 4 general‑purpose analog inputs. - **Integrated Motion Control:** 3‑axis stepper/servo motor control with differential pulse outputs (CW/CCW or CLK/DIR). Built‑in incremental encoder feedback channels for closed‑loop control. - **Precision Measurement:** Supports transducer sensitivities from 1.0 mV/V to 4.0 mV/V with 1/200,000 full‑scale accuracy. Auto‑zero and remote‑sense functions for thermal drift and line‑loss compensation. - **Analog Output:** Two 16‑bit D/A channels with ±10 V output range and 5 kS/s update rate. - **Isolated Digital I/O:** 8 opto‑isolated digital inputs (0–24 V) and 8 isolated MOSFET digital outputs (up to 300 mA sink current). - **Onboard Timing Resources:** Two 32‑bit 40 MHz general‑purpose timer/counters and two 4 MHz encoder inputs. - **Connectivity:** Dual 68‑pin VHDCI (SCSI‑II) connectors for analog, digital, and motion I/O. - **Plug‑and‑Play PCI Interface:** Fully compliant with 32‑bit 3.3 V/5 V PCI bus, supporting bus‑mastering DMA and scatter/gather transfers. - **Software Support:** Compatible with ADLINK PCIS‑DASK driver library for Windows 98/NT/2000/XP/Vista and LabVIEW™.

Manufacturer: Adlink Technology Inc.

Category: A/D High Resolution PCI

- **DSP‑Based Architecture:** On‑board 200 MHz TI TMS320C6711D DSP (1200 MFLOPS) with motion ASIC (PCL6045) for real‑time control without CPU load. - **High‑Speed Pulse Output:** Up to 6.55 MHz pulse output rate for stepper or servo motor control. - **Multi‑Axis Interpolation:** Supports 2–4‑axis linear interpolation, 2‑axis circular interpolation, and 3‑axis helical interpolation. - **Continuous Contouring:** Pre‑register architecture enables seamless motion chaining for continuous path control. - **Dynamic Motion Adjustment:** Allows on‑the‑fly changes to speed or position during motion execution. - **Advanced Motion Profiles:** Programmable acceleration/deceleration with trapezoidal and S‑curve velocity profiles. - **Position Feedback:** 28‑bit up/down counter for incremental encoder feedback (up to 6.5 MHz). - **Hardware Triggering:** Position compare and trigger output with hardware‑based latency‑free response. - **Position Latch:** Hardware latch captures encoder position on external trigger input. - **Automatic Backlash Compensation:** Hardware‑based backlash correction on direction change. - **Home Return Flexibility:** 13 selectable home return modes with auto‑search capability. - **Simultaneous Start/Stop:** Multi‑axis synchronization across one or multiple cards. - **Isolation & Protection:** 2500 Vrms optical isolation on all digital I/O channels. - **Multi‑Card Scalability:** Supports up to 12 PCI‑8174 cards in one system. - **Software Limit & Safety:** Dual software end‑limits per axis, emergency stop input, and programmable interrupt sources. - **Manual Pulser Interface:** Supports manual pulse generator input for jog or teach functions. - **Security & Reliability:** EEPROM‑based program protection and hardware watchdog. - **Software Tools:** Bundled with MotionCreatorPro™ for configuration, debugging, and motion testing. - **Cross‑Platform Support:** Drivers and APIs for Windows 2000/XP/Vista and Linux (RedHat, Fedora, SUSE).

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **High‑Resolution Analog Input:** 16 single‑ended or 8 differential analog input channels with 12‑bit resolution and up to 110 kS/s sampling rate. - **Flexible Input Configuration:** Software‑selectable bipolar and unipolar input ranges with programmable gains (×0.5, ×1, ×2, ×4, ×8). - **Dual Analog Outputs:** Two 12‑bit D/A channels with programmable output ranges (0–5 V, 0–10 V, or external reference), ±5 mA drive, and 30 µs settling time. - **Digital I/O:** 16 TTL‑compatible digital inputs and 16 TTL‑compatible digital outputs for control and monitoring applications. - **Timer/Counter:** One 16‑bit general‑purpose counter/timer (Intel 8254 compatible) with a 2 MHz base clock and external clock input up to 10 MHz. - **Low‑Profile Design:** MD1‑size (120 × 65 mm) PCI card suitable for compact industrial PCs and embedded systems. - **Universal PCI Support:** Compatible with both 3.3 V and 5 V PCI slots, ensuring broad system compatibility. - **Automatic Channel Scanning:** Hardware‑based auto‑scan for sequential analog input sampling. - **Noise Reduction:** Differential input mode for improved common‑mode noise rejection. - **On‑Board DC/DC Converter:** Provides isolated and stable analog power for improved measurement accuracy. - **Plug‑and‑Play Configuration:** Fully PCI‑compliant with automatic resource allocation (IRQ, I/O base address). - **Comprehensive Software Support:** Includes drivers, DLLs, and libraries for DOS, Windows 95/98/NT, and supports LabVIEW, DASYLab, HP‑VEE, and InTouch.

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose PCI
