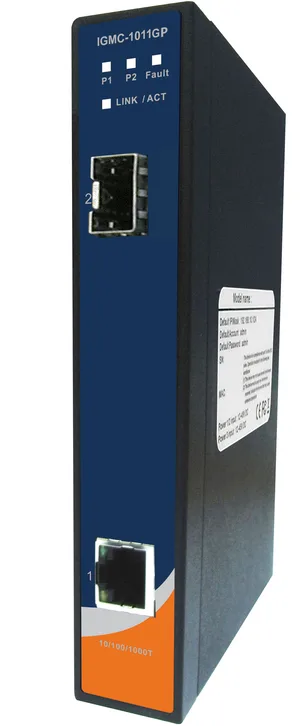

- Provides media conversion between 10/100/1000Base‑T(X) copper and 1000Base‑X fiber (via SFP module). - Auto‑negotiation and auto‑MDI/MDI‑X for the copper Ethernet port. - Supports multi‑mode or single‑mode fiber through compatible SFP transceivers. - Wide input power range: dual redundant 12–48 VDC via 6‑pin terminal block. - Power alarm relay output rated 1 A at 24 VDC, with DIP‑switch‑selectable alarm behavior. - Rugged IP‑30 metal enclosure designed for industrial environments. - Slim‑type model with compact form factor for dense cabinet installations. - Extended operating temperature specification: – Standard series spec: −10 to 60 °C – Extended series spec: −40 to 70 °C (per updated datasheet). - DIN‑rail and wall‑mount installation supported. - Low power consumption (~3.5 W). - Supports jumbo frames up to 10240 bytes (per full specs). - FCC Class A, EN55022 Class A EMI compliance; EN61000‑4‑2/3/4/5/6/8/11 EMC immunity certification. - Reverse polarity protection and overload current protection included.

Manufacturer: Oring

Category: Industrial Media Converter

• One 10/100/1000Base‑T(X) auto‑negotiation RJ‑45 copper port with auto‑MDI/MDI‑X • One 100/1000Base‑X SFP fiber port supporting a wide range of ORing SFP transceivers • Supports multimode fiber (50/125 µm) up to 2 km and single‑mode fiber (9/125 µm) up to 120 km (dependent on SFP module) • Jumbo frame support up to 9K bytes (Gigabit mode only) • LFP (Link Fault Pass‑through) with DIP‑switch enable/disable for enhanced link management • Configurable alarm relay output (1A at 24 VDC capacity) for fault signaling • DIP‑switch configuration for: LFP enable/disable, FX mode selection, relay trigger settings, power input monitoring • Dual redundant 12–48 VDC power inputs with reverse‑polarity and overload protection • Industrial hardened design with wide operating temperature −40°C to +75°C • IP‑30 metal enclosure, DIN‑rail or wall‑mount installation • Low power consumption (~4 W) • Compact slim housing: 40 × 70 × 95 mm • MTBF over 1.1 million hours • 5‑year warranty • Designed for rugged environments, industrial automation, transportation, and outdoor applications

Manufacturer: Oring

Category: Industrial Media Converter

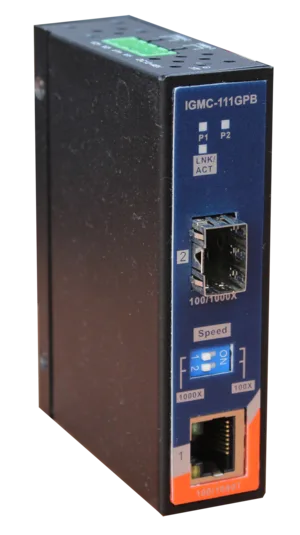

• Converts 100/1000Base‑T(X) RJ45 Ethernet to 100/1000Base‑X SFP fiber • Auto‑negotiation and auto‑MDI/MDIX detection on the copper Ethernet port • Supports both Fast Ethernet (100 Mbps) and Gigabit Ethernet (1000 Mbps) speeds • SFP port speed selectable through dual DIP‑switch configuration (100 Mbps / 1000 Mbps) • Wide operational temperature range from −40°C to +70°C for extreme industrial environments • Wide dual DC input range from 12 to 48 VDC with reverse polarity and overload protection • IP‑30 metal enclosure for enhanced robustness and EMI resistance • DIN‑rail and wall‑mount installation options included • LED indicators for power status, link/activity, and speed • Supports multimode fiber (50/125 µm) distances up to 2 km and single‑mode (9/125 µm) distances up to 120 km (depending on SFP module) • Low power consumption (~3.5–3.6 W typical) • Industrial certifications for EMI, EMS, shock, vibration, and free‑fall compliance • 5‑year manufacturer warranty

Manufacturer: Oring

Category: Industrial Media Converter

The IGPMC‑111GP incorporates numerous high‑availability and industrial‑performance functions: • One 10/100/1000Base‑T(X) copper Ethernet port with auto‑negotiation and auto‑MDI/MDI‑X capability. • One 100/1000Base‑X fiber SFP port compatible with both 100 Mbps and 1 Gbps SFP transceivers. • IEEE 802.3at PoE P.S.E. compliant, supporting up to 30 W output per port for powering remote PD devices. • Jumbo Frame support up to 9K bytes in Gigabit mode. • Full LFP (Link Fault Pass‑Through) functionality to improve fault detection and system responsiveness. • DIP‑switch configurable options for power failure detection, LFP control, fiber speed mode selection, and PoE shutdown behavior. • Relay output alarm for system warnings, supporting 1A at 24 VDC. • Wide dual power input 50–57 VDC for redundancy. • Rugged IP‑30 metal enclosure suitable for industrial environments. • Operating temperature range ‑40°C to 75°C, suitable for extreme climates. • DIN‑rail and wall‑mount mechanical installation options. • High mean time between failures (MTBF) of 1,116,093 hours. • Five‑year manufacturer warranty.

Manufacturer: Oring

Category: Industrial Media Converter

• Converts 2×10/100Base‑T(X) copper Ethernet ports to 1×100Base‑FX multimode fiber port via SC connector • Multimode fiber operation at 1310 nm wavelength with transmission distance up to 2 km • Supports auto-negotiation and auto‑MDI/MDI‑X on 10/100Base‑T(X) ports • Two RJ45 copper ports provided to optimize port usage in industrial networks • Rugged IP‑30 metal housing suitable for harsh environments • Extended operating temperature range: standard models −10°C to +60°C; T‑models −40°C to +70°C • Alarm relay output (configurable) supporting system fault notification • Dual DC power input providing redundancy, 9–30 VDC • Low power consumption (~4.5 W typical) • Designed for DIN‑rail mounting for simplified industrial deployment • 5‑year warranty reflecting long‑term reliability • Industrial‑grade stability meeting the requirements of factory automation, transportation, utilities, and remote communication systems

Manufacturer: Oring

Category: Industrial Media Converter

2*10/100Base TX Ethernet to 100Base FX Fiber SC media converter, Multi Mode 2km 1310nm, SC connector, Alarm Relay out configurable, 9..30VDC in, dual power input, DIN rail mountable, extended operating temperature -40°..+75°C, 88*102*24mm, ~300gr, ~4,5W, Oring

Manufacturer: Oring

Category: Industrial Media Converter

• Copper‑to‑fiber media conversion between 10/100Base‑T(X) and 100Base‑FX • Two 10/100Base‑T(X) RJ45 ports, allowing reduced copper port usage • Single‑mode 100Base‑FX fiber interface (SC connector, 1550 nm) • Supports long‑distance fiber communication up to 30 km • Auto‑negotiation support on all RJ45 copper ports • Auto‑MDI/MDI‑X support for simplified installation • Industrial IP‑30 hardened metal housing • Dual power input (9–30 VDC) with redundant power support • Configurable alarm relay output for system or link failure notifications • DIN‑rail mountable compact housing • Extended operating temperature for harsh environments • Low power consumption (~4.5 W) • Reliable non‑managed operation for mission‑critical industrial networks

Manufacturer: Oring

Category: Industrial Media Converter

• Converts **2× 10/100Base‑T(X)** Ethernet ports to **1× 100Base‑FX** fiber port • Supports **single‑mode** fiber with **SC connector**, **1550 nm** wavelength, up to **30 km** transmission distance • **Auto‑negotiation** and **auto‑MDI/MDI‑X** on all copper ports • Extended temperature rating: **–40°C to +75°C** • **IP‑30** rugged metal housing for industrial reliability • **Alarm relay output** (configurable) for event notifications • **Dual redundant DC power input** (9–30 VDC) for high availability • **Low power consumption** (~4.5 W) and lightweight (~300 g) • **DIN‑rail mountable** industrial form factor • Designed for high‑reliability deployment in demanding environments such as transportation, factory automation, utility networks, and critical infrastructure

Manufacturer: Oring

Category: Industrial Media Converter

, etc.) even though they technically count as formatting? Please choose one: 1. Plain-text summary with no formatting at all (just line breaks, bullet lists allowed) 2. Structured summary with the exact numbered headings you requested

Manufacturer: Oring

Category: Industrial Media Converter

1*10/100Base TX Ethernet to 100Base FX SC Fiber converter, Alarm Relay out configurable, 9..30VDC in, dual power input, DIN rail mountable, extended operating temperature -40°..+75°C, ~300gr, ~4,5W, Oring

Manufacturer: Oring

Category: Industrial Media Converter

1*10/100Base TX Ethernet to SFP100 converter, Alarm Relay out configurable, 9..30VDC in, dual power input, DIN rail mountable, extended operating temperature -40°..+75°C, ~300gr, ~4,5W, Oring

Manufacturer: Oring

Category: Industrial Media Converter

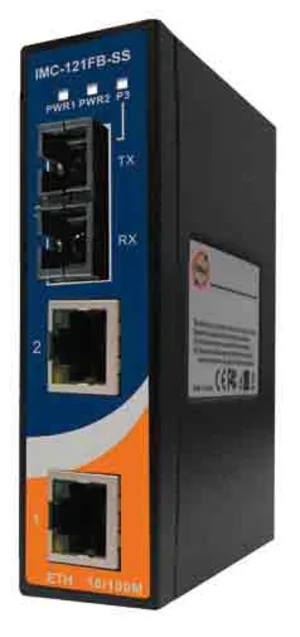

• Two 10/100Base‑T(X) RJ45 ports with auto‑negotiation and auto‑MDI/MDI‑X for flexible copper connectivity. • One 100Base‑FX multimode fiber port (2 km, 1310 nm, SC connector) enabling long‑distance fiber extensions. • Slim, mini‑type industrial form factor optimized for compact control cabinets and DIN‑rail installations. • Rugged IP‑30 metal enclosure that protects against environmental contamination, EMI exposure, and mechanical stress. • Extended operating temperature capability from ‑40°C to +75°C (variant specification) for deployment in outdoor or unconditioned spaces. • Dual redundant DC power inputs with 9–30 VDC (or 12–48 VDC by model spec) supporting uninterrupted operation and failover redundancy. • Built‑in alarm relay output for alerting on power status events. • Low power consumption around 4.5 W for energy‑efficient operation. • High reliability with overload current protection and reverse polarity protection. • Wall‑mount and DIN‑rail mounting supported. • Long-term industrial warranty (5 years).

Manufacturer: Oring

Category: Industrial Media Converter

2*10/100Base TX Ethernet to 100Base FX Fiber SC media converter, Single Mode 30km 1550nm, SC connector, Alarm Relay out configurable, 9..30VDC in, dual power input, DIN rail mountable, extended operating temperature -40°..+75°C, ~300gr, ~4,5W, Oring

Manufacturer: Oring

Category: Industrial Media Converter

• Dual 10/100Base‑T(X) copper Ethernet ports with auto‑negotiation and auto‑MDI/MDI‑X • One 100Base‑FX multimode fiber port (1310 nm, SC connector, 2 km range) • Slim industrial “mini‑type” form factor for space‑constrained installations • Highly rigid IP‑30 metal housing for mechanical durability • Extended temperature range: −40°C to +70°C • Alarm relay output (configurable) for event monitoring • Wide input voltage range: 12–48 VDC with dual redundant inputs • Overload and reverse polarity protection built in • Low power consumption (~4.5 W typical) • DIN‑rail and wall‑mount support included • LED indicators for power, copper link/activity, duplex/collision, and fiber link/activity • Designed for rugged industrial applications requiring robust media conversion • Part of ORing’s reliability‑focused industrial product line

Manufacturer: Oring

Category: Industrial Media Converter

• Supports 2× 10/100Base‑T(X) Ethernet copper ports • Auto-negotiation for 10/100 Mbps and auto-MDI/MDI‑X • Provides 1× 100Base‑FX single‑mode SC fiber port (30 km, 1310 nm) • Rugged industrial design with IP‑30 metal housing • Compact “mini-type” slim profile suitable for space‑restricted panels • Extended operating temperature range from −40°C to +70°C • Alarm relay output for fault indication (configurable) • Dual DC power input for redundancy (12–48 VDC) • Reverse polarity protection and overload current protection • DIN‑rail and wall‑mount installation options • Low power consumption (~4.5 W typ.) • Ideal for extended‑distance fiber links up to 30 km • High reliability for industrial automation, surveillance networks, transportation, and utility applications • Clear LED indicators for power, link/activity, and duplex/collision • Compliance with EMC, EMI, and safety industry standards • 5-year manufacturer warranty

Manufacturer: Oring

Category: Industrial Media Converter

Industrial Mini Type 1*Fiber FX SFP to 1*100TX RJ45 with PoE media converter, up to 30W PoE, supports LFP (lLink Fault Pass Through) function, dual 50..57VDC DC input 4pin terminal block, 26,1*70*95mm, ~210gr, Oring

Manufacturer: Oring

Category: Industrial Media Converter

• Converts 10/100Base‑T(X) Ethernet to 100Base‑FX fiber via SFP socket • Ultra‑slim industrial mini form factor for space‑constrained deployments • RJ45 interface supports auto‑negotiation and auto‑MDI/MDI‑X • Provides PoE / PoE+ / PoE++ support depending on version, up to 60 W (PD capability for high‑power devices) • Compliance with IEEE 802.3at PoE standard (up to 30 W per P.S.E. port) • LFP (Link Fault Pass‑Through) functionality with DIP‑switch control to ensure immediate fault propagation • Store‑and‑forward packet switching mechanism • DIP‑switch configurable Ethernet mode, speed, duplex mode, and fiber duplex operation • Operating temperature range from –40 to 70°C, suitable for harsh outdoor/industrial applications • Redundant dual DC power inputs (50–57 VDC) via 4‑pin terminal block • Rugged IP‑30 metal enclosure • DIN‑rail and wall‑mount installation options • Comprehensive LED indicators for power, link/activity, duplex states, PoE, and LFP status • High EMC immunity, shock, vibration, and free‑fall compliance • 5‑year manufacturer warranty from ORing Industrial Networking Corp.

Manufacturer: Oring

Category: Industrial Media Converter

• Converts 1G/10GBase‑T (RJ‑45) to 1G/10GBase‑X (SFP+) • Supports both Gigabit and 10‑Gigabit Ethernet speeds • Auto‑negotiation and Auto MDI/MDIX detection on copper port • Jumbo frame support up to 10 KB • Industrial‑grade IP30 metal enclosure • DIN‑rail and wall‑mount installation options • Extended operating temperature: -20°C to +60°C • Dual redundant 12–48 VDC power inputs • Relay output for event warning and alarm notification • Supports shielded twisted pair Cat6a or higher for 10GBase‑T • Designed for multimode and single‑mode SFP fiber modules • LED indicators for power, link/activity, port speed, and relay status • Electrical protection including overload and reverse polarity protection

Manufacturer: Oring

Category: Industrial Media Converter

- **Ethernet-to-Fiber Conversion:** Converts 10/100Base-TX Ethernet signals to 100Base-FX fiber optic signals for long-distance data transmission. - **Auto-Negotiation:** Supports 10/100 Mbps auto-negotiation and full-/half-duplex operation on the TX port. - **Auto MDI/MDI-X:** Automatically detects and configures straight-through or crossover Ethernet cables. - **Extended Transmission Range:** Supports up to **100 meters** over copper (UTP) and **20 km** over single-mode fiber (optionally up to 60 km). - **High Noise Immunity:** Fiber optic transmission eliminates issues caused by electrical noise and ground potential differences. - **Plug-and-Play Design:** Simple installation with automatic configuration; no software setup required. - **Wide Power Input Range:** Accepts **+10 to +30 VDC** via screw terminal, external DC adapter, or USB port. - **Low Power Consumption:** Typical consumption of **12V/160mA**. - **Rugged Metal Enclosure:** Compact, durable metal housing designed for industrial environments. - **LED Indicators:** Comprehensive LED status display for power, Ethernet link/activity, fiber link, speed, and duplex mode. - **Link Fault Pass-Through (LFP):** Ensures network integrity by propagating link faults between copper and fiber interfaces. - **Far-End Fault (FEF) Support:** Detects and reports remote fiber link failures. - **IEEE Compliance:** Fully compliant with **IEEE 802.3u 100Base-TX/100Base-FX** standards. - **Built-in Data Buffer:** Integrated **128 Kb RAM** for data buffering and stable transmission.

Manufacturer: Trycom

Category: Industrial Media Converter

- **Ethernet-to-Fiber Conversion:** Converts standard 10/100Base-TX Ethernet signals to 100Base-FX fiber optic signals for long-distance transmission. - **Extended Transmission Range:** Supports fiber communication distances up to **20 km standard**, with optional configurations extending up to **60 km** (SC/40KM variant supports up to 40 km). - **Auto-Negotiation:** Automatically detects and configures 10/100 Mbps data rates and half/full-duplex modes on the TX port. - **Auto MDI/MDI-X:** Automatically detects cable type (straight-through or crossover) for simplified Ethernet connections. - **Wide Power Input Range:** Accepts **+10 to +30 VDC** via screw terminal, external DC adapter, or USB power input. - **Plug-and-Play Operation:** No software configuration required; installation and operation are immediate. - **Rugged Metal Enclosure:** Compact, durable metal housing designed for industrial environments. - **LED Status Indicators:** Provides visual feedback for power, Ethernet link/activity, fiber link, speed, and duplex status. - **Link Fault Pass-Through (LFP):** Ensures network integrity by propagating link failures between copper and fiber interfaces. - **Far-End Fault (FEF) Support:** Detects and reports remote fiber link failures for easier troubleshooting. - **IEEE 802.3u Compliance:** Fully compliant with Ethernet standards for 100Base-TX and 100Base-FX. - **Low Power Consumption:** Typical consumption of **12V/160mA**, ensuring energy-efficient operation. - **High Immunity to Electrical Noise:** Ideal for installations where electromagnetic interference (EMI) or ground potential differences are present.

Manufacturer: Trycom

Category: Industrial Media Converter

- **Media Conversion:** Converts 100Base-TX (UTP) Ethernet signals to 100Base-FX (fiber optic) and vice versa, enabling network extension over long distances. - **Fiber Support:** Compatible with both multimode and single-mode fiber optics, including long-haul (LH) variants for extended reach up to 40 km. - **Auto-Negotiation:** Automatically detects and configures full-duplex or half-duplex operation when connected to Fast Ethernet auto-negotiation switches, ensuring optimal bandwidth utilization. - **“Missing Link” Function:** Provides real-time link status reporting to network management systems. If a fiber link fails, the converter signals the connected switch, allowing redundant links to activate automatically. - **MDI/MDIX Auto-Crossover:** Built-in switch allows direct connection to PCs, hubs, or switches using standard twisted pair cables without requiring crossover cables. - **Link Test Function:** Enables verification of fiber link integrity during installation without specialized test equipment. - **Flexible Deployment:** Operates as a standalone unit with an external power supply or can be installed in a 19” rack chassis accommodating up to 12 converters with shared power. - **LED Indicators:** Front panel LEDs provide clear visual feedback for power, link status, data reception, and test mode. - **High Reliability:** Designed for continuous operation with robust electrical and mechanical certifications. - **Lifetime Warranty:** Allied Telesyn provides an unlimited functional warranty and free technical support for all Fast Ethernet media converters.

Manufacturer: Allied Telesyn

Category: Std. Media Conv.

MM Fiber ST to UTP media converter, 0..50° C operating temperature, 105*95*25mm, 12VDC 500mA 6W, 294gr, Allied Telesyn

Manufacturer: Allied Telesyn

Category: Std. Media Conv.

- **Media Conversion:** Converts 100Base-TX (UTP) to 100Base-FX (fiber optic) for extended network distances. - **Fiber Compatibility:** Supports both **multimode** and **singlemode** fiber types, including **long-haul (LH)** variants for extended reach up to **40 km**. - **Auto-Negotiation:** Automatically detects and configures full-duplex or half-duplex operation when connected to Fast Ethernet auto-negotiation switches, ensuring optimal bandwidth utilization. - **“Missing Link” Function:** Provides real-time link status feedback to network management systems. If a fiber link fails, the converter signals the connected switch, enabling automatic failover to redundant links. - **MDI/MDIX Auto-Crossover:** Built-in switch allows direct connection to PCs, hubs, or switches using standard twisted-pair cables without requiring crossover cables. - **Link Test Function:** Enables verification of fiber link integrity during installation without specialized test equipment. - **Standalone or Rack-Mountable:** Operates as a standalone unit with an external power supply or can be installed in a **19-inch rack chassis** (up to 12 units per chassis) for centralized power and management. - **LED Indicators:** Front panel LEDs provide clear visual feedback for power, link status, data reception, and test mode. - **High Reliability:** Backed by Allied Telesyn’s **lifetime functional warranty** and **free technical support**, ensuring long-term operational stability.

Manufacturer: Allied Telesyn

Category: Std. Media Conv.

- **Media Conversion:** Converts 100Base-TX (UTP) to 100Base-FX (single-mode fiber) for extended network reach. - **Long-Haul Capability:** Supports single-mode long-haul (LH) fiber connections up to 40 km in full-duplex mode. - **Auto-Negotiation:** Automatically detects and configures full- or half-duplex operation when connected to Fast Ethernet auto-negotiation switches. - **“Missing Link” Function:** Provides link fault signaling between fiber and copper segments, enabling network management systems to detect and respond to link failures. - **Link Test Function:** Allows verification of fiber link integrity without external test equipment. - **MDI/MDIX Auto-Switching:** Built-in crossover detection allows direct connection to PCs, hubs, or switches using standard twisted pair cables. - **Standalone or Rack-Mountable:** Operates as a standalone unit with external power supply or can be installed in a 19” rack chassis accommodating up to 12 converters. - **LED Indicators:** Front panel LEDs for power, link status, data reception, and test mode provide clear visual diagnostics. - **High Reliability:** Backed by Allied Telesyn’s lifetime functional warranty and free technical support. - **Compact Design:** Small form factor suitable for desktop or rack-mounted installations.

Manufacturer: Allied Telesyn

Category: Std. Media Conv.

The AT‑MC104LH incorporates key features supporting robust network operation, high reliability, and flexible deployment. These include: • Single‑mode long‑haul SC fiber to multimode SC fiber conversion up to 40 km distance • Support for multi‑ and singlemode fiber optical interfaces in common wavelength ranges (100FX, 100SX, 100BaseFX, Longhaul) • Integrated auto‑negotiation on Fast Ethernet links for full‑duplex or half‑duplex bandwidth optimization • “Missing Link” functionality reporting fiber‑link failures to network switches, enabling redundancy mechanisms • Internal MDI/MDIX switching for automatic Twisted Pair port crossover selection • Built‑in link test mode for fiber‑path integrity diagnostics without external instruments • Operation as standalone device or rack‑mountable via 19‑inch chassis with optional redundant power • Continuous operation reliability ensured through unlimited lifetime functional warranty and free technical support • Full compliance with international safety, EMC, and optical standards These features make the AT‑MC104LH a versatile solution for extending network reach across fiber infrastructures while maintaining compatibility with standard Fast Ethernet equipment.

Manufacturer: Allied Telesyn

Category: Std. Media Conv.
